A Tour of Computer Systems
The lifetime of the hello program
- Information Representation
- Compilation System
- Hardware Organization
- Operating System
#include<stdio.h>
int main()
{
printf("hello, world\n");
}hello.c
- Information Representation
main:
subq $8, %rsp
movl $.LCO, %edi
call puts
movl $0, %eax
addq $8, %rsp
ret- Compilation System

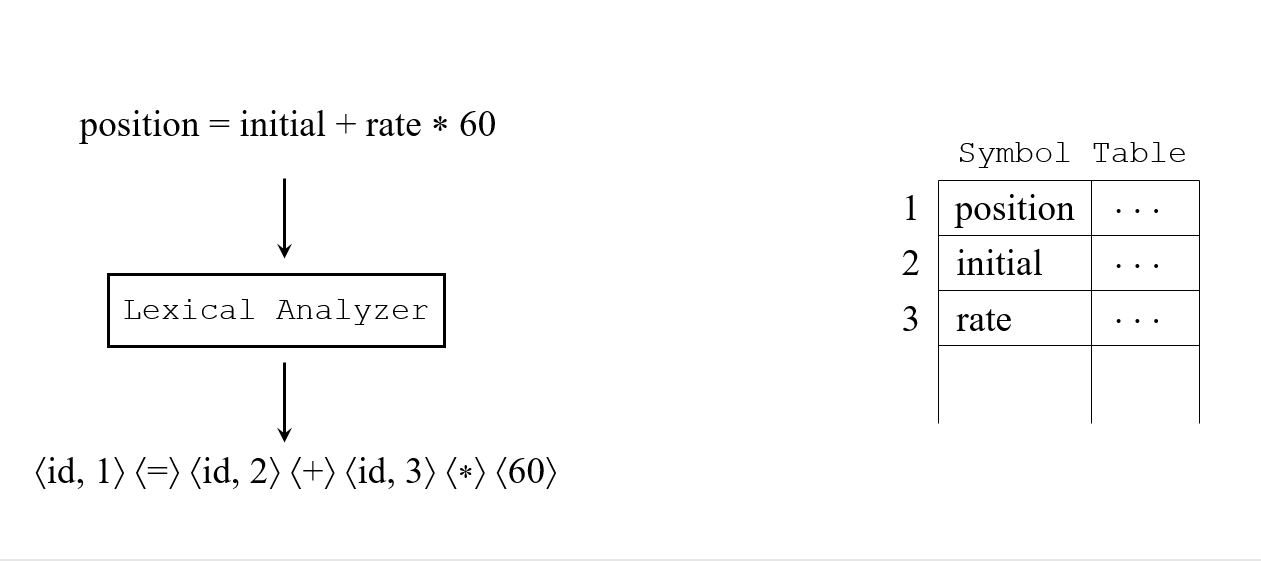

character stream
token stream

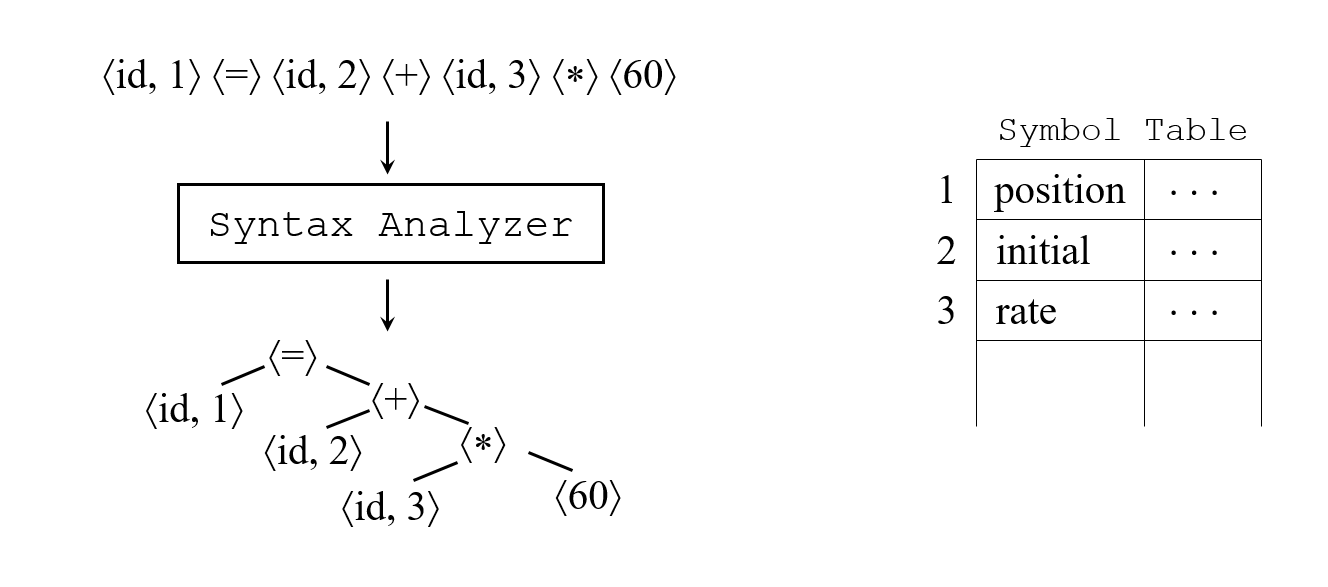

token stream
syntax tree

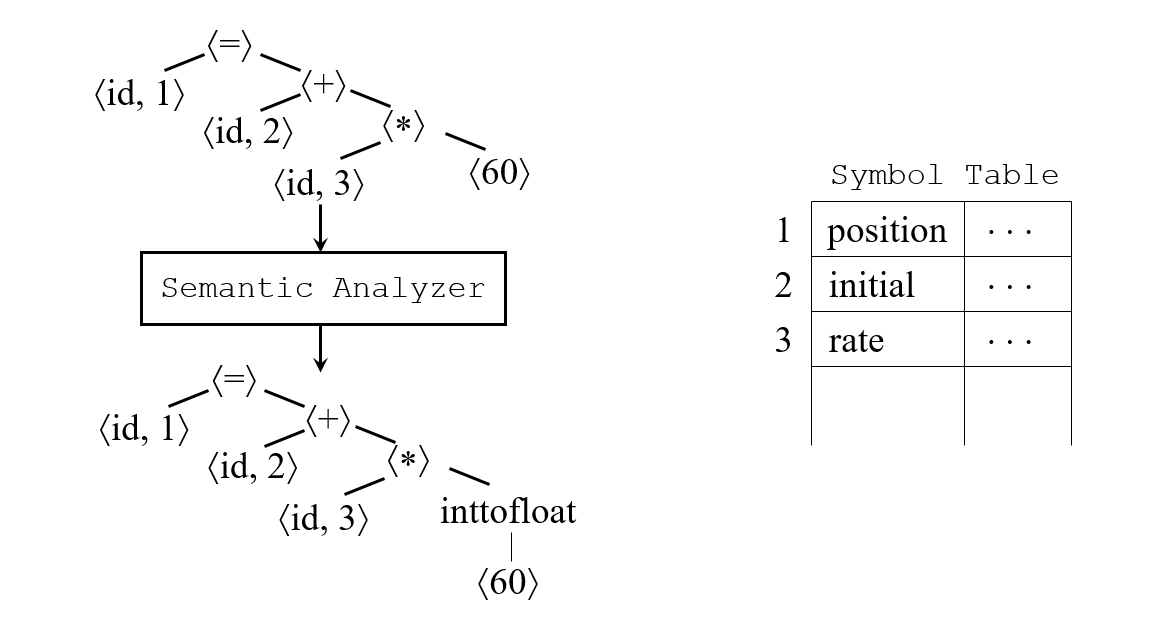

syntax tree
syntax tree
int foo(unsigned int u) {
return (u > -1) ? 1 : 0;
}syntax tree

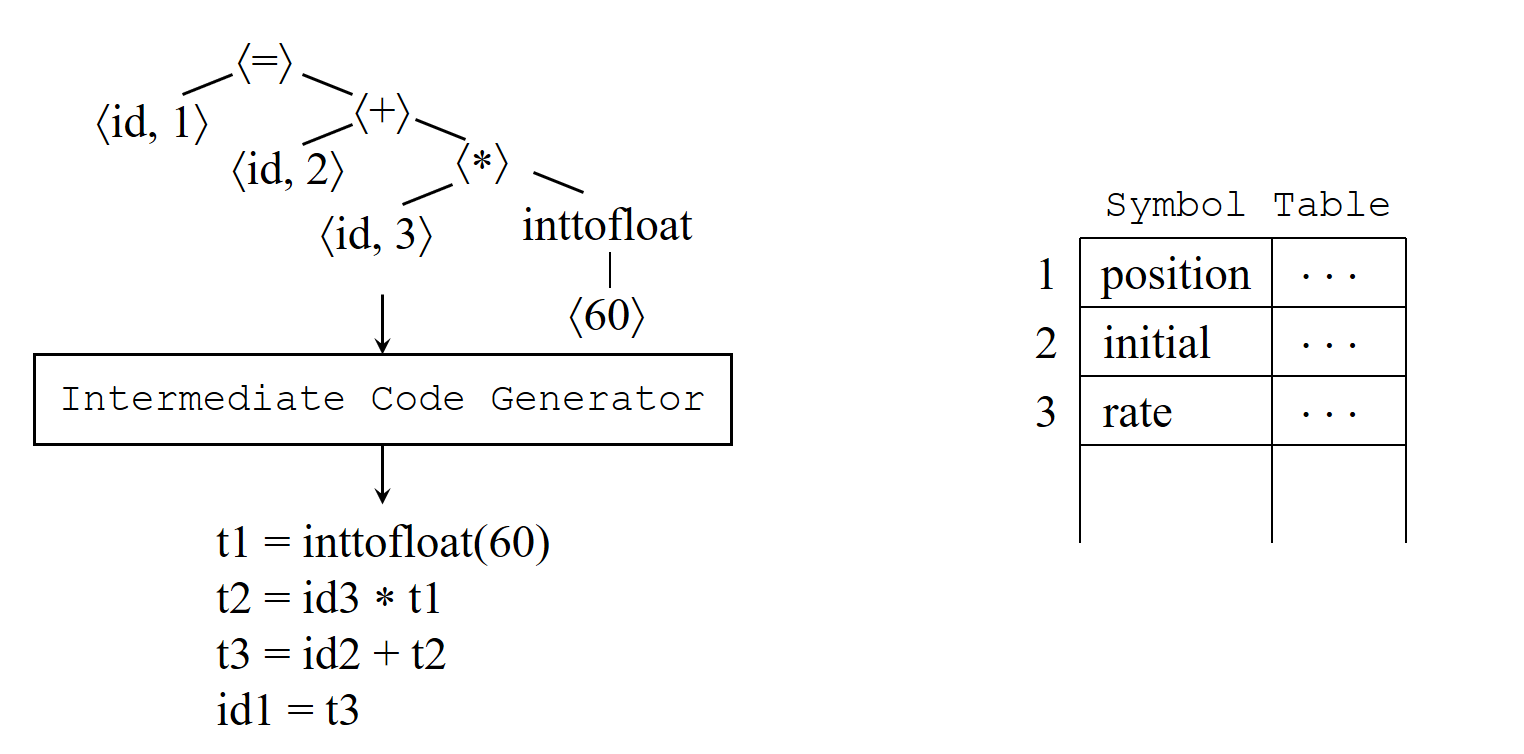

intermediate representation

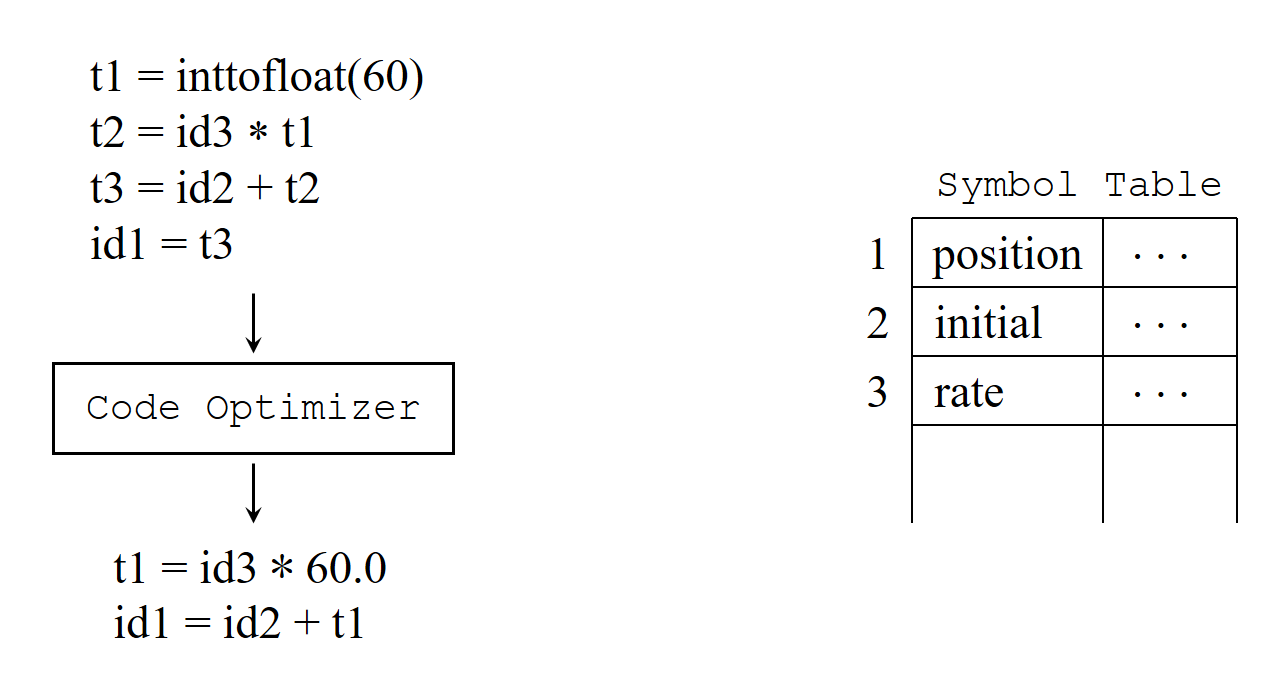

intermediate representation
intermediate representation
intermediate representation

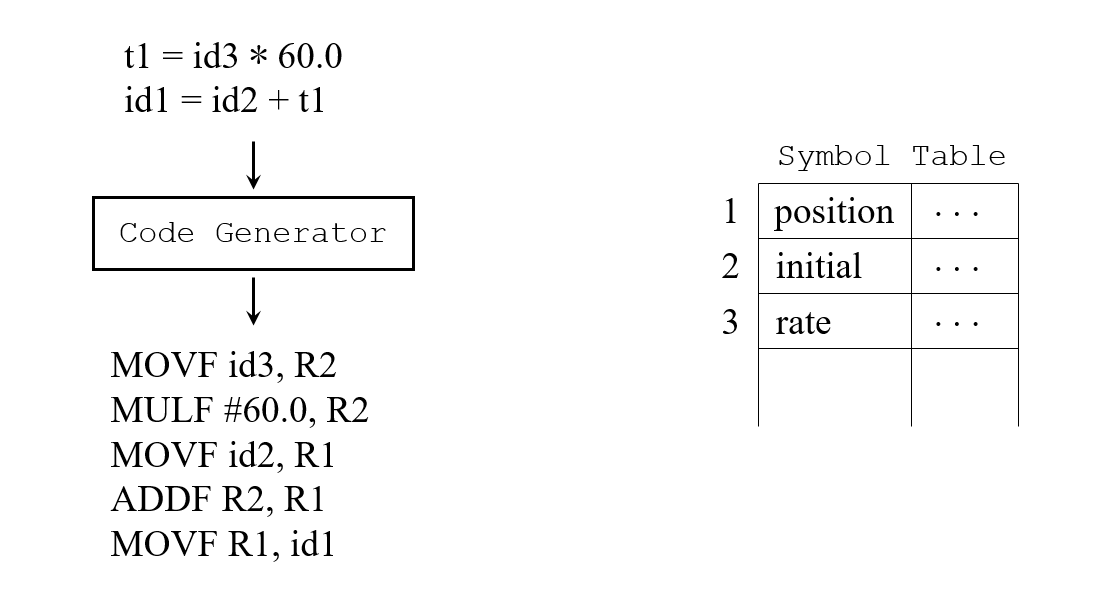

machine code

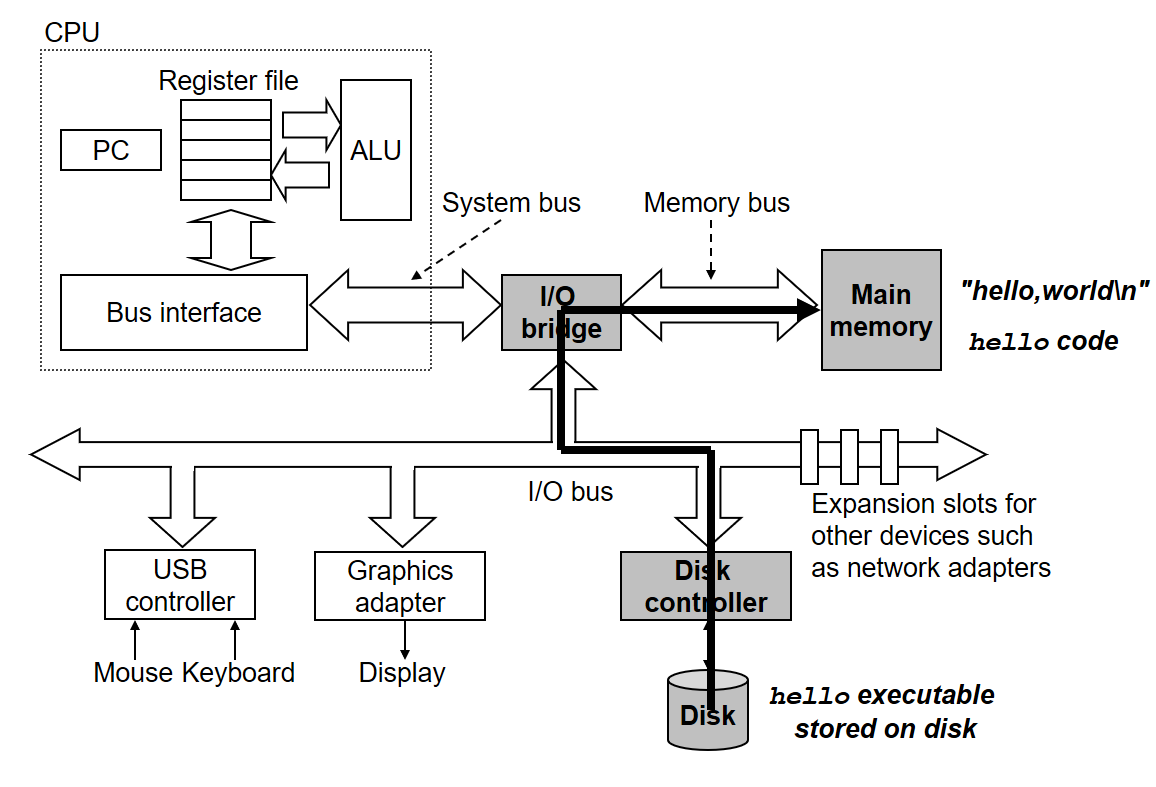

一个典型的系统硬件构成
- Hardware Organization

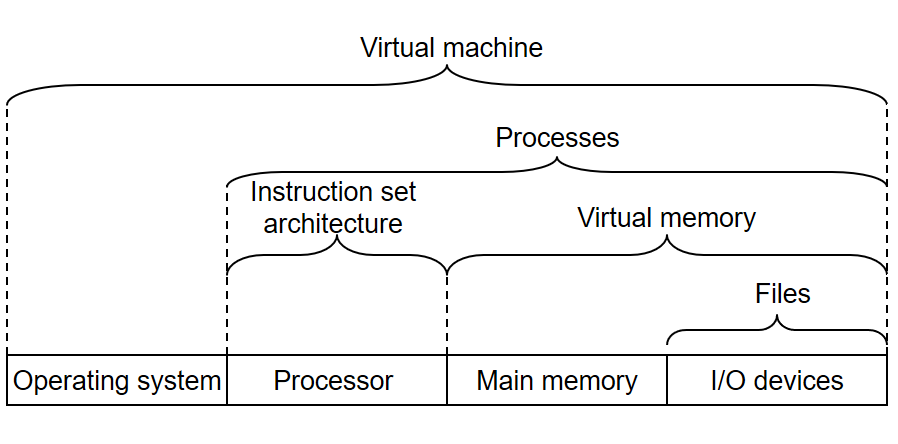

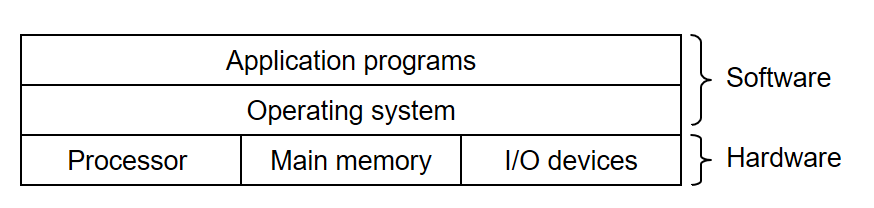

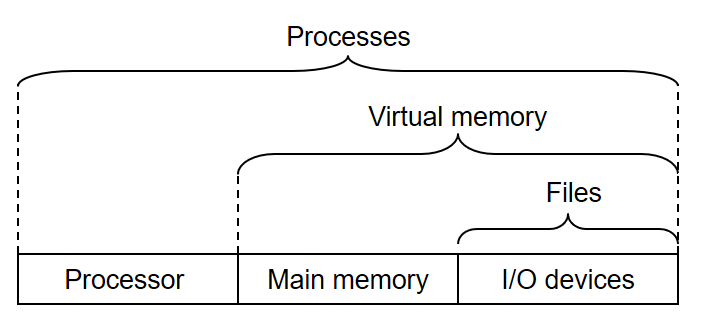

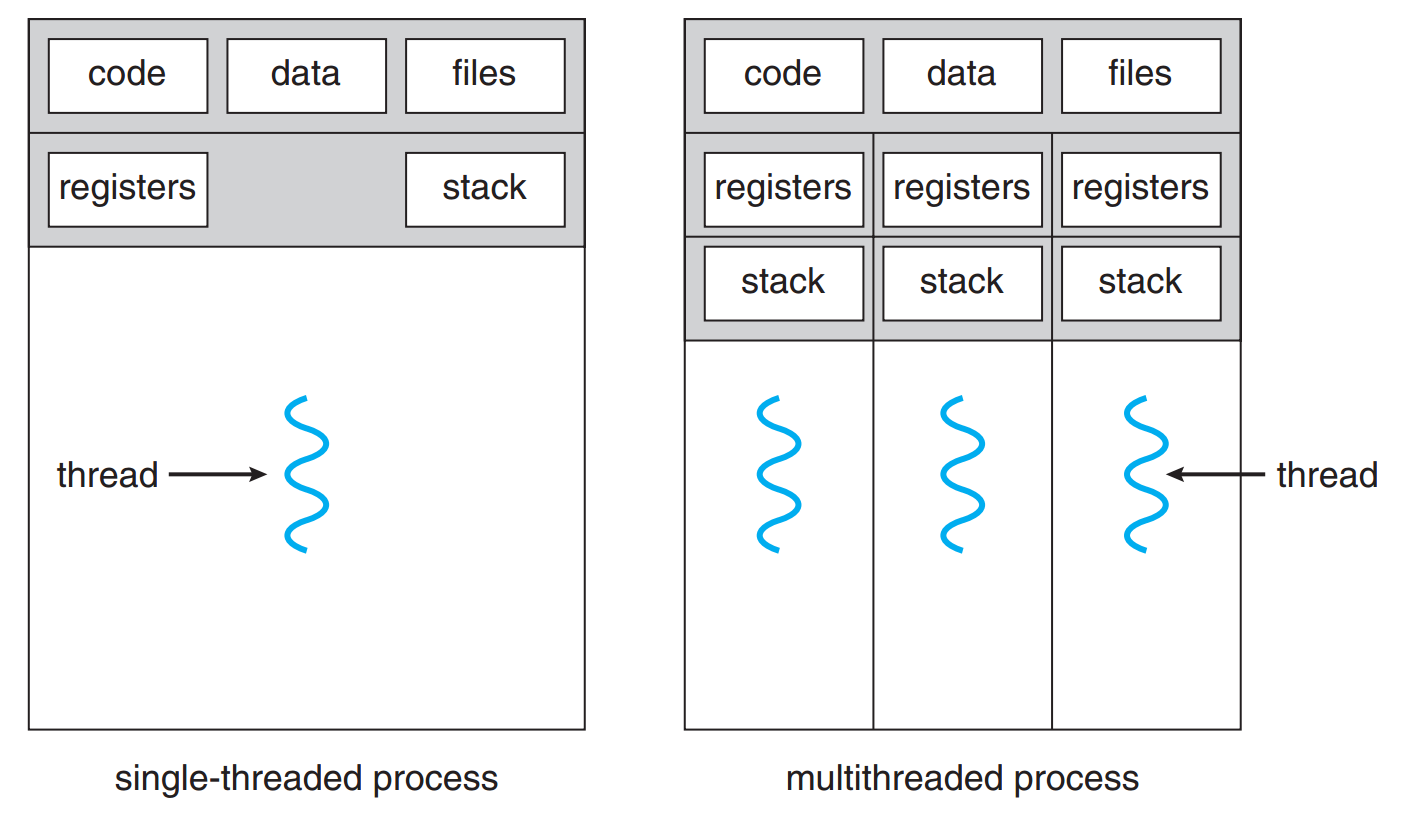

- Operating System
Main memory Allocation
- Contiguous Allocation
- Paging
- Segmentation
- Contiguous Allocation
Single Contiguous Allocation
fixed-sized Allocation
dynamic storage allocation
- first-fit
- next-fit
- best-fit
- worst-fit

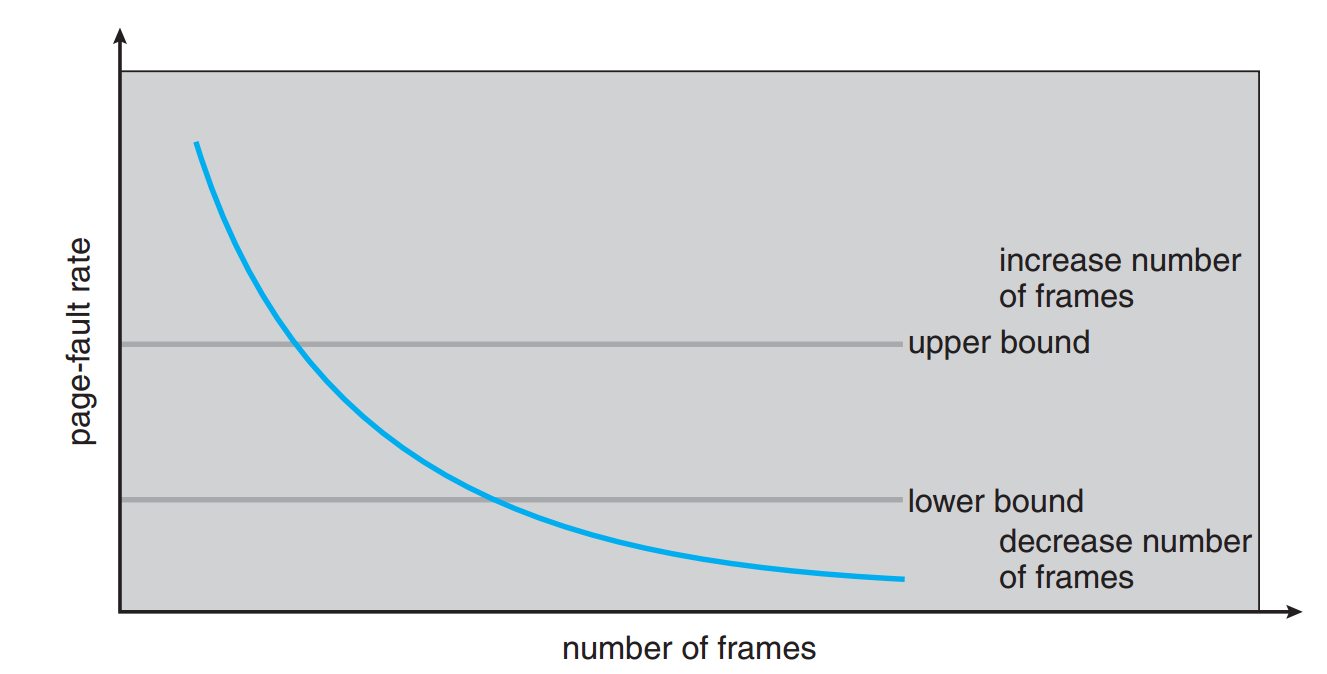

- Paging
Divide physical memory into fixed-sized blocks called frames
Divide logical memory into blocks of same size called pages
- Segmentation
CPU Scheduling
- First-Come First-Serve
- Shortest-Job First
- Priority
- Round-Robin
- Shortest Remaining Time First
-
Tips#1:
Ints are not Integers, Floats are not Reals
Is x2 ≥ 0?
Float’s: Yes!
Int’s:
40000 * 40000 ➙ 1600000000
50000 * 50000 ➙ ??
-
Tips#2:
Pointers Are Not Limited
typedef struct {
int a[2];
double d;
} struct_t;
double fun(int i) {
struct_t s;
s.d = 3.14;
s.a[i] = 1073741824; /* Possibly out of bounds */
return s.d;
}fun(0) ➙ 3.14
fun(1) ➙ 3.14
fun(2) ➙ 3.1399998664856
fun(3) ➙ 2.00000061035156
fun(4) ➙ 3.14
fun(6) ➙ Segmentation fault
§Result is system specific
-
Tips#2:
Pointers Are Not Limited
typedef struct {
int a[2];
double d;
} struct_t;
double fun(int i) {
struct_t s;
s.d = 3.14;
s.a[i] = 1073741824; /* Possibly out of bounds */
return s.d;
}fun(0) ➙ 3.14
fun(1) ➙ 3.14
fun(2) ➙ 3.1399998664856
fun(3) ➙ 2.00000061035156
fun(4) ➙ 3.14
fun(6) ➙ Segmentation fault
Explanation:
-

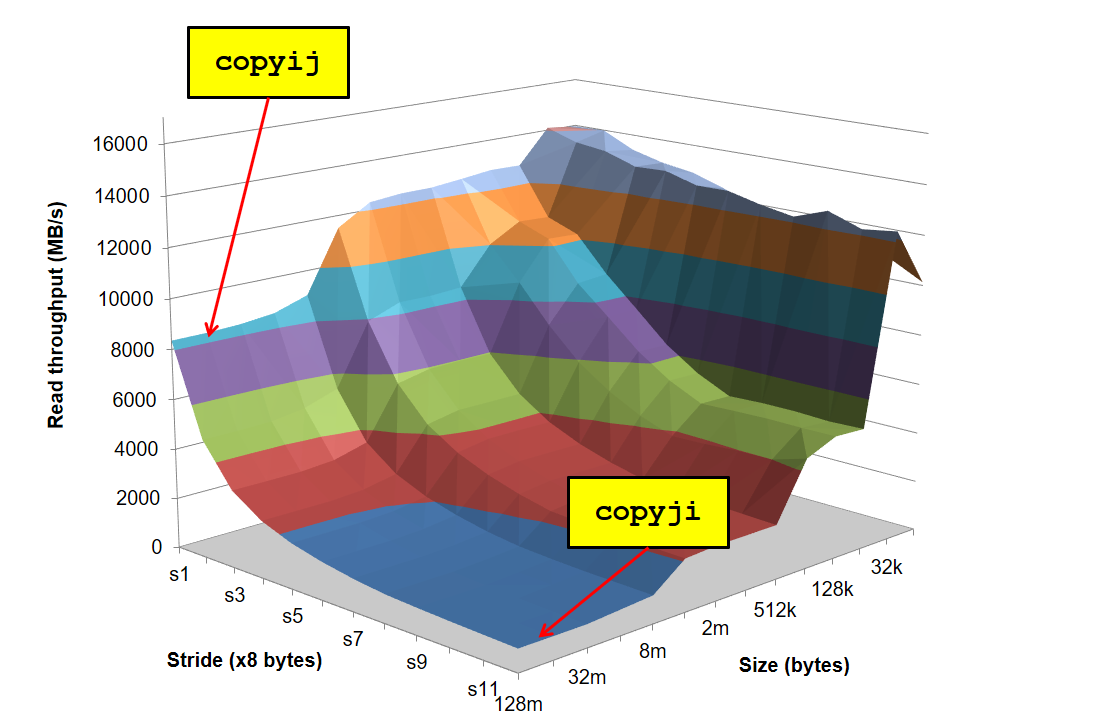

Tips#3:
Constant factors matter too
void copyij(int src[2048][2048],
int dst[2048][2048])
{
int i,j;
for (i = 0; i < 2048; i++)
for (j = 0; j < 2048; j++)
dst[i][j] = src[i][j];
}void copyji(int src[2048][2048],
int dst[2048][2048])
{
int i,j;
for (j = 0; j < 2048; j++)
for (i = 0; i < 2048; i++)
dst[i][j] = src[i][j];
}4.3ms
81.8ms

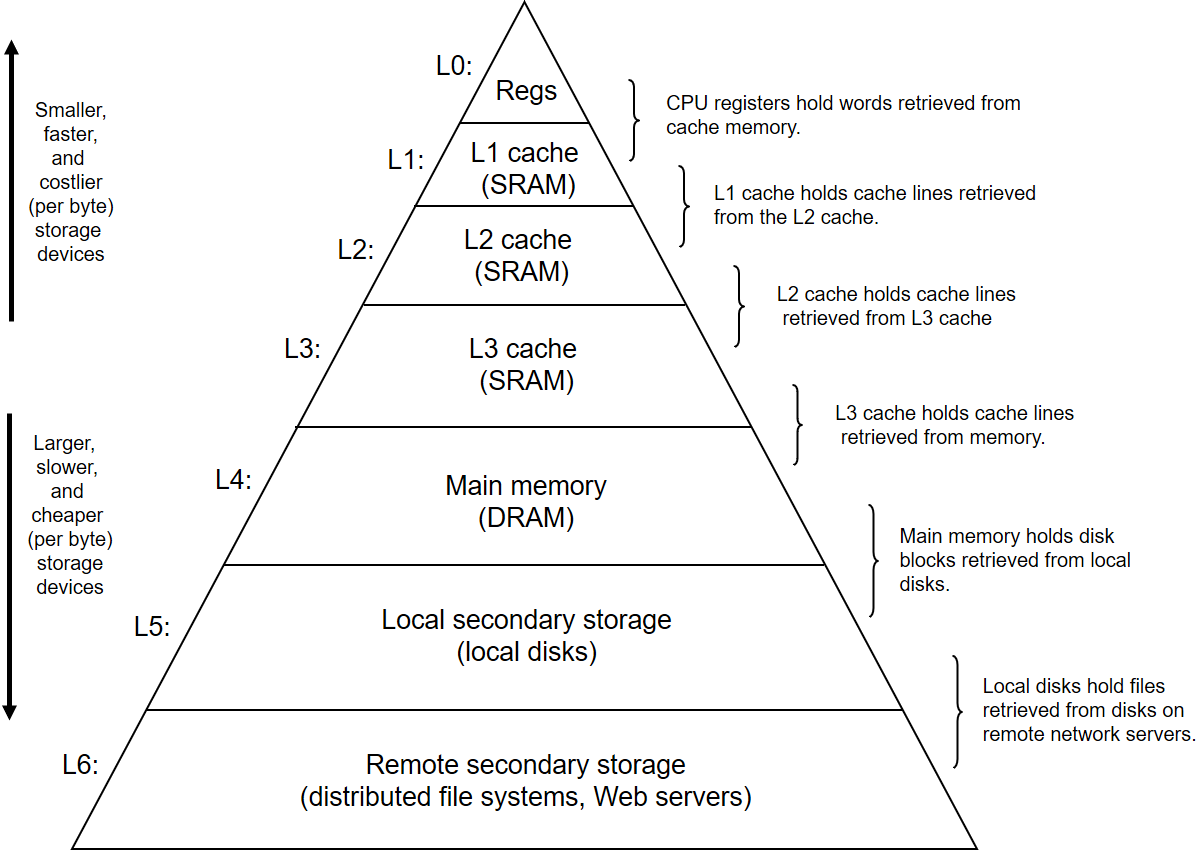

2.1 GHz Intel Core i7 Haswell
Core i7 Haswell
2.1 GHz
32 KB L1 SRAM
256 KB L2 SRAM
8 MB L3 SRAM
終わり
A Tour of Computer Systems
By orashi
