Modularizing your JavaScript development

Param Singh

Agenda

• What is NPM?
• Module Resolution
• package.json
• Semantic Versioning
• npm cli
• Publishing to NPM
• Questions

NPM (Node Package Manager)?

npm makes it easy for JavaScript developers to share and reuse code, and it makes it easy to update the code that you're sharing”

• Tool that automates the process of installing, uninstalling         and updating software packages

• Provides a standard way of managing dependencies

• Managing files manually is an extremely errorprone task

Good artists copy; great artists steal - Pablo Picasso.

Using NPM

• Initialising a project with npm init
• package.json would be created
• Install dependencies using

Package vs Module

A package is any of:

• a) a folder containing a program described by a package.json file
• b) a gzipped tarball containing (a)
• c) a url that resolves to (b)
• d) a <name>@<version> that is published on the registry with (c)
• e) a <name>@<tag> that points to (d)
• f) a <name> that has a latest tag satisfying (e)
• g) a git url that, when cloned, results in (a).

• A folder with a package.json file containing a main field.
• A folder with an index.js file in it.
• A JavaScript file.

A module is any of:

Dependency Tree

Dependency Hell

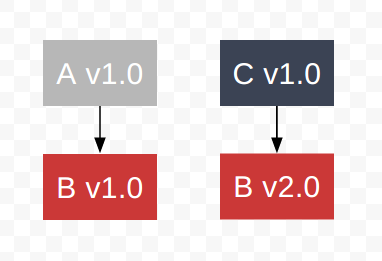

Imagine there are three modules: A, B, and C. A requires B at v1.0, and C also requires B, but at v2.0. We can visualize this like so:

Dependency Hell

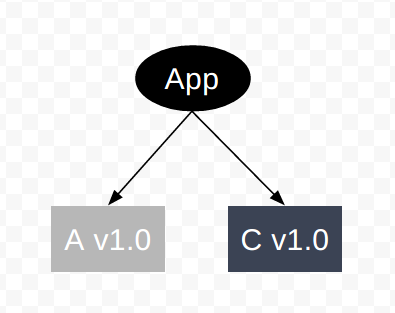

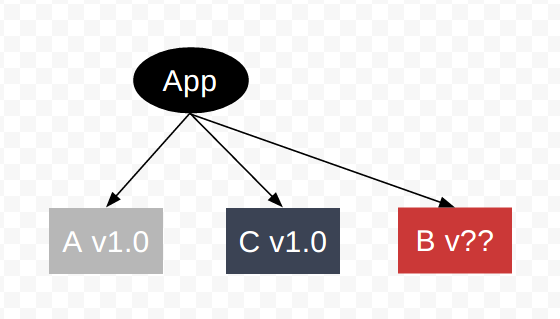

Now, let's create an application that requires both module A and module C.

Dependency Hell

A package manager would need to provide a version of module B. In all other runtimes prior to Node.js, this is what a package manager would try to do. This is dependency hell:

How NPM 2 Works?

Imagine there are three modules: A, B, and C. A requires B at v1.0, and C also requires B, but at v2.0. We can visualize this like so:

How NPM 2 Works?

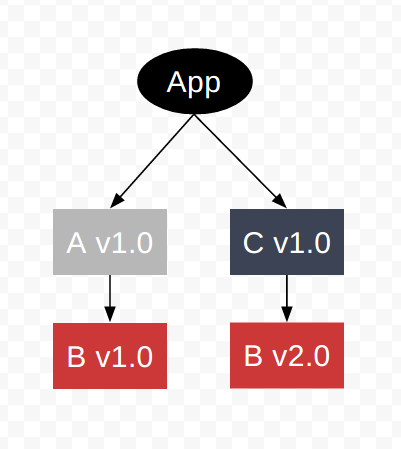

Now, let's create an application that requires both module A and module C.

How NPM 2 Works?

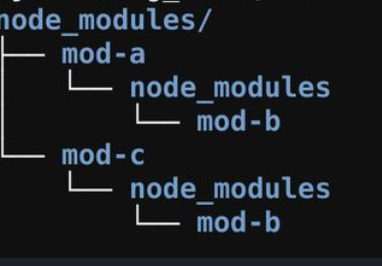

Instead of attempting to resolve module B to a single version, npm puts both versions of module B into the tree, each version nested under the module that requires it.

How NPM 3 Works?

• npm3 tries to mitigate the deep trees and redundancy that such nesting causes.
• Installs some secondary dependencies (dependencies of dependencies) in a flat way

Imagine we have a module, A. A requires B.

How NPM 3 Works?

• Now, let's create an application that requires module A.
• On npm install, npm v3 will install both module A and its dependency, module B, inside the /node_modules directory, flat.

In npm v2 this would have happened in a nested way.

How NPM 3 Works?

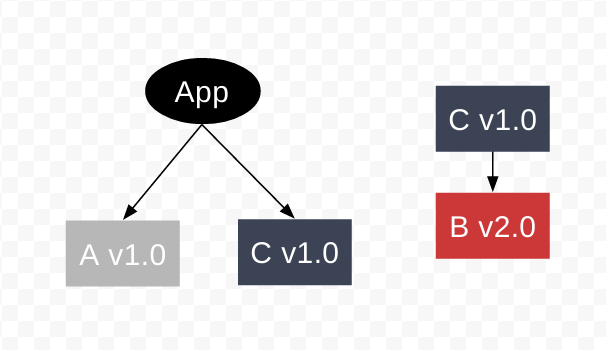

 Another module C requires B, but at another version than A.

How NPM 3 Works?

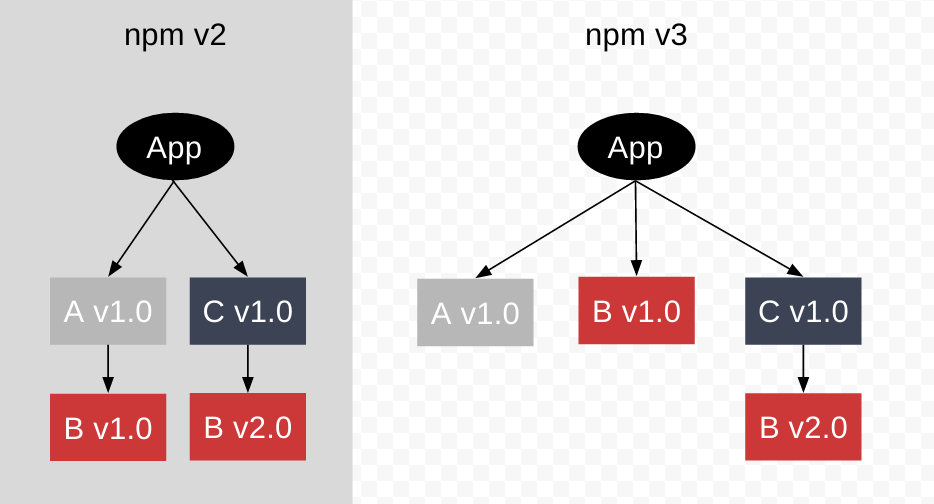

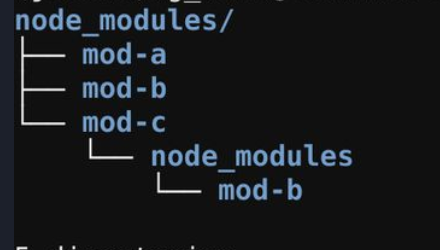

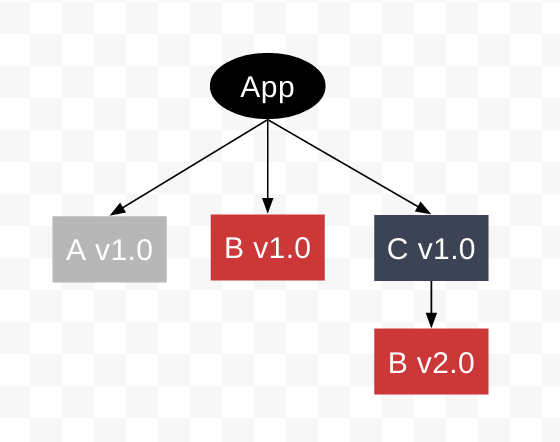

Since B v1.0 is already a top-level dep, we cannot install B v2.0 as a top level dependency. npm v3 handles this by defaulting to npm v2 behavior and nesting the new, different, module B version dependency under the module that requires it -- in this case, module C.

NPM 3 Duplication

NPM 3 Duplication

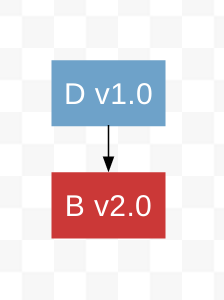

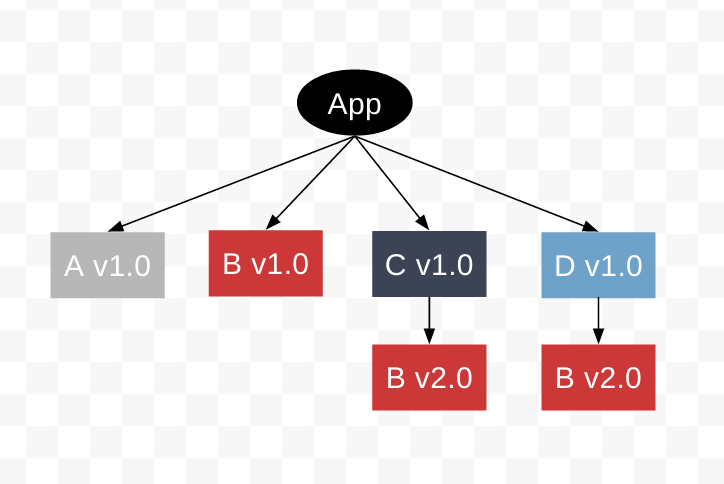

Module D depends on Module B v2.0, just like Module C.

• Because B v1.0 is already a top-level dependency, we cannot install B v2.0 as a top level dependency.

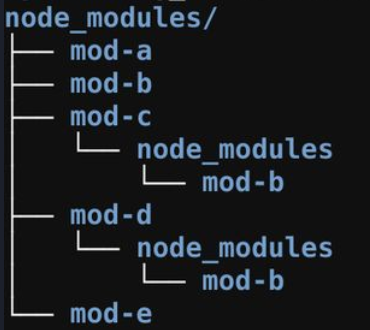

• Therefore Module B v2.0 is installed as a nested dependency of Module D, even though we already have a copy installed, nested beneath Module C.

NPM 3 Duplication

However, if a secondary dependency is required by 2+ modules, but is installed as a top-level dependency in the directory hierarchy, it will not be duplicated, and will be shared by the primary dependencies that require it.

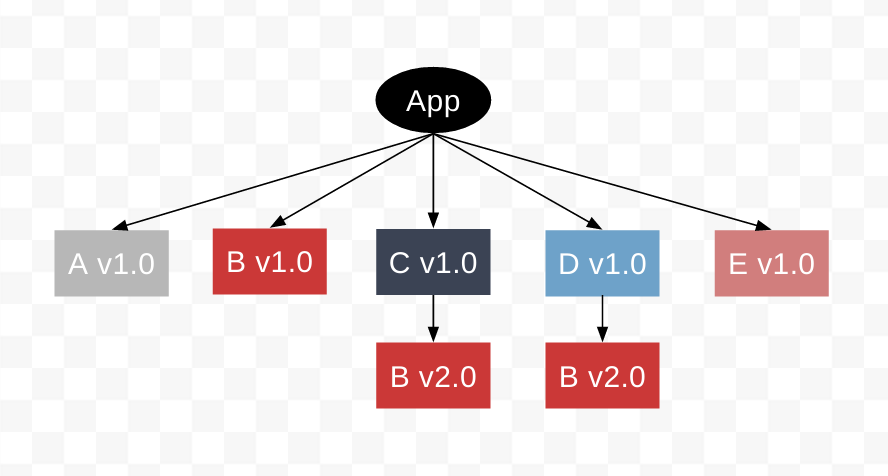

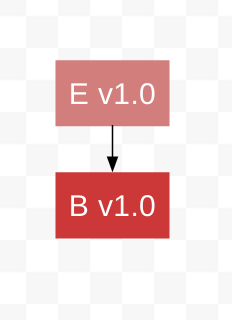

• Module E, like Module A, depends on Module B v1.0.

NPM 3 Duplication

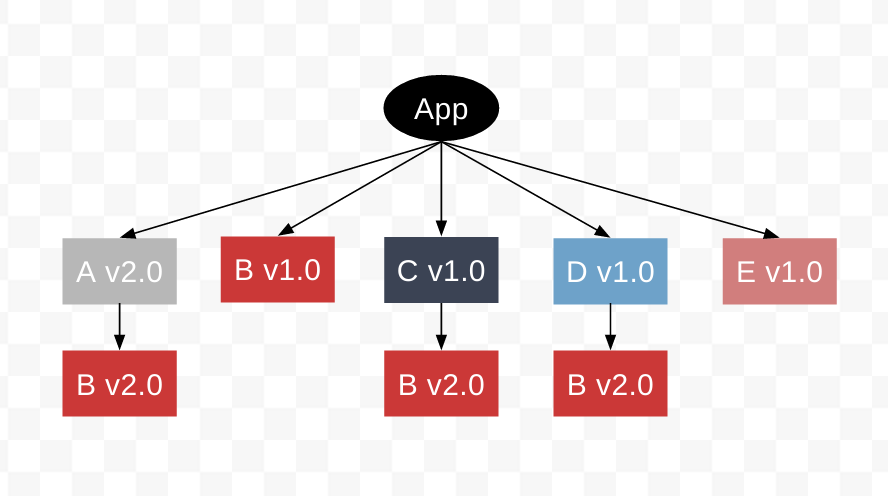

Module A to v2.0, which depends on Module B v2.0, not Module B v1.0?

NPM 3 Duplication

NPM 3 Duplication

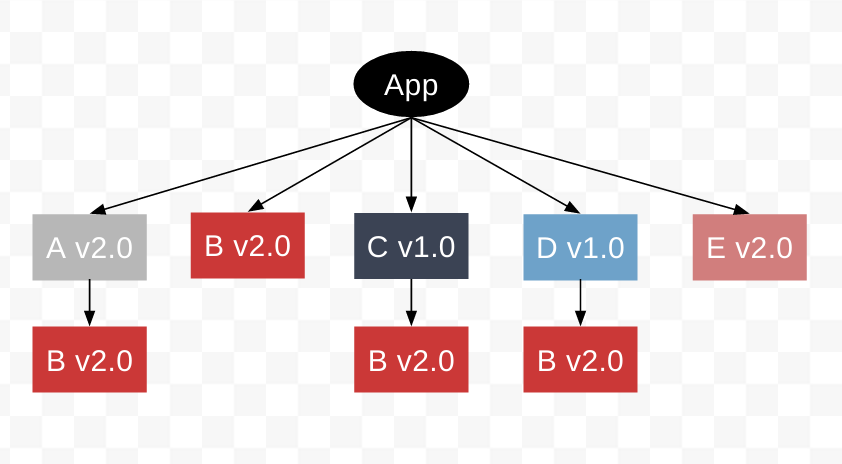

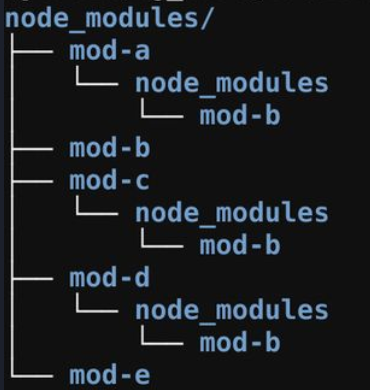

Update Module E to v2.0, which also depends on Module B v2.0 instead of Module B v1.0, just like the Module A update.

NPM 3 Duplication

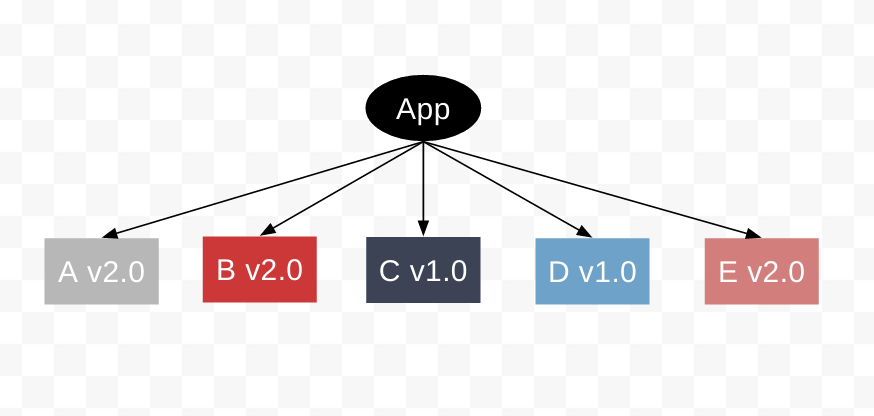

 We have Module B v2.0 in nearly every directory. To get rid of duplication, we can run:

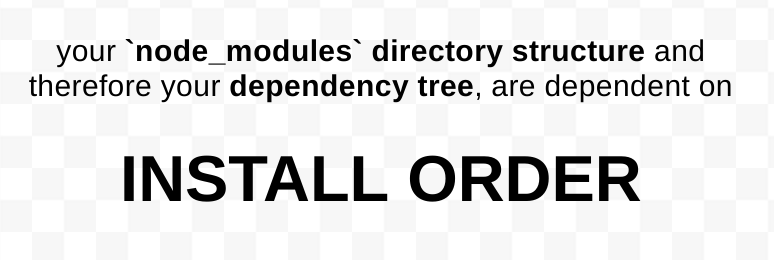

NPM 3 Non Determinism

•  npm3 does not install dependencies in a deterministic way.
• your local node_modules directory will differ from both your coworkers' node_modules directories, as well as the node_modules directories on your staging, testing, or production servers.

NPM 3 Non Determinism

NPM 3 Non Determinism

NPM 3 Non Determinism

Updated Module A to v2.0

NPM 3 Non Determinism

Now, package.json looks like

NPM 3 Non Determinism

Running npm install in another system

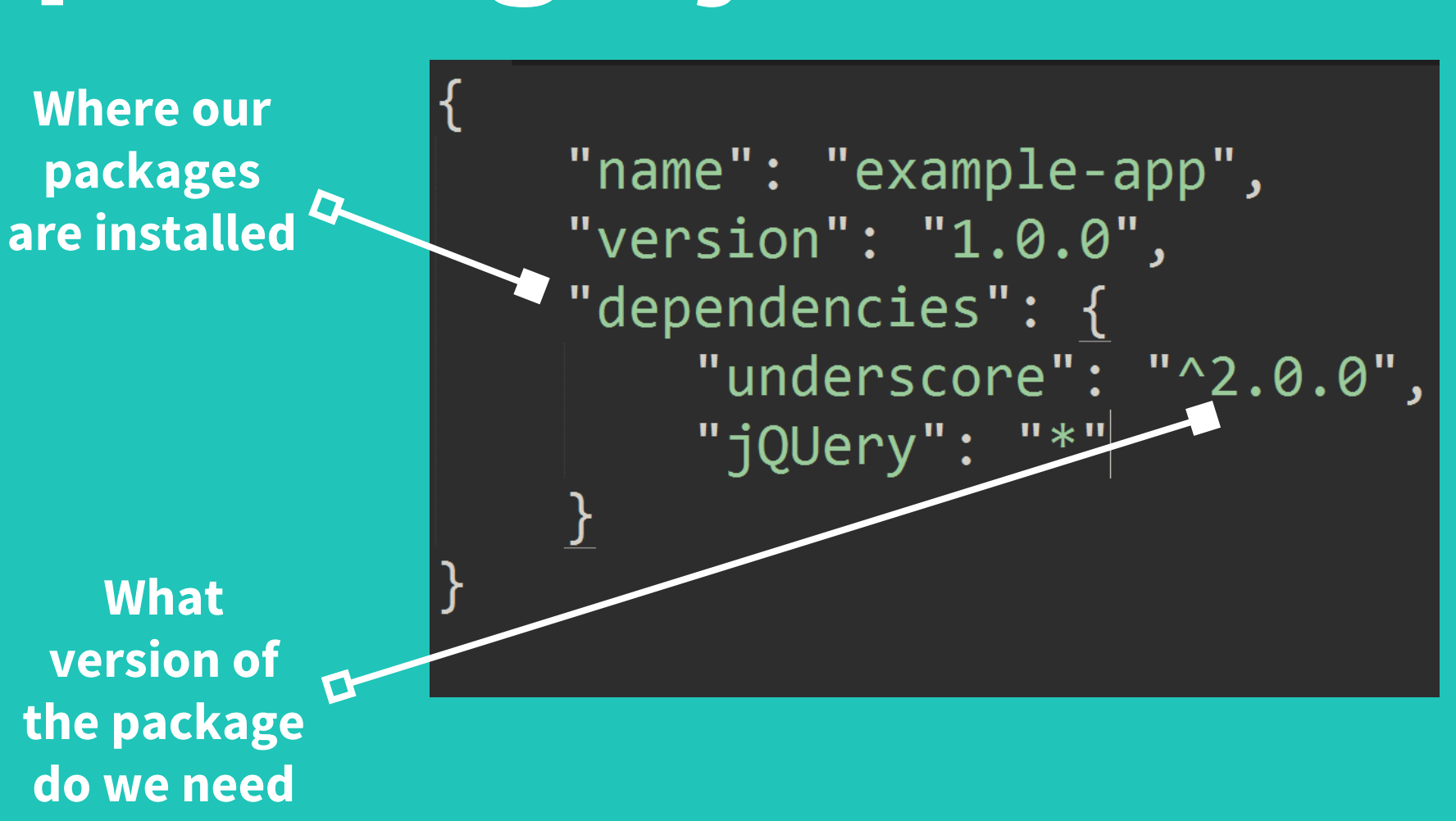

package.json

Semantic Versioning

(SemVer)

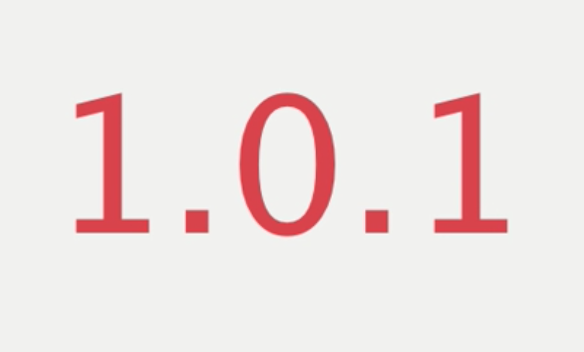

What is SemVer?

• SemVer is a 3-component system in the format of x.y.z where:
• x stands for a major version
• y stands for a minor version
• z stands for a patch
• So you have: Major.Minor.Patch.

• SemVer is a standard that a lot of projects use to communicate what kinds of changes are in this release.
• It's important because sometimes those changes will break the code that depends on this package.
• It let the users know the level of effort it's going to take for them to update to the latest version.

Patch

• Changes added doesn't not break anything.
• And it doesn't add any new features
• Potentially a bug fix

Minor Release

• Changes added adds new features.
• And it doesn't break things. Existing functionality is intact.
• Adding a new method or optional arguments.

Major Release

• Changes added adds new features or modified existing ones.
• And it does break things.
• Not backward compatible.

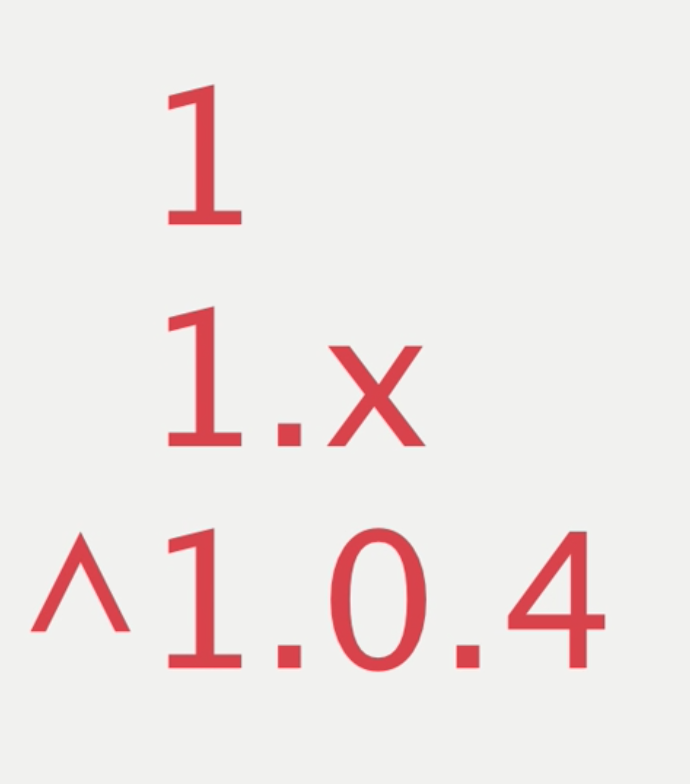

Usage of SemVer

• The way that you'll use semantic versioning as the user of a package is to specify which kinds of updates you want to accept.

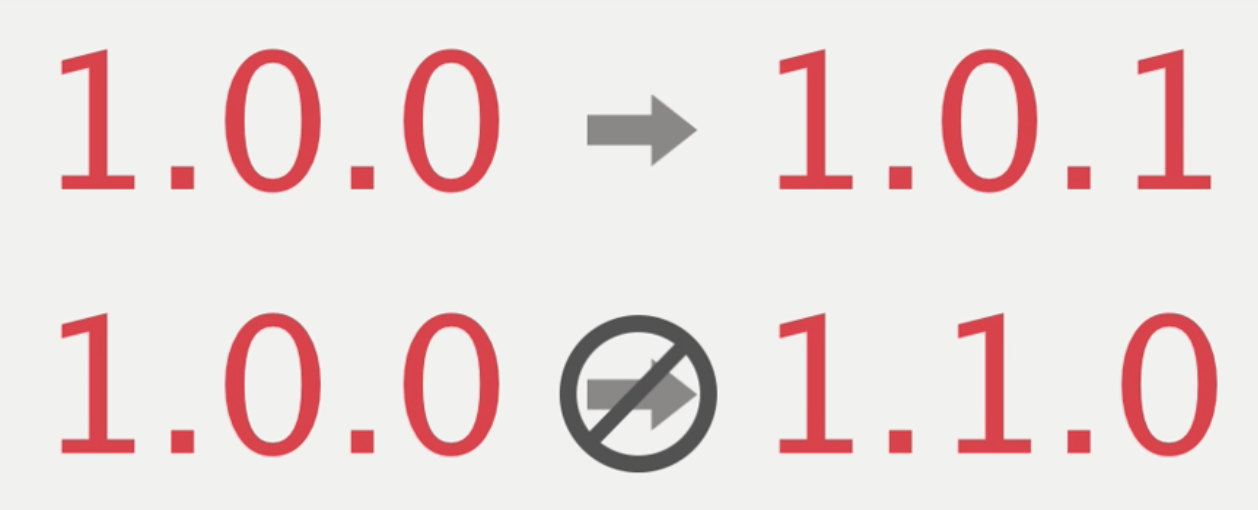

Accepting Patches Only

• You don't want any changes to the api to be included in the updates that you're bringing down.

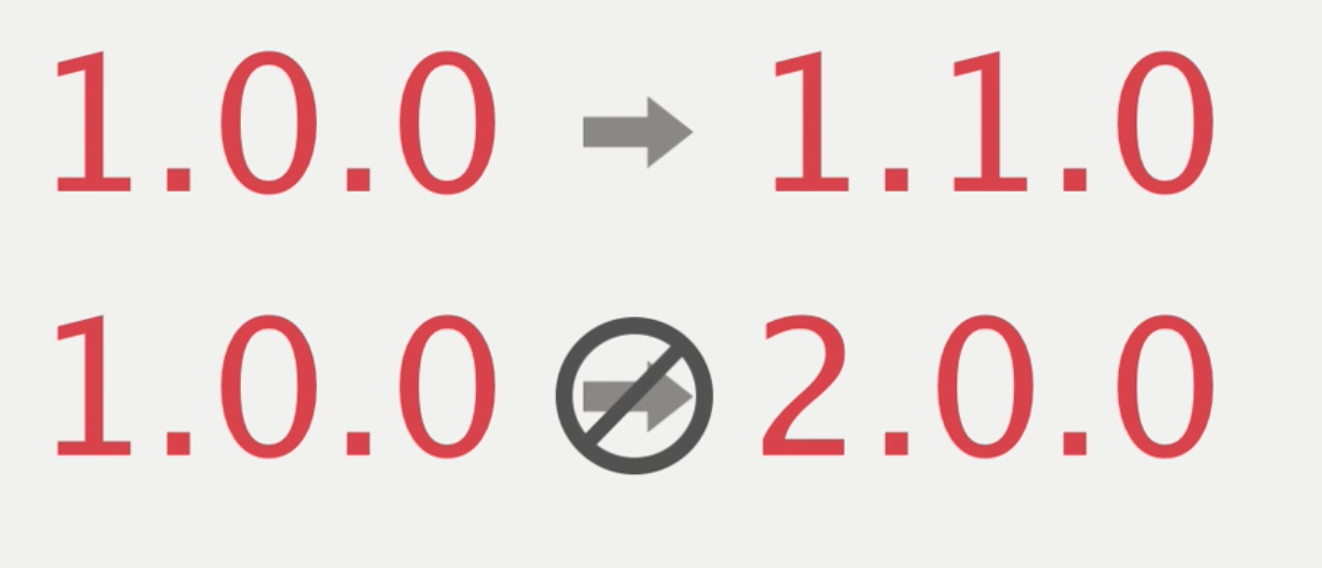

Accepting Minor Only

• You don't want any breaking changes.

Modules Resolution

Module Loading Strategy

Whenever you require()a module, the following steps are executed in order:

1. If it is a core module like http, fs, path etc, load the core module.

2. If it is a relative path, load the module from the relative path.

3. Look for the module in the ./node_modules directory. If it is not there, recursively search in the parent directories’ ./node_modules until either the module is found or the root of the file system is reached.

npm link

•  It allows you to load a module from anywhere on your system.
• To Symlink a package folder

From the source package directory:

In your consumer project directory:

How it works?

• It creates two Symbolic Links:
  • ​Global Symlink
    • ​When you run npm link in a module’s root directory, npm creates a symbolic link from your “global node_modules” directory to the local module’s directory.

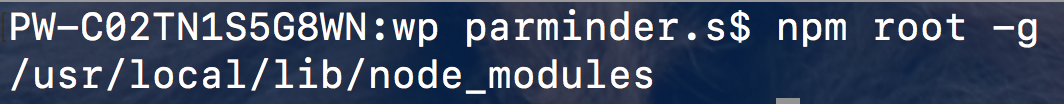

    • The “global node_modules” directory is a special directory where all modules installed with npm install -g are stored
  • Local Symlink
    • ​When you run npm link <module_name> in a project’s directory, npm creates a symbolic link from ./node_modules/<module_name> to <global_node_modules>/<module_name>

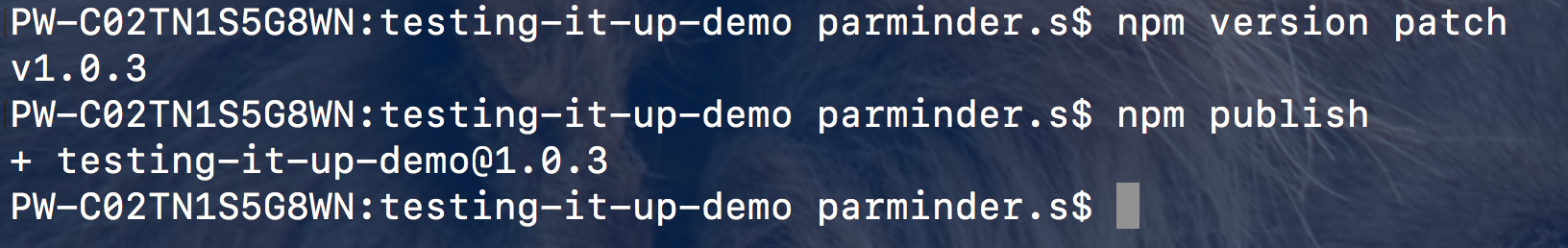

Publishing package to NPM

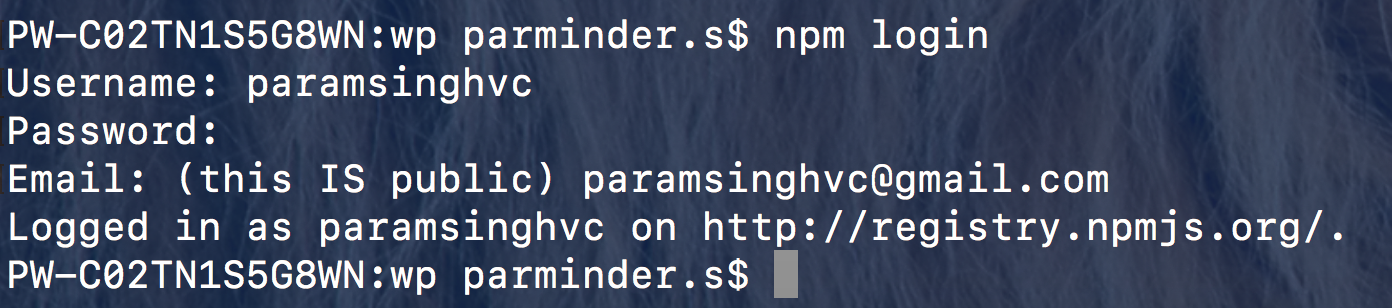

• Login into the command line using npm login.

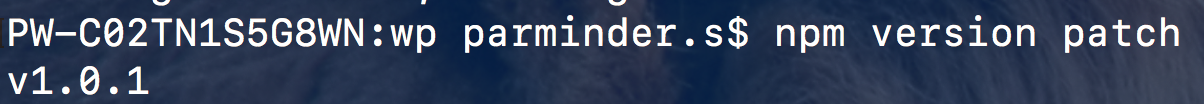

• Commit changes and Bump the package semantic version number using
  • npm version patch
  • npm version minor
  • npm version major
• Run npm publish

Questions

Thank You!

@paramsingh_66174
