The Project

source: TheTransportPolitic

The Goal
Facilitate the maintenance of
a bike-sharing system

The Project

Key Metrics — What to improve?

• Shortage duration @ station

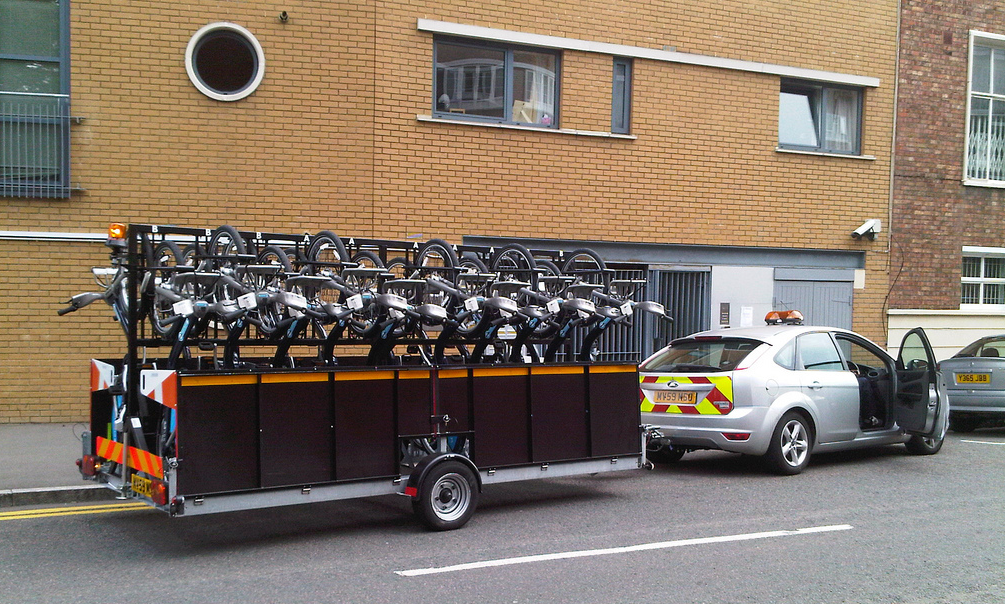

• % bikes transported by truck
• User satisfaction

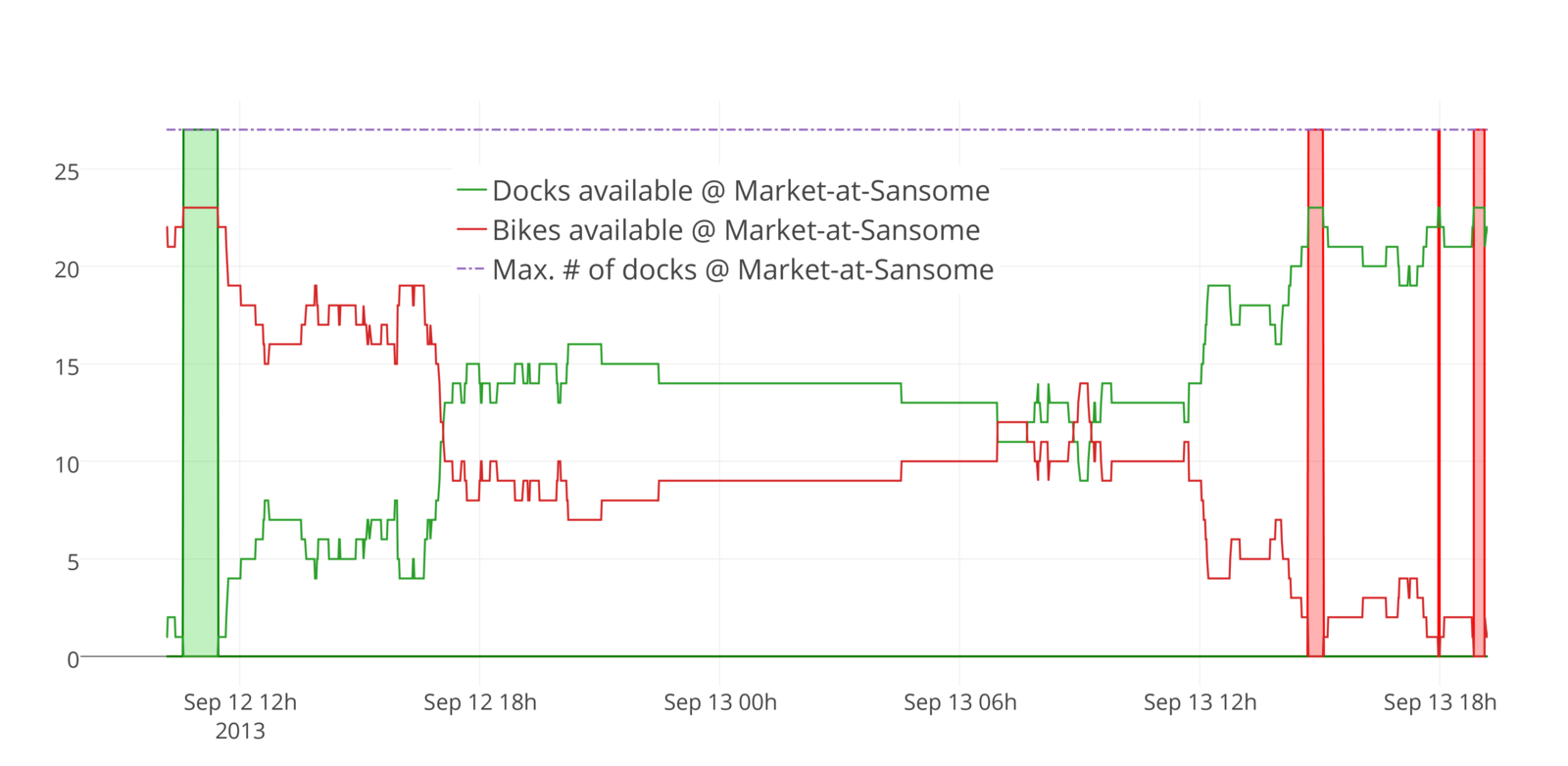

Bikes/Docs availability @ Market at Sansome

source: https://plot.ly/1595/~PatrickMerlot/

The Project

Business levers — How to improve?

source: https://plot.ly/1671/~PatrickMerlot/

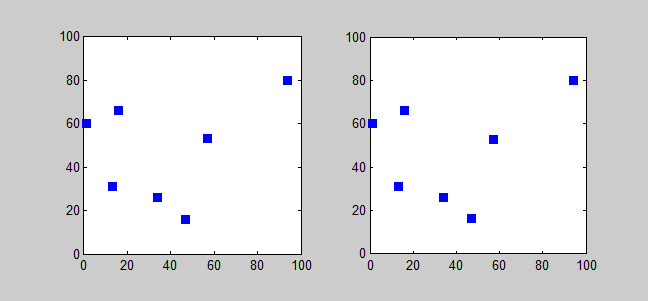

source:  Wikipedia/The-travelling-Salesman-Problem

• Forecasting the next
  imbalanced stations



• Calculate an
  optimized path
  for replenishment

Visual & Intuitive
Dashboard

Data Analysis Process

DATA COLLECTION

MODELING

EXPLORATORY ANALYSIS

MODELING

RESULTS/VISUALIZATION

DATA PREPARATION

Data Analysis Process

DATA COLLECTION

• Single data source

• Historical data:

  • year 1: Aug. 2013 - Aug. 2014

  • year 2: Sep. 2014 - Aug. 2015

    • ​station data (5Kb): name, id, coordinates, #docks

    • weather data (155Kb): daily temp./precipitations/...

    • trip data (42Mb): tripID, start/stop date/station, userID, ...

    • hist. status data (1.1Gb): #freeDocks, #freeBikes /min.

• ​​ Realtime time data (every minute): status data (JSON format)

Data Analysis Process

DATA COLLECTION

DATA PREPARATION

• Clean data. Easier than the Titanic dataset!
• Just be careful with timezones!
• Using years 1&2 > different data field names

Data Analysis Process

DATA COLLECTION

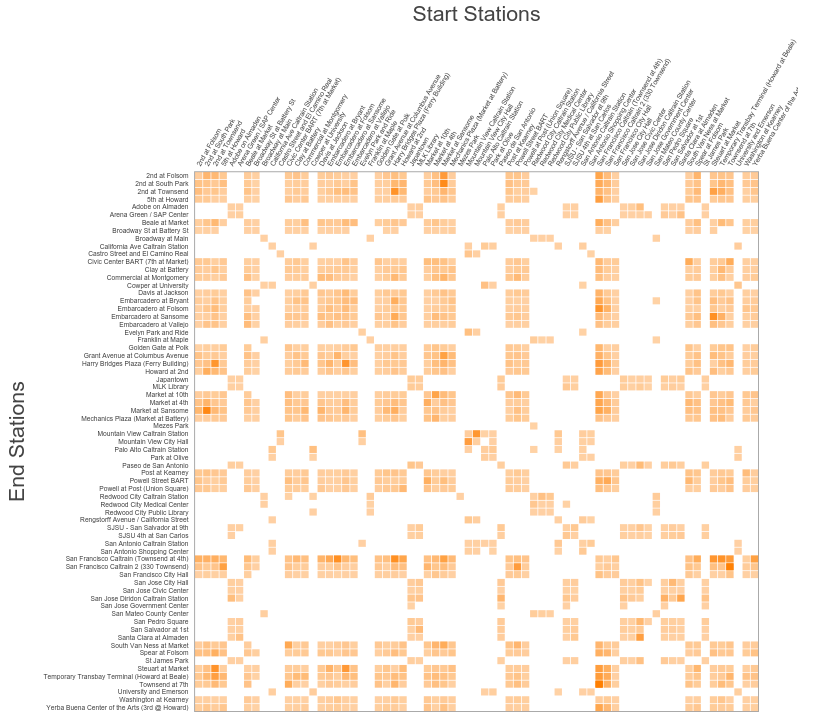

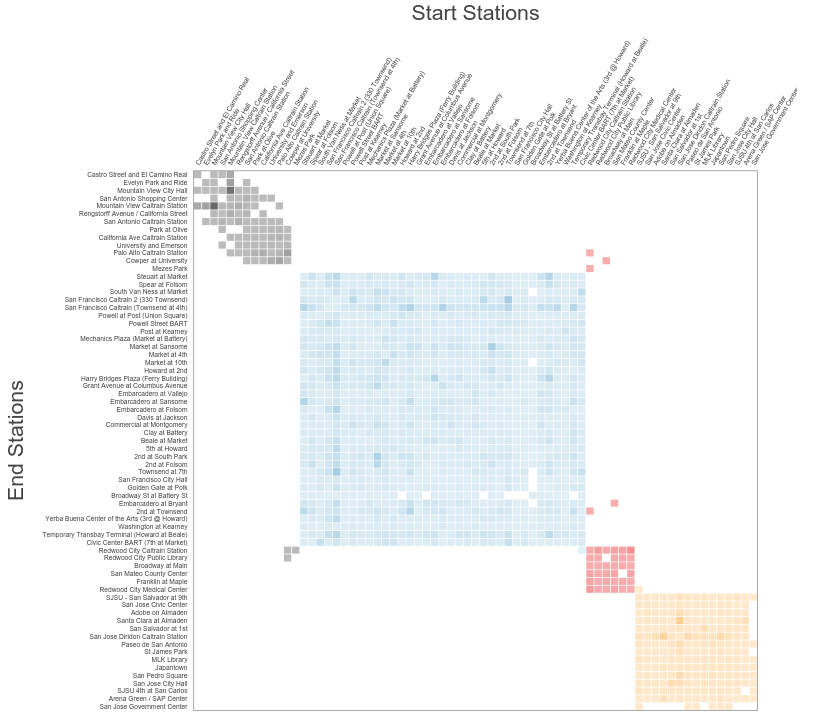

EXPLORATORY ANALYSIS

DATA PREPARATION

Visualization libraries

Data Manipulation
Statistics

Scientific computing

Machine Learning

Data Analysis Process

DATA COLLECTION

MODELING

EXPLORATORY ANALYSIS

MODELING

DATA PREPARATION

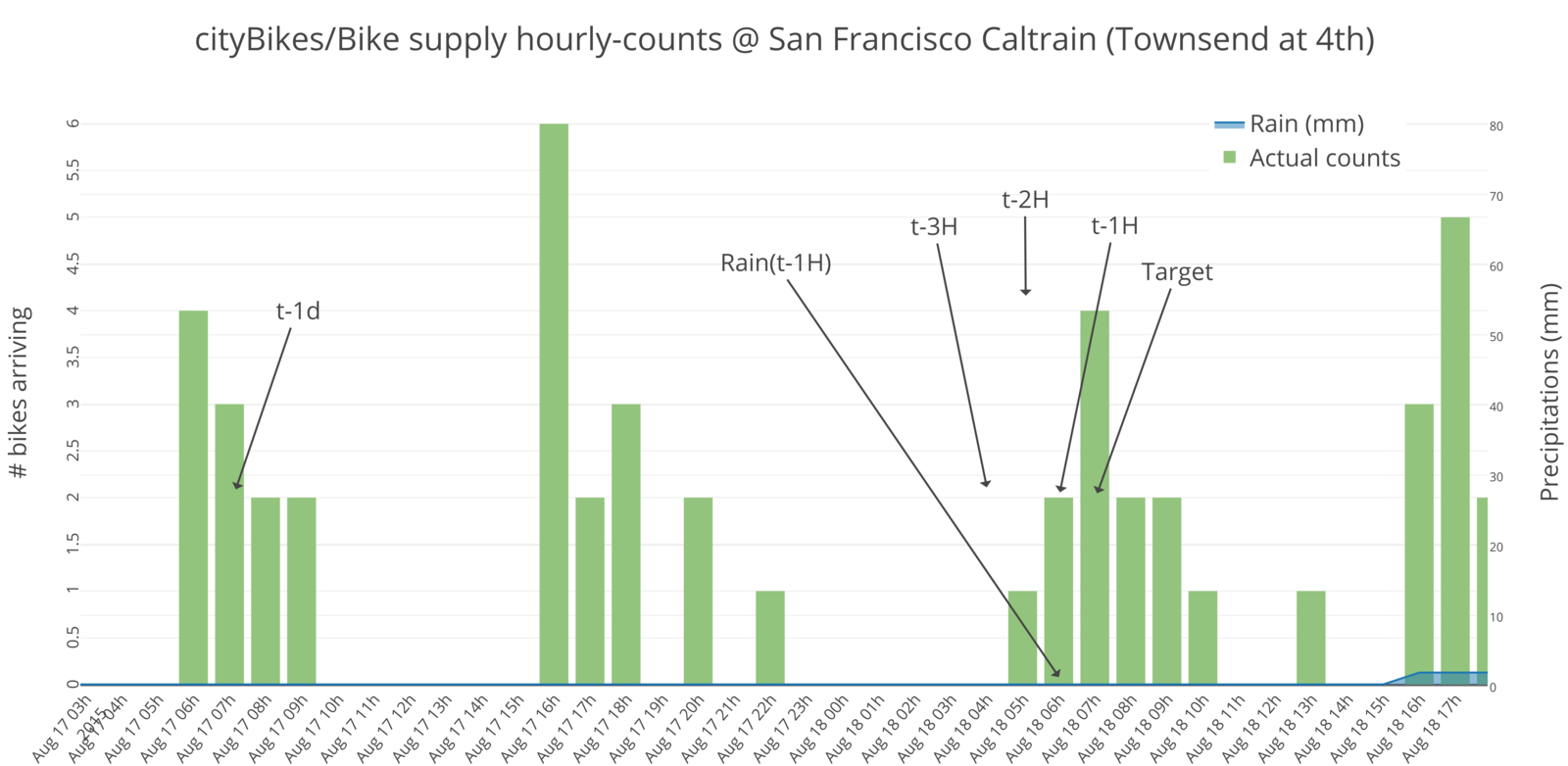

• build a model (features, target values)
• choice of regression estimators
  • Linear regression
  • Decision Tree Regressor
  • Gradient Boosting Regressor
  • Random Forest Regressor
  • ...
• testing/scoring/validation

Data Analysis Process

DATA COLLECTION

MODELING

EXPLORATORY ANALYSIS

MODELING

RESULTS/VISUALIZATION

DATA PREPARATION

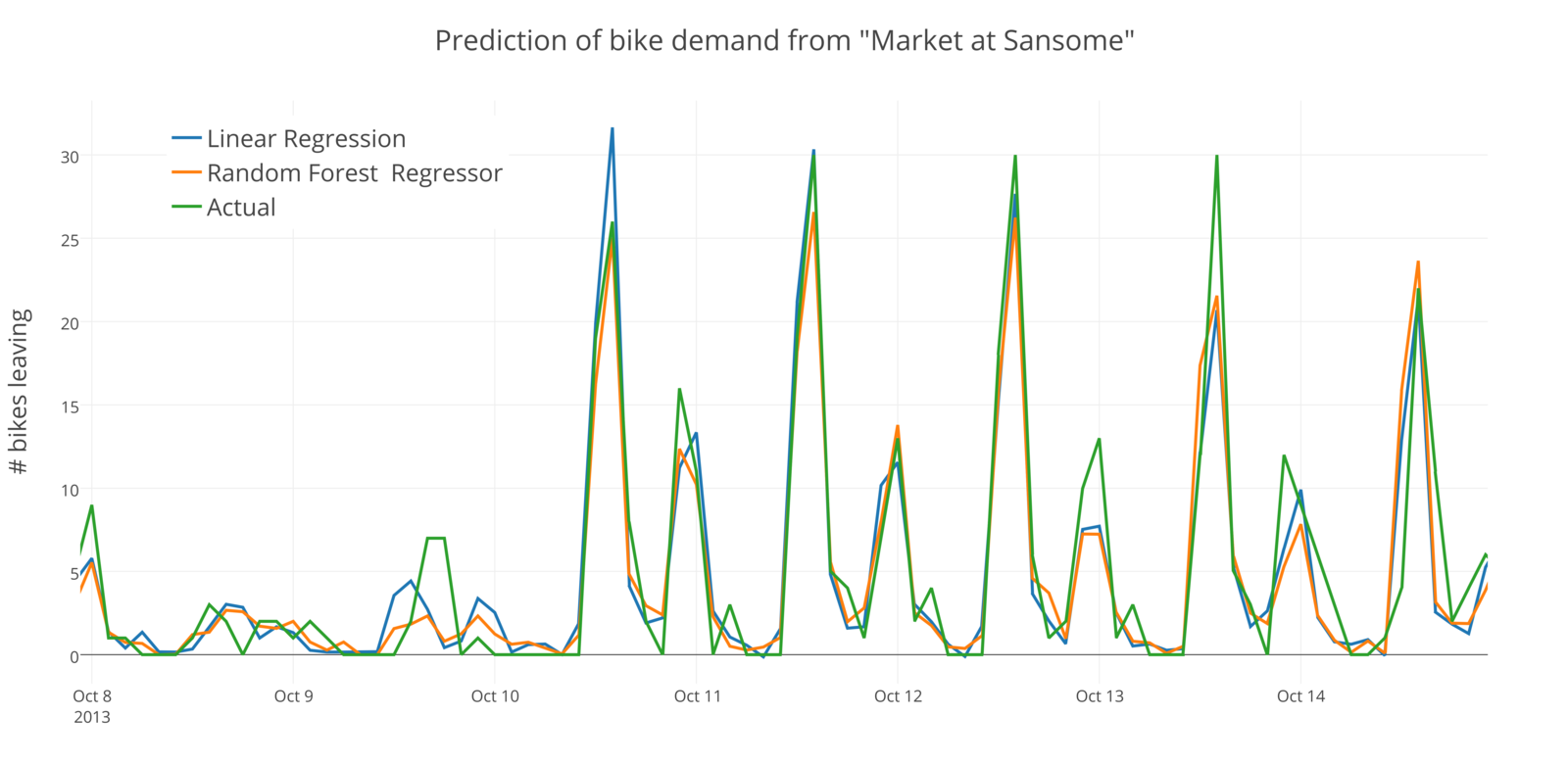

• Assess the result
• ​Iterative process to improve predictions
• Compute a "Confidence Interval"
