Between the frames

How 3d graphic works (Low level)



by Patrick Drotleff
@patrickd_de
http://patrickd.de/

What we want




WHAT WE HAVE

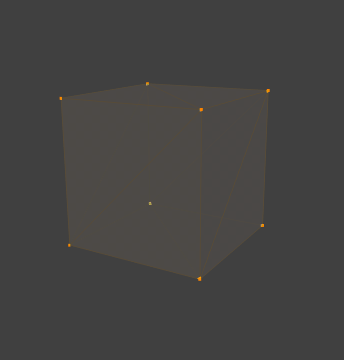

8 VERTICES


WHAT WE HAVE

specifying a vertex


X, Y, Z,     // Position   R, G, B, A   // Color   U, V,        // TexCoord   // Normals, ... ]

⟾ Vertex Buffer

WHAT WE HAVE

EDGES & FACES



WHAT WE HAVE

specifying EDGES & FACES

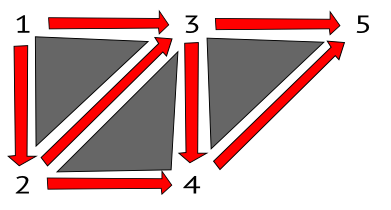

By vertex order, eg.: TRIANGLE_STRIP


other "primitives":
TRIANGLES, LINES, LINE_STRIP, POINTS, ...

WHAT WE HAVE

SPECIFYING EDGES & FACES

By vertex indices

 [ ...  2, 3, 6,  // Front top triangle        3, 5, 7,  // Right side bottom triangle        3, 1, 5,  // Right side top triangle            ... ] // ⟾ Index Buffer

WHAT WE HAVE

MIPMAP Texture



Pre-computed, optimized texture

Improves quality and performance of rendering
Costs about 33% more memory

WHAT WE HAVE

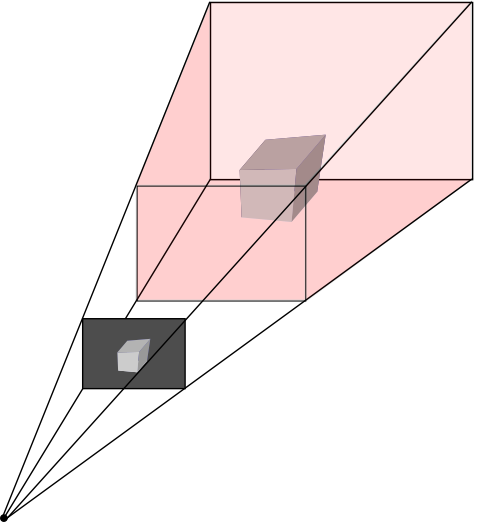

Virtual camera


WHAT WE HAVE

Specifying a VIRTUAL CAMERA

by using a 4×4 projection matrix
to perform Euclidean Transformations

     [ YZX, Z,   Y,   0.0,
       Z,   ZY,  X,   0.0,
       Y,   X,   XYZ, 0.0,
       X,   Y,   Z,   W    ]

Complicated math, highly unpractical to use
⟾ Generated by API helper methods

WHAT WE HAVE

Shaders



A realtime Shader is a program executed on a GPU instead of the CPU to concurrently process streams of data.


⟾ Generically  usable shaders are often provided by the graphics engine or framework in use.

Put it into

''The rendering pipeline''

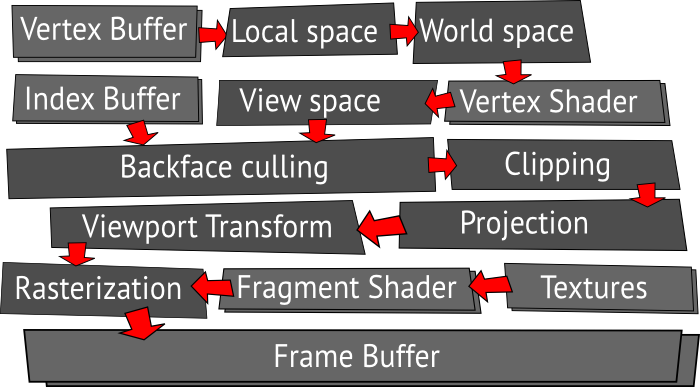

Rendering pipeline

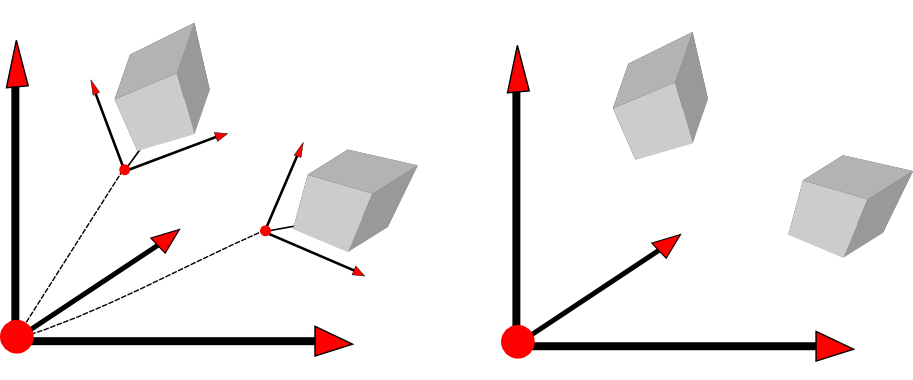

Local space ⟾ WORLD SPACE


Transforming the origin point of a model's vertices to the world origin point while applying rotation and scaling.

RENDERING PIPELINE

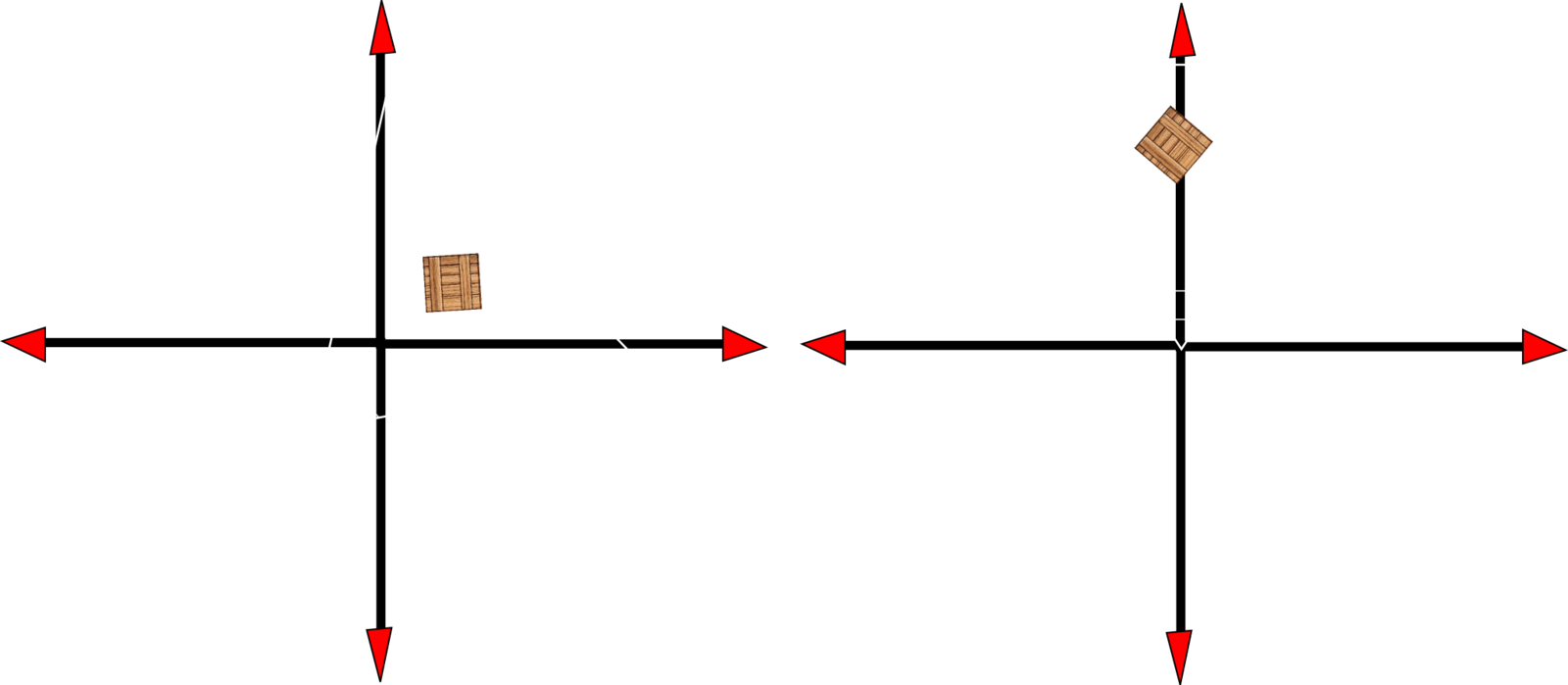

World space ⟾ View Space


Transforming the the worlds origin point to the origin of the virtual camera aligned to the Z axis.

RENDERING PIPELINE

WORLD SPACE ⟾ VIEW SPACE

Vertex Shader
// A vertex shader is executed for every vertex in the Scene.
// This is written in "CG" a high-level shading language by NVIDIA.
void vertexShader( in float3 InPosition : POSITION, in float3 InNormal : NORMAL, in float2 InTexCoord : TEXCOORD1, out float4 OutPosition : POSITION, out float3 OutNormal : TEXCOORD0, out float2 OutTexCoord : TEXCOORD1) { // Execute view space transformation. float3 position = TransformPoint(InPosition, CameraProjectionMatrix); // Return vertex data. OutPosition = transformedPosition; OutTexCoord = InTexCoord; OutNormal = normalize(InNormal); }

RENDERING PIPELINE

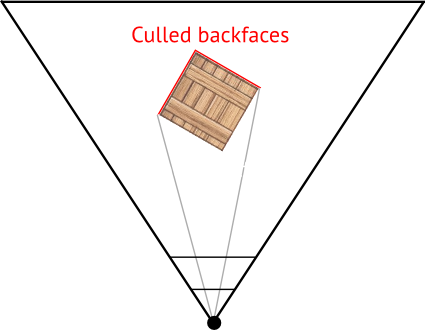

Backface culling


Eliminating not visible faces before continue rendering.

RENDERING PIPELINE

BACKFACE CULLING

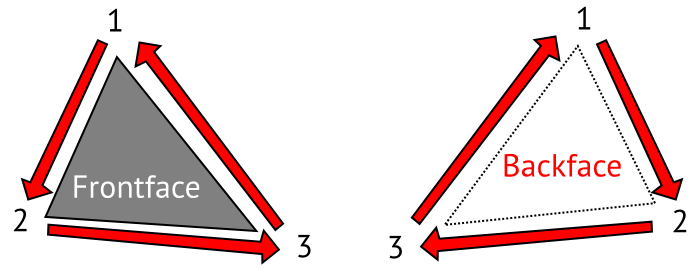

The front face of a triangle is the face in which the order of vertices is counter clockwise from the current perspective.

RENDERING PIPELINE

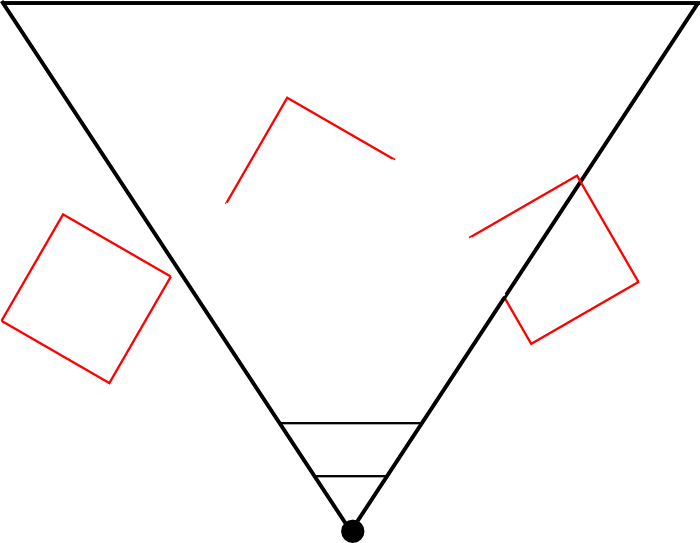

Clipping


Culling of triangles completely or partially outside the frustum.

RENDERING PIPELINE

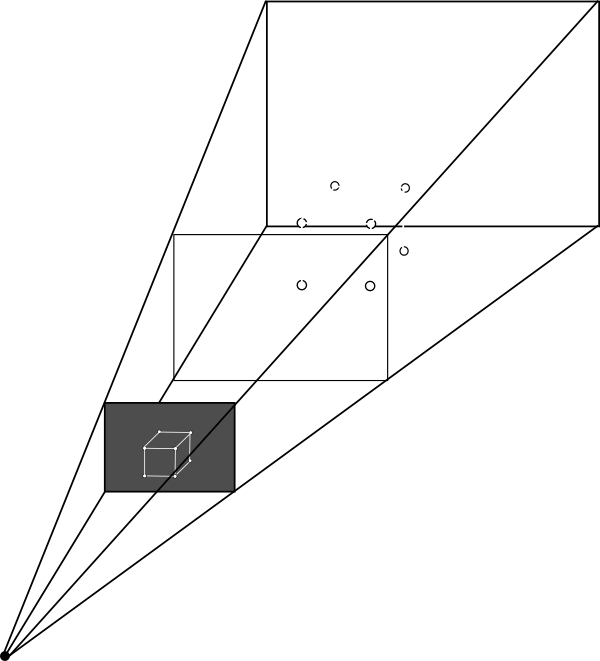

Projection


Projecting 3D vertex shapes onto the 2D projection window.

RENDERING PIPELINE

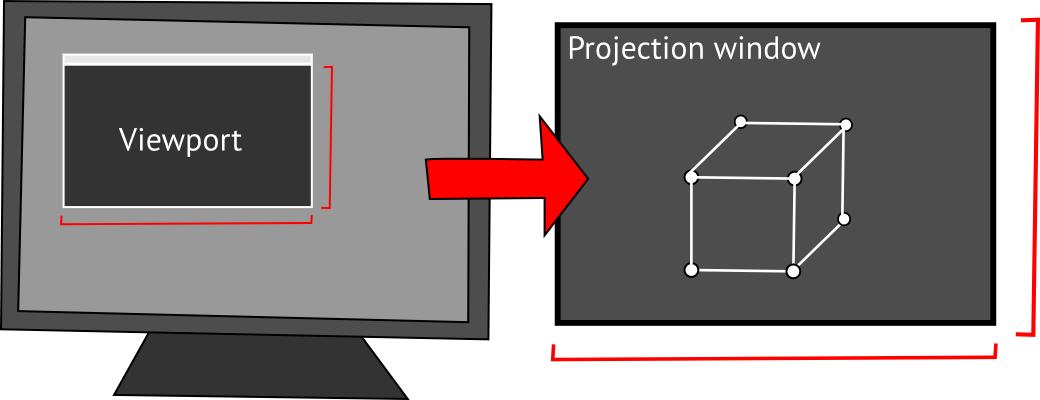

Viewport transform


Transforming coordinates on the projection window according to a destination view port on the screen.

RENDERING PIPELINE

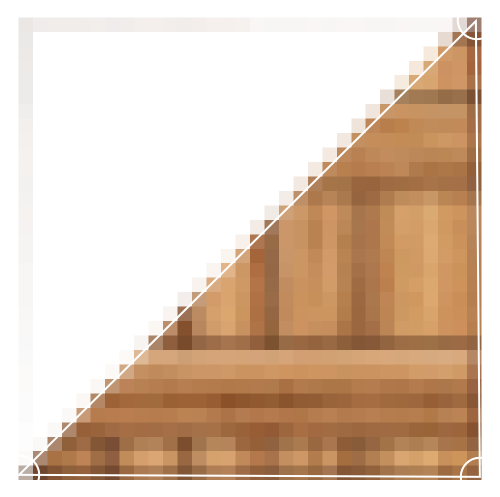

Rasterization


Converting vector shapes into a raster image.

RENDERING PIPELINE

RASTERIZATION

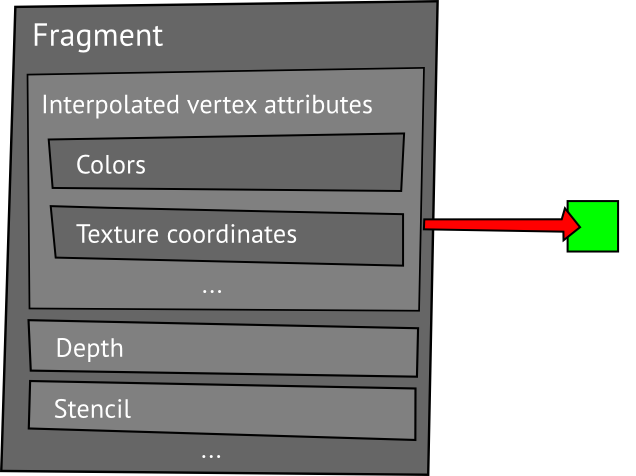

Fragments ⟾ Pixels

RENDERING PIPELINE

RASTERIZATION

Fragment Shader
// A fragment shader is executed for every fragment of a triangle,
// calculating the color of its pixel based on texture and light.
float4 fragmentShader( float3 InNormal    : TEXCOORD0,
                       float2 InTexCoord  : TEXCOORD1) : COLOR {

    // Texture sampling by interpolated texture coordinate.
    float4 texel = tex2D(texture, InTexCoord);

    // Calculate light color: Ambient light.
    float3 light = ambientLightColor;
    // Add directional light based on interpolated normal.
    light += (max(dot(-lightDirection, InNormal), 0.0) * lightColor);

    // Add light to texture color.
    return texel * float4(light, 1.0);
}

End of the PIPELINE

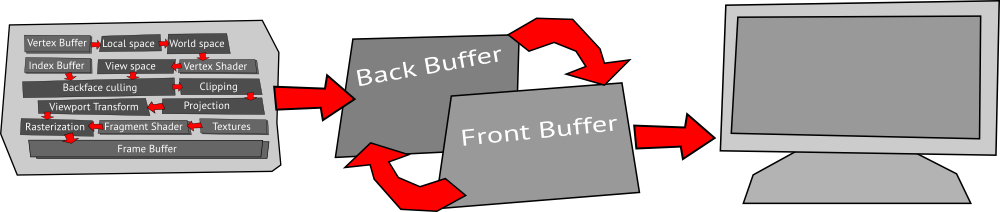

Render to screen


The back buffer is a memory rendered to, while the front buffer is currently being displayed by the screen.
Depending on the graphic settings front and back buffers are interchanged when ready.

END OF THE PIPELINE

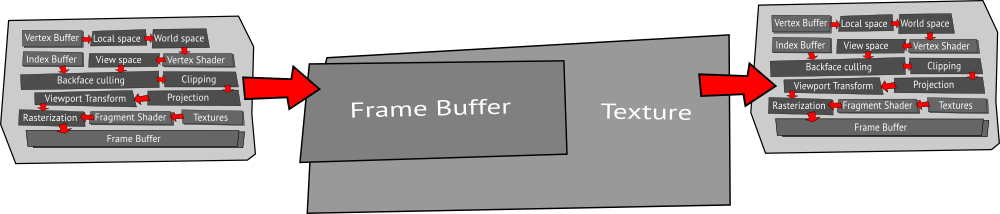

RENDER TO Texture


It is possible to render into an FBO (Frame Buffer Object) which is reused as texture in the main scene.


Congratulations

You now have a Frame

That will be outdated within

The next several milliseconds


Thanks for listening though!
