GraphQL Query

  {
    user(id: 1564) {
      name,
      email
    }
  }

GraphQL Query

  {
    user(id: 1564) {
      name,
      email
    }
  }

Sample response

{
  "data": {
    "user": {
      "name": "Dan",
      "email": "dan@company.com"
    }
  }
}

GraphQL Query

  {
    user(id: 1564) {
      name,
      email,
      friends {
        id
      }
    }
  }

Sample response

{
  "data": {
    "user": {
      "name": "Dan",
      "email": "dan@company.com",
      "friends": [
        {
          "id": 1056
        },
        {
          "id": 1232
        }
      ]
    }
  }
}

GraphQL Query

  {
    user(id: 1564) {
      name,
      email,
      friends {
        id,
        name
      }
    }
  }

Sample response

{
  "data": {
    "user": {
      "name": "Dan",
      "email": "dan@company.com",
      "friends": [
        {
          "id": 1056,
          "name": "Marie"
        },
        {
          "id": 1232,
          "name": "Bob"
        }
      ]
    }
  }
}

Sample GraphQL schema

enum Episode { NEWHOPE, EMPIRE, JEDI }

interface Character {
  id: String
  name: String
  friends: [Character]
  appearsIn: [Episode]
}

type Human : Character {
  id: String
  name: String
  friends: [Character]
  appearsIn: [Episode]
  homePlanet: String
}

type Droid : Character {
  id: String
  name: String
  friends: [Character]
  appearsIn: [Episode]
  primaryFunction: String
}

Client view

{
  user (id:1313) {
    name, email,
    portfolio: {
      id, description,
      items: {
        id, title
      }
    }
  }
}

Graphql query

How Graphql works

Backend

Client view

loadUserById
loadPortfolioById
loadItemsByPortfolioId
{
  user (id:1313) {
    name, email,
    portfolio: {
      id, description,
      items: {
        id, title
      }
    }
  }
}

Graphql query

How Graphql works

Backend

Client view

loadUserById
loadPortfolioById
loadItemsByPortfolioId
{
  user (id:1313) {
    name, email,
    portfolio: {
      id, description,
      items: {
        id, title
      }
    }
  }
}

Graphql query

How Graphql works

Backend

Mongo with users

SQL with portfolios

Whatever API

... it also can be  a "changing" query

Client view

loadUserById
loadPortfolioById
loadItemsByPortfolioId
{
  user (id:1313) {
    name, email,
    portfolio: {
      id, description,
      items: {
        id, title
      }
    }
  }
}

Graphql query

How Graphql works

Backend

Mongo with users

SQL with portfolios

Whatever API

Client view

loadUserById
loadPortfolioById
loadItemsByPortfolioId
{
  user (id:1313) {
    name, email,
    portfolio: {
      id, description,
      items: {
        id, title
      }
    }
  }
}
{
  data: {
    user: {
      name: 'John',
      email: 'john@doe.com',
      portfolio: {
        id: 33545232,
        description: 'Best portfolio...',
        items: [
          { id: 231232, title: 'first item' },
          { id: 545444, title: 'best website' }
        ]
      }
    }
  }
}

Graphql query

JSON response

How Graphql works

Backend

GraphQL is:

- Declarative (client declares what he needs)

- Hierarchical (nestings...)

- Strongly-typed (int, string, array...)

- No data overfetching (and backward compatibility)

- Product-centric (client app is the product)

- Application-Layer Protocol (json, xml, http, sql, ...)

- Introspective (documentation = schema)

GraphQL vs REST

REST

GraphQL

is an approach

is a protocol

- is it RESTful or not?

- often "non-rest" decisions

- everyone feels guilty

What is?

REST

GraphQL

/contracts/123123
/contracts/123123/afterSales
/contracts/123123/documents
/contracts/123123/history

single query

Fetching complex objects

REST

GraphQL

Typization

Weak

- Enum? Int or string?

- I thought there was an array,      but there was NULL!!

Strong

Array means Array

Enum means enum

REST

GraphQL

{
  "insuranceStart": "2016-01-15T00:00:00.0000000+01:00",
  "contractReferenceNumber": null,
  "calculatedTariff": {
    "pricingDetails": {
      "paymentPeriod": 4,
      "amount": 12.28982,
      "isInvoiceAllowed": null,
      "isCreditCheckRequired": null,
      "isSepaMandateAcceptanceRequired": null
    },
    "insurance": {
      "id": 273,
      "efeedbackProviderId": 215,
      "whiteLabelId": null,
      "name": "DMB Rechtsschutz",
      "description": "Securo",
      "logo": "/Resources/Images/Insurance/dmb.gif"
    },
    "tariffInfo": {
      "id": 997,
      "name": "Securo",
      "detailedFeatures": [
        {
          "id": 4,
          "groupId": 12,
          "groupName": "Allgemeine Leistungen",

769 more lines of JSON

/api/contracts/1890373

{
  contract (id: 1890373) {
    calculatedTariff {
      pricingDetails { paymentPeriod, amount }
    },
    insuredPerson {
      firstName, lastName, email
    }
  }
}
{
  "calculatedTariff": {
    "pricingDetails": {
      "paymentPeriod": 4,
      "amount": 12.28982,
    },
  },
  "insuredPerson": {
    "firstName": "Max",
    "lastName": "Pecu",
    "email": "andreas.freier@check24.de",
  }
}

Overfetching

REST

GraphQL

The focus?

Long-lived network-based applications that span multiple organizations



( Roy T. Fielding )

Dynamically evolving client-server applications. The api is consumed internally.

(that's exactly what we do!)

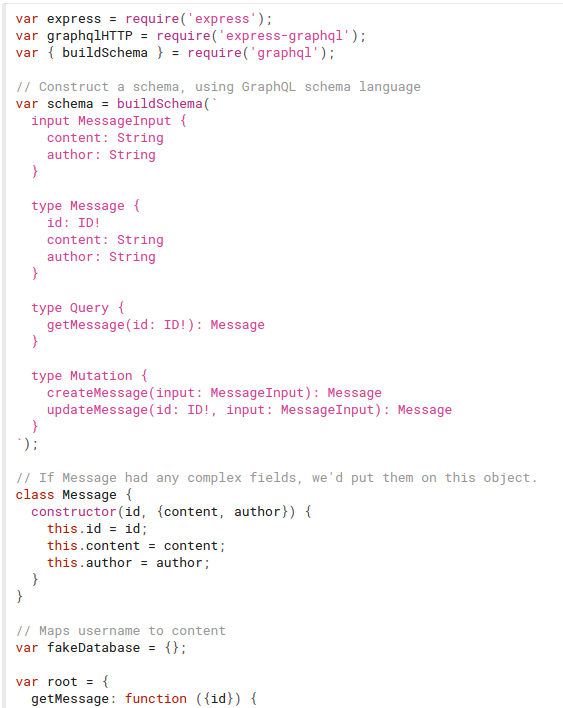

A sample app

Lots of stuff...

Libraries: Javascript, Go, .NET, Java, Python etc...

More features: Interfaces, unions, enums, fragments, named queries, mutations, subscriptions (push notifications)

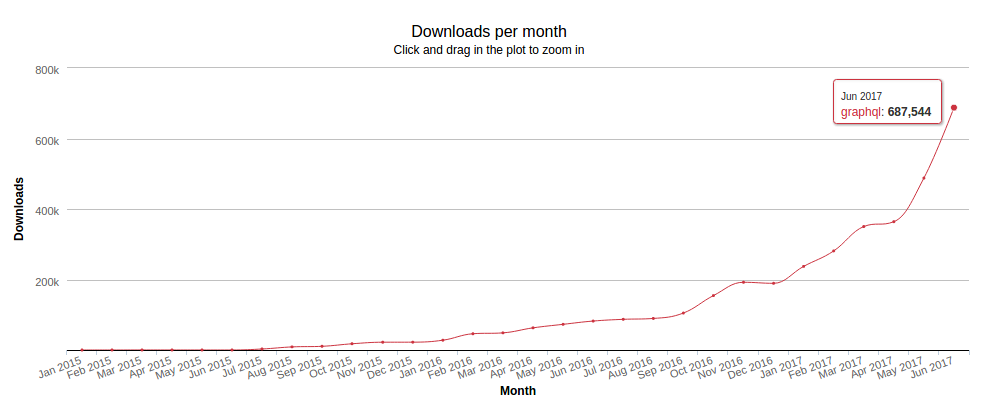

NPM downloads
