Applying reactive programming approach in IoT based reliable crossroad traffic monitoring

Pavel Lavreshin

Problem statement

Is Reactive programming applicable in IoT traffic monitoring system?

Whether Reactive programming can make traffic monitoring system reliable and fault-tolerant?

Source and inspiration:

Video stream from one of Tallinn city crossroads

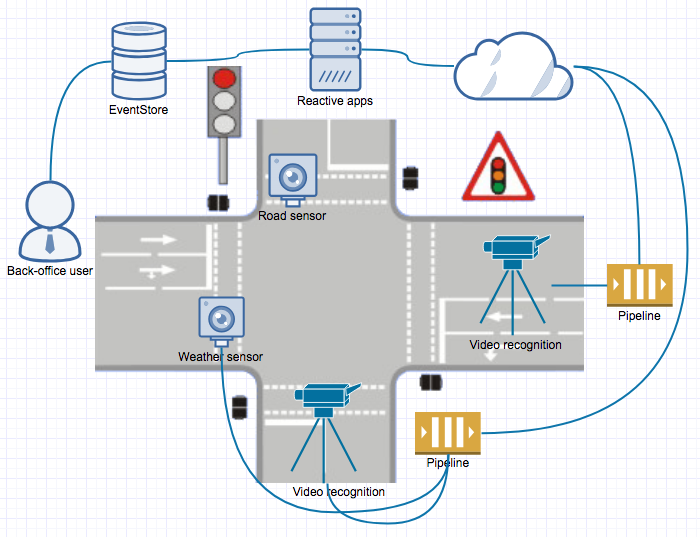

IoT crossroad traffic monitoring - birds'-eye view

Challenges in IoT crossroad traffic monitoring

• Streamed data processing efficiency - bounded system resources

• System responsiveness - usability, consistency

• Platform resilience - fault-tolerance, self-healing, recovery

• Services scalability - horizontal scaling potential

Reactive programming paradigms in this work

• Actor model

• Reactive streams

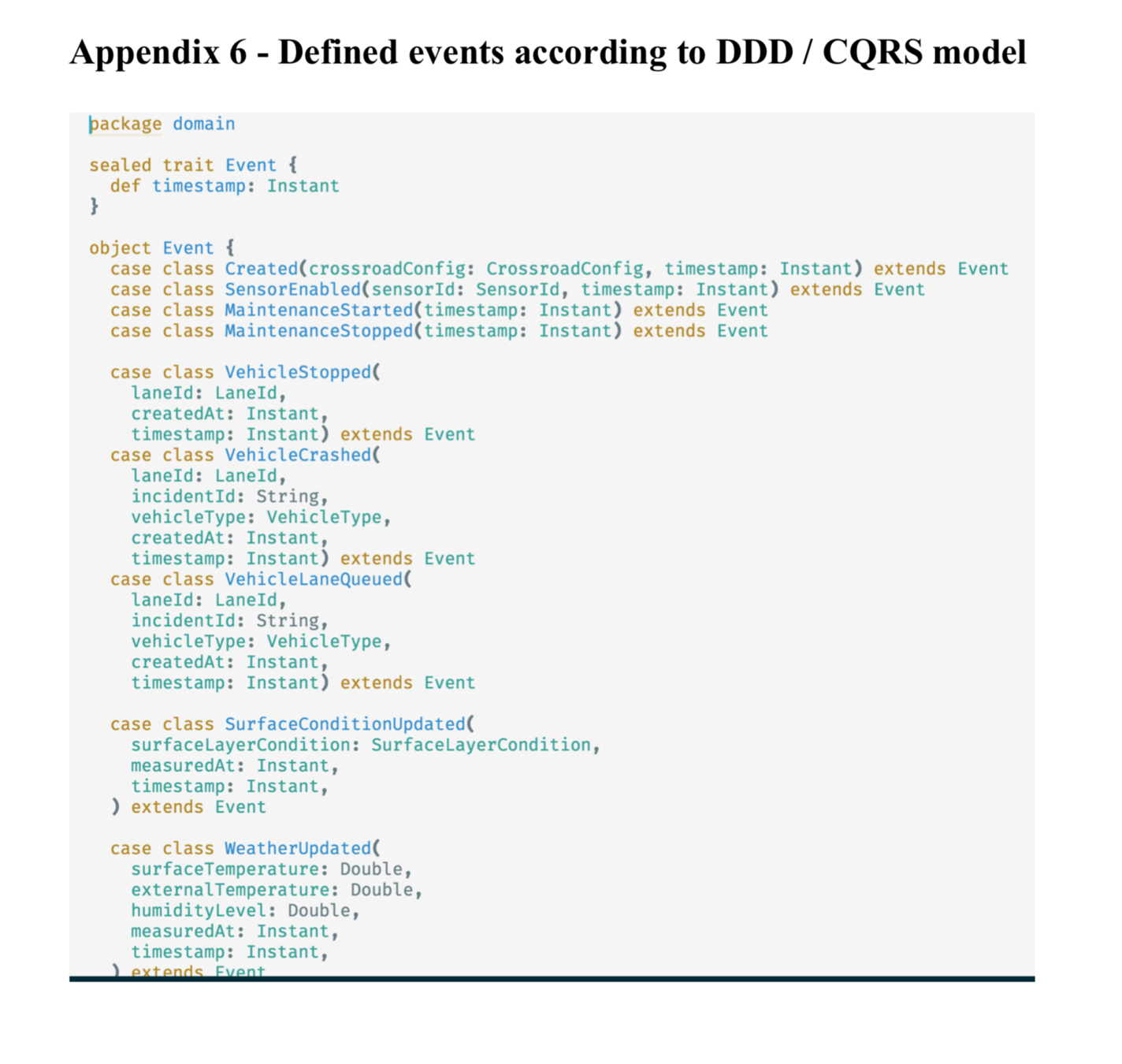

• Event Sourcing, CQRS

Reactive solution success criteria

• Use message-driven communication or streams

• Persist events in Event Store

• Remain responsive under load

• Stay resilient in case of failures and errors

• Be elastic and utilise system resources efficiently

Methods used in the work

• PoC development
• Simulation scenario setup
• Actors based implementation
• Reactive streams based implementation

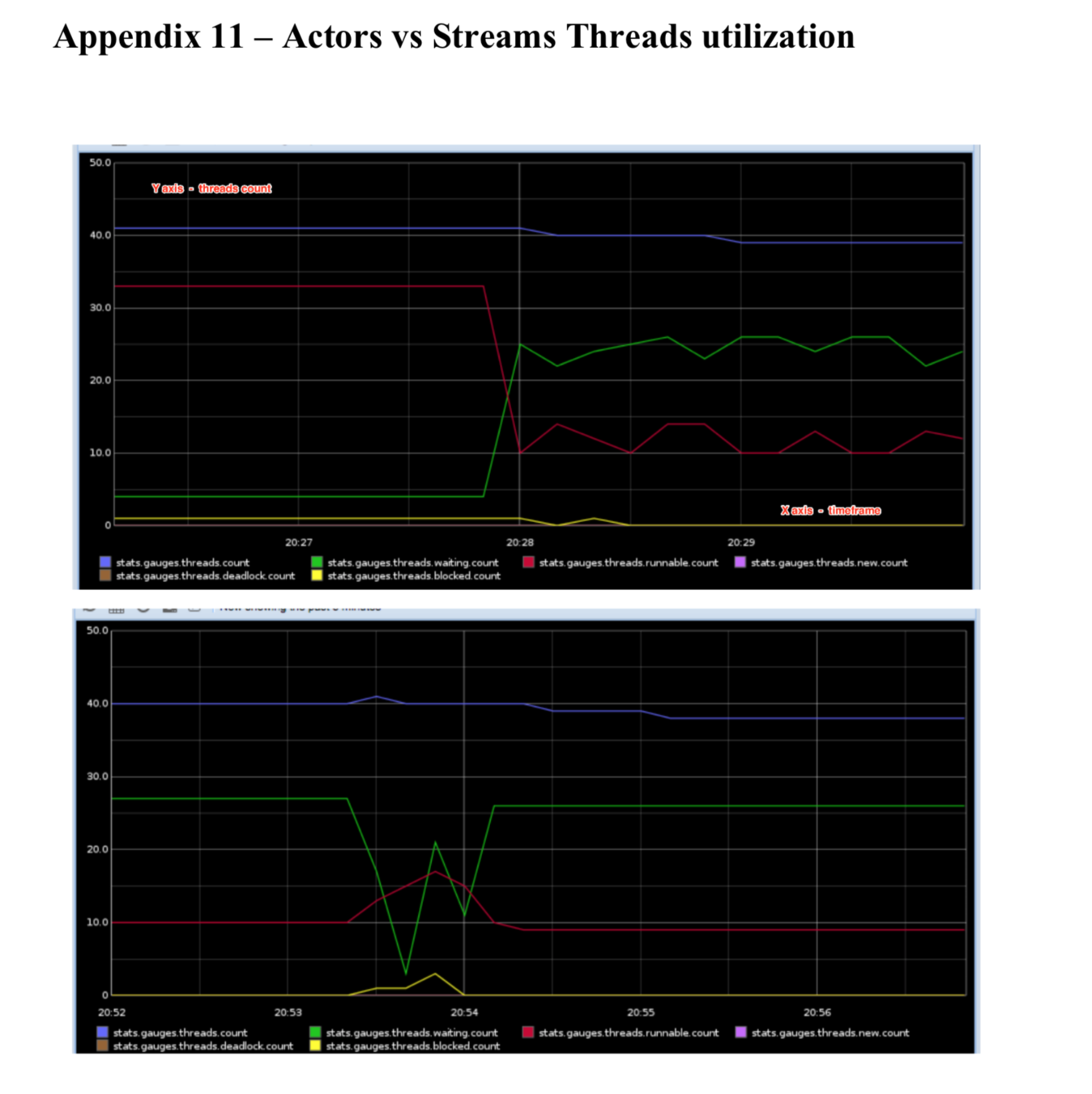

• Performance evaluation and metrics
• Outcomes and analysis

PoC simulation setup

Video recognition events:

Sensor events:

• Traffic incidents
• Road lane queues
• Vehicles passing  / vehicle type detection

• Weather conditions updated (temperature, humidity)
• Road surface conditions changed (ice / wet / dry)

Simulation source in GitLab

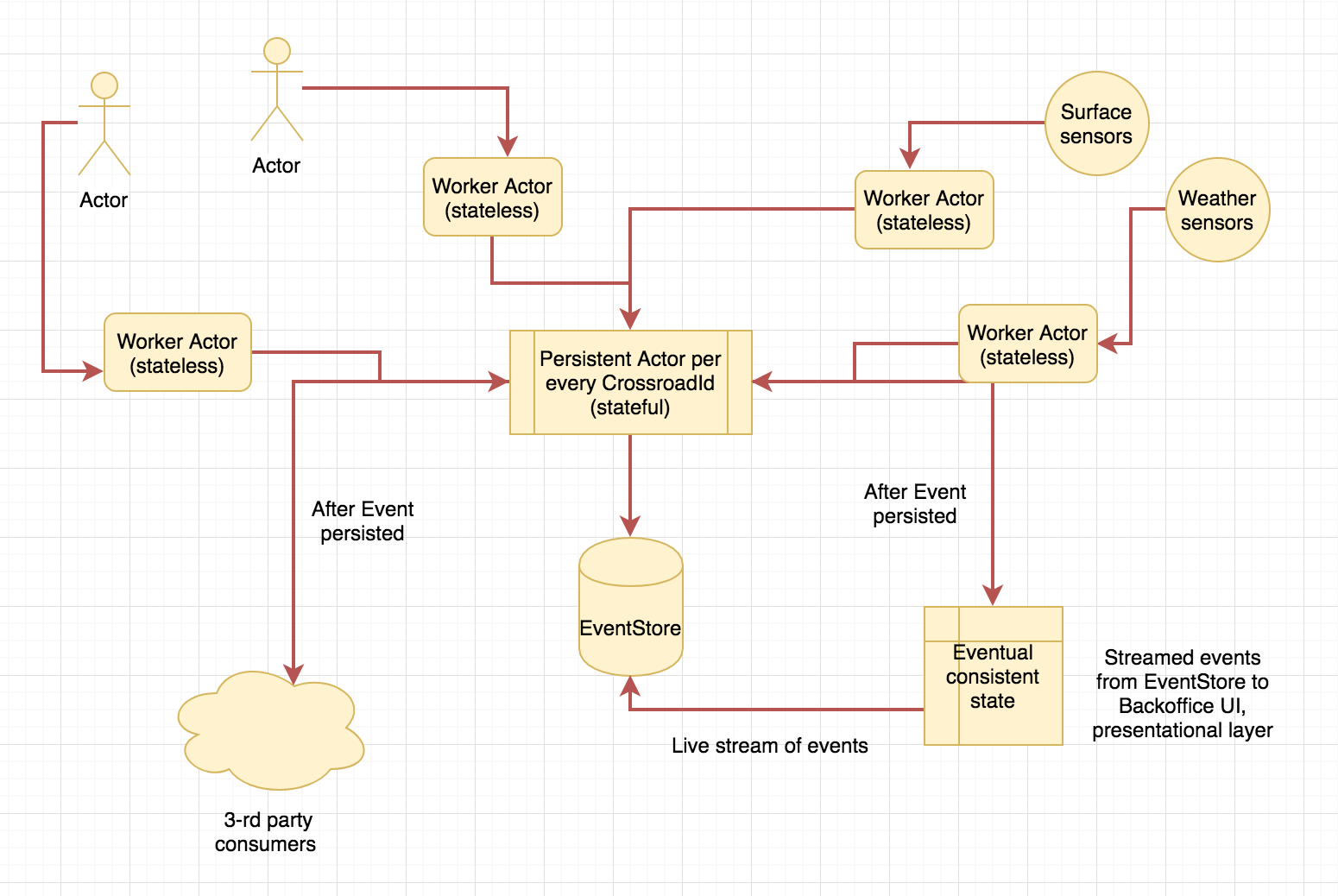

I Actor model

Actors implementation outcome

Pros:

Cons:

• Low-level machinery required
• No back-pressure support
• System resources unsafe

• Encapsulated state
• Lightweight and cheap to spawn in the system
• Messages delivery guarantees

Source of actors solution

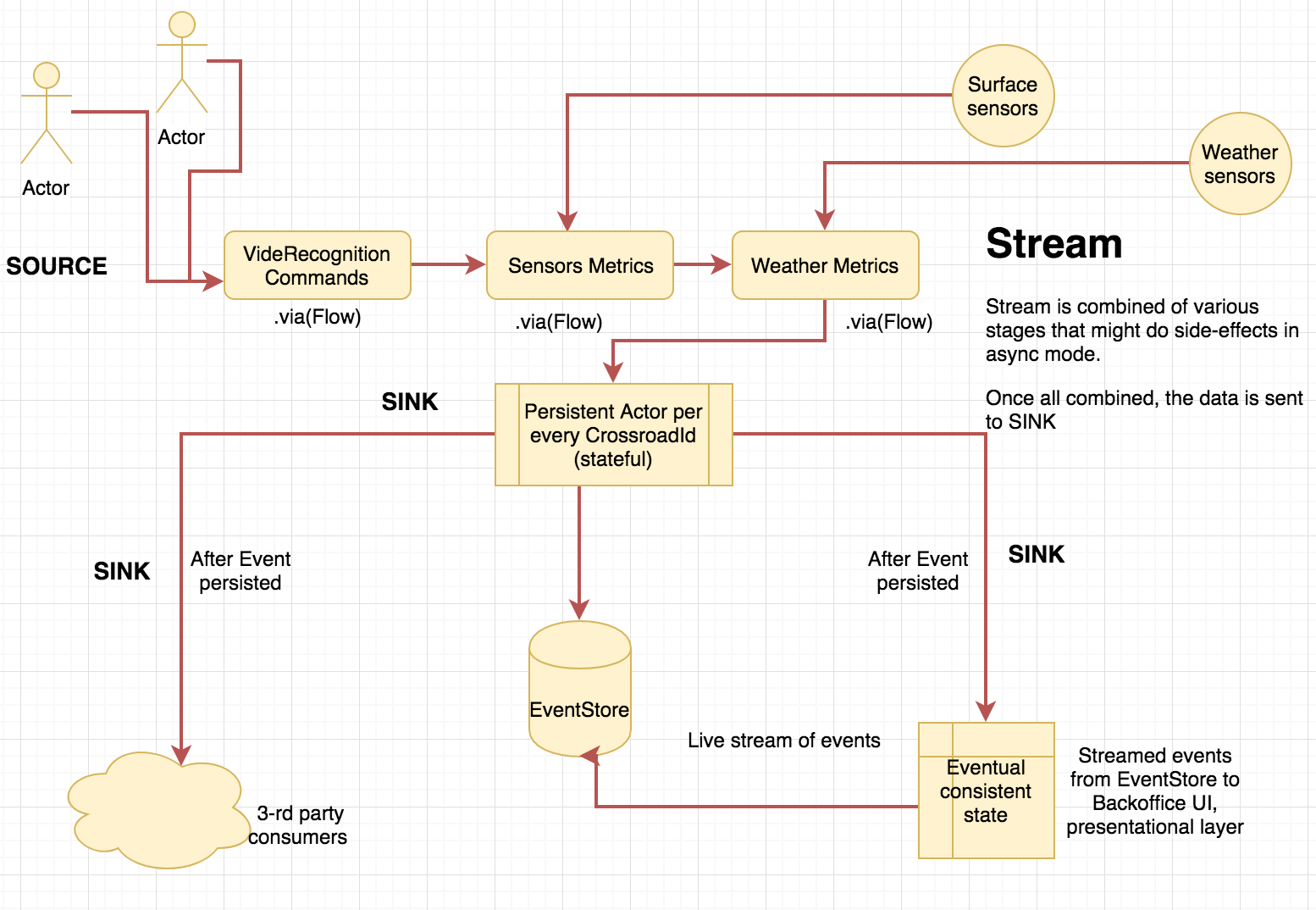

II Reactive streams

Reactive streams implementation outcome

Cons:

• Parallelism and concurrency with high-level DSL
• Back-pressure out of the box
• Less CPU context switches and reduced memory usage

Pros:

• Steep learning curve
• Few runtime issues encountered due to lack of docs

Source of streams solution

Summary

Reactive programming in IoT brings:

• Concurrency
• Durability
• Fault-tolerance
• Efficient resource utilisation

Is Reactive programming applicable in IoT crossroad traffic monitoring ?

Project in GitLab repository

Thanks for attention!

Questions?

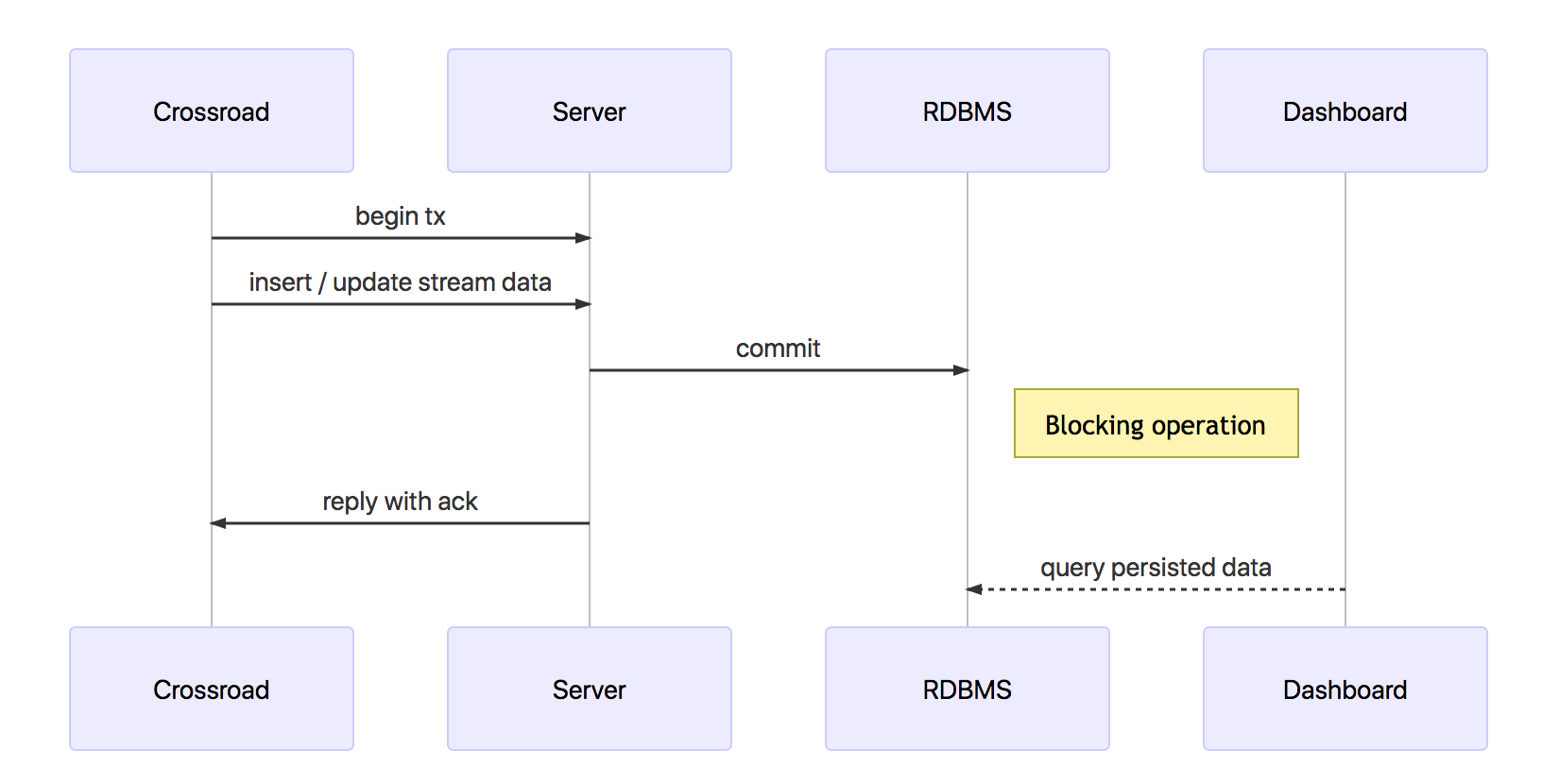

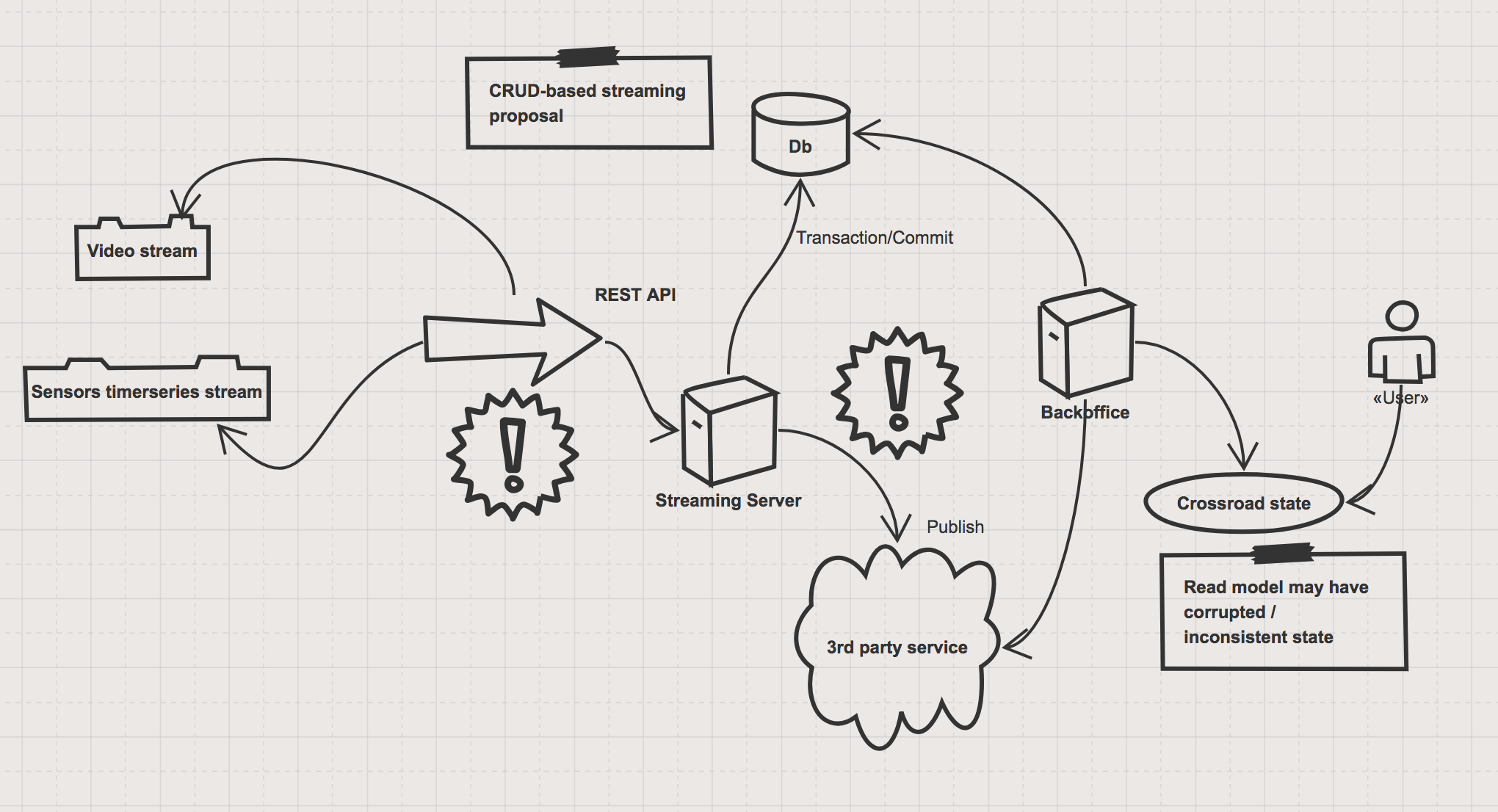

CRUD / OLTP design

CRUD / OLTP Design
