Masterclass
Signals

What is Reactivity?

let a = 3

let a = 3
let b = a * 10
let a = 3
let b = a * 10
console.log(b) // 30
let a = 3
let b = a * 10
console.log(b) // 30

a = 4
console.log(b) // 30

let a = 3
let b = a * 10
console.log(b) // 30

a = 4
console.log(b) // 30

b = a * 10
console.log(b) // 40
 A  B
 1  4  40

(fx = A1 * 10)

// change tracker
whenAChanges(() => {
  b = a * 10
})
 A  B C
 1  4  40
<template>
  <span id="cell-b1"></span>
</template>

<script>
</script>
 A  B C
 1  4  40
<template>
  <span id="cell-b1"></span>
</template>

<script>
document
  .getElementById('cell-b1')
  .textContent = state.a * 10
</script>
 A  B C
 1  4  40
<template>
  <span id="cell-b1"></span>
</template>

<script>
whenStateChanges(() => {
  document
    .getElementById('cell-b1')
    .textContent = state.a * 10
});
</script>
 A  B C
 1  4  40
<template>
  <span id="cell-b1" />
  <button id="inc">Inc</button>
</template>

<script>
whenStateChanges(() => {
  document
    .getElementById('cell-b1')
    .textContent = state.a * 10
});
</script>

<script>
const btn = document.getElementById('inc')
btn.addEventListener('click', () => {
  state.a = 4;
});
</script>

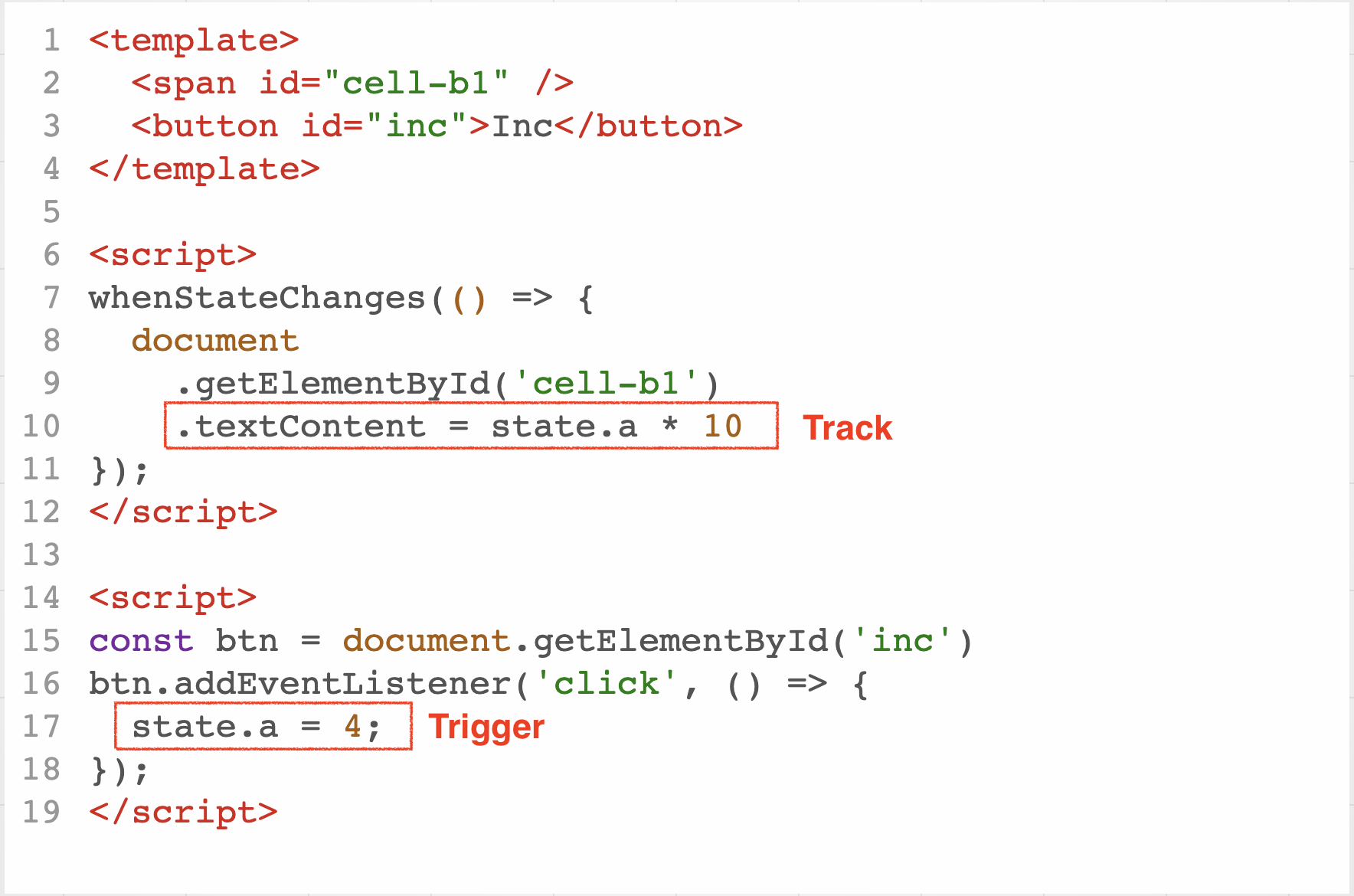

Track & Trigger

Track & Trigger

Value set/get Interception

const [value, setValue] = createSignal(0)
setValue(value() + 1)

Value set/get interception (signal)

track (dependencies)  & trigger

+

whenStateChanges (effect)

+

=

reactivity system

Flavors

{
  data() {
    let count = 1
    return {
      get count() {
        track()
        return count
      },
      set count(newCount) {
        count = newCount
        trigger()
      }
    }
  }
}

Vue2

{
  data() {
    return {
      count: 1
    }
  }
}

Property Interception

>>

function ref(initialValue) {
  let value = initialValue
  return {
    get value() {
      track()
      return value
    },
    set value(newValue) {
      value = newValue
      trigger()
    }
  }
}

Vue3

const count = ref(0)
count.value = count.value + 1

refs

const [count, setCount] = createSignal(0)
setCount(count() + 1)

Solid

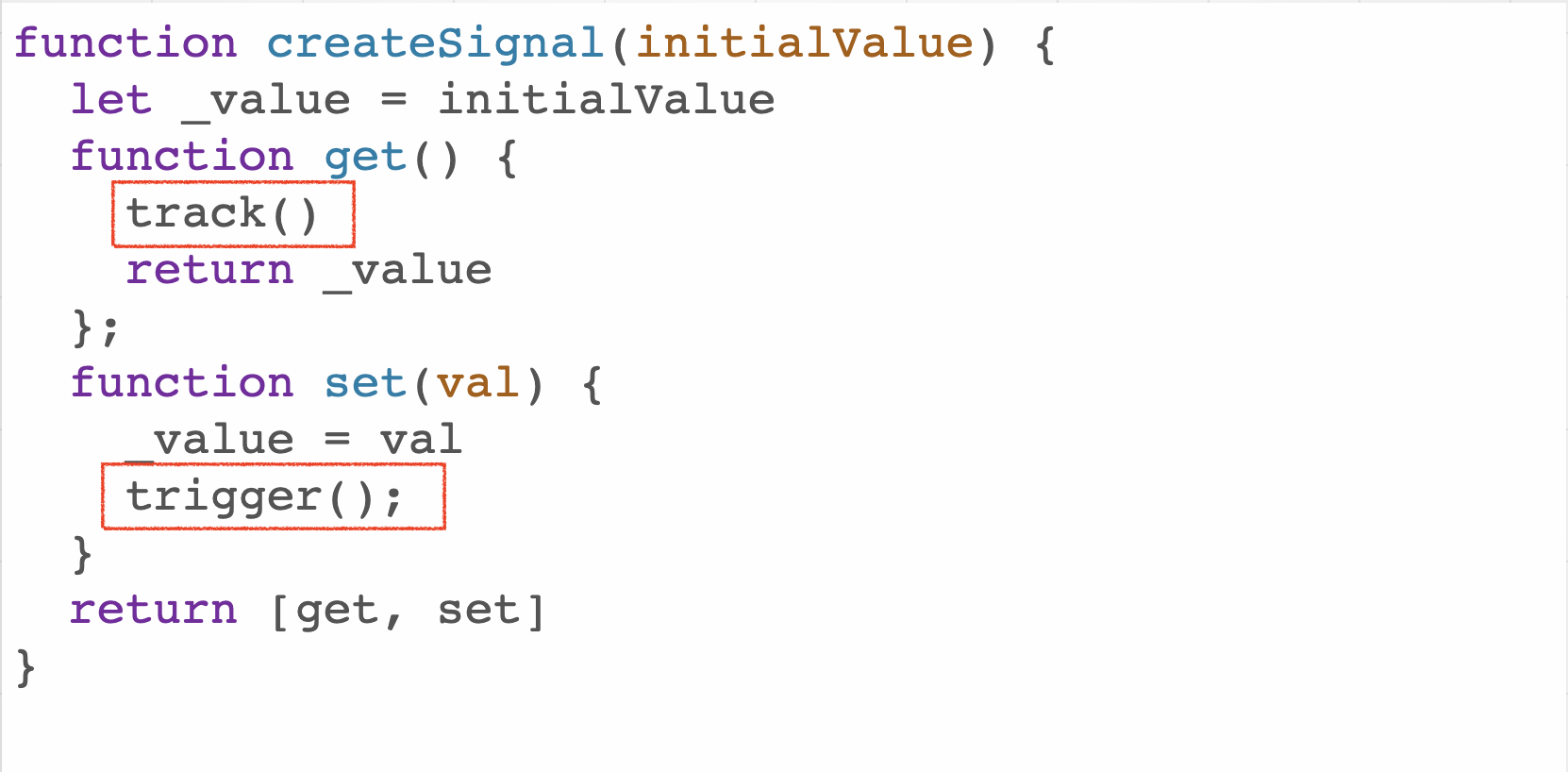

function createSignal(initialValue) {
  let _value = initialValue
  function get() {
    track()
    return _value
  };
  function set(val) {
    _value = val
    trigger();
  }
  return [get, set]
}

signals

const count = signal(0)
count.value = 1

Preact

function signal(initialValue) {
  let value = initialValue
  return {
    get value() {
      track()
      return value
    },
    set value(newValue) {
      value = newValue
      trigger()
    }
  }
}

signals

const count = signal(0)
count.set(count() + 1)

Angular v16

function signal(initialValue) {
  let value = initialValue
  function getter() {
    track()
    return value
  }
  getter.set = function(newValue) {
    value = newValue
    trigger()
  }
  return getter
}

signals

Implementing
a Reactive System

let activeEffect

class Dep {
  subscribers = new Set()
  track() {
    if (activeEffect) {
      this.subscribers.add(activeEffect)
    }
  }

  trigger() {
    this.subscribers.forEach((sub) => sub())
  }
}

function createEffect(cb) {
  activeEffect = cb
  cb()
  activeEffect = null
}

Dependency tracker

function createSignal(value) {
  // use Dep to implement a signal
  const dep = new Dep()
  function get() {
    dep.track()
    return value
  }
  function set(newValue) {
    value = newValue
    dep.trigger()
  }
  return [get, set]
}

// usage
const [count, setCount] = createSignal(0)

createSignal

Like Solid createSignal

const [count, setCount] = createSignal(0)

// attach button handler
const btn = document.getElementById('inc')
btn.addEventListener('click', () => {
  setCount(count() + 1)
});

// response to changes
createEffect(() => {
  const elem = document.getElementById('count')
  elem.textContent = 'count is' + count();
});

Using signal

<body>
  <div id="count">0</div>
  <button id="inc">Increment</button>
</body>

Implementing
Vue3

function ref(value) {
  const dep = new Dep()
  return {
    get value() {
      dep.track()
      return value
    },
    set value(newValue) {
      value = newValue
      dep.trigger()
    }
  }
}

// usage
const count = ref(0)

Vue3 ref

const appComponent = {
  template: `
    <h2 class="text-xl font-bold">Mini Vue</h2>
    <div :class="count.value % 2 ? 'text-red-400' : 'text-green-600'">
      count is: {{ count.value }}
    </div>
    <button @click="increment()" class="btn btn-primary">
      Inc
    </button>
  `,
  setup() {
    const count = ref(0);
    return {
      count,
      increment() {
        count.value++;
      },
    };
  },
};

const app = createApp(appComponent);
app.mount("#app");

Vue3 app

function createApp(rootComponent) {
  return {
    mount(target) {
      // get state
      const state = rootComponent.setup();

      // take the template string and set innerHTML
      const container = document.querySelector(target);
      container.innerHTML = rootComponent.template;

      // walk the resulting DOM tree and look
      // for directives or bindings like
      // `@click` and `{{ }}`
      render(container, state);
    },
  };
}

Vue3 app

function render(root, state) {
  for (const node of root.childNodes) {
    if (node.nodeType === 1 /* ELEMENT */) {
      for (const { name, value } of node.attributes) {
        if (name === "@click") {
          node.addEventListener("click", () => {
            evaluateExp(value, state);
          });
        } else if (name === ":class") {
          effect(() => {
            node.className = evaluateExp(value, state);
          });
        }
      }
    }
    else if (node.nodeType === 3 /* TEXT */) {
      // handle text
    }
  }
}

Vue3 app

The complete code and reference project can be found at

github

This class was based on the Evan You Reactivity Deep Dive Workshop 2023 and code samples.

Credits

Compacted and simplified  by Peter Cosemans



For Euricom DevCruise 2023
