binary solo

introductions

Conduct

Social Rules

No feigning surprise
No well-actuallys
No back-seat driving
No subtle-isms

recurse center <3

all your
feelings
are valid

binary solo

(core content!)

(technical digressions!)

⚠ technical digression ⚠

binary solo

how to count!

back to basics 🤓

the normal way

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, …

"Decimal"

"Base 10"

the normal way

0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, …

"Decimal"

"Base 10"

first weird thing: from now on, we will start counting at zero

the normal way

0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, …

"decimal"

"base 10"

something interesting happens here!

kill the 9s!

0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, …

"base 9"

… 18, 19, 20, 21, …

… 88, 89, 90, 91, … 99, 100, 101, …

(animated)

kill the 9s!

0, 1, 2, 3, 4, 5, 6, 7, 8, 10, 11, …

"base 9"

… 18, 20, 21, …

… 88, 100, 101, …

(animated)

how about the 8s!

0, 1, 2, 3, 4, 5, 6, 7, 10, 11, …

"octal"

"base 8"

… 16, 17, 20, 21, …

… 76, 77, 100, 101, …

(animated)

POWER

OF TWO!

…

0, 1, 2, 10, 11, 12, 20, 21, 22, 100, 101, …

"base 3"

(animated)

drumroll...

the last two digits!

0, 1, 10, 11, 100, 101, 110, 111, …

"binary!!!!!!!!"

"base 2"

(animated)

POWER

OF TWO!

count to 10000

(in binary 😉)

places: decimal

eg: 9201

9 in the thousands column
2 in the hundreds column
0 tens
1 ones

place	name
1	"ones"
10	"tens"
100	"hundreds"
1000	"thousands"

⚠ technical digression ⚠

places: decimal

eg: 9201

9 * 1000 +
2 * 100 +
0 * 10 +
1 * 1

place	name
1	"ones"
10	"tens"
100	"hundreds"
1000	"thousands"

= 9000 + 200 + 0 + 1

= 9201

⚠ technical digression ⚠

places: decimal

eg: 9201

9 * 1000 +
2 * 100 +
0 * 10 +
1 * 1

place	name	aka
1	"ones"	10⁰
10	"tens"	10¹
100	"hundreds"	10²
1000	"thousands"	10³

= 9000 + 200 + 0 + 1

= 9201

⚠ technical digression ⚠

places: binary!

place	name	i.e.
1	"ones"	2⁰
10	"twos"	2¹
100	"fours"	2²
1000	"eights"	2³

⚠ technical digression ⚠

places: binary!

eg: 1001

1 * 8 +
0 * 4 +
0 * 2 +
1 * 1

place	name	i.e.
1	"ones"	2 ⁰
10	"twos"	2 ¹
100	"fours"	2 ²
1000	"eights"	2 ³

= 8 + 0 + 0 + 1

= 9

⚠ technical digression ⚠

places: binary!

eg: 0111

0 * 8 +
1 * 4 +
1 * 2 +
1 * 1

place	name	i.e.
1	"ones"	2 ⁰
10	"twos"	2 ¹
100	"fours"	2 ²
1000	"eights"	2 ³

= 0 + 4 + 2 + 1

= 7

⚠ technical digression ⚠

send messages

with 1s and 0s?

hexadecimal

base 16!

0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, …

⚠ technical digression ⚠

add some new digits here!

hexadecimal

base 16!

0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, F, 10, 11, …

⚠ technical digression ⚠

12, 13, 14, 15, 16, 17, 18, 19, 1A, 1B, 1C, 1D, 1E, 1F, 20, …

… 99, 9A, 9B, 9C, 9D, 9E, 9F, F0, F1, F2, …

… F9, FA, FB, FC, FD, FE, FF, 100, 101, 102, …

POWER

OF TWO!

hardware setup

power up! 🔌

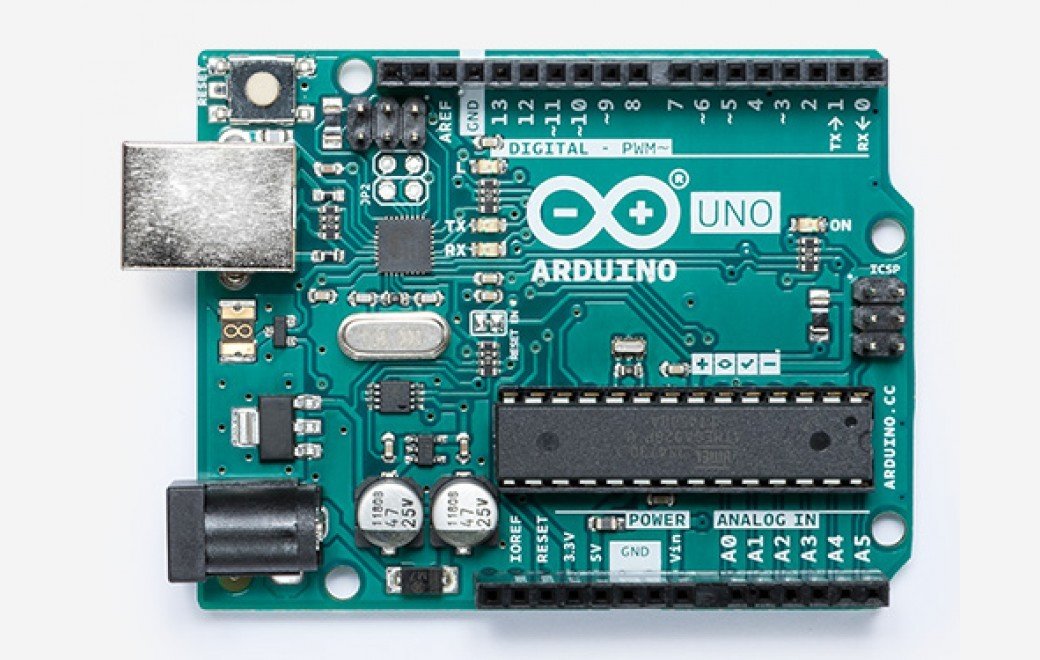

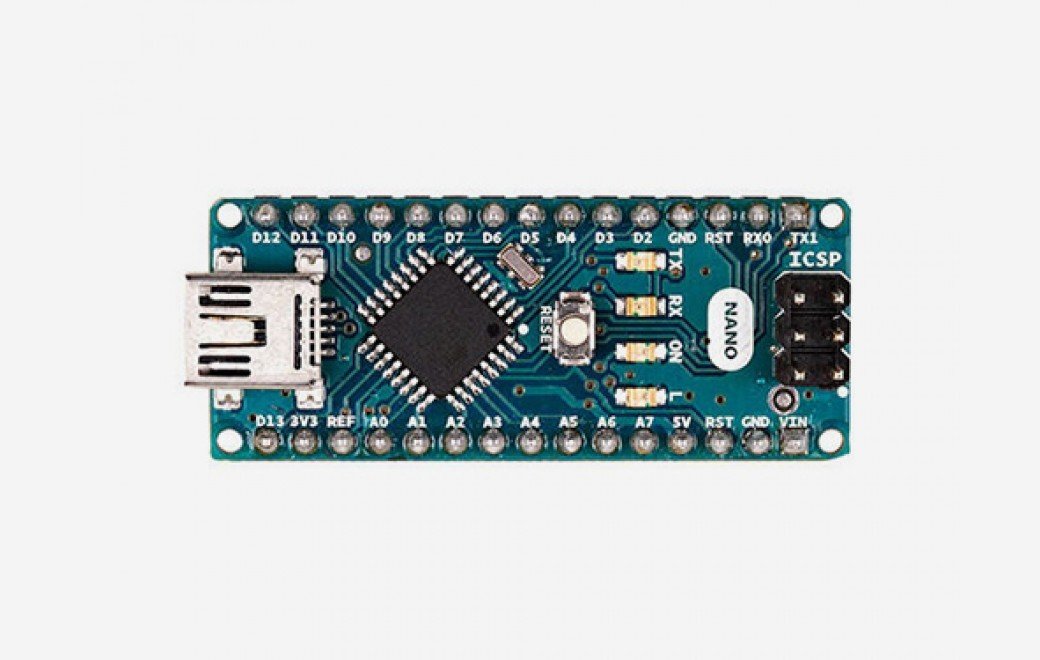

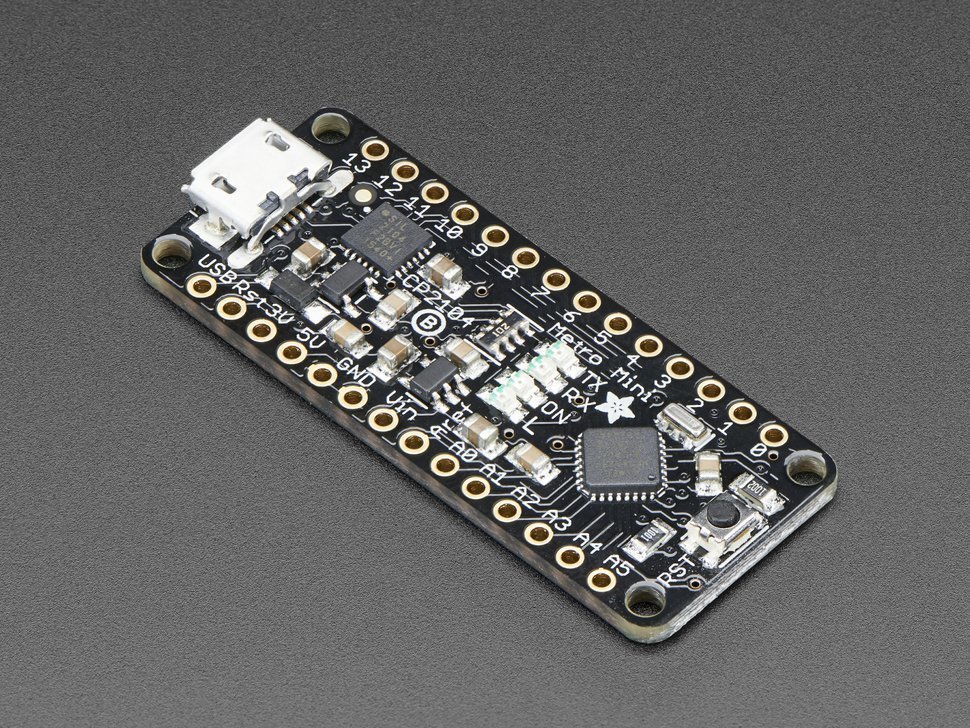

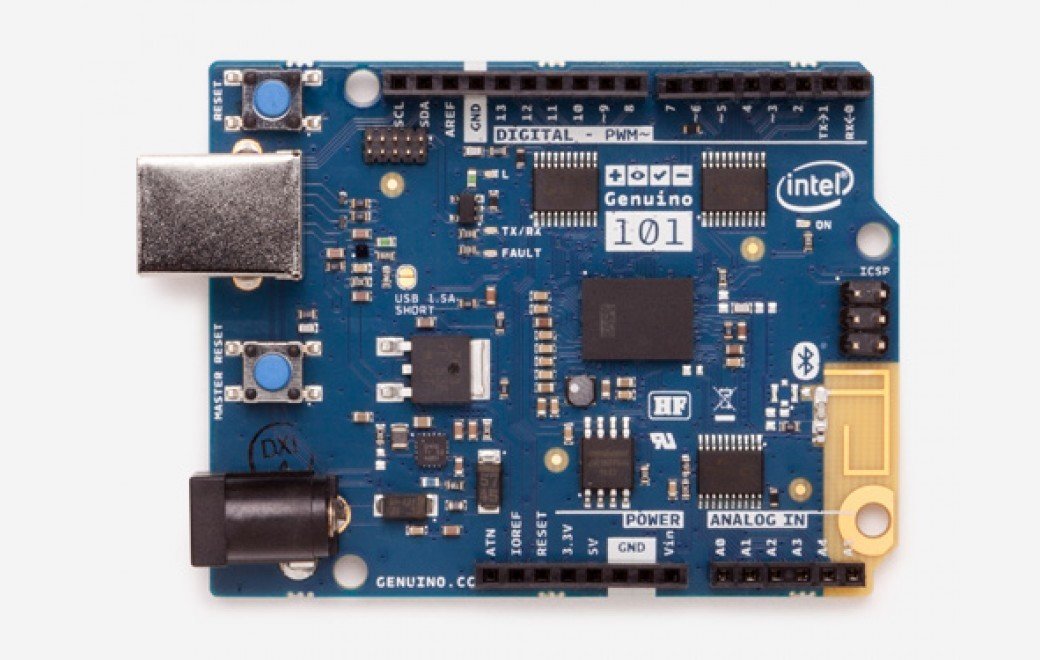

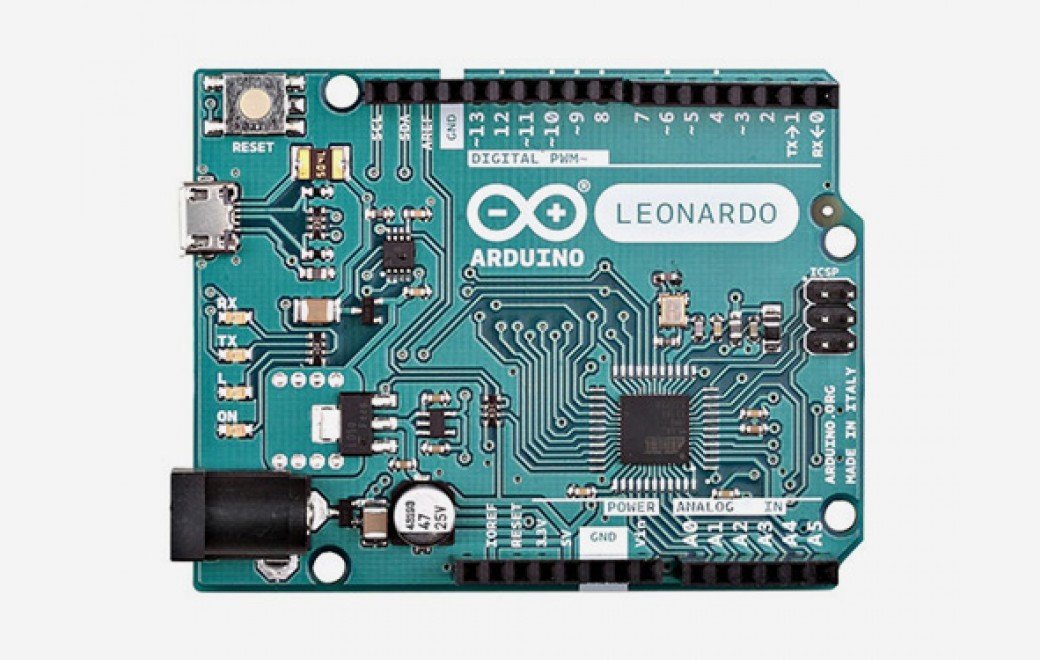

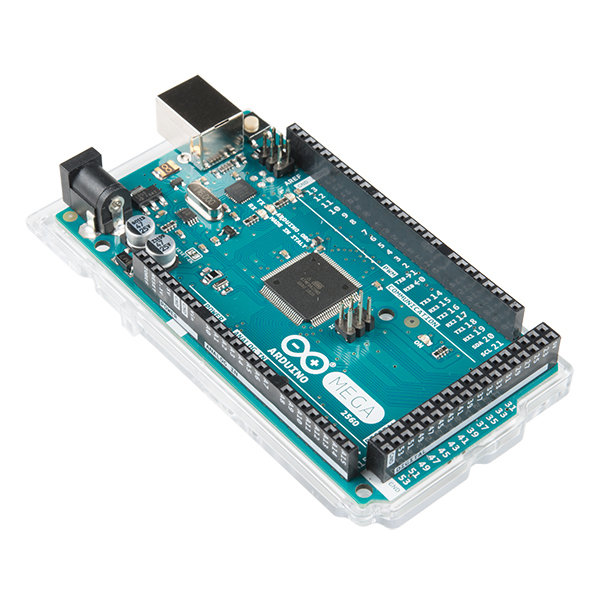

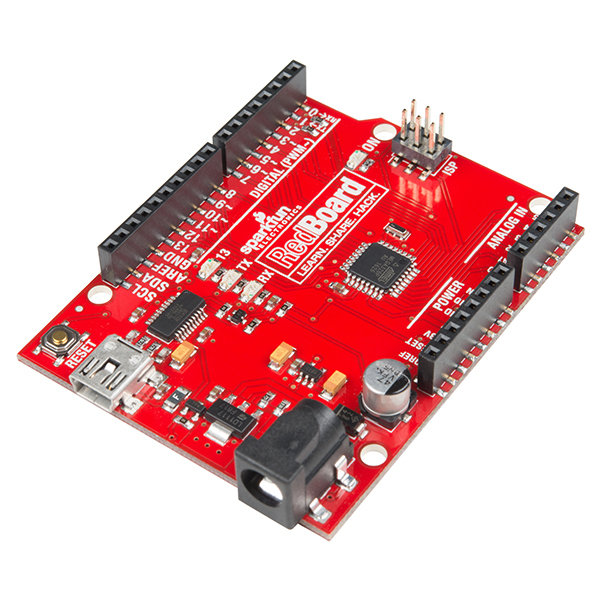

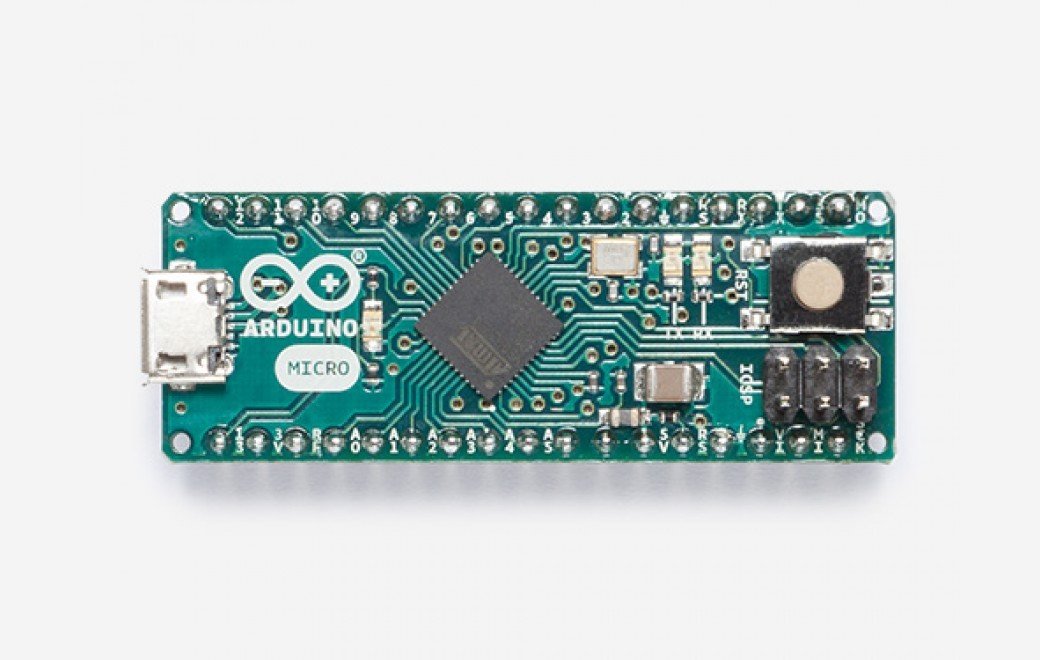

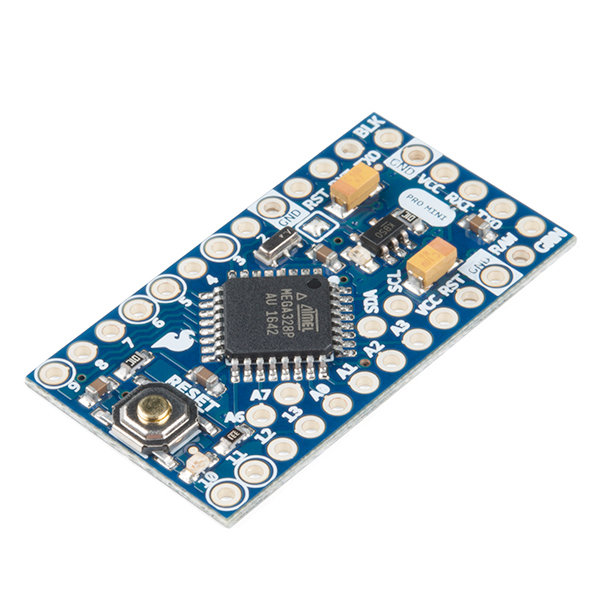

arduino

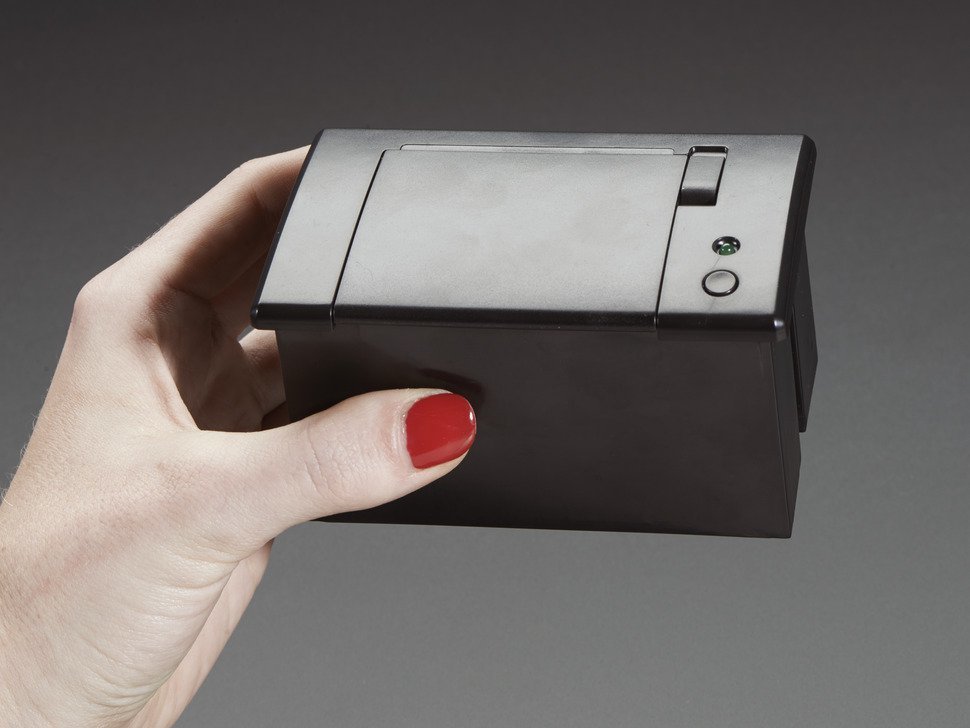

mini thermal printer

red & black: power
green & yellow: communication
one blink: all ok!

serial

RX: →Receive←

TX: ←Transmit→

bits & bytes

00001111

000000111

00000011

0000001

00001111

000000111

00000011

0000001

1 = 1

2 + 1 = 3

4 + 2 + 1 = 7

8 + 4 + 2 + 1 = 15

1 = 1

2 + 1 = 3

4 + 2 + 1 = 7

8 + 4 + 2 + 1 = 15

= B

= D

= H

= P

?????

bits & bytes

how computers store information

separating numbers

delays? spaces? newlines?

...chord hits?

00000010000001100000011100001111

0

1

2

4

1

2

3

8

256

9

512

10

1024

17

131,072

18

262,144

25

33,554,432

= 33,949,455 :/

can you send messages
with just 1s and 0s?

"bytes"

if eggs came in packages of 8...

"bytes"

Every number is made of

exactly 8 bits (1s and 0s)

The highest number is only 255!

11111111 = 1 + 2 + ... + 127 = 255

00000010000001100000011100001111

00000010 00000110 00000111 00001111

= 2

= 6

= 7

= 15

= C

G

H

P ?????

ASCII!


     0=[NUL]

     1=[SOH]

     2=[STX]

     3=[ETX]

     4=[EOT]

     5=[ENQ]

     6=[ACK]

     7=[BEL]

     8=[BS]

     9=[HT]

    10=[LF]

    11=[VT]

    12=[FF]

    13=[CR]

    14=[SO]

    15=[SI]

    16=[DLE]

    17=[DC1]

    18=[DC2]

    19=[DC3]

    20=[DC4]

    21=[NAK]

    22=[SYN]

    23=[ETB]

    24=[CAN]

    25=[EM]

    26=[SUB]

    27=[ESC]

    28=[FS]

    29=[GS]

    30=[RS]

    31=[US]

    32=" "

    33=!

    34="

    35=#

    36=$

    37=%

    38=&

    39='

    40=(

    41=)

    42=*

    43=+

    44=,

    45=-

    46=.

    47=/

    48=0

    49=1

    50=2

    51=3

    52=4

    53=5

    54=6

    55=7

    56=8

    57=9

    58=:

    59=;

    60=<

    61==

    62=>

    63=?

    64=@

    65=A

    66=B

    67=C

    68=D

    69=E

    70=F

    71=G

    72=H

    73=I

    74=J

    75=K

    76=L

    77=M

    78=N

    79=O

    80=P

    81=Q

    82=R

    83=S

    84=T

    85=U

    86=V

    87=W

    88=X

    89=Y

    90=Z

    91=[

    92=\

    93=]

    94=^

    95=_

     96=`

     97=a

     98=b

     99=c

    100=d

    101=e

    102=f

    103=g

    104=h

    105=i

    106=j

    107=k

    108=l

    109=m

    110=n

    111=o

    112=p

    113=q

    114=r

    115=s

    116=t

    117=u

    118=v

    119=w

    120=x

    121=y

    122=z

    123={

    124=|

    125=}

    126=~

    127=[DEL]

dec	hex	binary	ascii

65	0x41	0b01000001	A
66	0x42	0b01000010	B
67	0x43	0b01000011	C
68	0x44	0b01000100	D
69	0x45	0b01000101	E
70	0x46	0b01000110	F
71	0x47	0b01000111	G
72	0x48	0b01001000	H
73	0x49	0b01001001	I
74	0x4A	0b01001010	J
75	0x4B	0b01001011	K
76	0x4C	0b01001100	L
77	0x4D	0b01001101	M
78	0x4E	0b01001110	N
79	0x4F	0b01001111	O

dec	hex	binary	ascii
80	0x50	0b01010000	P
81	0x51	0b01010001	Q
82	0x52	0b01010010	R
83	0x53	0b01010011	S
84	0x54	0b01010100	T
85	0x55	0b01010101	U
86	0x56	0b01010110	V
87	0x57	0b01010111	W
88	0x58	0b01011000	X
89	0x59	0b01011001	Y
90	0x59	0b01011010	Z

H

E

L

O

01001000 01000101 01001100 01001100 01001111

send messages

with 1s and 0s!

dec	hex	binary	ascii

65	0x41	0b01000001	A
66	0x42	0b01000010	B
67	0x43	0b01000011	C
68	0x44	0b01000100	D
69	0x45	0b01000101	E
70	0x46	0b01000110	F
71	0x47	0b01000111	G
72	0x48	0b01001000	H
73	0x49	0b01001001	I
74	0x4A	0b01001010	J
75	0x4B	0b01001011	K
76	0x4C	0b01001100	L
77	0x4D	0b01001101	M
78	0x4E	0b01001110	N
79	0x4F	0b01001111	O

dec	hex	binary	ascii
80	0x50	0b01010000	P
81	0x51	0b01010001	Q
82	0x52	0b01010010	R
83	0x53	0b01010011	S
84	0x54	0b01010100	T
85	0x55	0b01010101	U
86	0x56	0b01010110	V
87	0x57	0b01010111	W
88	0x58	0b01011000	X
89	0x59	0b01011001	Y
90	0x59	0b01011010	Z

???

00000010 00000110 0000111 00001111

[stx]

00000010 00000110 00000111 00001111

[ack]

[bel]

[si]

????


     0=[NUL]

     1=[SOH]

     2=[STX]

     3=[ETX]

     4=[EOT]

     5=[ENQ]

     6=[ACK]

     7=[BEL]

     8=[BS]

     9=[HT]

    10=[LF]

    11=[VT]

    12=[FF]

    13=[CR]

    14=[SO]

    15=[SI]

0=[NUL]	1=[SOH]	2=[STX]	3=[ETX]	4=[EOT]	5=[ENQ]	6=[ACK]	7=[BEL]
8=[BS]	9=[HT]	10=[LF]	11=[VT]	12=[FF]	13=[CR]	14=[SO]	15=[SI]

ASCII!

unicode

ò ж ҈ ☂ 🙀

⚠ technical digression ⚠

text: it�s hard

bigger numbers

and other kinds of data

⚠ technical digression ⚠

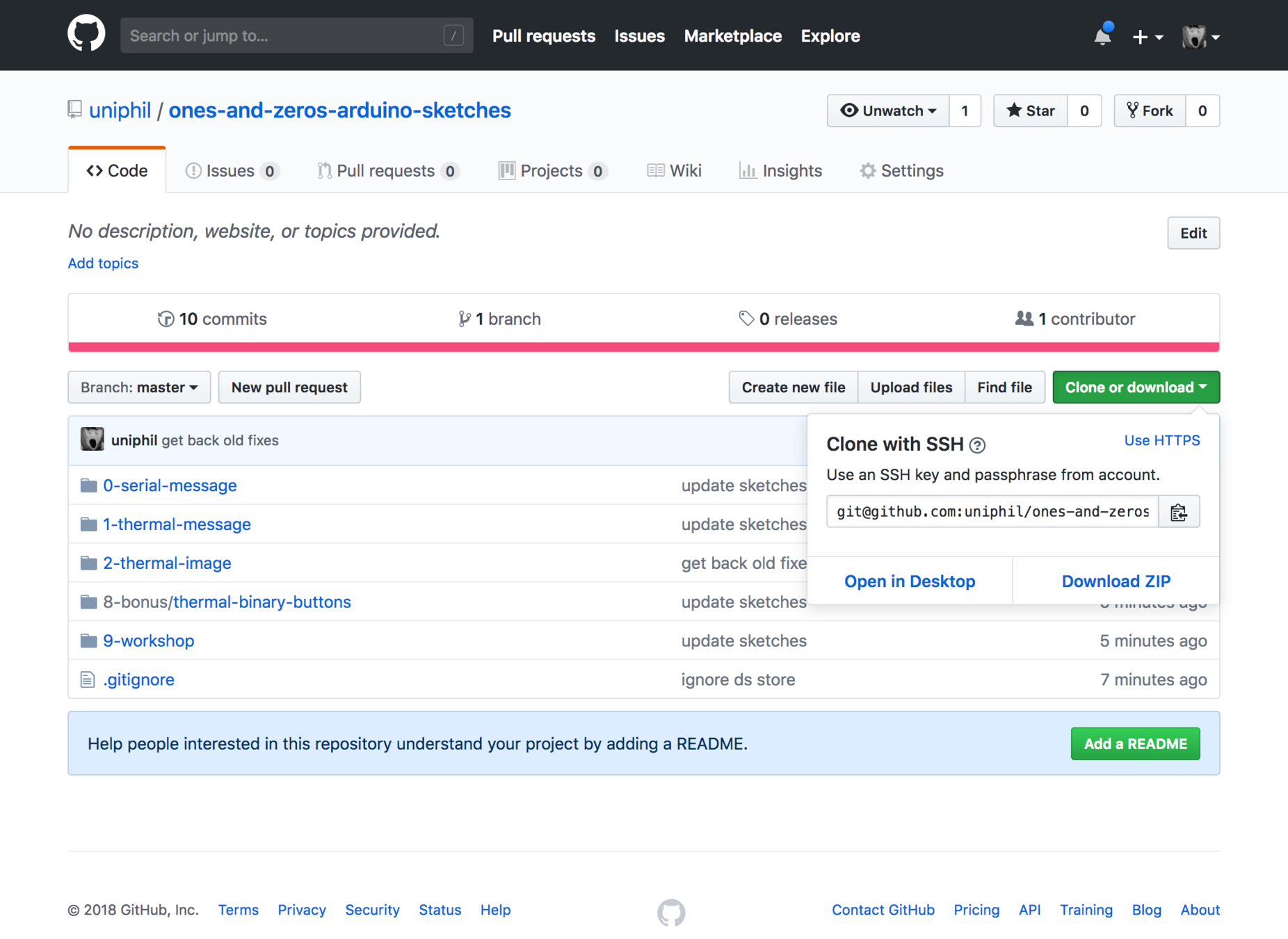

get code

binary solo!

✨️

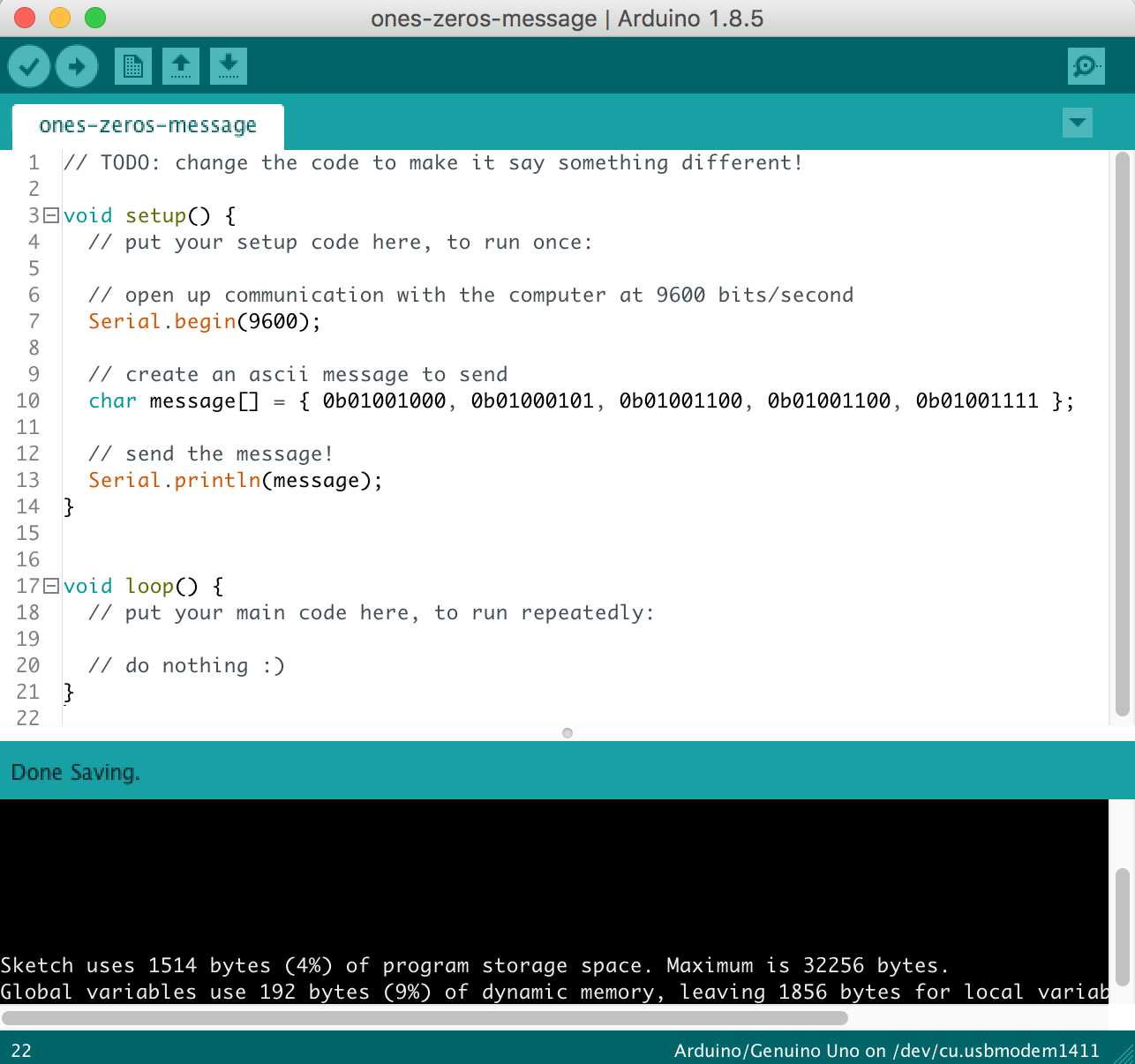

0-serial-message.ino

send messages

with 1s and 0s!

thermal-binary-message.ino

send images

with 1s and 0s!

thermal-image-message.ino

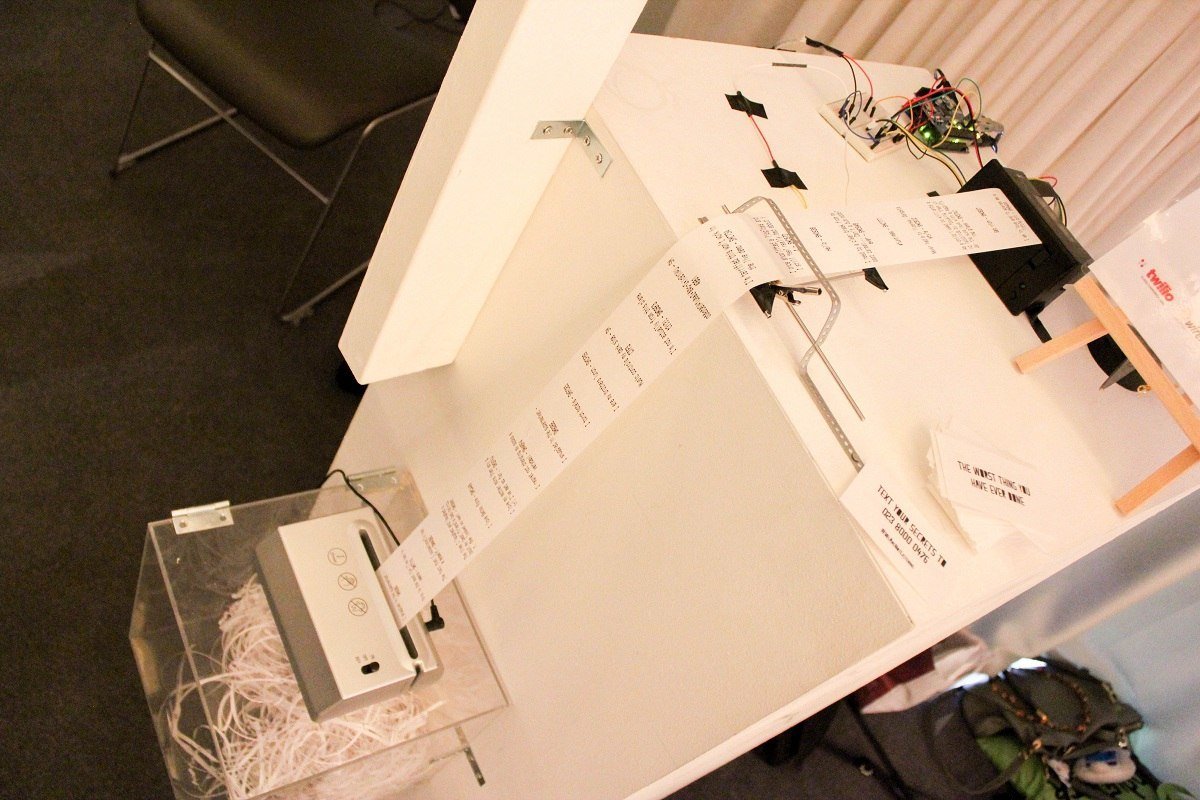

thermal printer art

The Counter Button

(Object #1)

Ailadi, 2018

WeAreNotListening

Alice Woods, Seb Potter, Betsy Fore,

Tim Regan (2013)

alicewoods.co.uk/weaenotlistening

Tape Recorders

Raphael Lozano-Hemmer (2011)

lozano-hemmer.com/tape_recorders.php

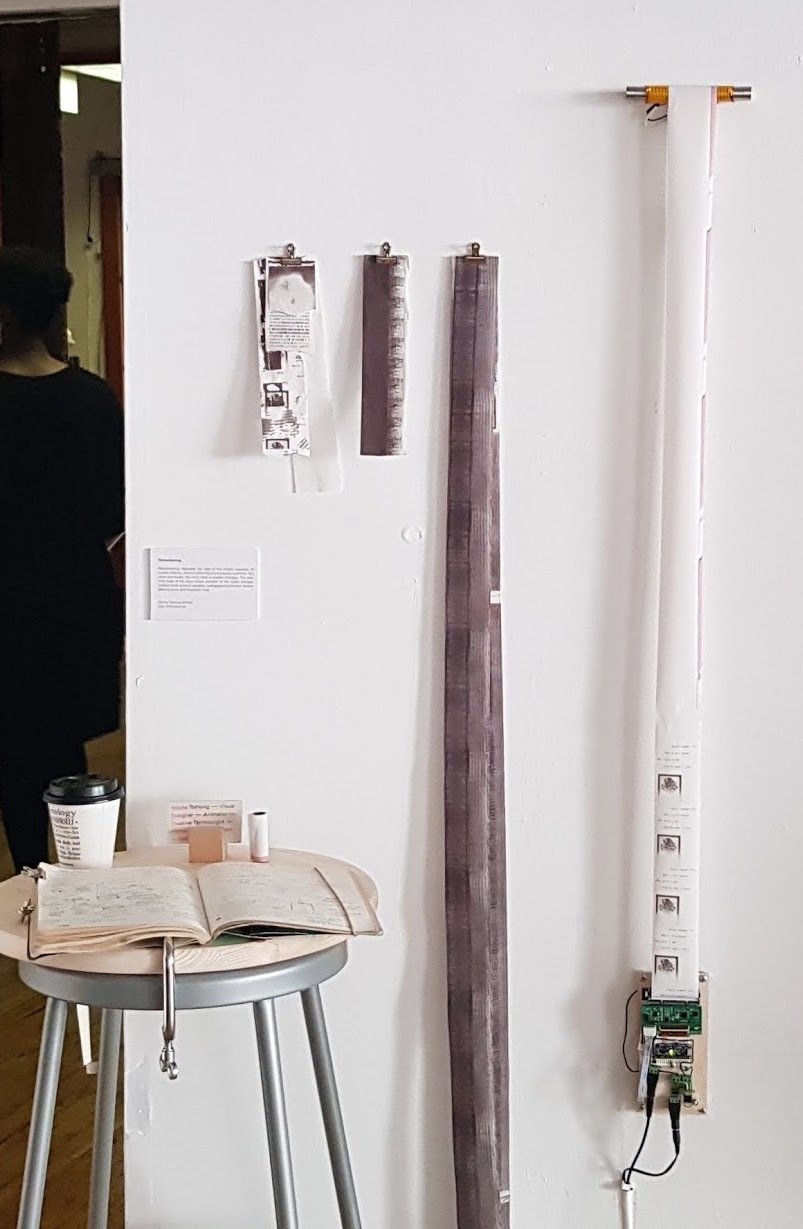

Remembering

Nitcha Fame Tothong (2018)
