Gaussian Process Regression for Magnetic Field Reconstruction
https://slides.com/qudsi/magnetore
Some relevant scales:
d_i \mathrm{(1AU)} \sim 100 ~\mathrm{km} \\
V_{sw} \sim 500 ~\mathrm{km/sec} \\
X_{sim} \mathrm{(box size)} \sim 40 d_i\\
\hspace{3.1cm}\sim 4\times 10^3 \mathrm{km}\\
d_{spc} \sim [1, 11]~d_i\\
\hspace{1.2cm}\sim \mathrm{ [10^2, 10^3]~ km} \\
f[min,max] \sim V_{sw}/(2\times d_{spc, max, min}) \\
\hspace{0.8cm}\sim [0.25, 2.5]~\mathrm{Hz}\\
\nu (\mathrm{sampling~rate}) \sim 40 \mathrm{Hz}\\
\mathrm{(just~because~of~box~size~and~stuff)}\\
\mathrm{time~to~move~across~the~simulation~box} \sim 10 ~\mathrm{sec}
Hub
Spacecrafts
$$d_i$$
22

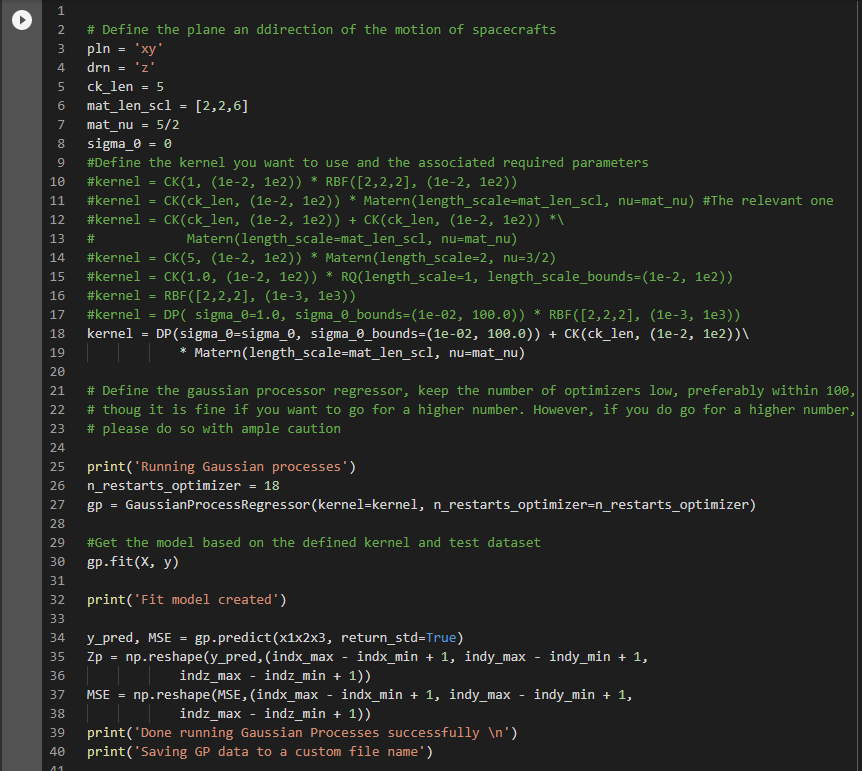

Gaussian Process Regression Interpolation
Gaussian Process Regression:
It is a probabilistic data imputation method
It is a probability distribution over possible functions that fit the given finite dataset
dataset with finite number of observation is modelled as if it were a multivariate normal distribution
$$m(\mathbf{x}) = \mathbb{E}[f(\mathbf{x})]$$
Mean function
$$k(\mathbf{x}, \mathbf{x'}) = \mathbb{E}[(f(\mathbf{x}) - m(\mathbf{x}))(f(\mathbf{x'}) - m(\mathbf{x'}))]$$
Covariance function
$$f(\mathbf{x}) \sim \mathcal{GP}\left(m(\mathbf{x}), k(\mathbf{x}, \mathbf{x'})\right)$$
Gaussian Processes
Constant
Linear
RBF
Matern
Kernels

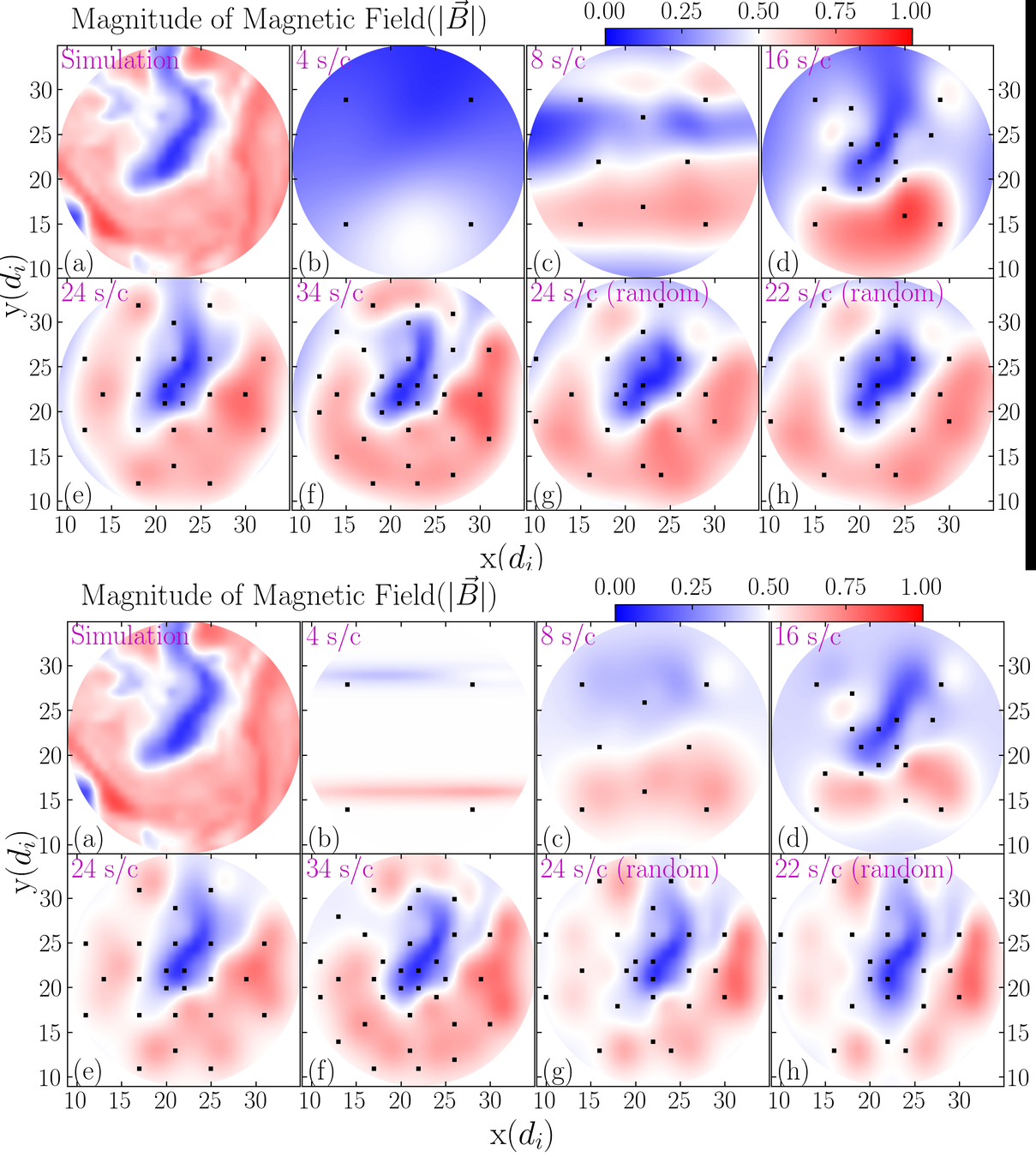

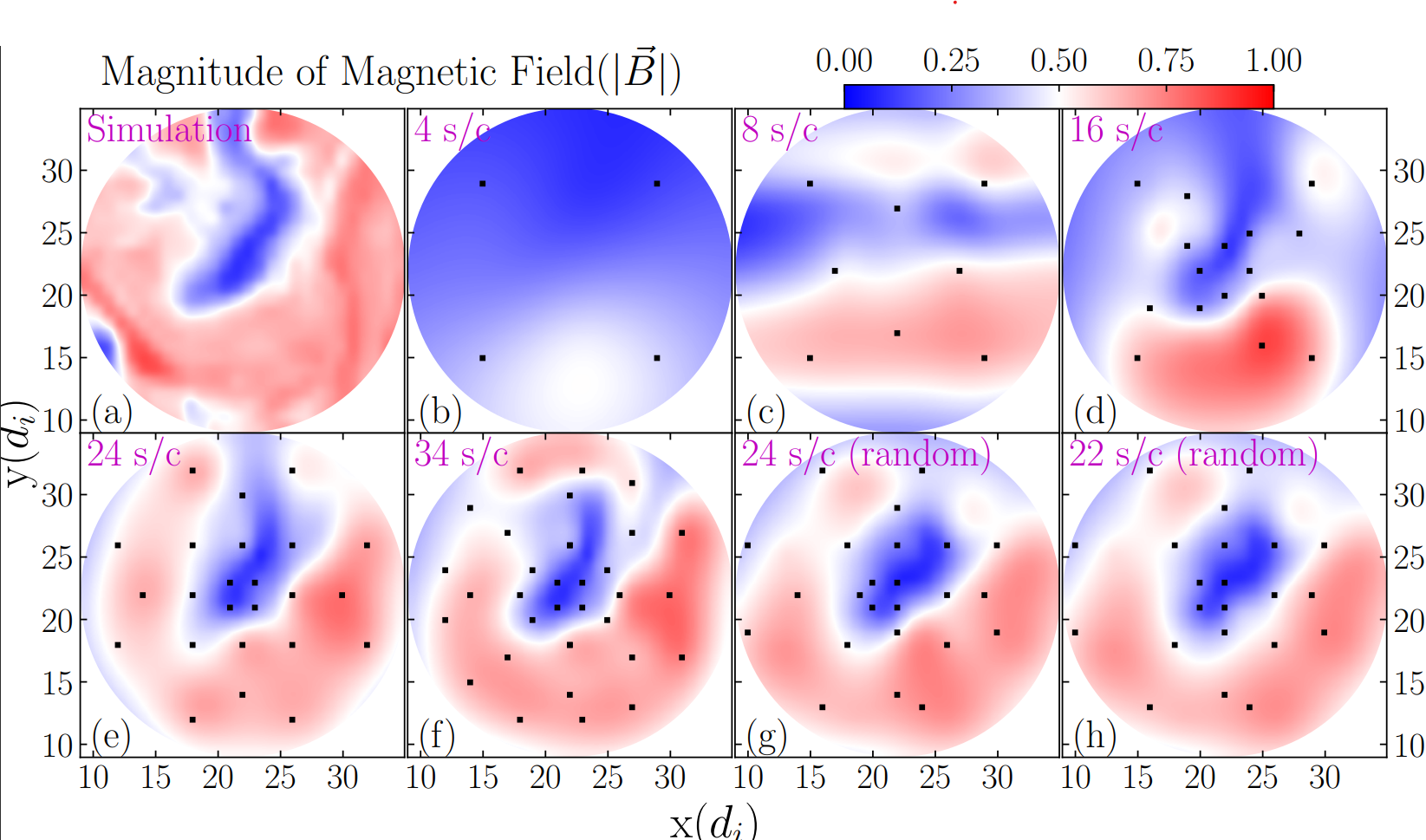

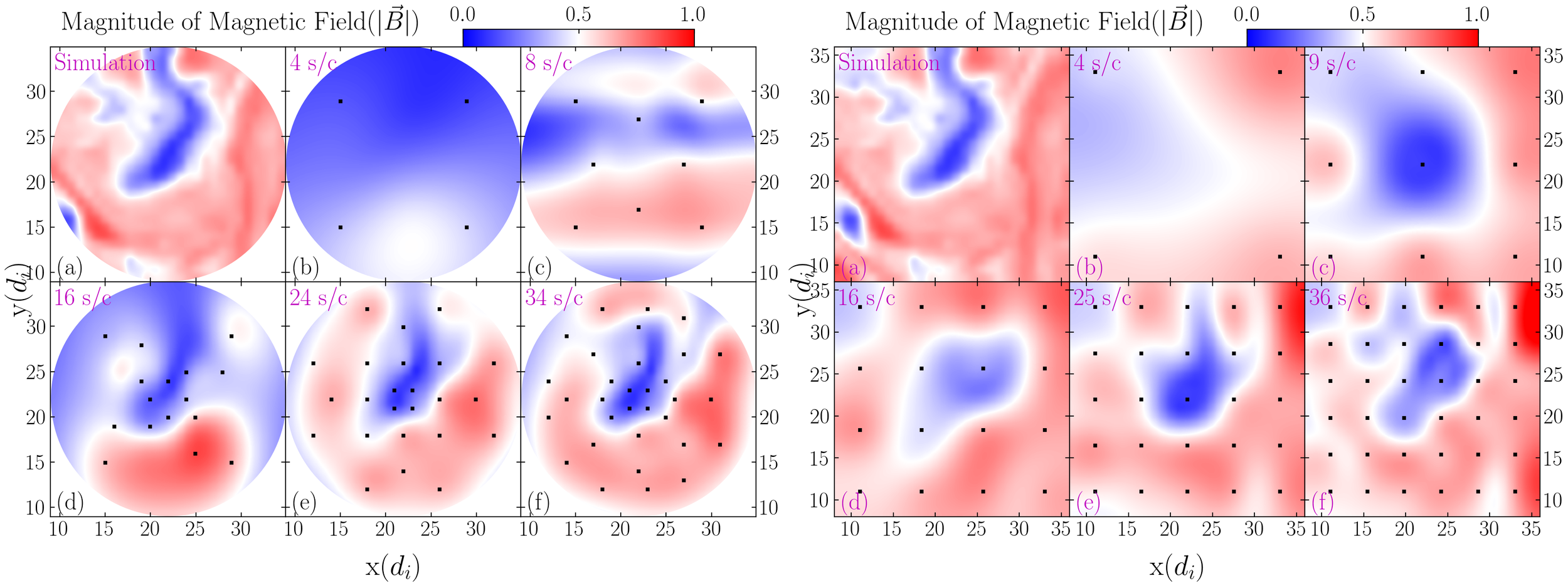

Results
One component at a time
Maruca 2021, Frontiers in A & SS
All components at a time
Qudsi et. al., in prep
Single component input
Vector input

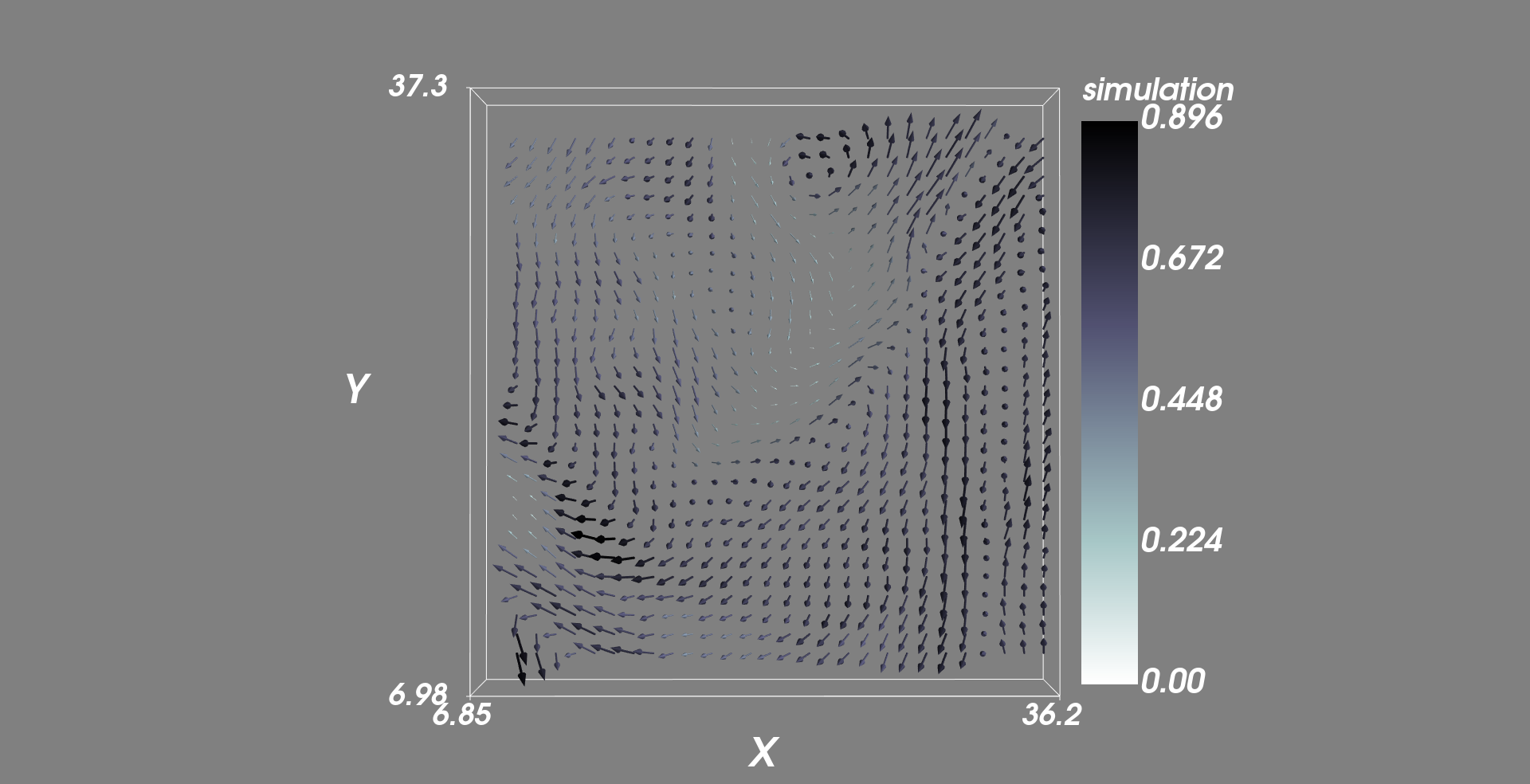

simulation data
simulation data
8 spc
24 spc
8 spc
24 spc
8 spc
16 spc
24 spc
34 spc
24 spc*
22 spc*
Moving Forward
What's next?
Explore the impact of relative spacecraft separation and arrangement
Incorporate the zero divergence condition on magnetic field
Explore alternative algorithms/methods
Deep Gaussian Processes
Neural Network as GP
Find ways to compare the reconstructed images for different styles
Thank You!
