Fission Reactor

Datalog, CRDTs, and a WebNative Database

Welcome 👋

• Hi, I'm Quinn!
  • Applied Researcher @ Fission
  • @wilton_quinn on Twitter

• Agenda
  • The state of WebNative
  • Introducing Dialog!
  • Open discussion

• We have lots of time today
  • Please interrupt if you have questions!

The State of WebNative

• WebNative is a typescript SDK for decentralized apps
  • ...but @theappcypher recently joined to port to Rust

• Provides...
  • Identity and authorization, with UCAN
  • File storage, with the WebNative FileSystem
  • End-to-end encryption, with WebCrypto
  • ​Cross-device syncing, with IPFS

• But what about structured data?
  • Modeling rich application state and relational data
  • Collaborative apps with concurrent access

Why an Edge Database?

• Data is being produced at unprecedented rates, but existing systems are showing their cracks
  • Walled gardens inhibit interoperability
  • Users lack agency over the use and sharing of data
  • Fundamental limits on scaling
    ​
• A local-first database offers solutions to these issues
  • Data can be directly shared between applications
  • E2E encryption enables granular access controls
  • Data locality eliminates network calls
  • Smaller datasets alleviates some scaling concerns

If only it were so easy...

• A local-first database must embrace uncertainty
  • Devices may be offline for months at a time
  • The set of devices is unknown and unbounded
  • The capabilities of those devices varies


• Concurrent updates may span long-lived branches of history
  • Think conflict resolution of a long-lived Git branch​


• Normally we ask when a system will converge...
  • ...but here we must instead question what the world looks like when convergence is impossible

Introducing Dialog!

• Dialog is an edge database we're building that uses a dialect of Datalog to query data in local-first applications

• Its design goals include:
  • Exposing bitemporal CRDTs, that offer resilience to byzantine faults
  • Modeling application state as views over these data types, with incremental view maintenance
  • Enabling data integration over heterogeneous and encrypted data sets

• It's also very much a work in progress!

Data- what?

• Datalog is a declarative language from the 70s, with roots in logic programming
  • Programs are rules that operate on a set of facts

• It's used in...
  • Deductive databases (Datomic)
  • Distributed systems (Bloom)
  • Static analysis (Soufflé)
    ​
• Datalog is equivalent to relational algebra (SQL) with recursion
  • This makes it a powerful language for representing complex queries!

Time Traveling CRDTs

• Conflict-free Replicated Data Types
  • Data structures which support coordination-free synchronization of updates, while guaranteeing strong eventual consistency​
  • Roughly, two peers that have received the same events will converge on the same state
    ​
• Bitemporality is a technique for modeling time in databases such that...
  • The state at any point in history can be recovered
  • Alternative timelines can be forked

Keeping CALM with Datalog

• The CALM Principle proves:
  • "logically monotonic distributed code is eventually consistent without any need for coordination protocols"
    ​
• Datalog is logically monotonic...
  • ...what if it could be used to simplify the design and implementation of CRDTs?

• Spoiler alert: it can!
  • Data structures as queries: Expressing CRDTs using Datalog (2018)

Byzantine Faults and CRDTs!

• We're building a trustless database though; CRDTs must converge given invalid events
  • IDs must be unambiguous
  • Causal dependencies must be unforgeable
  • Semantic invariants must be verifiable
    ​
• These goals can all be achieved by explicitly modeling causality over a content-addressable DAG
  • Making CRDTs Byzantine Fault Tolerant (2022)​
    ​
• Represent Datalog facts as 4-tuples:
  • (entity, attribute, value, causality)
  • The CID doubles as a tie-breaker!

Speeding through Time

• Time travel and conflict resolution mean recomputing views from arbitrary points
  • How do we avoid starting from the beginning?
    ​
• Incremental view maintenance with Datalog!
  • A class of algorithms for recomputing a view when the inputs change
    ​
• Current candidate is Delete/Rederive (DRed)
  1. Compute difference in facts between two points
  2. Delete all derivations that rely on deleted facts
  3. Rederive all facts with alternative derivations

Heterogenous Data Integration

• Remember, global convergence isn't a goal for us!

• Real-world systems are messy and non-overlapping
  • Social networks rely on asymmetry and privacy
  • In science and media we trust different sources
    ​
• Data relevance is a question of access and intent
  • ​Encrypted data is captured by hidden sub-DAGs
  • Relevant data is filtered for in the view
    ​
• We trade global convergence for locally deterministic and mutually compatible interpretations of data

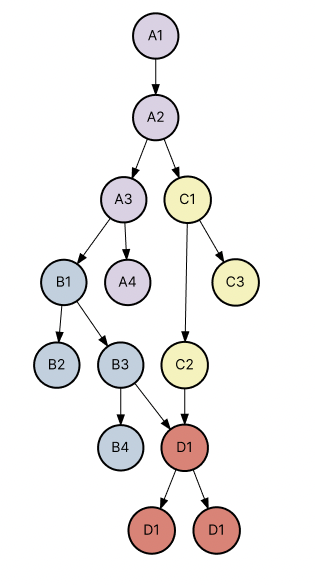

Partially Encrypted DAGs

What's next?

• Reminder: this is all very early!
  • We've primarily been defining the problem
  • Most of our focus has been on Datalog and CRDTs
    • I've prototyped a Datalog engine to explore some implementation details
      ​
• An incomplete list of open questions:
  • What does the DSL for views and queries look like?
  • How is provenance tracked and stored?
  • Can indexes be verified and shared?
  • How does the UX for time travel and forking look?

Bringing it all together...

• Dialog is our approach to a local-first database that prioritizes user agency, data privacy, and interoperability

• It eschews traditional ideas of convergence in favor of recognizing the inherent complexity of the world

• It ties together Datalog, CRDTs, and Content-Addressable Storage using IPFS

• ...with the goal of integrating into our existing WebNative SDK
