General Comments

General Comments

• DevOps is hard
  • Time consuming because processes take a while - and usually fail at the end 😅
  • Struggling with permissions - especially if you try follow least-privilege approach
  • Lack of/errors in documentation - particularly meaningful/correct examples
  • AI assistants are of limited value
• Bash or PowerShell?
  • Both are fine
  • More people know bash
  • Advantages of PowerShell in some Azure services (e.g. Azure Automation, Azure Functions)

This Workshop

• We are not building a landing zone
  • We are learning the fundamentals to build one
• This is not a workshop about software or cloud architecture
  • Would be too project-specific
• This is not a workshop about software development
  • Focus on IaC, not regular app code
• We want to gather foundational knowledge about Azure

Management Groups

Management Groups

• Way to efficiently manage access, policies, and compliance for subscriptions
  • E.g. apply policy to group of subscriptions
  • E.g. provide a user access to multiple subscriptions
• Hierarchical structure
  • Restructuring is possible (except Root MG)
  • Warning: MG hierarchy is cached for up to 30 minutes
• Limits apply 🔗
• Root MG: Single top-level management group
  • Global policies and role assigments
  • ID of the Root MG is the same value as the Microsoft Entra tenant ID
  • Can't be moved or deleted
  • Default MG can be different 🔗
  • Note: Elevated permissions 🔗
• Roles on MGs 🔗

Exercise: MG Hierarchy

• Group exercise (recommendation: pairs)
• Think about how the MG hierarchy for your org could look like

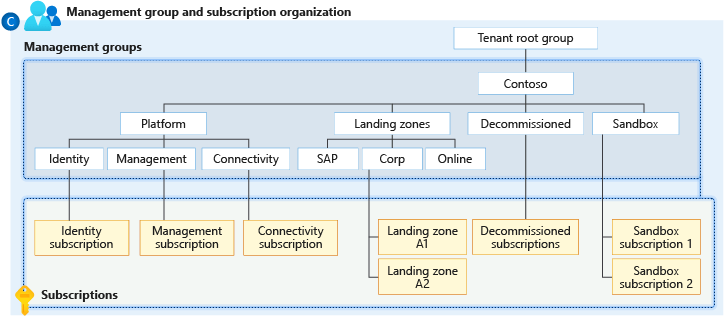

  • Consider Microsoft's samples; e.g. 🔗:








    ​
• Document and present your ideas

Bicep

What is Bicep?

• Domain-specific language to deploy Azure resources
  • Aka Infrastructure as Code (IaC)
• Declarative, type-safe, modular language
• Always up-to-date
  • Supports GA and preview versions of Azure resources
• Good authoring experience in VSCode (and forks)
• Works well with Azure CLI 🔗 and Azure PowerShell 🔗
• Uses Azure Resource Manager behind the scenes
• Preview changes with what-if operation 🔗
• Getting started
  • Installation 🔗
  • Learn modules 🔗

Exercise

• Create a Bicep file to generate a resource group (example 🔗)
• Create a Bicep module that generates an Azure Storage Account
  • Example 🔗
  • From ARM Quickstart Templates 🔗
• Compile to ARM template 🔗 with az bicep build
  • Take a moment to compare Bicep with JSON ARM Template
  • Note that multiple Bicep modules (including loaded JSON files) are compiled into a single ARM Template file
• Deploy everything (az deployment 🔗, example 🔗)
• Verify in portal

Private Module Registry

• Used to share Bicep modules with other users
  • Similar to Docker Registry (including versioning)
  • Uses Azure Container Registry (ACR)
  • Supports Private Endpoints for network isolation
• Publish
  • az bicep publish [...] --target br:myreg.azurecr.io/...
  • With or without source code and documentation link

Exercise

• Recommended, but optional: Pair up in groups of 2
• Together
  • Use/adjust Bicep file for RG creation from previous exercise
  • Create a Bicep file to generate an ACR (example 🔗)
  • Permissions (Example 🔗)
    • User 1: push and pull permissions
    • User 2: Only pull permissions
  • Deploy everything (az deployment 🔗, example 🔗)
  • Verify in portal
• User 1
  • Use/adjust Bicep file for Azure Storage Account creation from prev. exercise
  • Publish the Bicep file to ACR (example 🔗)
• User 2
  • Consume the Bicep file from ACR to create storage account (example 🔗)

Azure Verified Modules 🔗

• Library of IaC modules verified and supported by MS
  • Bicep, Terraform (additional languages might be added in the future)
  • referenced with br/public:avm/...
  • Intellisense in VSCode
• Resource Modules
  • Verified modules for creating various (hierarchies of) resources
• Pattern Modules
  • ​Application tier
• Specification published by MS 🔗
  • Can be basis for custom Bicep modules
  • ⚠️ Do not over-complicate things

Exercise

• Use the AVM for Resource Groups 🔗 to create a new RG
  • Take some time to look at the implementation and sample on GitHub
• Use the AVM for Storage Account 🔗 to create a new storage account
  • Blob storage
  • Take a look at the implementation
    Takeaway: Bicep modules can be quite large and compilicated
• Deploy everything
• Verify in portal

Template Specs

• Resource type for storing ARM templates (including Bicep)
• Used to share templates with other users
  • Can be used to deploy resources later (scripted, portal)
• RBAC applies
• Differences to Module Registries
  • TS can be deployed without writing a Bicep file
  • TS do not need to be Bicep, can also be ARM templates
  • No support for embedded artifacts like scripts
  • Details see 🔗
• Optional exercise 🔗

Deployment Stacks

Deployment Stacks

• Manage group of Azure resources as a single unit
  • Can span MGs, subscriptions, RGs
• Simplifies cleanup significantly
  • Delete or detach
• Protected
  • RBAC applies
  • deny-settings-mode
  • Control access by carefully choosing deployment scope
  • Possible to exclude actions and principals
• Detailed documentation see 🔗

Exercise

• Groups of 2 or 3 people
• Discuss possible applications of deployment stacks
• For two applications:
  • Describe how you would use deployments stacks
  • Which scope would you use?
  • Which action on unmanage would you use and why?
  • Would protection of resources be necessary? If yes, how?

Azure Policies

What is a "Policy"?

• Rule that enforces organizational standards and/or assess compliance
  • With automated subscription vending, no human can verify compliance
  • Manual verification does not scale
• Defined using JSON 🔗
• Grouped into Policy Intiatives (aka Policy Sets) 🔗
• Tip: Azure Policy extension for VSCode 🔗

Structure of a Policy

• Name + Description
• Type
  • Built-in (provided by MS)
  • Custom
  • Static (compliance results of non-MS audits)
• Mode
  • For ARM: Typically all, for details see docs 🔗
  • Special handling of AKS, Key Vault, and VNets 🔗
• Version and metadata
• Definition location
  • Subscription
  • Management group

Structure of a Policy

• Parameters
  • Parameters to make policies more flexible
• Name
  • Will be used to reference param. value with parameters('myparam')
• Type
  • string, array, object, boolean, integer, float, dateTime
• Metadata
• Default value
• Allowed values
• Schema (for object-type parameters)
• For details see docs 🔗

Structure of a Policy

Example:

Policy Rules

• if-then block
  • Policy is inforced if the if-condition is true
  • then-block contains effects 🔗
• if-block
  • Conditions 🔗
  • Logical operators not, allOf, anyOf 🔗
  • Fields 🔗
• Many ARM template functions can be used 🔗

Learn by Example

• Azure Policy built-ins 🔗🔗


• Audit or deny
  • Storage accounts should have the specified minimum TLS version 🔗🔗
  • [Preview]: Azure PostgreSQL flexible server should have Microsoft Entra Only Authentication enabled 🔗🔗
  • Allowed Locations 🔗🔗
• Modify
  • Inherit a tag from the resource group 🔗🔗
• Deploy/audit if not exists
  • Configure Azure AI Services resources to disable local key access (disable local authentication) 🔗🔗

Exercise

• Choose two Azure Policies you would like to apply
• Create a Policy Set​ from the two policies
  • Bicep or portal
•  Assign the Policy Set to a MG or Subscription
  • Bicep or portal
• Try to deploy a resource that is not compliant
  • See if your policy worked

Exercise

• Choose an Azure Policy with effect Audit
• Assign the policy (any scope)
  • Bicep or portal (Bicep preferred)
• Create a corresponding resource that violates the policy
  • Bicep
• Verify non-compliance in portal
• Create a policy exemption
  • Bicep or portal
  • Wait a while (some hours) and check compliance again

CI/CD

GitOps

• IaC is in Git
  • Benefit from branches, code reviews, automated workflows, etc.
• GitHub is the "Hero" git server for Azure
  • Best support for federated authentication
  • Docs 🔗
