Creating effective visualizations
Rebecca Barter
rebeccabarter@berkeley.edu
April 2018

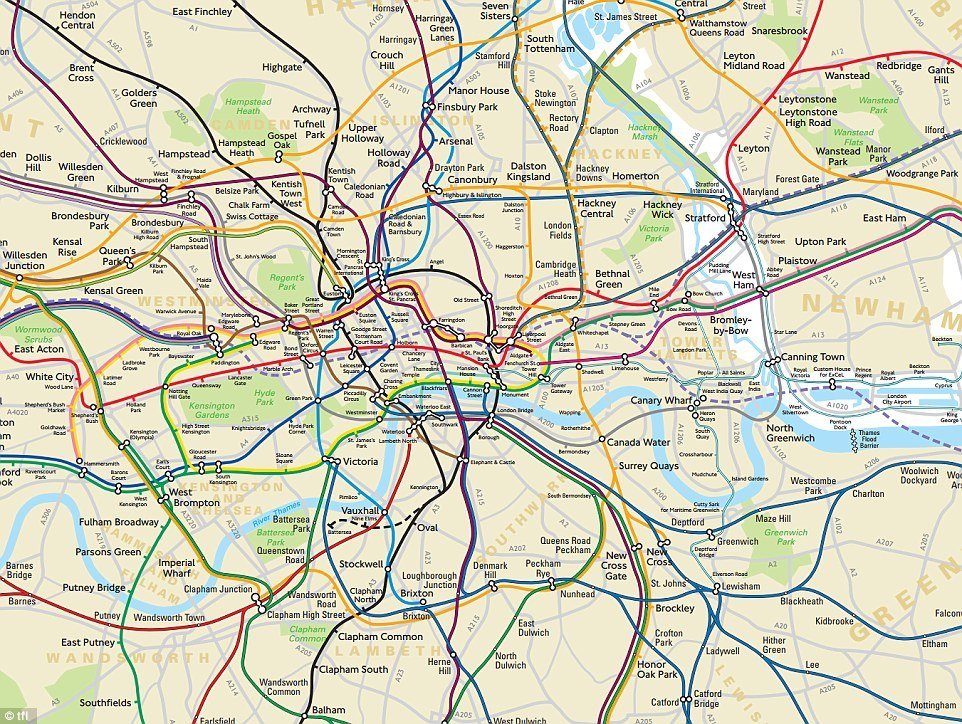

We visualize to simplify

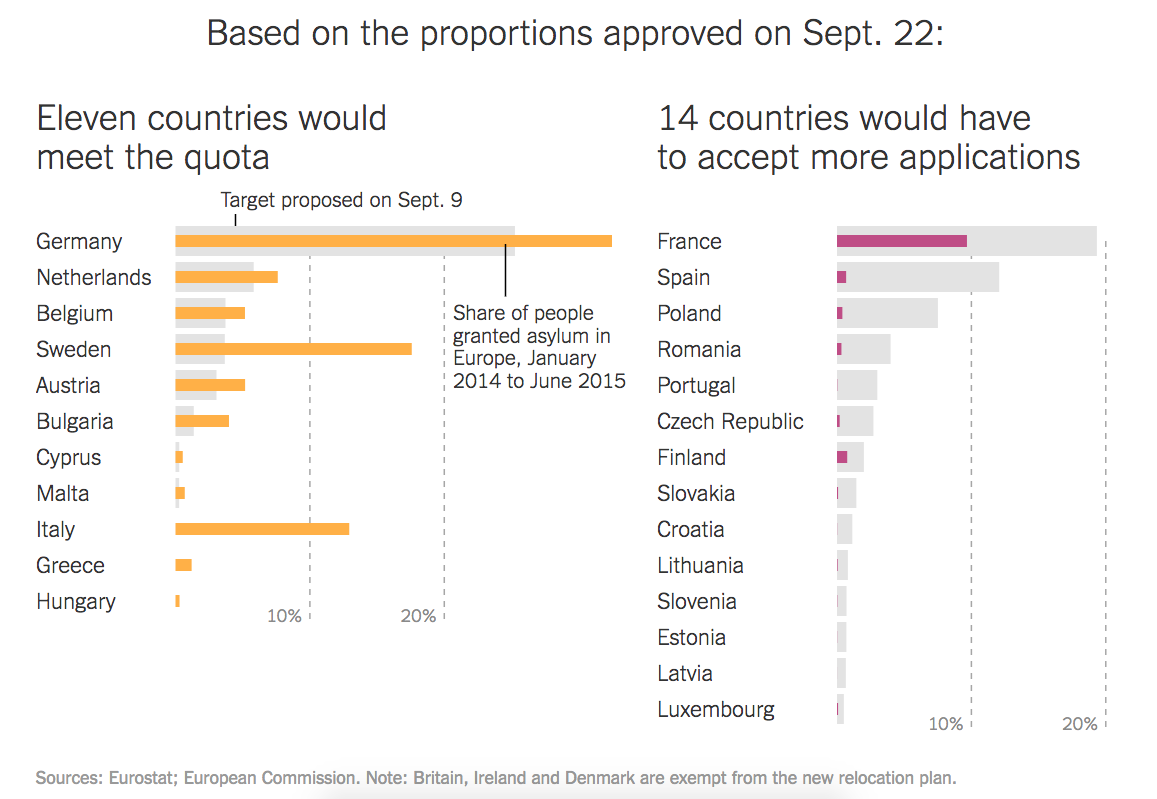

We visualize to explain
https://www.nytimes.com/interactive/2015/09/04/world/europe/europe-refugee-distribution.html
Visualization is a creative art

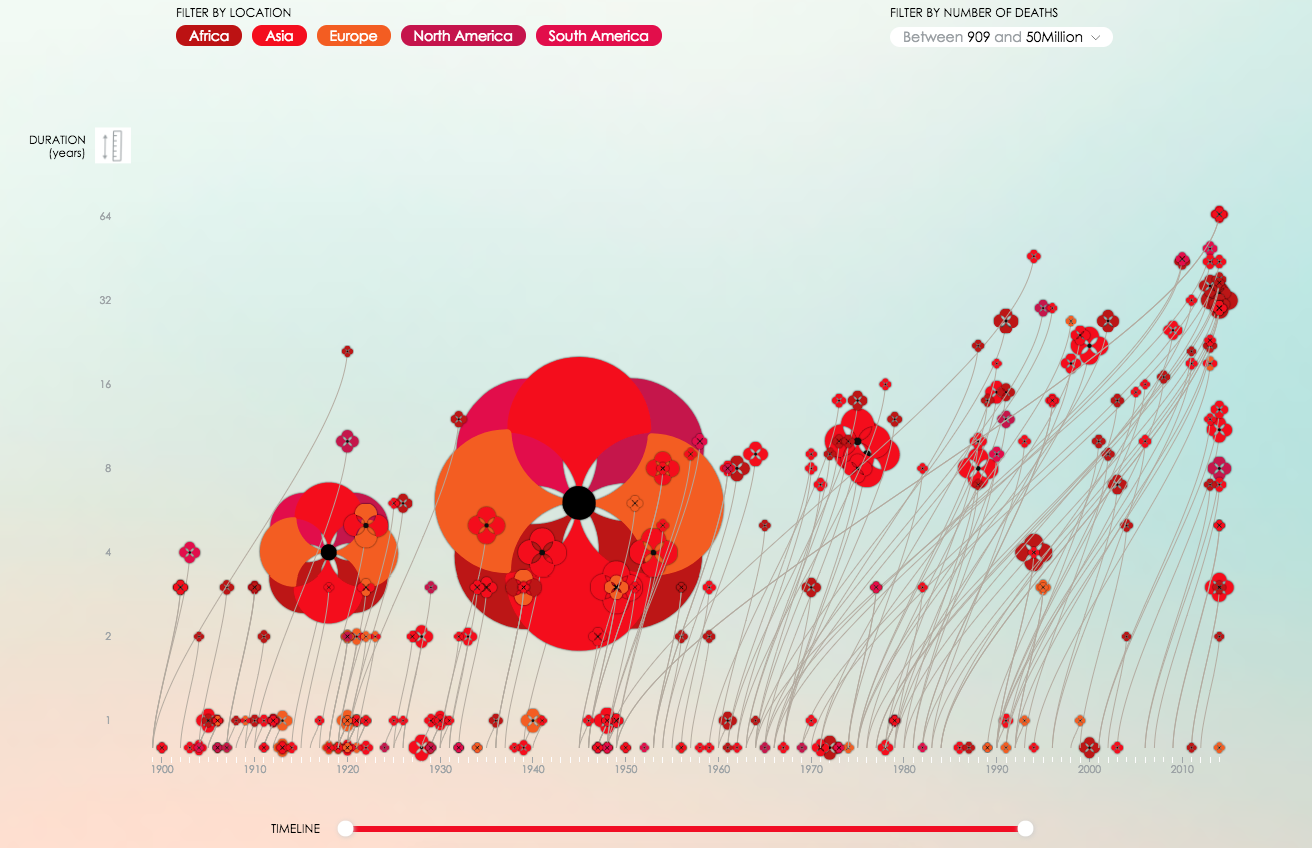

http://www.poppyfield.org/
Lower the barrier
Use packages that create common visualization types (e.g. ggplot2)

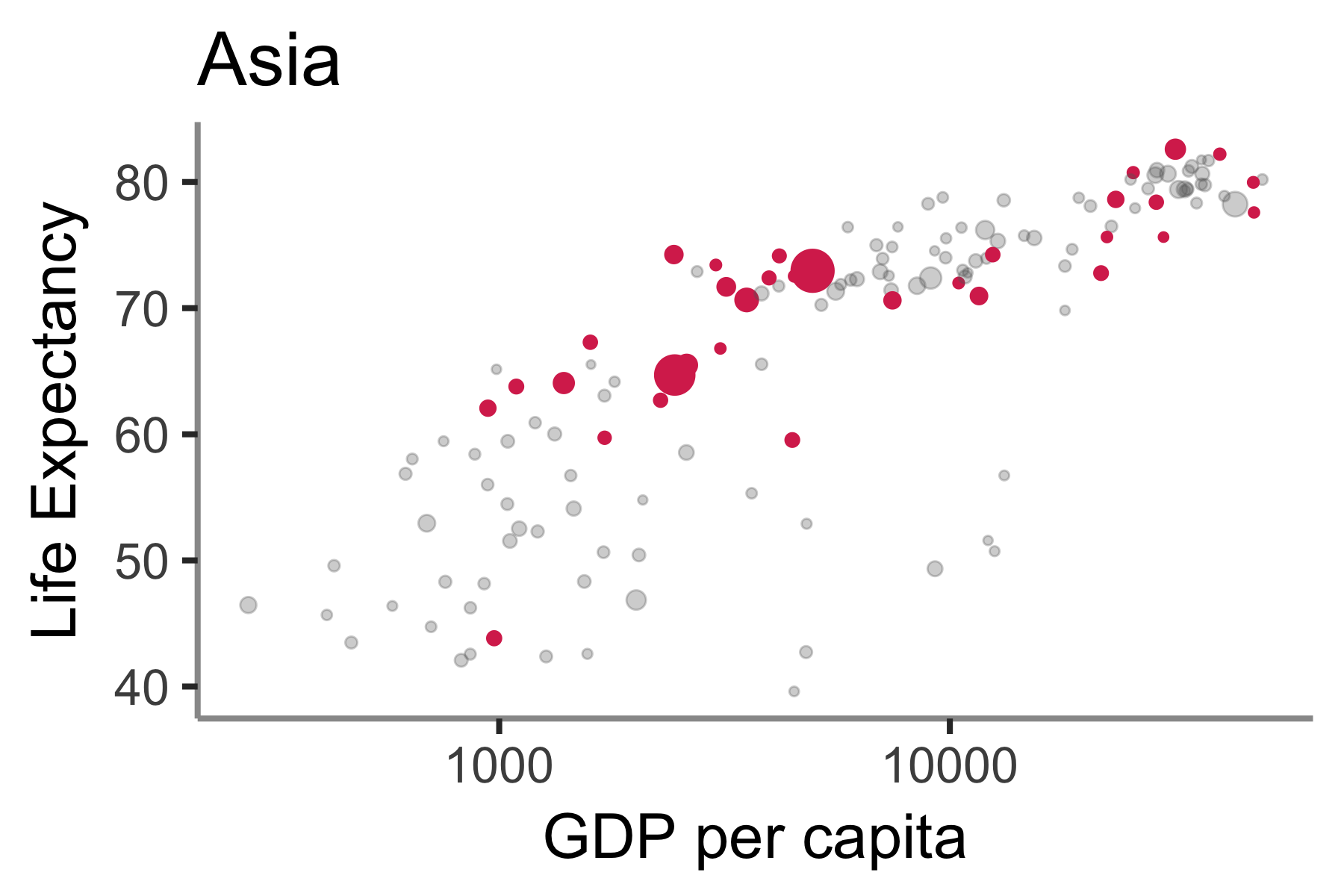

Data source: gapminder data
General principles
How to be the best data visualizer you can be (using ggplot2)!
Think before you plot
20%
of children had a
traditional stay-at-home mom

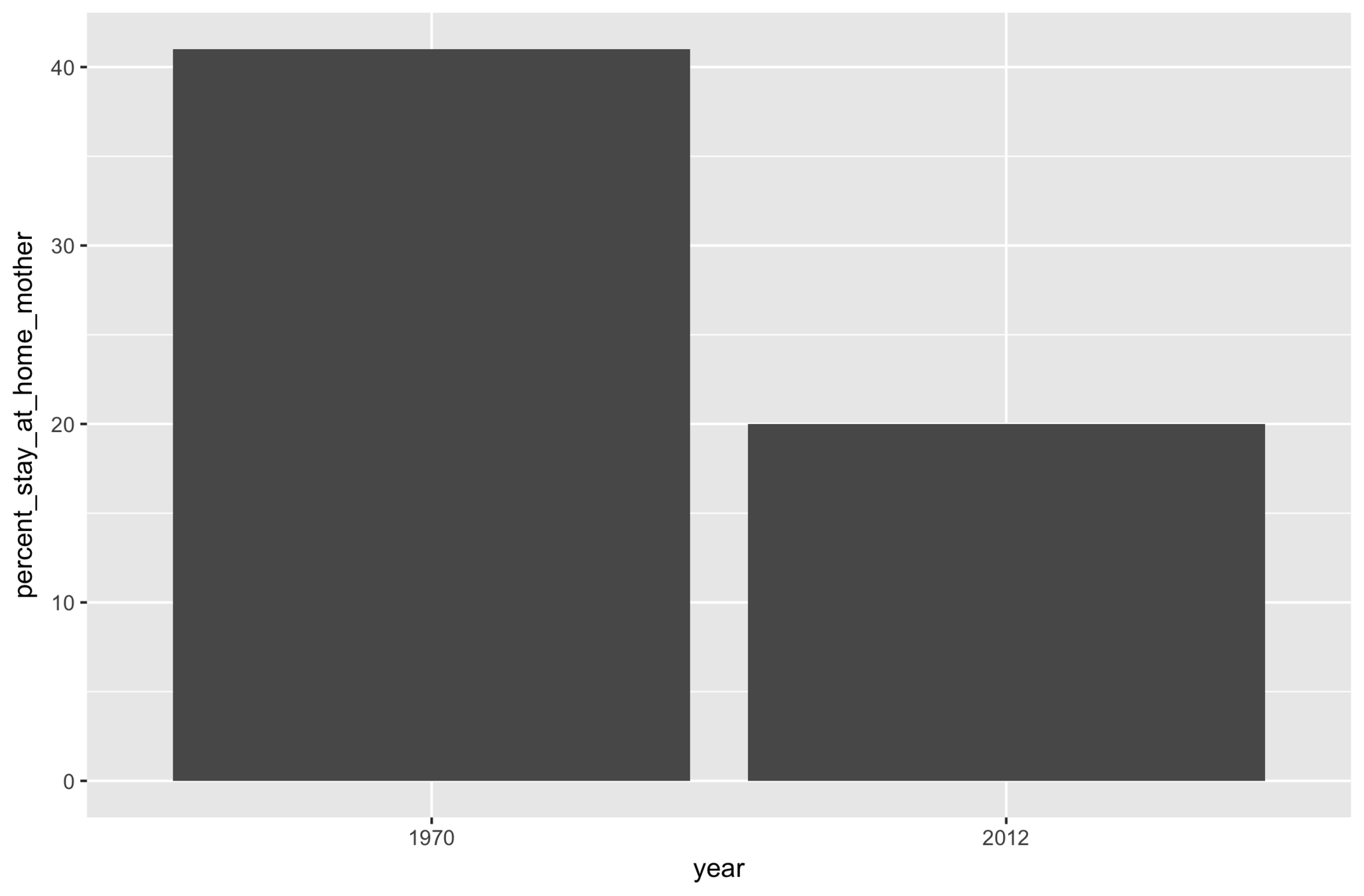

in 2012, compared to 41% in 1970
Example source: Storytelling with data, Cole Knafflic

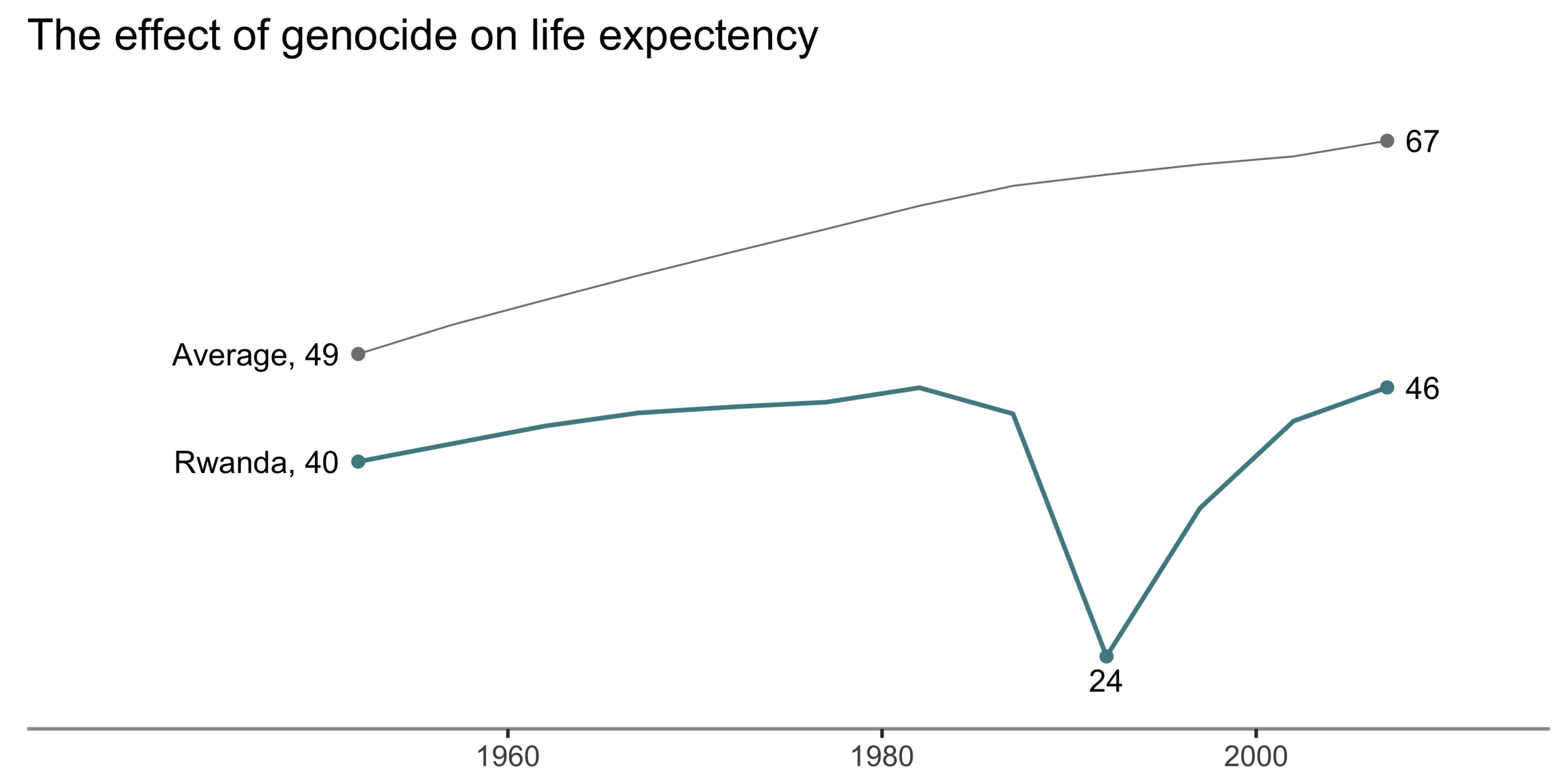

Every plot should have a message
Data source: gapminder data

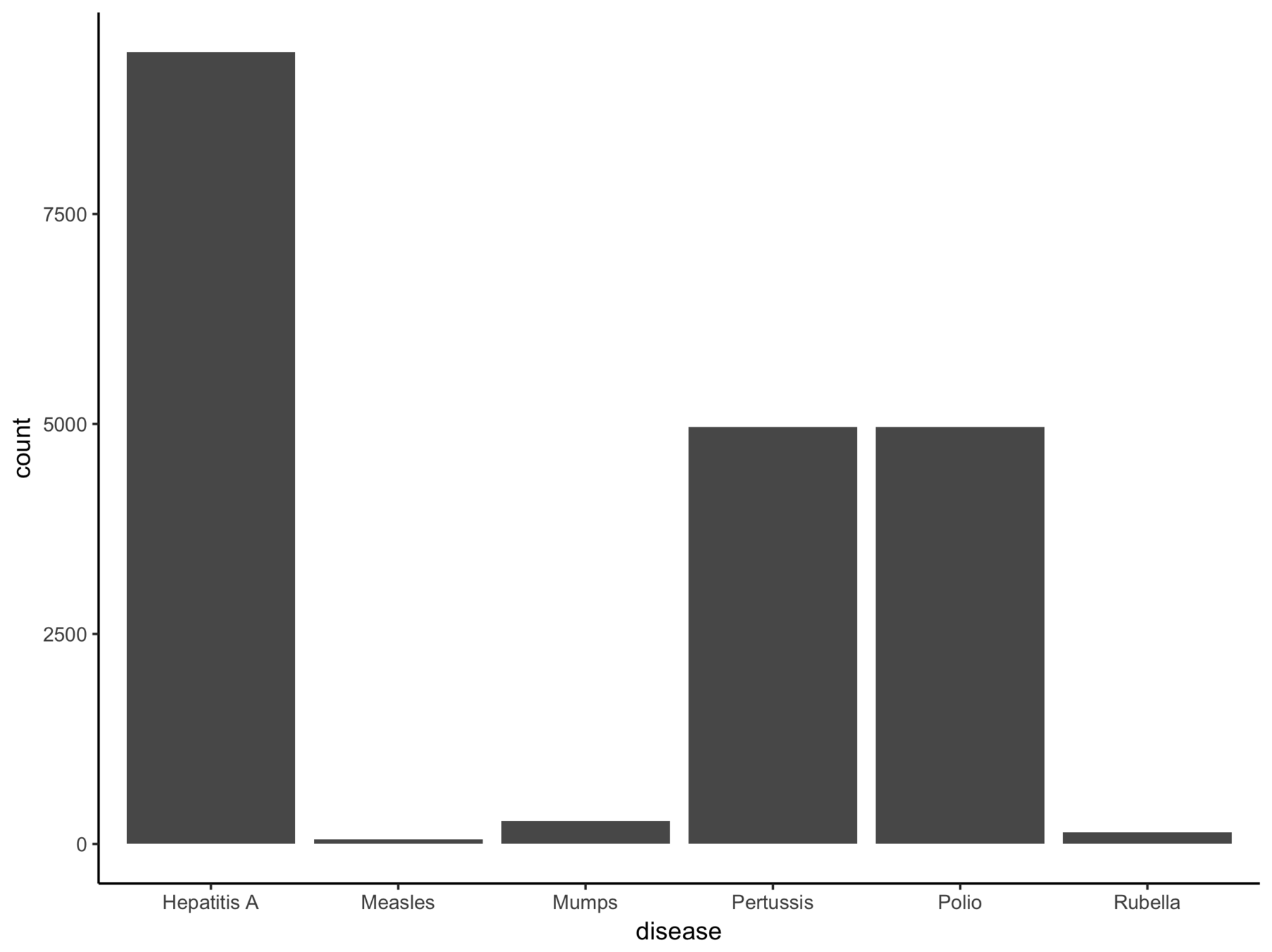

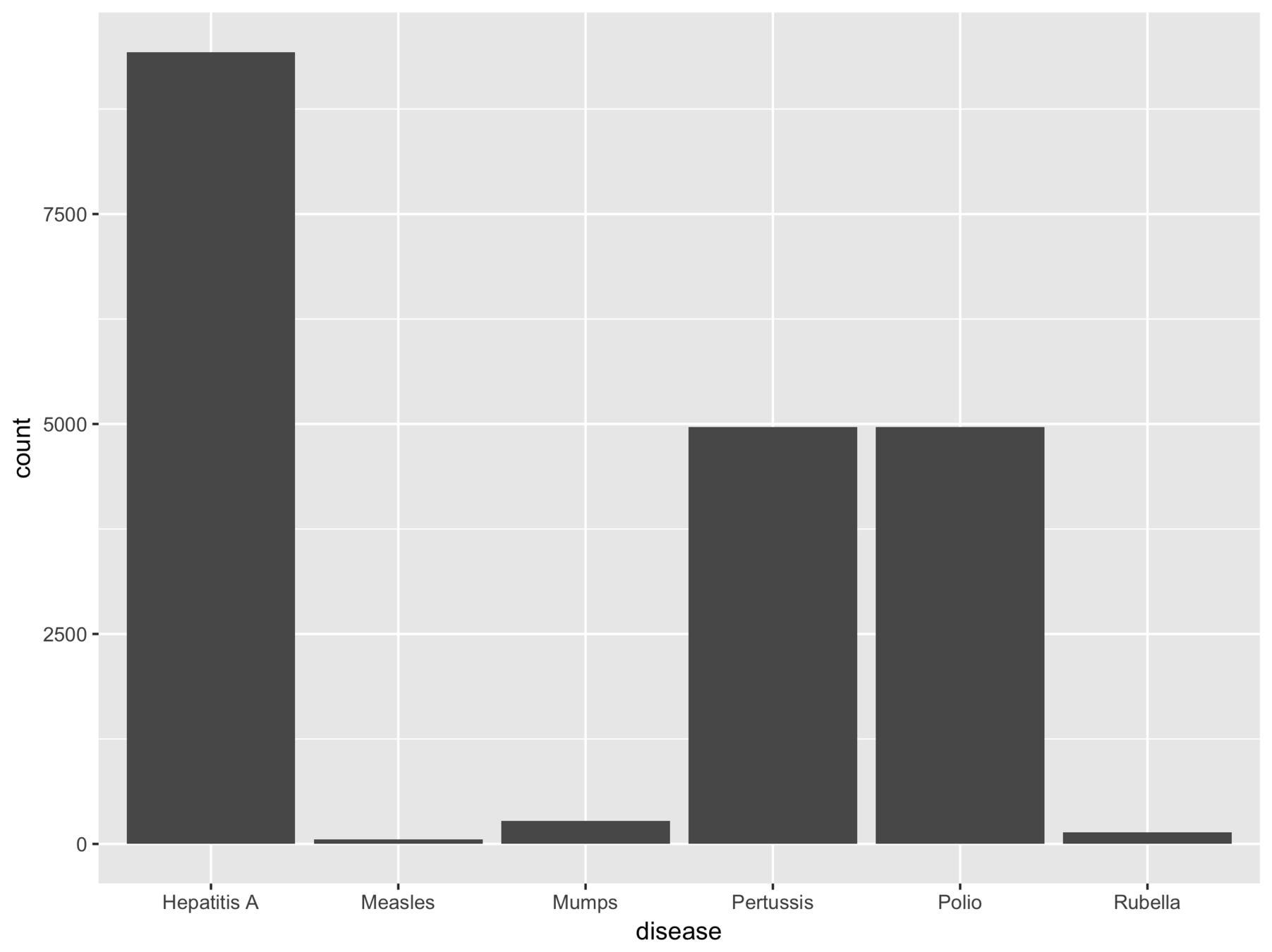

Avoid the defaults & remove clutter

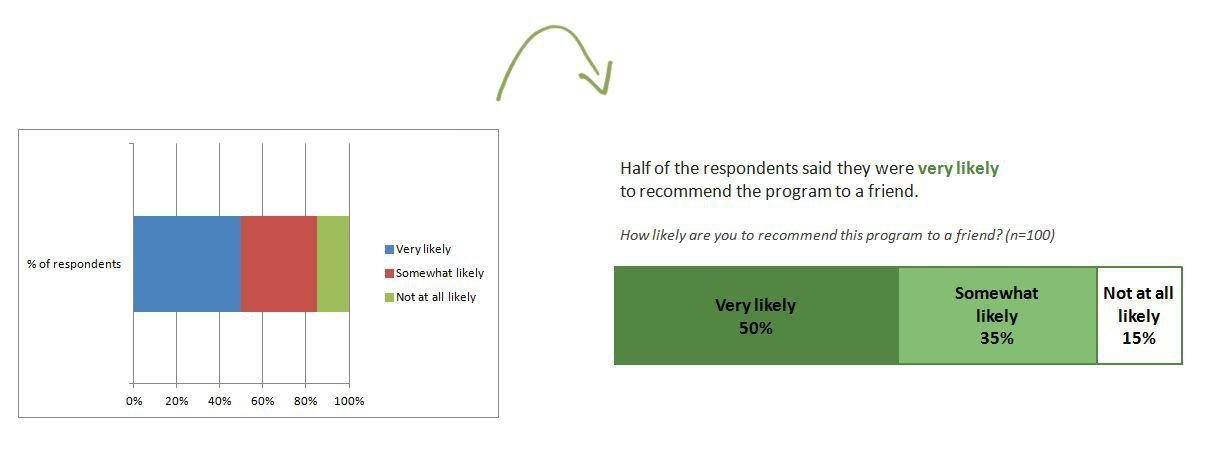

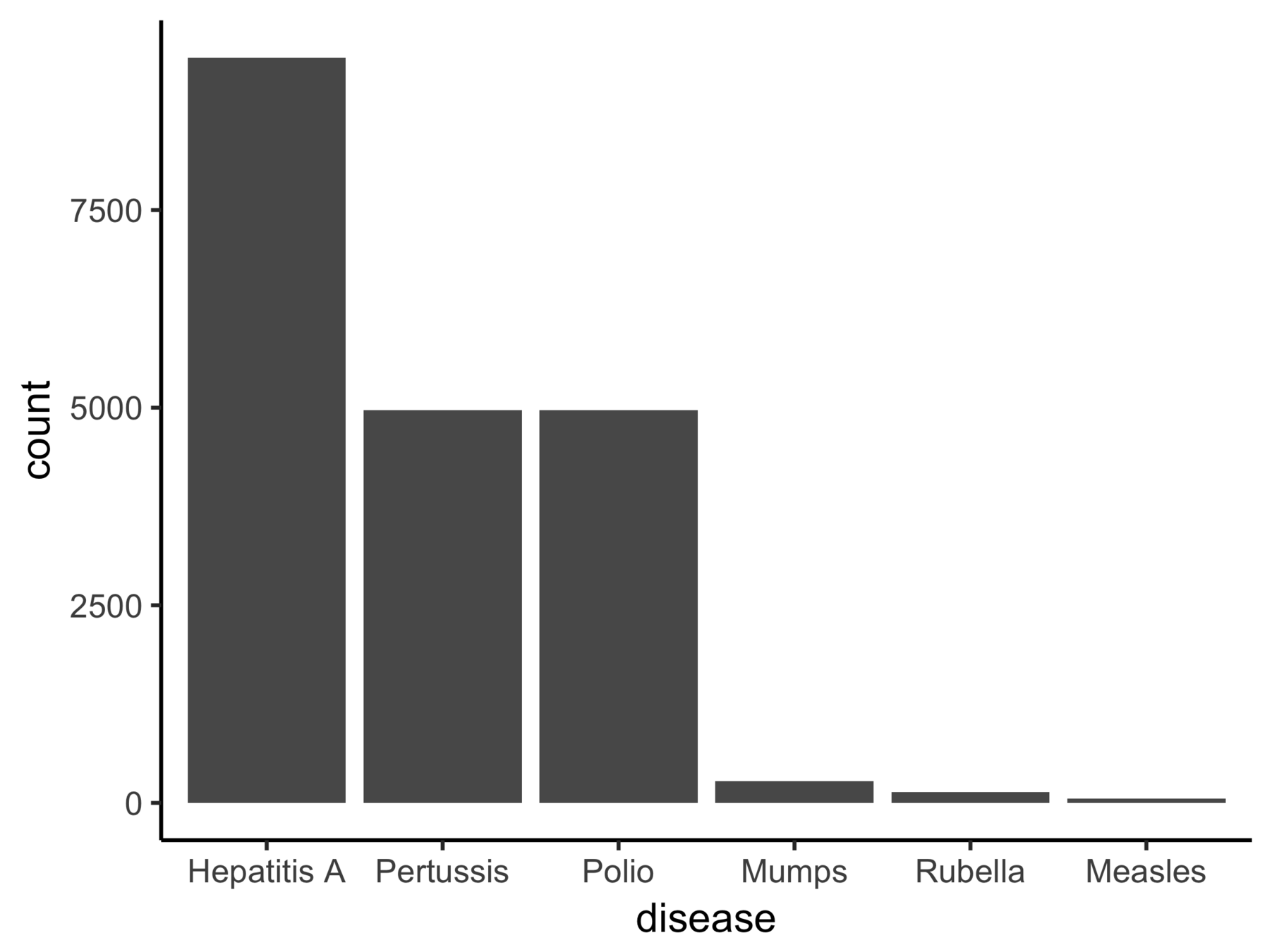

Remove redundant color
Remove background grid
Increase font size

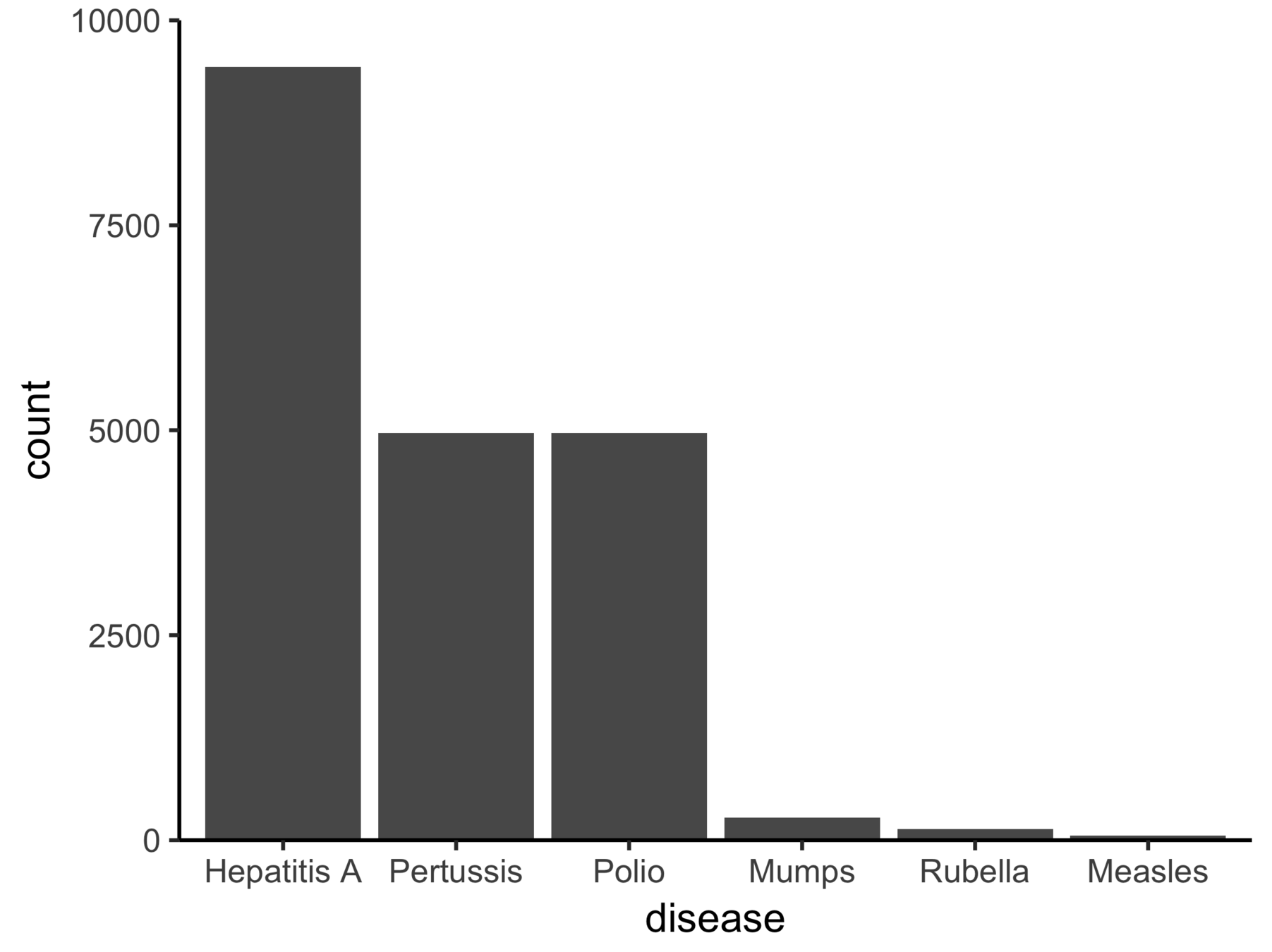

Arrange in decreasing order

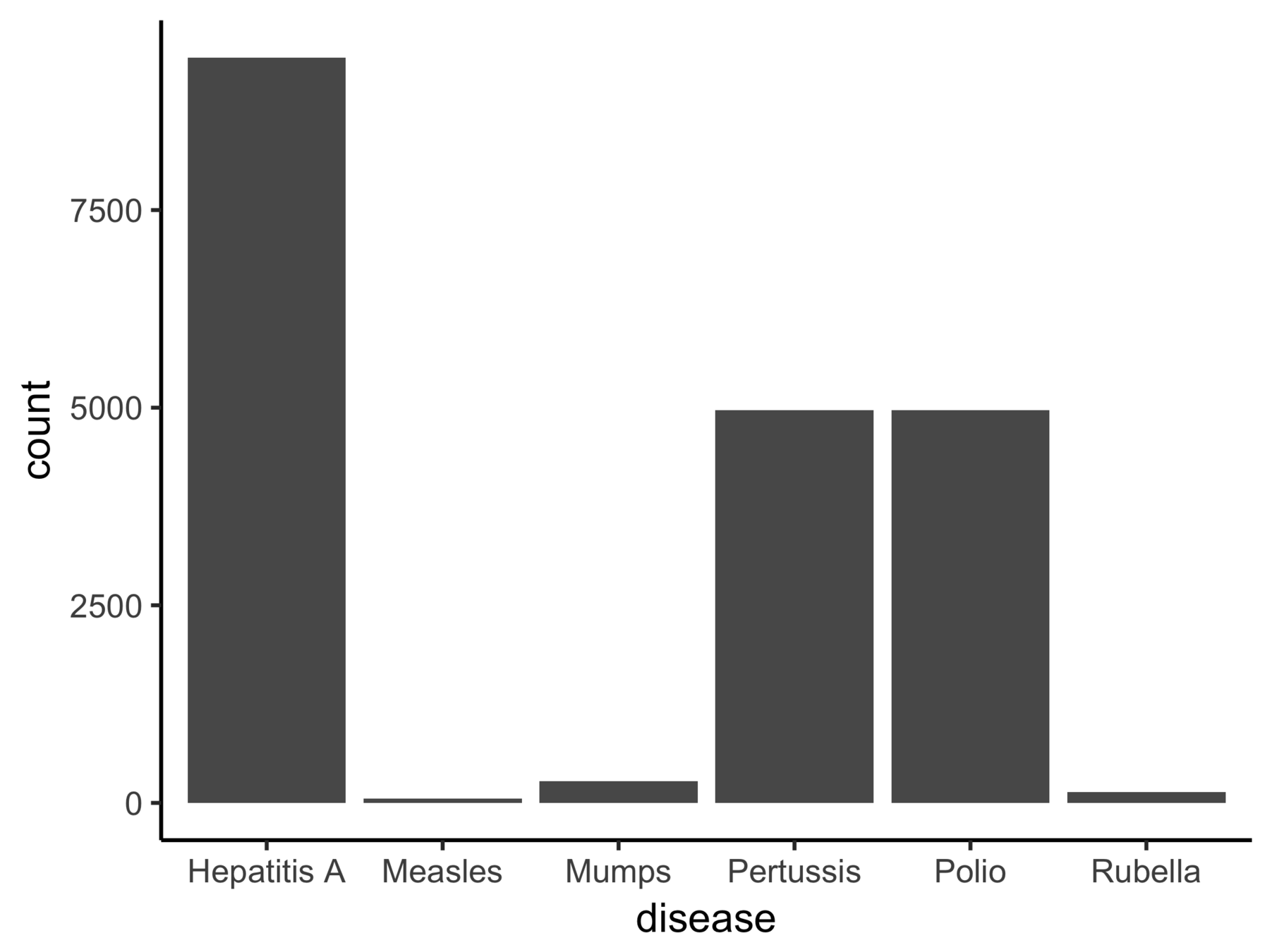

Remove y-axis gap

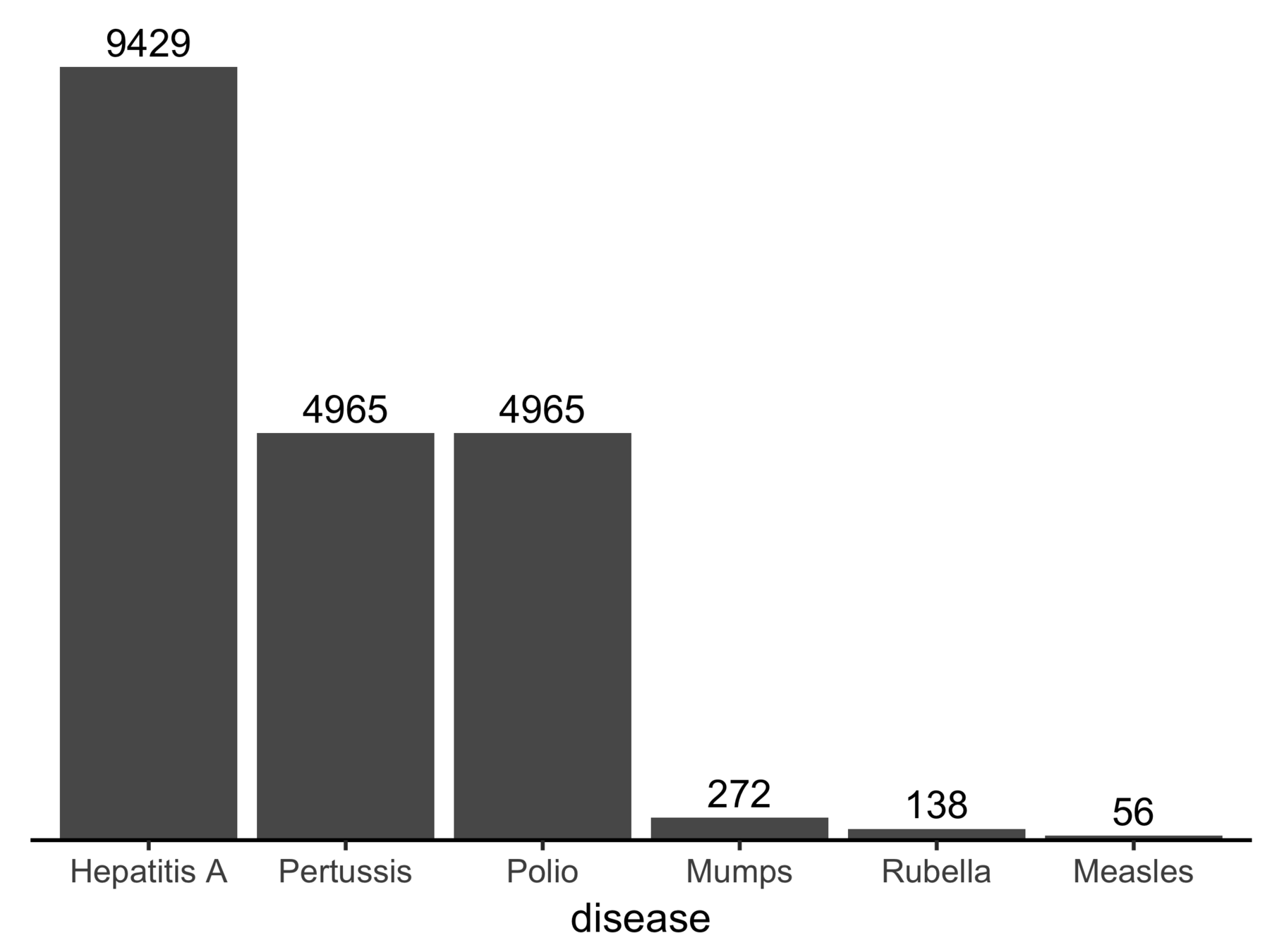

Replace y-axis with text
Remove x-label

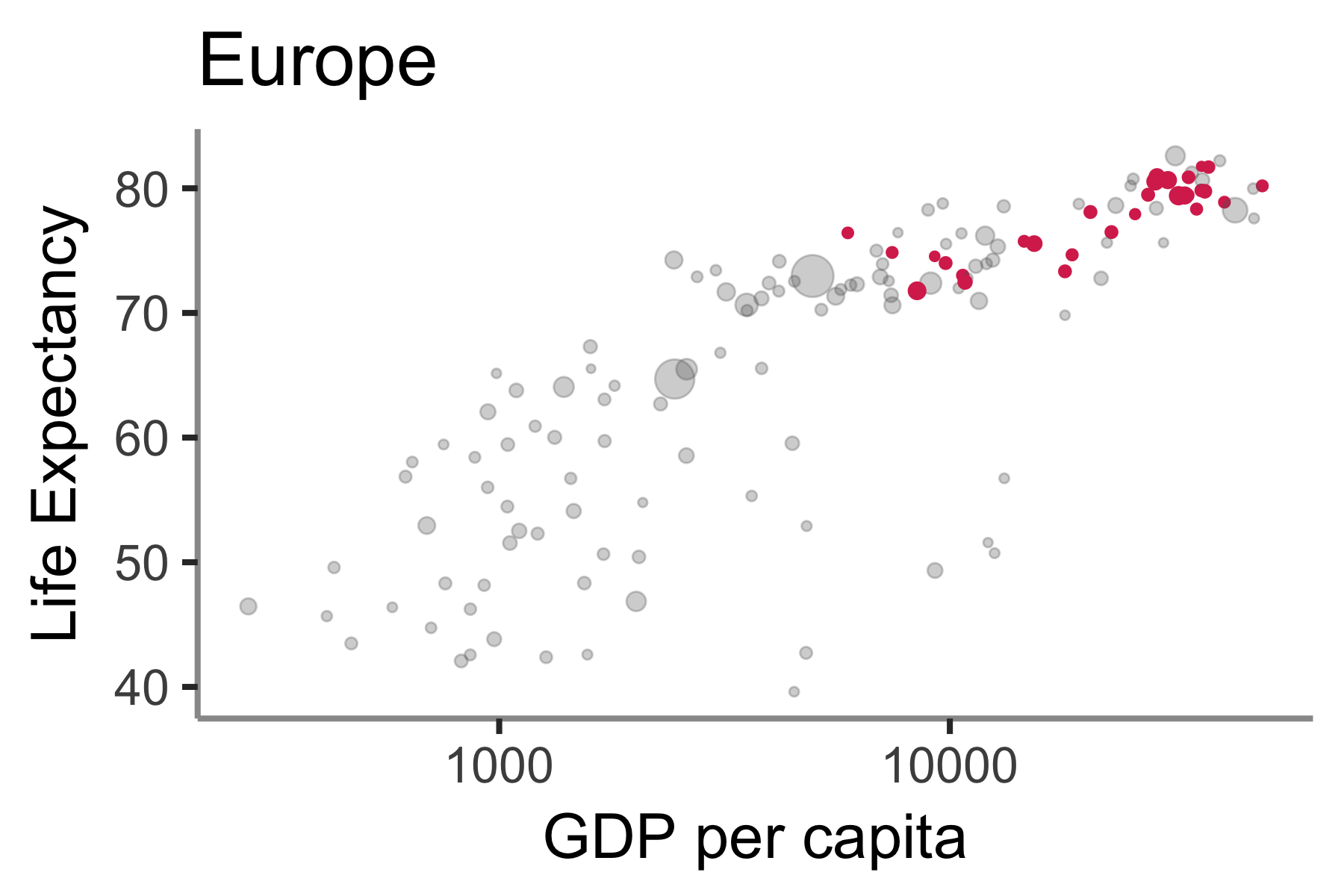

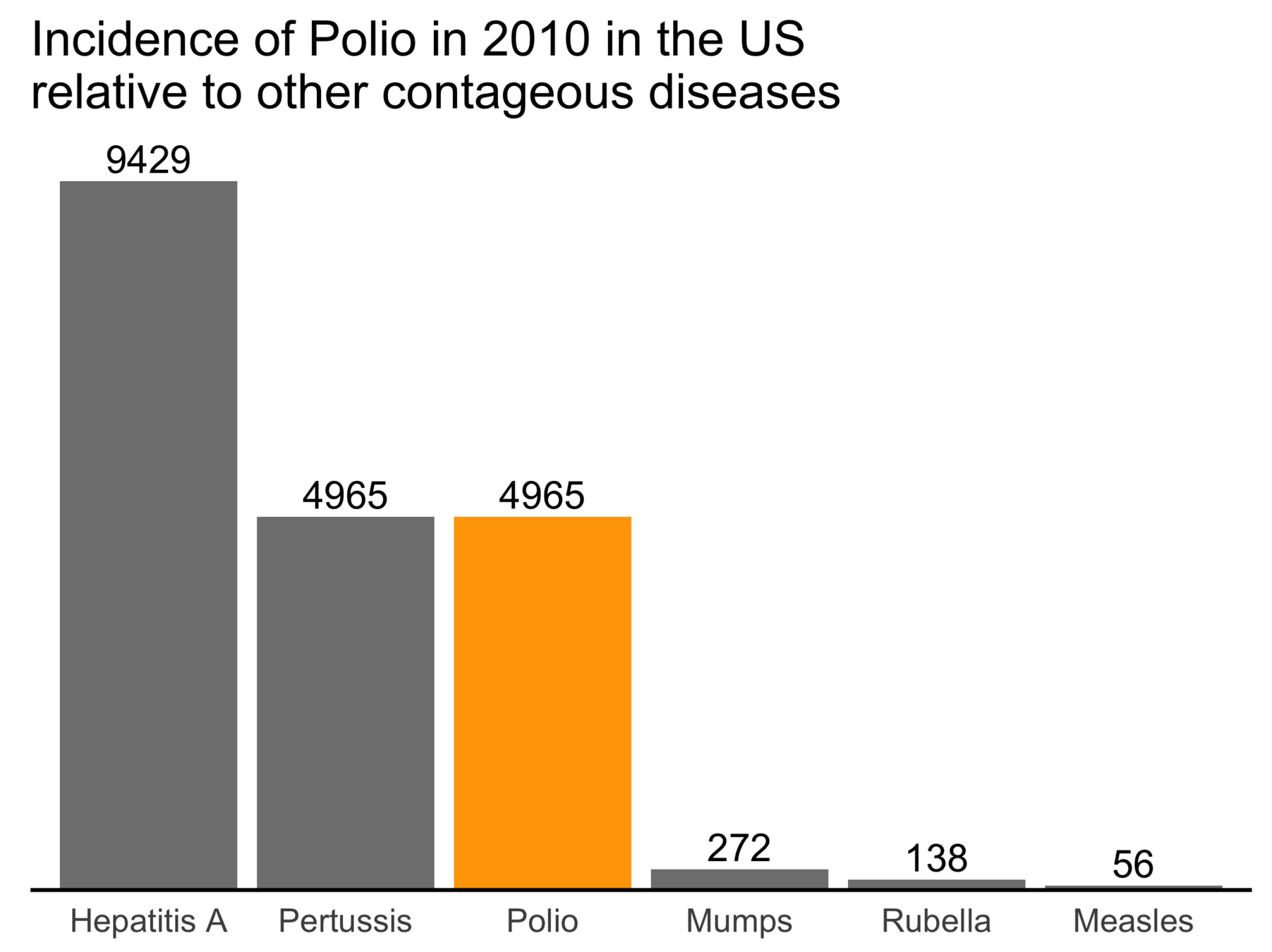

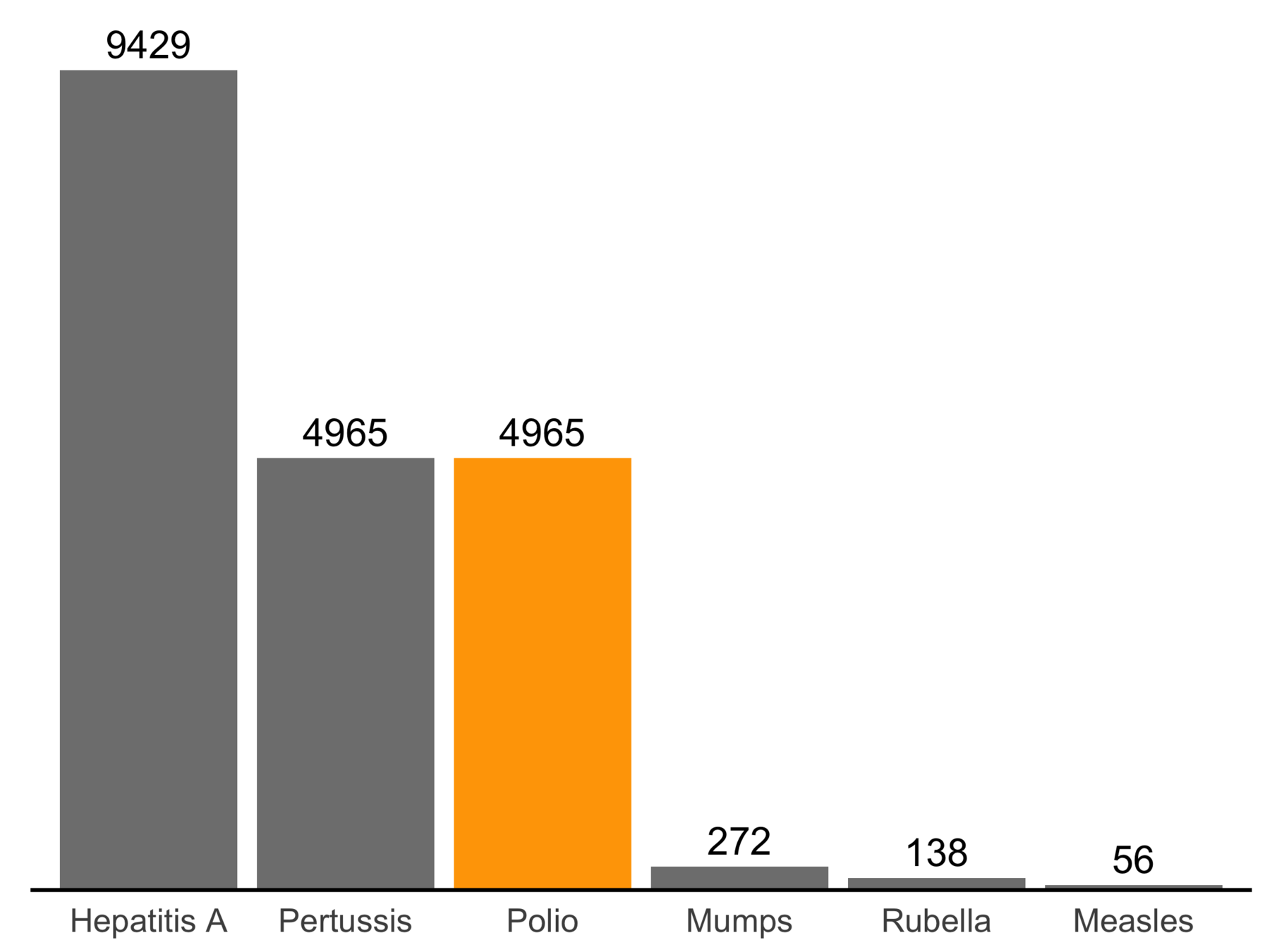

Highlight Polio
Add title

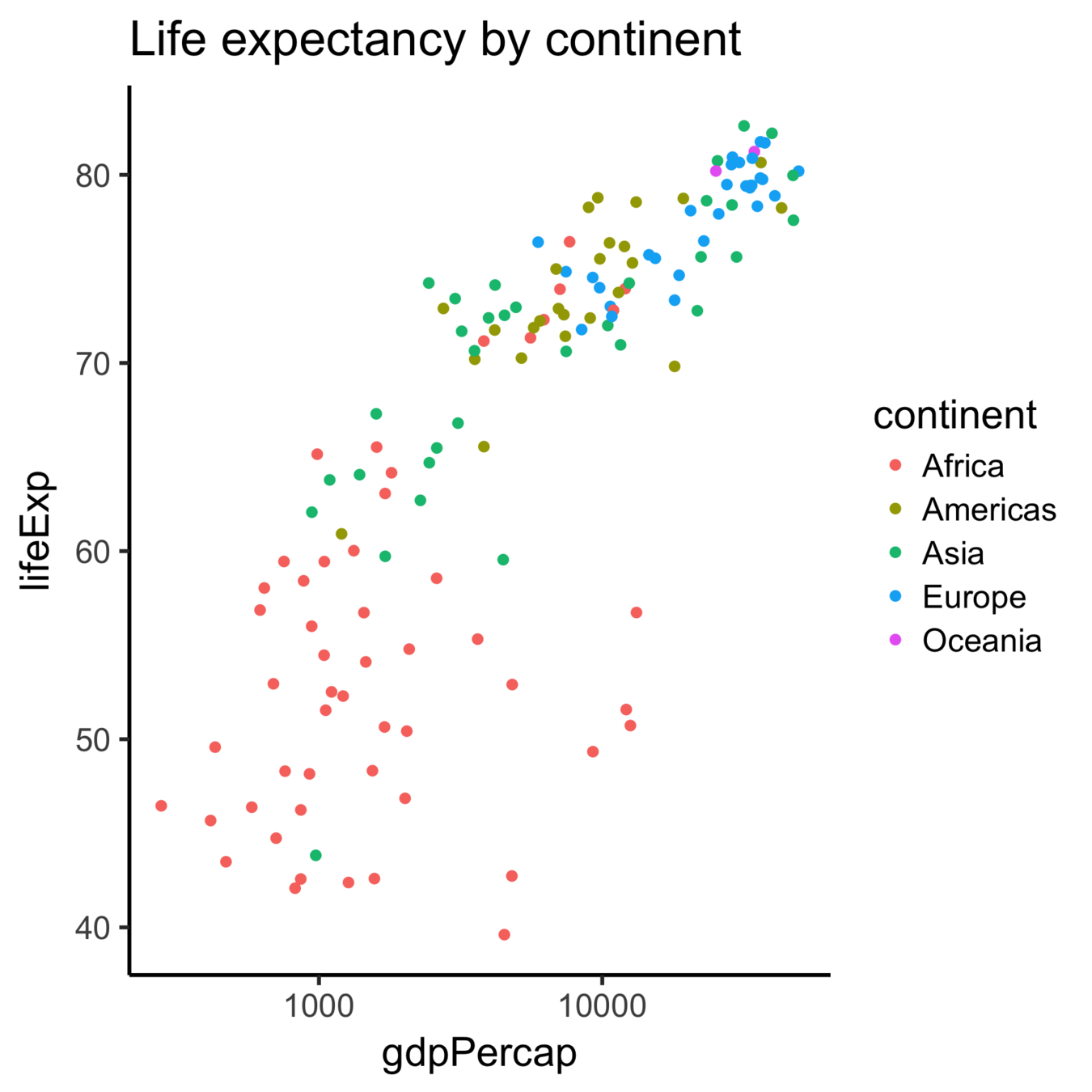

Choose color wisely
(examples from Ann K Emery: http://annkemery.com/chart-colors/)
The fewer colors the better: avoid redundancy &

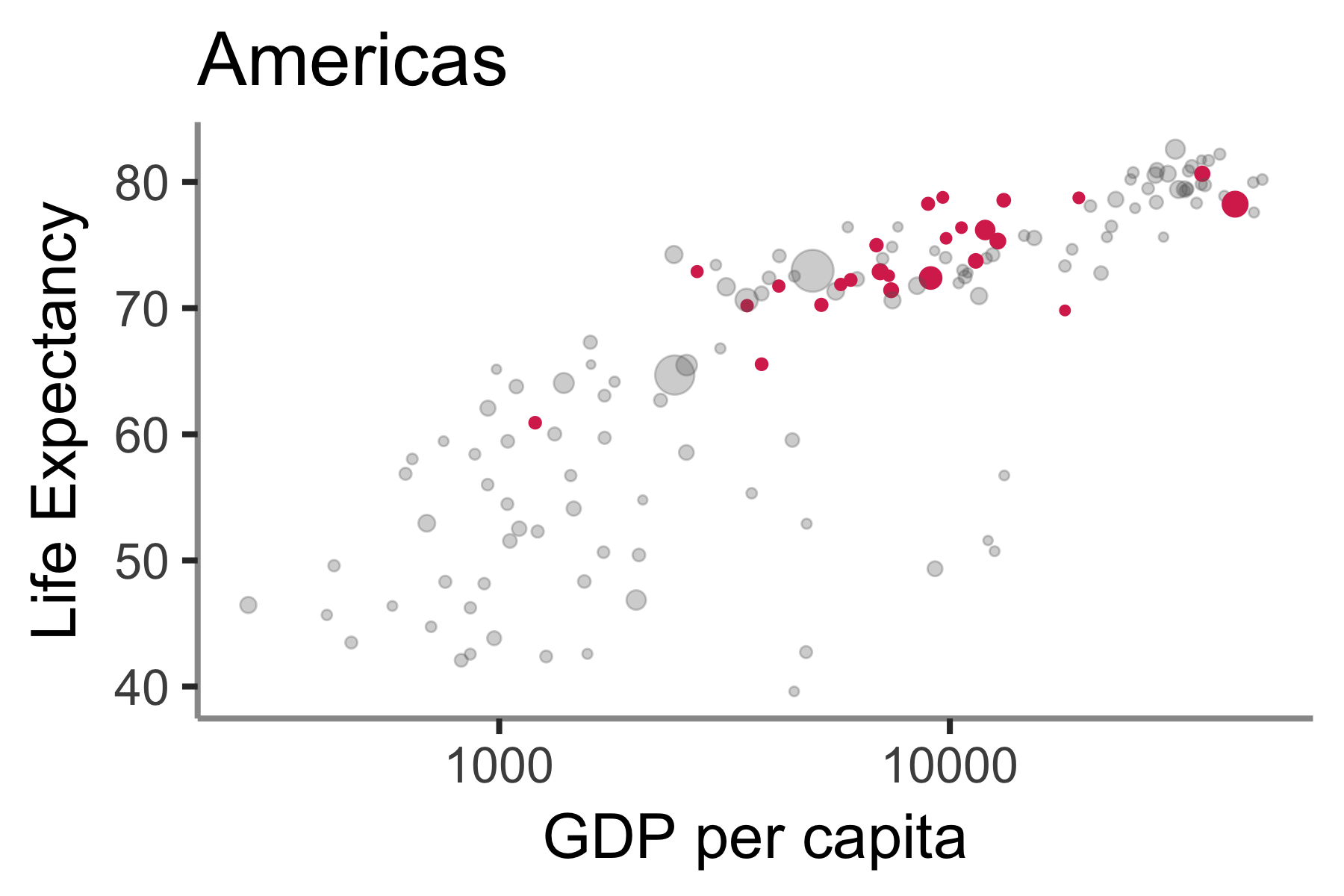

Choose similar colors for similar things and different colors for different things
Use different shades to indicate magnitude
Lighter colors imply less importance than darker colors
Example source: http://annkemery.com/chart-colors/
Color resources

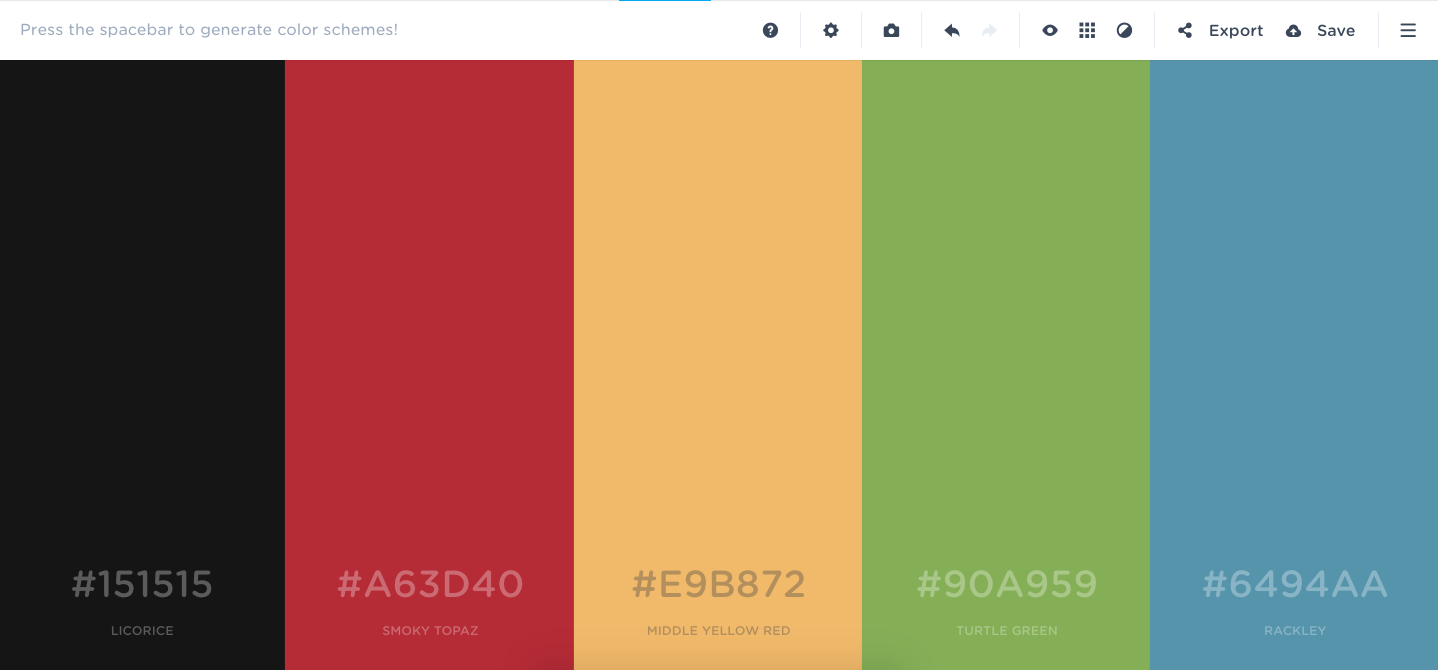

Coolors: https://coolors.co/app

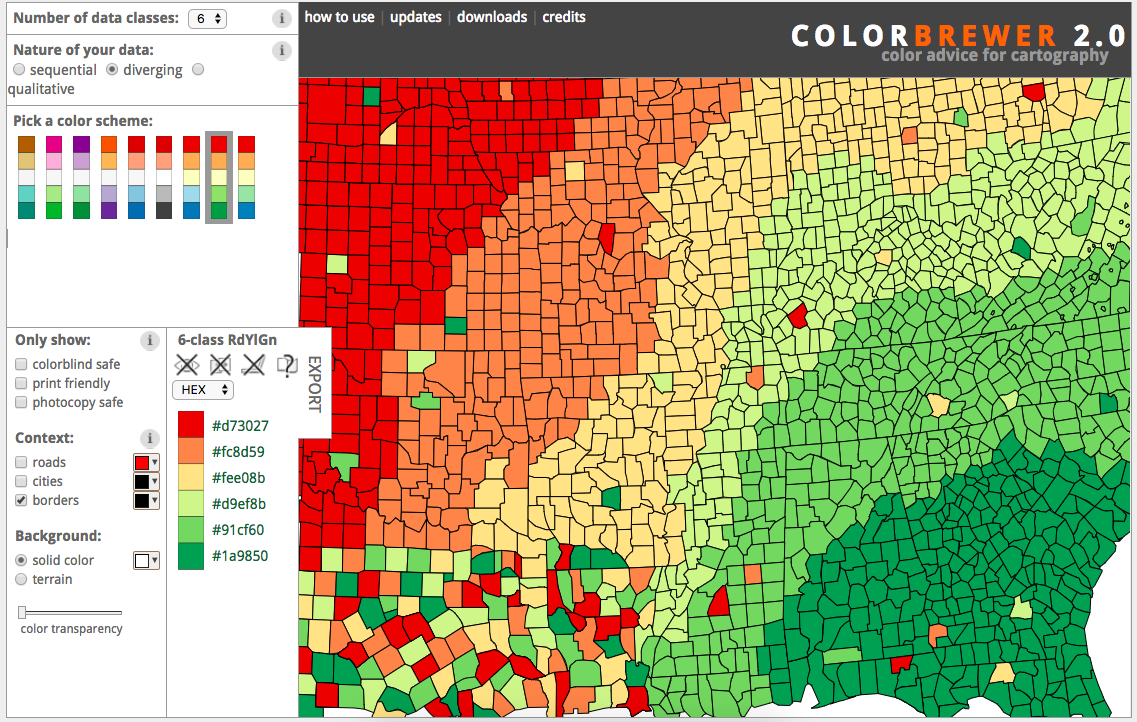

ColorBrewer: http://colorbrewer2.org/
The color index book by Jim Krause
Moving away from standard plot types

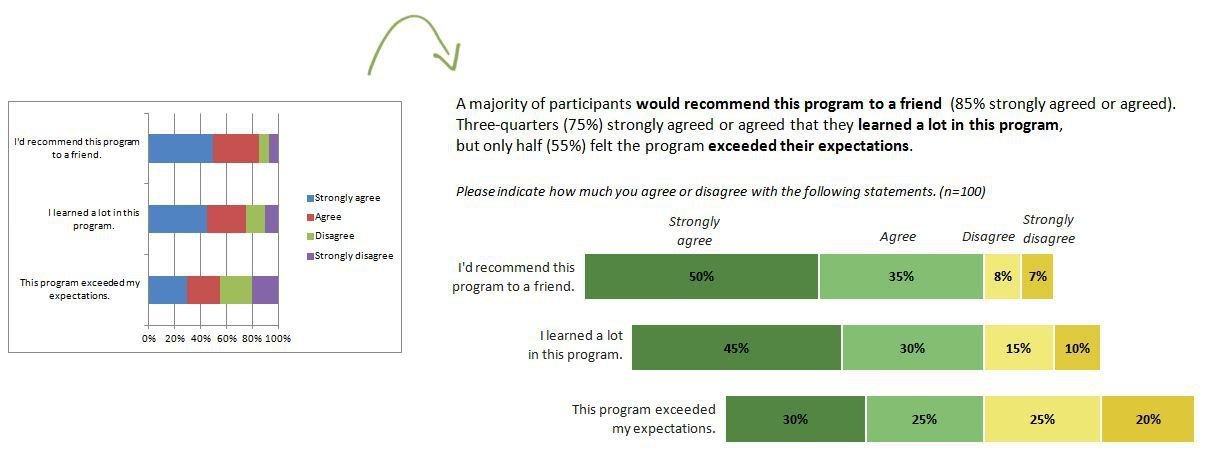

A nice post by Ann K. Emery:

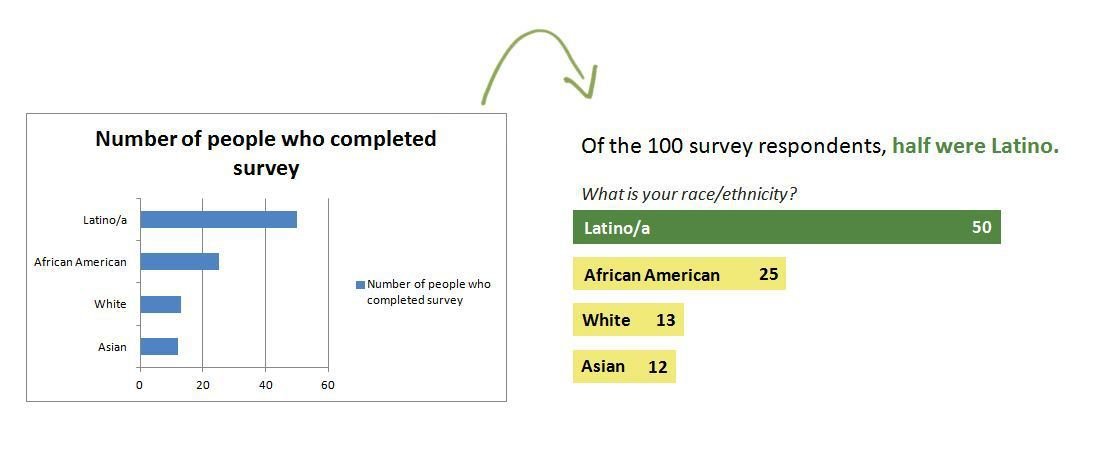

http://annkemery.com/clustered-bar-chart/

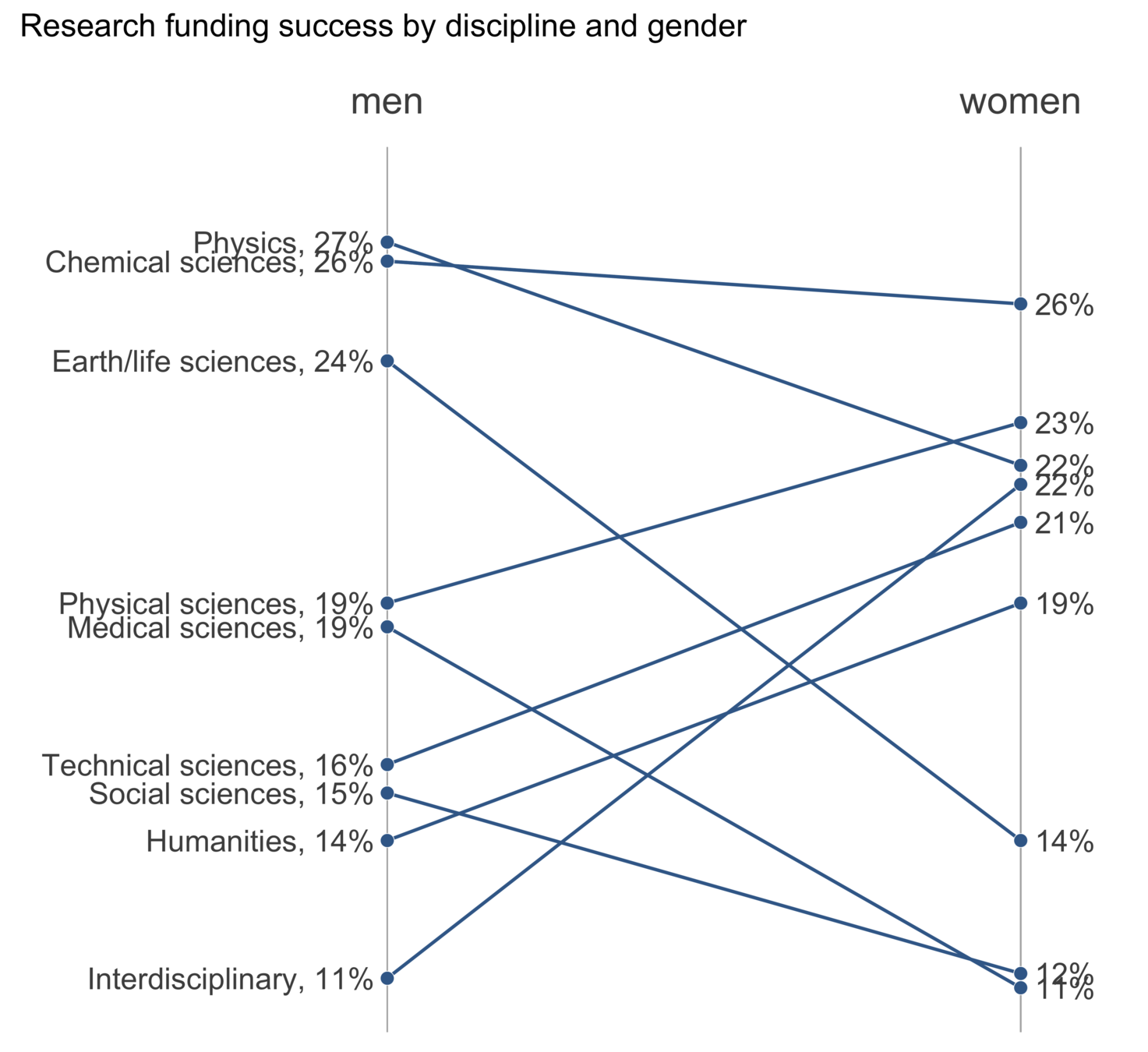

Slope plot

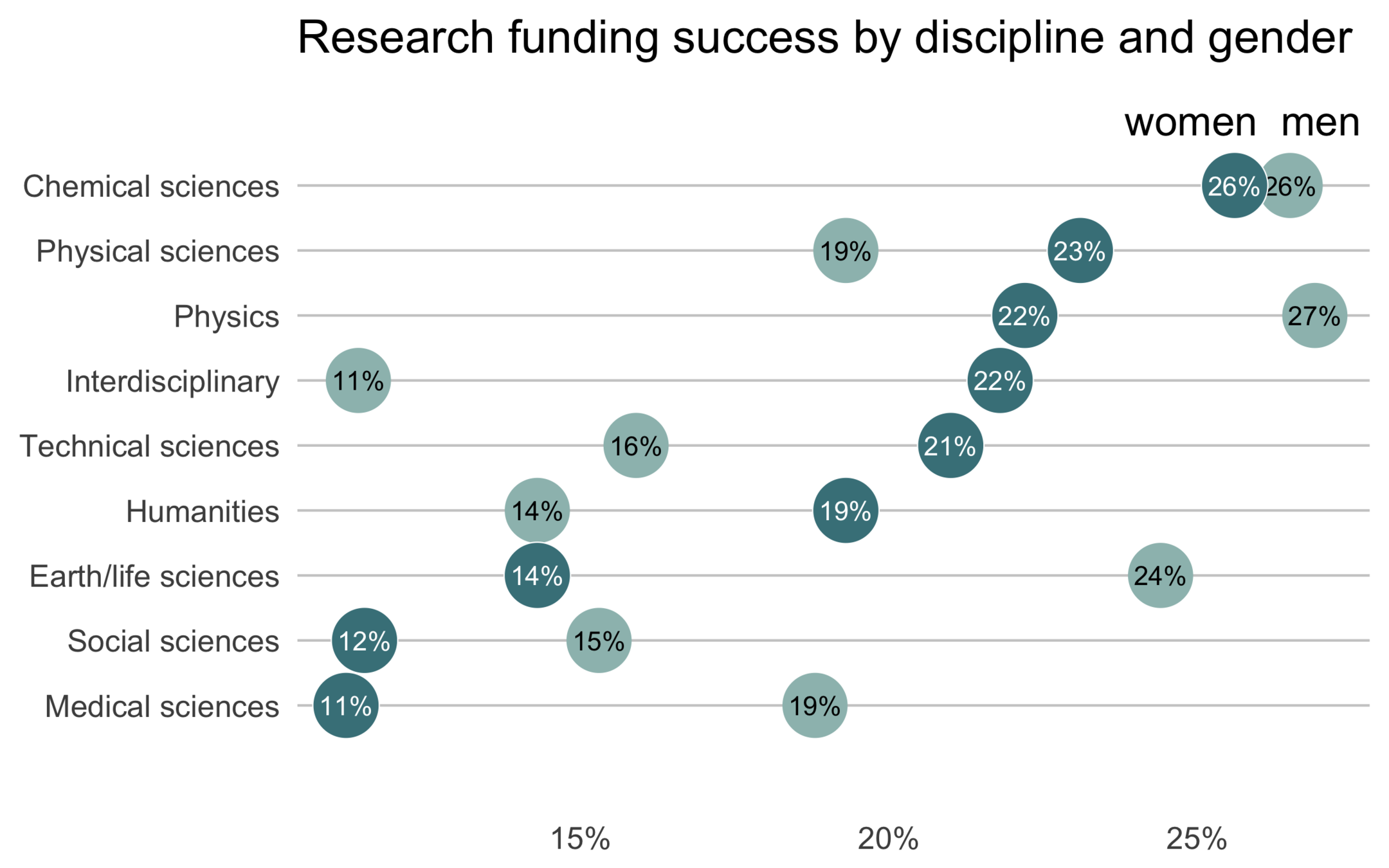

Dot plot
All figures made using ggplot2
General principles: a summary
Think before you plot
Every plot should have a message (use color, text & size to highlight it)
Avoid the defaults and remove clutter
Choose color wisely
Be brave enough to move away from the standard plotting types: be creative!
Think before you plot
Every plot should have a message (use color, text & size to highlight it)
Avoid the defaults and remove clutter
Choose color wisely
Be brave enough to move away from the standard plotting types: be creative!
Less is more: prioritize simpliticy

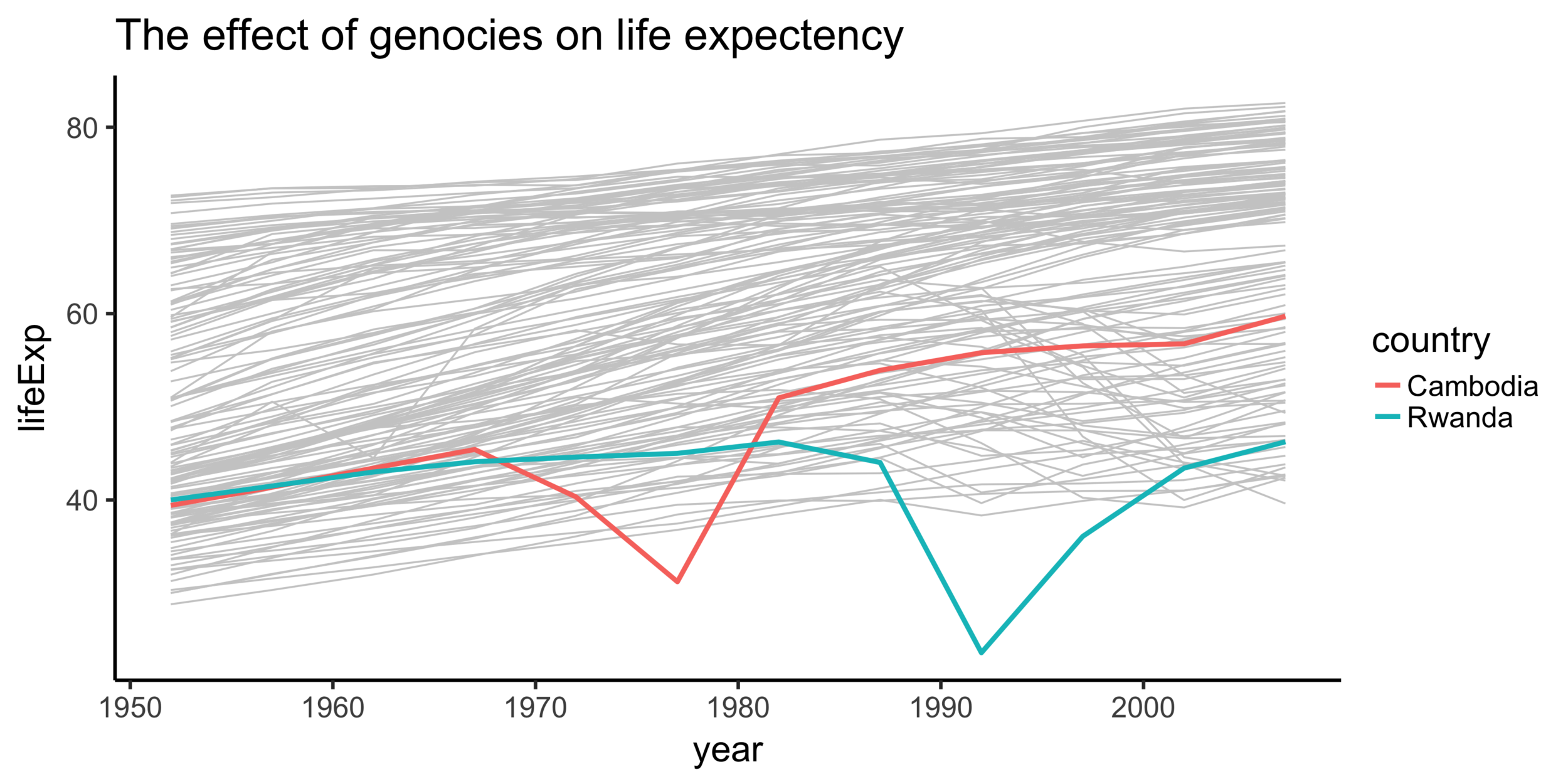

Can we improve the following plots?
Lines
Showing changes over time
Data source: gapminder data

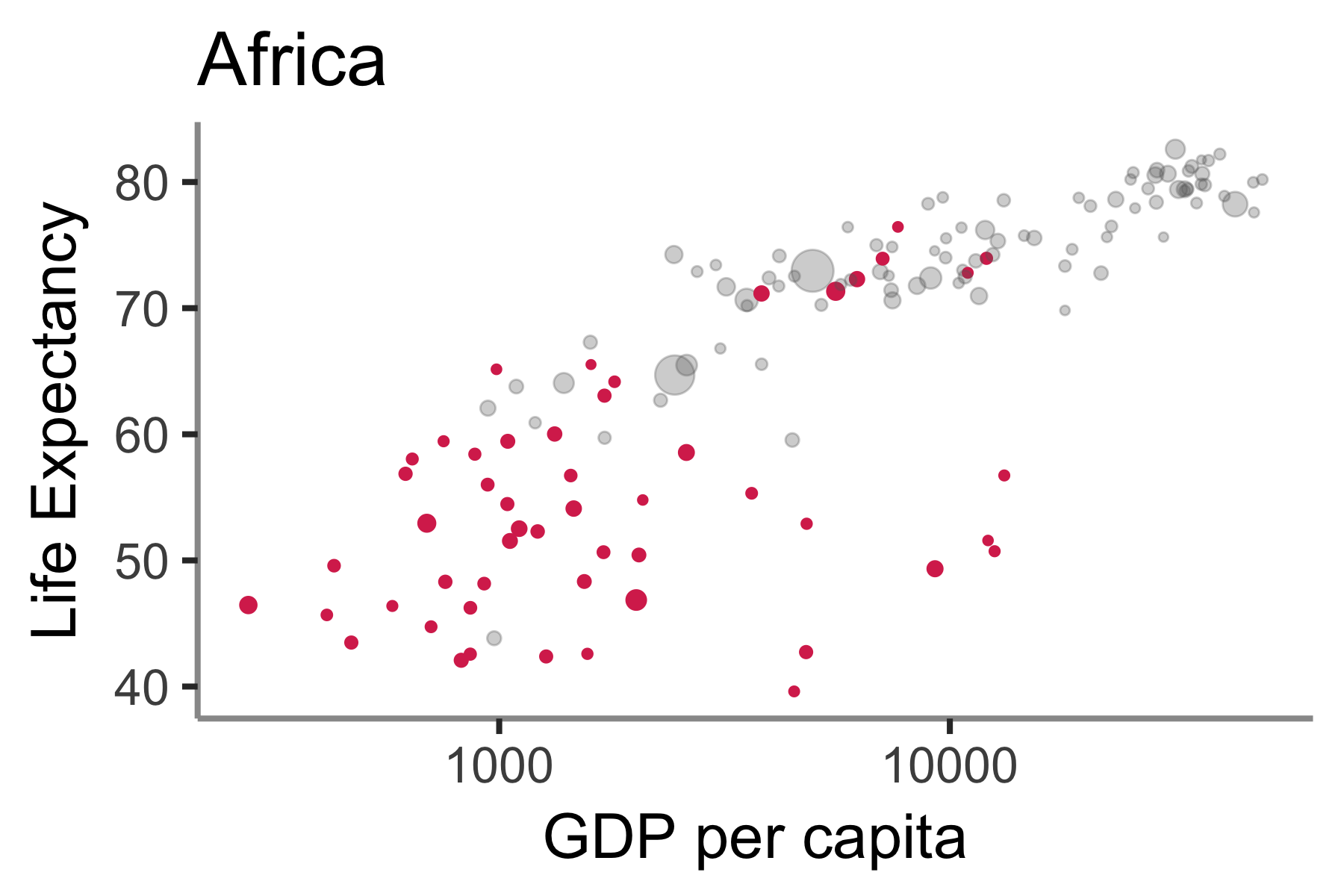

Points
comparing two continuous values
Data source: gapminder data
Examples of effective plots
what makes them so effective? What could be improved?

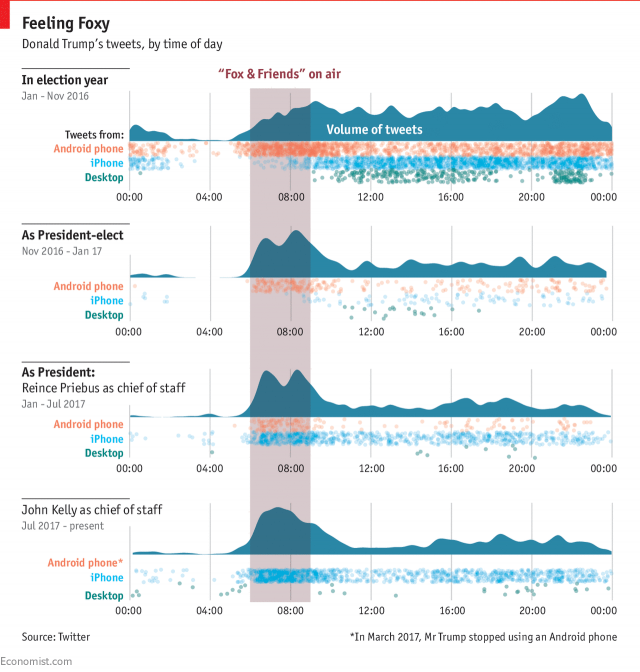

All the presidents tweets
The Data Team @ The Economist

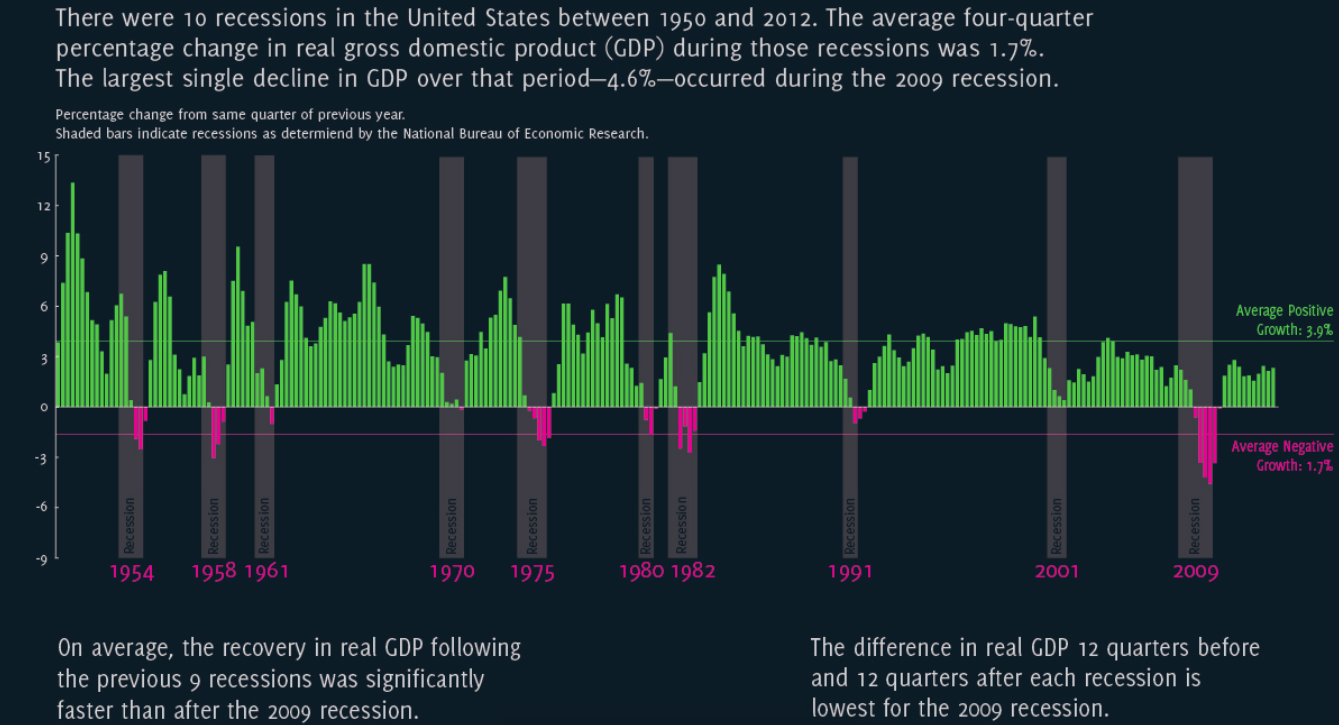

Economic Recovery after the Great Recession
by Jonathan Schwabish

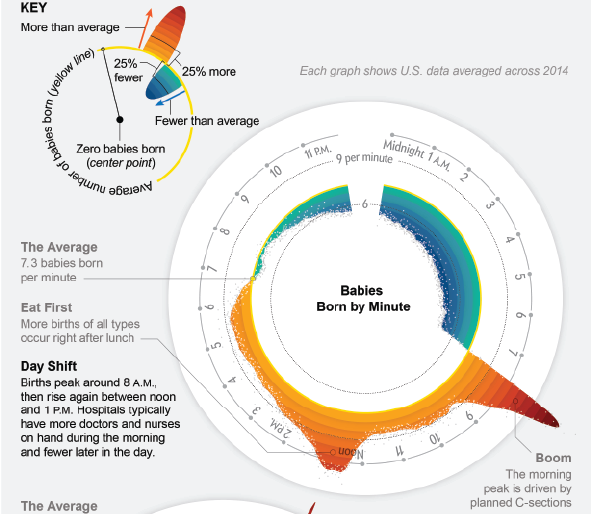

Why are so many babies born around 8:00 A.M?
by Nadieh Bremer, Zan Armstrong, Scientific American
Advice for specific plot types

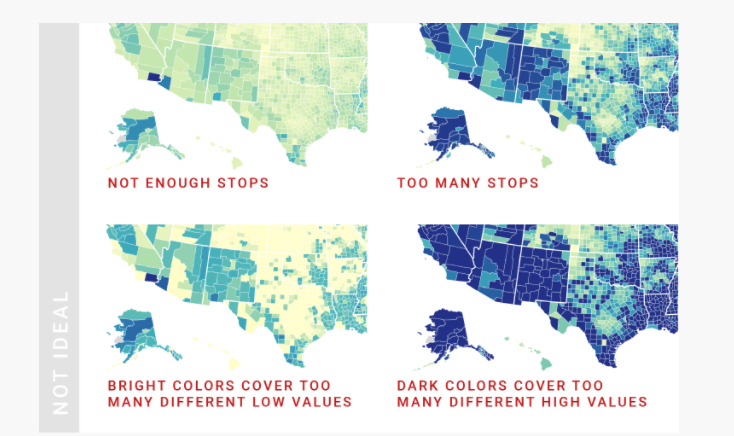

Chloropleth maps

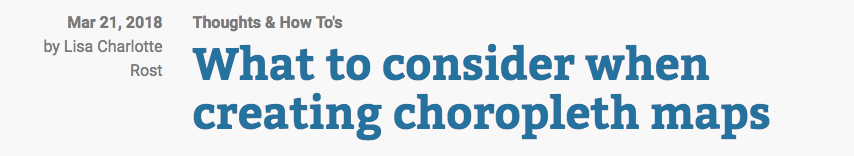

https://blog.datawrapper.de/choroplethmaps/
Interactive transitions
https://beta.observablehq.com/@anbnyc/the-space-between

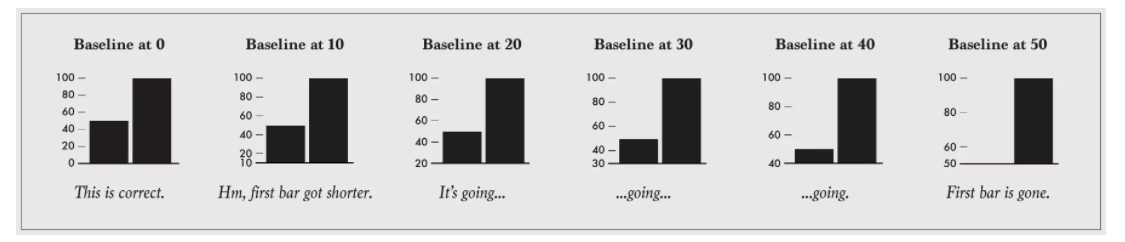

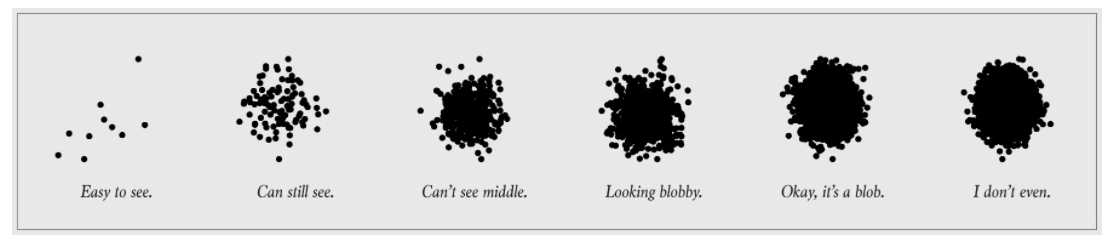

General tips
http://flowingdata.com/2015/08/11/real-chart-rules-to-follow/
slides:
http://slides.com/rebeccabarter/creating-effective-visualizations/fullscreen
code for ggplot figures:
https://github.com/rlbarter/visualization-examples
Creating effective visualizations
By Rebecca Barter
Creating effective visualizations
Slides for DS421 lecture
