Lunch and Learn

May 6, 2015

Reid Harrison

• Apache Struts -> Spring MVC
• Gin & Guice and Spring

• Security
• JDBC

• Android
• Social
• OAuth2

• XD
• Batch
• Integration
• Data
• Test

2013

Personal Mobile Project

2014

Unified Presentation Framework

2010

Georgia Tech Research Institute

2012

Personal Web Project

My Spring History

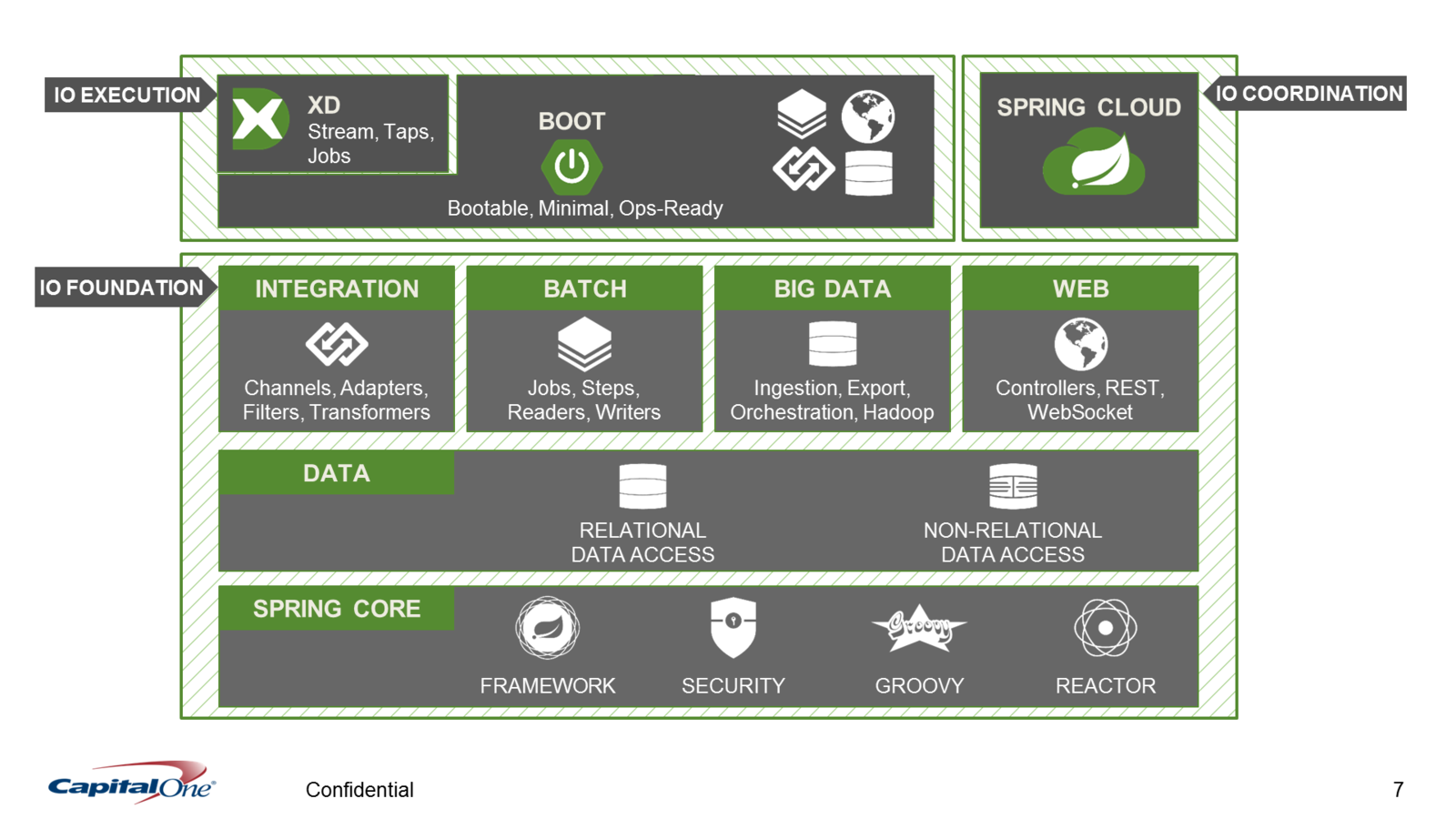

What is Spring?

• Spring Documentation
  • Dense but detailed
  • Often hard to understand
• Tutorials
  • Often outdated
  • Use in conjunction with docs and other tuts
• Examples
  • Good starting point
  • Numerous but simple

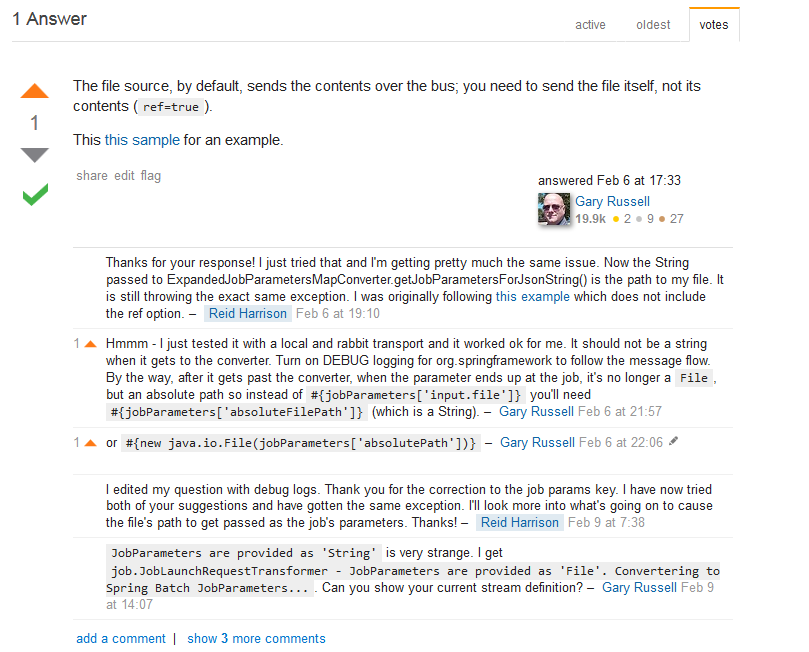

• Exploration
  • Figure it out for yourself
  • Become familiar with internals

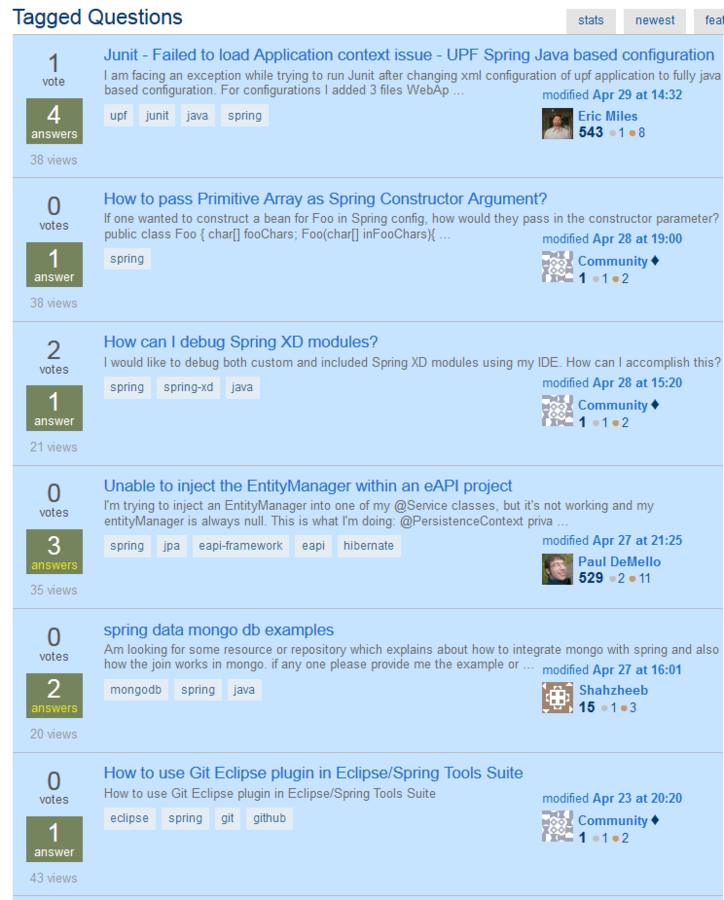

Learning Spring

@Repository
public class PeopleDao extends JdbcDaoSupport {

    @InjectLogger
    private Logger logger;

    @Inject
    public PeopleDao(final DataSource dataSource) {
        setDataSource(dataSource);
    }
}


@Configuration
public class SpringConfig {

    @Bean
    public DataSource dataSource() {
        BasicDataSource dataSource = new BasicDataSource();
        dataSource.setDriverClassName("org.postgresql.Driver");
        dataSource.setUrl("jdbc:postgresql://localhost:5432/tdpapp");
        dataSource.setUsername("username");
        dataSource.setPassword("password");
        return dataSource;
    }
}

Spring Dependency Injection

@Controller
public class HelloController {

    @RequestMapping(value = "/")
    public ModelAndView home() {
        ModelAndView mav = new ModelAndView("index");
        String greeting = "Hello, World!";
        mav.addObject("greeting", greeting);
        return mav;
    }

    @RequestMapping(value = "helloWorld", method = RequestMethod.GET)
    public @ResponseBody
    String helloWorld(final String greeting) {
        if ("Hello!".equals(greeting)) {
            return "Hello, World!";
        }

        return "Hell no, World!";
    }
}

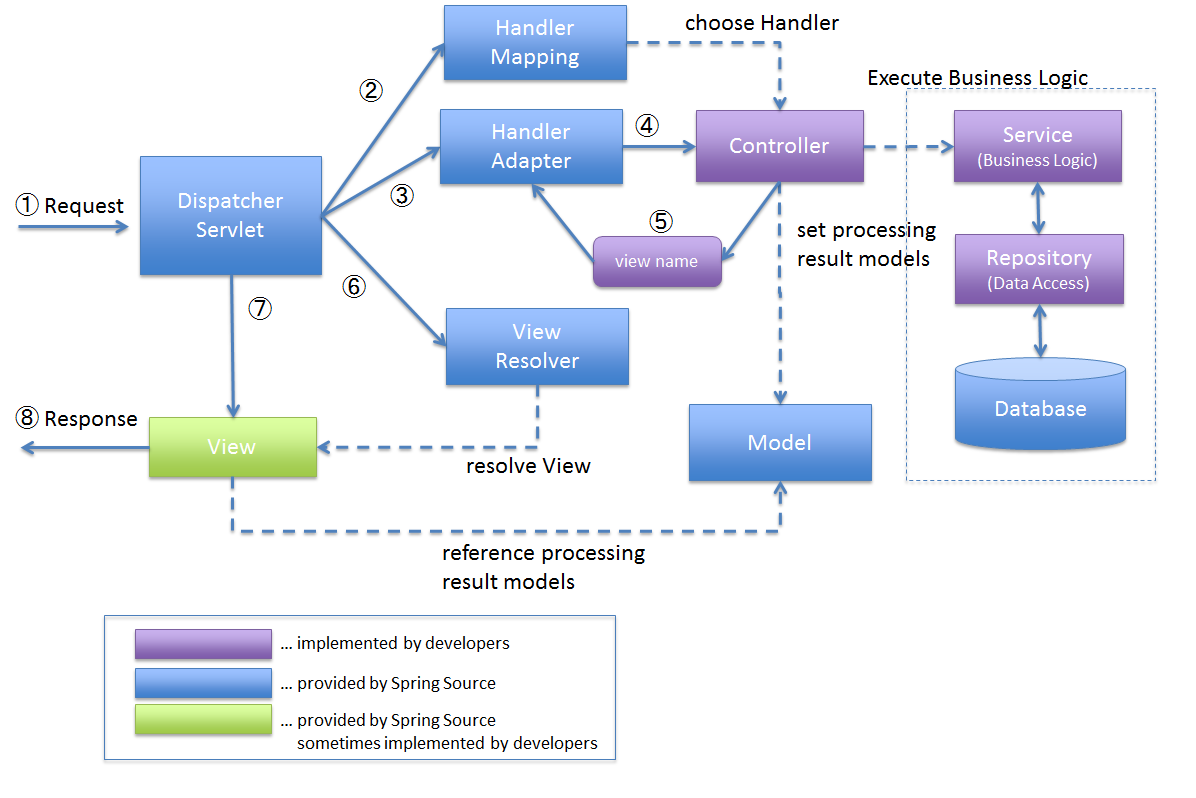

Spring MVC

@Target({ METHOD, CONSTRUCTOR, FIELD })
@Retention(RUNTIME)
@Documented
public @interface Inject {}

@Target(ElementType.PARAMETER)
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface CurrentUser { }

public class ActiveUserWebArgumentResolver implements HandlerMethodArgumentResolver {
    @Override
    public boolean supportsParameter(MethodParameter methodParameter) {
        Annotation[] paramAnns = methodParameter.getParameterAnnotations();
        for (Annotation paramAnn : paramAnns) {
            if (CurrentUser.class.isInstance(paramAnn)) {
                return true;
            }
        }
        return false;
    }

    @Override
    public Object resolveArgument(MethodParameter methodParameter, ModelAndViewContainer modelAndViewContainer, NativeWebRequest nativeWebRequest, WebDataBinderFactory webDataBinderFactory) throws Exception {
        Principal principal = nativeWebRequest.getUserPrincipal();
        if (principal == null) {
            return null;
        }
        User springUser = (User) ((Authentication) principal).getPrincipal();
    }
}

Java Annotations

Java Annotations

@Controller
public class AppController {

    @RequestMapping("getNotificationCount")
    public int getNotificationCount(@CurrentUser User currentUser) {
        return service.getUserNotificationCount(currentUser.getUsername());
    }

}

@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Inject
    private DataSource userDataSource;

    @Override
    public void configure(AuthenticationManagerBuilder authBuilder) throws Exception {
        authBuilder
            .jdbcAuthentication()
                .dataSource(userDataSource)
                .usersByUsernameQuery(USER_BY_USERNAME_QUERY)
                .authoritiesByUsernameQuery(AUTHORITIES_BY_USERNAME_QUERY);
    }

    @Override
    public void configure(HttpSecurity http) throws Exception {
        http
            .csrf()
                .disable()
            .authorizeRequests()
                .antMatchers("/css/**", "/img/**", "/js/**").permitAll()
                .antMatchers("/admin/**").hasRole("ADMIN")
                .anyRequest().authenticated()
                .and()
            .formLogin()
                .loginPage("index").permitAll()
                .loginProcessingUrl("login").permitAll()
                .successHandler(new CustomAuthenticationSuccessHandler())
                .failureHandler(new CustomAuthenticationFailureHandler())
                .and()
            .logout()
                .logoutUrl("logout")
                .logoutSuccessUrl("index").permitAll();
    }
}

Spring Security

@Controller
public class AppController {

    @Secured({"ADMIN"})
    @RequestMapping(value="admin")
    public String admin() {
        return "admin";
    }

    @PreAuthorize("#username == authentication.name")
    @RequestMapping(value="u/{username}/edit", method=RequestMethod.GET)
    public ModelAndView editUser(@PathVariable String username) {
        ModelAndView mav = new ModelAndView("editUser");
        mav.addObject("user", service.getUserInfo(username);
        return mav;
    }
}

Spring Security

@Repository
public class PeopleDao extends JdbcDaoSupport {

    @Inject
    public PeopleDao(final DataSource dataSource) {
        setDataSource(dataSource);
    }

    . . .

    public List<Expertise> getExpertise(final String eid) {
        return getJdbcTemplate().query(SELECT_PERSON_EXPERTISE_SQL, new String[] { eid }, new PeopleRowMappers.ExpertiseRowMapper());
    }

    public Integer createExpertise(final String newExpertiseName) {
        //Construct a SimpleJdbcInsert so that the new expertise's key can be returned from the database
        SimpleJdbcInsert insert = new SimpleJdbcInsert(getJdbcTemplate())
                .withTableName("expertise")
                .usingColumns("name")
                .usingGeneratedKeyColumns("id");

        Map<String, Object> expertiseValues = new TreeMap<String, Object>();
        expertiseValues.put("name", newExpertiseName);

        //Execute the insert and capture the returned primary key
        final Number newExpertiseKey = insert.executeAndReturnKey(expertiseValues);

        if (newExpertiseKey == null) {
            throw new IllegalStateException("New expertise's primary key was not returned by database after insertion, " +
                    "the new expertise will not be able to be related to a person.");
        }

        final int newExpertiseId = newExpertiseKey.intValue();
        return newExpertiseId;
    }
}

Spring JDBC

public void updatePersonSchool(final String eid, final Integer schoolId) {
    getJdbcTemplate().update(UPDATE_PERSON_SCHOOL_SQL, new PreparedStatementSetter() {
        @Override
        public void setValues(PreparedStatement ps) throws SQLException {
            if (schoolId != null) {
                ps.setInt(1, schoolId);
            } else {
                ps.setNull(1, Types.INTEGER);
            }

            ps.setString(2, eid);
        }
    });
}

Spring JDBC

@Controller
public class TwitterFriendsController {

    private final Twitter twitter;

    @Inject
    public TwitterFriendsController(Twitter twitter) {
        this.twitter = twitter;
    }

    @RequestMapping(value="/twitter/friends", method=RequestMethod.GET)
    public String friends(Model model) {
        model.addAttribute("profiles", twitter.friendOperations().getFriends());
        return "twitter/friends";
    }

    @RequestMapping(value="/twitter/followers", method=RequestMethod.GET)
    public String followers(Model model) {
        model.addAttribute("profiles", twitter.friendOperations().getFollowers());
        return "twitter/friends";
    }

}

Spring Social

Spring Social

@Configuration
@EnableSocial
public class SocialConfig implements SocialConfigurer {

    @Override
    public void addConnectionFactories(ConnectionFactoryConfigurer cfConfig, Environment env) {
        cfConfig.addConnectionFactory(new TwitterConnectionFactory(
            env.getProperty("twitter.consumerKey"),
            env.getProperty("twitter.consumerSecret")));
    }

    @Bean
    @Scope(value = "session", proxyMode = ScopedProxyMode.INTERFACES)
    public Twitter twitter(ConnectionRepository repository) {
        Connection<Twitter> connection = repository.findPrimaryConnection(Twitter.class);
        return connection != null ? connection.getApi() : null;
    }
}

Spring Social

Spring Boot

@RestController
@EnableAutoConfiguration
public class AppController {

    @RequestMapping("/")
    String home() {
        return "Hello World!";
    }

    public static void main(String[] args) throws Exception {
        SpringApplication.run(AppController.class, args);
    }

}

Spring Boot

HTTP

Tail

File

Mail

Twitter

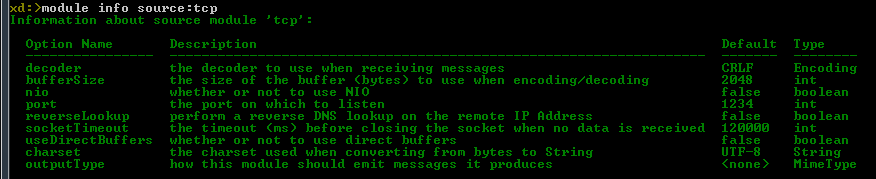

TCP/UDP

JMS

RabbitMQ

Trigger

Filter

Transformer

Splitter

Aggregator

Object-to-JSON

JSON-to-Tuple

HTTP Client

Shell

File

HDFS

JDBC

MongoDB

TCP

Log

Mail

Splunk

Source

Processor

(optional)

Sink

Spring XD

source | processor (optional) | sink --parameter=value

stream create --name mongoperf --definition "jms
--provider=perftest --destination='epf.audit.queue' |
audit-json | mongodb --host='10.94.71.148' --port=11200
--databaseName=upfaudit"

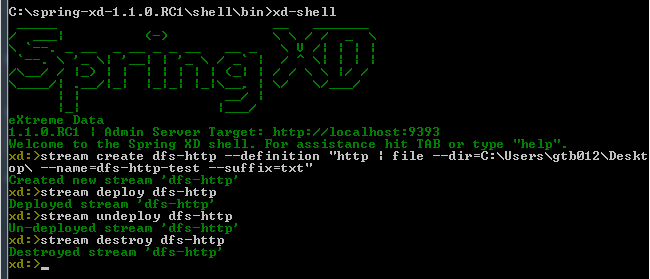

stream create dfs-http --definition "http |
file --dir=C:\Users\gtb012\Desktop\ --name=dfs-http-test
--suffix=txt" --deploy

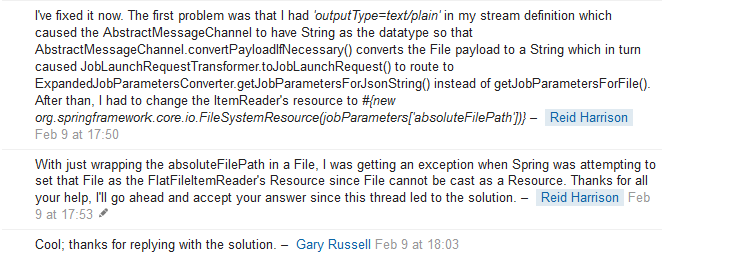

Spring XD

Spring XD

• are managed by Spring's IoC container - ApplicationContext
• are declared through XML or Java
• must be non-final and non-static
• usually need default or injection constructors

Beans

can then be injected into instance variables, constructor parameters or setter methods.

More Spring DI

• @Inject vs. @Autowired
• @Named vs. @Qualifier
• @Component
  • @Controller
  • @Service
  • @Repository
• @Scope
  • singleton
  • prototype
  • request
  • session
• @Profile

Common Spring Annotations

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="
	    http://www.springframework.org/schema/beans
	    http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-3.1.xsd">

    <!-- component scan for Spring Config -->
    <context:component-scan base-package="com.capitalone.tdp.tdpapp.server.web.spring"
                            use-default-filters="false">
        <context:include-filter type="annotation"
                                expression="org.springframework.context.annotation.Configuration" />
    </context:component-scan>

    <!-- PostgreSQL data source bean defined as XML -->
    <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
        <property name="driverClassName" value="org.postgresql.Driver"/>
        <property name="url" value="jdbc:postgresql://localhost:5432/tdpapp"/>
        <property name="username" value="username"/>
        <property name="password" value="password"/>
    </bean>

</beans>

Application Context

@Configuration
@EnableAspectJAutoProxy
@ComponentScan(basePackages = {
        "com.capitalone.tdp.tdpapp.server",
        "com.capitalone.epf.logging",
        "com.capitalone.epf.configuration.utils",
        "com.capitalone.epf.core.jar.springconfig"
})
public class TdpAppSpringConfig {

    @Inject
    @Named("upf-app-config")
    org.apache.commons.configuration.Configuration upfAppConfig;

    @Bean
    public DataSource dataSource() throws Exception {
        BasicDataSource dataSource = new BasicDataSource();
        dataSource.setDriverClassName("org.postgresql.Driver");
        dataSource.setUrl(upfAppConfig.getString("postgres.url"));
        dataSource.setUsername(upfAppConfig.getString("postgres.username"));
        dataSource.setPassword(upfAppConfig.getString("postgres.password"));
        return dataSource;
    }

    @Bean
    @Named("peopleDataSource")
    @Scope("request")
    public DataSource peopleDataSource() throws Exception {
        . . .
    }

    @Bean(name = {"peopleDao"})
    @Inject
    public PeopleDao peopleDao(@Named("peopleDataSource") dataSource) {
        return new PeopleDao(dataSource);
    }

}

Java @Configuration

@Repository
public class PeopleDao extends JdbcDaoSupport {

    @InjectLogger
    private Logger logger;

    @Inject
    public PeopleDao(final DataSource dataSource) {
        setDataSource(dataSource);
    }

    . . .
}

@Service
public class PeopleService {

    @InjectLogger
    private Logger logger;

    @Inject
    private PeopleDao peopleDao;

    public List<Person> getAllPeople() {
        return peopleDao.getAllPeople();
    }
}

Spring DI

More Spring MVC

public class HelloServlet extends HttpServlet {

    public void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        response.setContentType("application/json");
        PrintWriter out = response.getWriter();
        out.println("{\"greeting\":\"Hello, World!\"}");
        out.close();
    }
}

<servlet>
   <servlet-name>HelloServlet</servlet-name>
   <servlet-class>HelloServlet</servlet-class>
</servlet>

<servlet-mapping>
   <servlet-name>HelloServlet</servlet-name>
   <url-pattern>/helloWorld</url-pattern>
</servlet-mapping>

Dispatcher Servlet

web.xml

<?xml version="1.0" encoding="UTF-8" ?>
<web-app id="tdp-app-server" version="2.5"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">

    <display-name>tdp-app-server</display-name>

    <servlet>
        <servlet-name>tdp-app-server</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>/WEB-INF/tdp-app-servlet.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>tdp-app-server</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>/WEB-INF/applicationContext.xml</param-value>
    </context-param>

    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

</web-app>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="
		http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context-3.1.xsd
		http://www.springframework.org/schema/mvc
		http://www.springframework.org/schema/mvc/spring-mvc-3.1.xsd">

    <!-- Configures a default handler serving static resources and the default "/" mapping to the DispatcherServlet. -->
    <mvc:default-servlet-handler />

    <!-- Activates annotation-based bean configuration. -->
    <context:annotation-config />

    <!-- Configures the @Controller programming model. -->
    <mvc:annotation-driven />

    <!-- The servlet's main Spring Controller -->
    <context:component-scan base-package="com.capitalone.tdp.tdpapp.server.web.controller" />

</beans>

servlet.xml

@Controller
public class HelloController {

    @Inject
    private Service service;

    @RequestMapping(value = "helloWorld", method = RequestMethod.GET)
    public @ResponseBody
    List<HelloWorld> helloWorld(final String greeting) {
        return service.getHellos();
    }

    @RequestMapping(value="u/{username}/edit", method=RequestMethod.POST)
    public String editUser(@PathVariable String username, @RequestBody User newUser) {
        service.editUser(username, newUser);
        return "edit_user_success";
    }
}

@Controller

@Configuration
public class AppStringConfig {

    @Bean
    public InternalResourceViewResolver viewResolver() {
        InternalResourceViewResolver resolver = new InternalResourceViewResolver();
        resolver.setPrefix("/WEB-INF/");
        resolver.setSuffix(".jsp");
        return resolver;
    }

    @Bean
    public VelocityLayoutViewResolver viewResolverVelocity() {
        VelocityLayoutViewResolver resolver = new VelocityLayoutViewResolver();
        resolver.setCache(true);
        resolver.setPrefix("/WEB-INF/views/");
        resolver.setSuffix(".vm");
        resolver.setRequestContextAttribute("requestContext");
        resolver.setExposeSpringMacroHelpers(true);
        resolver.setToolboxConfigLocation("/WEB-INF/vm/config/velocityTools.xml");
        resolver.setLayoutUrl("/WEB-INF/vm/web/layout/layout.vm");
        return resolver;
    }
}

View Resolvers

• Spring Documentation
• GitHub
  • spring-projects/spring-mvc-showcase
  • spring-projects/spring-xd-samples
  • spring-projects/spring-boot/tree/master/spring-boot-samples
• StackOverflow
• questions.kdc.capitalone.com

Spring Resources
