Continuous Delivery
for Machine Learning
Bringing DevOps to the world of AI
Renato Cordeiro Ferreira
2019

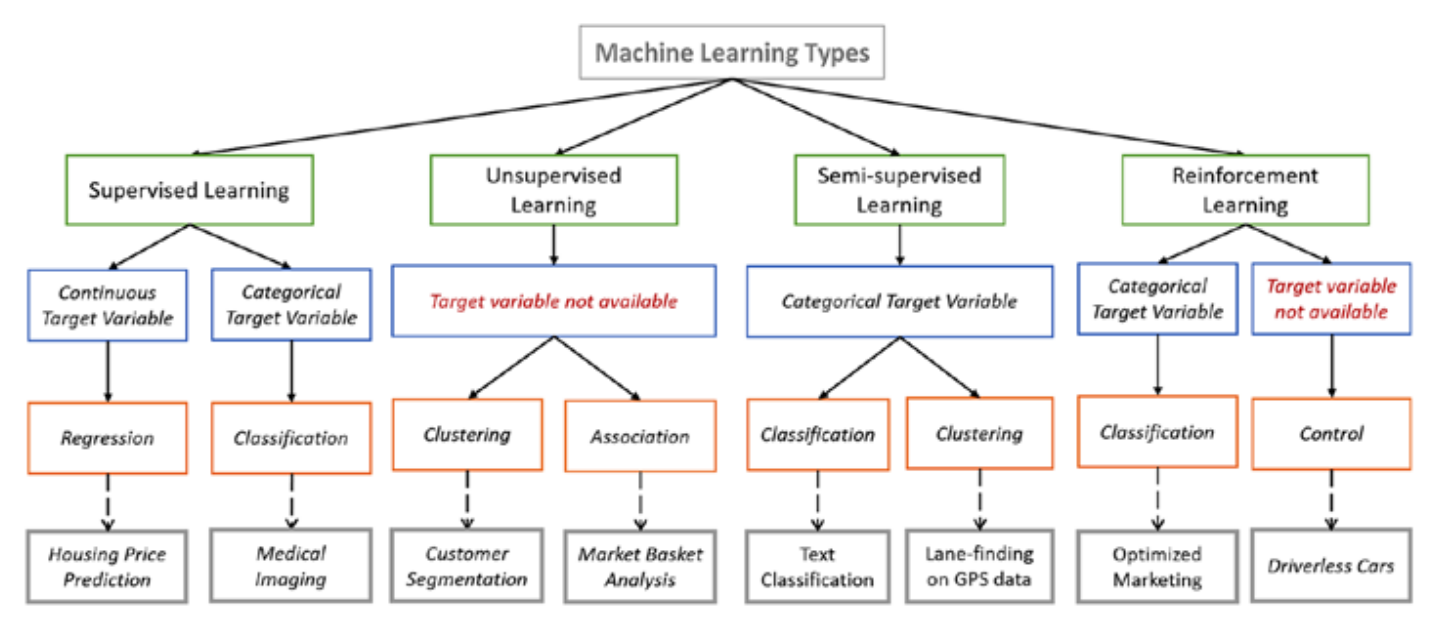

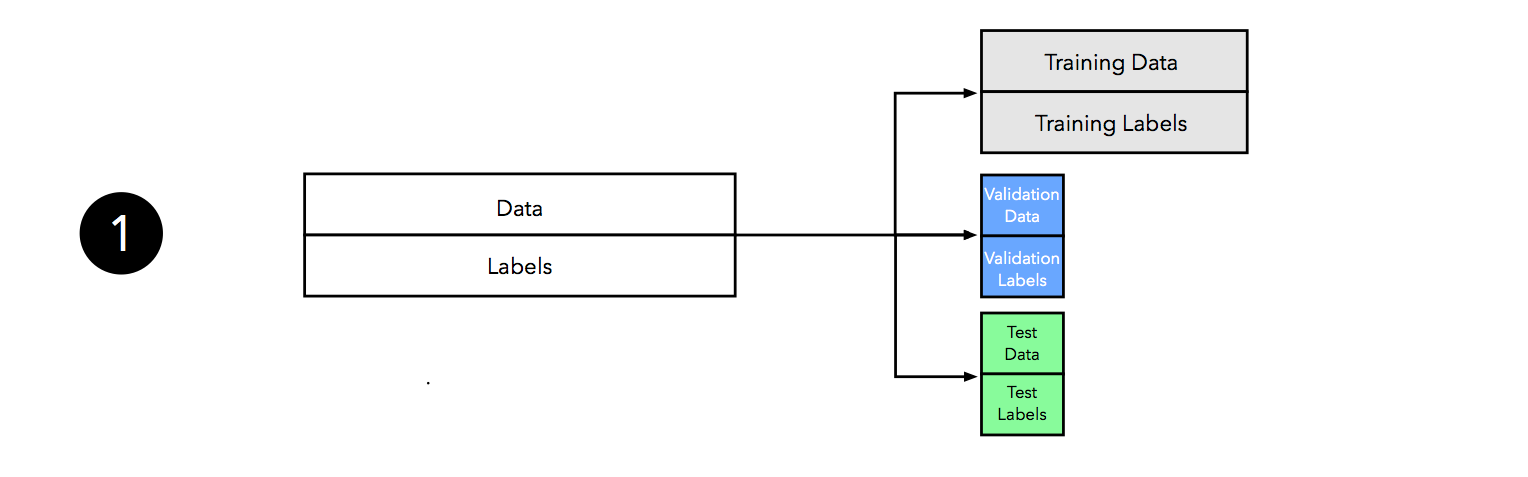

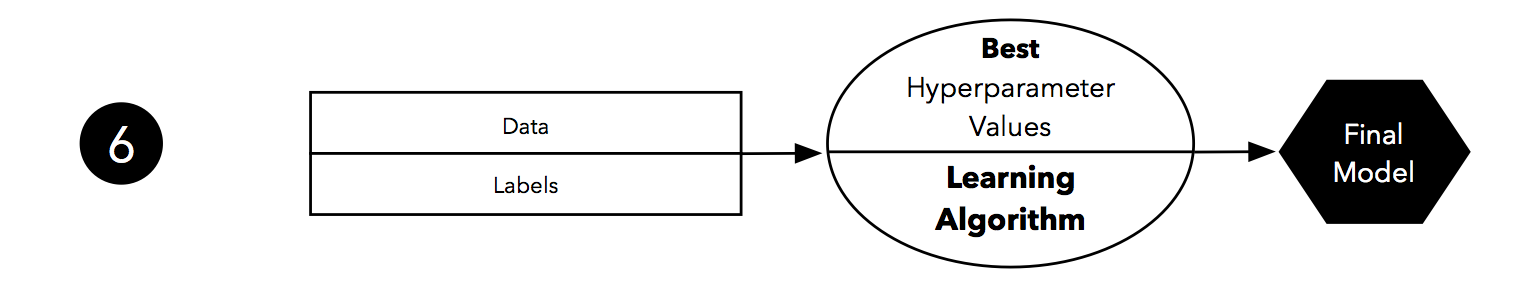

Machine Learning
Pipeline
The basic process to learn from data
"Continuous Delivery is the ability to get changes of all types -- including new features, configuration changes, bug fixes, and experiments -- into production, or in the hands of uses, safely and quickly in a sustainable way."
-- Jez Humble and Dave Farley
Continuous Delivery
3 Axis of Change for ML
"Continuous Delivery for Machine Learning is a software engineering approach in which a cross-functional team produces machine learning applications based on code, data and models in small and safe increments that can be reproduced and reliably released at any time, in short adaptation cycles."
-- Danilo Sato, Arif Wider, Christoph Windheuser
Continuous Delivery for ML
"Continuous Delivery for Machine Learning is a software engineering approach in which a cross-functional team produces machine learning applications based on code, data and models in small and safe increments that can be reproduced and reliably released at any time, in short adaptation cycles."
-- Danilo Sato, Arif Wider, Christoph Windheuser
Continuous Delivery for ML
Software engineering approach:
It enables teams to efficiently produce high quality software
Cross-functional team:
Experts with different skill sets and workflows across data engineering, data science, machine learning engineering, development, operations, and other knowledge areas are working together in a collaborative way emphasising the skills and strengths of each team member
Continuous Delivery for ML
Producing software based on code, data and models:
All artifacts of the ML software production process require different tools and workflows that must be versioned and managed accordingly
Small and safe increments:
The release of the software artifacts is divided into small increments, which allows visibility and control around the levels of variance of its outcomes, adding safety into the process
Continuous Delivery for ML
Reproducible and reliable software release:
While the model ouputs can be non-deterministic and hard to reproduce, the process of releasing ML software into production is reliable and reproducible, leveraging automation as much as possible
Software release at any time:
It is important that the ML software could be delivered into production at any time. Even if organizations do not want to deliver software all the time, it should always be in a releasable state. This makes the decision about when to release it a business decision rather than a technical one
Continuous Delivery for ML
Short adaptation cycles:
Short cycles means development cycles are in the order of days or even hours, not weeks, months or even years. Automation of the process with quality built in is key to achieve this. This creates a feedback loop that allows you to adapt your models by learning from its behavior in production
Continuous Delivery for ML
"Continuous Delivery for Machine Learning is a software engineering approach in which a cross-functional team produces machine learning applications based on code, data and models in small and safe increments that can be reproduced and reliably released at any time, in short adaptation cycles."
-- Danilo Sato, Arif Wider, Christoph Windheuser
Intelligent Systems Workflow
Intelligent Systems Workflow
Technical Components of CD4ML
- Discoverable and Accessible Data
- Reproducible Model Training
- Model Serving
- Testing and Quality in Machine Learning
- Experiments Tracking
- Model Deployment
- Continuous Delivery Orchestration
- Model Monitoring and Observaibility
Discoverable and Accessible Data

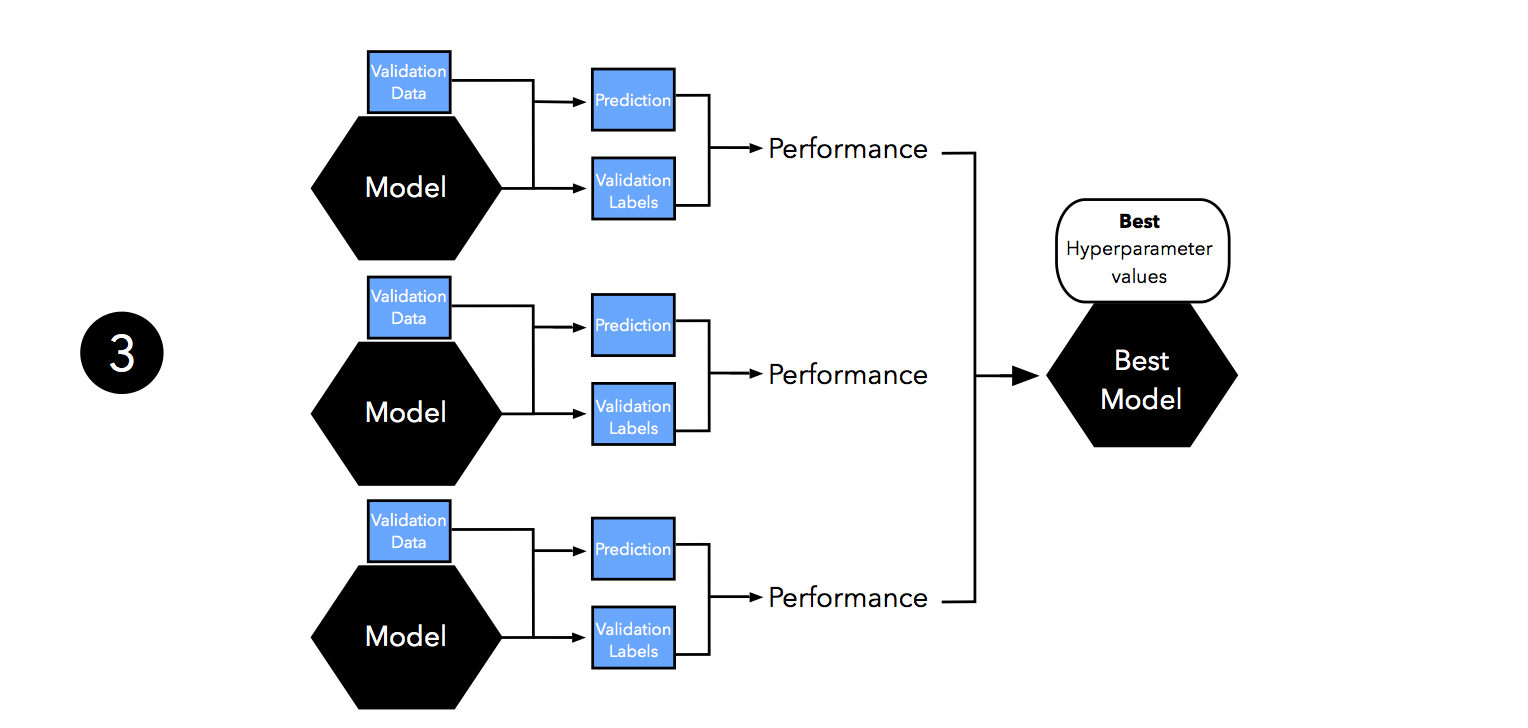

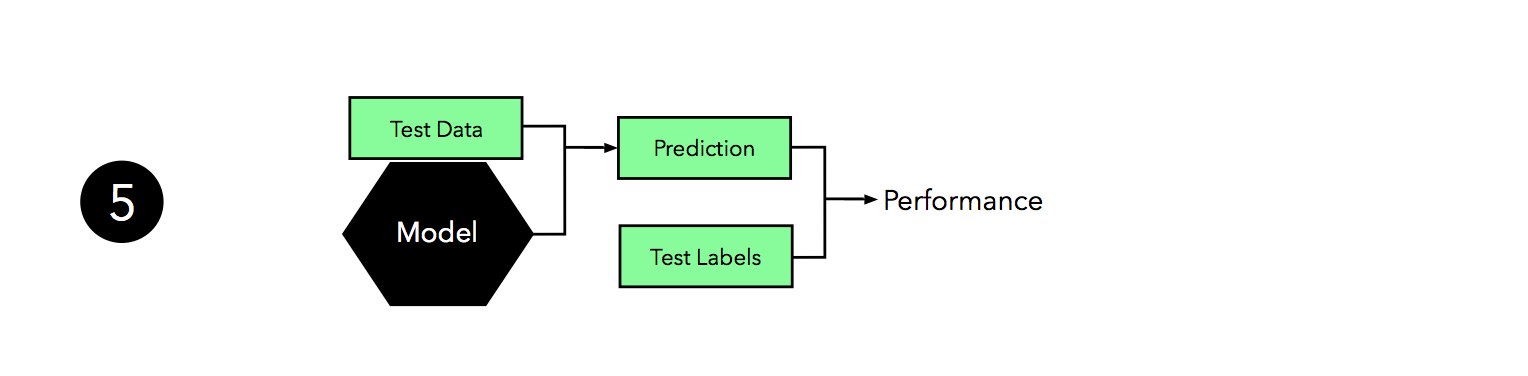

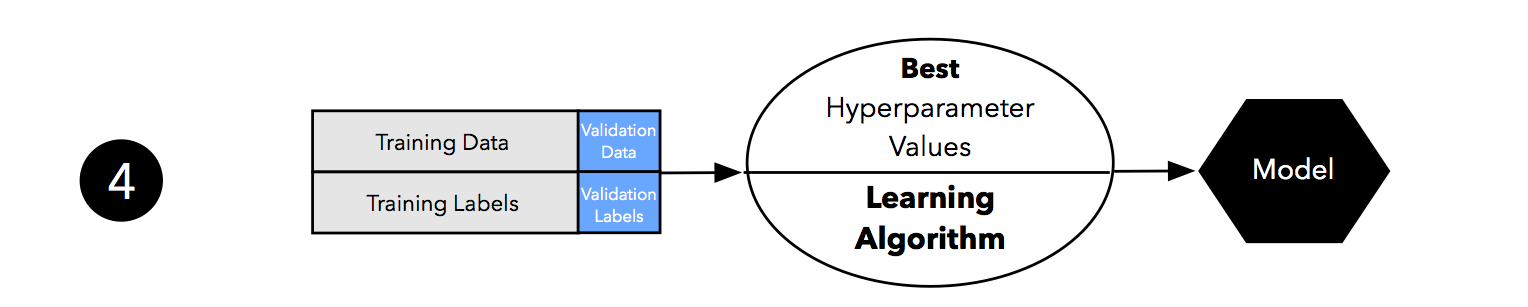

Reproducible Model Training
Model Serving
Embedded Model
Model as a Service
Model as Data
1
2
4
3
5
6
Testing and Quality in Machine Learning
Experiments Tracking
Model Deployment
A
B
Multiple
Models
Shadow
Models
Competing
Models
Online
Models
Continuous Delivery Orchestration
Model Monitoring and Observability
Model inputs
Model interpretability outputs
Model outputs and decisions
User action and rewards
Model fairness
End-to-End CD4ML
References
Continuous Delivery for Machine Learning Bringing DevOps to the world of AI Renato Cordeiro Ferreira 2019
Continuous Delivery for Machine Learning
By Renato Cordeiro Ferreira
Continuous Delivery for Machine Learning
Continuous Delivery for Machine Learning is a new set of practices documented by ThoughtWorks about how to bring DevOps principles to the world of AI.
