An Integrated Implementation of
Probabilistic Graphical Models

2020

Renato Cordeiro Ferreira

Advisor: Alan Mitchel Durham

IME-USP

https://renatocf.xyz/masters-defense-live

Our goal was to present a
new integrated implementation
of Probabilistic Graphical Models
for sequence labeling and alignment

Results

Review of Probabilistic Graphical Models
New summary of PGMs that make sequence labeling and alignment with their definitions and relationships

SECRETARY pattern
New design pattern to decrease coupling while keeping reusability of code

Refactoring of ToPS framework
New architecture and domain specific language that make it easier to extend the framework with new models

Results

Generalized Covariance Model
New model that recognizes a subset of context-free and context-sensitive languages, replacing two specialized models (CMs, CSHMMs) with extended capabilities and the same or better time/space algorithmic efficiency

Generalized Multi-Sequence Hidden Markov Model
New model that makes sequence labeling and alignment with an integrated set of algorithms, replacing four specialized models (HMMs, GHMMs, PHMMs, GPHMMs) with the same time/space algorithmic efficiency

Probabilistic
Graphical Models

Joint distribution:
Probability distribution \( P(Y_1, \ldots, Y_m, X_1, \ldots, X_n) \) which can be queried to reason over the model:

- Map assignment: \( \mathrm{MAP}(\mathbf{Y} \mid \mathbf{X} = \mathbf{x}) = \mathrm{arg\,max}_{\mathbf{y}} P(\mathbf{y}, \mathbf{x}) \)

- Posterior probability distribution: \( P(\mathbf{Y} \mid \mathbf{X} = \mathbf{x}) \)

Definitions

Probabilistic Model:
A model that is mathematically described using random variables, i.e., functions that map events of a given
sample space to a discrete or continuous space

Sickness diagnosis problem:
Set of patients \( P \)

- Sick? \( S: P \rightarrow \{0, 1\} \)
- Fever? \( T: P \rightarrow \{0, 1\} \)
- Hypertension? \( B: P \rightarrow \{0, 1\} \)

Queries:
Given a patient has fever and hypertension

- Is he sick or not? \( \mathrm{MAP}(S \mid B = 1, T = 1) \)

- How likely is he sick? \( P(S = 1 \mid B = 1, T = 1) \)

output

input

input

Example

Probabilistic Graphical Model (PGM):
A probabilistic model that uses a graph to compactly describe the dependencies between random variables and show a factorization of their joint distribution

Bayesian Network (BN):
A PGM whose graph is a directed acyclic graph (DAG)

Markov Network (MN):
A PGM whose graph has only undirected edges

Definitions

Generative model:
A probabilistic model that factorizes \( P(\mathbf{Y}, \mathbf{X}) \) between the output variables \( \mathbf{Y} \) and the input variables \( \mathbf{X} \)

Discriminative model:
A probabilistic model that factorizes \( P(\mathbf{Y} \mid \mathbf{X}) \) between the output variables \( \mathbf{Y} \) and the input variables \( \mathbf{X} \)

Generative and discriminative equivalents:
Every generative PGM has a discriminative equivalent that is structurally equal but represents a different distribution

Definitions

Bayesian Network:
A BN for the sickness diagnosis example
(arrows indicate states that influence others)

It expresses a factorization in terms of
Conditional Probability Distributions (CPDs):
\( P(S, T, B) = P(S) P(T | S) P(B | S) \)

Generative

Example

Markov Network:
A MN for the sickness diagnosis example
(edges indicate that there is a connection)

It expresses a factorization in terms of Factor Functions \( \Phi(C_i): \mathrm{Im}(C_i) \longrightarrow \mathbb{R}^+ \) where \( C_i \) is a click of the graph: \( P(S, T, B) \propto \Phi(S) \Phi(T, S) \Phi(B, S) \Phi(T) \Phi(B) \)

Generative

Example

Conditional Random Field:
A Markov Network  that ignores clicks related only input variables (to avoid their complexity)

This expresses a factorization in terms of Factor Functions \( \Phi(C_i): \mathrm{Im}(C_i) \longrightarrow \mathbb{R}^+ \) where \( C_i \) is a click of the graph: \( P(S \mid T, B) \propto \Phi(S) \Phi(T, S) \Phi(B, S) \)

Discriminative

Example

Generative

\( P(S \mid T, B) \propto \)
\( \Phi(S) \Phi(T, S) \Phi(B, S) \)

Discriminative

\( P(S, T, B) = \)
\( P(S) P(T \mid S) P(B \mid S) \)

Generalizes better
with less data

Generalizes better
with more data

Generative vs Discriminative

Models dependencies
between input variables \(P(\mathbf{X})\)

Requires less knowledge
about the domain described

Ignores dependencies
between input variables \(P(\mathbf{X})\)

Can generate sequences to simulate the process described

Structured prediction:
The outcome of the queries over the model represent the structure of a complex object (such as a text or an image) in opposition to a single value

Sequence labeling:
Classify the elements of a sequence in a set of categories

Sequence alignment:
Find the best match between positions of 2+ sequences

Definitions

Casino with game of dice passing through a heist:
- Fair Die: \( P(s) = 1/6 \) for all \( s \)
- Loaded Die: \( P(1) = 1/2 \)
Refund when it can prove the dice was tempered

Sequence labeling:
Given a sequence of rolls produced by a player:


- When was the die tampered? (MAP assignment)
- What is the most likely status of the die on each turn of the game? (Posterior probability)

6 1 4 4 1 2 3 4 6 6 6 2 2 4 6

F F F L L F F F F F F L L L L

Example

New game of dice in the Casino

Players win more money the longest the match between their sequence of guesses and the casino's sequence of rolls

Sequence alignment:
Given a sequence of rolls made by the casino:

And a sequence of guesses produced by a player:

- What is the best match between the players' guesses and the casino's rolls?

6 1 4 4 1 2 3 4 6 6 6 2 2 4 6
6 1 2 2 4 1 4 3 4 6 6 6 1 2 4 6

Example

New game of dice in the Casino.

Players will win extra money if they produce palindrome (abccba) or copy (abcabc) subsequences within their sequence of rolls

Sequence labeling:
Given a sequence of rolls produced by a player during the game:

- Where are the palindromes or copy subsequences?
- How to produce the longest subsequences?

6 1 4 4 1 2 3 4 6 6 6 2 2 4 6

Example

We created a summary of the
relationships between
PGMs that make sequence
labeling and alignment

PGMs for sequence labeling and alignment:
Subcategories of Bayesian and Markov Networks:

Hidden Markov Model HMM
Generalized Hidden Markov Model GHMM
Pair Hidden Markov Model PHMM
Generalized Pair Hidden Model GPHMM
Stochastic Context-Free Grammar SCFG
Covariance Model CM
Context-Sensitive Hidden Markov Model CSHMM
Linear Chain Conditional Random Field LCCRF
Semi-Markov Conditional Random Field Semi-CRF

BN

MN

Reg

CF

Reg

CS

Definitions

Dynamic
Bayesian Network

Conditional
Random Field

Hidden
Markov Model

+ Discrete vars.

+ Linear out. vars.

Probabilistic Graphical Model

Bayesian Network

Markov Network

+ DAG

+ Undirected edges

+ Show process through time

+ Ignore deps. between in. vars.

Naive Bayes

Logistic Regression

+ 1 out. var.

+ 1 out. var.

Linear-Chain
CRF

Generalized HMM

+ decouple
   duration

Pair Hidden
Markov Model

Generalized Pair HMM

Semi-Markov
CRF

+ Multiple sequences

+ Multiple sequences

Context-Sensitive HMM

Stochastic Context-Free Grammar

+ Memory between states

SEQUENCE LABELING

SEQUENCE ALIGNMENT

GENERATIVE

DISCRIMINATIVE

+ decouple
   duration

+ decouple
   duration

+ Formal Language

HIGHER DESCRIPTIVE POWER

Covariance
Model

Hierarchy of Mathematical Assumptions

ToPS
Framework

Background

ToPS: Toolkit of Probabilistic Models of Sequence
C++ framework created to implement models that solve sequence labeling and alignment problems in the field of Bioinformatics (genomics, proteomics, transcriptomic)

MYOP: Make Your Own Predictor
ToPS was originally created as a base for MYOP, which uses it to find genes and transcripts in DNA sequences

40
Classes

10k
Lines of Code

14
Models

Single Object-Oriented Hierarchy
ToPS implements all its probabilistic models using the COMPOSITE pattern to improve the reuse of code

Specification Language
ToPS provides a DSL to describe probabilistic models in a mathematical way instead of creating them with code

Command Line Applications
ToPS provides a set of Unix-style binaries to execute different tasks with the models

Characteristics

Model Acronym
Discrete and Idependent Distribution IID
Inhomogeneous Markov Chain IMC
Maximal Dependence Decomposition MDD
Multiple Sequential Model MSM
Periodic Inhomogeneous Markov Chain PIMC
Similarity Based Sequence Weighting SBSW
Variable Length Markov Chain VLMC
Hidden Markov Model HMM
Generalized Hidden Markov Model GHMM

PGMs

Distributions

Published Probabilistic Models

Model Acronym
Pair Hidden Markov Model PHMM
Generalized Pair Hidden Markov Model GPHMM
Context-Sensitive Hidden-Markov Model CSHMM
Linear Chain Conditional Random Field LCCRF
Semi-Markov Conditional Random Field Semi-CRF

Each model had minor differences that affected the framework implementation, resulting in technical debt

Vitor Onuchic

Rafael Mathias

Ígor Bonadio

Extensions after publication

Technical Debt

Difficult Extensibility
Bad design smells make it difficult to add new models

Legacy Code
 Code base written in C++98 with outdated practices

Limited Domain Specific Language
DSL does not support complex structures for CRFs

Memory Overhead
Insufficient caching increases use of memory unnecessarily

Published ToPS'
Architecture

Language

Models

App

Published ToPS' Architecture

Factories

Language

Models

App

Published ToPS' Architecture

Factories

ToPS' command-line applications, allowing end users to execute tasks on the probabilistic models

Language

Models

App

Published ToPS' Architecture

Factories

ToPS' main component.
It holds all algorithms for probabilistic models
whose calculations use
an string alphabet

Language

Models

App

Published ToPS' Architecture

Factories

Language component.
It holds an abstract syntax tree for a domain specific language (DSL) that describes models

Language

Models

App

Published ToPS' Architecture

Factories

Factories component. It holds all algorithms that train or load pretrained models in the framework

PGMs

Published ToPS' Hierarchy of Probabilistic Models

Decorators

Distributions

Interface

Unfactored interface

 Unfactored
 implementation

Unfactored interface and implementation

Multifaceted abstraction

Multifaceted abstraction

Published ToPS' Hierarchy of Probabilistic Models

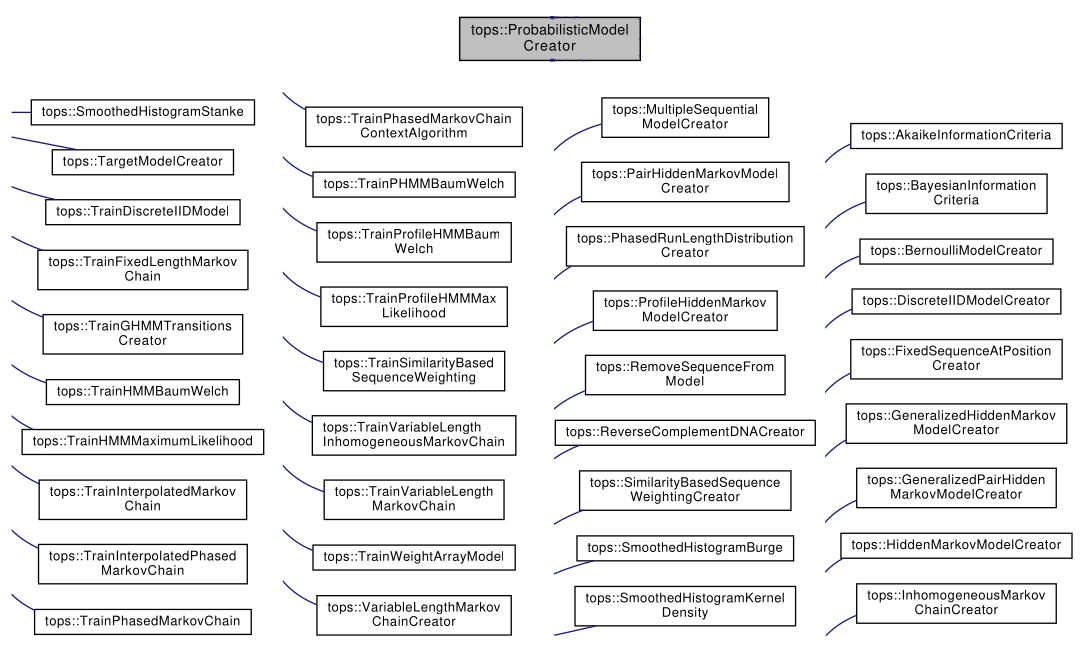

Published ToPS' Hierarchy of Factories of Probabilistic Models

Multifaceted abstraction

Imperative
Abstraction

Imperative
Abstraction

Imperative
Abstraction

Rebel Hierarchy

Imperative Abstraction

We created a new architecture for the framework to solve the technical debt and make it
easy to extend in the future

Refactored ToPS'
Architecture

Lang

Config

Model

Exception

App

Refactored ToPS' Architecture

Lang

Config

Model

Exception

App

ToPS' command-line applications, allowing end users to execute tasks on the probabilistic models

Refactored ToPS' Architecture

Lang

Config

Model

Exception

App

ToPS' main component. It holds all code for probabilistic models as an independent shared library

All probabilistic models make their calculations based on a discrete numeric alphabet

Refactored ToPS' Architecture

Lang

Config

Model

Exception

App

ToPS' language component.
It holds the implementation of a domain specific language (DSL)
to describe probabilistic models

ToPS' DSL is based on ChaiScript, an embedded script language designed to be integrated with C++

Refactored ToPS' Architecture

Lang

Config

Model

Exception

App

ToPS' auxiliary layer. It holds a C++ based intermediate representation of probabilistic models

ToPS' config structures store parameters to train and define of probabilistic models

Refactored ToPS' Architecture

Lang

Config

Model

Exception

App

ToPS' exceptions, representing all errors that can happen during the execution of ToPS

Refactored ToPS' Architecture

Model

tops::model

\(P(\mathbf{x})\)

Evaluate

Calculate the probability of
a sequence given a model

Generate

Draw random sequences
from a model

Train

Estimate parameters of the
model from a dataset

Serialize

Save parameters of a model
for later reuse

Calculate

Find the posterior probabilities
for an input sequence

Label

Find the MAP assignment
for an input sequence

PGMs only

Behaviors

\( P(\mathbf{x}) \)

Probabilistic Models
(COMPOSITE)

Trainer

Evaluator

Generator

Serializer

Calculator

Labeler

New Architecture

We found and documented
a new design pattern
that decreases coupling while keeping the reusability of code

Boss

  • Has multiple behaviors

Secretary

  • Represents only one behavior
  • Has multiple secretaries
  • Represents only one boss
  • Is used indirectly by clients
  • Interacts directly with clients
  • Holds data shared among behaviors
  • Keeps all the code that implements behaviors
  • Holds data used only by the behavior they represent
  • Keeps no meaningful logic, forwarding calls to its boss

  [1] R. C. Ferreira, Í. Bonadio, and A. M. Durham, “Secretary pattern: decreasing coupling while keeping reusability”,
        Proceedings of the 11th Latin-American Conference on Pattern Languages of Programming. The Hillside Group, p. 14, 2016.

SECRETARY pattern¹

SECRETARY: Sequence diagram

1

2

3

5

1

2

3

5

3

4

4

\( P(\mathbf{x}) \)

Probabilistic Models
(COMPOSITE)

Trainer

Evaluator

Generator

Serializer

Calculator

Labeler

New Architecture

Secretary

Secretary

Secretary

Secretary

Secretary

Secretary

Boss

PGMs

Distributions

Interface + CRTP

Interface + CRTP

Distributions

Decorators

Refactored ToPS' Hierarchy of Probabilistic Models

tops::model::ProbabilisticModel

Root of the hierarchy, it implements four secretaries:
trainer, evaluator, generator, and serializer

tops::model::DecodableModel

It descends directly from ProbabilisticModel and implements all parent's secretaries plus calculator and labeler

tops::model::ProbabilisticModelDecorator

It descends directly from ProbabilisticModel and extends the functionalities of other models

Model Hierarchy: Interfaces

The curiously recurring template pattern  (CRTP) is an idiom in C++  in which a class X  derives from a class template instantiation using itself as template argument. [...] Some use cases for this pattern are static polymorphism and other metaprogramming techniques [...].

Wikipedia , Curiously Recurring Template Pattern

tops::model::ProbabilisticModelCRTP
tops::model::DecodableModelCRTP
tops::model::ProbabilisticModelDecoratorCRTP

Implement FACTORY METHOD's for secretaries, define virtual methods that secretaries delegate to, and host code reused between subclasses

Model Hierarchy: CRTP

Optimization Challenges

Code Replication
ToPS has small optimizations spread throughout its codebase, e.g., probability operations in logarithmic space

Memory Management
ToPS uses large matrices that often do not fit in the available memory

Memory Overhead
ToPS has many algorithms whose results can be precached to improve their efficiency

https://github.com/renatocf/probability

https://github.com/renatocf/multivector

probability

  • Implements probability operations in log space

multivector

  • Implements multidimensional arrays in contiguous memory
  • Allows algorithms to be
    written closer to their
    math representation
  • Allows algorithms to create
    and manipulate matrices
    similarly to C++ std::vector

Efficient Implementation

Libraries introduce optimizations using OOP abstractions

Lang

tops::lang

Definition

Represents trained parameters for a given model

Training

Represents training parameters for a given model

ToPS implements a specification language with configuration files to train and define probabilistic models

Specification Language

// Casino Heist Example

model_type = "HMM"

observations = [ "1", "2", "3", "4", "5", "6" ]

labels = [ "Fair", "Loaded" ]

initial_probabilities = [
  "Fair"   : 0.5,
  "Loaded" : 0.5
]

transition_probabilities = [
  "Loaded" | "Fair"   : 0.1,
  "Fair"   | "Fair"   : 0.9,
  "Fair"   | "Loaded" : 0.1,
  "Loaded" | "Loaded" : 0.9
]

emission_probabilities = [
  "1" | "Fair"   : 1.0/6,
  "2" | "Fair"   : 1.0/6,
  "3" | "Fair"   : 1.0/6,
  "4" | "Fair"   : 1.0/6,
  "5" | "Fair"   : 1.0/6,
  "6" | "Fair"   : 1.0/6,
  "1" | "Loaded" : 1.0/2,
  "2" | "Loaded" : 1.0/10,
  "3" | "Loaded" : 1.0/10,
  "4" | "Loaded" : 1.0/10,
  "5" | "Loaded" : 1.0/10,
  "6" | "Loaded" : 1.0/10
]

HMM
Casino Heist

Config file composed of:

  • Strings
  • Lists
  • Maps
  • Numbers

It is simple to create a parser to read this configuration file

// Cassino Heist definition

model_type = "LCCRF"

observations = [ "1", "2", "3", "4", "5", "6" ]

labels = [ "Fair", "Loaded" ]

feature_function_libraries = [
  lib("features.tops")
]

feature_parameters = [
  "label_loaded": 1.0,
  "label_fair": 2.0
]

LCCRF
Casino Heist

// Cassino Heist definition

model_type = "LCCRF"

observations = [ "1", "2", "3", "4", "5", "6" ]

labels = [ "Fair", "Loaded" ]

feature_function_libraries = [
  lib("features.tops")
]

feature_parameters = [
  "label_loaded": 1.0,
  "label_fair": 2.0
]
  • Strings
  • Lists
  • Maps
  • Numbers

Config file composed of:

  • Libraries

Libraries complicate creating a parser

// Cassino Heist definition

model_type = "LCCRF"

observations = [ "1", "2", "3", "4", "5", "6" ]

labels = [ "Fair", "Loaded" ]

feature_function_libraries = [
  lib("features.tops")
]

feature_parameters = [
  "label_loaded": 1.0,
  "label_fair": 2.0
]

LCCRF
Casino Heist

// Feature Function Library

observations = [ "1", "2", "3", "4", "5", "6" ]

labels = [ "Loaded", "Fair" ]

// Feature functions built directly
feature("label_loaded", fun(x, yp, yc, i) {
  if (yc == label("Loaded")) {
    return 1;
  } else {
    return 0;
  }
})

feature("label_fair", fun(x, yp, yc, i) {
  if (yc == label("Fair")) {
    return 1;
  } else {
    return 0;
  }
})

// Feature function prototypes
use("prototypes.tops")

// Feature functions built from factory
indicator("Fair" -> "Fair"))
indicator("Fair" -> "Loaded"))
indicator("Loaded" -> "Fair"))
indicator("Loaded" -> "Loaded"))
  • Functions
    (with any logic)

Libraries composed of:

  • Templates
    (factories of functions)

We need a
full-featured programming language

We reimplemented  the DSL
based on ChaiScript to make it
a full-featured programming
language that supports CRFs

Integrated
Algorithms

6 1 4
F F F
F F L
F L F
F L L
L F F
L F L
L L F
L L L
P(\mathbf{Y}=\text{FFF} \mid \mathbf{X}=614) = P(\mathbf{Y} = \text{F} \mid \mathbf{X} = 6)~P(\mathbf{Y} = \text{FF}\mid \mathbf{X} = 14)
P(\mathbf{Y}=\text{LFF} \mid \mathbf{X}=614) = P(\mathbf{Y} = \text{L} \mid \mathbf{X} = 6)~P(\mathbf{Y} = \text{FF} \mid \mathbf{X} = 14)

Common calculation
can be reused!

Labeling sequences

How to calculate the most likely labeling?

Labeling with
common prefix

Factorization with
Markovian property

1: 1/6

2: 1/6

3: 1/6

4: 1/6

5: 1/6

6: 1/6

1: 1/2

2: 1/10

3: 1/10

4: 1/10

5: 1/10

6: 1/10

0.1

0.1

0.9

0.9

F

L

HMM for the
Casino Heist example

Considering rolls 614

Algorithms with Dynamic Programming!

Viterbi:
Calculates the MAP assignment using a dynamic programming algorithm over an input sequence
for models equivalent to regular grammars

Forward-Backward:
Calculates the posterior probability distribution
by combining the forward and backward dynamic programming algorithms over an input sequence
for models equivalent to regular grammars

Algorithms (Regular)

def HMM::viterbi(x)
  # Initialization
  γ = NArray.zeros(@states.len, x.len)
  γ[@begin, 0] = 1

  # Iteration
  for j in 1..x.len do
    for k in @states do





      i = j - 1







      for p in k.predecessors do
        prob = γ[p, i]
             ∗ p.τ(k)

             ∗ k.ε(x[i..j])

        if (prob > γ[k, j]) then
          γ[k, j], π[k, j] = prob, p

  # Termination
  best = γ[@end, x.len]
  y = traceBack(x, γ, π)
  return best, y, γ

Memory: \( O(SL) \)

Time: \( O(LSC) \)

S

L

L

S

L

C

Basic model for sequence labeling

HMM's Viterbi

x

j

j-1

k

p

γ[p][j-1]

ε(x[j])

τ(p)

Iterate until finding the best labeling sequence

Generalized HMM
It decouples the concept of duration from transitions,
which allows the model to have:

- any distribution for duration

- any probabilistic model for emission

Pair HMM
It receives two sequences to make an alignment

Extending HMMs

Generalized Pair HMM
It has both extensions presented previously

We created a new model
that makes all HMM extensions
with the same time/space  algorithmic efficiency

Generalized
It decouples the concept of duration from transitions,
which allows the model to have:

- any distribution for duration

- any probabilistic model for emission

Multi-Sequence
It receives one or more sequences as input and can make:

- sequence labeling for a single sequence

- sequence alignment for multiple sequences

Generalized Multi-Sequence HMM

def GMHMM::viterbi(xs)
  # Initialization
  γ = NArray.zeros(@states.len, *xs.map(|x| x.len))
  γ[@begin, *xs.map(|x| 0)] = 1

  # Iteration
  for js in *xs.map(|x| 1..x.len) do
    for k in @states do
      dss = k.ds.zip(js)
        .each_with_index.reduce([])
          {|pd,j,z| pd(1, [j, @mbt].min) if k.emits?(z)}

      for ds in Array.product(*dss) do
        is = js.zip(ds)
          .each_with_index.map
            { |j,d,idx| j - d * k.Δ(idx) }

        es = xs.zip(is).zip(js)
          .each_with_index.reduce([])
            { |x,i,j,idx| x[i..j] if k.emits?(idx) }

        for p in k.predecessors do
          prob = γ[p, *is]
               ∗ p.τ(k)
               ∗ k.δs(*ds)
               ∗ k.εs(*es)

          if (prob > γ[k, *js]) then
            γ[k, *js], π[k, *js] = prob, { p, ds }

  # Termination
  best = γ[@end, *xs.map(|x| x.len)]
  y = traceBack(xs, γ, π)
  return best, y, γ

Lᴺ

Lᴺ

S

Lᴺ

C

Memory: \( O(SLᴺ) \)

Time: \( O(LᴺSBᴺC) \)

Bᴺ

GPHMM for multiple sequences

GMHMM's Viterbi

S

Iterate until finding the best labeling sequence

x₀

j₀

i₀

k

p

γ[p, i₀, i₁]

ε(x₀[i₀..j₀], x₁[i₁..j₁])

τ(p)

x₁

j₁

i₁

ε(x₀[i₀..j₀], x₁[i₁..j₁])

γ[p, i₀, i₁]

d₀

d₁

δ(d₀)

δ(d₁)

x₀[i₀..j₀]

x₁[i₁..j₁]

HMM

Generalized

Multi-Sequence

GMHMM
can implement all
optimizations
from the specialized
models so that its
time and space
algorithmic complexity
is equivalent to theirs

CYK (Cocke-Younger-Kasami):
Calculates the MAP assignment using a dynamic programming algorithm over an input sequence
for models equivalent to context-free grammars

Inside-Outside:
Calculates the posterior probability distribution
by combining the forward and backward dynamic
programming algorithms over an input sequence
for models equivalent to context-free grammars

Algorithms (Context-Free)

def CM::cyk(x)
  # Initialization
  γ = NArray.zeros(@states.len, x.len, x.len)
  (1..x.len).each { |j| γ[@begin, j, j] = 1 }

  # Iteration
  for j, i in 1..x.len, j..2 do
    for k in @states do





      l, r = i + k.Δ(:L), j - k.Δ(:R)

      if not k.bifurcation? then
        for child in k.children do
          curr = γ[child, l, r] * p.τ(k.child)
          prob = [curr, prob].max
      else
        for cut in (l..r) do
          curr = γ[k.left, l, cut] * p.τ(k.left)
               ∗ γ[k.right, cut, r] ∗ p.τ(k.right)
          prob = [curr, prob].max

      prob *= k.ε(x[i..l], x[r..j])

      if (prob > γ[k, i, j]) then
        γ[k, i, j], π[k, j, j] = prob, p

  # Termination
  best = γ[@end, 0, x.len]
  y = traceBack(x, γ, π)
  return best, y, γ

S

L

L²

S

L

L

Memory: \( O(SL²) \)

Time: \( O(L^2S_1C+L^3S_2) \)

S₁

S₂

C

L

Basic context-free model for labeling

CM's CYK

#1: Start, End, Left, Right, Pairwise, Delete

#2: Bifurcation

Depending on the type of state:

Iterate until finding the best labeling tree

i

j

l

r

k

c₁

x

x[i..l]

x[r..j]

c₂

q

x[l..q]

x[q ..r]

τ(c₂)

τ(c₁)

γ[c₁, l, q]

γ[c₂, q, r]

ε(x[i..l], x[r..j])

c

γ[c, l, r]

τ(c)

Generalized CM
It decouples the concept of duration from transitions,
which allows the model to have:

- any distribution for duration

- any probabilistic model for emission

Pair CM
It receives two sequences to make an alignment

Extending CMs?

Pair CMs make no sense because CMs represent profiles

We created a new model
that generalizes CMs and
can represent context-free and context-sensitive languages

GCM is more efficient than CSHMMs
to represent simple context-sensitive languages (languages that can represent copy subsequences)

def GCM::cyk(x)
  # Initialization
  γ = NArray.zeros(@states.len, x.len, x.len)
  (0..x.length).each { |j| γ[@begin, j, j] = 1 }

  # Iteration
  for j, i in 1..x.length, j..2 do
    for k in @states do
      dss = {}
      dss[:L] = k.ds[:L](1, [j-i+1, @mbt].min)))
      dss[:R] = k.ds[:R](1, [j-i+1, @mbt].min)))

      for ds in *dss do
        l, r = i + ds[:L]*k.Δ(:L), j - ds[:R]*k.Δ(:R)

        if not k.bifurcation? then
          for child in k.children do
            curr = γ[child, l, r] ∗ p.τ(k.child)
            prob = [curr, prob].max
        else
          for cut in (l..r) do
            prod = γ[k.left, l, cut] * p.τ(k.left)
                 ∗ γ[k.right, cut, r] ∗ p.τ(k.right)
           prob = [curr, prob].max

        prob *= δ(*ds) * k.ε(x[i..l], x[r..j])

        if (prob > γ[k, i, j]) then
          γ[k, i, j], π[k, i, j] = prob, { p, d }

  # Termination
  best = γ[@end, 0, x.len]
  y = traceBack(x, γ, π)
  return best, y, γ

Memory: \( O(SL²) \)

Time: \( O(L^2S_1CB+L^2S_2L) \)

CM with non-geometric duration

GCM's CYK

S

L

L²

S

L

L

S₁

S₂

C

L

B

i

j

l

r

k

c₁

x

x[i..l]

x[r..j]

c₂

q

x[l..q]

x[q ..r]

τ(c₂)

τ(c₁)

γ[c₁, l, q]

γ[c₂, q, r]

ε(x[i..l], x[r..j])

c

γ[c, l, r]

τ(c)

d₁

d₂

δ(d₁)

δ(d₂)

#1: Start, End, Left, Right, Pairwise, Delete

#2: Bifurcation

Depending on the type of state:

Iterate until finding the best labeling tree

CM

Generalized

Conclusion

Results

Review of Probabilistic Graphical Models
New summary of PGMs that make sequence labeling and alignment with their definitions and relationships

SECRETARY pattern
New design pattern to decrease coupling while keeping reusability of code

Refactoring of ToPS framework
New architecture and domain specific language that make it easier to extend the framework with new models

Results

Generalized Covariance Model
New model that recognizes a subset of context-free and context-sensitive languages, replacing two specialized models (CMs, CSHMMs) with extended capabilities and the same or better time/space algorithmic efficiency

Generalized Multi-Sequence Hidden Markov Model
New model that makes sequence labeling and alignment with a single set of algorithms, replacing four specialized models (HMMs, GHMMs, PHMMs, GPHMMs) with the same time/space algorithmic efficiency

Future Work

Integration of CRFs
We enabled the fully integration of LCCRFs and Semi-CRFs to ToPS with the DSL based on ChaiScript

Implementation of GCM
We did not have time to provide an implementation of Generalized Covariance Models in the framework

Production-ready ToPS
We still need to finish the implementation of the framework so it can replace the published version of ToPS

An Integrated Implementation of
Probabilistic Graphical Models

2020

Renato Cordeiro Ferreira

Advisor: Alan Mitchel Durham

IME-USP

https://renatocf.xyz/masters-defense-live

Definitions

Model:
A simplified declarative representation that encodes the relevant elements of an experiment or real situation

Probabilistic Model:
A model that is mathematically described using random variables, i.e., functions that map events \( s \) of a given sample space \( \Omega \) to a discrete or continuous space

Example

Model:
\(N\) is the number of faces in the die (ignores color, material, etc.)

Algorithm:
Generate numbers in the interval \( [1, N] \) (simulate rolling the dice)

Probabilistic Model:
\( \Omega = \{1, \ldots, N\} \), \( P(s) = 1/N \)
\( Even: S \longrightarrow \{0,1\} \) (outcome is even)

Multidimensional Probabilistic Model:
Probabilistic model that describes a problem with a set of random variables \( \mathcal{X} = \{ Y_1, \ldots, Y_m, X_1, \ldots, X_n \} \)

Joint distribution:
Probability distribution \( P(\mathcal{X}) = P(Y_1, \ldots, Y_m, X_1, \ldots, X_n) \) which can be queried to reason over the model:

- Map assignment: \( \mathrm{MAP}(\mathbf{Y} \mid \mathbf{X} = \mathbf{x}) = \mathrm{arg\,max}_{\mathbf{y}} P(\mathbf{y}, \mathbf{x}) \)

- Posterior probability distribution: \( P(\mathbf{Y} \mid \mathbf{X} = \mathbf{x}) \)

Definitions

Chomsky's Hierarchy:
Hierarchy that describes four levels of descriptive power associated with transformational grammars and their corresponding formal languages and parsers:

Level Name Associated Parser
L3 Regular Finite-state automaton
L2 Context-Free Push-down automaton
L1 Context-Sensitive Linear bounded automaton
L0 Unrestricted Turing machine

Definitions

SECRETARY pattern: Class diagram

\( P(\mathbf{x}) \)

Probabilistic Models
(COMPOSITE)

Trainer

Estimates parameters of a model from a dataset

Evaluator

Calculates the probability of a sequence given a model

Generator

Draws random sequences from the model

Serializer

Saves parameters of the model for later reuse

Calculator

Finds the posterior probabilities
of an input sequence

Labeler

Finds the MAP assignment
for an input sequence

Boss

Secretary

Secretary

Secretary

Secretary

Secretary

Secretary

New Architecture

Factor functions can be implemented as any kind of procedure of a full-featured programming language

Factor functions:

\( \Phi(C_i): \mathrm{Im}(C_i) \longrightarrow \mathbb{R}^+ \)

How to represent CRFs?

Simulations

def HMM::viterbi(x)
  # Initialization
  γ = NArray.zeros(@states.len, x.len)
  γ[@begin, 0] = 1

  # Iteration
  for j in 1..x.len do
    for k in @states do





      i = j - 1







      for p in k.predecessors do
        prob = γ[p, i]
             ∗ p.τ(k)

             ∗ k.ε(x[i..j])

        if (prob > γ[k, j]) then
          γ[k, j], π[k, j] = prob, p

  # Termination
  best = γ[@end, x.len]
  y = traceBack(x, γ, π)
  return best, y, γ

x

j

i

k

p

γ[p][i]

ε(x[i..j])

τ(p)

Iterate until finding the best labeling sequence

Memory: \( O(SL) \)

Time: \( O(LSC) \)

S

L

L

S

L

C

Basic model for sequence labeling

HMM's Viterbi

def GHMM::viterbi(x)
  # Initialization
  γ = NArray.zeros(@states.len, x.len)
  γ[@begin, 0] = 1

  # Iteration
  for j in 1..x.len do
    for k in @states do
      ds = k.durations(1, [j, @mbt].min)



      for d in ds do
        i = j - d







        for p in k.predecessors do
          prob = γ[p, i]
               ∗ p.τ(k)
               ∗ k.δ(d)
               ∗ k.ε(x[i..j])

          if (prob > γ[k, j]) then
            γ[k, j], π[k, j] = prob, { p, d }

  # Termination
  best = γ[@end, x.len]
  y = traceBack(x, γ, π)
  return best, y, γ

x

j

d

i

k

p

γ[p][i]

ε(x[i..j])

δ(d)

τ(p)

Iterate until finding the best labeling sequence

Memory: \( O(SL) \)

Time: \( O(LSBC) \)

B

x[i..j]

HMM with non-geometric duration

GHMM's Viterbi

S

L

L

S

L

C

def PHMM::viterbi(xs)
  # Initialization
  γ = NArray.zeros(@states.len, xs[0].len, xs[1].len)
  γ[@begin, 0, 0] = 1

  # Iteration
  for js in 1..xs[0].len, 1..xs[1].len do
      for k in @states do





        is = []
        is.push(js[0] - k.Δ(0))
        is.push(js[1] - k.Δ(1))

        es = []
        es.push(xs[0][is[0]]) if k.emits?(0)
        es.push(xs[1][is[1]]) if k.emits?(1)

        for p in k.predecessors do
          prob = γ[p, *is]
               ∗ p.τ(k)

               ∗ k.ε(*es)

          if (prob > γ[k, *js]) then
            γ[k, *js], π[k, *js] = prob, p

  # Termination
  best = γ[@end, xs[0].len, xs[1].len]
  y = traceBack(xs, γ, π)
  return best, y, γ

L²

S

L

C

L

x₀

j₀

i₀

k

p

γ[p, i₀, i₁]

ε(x₀[i₀..j₀], x₁[i₁..j₁])

τ(p)

Memory: \( O(SL²) \)

Time: \( O(L²SC) \)

x₁

j₁

i₁

ε(x₀[i₀..j₀], x₀[i₁..j₁])

γ[p, i₀, i₁]

x₀[i₀..j₀]

x₁[i₁..j₁]

Iterate until finding the best labeling sequence

HMM extension for sequence alignment

PHMM's Viterbi

S

L

def GPHMM::viterbi(xs)
  # Initialization
  γ = NArray.zeros(@states.len, xs[0].length, xs[1].len)
  γ[@begin, 0, 0] = 1

  # Iteration
  for js in 1..xs[0].len, 1..xs[1].len do
    for k in @states do
      dss = []
      dss.push(k.ds[0](1, [js[0], @max_bt].min)))
      dss.push(k.ds[1](1, [js[1], @max_bt].min)))

      for ds in Array.product(*dss) do
        is = []
        is.push(js[0] - ds[0] * k.Δ(0))
        is.push(js[1] - ds[1] * k.Δ(1))

        es = []
        es.push(xs[0][is[0]..js[0]]) if k.emits?(0)
        es.push(xs[1][is[1]..js[1]]) if k.emits?(1)

        for p in k.predecessors do
          prob = γ[p, *is]
               ∗ p.τ(k)
               ∗ k.δs(*ds)
               ∗ k.εs(*es)

          if (prob > γ[k, *js]) then
            γ[k, *js], π[k, *js] = prob, { p, d }

  # Termination
  best = γ[@end, xs[0].len, xs[1].len]
  y = traceBack(xs, γ, π)
  return best, y, γ

L²

S

L

C

Memory: \( O(SL²) \)

Time: \( O(L²SB²C) \)

x₀

j₀

i₀

k

p

γ[p, i₀, i₁]

ε(x₀[i₀..j₀], x₁[i₁..j₁])

τ(p)

x₁

j₁

i₁

ε(x₀[i₀..j₀], x₁[i₁..j₁])

γ[p, i₀, i₁]

d₀

d₁

δ(d₀)

δ(d₁)

x₀[i₀..j₀]

x₁[i₁..j₁]

B²

Iterate until finding the best labeling sequence

PHMM with non-geometric duration

GPHMM's Viterbi

L

S

L

def GMHMM::viterbi(xs)
  # Initialization
  γ = NArray.zeros(@states.len, *xs.map(|x| x.len))
  γ[@begin, *xs.map(|x| 0)] = 1

  # Iteration
  for js in *xs.map(|x| 1..x.len) do
    for k in @states do
      dss = k.ds.zip(js)
        .each_with_index.reduce([])
          {|pd,j,z| pd(1, [j, @mbt].min) if k.emits?(z)}

      for ds in Array.product(*dss) do
        is = js.zip(ds)
          .each_with_index.map
            { |j,d,idx| j - d * k.Δ(idx) }

        es = xs.zip(is).zip(js)
          .each_with_index.reduce([])
            { |x,i,j,idx| x[i..j] if k.emits?(idx) }

        for p in k.predecessors do
          prob = γ[p, *is]
               ∗ p.τ(k)
               ∗ k.δs(*ds)
               ∗ k.εs(*es)

          if (prob > γ[k, *js]) then
            γ[k, *js], π[k, *js] = prob, { p, ds }

  # Termination
  best = γ[@end, *xs.map(|x| x.len)]
  y = traceBack(xs, γ, π)
  return best, y, γ

Lᴺ

Lᴺ

S

Lᴺ

C

Iterate until finding the best labeling sequence

Memory: \( O(SLᴺ) \)

Time: \( O(LᴺSBᴺC) \)

x₀

j₀

i₀

k

p

γ[p, i₀, i₁]

ε(x₀[i₀..j₀], x₁[i₁..j₁])

τ(p)

x₁

j₁

i₁

ε(x₀[i₀..j₀], x₁[i₁..j₁])

γ[p, i₀, i₁]

d₀

d₁

δ(d₀)

δ(d₁)

x₀[i₀..j₀]

x₁[i₁..j₁]

Bᴺ

GPHMM for multiple sequences

GMHMM's Viterbi

S

def CM::cyk(x)
  # Initialization
  γ = NArray.zeros(@states.len, x.len, x.len)
  (1..x.len).each { |j| γ[@begin, j, j] = 1 }

  # Iteration
  for j, i in 1..x.len, j..2 do
    for k in @states do





      l, r = i + k.Δ(:L), j - k.Δ(:R)

      if not k.bifurcation? then
        for child in k.children do
          curr = γ[child, l, r] * p.τ(k.child)
          prob = [curr, prob].max
      else
        for cut in (l..r) do
          curr = γ[k.left, l, cut] * p.τ(k.left)
               ∗ γ[k.right, cut, r] ∗ p.τ(k.right)
          prob = [curr, prob].max

      prob *= k.ε(x[i..l], x[r..j])

      if (prob > γ[k, i, j]) then
        γ[k, i, j], π[k, j, j] = prob, p

  # Termination
  best = γ[@end, 0, x.len]
  y = traceBack(x, γ, π)
  return best, y, γ

S

L

L²

S

L

L

i

j

l

r

k

c₁

x

x[i..l]

x[r..j]

c₂

q

x[l..q]

x[q ..r]

τ(c₂)

τ(c₁)

γ[c₁, l, q]

γ[c₂, q, r]

ε(x[i..l], x[r..j])

Memory: \( O(SL²) \)

Time: \( O(L^2S_1C+L^2S_2L) \)

c

γ[c, l, r]

τ(c)

S₁

S₂

C

L

Iterate until finding the best labeling tree

#1: Start, End, Left, Right, Pairwise, Delete

#2: Bifurcation

Depending on the type of state:

Depending on the type of state:

Basic context-free model for labeling

CM's CYK

def GCM::cyk(x)
  # Initialization
  γ = NArray.zeros(@states.len, x.len, x.len)
  (0..x.length).each { |j| γ[@begin, j, j] = 1 }

  # Iteration
  for j, i in 1..x.length, j..2 do
    for k in @states do
      dss = {}
      dss[:L] = k.ds[:L](1, [j-i+1, @mbt].min)))
      dss[:R] = k.ds[:R](1, [j-i+1, @mbt].min)))

      for ds in *dss do
        l, r = i + ds[:L]*k.Δ(:L), j - ds[:R]*k.Δ(:R)

        if not k.bifurcation? then
          for child in k.children do
            curr = γ[child, l, r] ∗ p.τ(k.child)
            prob = [curr, prob].max
        else
          for cut in (l..r) do
            prod = γ[k.left, l, cut] * p.τ(k.left)
                 ∗ γ[k.right, cut, r] ∗ p.τ(k.right)
           prob = [curr, prob].max

        prob *= δ(*ds) * k.ε(x[i..l], x[r..j])

        if (prob > γ[k, i, j]) then
          γ[k, i, j], π[k, i, j] = prob, { p, d }

  # Termination
  best = γ[@end, 0, x.len]
  y = traceBack(x, γ, π)
  return best, y, γ

i

j

l

r

k

c₁

x

x[i..l]

x[r..j]

c₂

q

x[l..q]

x[q ..r]

τ(c₂)

τ(c₁)

γ[c₁, l, q]

γ[c₂, q, r]

ε(x[i..l], x[r..j])

Memory: \( O(SL²) \)

Time: \( O(L^2S_1CB+L^2S_2L) \)

c

γ[c, l, r]

τ(c)

Iterate until finding the best labeling tree

#1: Start, End, Left, Right, Pairwise, Delete

#2: Bifurcation

Depending on the type of state:

Depending on the type of state:

d₁

d₂

δ(d₁)

δ(d₂)

CM with non-geometric duration

GCM's CYK

S

L

L²

S

L

L

S₁

S₂

C

L

B

Banca
está em
Avaliação

[M.Sc. Defense] An Integrated Implementation of Probabilistic Graphical Models

By Renato Cordeiro Ferreira

[M.Sc. Defense] An Integrated Implementation of Probabilistic Graphical Models

Presentation for my Master's defense at IME-USP

  • 798

More from Renato Cordeiro Ferreira
