With Martin
Up
Running
@rhysallister
rhys@victorious-wanyamaha:~/dev/martin-0.3.0/target/release$ ./martin --help
Martin - PostGIS Mapbox Vector Tiles server.
Usage:
martin [options] [<connection>]
martin -h | --help
martin -v | --version
Options:
-h --help Show this screen.
-v --version Show version.

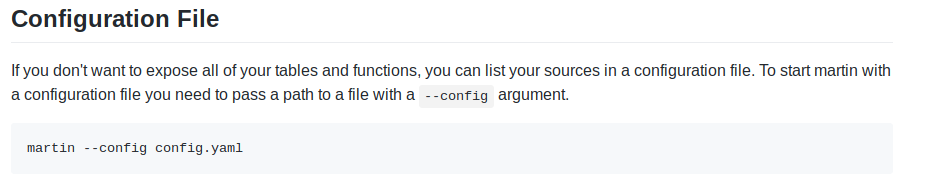

--config=<path> Path to config file.
--keep_alive=<n> Connection keep alive timeout [default: 75].
--listen_addresses=<n> The socket address to bind [default: 0.0.0.0:3000].
--pool_size=<n> Maximum connections pool size [default: 20].
--watch Scan for new sources on sources list requests
--workers=<n> Number of web server workers.
rhys@victorious-wanyamaha:~/dev/martin-0.3.0/target/release$
# Database connection string
connection_string: 'postgres://postgres@localhost/db'
# Maximum connections pool size [default: 20]
pool_size: 20
# Connection keep alive timeout [default: 75]
keep_alive: 75
# Number of web server workers
worker_processes: 8
# The socket address to bind [default: 0.0.0.0:3000]
listen_addresses: '0.0.0.0:3000'
# Enable watch mode
watch: true
# associative arrays of table sources
table_sources:
public.table_source:
# table source id
id: public.table_source
# table schema
schema: public
# table name
table: table_source
# geometry column name
geometry_column: geom
# geometry srid
srid: 4326
# tile extent in tile coordinate space
extent: 4096
# buffer distance in tile coordinate space to optionally clip geometries
buffer: 64
# boolean to control if geometries should be clipped or encoded as is
clip_geom: true
# geometry type
geometry_type: GEOMETRY
# list of columns, that should be encoded as a tile properties
properties:
gid: int4
CREATE OR REPLACE FUNCTION keepmesafe.keepmesafe(
z integer,
x integer,
y integer,
query_params json)
RETURNS bytea
LANGUAGE 'plpgsql'
COST 100
IMMUTABLE STRICT PARALLEL SAFE
AS $BODY$
DECLARE
bounds geometry;
mvt bytea;
BEGIN
-- RAISE EXCEPTION '****';
-- INSERT into keepmesafe.qp (qp, qpt) VALUES (query_params, query_params);
perform pg_notify('pop', query_params::text);
IF query_params::jsonb ?& array['start_date','end_date','incidents'] THEN
mvt := keepmesafe.keepmesafe_date_crime(z,x,y,query_params);
RETURN mvt;
ELSIF query_params::jsonb ?& array['start_date','end_date'] AND not (query_params::jsonb ? 'incidents') THEN
mvt := keepmesafe.keepmesafe_date_only(z,x,y,query_params);
RETURN mvt;
END IF;
SELECT INTO bounds keepmesafe.TileBBox(z, x, y, 4326);
raise notice '%', query_params;
if z in (1,2,3,4,5) THEN
SELECT INTO mvt ST_AsMVT(tile, 'geohash_groupings', 4096, 'geom') FROM (
SELECT
distinct ST_AsMVTGeom(st_centroid(st_geomfromgeohash(st_geohash(geom,4))), bounds, 4096, 64, true) AS geom
FROM keepmesafe.geohash_groupings
WHERE geom && bounds
) as tile WHERE geom IS NOT NULL;
elsif z in (6,7,8) THEN
SELECT INTO mvt ST_AsMVT(tile, 'geohash_groupings', 4096, 'geom') FROM (
SELECT
ST_AsMVTGeom(st_centroid(geom), bounds, 4096, 64, true) AS geom
FROM keepmesafe.geohash_groupings
WHERE geom && bounds
) as tile WHERE geom IS NOT NULL;
elsif z in (9,10,11,12) THEN
SELECT INTO mvt ST_AsMVT(tile, 'geohash_groupings', 4096, 'geom') FROM (
SELECT
ST_AsMVTGeom(st_centroid(st_geomfromgeohash(ghash)), bounds, 4096, 64, true) AS geom
FROM
(SELECT distinct st_geohash(geom,7) ghash from keepmesafe.incidents
WHERE g && bounds
) as myset
group by 1
) as tile WHERE geom IS NOT NULL;
ELSE
SELECT INTO mvt ST_AsMVT(tile, 'geohash_groupings', 4096, 'geom') FROM (
SELECT
ST_AsMVTGeom(geom, bounds, 4096, 64, true) AS geom
FROM keepmesafe.incidents
WHERE g && bounds
limit 5500
) as tile WHERE geom IS NOT NULL;
END IF;
RETURN mvt;
END;
$BODY$;
ALTER FUNCTION keepmesafe.keepmesafe(integer, integer, integer, json)
OWNER TO keepmesafe;

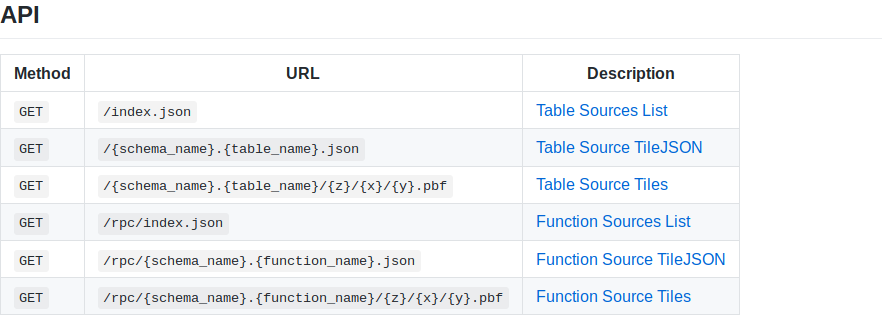

Function Sources
CREATE OR REPLACE FUNCTION keepmesafe.keepmesafe(
z integer,
x integer,
y integer,
query_params json)
RETURNS bytea
LANGUAGE 'plpgsql'
COST 100
IMMUTABLE STRICT PARALLEL SAFE
AS $BODY$
DECLARE
bounds geometry;
mvt bytea;
BEGIN
-- RAISE EXCEPTION '****';
-- INSERT into keepmesafe.qp (qp, qpt) VALUES (query_params, query_params);
perform pg_notify('pop', query_params::text);
IF query_params::jsonb ?& array['start_date','end_date','incidents'] THEN
mvt := keepmesafe.keepmesafe_date_crime(z,x,y,query_params);
RETURN mvt;
ELSIF query_params::jsonb ?& array['start_date','end_date'] AND not (query_params::jsonb ? 'incidents') THEN
mvt := keepmesafe.keepmesafe_date_only(z,x,y,query_params);
RETURN mvt;
END IF;
SELECT INTO bounds keepmesafe.TileBBox(z, x, y, 4326);
raise notice '%', query_params;
if z in (1,2,3,4,5) THEN
SELECT INTO mvt ST_AsMVT(tile, 'geohash_groupings', 4096, 'geom') FROM (
SELECT
distinct ST_AsMVTGeom(st_centroid(st_geomfromgeohash(st_geohash(geom,4))), bounds, 4096, 64, true) AS geom
FROM keepmesafe.geohash_groupings
WHERE geom && bounds
) as tile WHERE geom IS NOT NULL;
elsif z in (6,7,8) THEN
SELECT INTO mvt ST_AsMVT(tile, 'geohash_groupings', 4096, 'geom') FROM (
SELECT
ST_AsMVTGeom(st_centroid(geom), bounds, 4096, 64, true) AS geom
FROM keepmesafe.geohash_groupings
WHERE geom && bounds
) as tile WHERE geom IS NOT NULL;
elsif z in (9,10,11,12) THEN
SELECT INTO mvt ST_AsMVT(tile, 'geohash_groupings', 4096, 'geom') FROM (
SELECT
ST_AsMVTGeom(st_centroid(st_geomfromgeohash(ghash)), bounds, 4096, 64, true) AS geom
FROM
(SELECT distinct st_geohash(geom,7) ghash from keepmesafe.incidents
WHERE g && bounds
) as myset
group by 1
) as tile WHERE geom IS NOT NULL;
ELSE
SELECT INTO mvt ST_AsMVT(tile, 'geohash_groupings', 4096, 'geom') FROM (
SELECT
ST_AsMVTGeom(geom, bounds, 4096, 64, true) AS geom
FROM keepmesafe.incidents
WHERE g && bounds
limit 5500
) as tile WHERE geom IS NOT NULL;
END IF;
RETURN mvt;
END;
$BODY$;
ALTER FUNCTION keepmesafe.keepmesafe(integer, integer, integer, json)
OWNER TO keepmesafe;
Function Sources
