Room Builder

defining, crying, learning and applying

Agenda

• Defining
  ​what's a room? (10 min)
• Crying
  why graph theory didn't work (5 min)
• Learning
  a-maze-ing grace (10-20 min)
• Applying
  open questions/code review (rest)

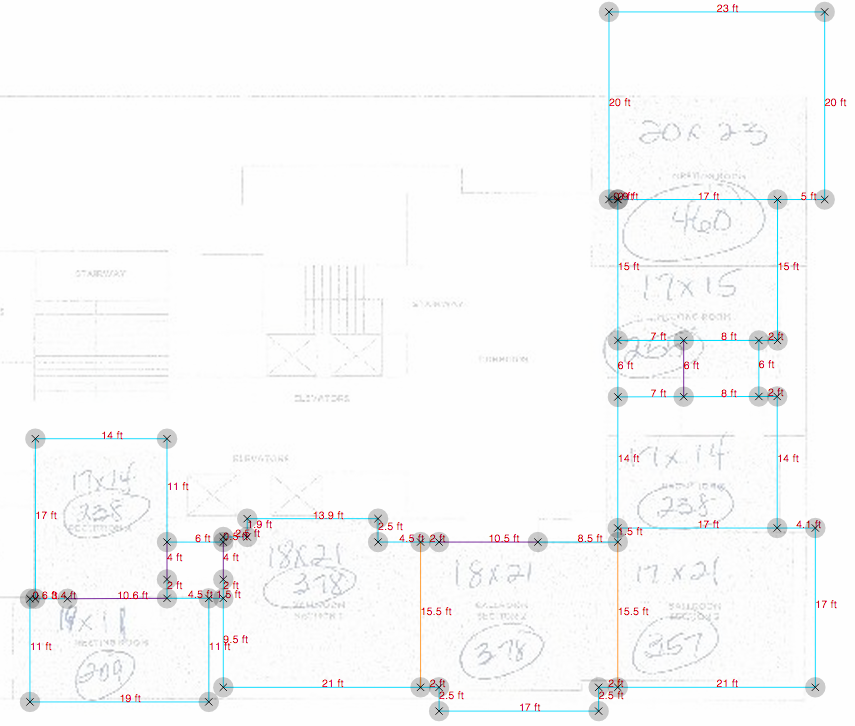

Whats a room?

My event is in Grand Cafe

My event is in Penn Quarter and uses the Conference Theatre

I need the square footage of the Lower Level Dinning Space

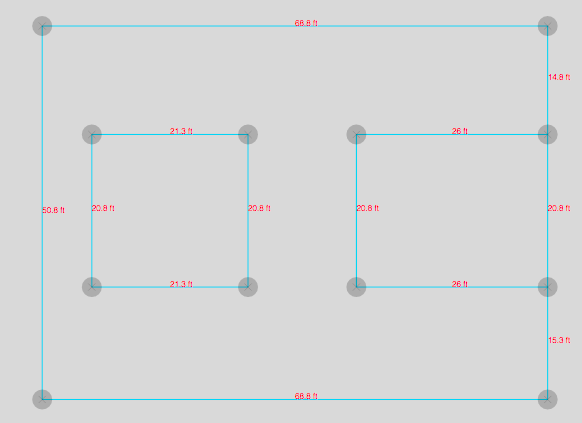

What's a room to ST?

Points + Lines

Each line has a set length

(often doesn't match drawing we are given)

What's a room to a computer?

• Programmatically define all spaces
• Account for theoretically infinitely complex rooms
• "Understands" a room in the same way we do

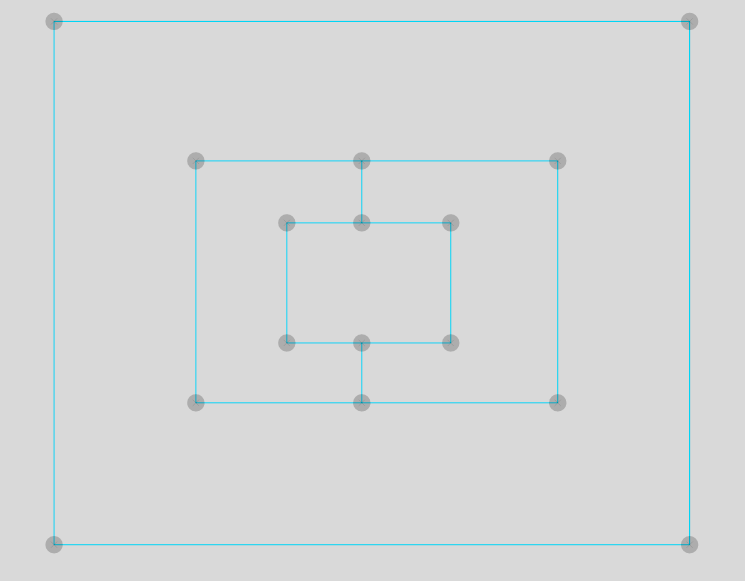

Graph Theory

Nodes

Have a collection of edges

Usually a data point, which is used to build edge rel.

*HAS NO OTHER DATA*

Edges

Can be directed (FPC=not)

Have a value (FPC=length)

https://en.wikipedia.org/wiki/Dijkstra%27s_algorithm

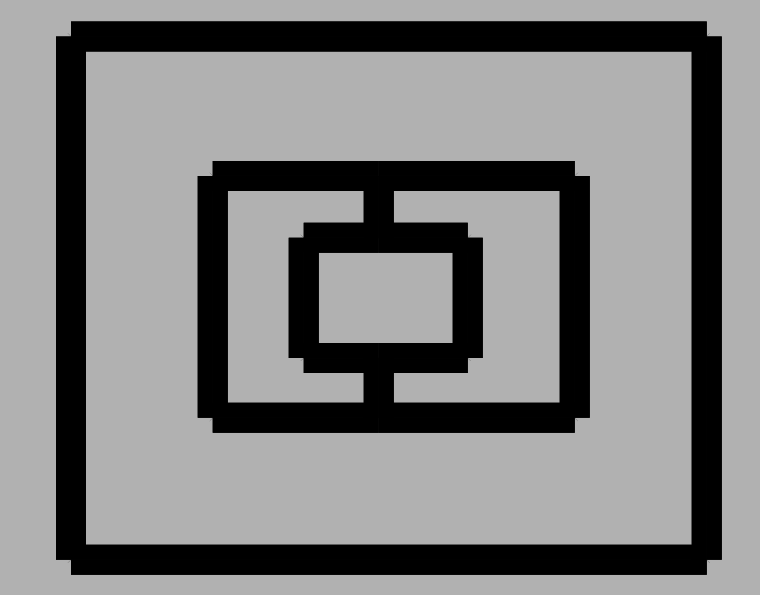

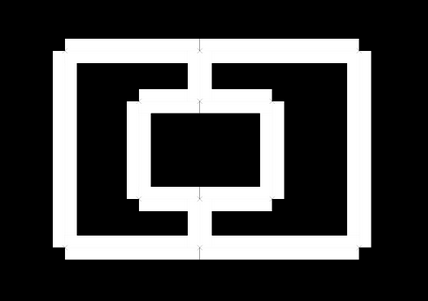

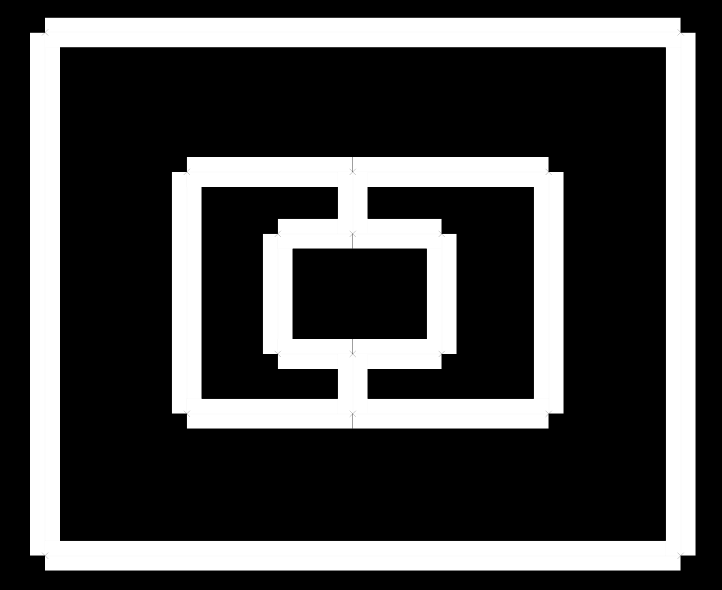

Mazes

Advantages

Spacial relationships are taken into account

Issues

Maze must be simply connected (see Poke)

http://en.wikipedia.org/wiki/Maze_solving_algorithm#Wall_follower

Build Rooms

var pointsToCheck = [].concat(floorData.points);

while(pointsToCheck.length > 0) {
  var point = pointsToCheck[0];

  var graph = {
    points: [],
    boundaries: []
  };
  makeGraphFromPoint(point, graph); // look
  graph.points.forEach(function(node) {
    if(pointsToCheck.indexOf(node) !== -1) {
      pointsToCheck.splice(pointsToCheck.indexOf(node), 1);
    }
  });
  graphs.push(graph);
}

graphs.forEach(function(graph) {
  var possibleRooms = buildRoomsFromGraph(graph); // at these
  graph.rooms = possibleRooms;
  rooms = _.union(rooms, possibleRooms);
});

makeGraphFromPoint

function(point, graph) {
  graph.points.push(point);
  point.boundaries.forEach(function(b) {
    if(graph.boundaries.indexOf(b) === -1) {
      graph.boundaries.push(b);
      var points = [b.startPoint, b.endPoint];
      points.forEach(function(p) {
        if(graph.points.indexOf(p) === -1) {
          makeGraphFromPoint(p, graph);
        }
      });
    }
  });
};

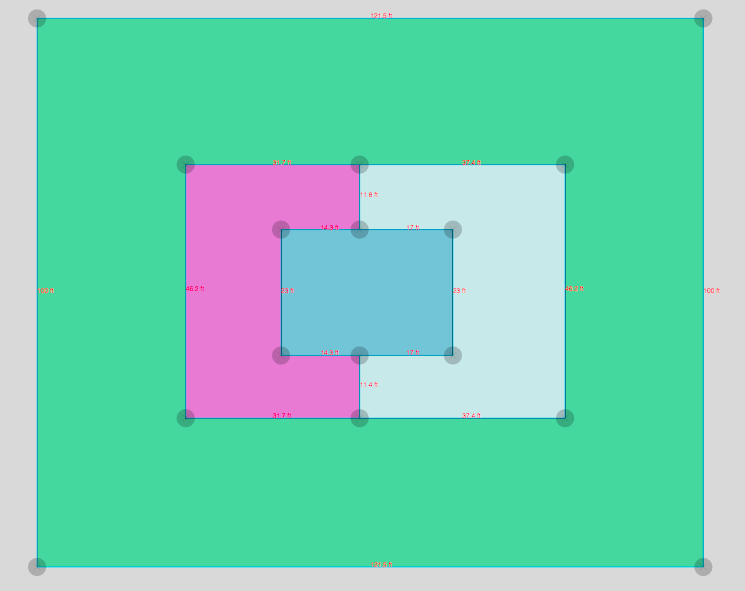

createRoomRelationships

// TODO this should be a part of build rooms but we are dependent on render
var polygonUtil = PointInPolygonWithArc(floorData);

this.graphs.forEach(function(graph, index, graphs) {
  graphs.forEach(function(graphToCompare) {
    if(graph !== graphToCompare) {
      var point = graph.points[0];
      var roomIndeces = graphToCompare.rooms.map(function(room) {
        return floorData.rooms.indexOf(room);
      });
      var possibleRoom = polygonUtil.pointIsInPolygon(point, roomIndeces); // magic
      if(possibleRoom) {
        graph.outerRooms.push(possibleRoom)
      }
    }
  });
});

pointIsInPolygon

var ignoredElementString = ".st-point, .st-boundary, .st-point-circle";
for(var i = 0; i < floorData.rooms.length; i++) {
  if(indeces.indexOf(i) === -1) {
    ignoredElementString += (", .room-"+i);
  }
}

var ignoredElements = document.querySelectorAll(ignoredElementString);
var screenPoint = svgPointToScreenPoint(point, svg);

addNoPointer(ignoredElements);
var pointerElement = document.elementFromPoint(screenPoint.x, screenPoint.y);
removeNoPointer(ignoredElements);
if(pointerElement) {
  var index = null;
  var reactId = pointerElement.getAttribute("data-reactid");
  var type_parts = reactId.split("$");
  if(type_parts.length==2){
    var id_parts = type_parts[1].split("-");
    if(id_parts.length==2){
      index = parseInt(id_parts[1]);
    }
  }

  return floorData.rooms[index];
}

createRoomRelationships

var allRoomRelationShipsAdded = function(graphs) {
  return graphs.reduce(function(allRoomRelationShipsAdded, graph) {
    var hasNoOuterRooms = graph.outerRooms.length === 0;
    return allRoomRelationShipsAdded && hasNoOuterRooms;
  }, true)
}

// this is not very efficient
while(!allRoomRelationShipsAdded(this.graphs)) {
  this.graphs.forEach(function(graph, index, graphs) {
    if(graph.outerRooms.length === 1) {
      graph.rooms.forEach(function(room) {
        addRoomRelationship(room, graph.outerRooms[0]);
      });
      var outerRoomThatShouldBeRemoved = graph.outerRooms[0];
      graphs.forEach(function(graphForRemoval) {
        var index = graphForRemoval.outerRooms.indexOf(outerRoomThatShouldBeRemoved);
        var shouldRemove = graphForRemoval === graph || graphForRemoval.outerRooms.length > 1;
        if(shouldRemove && index !== -1) {
          graphForRemoval.outerRooms.splice(index, 1);
        }
      });
    }
  });
}

Thank You
