Reactive Programming

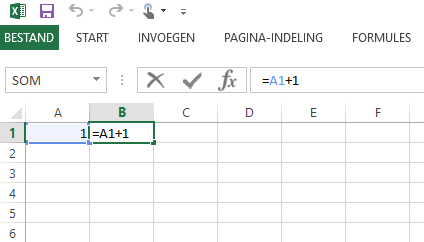

var a = 1;
var b = a + 1;

a = 5;
print(b); // 2


doPeriodic(1000,
    function() {
      if (getTimeInSeconds() % 2 == 0) {
        playSound("TIK.mp3");
      } else {
        playSound("TAK.mp3");
      }
    });
print("Bye!");

imperative

functional

reactive

programming paradigms


  Message msg = new Message();
  msg.setFrom("alice@email.com");
  msg.setTo("bob@email.com");
  msg.setSubject("Lees dit!");
  msg.setBody("Wie dit leest is gek.");
  MailServer.send(msg);

public class Message {
  private String from;
  private String to;
  private String subject;
  private String body;

  public String getFrom() {
    return from;
  }

  public void setFrom(String from) {
    this.from = from;
  }

  public String getTo() {
    return to;
  }

  public void setTo(String to) {
    this.to = to;
  }

  public String getSubject() {
    return subject;
  }

  public void setSubject(String subject) {
    this.subject = subject;
  }

  public String getBody() {
    return body;
  }

  public void setBody(String body) {
    this.body = body;
  }
}

public class MailServer {
  public static void send(Message msg) {
    ...
  }
}


  Message msg = new Message();
  msg.setFrom("alice@email.com");
  msg.setTo("bob@email.com");
  msg.setSubject("Lees dit!");
  msg.setBody("Wie dit leest is gek.");
  MailServer.send(msg);

  msg.setTo("claire@email.com");
  MailServer.send(msg);

public class MailServer {
  public static void send(MessageFiller msgFiller) {
    ...
  }
}


public interface MessageFiller {
  public abstract void fill(Message msg);
}

public class Message {
  private String from;
  private String to;
  private String subject;
  private String body;

  public String getFrom() {
    return from;
  }

  public Message setFrom(String from) {
    this.from = from;
    return this;
  }

  public String getTo() {
    return to;
  }

  public Message setTo(String to) {
    this.to = to;
    return this;
  }

  public String getSubject() {
    return subject;
  }

  public Message setSubject(String subject) {
    this.subject = subject;
    return this;
  }

  public String getBody() {
    return body;
  }

  public Message setBody(String body) {
    this.body = body;
    return this;
  }
}


  MailServer.send(new MessageFiller() {
      @Override
      public void fill(Message msg) {
        msg.setFrom("alice@email.com");
        msg.setTo("bob@email.com");
        msg.setSubject("Lees dit!");
        msg.setBody("Wie dit leest is gek.");
      }
    });


  MailServer.send(new MessageFiller() {
      @Override
      public void fill(Message msg) {
        msg.setFrom("alice@email.com");
        msg.setTo("bob@email.com");
        msg.setSubject("Lees dit!");
        msg.setBody("Wie dit leest is gek.");
      }
    });

  MailServer.send(msg -> {
      msg.setFrom("alice@email.com");
      msg.setTo("bob@email.com");
      msg.setSubject("Lees dit!");
      msg.setBody("Wie dit leest is gek.");
    });


  MailServer.send(new MessageFiller() {
      @Override
      public void fill(Message msg) {
        msg.setFrom("alice@email.com");
        msg.setTo("bob@email.com");
        msg.setSubject("Lees dit!");
        msg.setBody("Wie dit leest is gek.");
      }
    });

  MailServer.send(msg -> {
      msg.setFrom("alice@email.com");
      msg.setTo("bob@email.com");
      msg.setSubject("Lees dit!");
      msg.setBody("Wie dit leest is gek.");
    });

  MailServer.send(msg -> msg
      .setFrom("alice@email.com")
      .setTo("bob@email.com")
      .setSubject("Lees dit!")
      .setBody("Wie dit leest is gek."));

public class MailServer {
  public static void send(MessageFiller msgFiller) {
    ...
  }
}

@FunctionalInterface
public interface MessageFiller {
  public abstract void fill(Message msg);
}


  List<Person> persons = ...;

  for (Person person : persons) {
    if (person.getBusinessUnit() == SALES) {
      for (String mailAddress : person.getMailAddresses()) {
        if (mailAddress.endsWith("@email.com")) {
          MailServer.send(msg -> msg
              .setFrom("alice@email.com")
              .setTo(mailAddress)
              .setSubject("Lees dit!")
              .setBody("Wie dit leest is gek."));
        }
      }
    }
  }


  List<Person> persons = ...;

  for (Person person : persons) {
    if (person.getBusinessUnit() == SALES) {
      for (String mailAddress : person.getMailAddresses()) {
        if (mailAddress.endsWith("@email.com")) {
          MailServer.send(msg -> msg
              .setFrom("alice@email.com")
              .setTo(mailAddress)
              .setSubject("Lees dit!")
              .setBody("Wie dit leest is gek."));
        }
      }
    }
  }


  persons.stream()
      .filter(person -> person.getBusinessUnit() == SALES)
      .flatMap(salesPerson -> salesPerson.getMailAddresses())
      .filter(salesMailAddress -> salesMailAddress.endsWith("@email.com"))
      .foreach(salesEmailDotComAddress -> MailServer.send(msg -> msg
          .setFrom("alice@email.com")
          .setTo(salesEmailDotComAddress)
          .setSubject("Lees dit!")
          .setBody("Wie dit leest is gek.")));

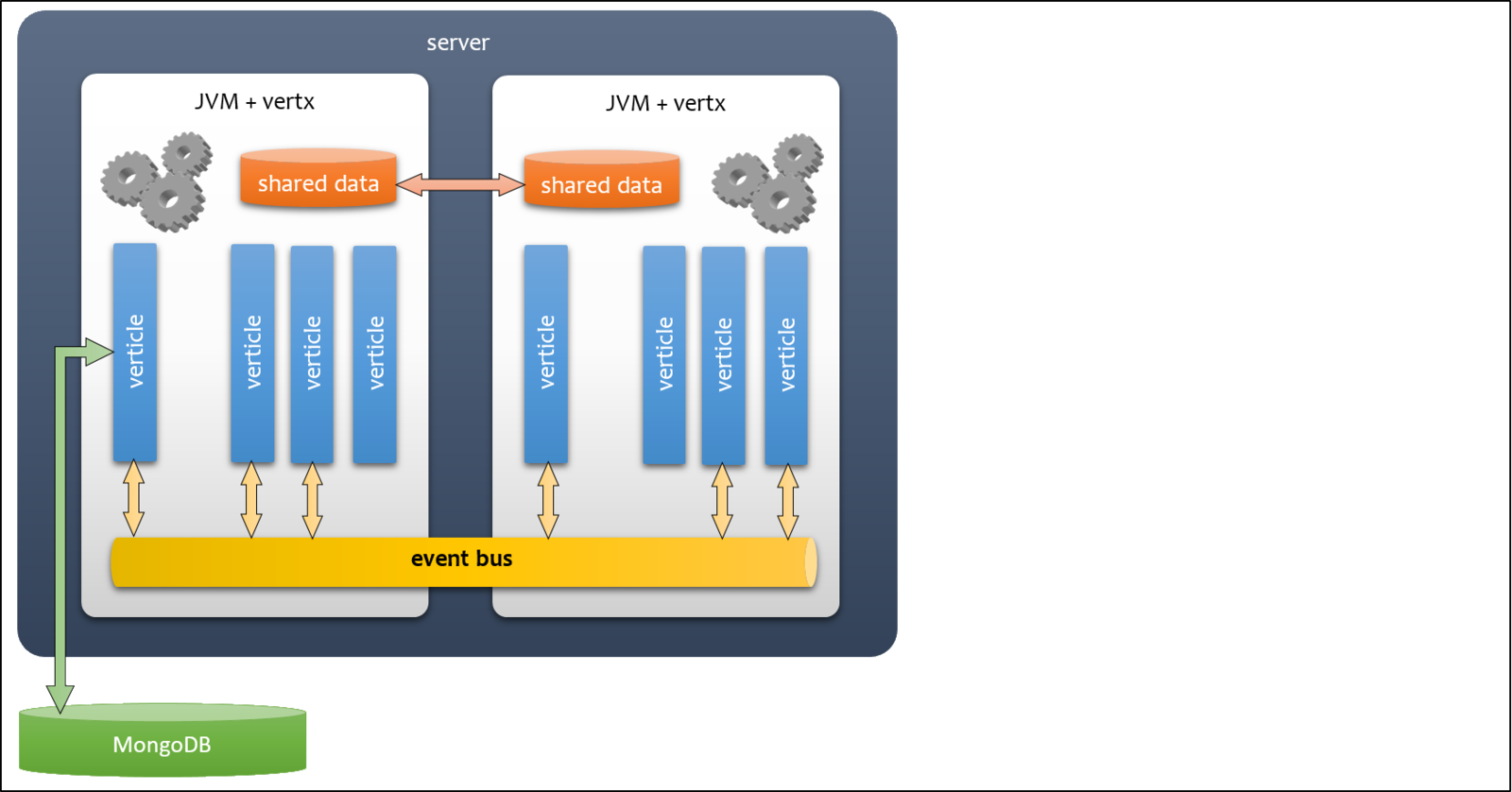

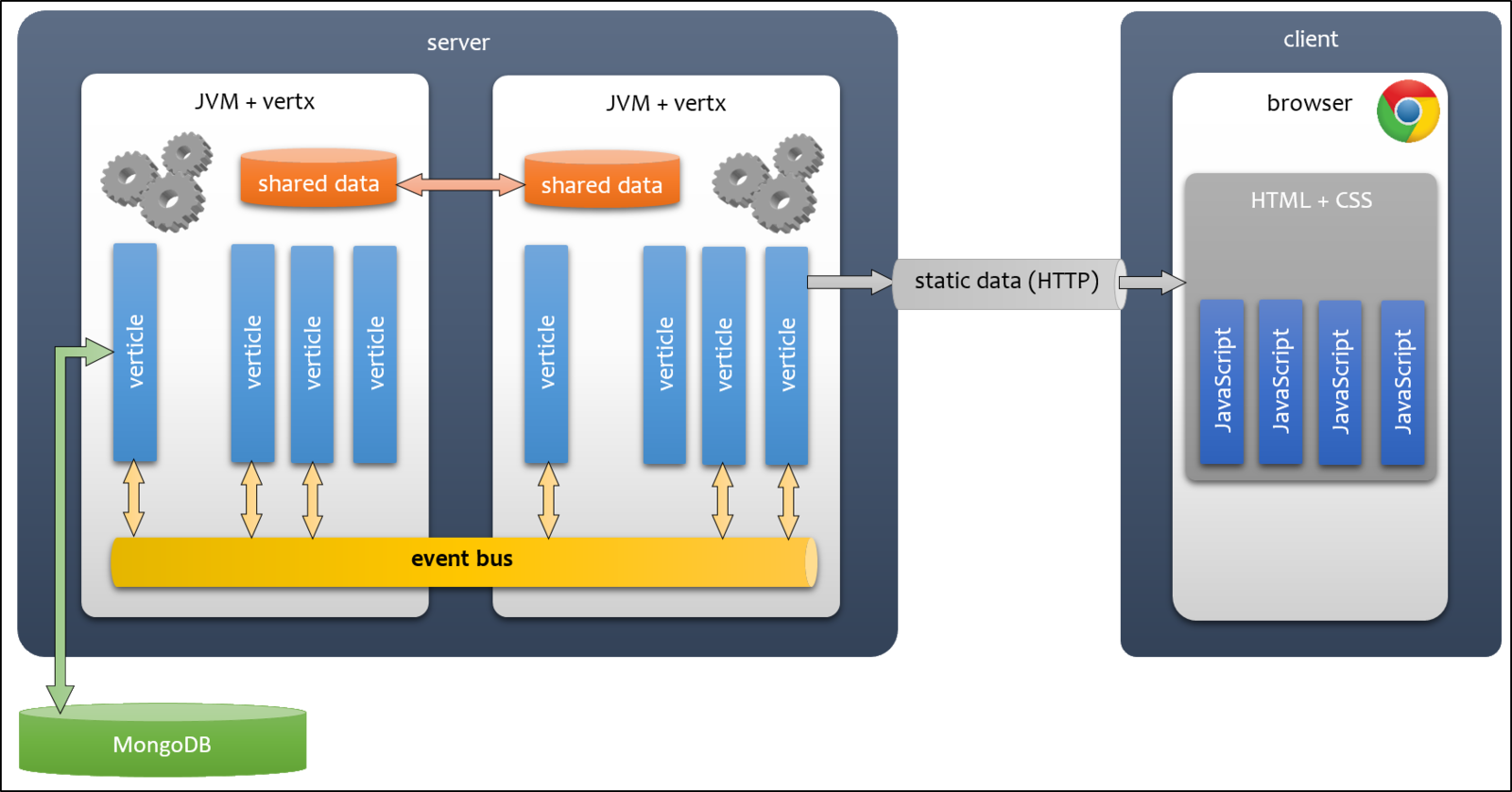

web

socket

client

server

event bus

package nl.bransom.reactive;

import io.vertx.core.CompositeFuture;
import io.vertx.core.Future;
import io.vertx.core.Vertx;
import io.vertx.core.json.JsonObject;

public class Main {

  public static void main(String[] args) {
    final Vertx vertx = Vertx.vertx();

    final Future<String> whenRainMakerIsDeployed = Future.future();
    final Future<String> whenRainServerIsListening = Future.future();

    vertx.deployVerticle(RainMaker.class.getName(), whenRainMakerIsDeployed.completer());
    vertx.deployVerticle(RainServer.class.getName(), whenRainServerIsListening.completer());

    CompositeFuture.all(whenRainMakerIsDeployed, whenRainServerIsListening)
        .setHandler(result -> {
          if (result.succeeded()) {
            vertx.eventBus().publish(
                "rain.intensity.set",
                new JsonObject().put("value", 0.3));
          }
        });
  }
}

package nl.bransom.reactive;

import io.vertx.core.Vertx;
import io.vertx.core.json.JsonObject;

public class Main {

  public static void main(String[] args) {
    final Vertx vertx = Vertx.vertx();

    vertx.deployVerticle(RainMaker.class.getName());

    vertx.deployVerticle(RainServer.class.getName(), result -> {
        if (result.succeeded()) {
          vertx.eventBus().publish(
              "rain.intensity.set",
              new JsonObject().put("value", 0.3));
        }
      });
  }
}

To show the real power of Reactive, let's just say that you want to have a stream of "double click" events. To make it even more interesting, let's say we want the new stream to consider multiple clicks (two or more) as double clicks.

André Staltz

package nl.bransom.reactive;

import io.vertx.core.json.JsonObject;
import io.vertx.rxjava.core.AbstractVerticle;
import io.vertx.rxjava.core.eventbus.Message;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import rx.Observable;
import rx.Subscriber;

public class RainMaker extends AbstractVerticle {

  private static final Logger LOG = LoggerFactory.getLogger(RainMaker.class);

  @Override
  public void start() {
    vertx.eventBus()
        .<JsonObject>consumer("rain.intensity.set")
        .toObservable()
        .map(Message::body)
        .map(jsonObject -> jsonObject.getDouble("value"))
        .map(RainMaker::intensityToIntervalMillis)
        .switchMap(this::createRainDropObservable)
        .map(RainDrop::toJson)
        .subscribe(
            rainDropJson -> vertx.eventBus().publish("rain.drop.notify", rainDropJson),
            throwable -> LOG.error("Error making rain.", throwable));
  }

  private static long intensityToIntervalMillis(final double intensity) {
    final double effectiveIntensity = Math.min(Math.max(0.0, intensity), 1.0);
    LOG.debug("intensity: {}", effectiveIntensity);
    return Math.round(Math.pow(Math.E, Math.log(3000) * (1.0 - effectiveIntensity)));
  }

  private Observable<? extends RainDrop> createRainDropObservable(final long intervalMillis) {
    LOG.debug("intervalMillis: {}", intervalMillis);
    if (intervalMillis < 3000) {
      return Observable.<RainDrop>create(subscriber -> createDelayedRainDrop(intervalMillis, subscriber));
    } else {
      return Observable.empty();
    }
  }

  private void createDelayedRainDrop(final long intervalMillis, final Subscriber<? super RainDrop> subscriber) {
    final long delayMillis = sampleDelayMillis(intervalMillis);
    vertx.setTimer(delayMillis, timerId -> {
      if (!subscriber.isUnsubscribed()) {
        subscriber.onNext(new RainDrop());
        createDelayedRainDrop(intervalMillis, subscriber);
      }
    });
  }

  private static long sampleDelayMillis(final long intervalMillis) {
    return Math.max(1, Math.round(2.0 * new Random().nextDouble() * intervalMillis));
  }
}

Rain demo

Monte Carlo

A_{circle} = \pi r^2

A_{circle} = \pi r^2

A_{segment} = {\pi r^2 \over 4}

A_{segment} = {\pi r^2 \over 4}

r

A_{square} = r^2

A_{square} = r^2

x

y

d = \sqrt{x^2 + y^2}

d = \sqrt{x^2 + y^2}

d

\pi \approx 4 \times {|points_{d \leq r}| \over |points|}

\pi \approx 4 \times {|points_{d \leq r}| \over |points|}

\approx {|points_{d \leq r}| \over |points|}

\approx {|points_{d \leq r}| \over |points|}

{A_{segment} \over A_{square}} = {\pi \over 4}

{A_{segment} \over A_{square}} = {\pi \over 4}

\Leftrightarrow

\Leftrightarrow
