Under Armour Connected Fitness

Empower UA engineers to frictionlessly deliver excellent software experiences directly to our consumers.

• Make the powerful simple.
• Make teammates more effective.
• Things will break; never let them break the same way twice.
• Iteratively create the platform in the open.
• Data is sacred - PTH.

Principles & Problems

The Problem ...

Empower any engineering team to manage their configuration data and share it with others easily!

Principles & Problems

• Self-Service
• Protection of configuration data
  but still foster sharing
• ACL on configuration data
• API first - Allows for integrations
• Updating configuration data across multiple services
• Integration with any platform - even future ones

Principles & Problems

Solutions?

• Stored as a text file on some server
• Configuration management tools (salt, chef, puppet)
• Baked into the Container
• Kubernetes configmaps/secrets
• Escrow

Old-French: Escroe

a bond, deed, or other document kept in the custody of a third party, taking effect only when a specified condition has been fulfilled.

Escrow

Concepts

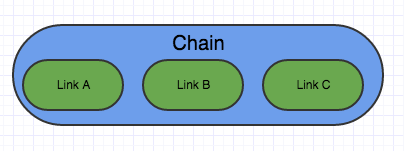

Chain - An ordered collection of links

Link - An individual piece of 'key=value' data that can be shared

Escrow Chains

Concepts

• Foo=Bar
• Baz=Zaz

• Baz=Zab

• Foo=Mars
• Car=2

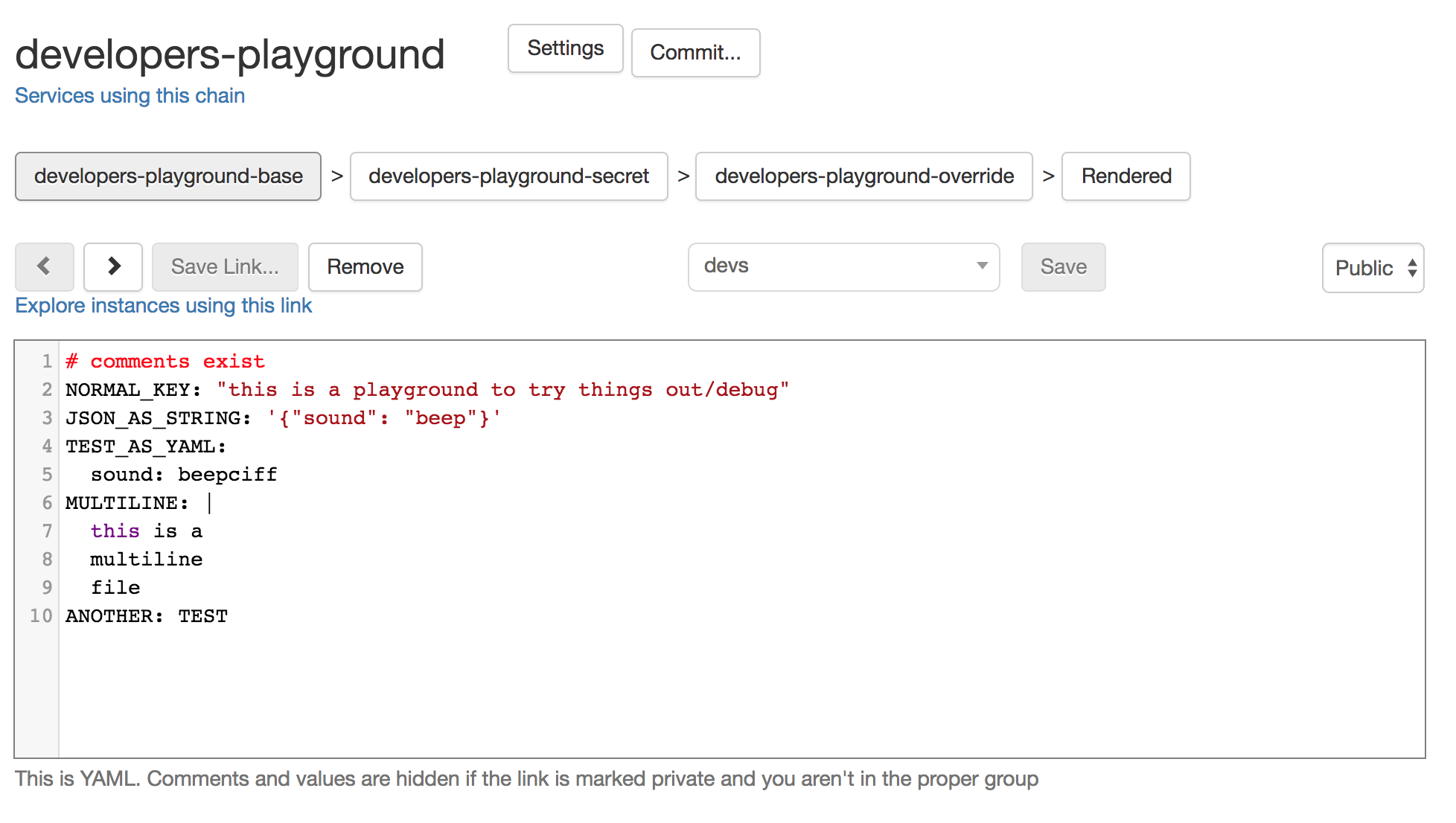

It's just variables!
(with a hierarchy)

Concepts

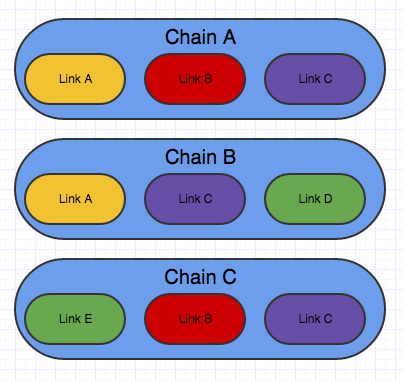

Break data down into little pieces to maximise reuse and shareability

Editing data of link A affects both Chain A & B

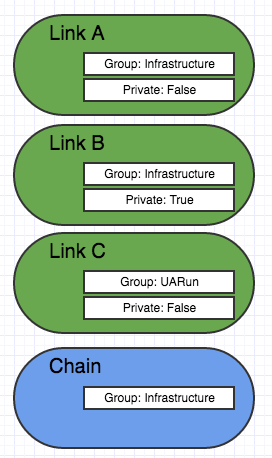

Concepts

Group: restricts edit-ableness


Private: restricts reusability for others not in the group

Link:

Group: restricts edit-ableness of the link adding and ordering them in a chain


Chain:

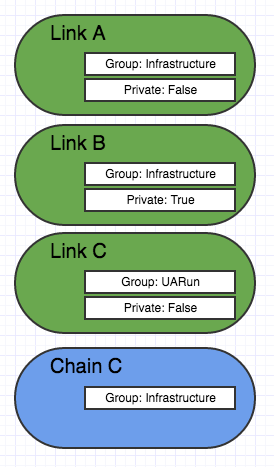

Concepts

A

Infrastructure

B

UARun

User B

- edit link C

- see the data in link A

User A

- organize this chain

- edit 2 links

Concepts

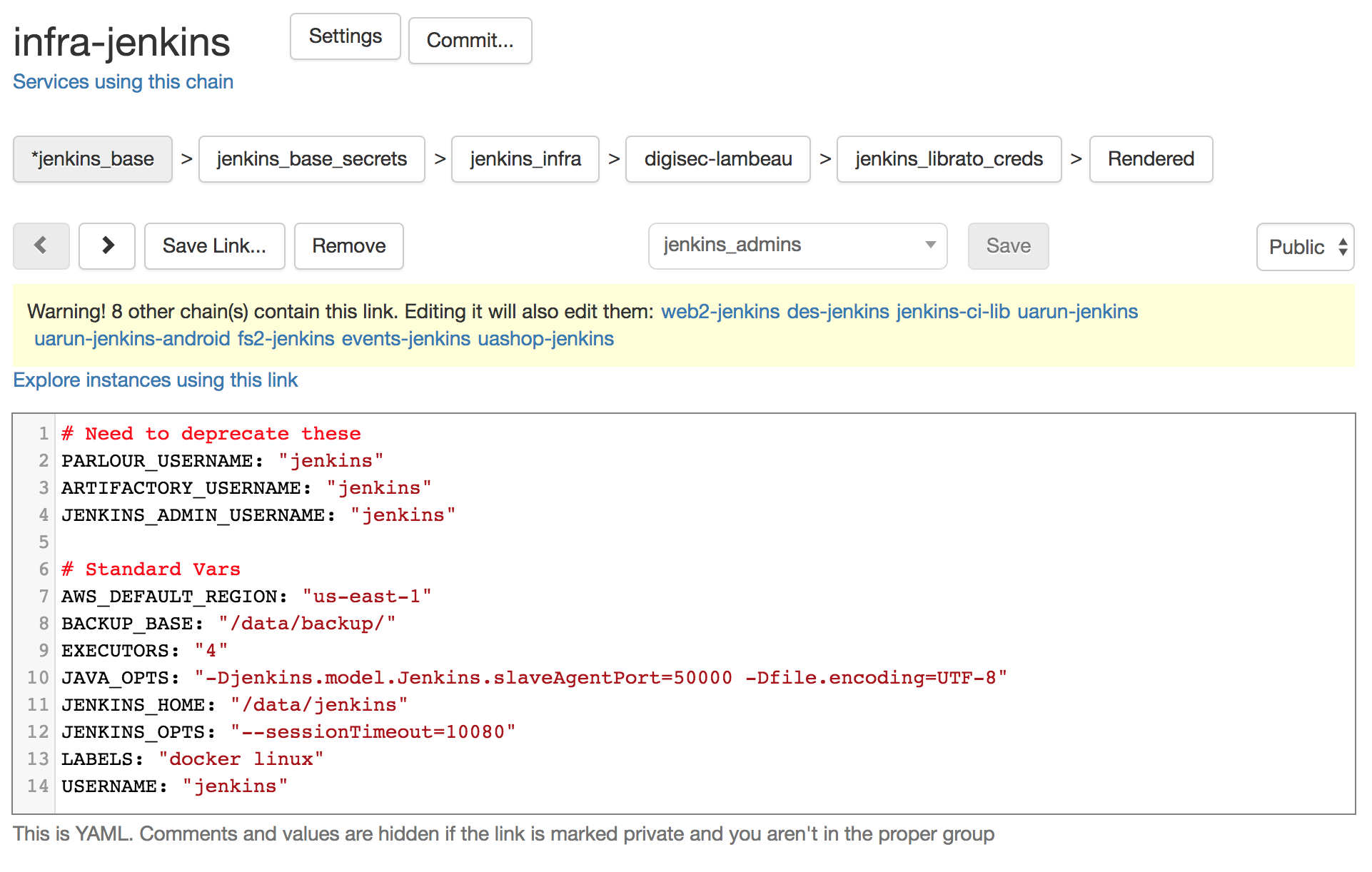

Sharing a link could have unintended effects on other chains!!!

But single place to change data makes updating easy

Concepts

Escrow Chains
becomes a tool to compose key value data

Escrow Artifacts
are an immutable chunk of data that can be reused anywhere

Concepts

Privacy Concerns

A user can only render a chain if they pass all privacy checks for every link in that chain

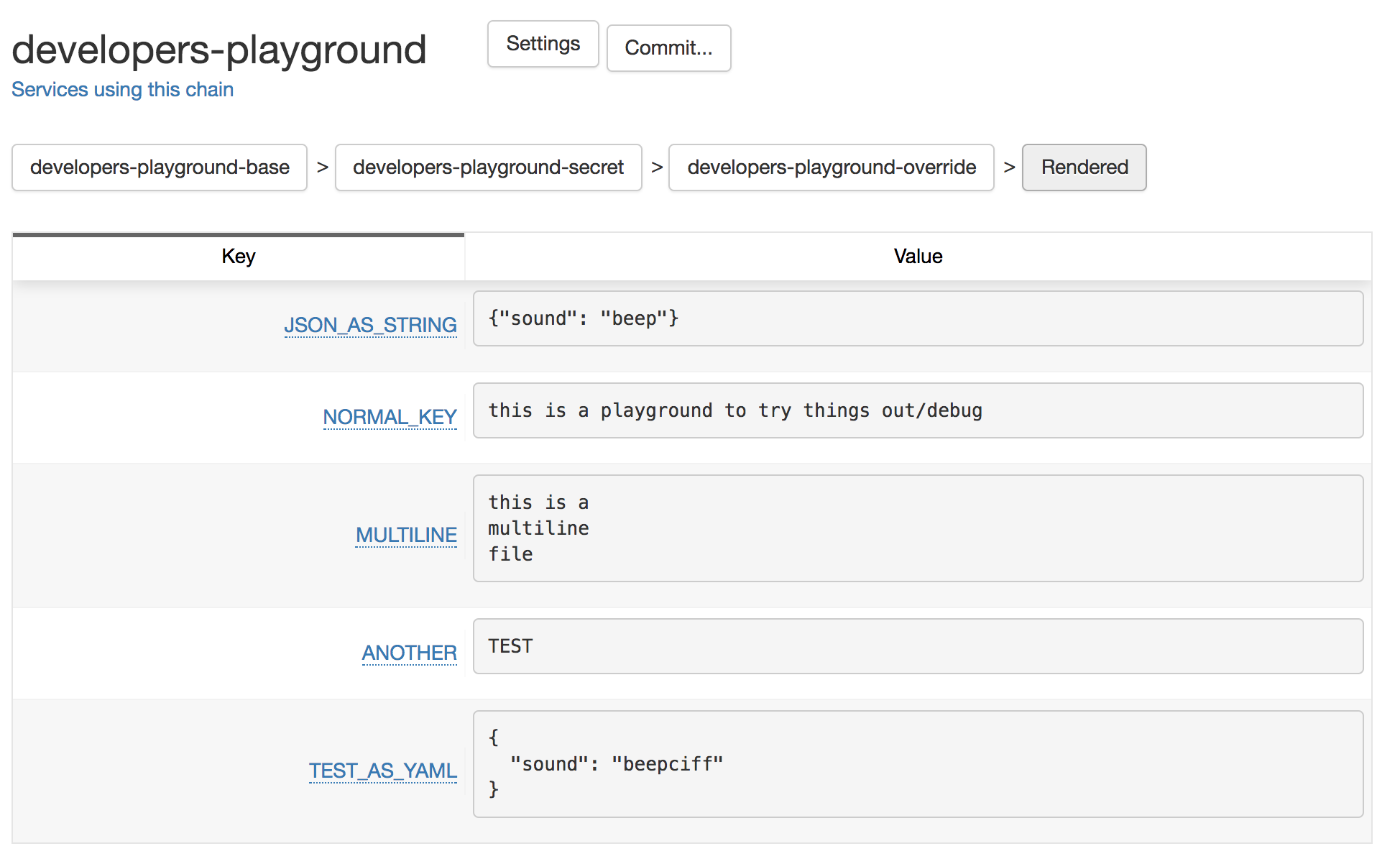

Rendering:

Concepts

A

Infrastructure

B

UARun

Only User A is allowed to create artifacts from this chain

Concepts

A

Infrastructure

B

UARun

If user A renders the chain and gives the artifact ID to user B; user B still cannot use the artifact

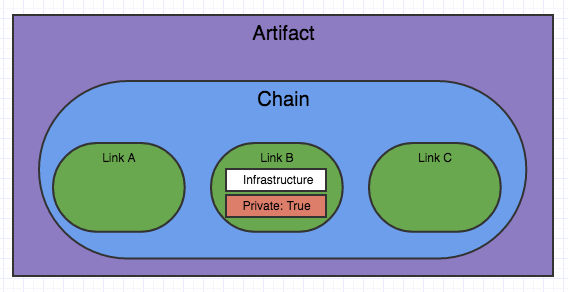

Once an Escrow Artifact is created from a rendered chain

The privacy checks still hold

->

Concepts

This ID is generated from the final contents of the key value data, the name of the chain, and a commit message when rendering

An Artifact is identified by an ID

2cf24dba5fb0a30e26e8

API Primer

/artifact/{ID}/rendered?style=default

{
    "FOO": {
        "source": "test",
        "group": "devs",
        "value": "1",
        "private": false
    },
    "BAR": {
        "source": "test2",
        "group": "admins",
        "value": "2",
        "private": true
    }
}

API Primer

/artifact/{ID}/rendered?style=string

FOO=1\nBAR=2

API Primer

Jenkinsfile Syntax

import groovy.json.JsonSlurper

@NonCPS
def get_escrow(escrow_id){
    String username = System.getenv("ADMIN_USERNAME")
    String password = System.getenv("ADMIN_PASSWORD")
    String basic = username + ":" + password
    String auth = basic.bytes.encodeBase64().toString()
    String location = "https://example.com/api/escrow/artifact/" + escrow_id + "/rendered/"
    def conn = location.toURL().openConnection()
    conn.setRequestProperty( "Accept", "application/json" )
    conn.setRequestProperty( "Authorization", "Basic ${auth}" )
    def output = []
    new JsonSlurper().parseText(conn.content.text).each {
        output << it.key + "=" + it.value.value
    }
    return output
}

def call(escrow_id, body) {
    withEnv(get_escrow(escrow_id)) {
        body()
    }
}

API Primer


node('docker'){
    withUACFEnv('b04196426111d0f182a8'){
        sh 'env'
    }
}

Jenkinsfile Syntax

Bootstrapping

• Javascript React + Redux frontend
• Gunicorn + Django Rest Framework backend
• Bring you own relational datastore
  • MySQL / Postgres / AWS RDS
• Cache layer for transient output
  • Memcached / Redis / Elasticache
