BoxCraft.js

Boostlet.js

Shruti Varade
Team 24

https://github.com/shrutivarade/boostlet

https://github.com/shrutivarade/BoxCraft

CS460 Computer Graphics

BoxCraft.js integrated with Boostlet.js

Drag Boostlet

Cornerstone2D.js

Niivue.js

Coming Soon:

BoxCraft.js integrated with Boostlet.js

Thank you !

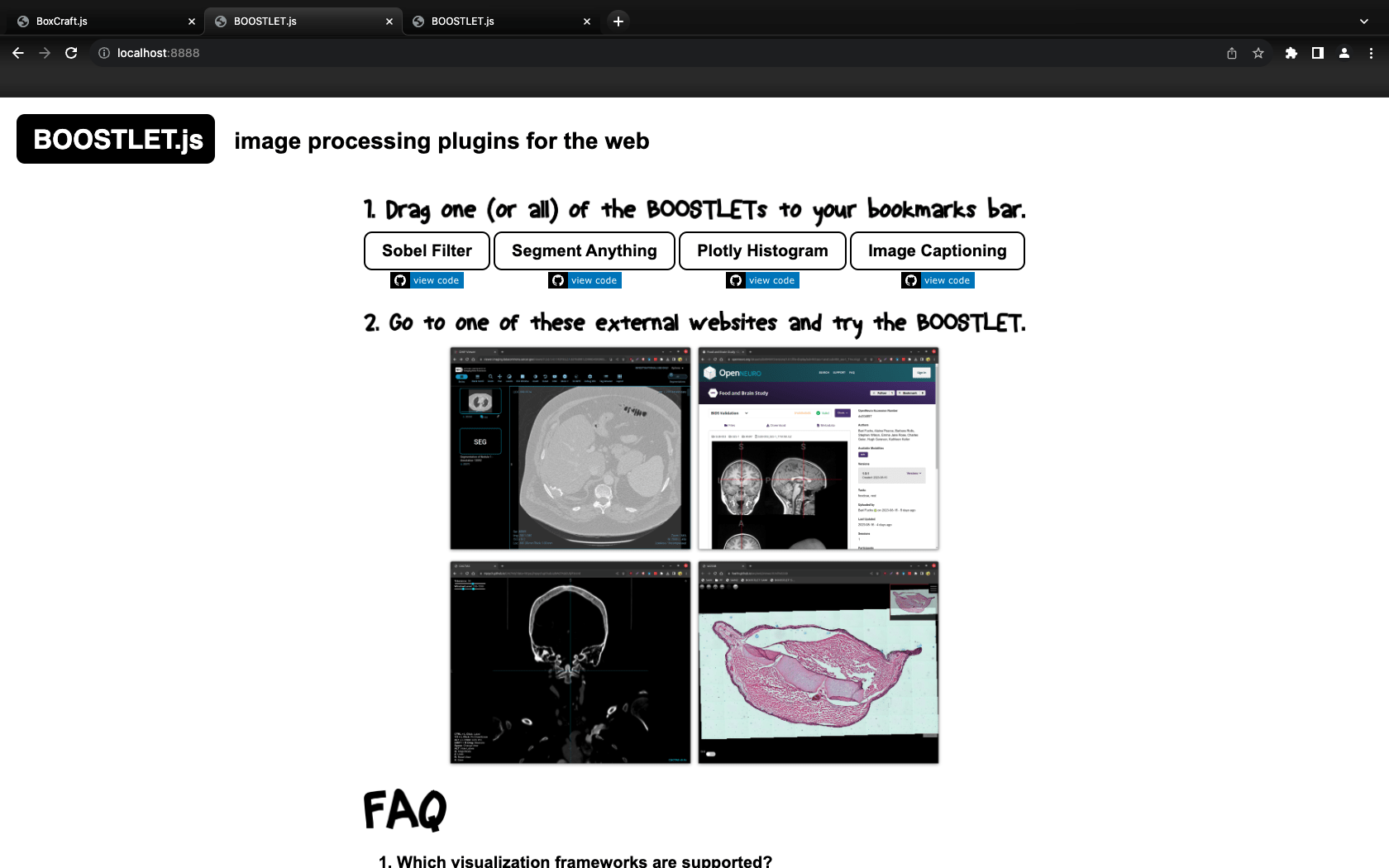

Boostlet.js
Medical Image Processing Libraries:
  • Cornerstone.js
  • Niivue.js
  • OpenSeaDragon.js
Boostlet.js Features:
  • Sobel Filter
  • Plotly Histogram
  • Image Captioning
  • Segment Anything

Boostlet.js

Boostlet.js
Installation
script = document.createElement("script");
script.type = "text/javascript";
script.src = "https://boostlet.org/dist/boostlet.min.js";
script.onload = run;
document.head.appendChild(script);
eval(script);
Boostlet.js
Sobel Filter
// detect visualization framework
  Boostlet.init();

  image = Boostlet.get_image();

  kernel = [
    -1, 0, 1,
    -2, 0, 2,
    -1, 0, 1
  ];

  filtered = Boostlet.filter(image.data, image.width, image.height, kernel);

  Boostlet.set_image( filtered );
Boostlet.js
Plotly Histogram
// detect visualization framework
Boostlet.init();

all_pixels = Boostlet.get_image().data;

// load Plotly.js library and start plotting in the onload callback
Boostlet.load_script('https://cdn.plot.ly/plotly-2.25.2.min.js', plot);

function plot() {
  // plot the data
  Plotly.newPlot('plotlyDiv', [{
    x: all_pixels,
    type: 'histogram'
  }]);
}
Boostlet.js
Segment Anything

// detect visualization framework
Boostlet.init();

// load ONNX.js
Boostlet.load_script('https://cdn.jsdelivr.net/npm/onnxruntime-web/dist/ort.min.js');

// grab the embedding
setup_segment_anything();

// setup interaction and trigger segmentation
Boostlet.select_box( segment_box );
SAM - Cornerstone.js
SAM - Niivue.js
SAM - Openseadragon.js

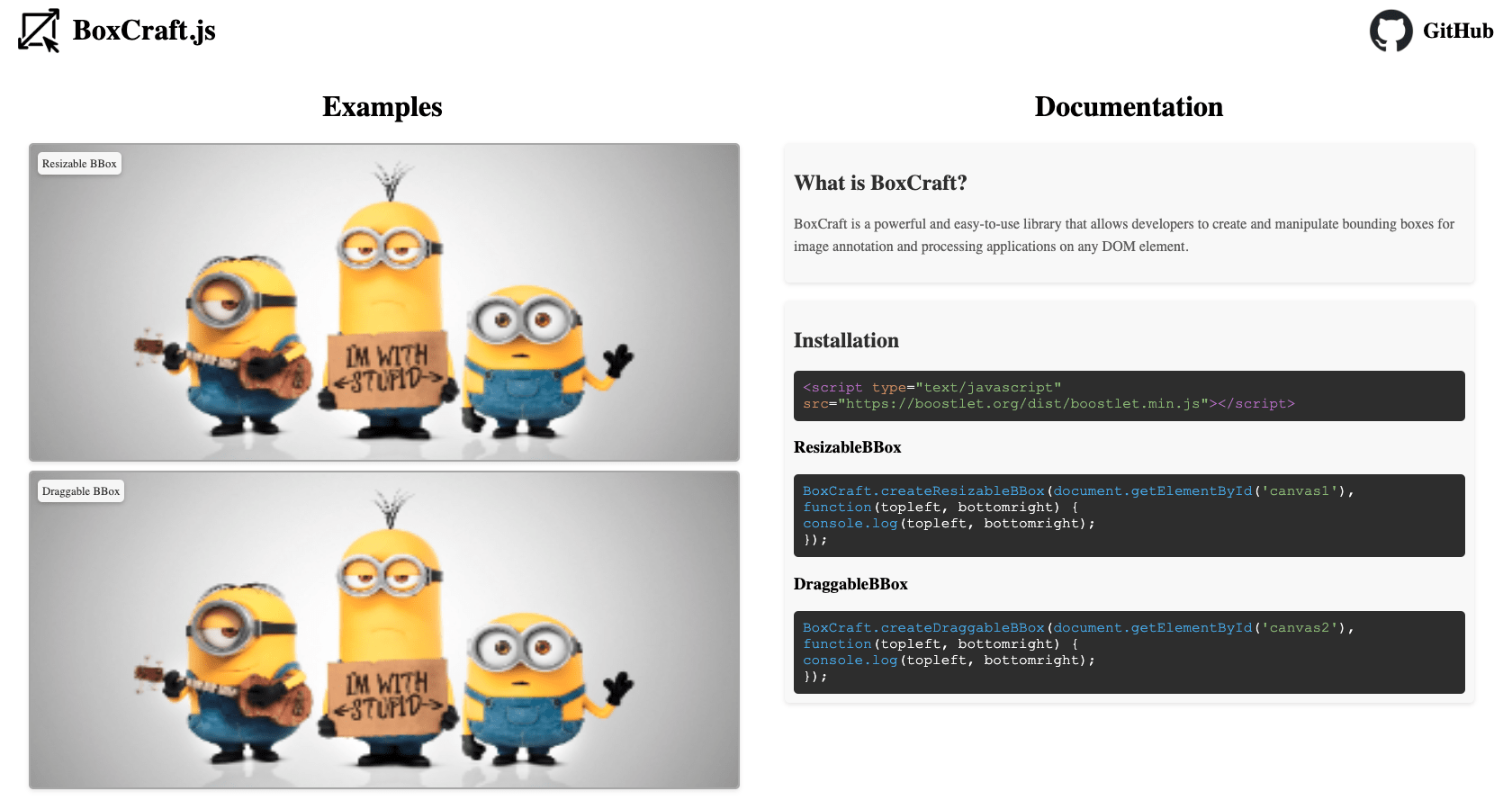

BoxCraft.js

BoxCraft.js

BoxCraft.js

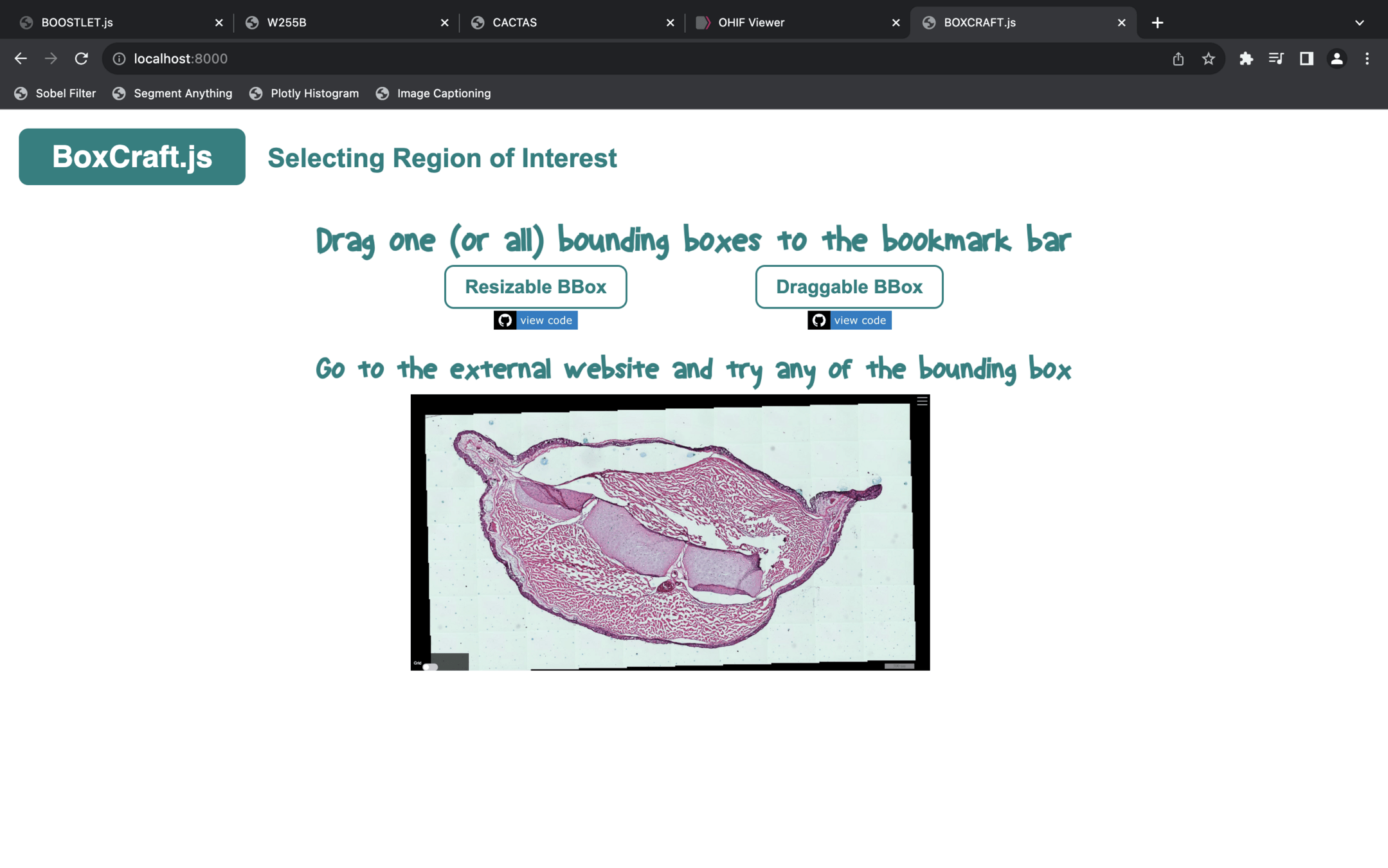

Boxcraft.js integrated with Boostlet.js
Boxcraft.js Demo

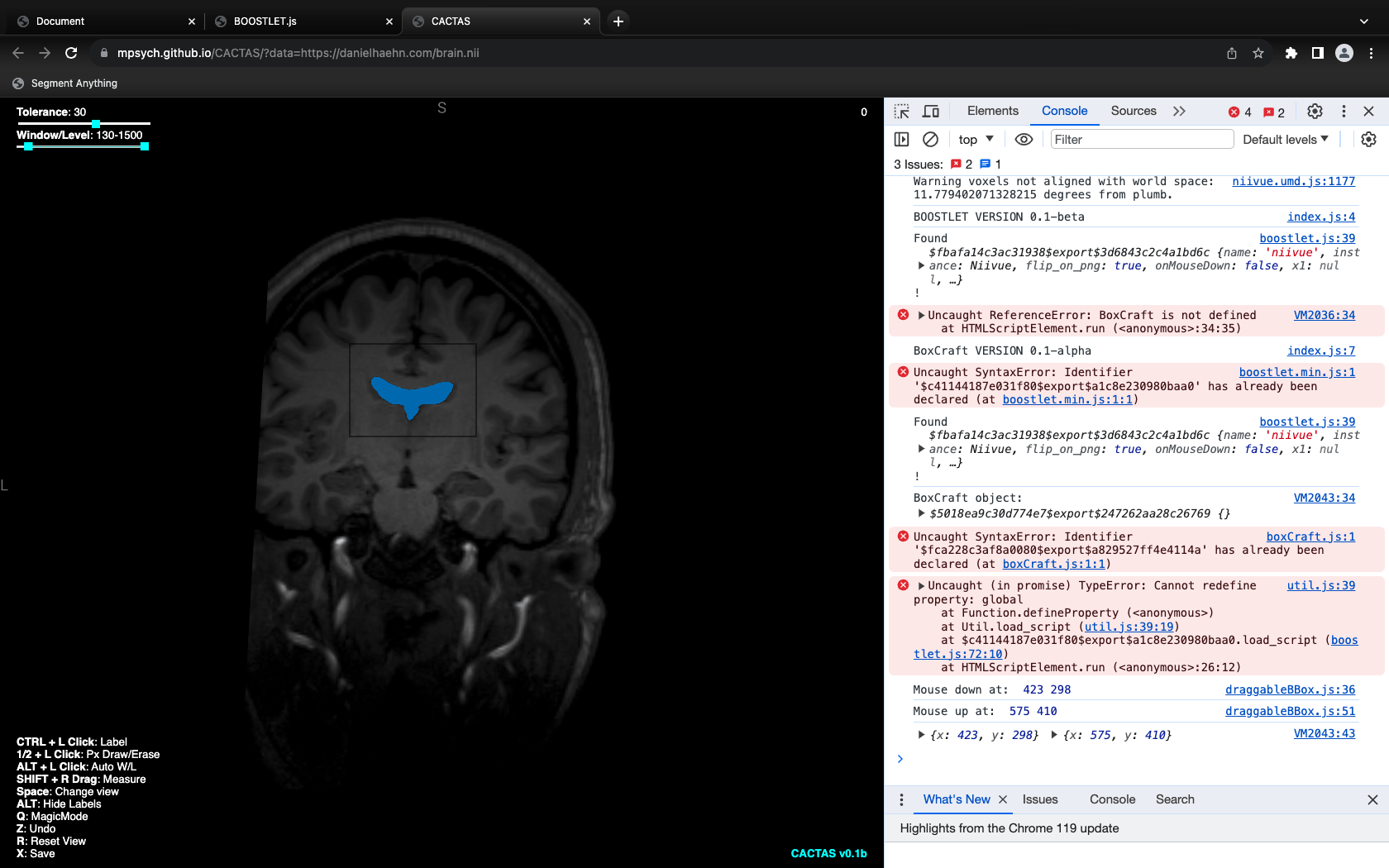

Boxcraft working with Niivue.js
Uniform ROI Selection across various medical imaging frameworks
BoxCraft.js
Work in progress:

Boxcraft.js with Cornerstone.js

Boxcraft.js with Openseadragon.js

Thank You!

Boxcraft.js integrated with Boostlet.js
