Point Cloud to Revit Architecture
Offices
GB3 Mobile Scanning Technology
We use a proprietary mobile scanning system that allows a single operator to scan an interior space in a matter of minutes. The data is collected by the system and translate to a point cloud.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1154713/is-7.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1154732/is-4.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1154738/drafting.png)
Interior scanning can be easily done in an office space. Floor plans are crucial to space planning and plan future company expansion or reorganization.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1158571/g7a.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1154803/dot_line.png)

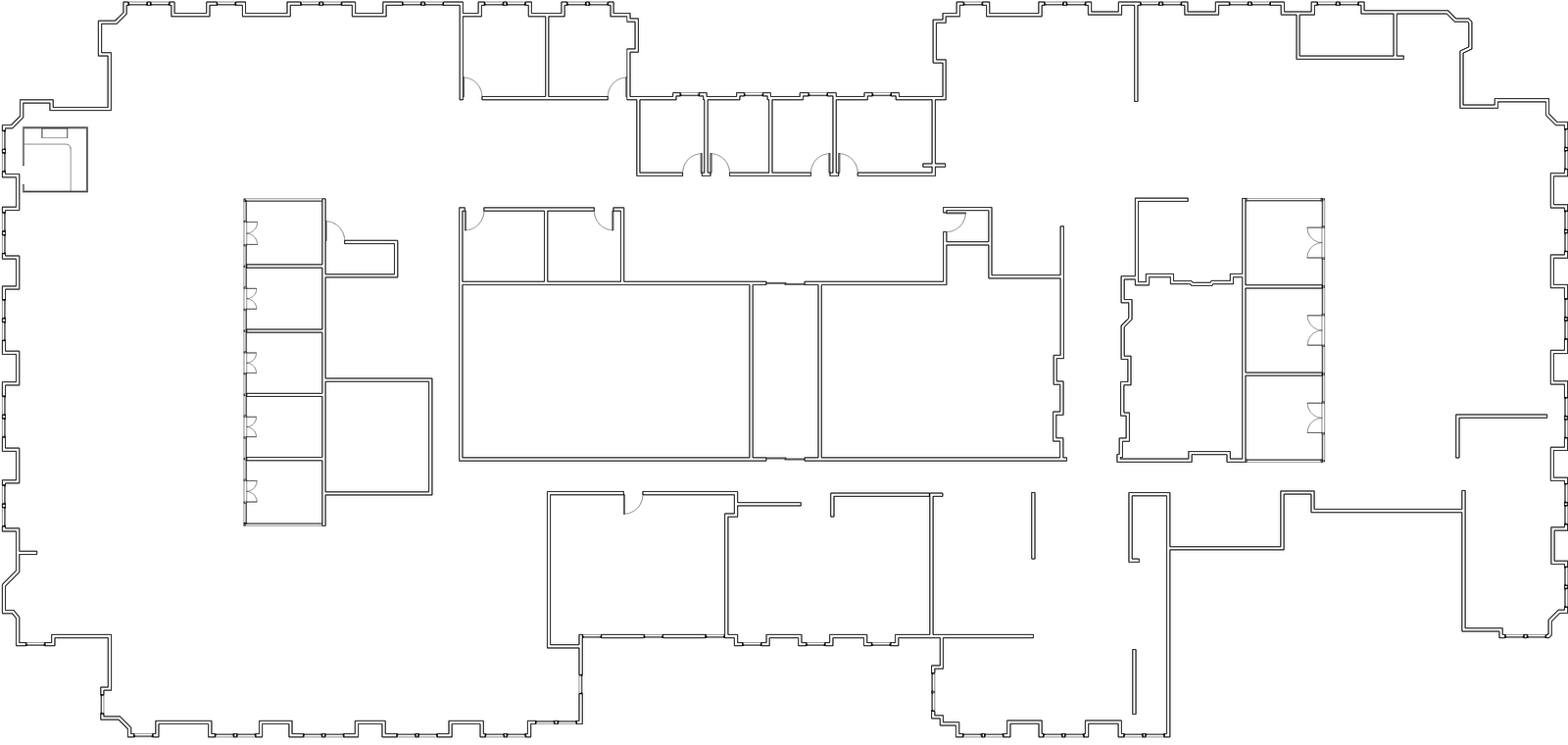

As-Built "Existing" Floor Plan
Scanning eliminates the process of physically measuring an entire space, which could take days and a team of designers.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1158597/Floor_41-M_-_Floor_Plan_-_First_Floor.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1154803/dot_line.png)
Building Wall Plan

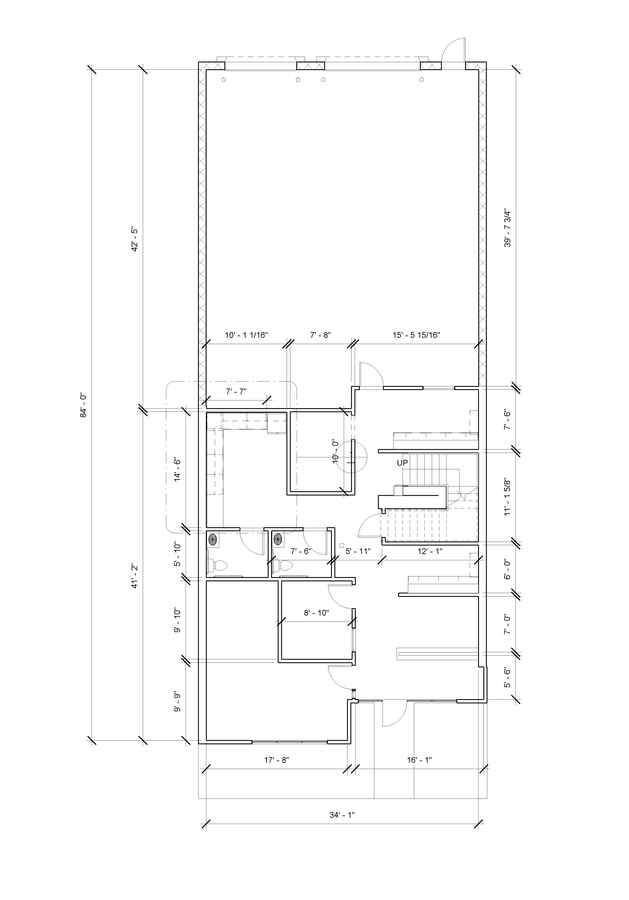

With an As-Built plan ready to go, designers can start the design process with demo plans, new concept, space planning with their clients much sooner than waiting for a team to draw the as-built.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1158626/114_-_Floor_Plan_-_Level_1.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1154803/dot_line.png)

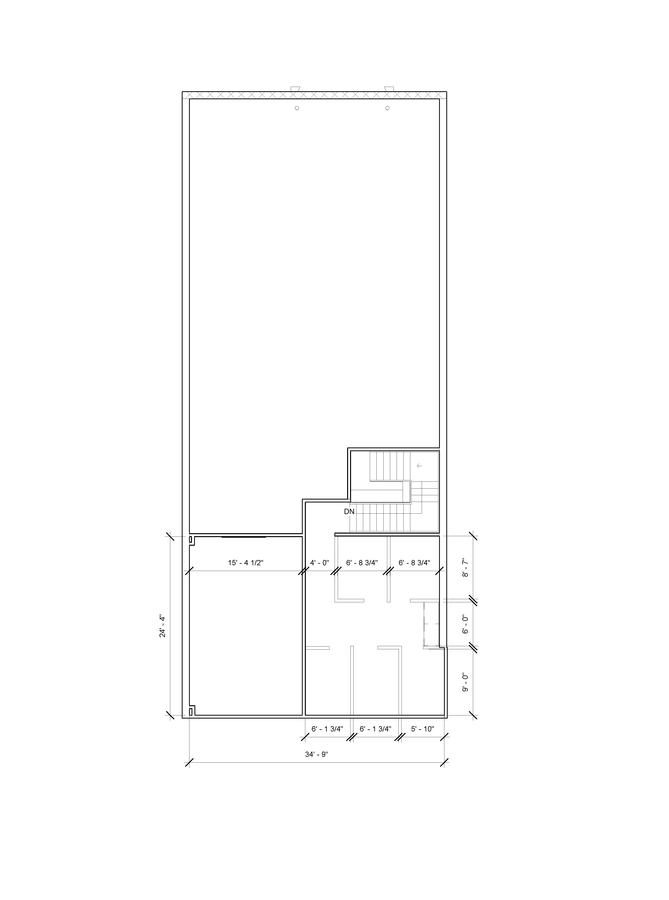

Start Planning & Designing
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1158631/114_-_Floor_Plan_-_Level_2.png)
Designers could have a much better timeline and speed up their production time, which means they could get more projects !

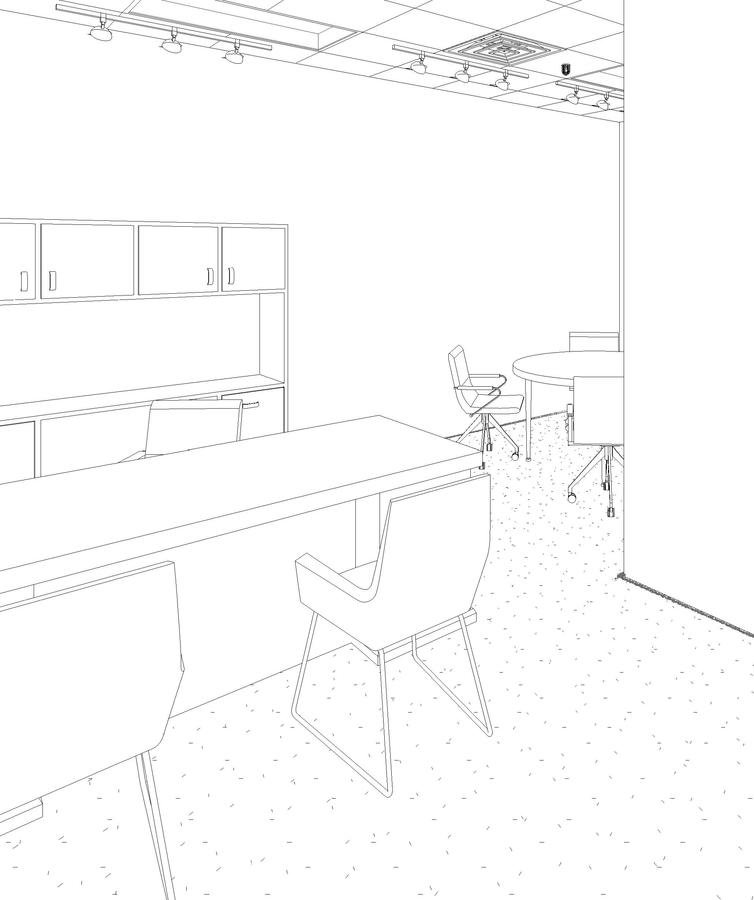

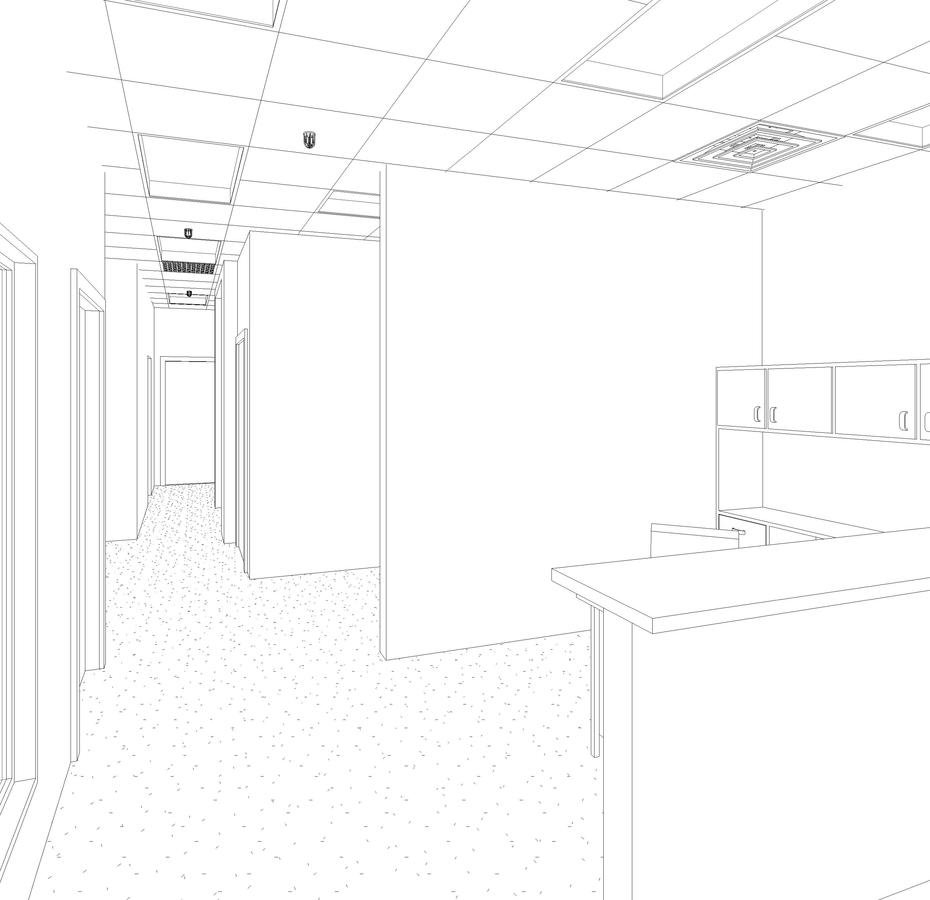

With the plans provided, designers could generate interior views for material applications and furnishings.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1158672/114_-_3D_View_-_3D_View_2.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1154803/dot_line.png)
Project Timeline
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1158673/114_-_3D_View_-_3D_View_3.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1158676/114_-_3D_View_-_3D_View_5.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/ruthietang/images/1158681/114_-_3D_View_-_3D_View_4.jpg)

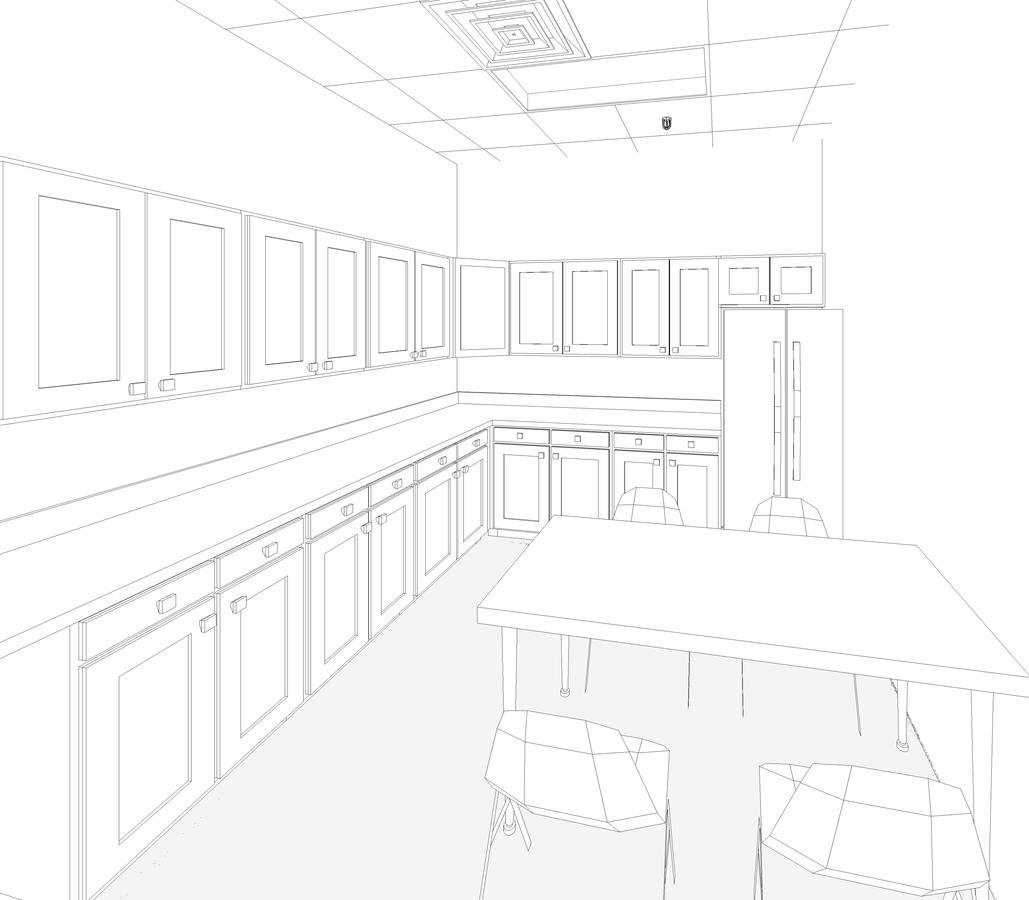

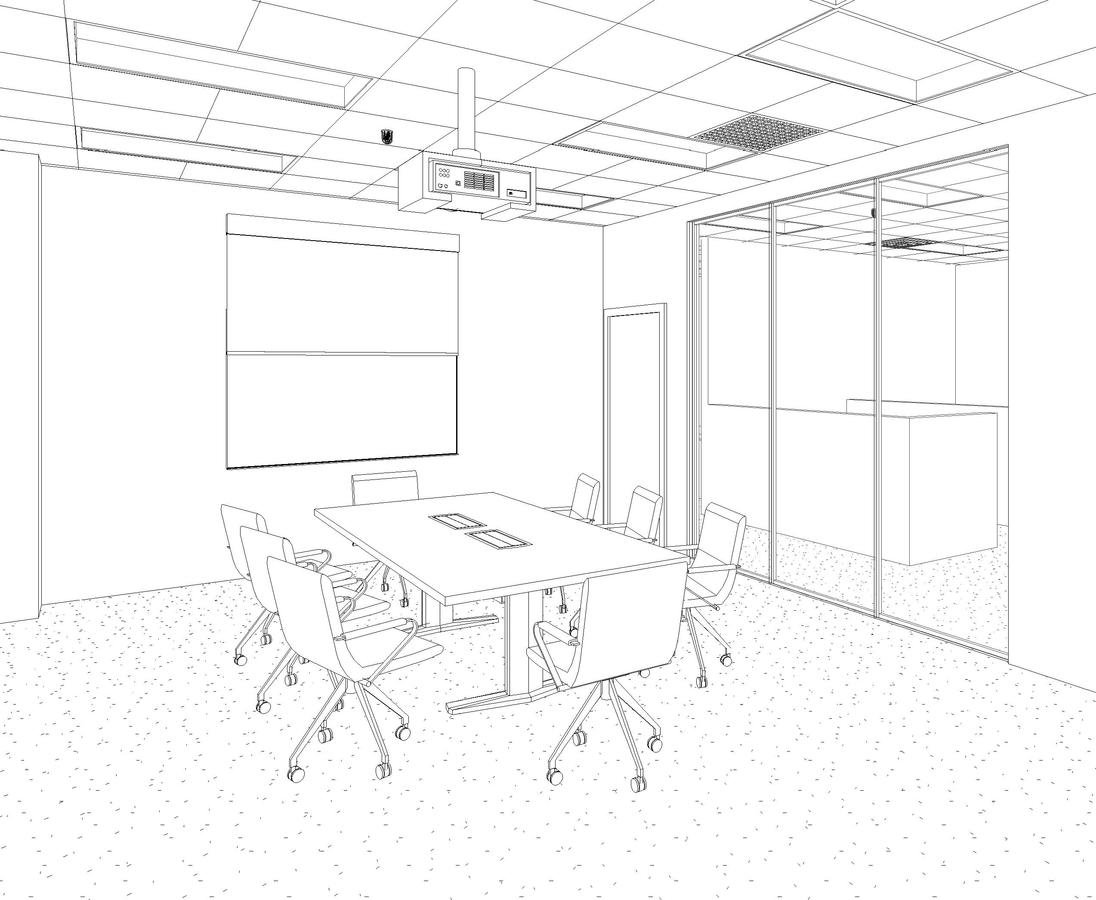

Spend more time on creating and let GB3 Scout do the technical part.
Rendering material show your client their dream office space.
