Model Predictive Control

ML in Feedback Sys #21

Prof Sarah Dean

Reminders/etc

Project midterm update due Friday!
Scribing feedback to come by next week
Upcoming paper presentations starting next week
- RB17 Frank, Wei-Han, Minjae
- DSA+20 Jerry, Wendy, Yueying
Participation includes attending presentations
Relevant AI Seminar tomorrow 12:15-1:15 in Gates 122: Brandon Amos, Learning with differentiable and amortized optimization

policy

$\pi_t:\mathcal S\to\mathcal A$

observation

$s_t$

accumulate

$\{(s_t, a_t, c_t)\}$

Safe action in a dynamic world

Goal: select actions $a_t$ to bring environment to low-cost states
while avoiding unsafe states

action

$a_{t}$

$F$

$s$

Recap: Invariant Sets

A set $\mathcal S_\mathrm{inv}$ is invariant under dynamics $s_{t+1} = F(s_t)$ if for all $ s\in\mathcal S_\mathrm{inv}$, $ F(s)\in\mathcal S_\mathrm{inv}$
If $\mathcal S_\mathrm{inv}$ is invariant for dynamics $F$, then $s_0\in \mathcal S_\mathrm{inv} \implies s_t\in\mathcal S_\mathrm{inv}$ for all $t$.
Example: sublevel set of Lyapunov function
- $\{s\mid V(s)\leq c\}$

Recap: Receding Horizon

time

Plan

For $t=0,1,\dots$
1. Observe state
2. Optimize plan
3. Apply first planned action

$\pi(s_t) = u_0^\star(s_t)$

$$\min_{u_0,\dots, u_{H-1}} \quad\sum_{k=0}^{H-1} c(x_{k}, u_{k})$$

$\text{s.t.}\quad x_0 = s_t,\quad x_{k+1} = F(x_{k}, u_{k})$

$x_k\in\mathcal S_\mathrm{safe},\quad u_k\in\mathcal A_\mathrm{safe}\quad~~~$

Notation: distinguish real states and actions $s_t$ and $a_t$ from the planned optimization variables $x_k$ and $u_k$.

$[u_0^\star,\dots, u_{H-1}^\star](s_t) = \arg$

Recap: The MPC Policy

$$\min_{u_0,\dots, u_{H-1}} \quad\sum_{k=0}^{H-1} c(x_{k}, u_{k})$$

$\text{s.t.}\quad x_0 = s_t,\quad x_{k+1} = F(x_{k}, u_{k})$

$x_k\in\mathcal S_\mathrm{safe},\quad u_k\in\mathcal A_\mathrm{safe}\quad~~~$

Notation: distinguish real states and actions $s_t$ and $a_t$ from the planned optimization variables $x_k$ and $u_k$.

Recap: The MPC Policy

$F$

$s$

$s_t$

$a_t = u_0^\star(s_t)$

Example: infeasibility

The state is position & velocity $s=[\theta,\omega]$ with $ s_{t+1} = \begin{bmatrix} 1 & 0.1\\ & 1 \end{bmatrix}s_t + \begin{bmatrix} 0\\ 1 \end{bmatrix}a_t$

Goal: stay near origin and be energy efficient

Safety constraint $|\theta|\leq 1$ and actuation limit $|a|\leq 0.5$

Infeasibility = inability to guarantee safety
- also leads to loss of stability
States that are initially feasible vs. states that remain feasible
- not different when plan is over $H=T$

Infeasibility Problem

infeasible
initially feasible
remain feasible

Infeasibility = inability to guarantee safety
- also leads to loss of stability
States that are initially feasible vs. states that remain feasible
- not different when plan is over ($H=T$)
Definition: We call $\mathcal S_\mathrm{inv}$ a control invariant set for dynamics
$s_{t+1} = F(s_t, a_t)$ if for all $ s\in\mathcal S_\mathrm{inv}$, there exists an $a\in\mathcal A_\mathrm{safe}$ such that $ F(s, a)\in\mathcal S_\mathrm{inv}$
Definition: The region of attraction for dynamics $\tilde F(s)$ is the set of initial states $s_0$ that converge to the origin.
- We consider the closed loop dynamics $\tilde F(s) = F(s,\pi(s))$

Infeasibility Problem

$$\min_{u_0,\dots, u_{H-1}} \quad\sum_{k=0}^{H-1} c(x_{k}, u_{k}) +\textcolor{cyan}{ c_H(x_H)}$$

$\text{s.t.}\quad x_0 = s,\quad x_{k+1} = F(x_{k}, u_{k})\qquad\qquad$

$x_k\in\mathcal S_\mathrm{safe},\quad u_k\in\mathcal A_\mathrm{safe},\quad \textcolor{cyan}{x_H\in\mathcal S_H}$

Let $J(s; u_0,\dots, u_{H-1})$ be the value of the objective for actions $u_0,\dots, u_{H-1}$
Let $J^\star(s)=J(s; u^\star_0,\dots, u^\star_{H-1})$ be the optimal value.
Assume that stage cost $c(s,a)$ is positive definite, i.e. $c(s,a)>0$ for all $s,a\neq 0$ and $c(0,0)=0$.
Assume that $0\in\mathcal S_\mathrm{safe}$ and $0\in\mathcal A_\mathrm{safe}$

Terminal cost and constraints

Receding horizon control is short sighted
Additional terms more closely approximate infinite horizon problem

$$\min_{u_0,\dots, u_{H}} \quad\sum_{k=0}^{H-1} c(x_{k}, u_{k}) $$

$\text{s.t.}\quad x_0 = s,\quad x_{k+1} = F(x_{k}, u_{k})\qquad\qquad$

$x_k\in\mathcal S_\mathrm{safe},\quad u_k\in\mathcal A_\mathrm{safe},\quad \textcolor{cyan}{x_H=0}$

Assume that the origin is a fixed point of the uncontrolled dynamics
- i.e. $F(0,0)=0$
We will prove that
- $\pi_\mathrm{MPC}$ is recursively feasible
- $F(s, \pi_\mathrm{MPC}(s))$ is stable within region of attraction

Terminal cost and constraints

Warm up: consider $\mathcal S_H = \{0\}$ and $c_H(0)=0$

Recursive feasibility: feasible at $s_t\implies$ feasible at $s_{t+1}$

Proof:

$s_t$ feasible and solution to optimization problem is $u^\star_{0}, \dots, u^\star_{H-1}$ with corresponding states $x^\star_{0}, \dots, x^\star_{H}$
After applying $a_t=u^\star_{0}$, state moves to $s_{t+1} = F(s_t,a_t)$
- Notice that $s_{t+1} = x^\star_1$
Claim: $u^\star_{1}, \dots, u^\star_{H-1}, 0$ is now a feasible solution.
- because $x_{H}^\star=0$ and $F(0,0)=0$
- thus corresponding states $x^\star_{1}, \dots, x^\star_{H}, 0$ satisfy constraints

Recursive Feasibility

$$\min_{u_0,\dots, u_{H}} \quad\sum_{k=0}^{H-1} c(x_{k}, u_{k})\qquad\text{s.t.}\quad x_0 = s_t,\quad x_{k+1} = F(x_{k}, u_{k})$$

$x_k\in\mathcal S_\mathrm{safe},\quad u_k\in\mathcal A_\mathrm{safe},\quad \textcolor{cyan}{x_H=0}$

Review: Lyapunov Stability

Definition: A Lyapunov function $V:\mathcal S\to \mathbb R$ for $F$ is continuous and

(positive definite) $V(0)=0$ and $V(0)>0$ for all $s\in\mathcal S - \{0\}$
(decreasing) $V(F(s)) - V(s) \leq 0$ for all $s\in\mathcal S$
Optionally, (strict) $V(F(s)) - V(s) < 0$ for all $s\in\mathcal S-\{0\}$

Theorem (1.2, 1.4): Suppose that $F$ is locally Lipschitz, $s_{eq}=0$ is a fixed point, and $V$ is a Lyapunov function for $F,s_{eq}$. Then, $s_{eq}=0$ is

asymptotically stable if $V$ is strictly decreasing

Proof:

$J^\star(s)$ is positive definite and strictly decreasing. Therefore, the closed loop dynamics $F(\cdot, \pi_\mathrm{MPC}(\cdot))$ are asymptotically stable.

Positive definite:
- if $s=0$, then optimal actions are $0$ since $F(0,0)=0$ and stage cost is positive definite
- if $s\neq 0$, $J^\star(s)>0$ since stage cost is positive definite

Stability

Strictly decreasing: recall $J^\star (s_t) =\sum_{k=0}^{H-1} c(x^\star_{k}, u^\star_{k}) +c_H(x_H^\star)$
- $J^\star(s_{t+1}) \leq$ cost of feasible solution starting at $x_0=F(s_t, u^\star_{0})$
  - $=J(s_{t+1}; u^\star_1,\dots, u^\star_{H-1}, 0)=\sum_{k=1}^{H-1} c(x^\star_{k}, u^\star_{k}) + c(x^\star_{H}, 0)+c_H(0)$
  - $=\sum_{k=0}^{H-1} c(x^\star_{k}, u^\star_{k}) + \cancel{c(x^\star_{H}, 0)}+\cancel{c_H(0)} -c(x^\star_{0}, u^\star_{0}) $
  - $= J^\star (s) -c(x^\star_{0}, u^\star_{0}) < J^\star (s)$

$$\min_{u_0,\dots, u_{H}} \quad\sum_{k=0}^{H-1} c(x_{k}, u_{k}) +\textcolor{cyan}{ c_H(x_H)}$$

$\text{s.t.}\quad x_0 = s,\quad x_{k+1} = F(x_{k}, u_{k})\qquad\qquad$

$x_k\in\mathcal S_\mathrm{safe},\quad u_k\in\mathcal A_\mathrm{safe},\quad \textcolor{cyan}{x_H\in\mathcal S_H}$

General terminal cost and constraints

Assumptions:

The origin is uncontrolled fixed pointed $F(0,0)=0$
The costs are positive definite and constraints contain $0$
The terminal set is contained in safe set and is control invariant
The terminal cost satisfies $$ c_H(s_{t+1}) - c_H(s_t) \leq -c(s_t, u) $$ for some $u$ such that $s_{t+1} = F(s_{t}, u)\in\mathcal S_H$

Recursive feasibility: feasible at $s_t\implies$ feasible at $s_{t+1}$

Proof:

$s_t$ feasible and solution to optimization problem is $u^\star_{0}, \dots, u^\star_{H-1}$ with corresponding states $x^\star_{0}, \dots, x^\star_{H}$
After applying $a_t=u^\star_{0}$, state moves to $s_{t+1} = F(s_t,a_t)$
- Notice that $s_{t+1} = x^\star_1$
Claim: there exists a $u$ such that $u^\star_{1}, \dots, u^\star_{H-1}, u$ is a feasible solution.
- because $x_{H}^\star\in\mathcal S_H$ and $\mathcal S_H$ is control invariant
- thus corresponding states $x^\star_{1}, \dots, x^\star_{H}, F(x^\star_{H}, u)$ satisfy constraints

Recursive Feasibility

Proof:

$J^\star(s)$ is positive definite and strictly decreasing. Therefore, the closed loop dynamics $F(\cdot, \pi_\mathrm{MPC}(\cdot))$ are asymptotically stable.

Stability

Positive definite: same argument as before
Strictly decreasing: recall $J^\star (s_t) =\sum_{k=0}^{H-1} c(x^\star_{k}, u^\star_{k}) +c_H(x_H^\star)$
- $J^\star(s_{t+1}) \leq$ cost of feasible solution starting at $x_0=F(s_t, u^\star_{0})$
  - $=J(s_{t+1}; u^\star_1,\dots, u^\star_{H-1}, u)$
  - $=\sum_{k=1}^{H-1} c(x^\star_{k}, u^\star_{k}) + c(x^\star_{H}, u)+c_H(F(x^\star_{H}, u))$
  - $=\sum_{k=0}^{H-1} c(x^\star_{k}, u^\star_{k})+c_H(x^\star_H)+ c(x^\star_{H}, u)+c_H(F(x^\star_{H}, u))-c_H(x^\star_H) -c(x^\star_{0}, u^\star_{0}) $
  - $\leq J^\star (s) +c(x^\star_{H}, u) - c(x^\star_{H}, u) -c(x^\star_{0}, u^\star_{0}) < J^\star (s)$

Terminal cost and constraints for LQR

Based on unconstrained LQR policy where $P=\mathrm{DARE}(A,B,Q,R)$ $$ K=-(B^\top PB+R)^{-1}B^\top P$$

Terminal cost as $c_H(s) = s^\top P s$
Terminal set is any invariant set for closed loop $$s\in\mathcal S_H\implies (A+BK)s\in\mathcal S_H$$ which also guarantees safety: $$\mathcal S_H\subseteq \mathcal S_\mathrm{safe},\quad Ks\in\mathcal A_\mathrm{safe}\quad\forall~~s\in\mathcal S_H$$
ex: sublevel set of $s^\top P s$

Constrained LQR Problem

$$ \min ~~\lim_{T\to\infty}\frac{1}{T}\sum_{t=0}^{T} s_t^\top Qs_t+ a_t^\top Ra_t\quad\\ \text{s.t}\quad s_{t+1} = A s_t+ Ba_t \\ G_s s_t\leq b_s,G_a a_t\leq b_a$$

MPC Policy

$$ \min ~~\sum_{k=0}^{H-1} x_k^\top Qx_k + u_k^\top Ru_k +x_H^\top Px_H\quad \\ \text{s.t}\quad x_0=s,~~ x_{k+1} = A x_k+ Bu_k\\G_s x_k\leq b_s,G_a u_k\leq b_a ,x_H\in\mathcal S_H$$

Terminal cost and constraints for LQR

This satisfies the assumptions:

The origin is uncontrolled fixed pointed $F(0,0)=0$
- ✓ $A\cdot 0+B\cdot 0=0$
The costs are positive definite and constraints contain $0$
- ✓ $Q,R,P$ are psd, assume $b_s,b_a\geq 0$
The terminal set is contained in safe set and is control invariant
- ✓ by construction, have $u=Ks$ guarantees invariance
The terminal cost satisfies $c_H(s_{t+1}) - c_H(s_t) \leq -c(s_t, u) $ for some $u$ such that $s_{t+1} = F(s_{t}, u)\in\mathcal S_H$
- Exercise: use the form of $K$ and the DARE to show that $$((A+BK)s)^\top P(A+BK)s - s^\top Ps = -s^\top Q s$$

Recall the Bellman Optimality Equation:
- $ \pi^\star(s) = \arg\min_{a\in\mathcal A} c(s, a)+J^\star (F(s,a))$
For LQR, this means that
- $\pi^\star(s) = \arg\min_a s^\top Q s + a^\top R a + (As+Ba)^\top P (As+Ba)$
- $\pi^\star(s) = \arg\min_u x_0^\top Q x_0 + u^\top R u + x_1^\top P x_1~~\text{s.t.} ~~x_0=s,~~x_1=Ax_0+Bu$
This is MPC with $H=1$ and correct terminal cost!

Equivalence for unconstrained

Constrained LQR Problem

$$ \min ~~\lim_{T\to\infty}\frac{1}{T}\sum_{t=0}^{T} s_t^\top Qs_t+ a_t^\top Ra_t\quad\\ \text{s.t}\quad s_{t+1} = A s_t+ Ba_t $$

MPC Policy

$$ \min ~~\sum_{k=0}^{H-1} x_k^\top Qx_k + u_k^\top Ru_k +x_H^\top Px_H\quad \\ \text{s.t}\quad x_0=s,~~ x_{k+1} = A x_k+ Bu_k$$

$$\min_{u_0,\dots, u_{H-1}} \quad\sum_{k=0}^{H-1} c(x_{k}, u_{k}) + c_H(x_H)$$

$\text{s.t.}\quad x_0 = s_t,\quad x_{k+1} = F(x_{k}, u_{k})$

$x_k\in\mathcal S_\mathrm{safe},~ u_k\in\mathcal A_\mathrm{safe},~x_H\in\mathcal S_H$

Terminal constraint not often used (instead: long horizon)
Soft constraints
- $x_k+\delta \in\mathcal S_\mathrm{safe}$ and add penalty $C\|\delta\|_2^2$ to cost
Accuracy of costs/dynamics vs. ease of optimization
Sampling based optimization (cross entropy method)

MPC in practice

$F$

$s$

$s_t$

$a_t = u_0^\star(s_t)$

$$\min_{u_0,\dots, u_{H-1}} \quad\sum_{k=0}^{H-1} c(x_{k}, u_{k}) + c_H(x_H)$$

$\text{s.t.}\quad x_0 = s_t,\quad x_{k+1} = F(x_{k}, u_{k})$

$x_k\in\mathcal S_\mathrm{safe},~ u_k\in\mathcal A_\mathrm{safe},~x_H\in\mathcal S_H$

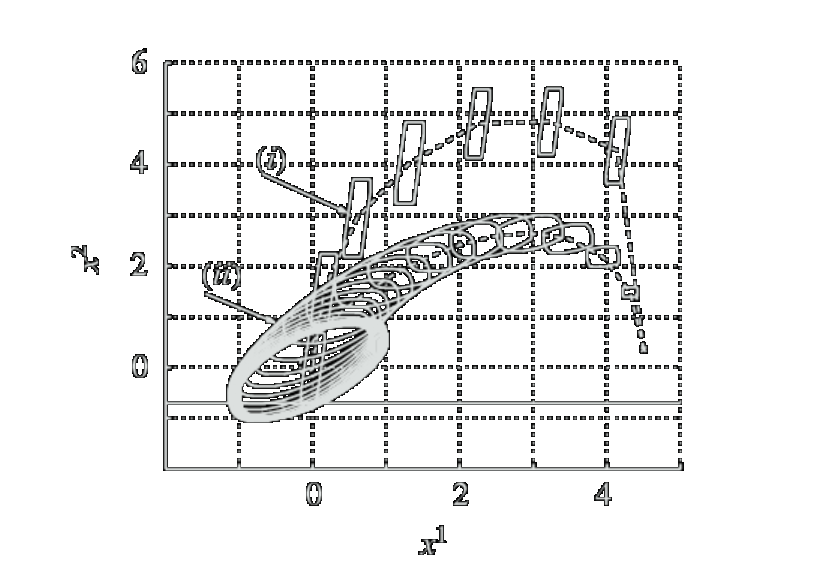

Disturbances:
- optimize expectation, high probability, or worst-case
Unknown dynamics/costs
- robust to uncertainty (worst case)
- learn from data

MPC extensions

$F$

$s$

$s_t$

$a_t = u_0^\star(s_t)$

Recap

Recap: MPC
Feasibility problems
Terminal sets and costs
Proof of feasibility and stability

References: Predictive Control by Borrelli, Bemporad, Morari

Reminders

Project update due Friday
Upcoming paper presentations:
- [RB17] Learning model predictive control for iterative tasks
- [DSA+20] Fairness is not static
- [FLD21] Algorithmic fairness and the situated dynamics of justice
