CSS Variables

SVG Presentation Attributes

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300px" height="300px" viewBox="0 0 300 300">

  <polygon

    fill = "#FF931E"

    stroke = "#ED1C24"

    stroke-width = "5"

    points = "279.1,160.8 195.2,193.3 174.4,280.8   117.6,211.1 27.9,218.3 76.7,142.7 42.1,59.6 129.1,82.7 197.4,24.1 202.3,114 "/>

</svg>

Presentation Attributes and The Cascade

Presentation attributes are overridden by any style declarations (inline, <style> or external).

Presentation attributes override default UA styles and inherited styles.

http://www.smashingmagazine.com/2014/11/03/styling-and-animating-svgs-with-css/2/

Styles lower in the diagram override those above them

Presentation Attributes and The Cascade

<style>
    circle {fill: orange;}
</style>

<svg version="1.1" viewBox="0 0 400 400">
    <g fill="yellow">
        <circle cx="100" cy="100" r="100" fill="blue" />
        <!-- ... -->
    </g>
</svg>

Presentation Attributes and The Cascade

<style>
    use {fill: orange;}
</style>

<svg version="1.1" viewBox="0 0 400 400">
   <defs>

        <circle id="myCirc" cx="100" cy="100" r="100" fill="blue"/>
    </defs>

    <use xlink:href="#myCirc"...></use>
</svg>

This is common in reusable SVG icons in icon sprites.

svg * {
    fill: inherit;
    stroke: inherit;
}

svg * {
   all: inherit;
}

http://dev.w3.org/csswg/css-cascade/#all-shorthand

Further Styling Control w/ CSS Variables

<svg class="bird">
  <use xlink:href="#bulbul"></use>
</svg>

use {
    color: gray;
    fill: currentColor; /* this will be the base fill color inherited by all elements inside <use> */

    /* define variables here */
    --secondaryColor: yellow;
    --tertiaryColor: black;
}

http://codepen.io/AmeliaBR/thoughts/customizable-svg-icons-css-variables

Further Styling Control w/ CSS Variables

<symbol id="bulbul" viewBox="0 0 300 200">
    <path id="body" d="…" />
    <path id="tail" fill="var(--tertiaryColor)" d="…" />
    <path id="head" fill="var(--tertiaryColor)" d="…" />
   <path id="vent" fill="var(--secondaryColor)" d="…" />
</symbol>

http://codepen.io/AmeliaBR/thoughts/customizable-svg-icons-css-variables

http://www.aaron-gustafson.com/notebook/css-variables-are-a-bad-idea/

any browser that doesn’t understand the variables would never get the color values because browsers follow the rules of fault tolerance in CSS and ignore anything they don’t understand. The introduction of variables to CSS would effectively build a wall between older browsers and new ones.

—Aaron Gustafson, Microsoft

Further Styling Control w/ CSS Variables

<symbol id="bulbul" viewBox="0 0 300 200">
    <path id="body" d="…" />
    <path id="tail" fill="deepPink" style="fill: var(--tertiaryColor)" d="…" />
    <path id="head" fill="#009966" style="fill: var(--tertiaryColor)" d="…" />
   <path id="vent" fill="orange" style="fill: var(--secondaryColor)" d="…" />
</symbol>

http://codepen.io/AmeliaBR/thoughts/customizable-svg-icons-css-variables

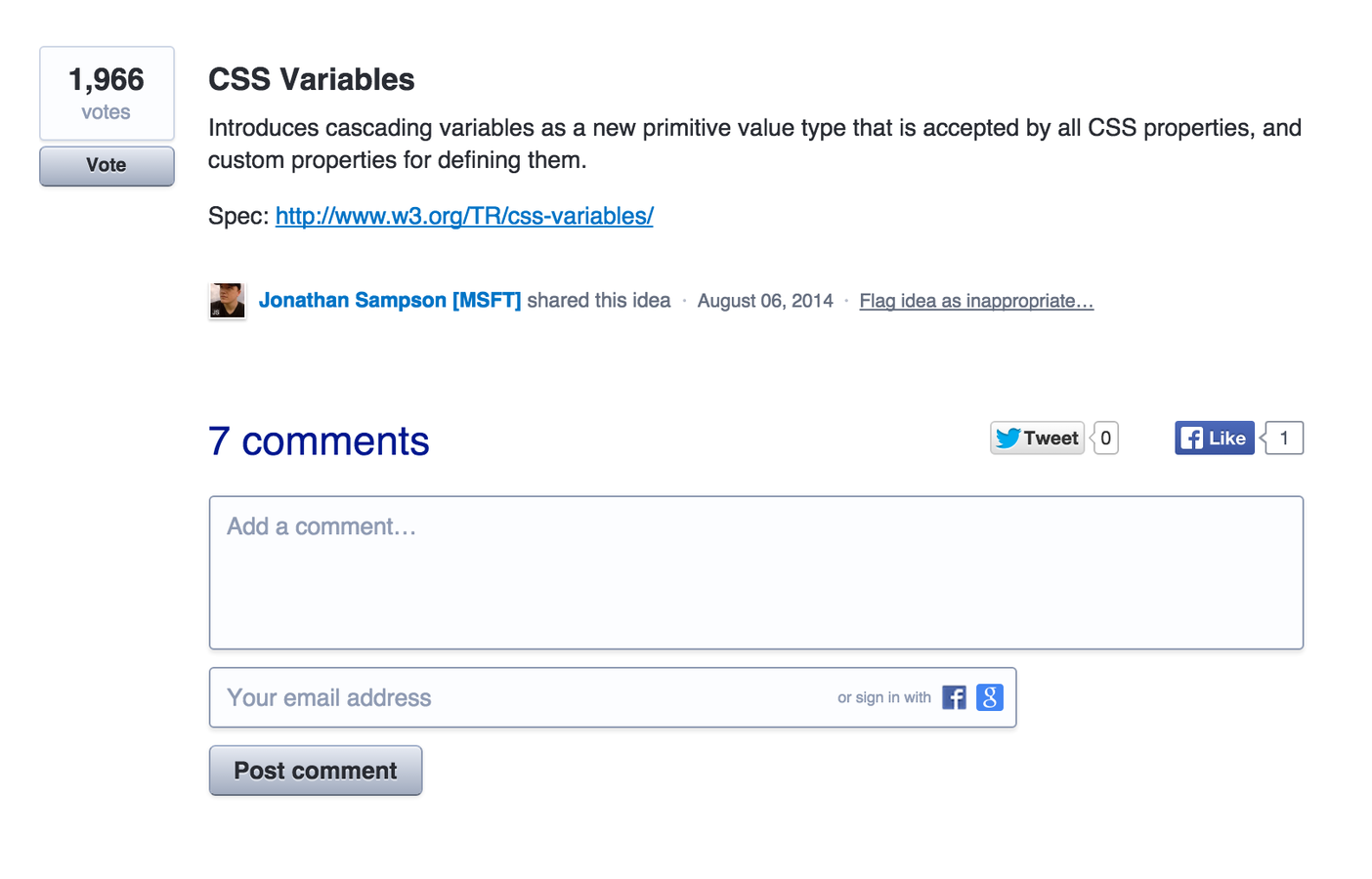

Vote:

https://wpdev.uservoice.com/forums/257854-internet-explorer-platform/suggestions/6261292-css-variables

<use> External Resource

Spriting SVG: re<use>ing <symbol>s

<svg version="1.1" xmlns="http://www.w3.org/2000/svg" style="display: none;">

   <symbol id="icon-twitter" viewBox="0 0 35 35">
      <!-- Twitter icon markup -->
   </symbol>

   <symbol id="icon-github" viewBox="0 0 35 35">
      <!-- Github icon markup -->
   </symbol>

   <!-- more icons here... -->
</svg>

http://css-tricks.com/svg-sprites-use-better-icon-fonts/

<svg class="icon-twitter">
  <use xlink:href="#icon-twitter"></use>
</svg>

Spriting SVG: re<use>ing <symbol>s

<svg class="icon-twitter">
  <use xlink:href="icons.svg#icon-twitter"></use>
</svg>

Spriting SVG: re<use>ing <symbol>s

Enables us to leverage browser caching, making subsequent page loads faster.

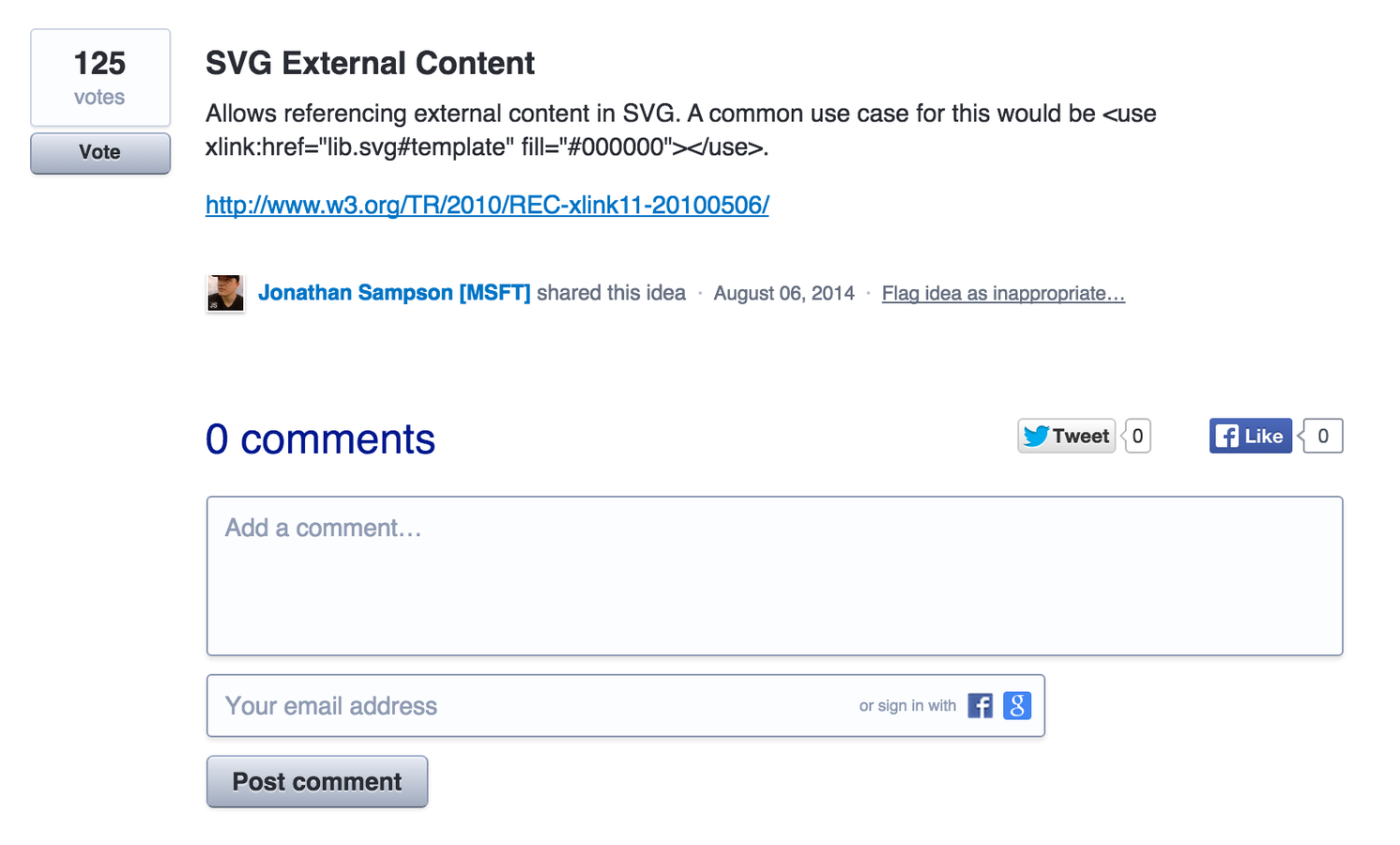

Vote:

https://wpdev.uservoice.com/forums/257854-internet-explorer-platform/suggestions/6263916-svg-external-content

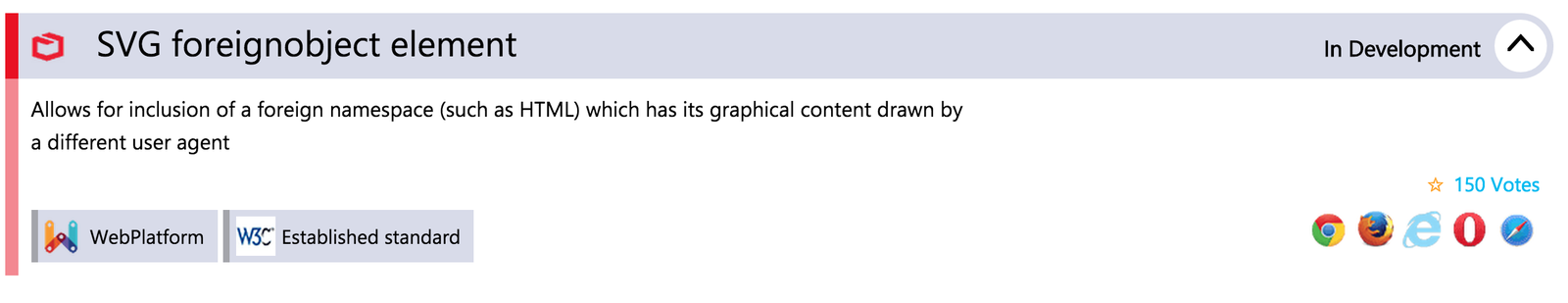

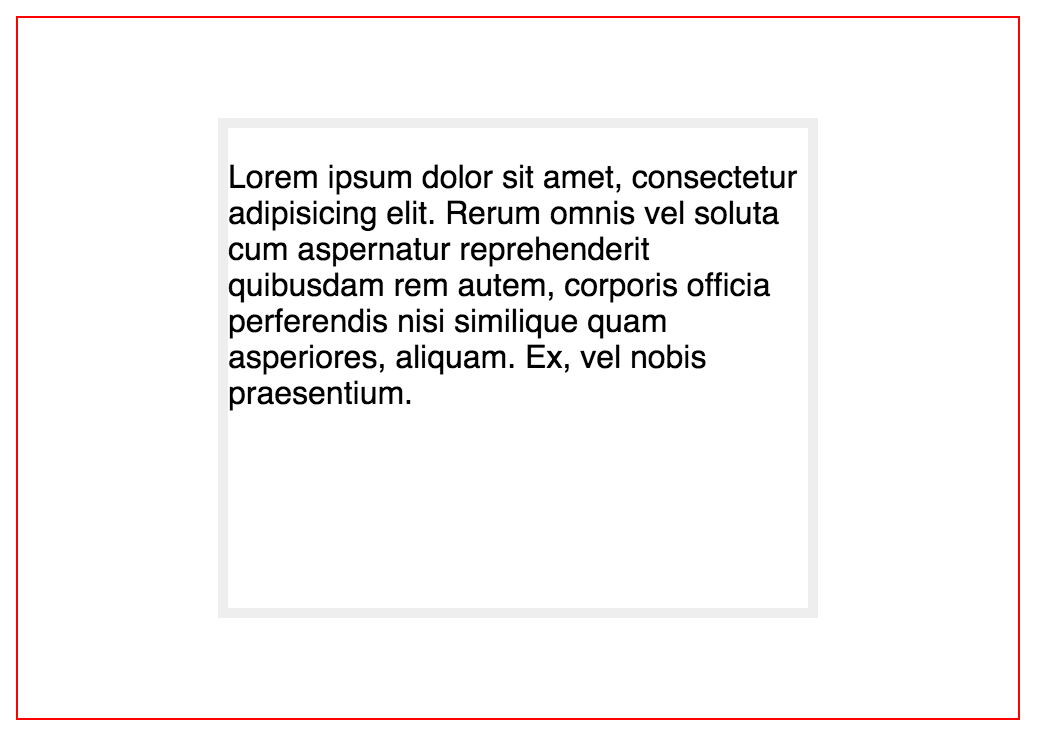

<foreignObject>

The ‘foreignObject’ element allows for inclusion of a foreign namespace which has its graphical content drawn by a different user agent. The included foreign graphical content is subject to SVG transformations and compositing.

http://www.w3.org/TR/SVG11/extend.html#ForeignObjectElement

<?xml version="1.0" encoding="utf-8" standalone="no"?>

<svg xmlns="http://www.w3.org/2000/svg"
     xmlns:xlink="http://www.w3.org/1999/xlink"
     viewBox="0 0 500 350">

    <!-- Some SVG content here -->

    <foreignObject x="100" y="50" width="300" height="200">
      <p>This is HTML!</p>
    </foreignObject>

    <!-- More SVG content here. -->

</svg>

Usually, a ‘foreignObject’ will be used in conjunction with the ‘switch’ element and the ‘requiredExtensions’ attribute to provide proper checking for user agent support and provide an alternate rendering in case user agent support is not available.

<svg xmlns="http://www.w3.org/2000/svg">
    <text x="100" y="100">
        <tspan>This line of text </tspan>
        <tspan>does not wrap.</tspan>
    </text>
</svg>

You need to manually shift and specify positions of every <tspan> of <text>.

<svg>
  <switch>
    <foreignObject x="100" y="50" width="300" height="200">
      <p>This paragraph of text will wrap.</p>
    </foreignObject>

    <text y="100"> Hello IE. I don't wrap.</text>
  </switch>
</svg>

http://codepen.io/SaraSoueidan/pen/5648a1a6a1c0935a2338854015001b8d?editors=110

ヘ(*＾0＾*)ノ

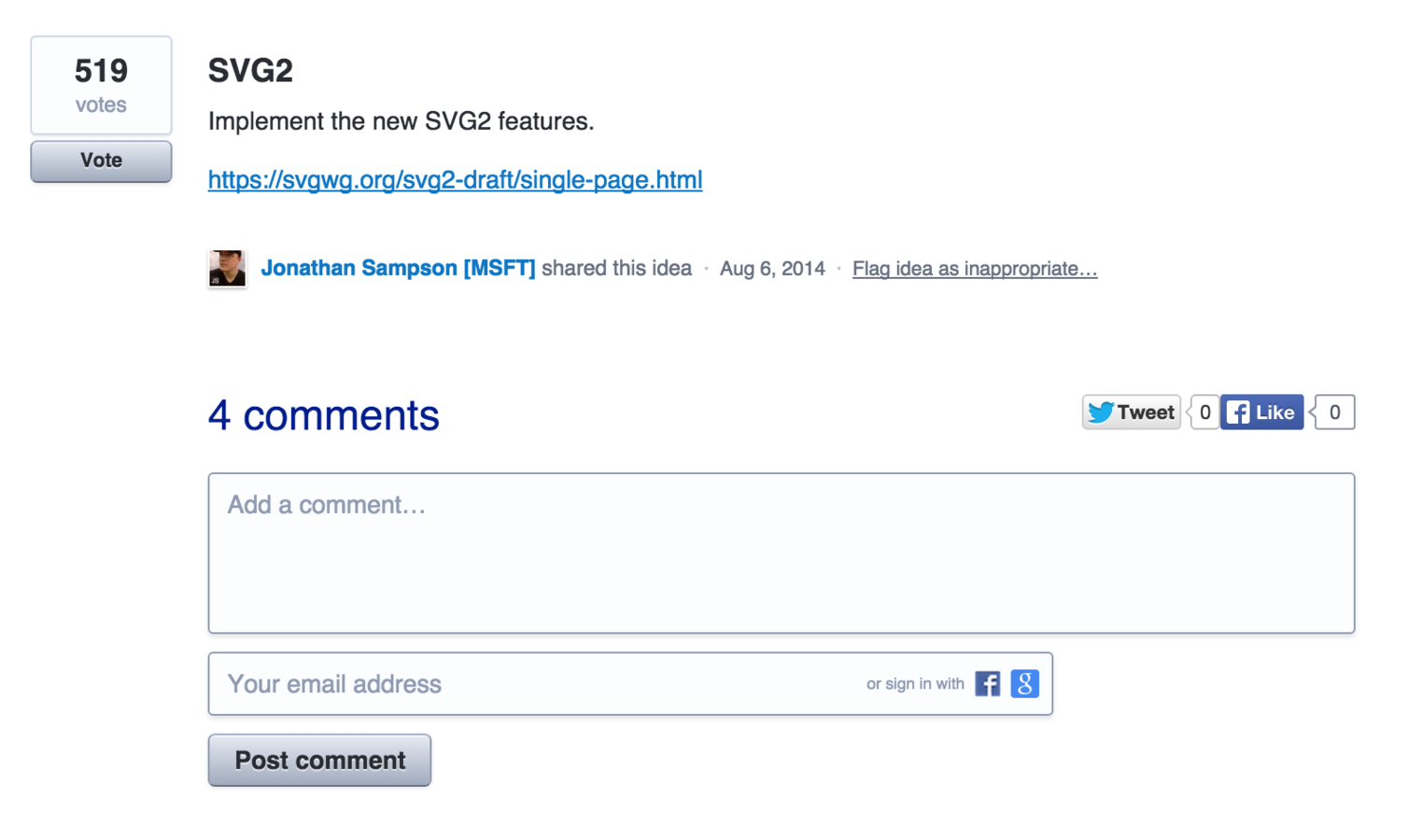

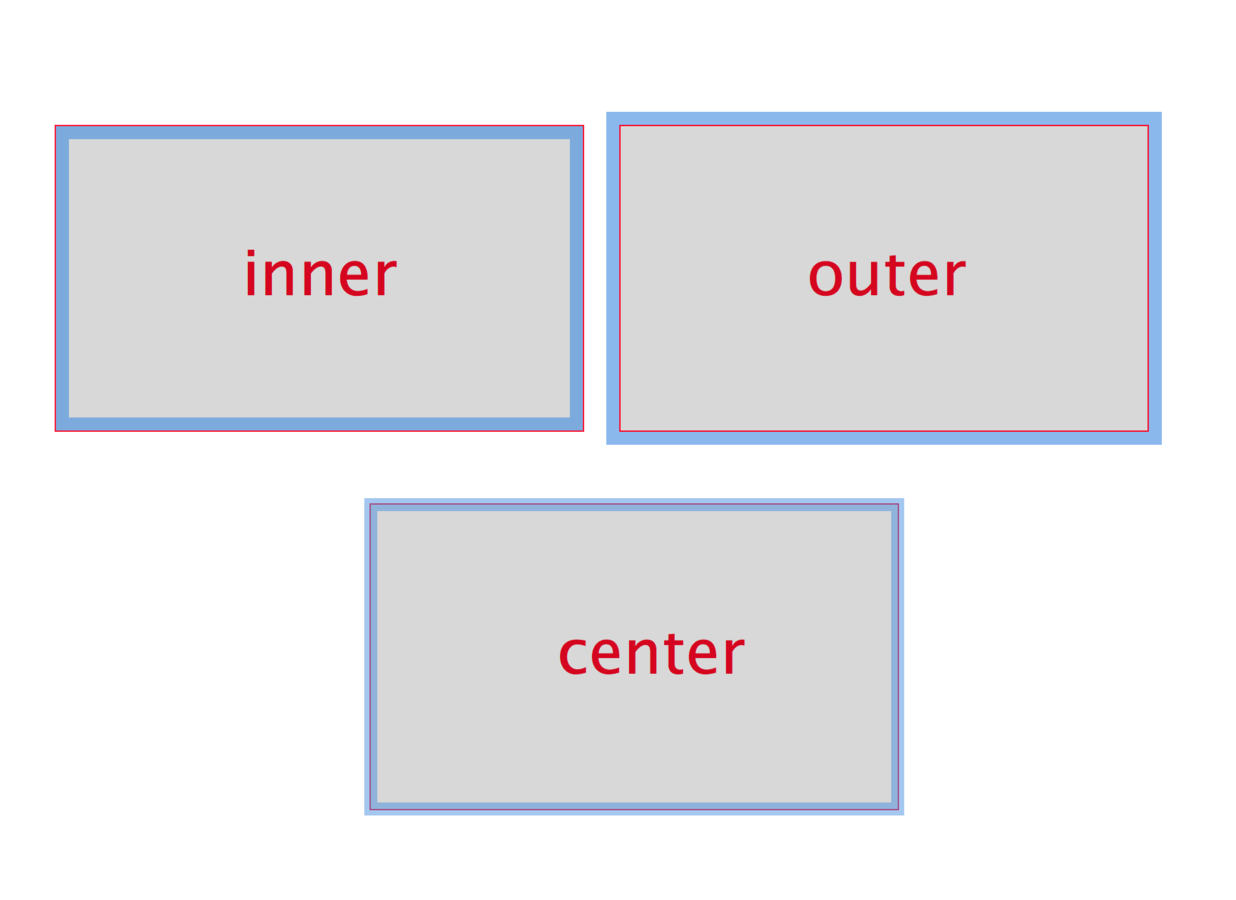

New SVG CSS Properties

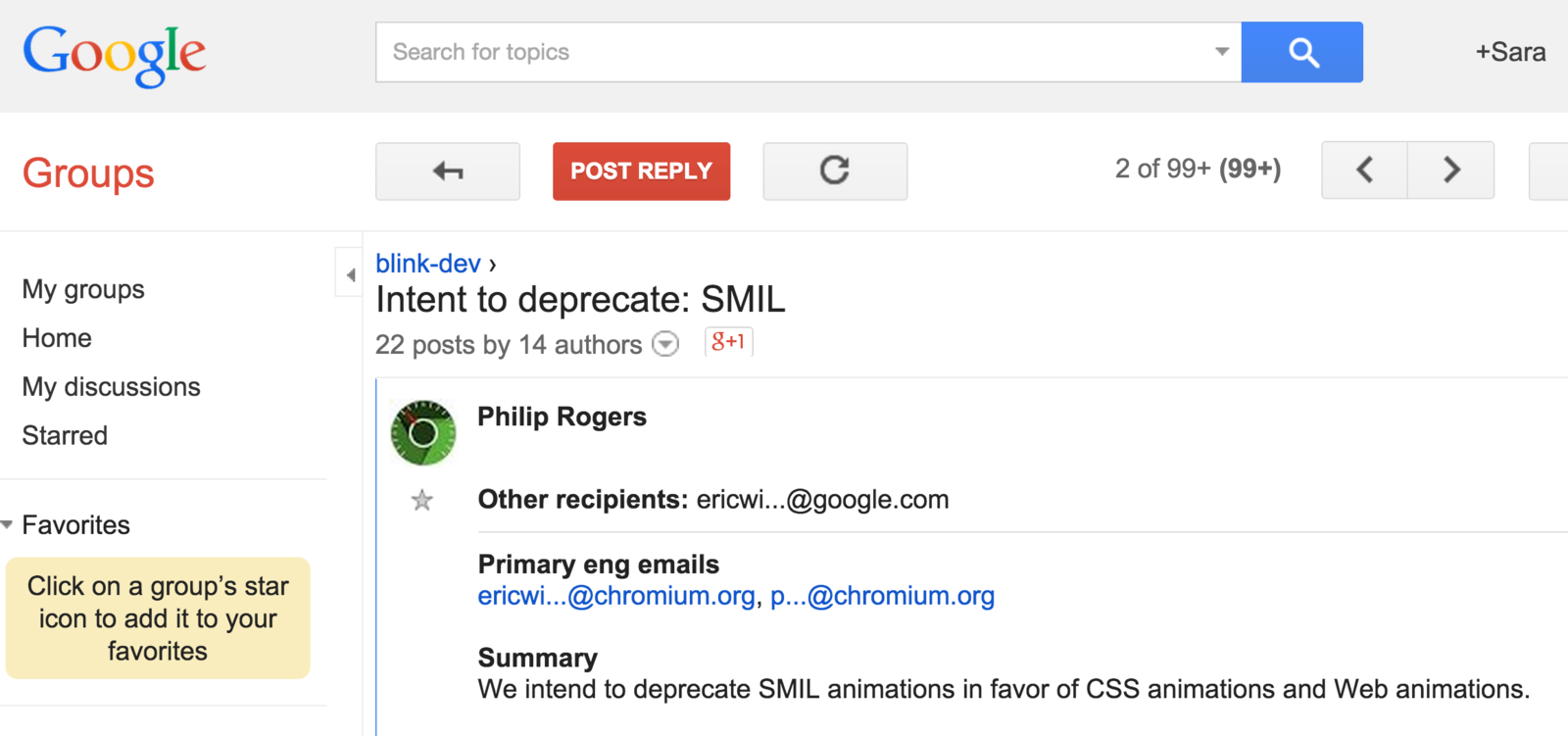

https://groups.google.com/a/chromium.org/forum/#!topic/blink-dev/5o0yiO440LM

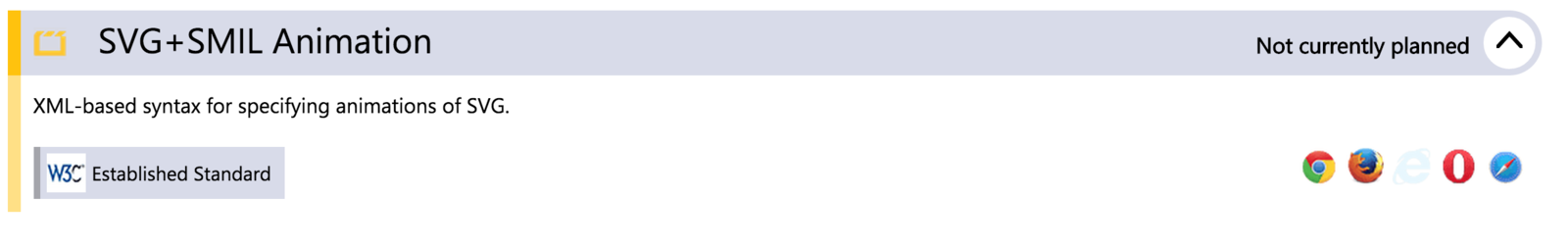

https://status.modern.ie/svgsmilanimation?term=SMIL

Filling in SMIL's Shoes

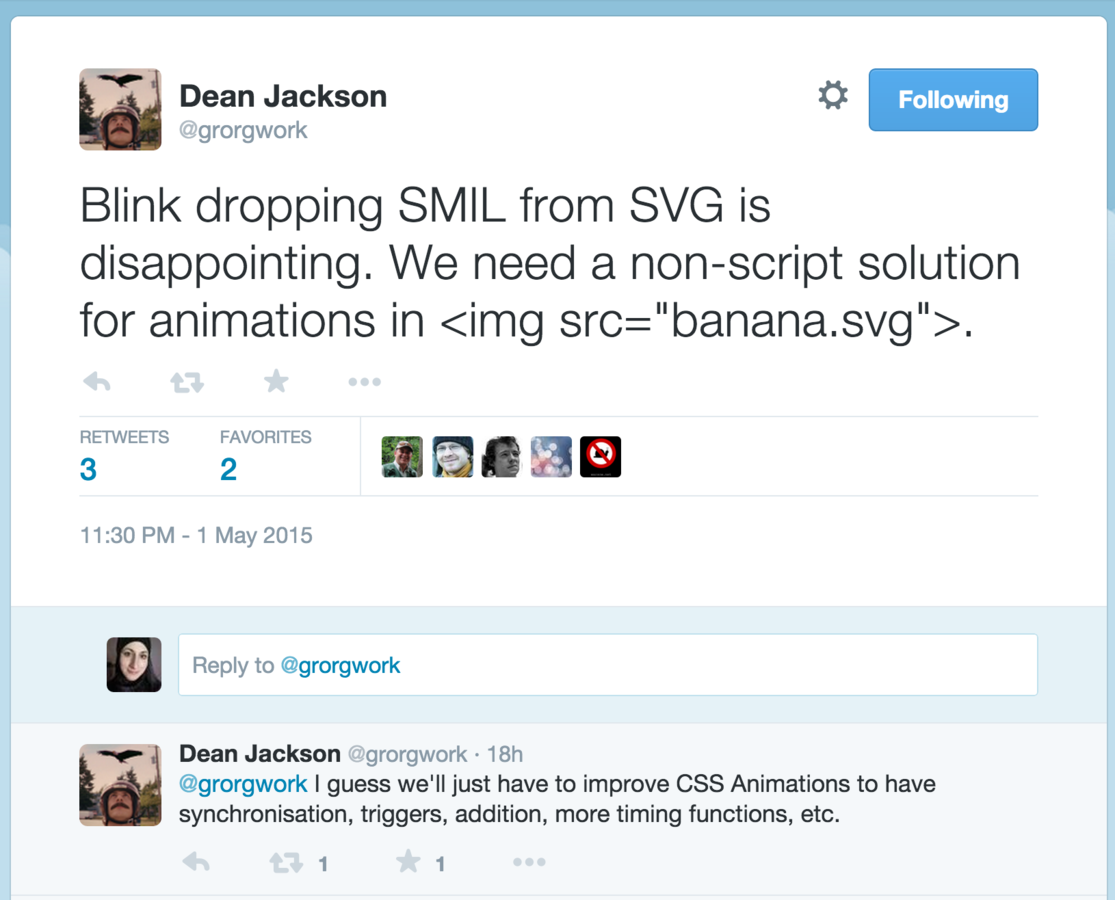

https://twitter.com/grorgwork/status/594237422801555456

What do we do with SMIL?

https://birtles.wordpress.com/

http://tympanus.net/Development/TextInputEffects/index2.html

Animating Path Data / Shapes

We need some means of animating path data such as the ‘d’ attribute on an SVG element.

Path animation module?

—Brian Birtles, Mozilla

Adding and Syncing CSS Animations

Improve CSS Animations to have synchronisation, triggers, addition, more timing functions, etc.

—Dean Jackson, Apple

https://twitter.com/grorgwork/status/594237737013682176

Motion Along Arbitrary Paths in SMIL

<animateMotion
           xlink:href="#circle"
           dur="1s"
           begin="click"
           fill="freeze"
           path="M0,0c3.2-3.4,18.4-0.6,23.4-0.6c5.7,0.1,10.8,0.9,16.3,2.3    c13.5,3.5,26.1,9.6,38.5,16.2c12.3,6.5,21.3,16.8,31.9,25.4c10.8,8.7,21,18.3,31.7,26.9c9.3,7.4,20.9,11.5,31.4,16.7
    c13.7,6.8,26.8,9.7,41.8,9c21.4-1,40.8-3.7,61.3-10.4c10.9-3.5,18.9-11.3,28.5-17.8c5.4-3.7,10.4-6.7,14.8-11.5
    c1.9-2.1,3.7-5.5,6.5-6.5"
/>

<animateMotion xlink:href="#circle" dur="1s" begin="click" fill="freeze">
    <mpath xlink:href="#motionPath" />
</animateMotion>

<path id="motionPath" d="..." />

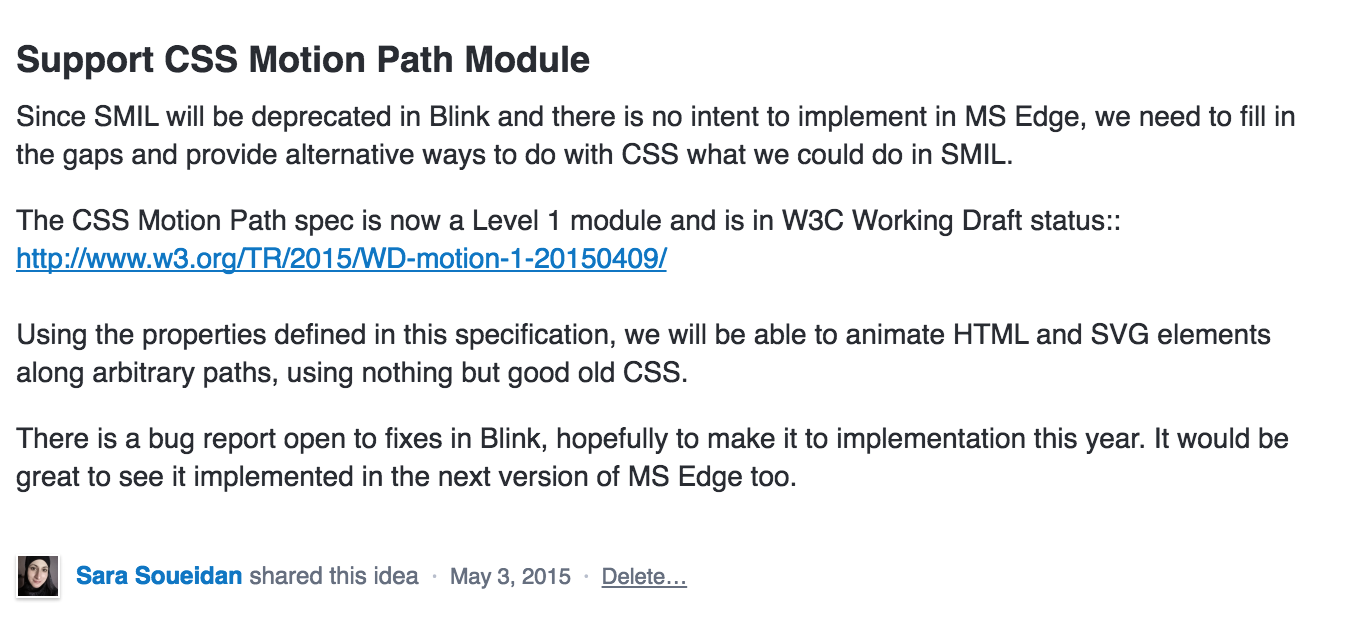

Motion Along Arbitrary Paths in CSS

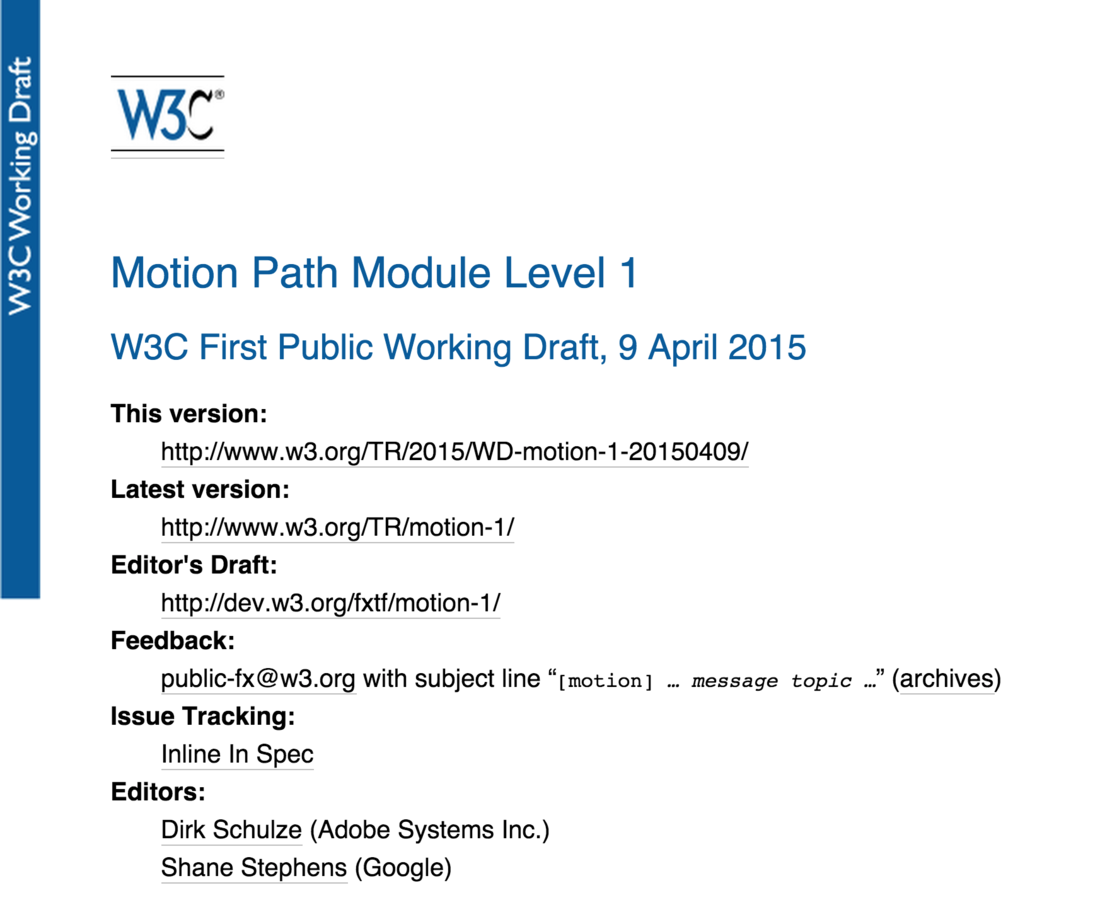

http://www.w3.org/TR/2015/WD-motion-1-20150409/

https://wpdev.uservoice.com/forums/110705-dev-platform/suggestions/7804467-support-css-motion-path-module

Vote:

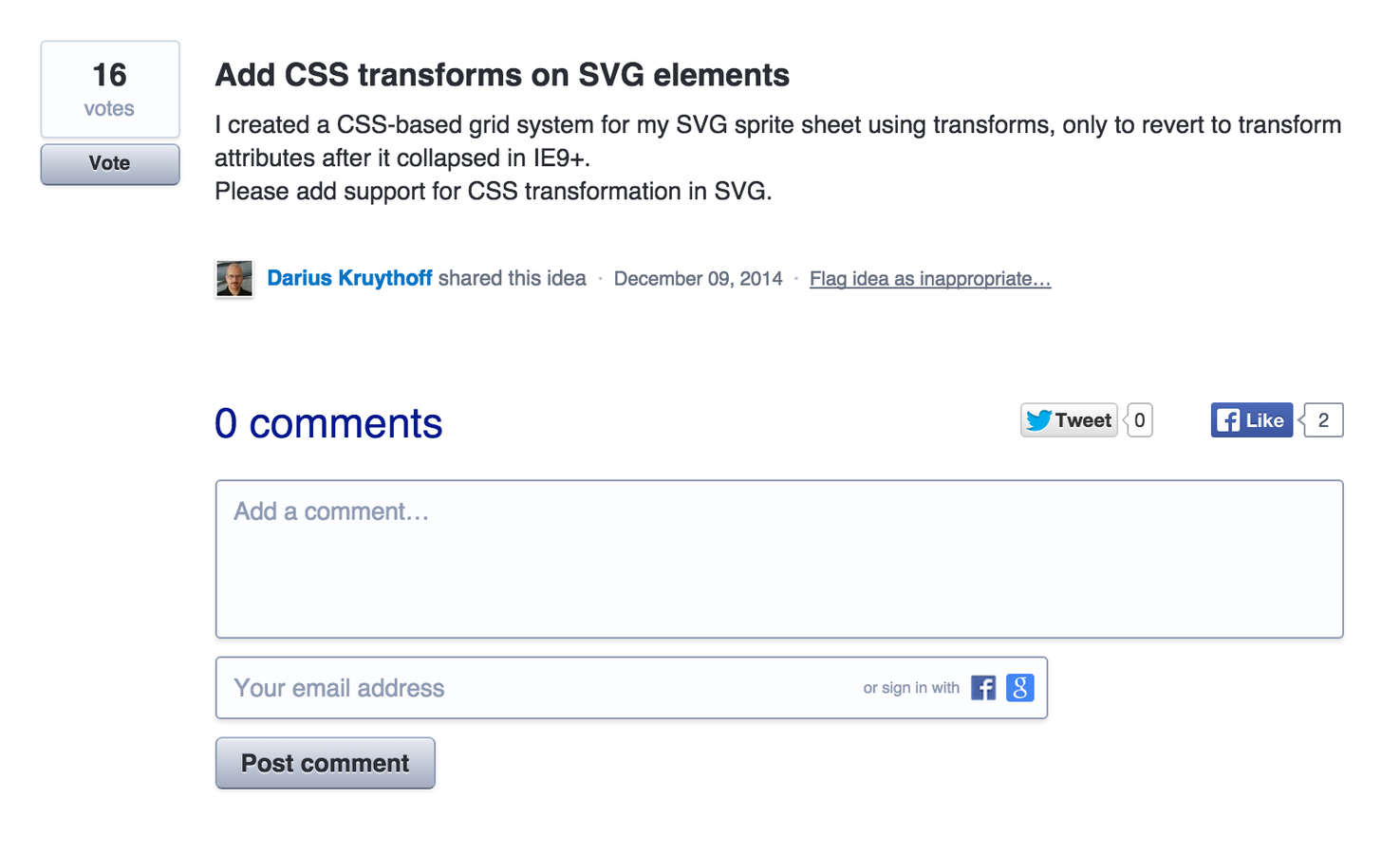

CSS Transforms On SVG Elements

Currently work in all browsers but IE/MSEdge
Performance isn't at its best in most browsers but hopefully will improve.

Vote:

https://wpdev.uservoice.com/forums/257854-internet-explorer-platform/suggestions/6820655-add-css-transforms-on-svg-elements

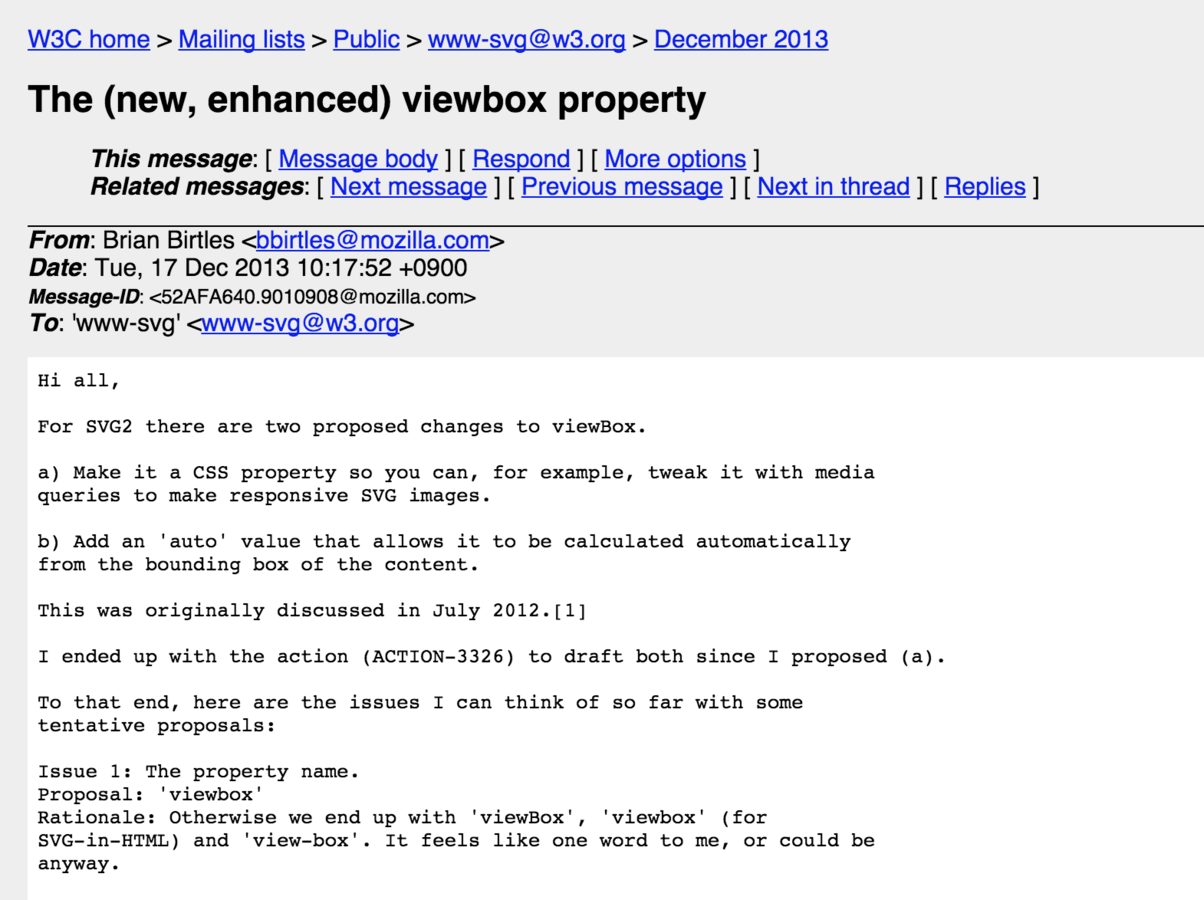

Wishlist: CSS viewBox Property

The SVG viewBox Attribute

It goes in the <svg> declaration.. (among other elements).
It establishes a user coordinate system on the SVG.
It is made up of four components: "vx vy width height".
These components specify the origin and dimensions of the user coordinate system.
By changing the origin of the viewBox, we can crop or extend the SVG canvas.

Live Demo'ing

<style>

@media screen and (max-width: 480px) {
    svg {
        viewBox: 100 0 250 391;

    }
}

/* etc. */

</style>

SVG Art Direction

Current Status

https://lists.w3.org/Archives/Public/www-svg/2013Dec/0080.html

Avoid art-directing an SVG using viewBox if the image's size is too big to serve on mobile.

#perfmatters

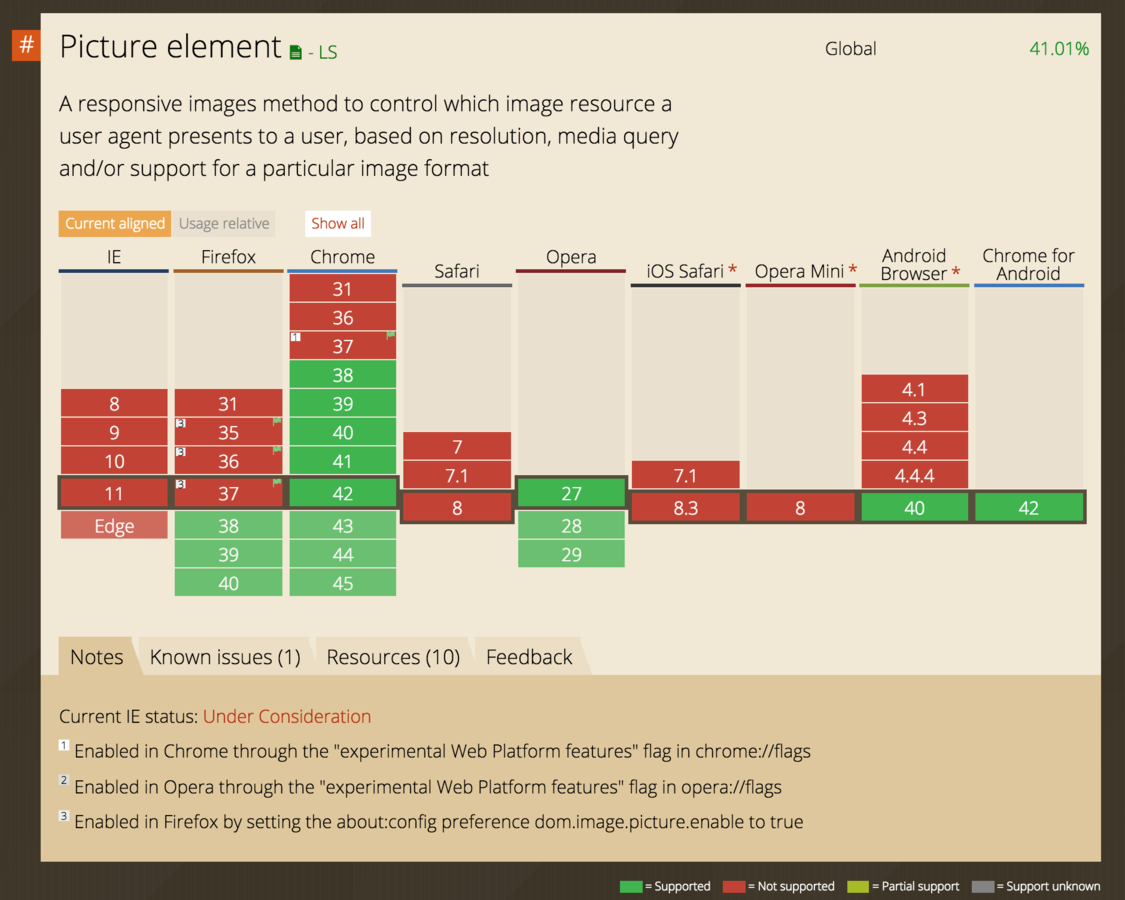

SVG Art Direction & Fallback with <picture>

<picture>
    <source type="image/svg+xml" srcset="path/to/image.svg">

    <img src="path/to/fallback.png" alt="...">
</picture>

SVG Art Direction & Fallback with <picture>

<picture>
    <source type="image/svg+xml" srcset="path/to/logo.svg">

    <img src="path/to/logo-1x.png" srcset="path/to/logo-2x.png 2x, path/to/logo-3x.png 3x" alt="Logo description">
</picture>

SVG Art Direction & Fallback with <picture>

<picture>
    <source type="image/svg+xml" srcset="path/to/banner.svg">
    <img
      sizes="(min-width: 640px) 80vw, 100vw"
      srcset="banner-300.jpg 300w,
              banner-400.jpg 400w,
              banner-700.jpg 700w,
              banner-1200.jpg 1200w,
              banner-1600.jpg 1600w,
              banner-2000.jpg 2000w"
      src="banner-default-fallback.jpg"
      alt="Banner description">
</picture>

SVG Art Direction & Fallback with <picture>

<picture>
    <source
        media="(max-width: 640px)"
        srcset="header--small.svg"
        type="image/svg+xml">
    <source
        media="(max-width: 1024px)"
        srcset="header--medium.svg"
        type="image/svg+xml">
    <source
        srcset="header--full.svg"
        type="image/svg+xml">

    <img src="header--default-fallback.jpg" alt="Header description..">
</picture>
