PyCon Australia 2011

Senthil Kumaran

senthil@uthcode.com

http://www.uthcode.com

• Python Core Developer.

• Maintainer of urllib2 and related modules.

• Improve the basic networking modules in stdlib.

• Being aware of the ecosystem of networking tools available.

• Most of the modules are built on top of socket module.

• They are highlevel modules implmenting Specifications mostly from RFC.

• Provide commonly used helper functions.

In Computing, Network Programming is essentially identified as socket programming or client-server programming, involves writing computer programs that communicate with other programs across the Computer Network. The program initiating the communication is called the client and the program waiting for the communication to get initiated is called the server. The client and the server process together form the distributed system. The connection between the client and the server process may be connection oriented (TCP/IP or session) or connectionless (UDP)

The program that can act both as server and client is based on peer-to-peer communication. Sockets are usually implemented by an API library such a Berkeley sockets, first introduced in 1983. The example functions provided by the API library include:

* socket() - creates a new socket of certain type, identified by the
  integer number and allocates system resources to it.
* bind() is used at the server side; associates a socket with a socket
  adddress structure, typically a IP Address and a Port number.
* listen() is used again on the server side, causes a bound TCP socket to
  listen to enter a listening state.
* connect() is used on the client side; used to assign a free local port
  number to the socket. It causes an attempt to establish a new TCP
  Connection.
* accept() is used on the server side; It accepts a received incoming
  connect() request and creates a new socket associated with the socket
  address pair for this connection.
* send(), recv(), write(), read() or recvfrom() and sendto() are used for
  sending and receiving data.
* close() is used to terminate the connection and release the resources
  allocated to the socket.

• Mercurial

• Google Code (and google-cl)

• youtube-dl

• Bittorrent

• Mailman

• webbrowser

• cgi

• wsgiref

• uuid

• ftplib

• poplib

• imaplib

• smtplib

• telnetlib

• urllib -> urllib.request, urllib.response, urllib.parse

• urllib2 -> urllib.request, urllib.response, urllib.parse

• urlparse -> urllib.parse

  http://www.python.org/dev/peps/pep-3108/

• httplib -> http.client

• cookiekib -> http.cookiejar

• Cookie -> http.cookies

• BaseHTTPServer -> http.server

• SimpleHTTPServer -> http.server

• CGIHTTPServer -> http.server

• SocketServer -> socketserver

• xmlrpclib -> xmlrpc.client

• SimpleXMLRPCServer -> xmlrpc.server

• DocXMLRPCServer -> xmlrpc.server

• Higher Level Interface for Fetching Data from the Web.

• Clients/ Client libraries which handle URLs.

• urllib.urlopen

• Create a Request Object.

• Have different Handlers depending upon the Protocol.

• Get the Response by the corresponding Handler object.

• Support for SSL certificates for HTTPS. (3.2)

• POST an iterable. (3.2)

• Transparent Gzip support. (3.2)

• Numerous bug fixes.

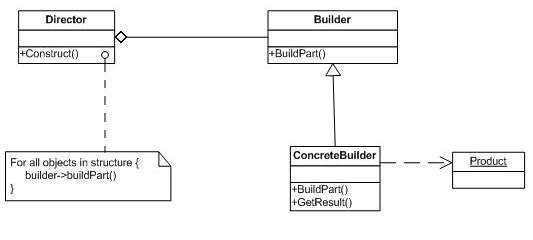

• Builder Design Pattern

• http://stackoverflow.com/questions/757743/what-is-the-difference-between-builder-design-pattern-and-factory-design-pattern

• http://en.wikipedia.org/wiki/Builder_pattern

• http://en.wikipedia.org/wiki/Factory_method_pattern

• GET

import urllib2
req = urllib2.Request('http://www.pycon-au.org')
data = req.read()

• POST

import urllib
postdata = urllib.urlencode({'form':'value'})
req = urllib2.urlopen('http://www.postbin.org',data=postdata)

import urllib2
import getpass
URL = 'http://livejournal.com/users/phoe6/data/rss?auth=digest'
ah = urllib2.HTTPDigestAuthHandler()
password = getpass.getpass()
ah.add_password('lj','http://phoe6.livejournal.com/','phoe6',password)
urllib2.install_opener(urllib2.build_opener(ah))
r = urllib2.Request(URL)

import urllib2

class SmartRedirectHandler(urllib2.HTTPRedirectHandler):
    def http_error_302(self, req, fp, code, msg, headers):
        result = urllib2.HTTPRedirectHandler.http_error_302(self,
                        req, fp, code, msg, headers)
        result.status = code
        return result

• Parse the URLs into its constituents.

• It is required when are building bigger applications.

• Referencing sections within pages.

• Parse IPv6 URLs too.

• It is the underlying layer to the urllib.

• It implements HTTP/1.1 spec.

• Implements the HTTP States on top of socket.

• Use httplib directly to do HEAD, PUT request.

• Defines the FTP class and related items. The FTP class implments the client side FTP protocol.

• Internally used by urllib module for handling ftp urls.

• Got support FTP TLS from Python 2.7 onwards.

• Easy interfaces for many common tasks. Focus is on easy of use.

import requests
r = requests.get('https://api.github.com', auth=('user', 'pass'))
print r.status_code

• feature-rich

import httplib2
h = httplib2.Http(".cache")
h.add_credentials('user', 'pass')
r, content = h.request("https://api.github.com", "GET")
print r['status']
print r['content-type']

• Keep-Alive support.

• Digest, Basic, WSSE authentication.

• Caching that understands Cache-Control headers.

• Twisted framework provides the facility to build an asynchronous, event-driven applications for Distributed Network Environment.

• You will understand all these terminologies if you just find reason to go ahead and build one. Most common application.

• Differeds

• Reactor pattern.

from twisted.internet.protocol import Factory, Protocol
from twisted.internet import reactor

class QOTD(Protocol):
    def connectionMade(self):
        ...

class QOTDFactory(Factory):
    protocol = QOTD

reactor.listenTCP(8007, QOTDFactory("configurable quote"))
reactor.run()

Twisted framework provides the facility to build an asynchronous, event-driven applications for Distributed Network Environment. You will understand all these terminologies if you just find reason to go ahead and build one. Twisted is a platform for developing Internet applications. In the Twisted, internet term actually denotes internetworking. At the core of Twisted Framework is its network layer, which can be used to integrate any existing protocol as well as model new ones. Twisted is a pure python framework.

Twisted supports Asynchronous programming and deferred abstraction, which symbolizes a promised result and which can pass eventual result to handler functions.

A fundamental feature of Network Programming is waiting for data. The Normal Model when using twisted framework is by using Non-Blocking Calls. When dealing with many connections in one thread, the scheduling is the responsiblity of the application, not the operating system, and is usually implemented by calling a registered function when each function is ready to go for reading or writing - commonly known as asynchronous, event based, callback based programming.

In synchronous programming, a function requests data, waits for the data, and then processes it. In asynchronous programming, a function requests the data, and lets the library call the callback function when the data is ready.

It is the class of concurrency problems, non-computationally intensive tasks that involve an appreciable delay that deferreds are designed to help solve. They do this by giving a simple management interface for callbacks and applications. blocking - means, if one tasks is waiting for data, the other task cannot get CPU but also waits until the first tasks finishes. The typical asynchronous model to notify an application that some data is ready is called as callback.

Twisted uses Deferred objects to managed callback sequence. Libraries know that they make their results available by using Deferred.callback and errors by Deferred.errback.

How does the parent function or its controlling program know that connection does not exist and when it will know, when the connection becomes alive?

Twisted has an object that signals this situation, it is called twisted.internet.defer.Deferred. Deferred has two purposes; first is saying that I am a signal, of whatever you wanted me to do is still pending; second you can ask differed to run things when the data arrives. The way to tell the deffered what to do when the data arrives is by defining a callback - asking the deferred to call a function once the data arrives.

Deferreds are an object which represent a promise of something; Like getPage() returned a Deferred object, which means that when the getPage is called ( It may not be called sequentially, because it is asynchronous); a callback may be attached to the defered object which will ask it do whatever with the data, in our case, the callback was to print the data.

If nothing else is understood, please understand that you create a differed object, add a callback function to that object and add an errorback function to that object. Differed will get called after a particular period of time or some data is avaiable.Differeds are the signals for asynchronous functions to use to pass results onto the callbacks, but using them does not guarantee that you have asynchronous functions.What Differeds dont do: Make your code asynchronous!.

twisted.internet.defer.Deferred is a promise that the function at some point in time will have a result.

The Deferred mechanism, standardizes the application programmers inferface with all sort of blocking and delayed operations. It is possible to adapt, synchronous functions to return Deferred. Sometimes you want to be notified after several different events have all happened, rather than waiting for each one individually.

You may want to wait for all connections in a list to close.

Generating Deferreds is a Document introducing writing of Asynchronous functions generating deferreds. deferreds are not a non-blocking talisman; they are a signal for asynchronous functions to use to pass results to callback once the results are available.

Returning Deferreds from synchronous functions; reasons :- API compatiblity with another function which returns deferred or making the function asynchronous in the future. Requesting method requests a data; and gets a Deferred object. Requesting method attaches callbacks to the Deferred object,

Twisted also provides facility to run the blocking function in a separate thread instead of blocking them.

A Twisted Protocol handles code in an asynchronous manner. What this means is that the Protocol does not wait for an event, but rather handles the event as they arrive from network.In the Twisted client, an instance of the Protocol class will be instantiated when you connect to the Server and will go away when the connection is finished.

Interface classes are a way of specifying what methods and attributes a Protocol provides.

• event: Event Driven programming or Event Based Programming is where program flow happens based on events like mouse movement or key press or signal from another thread.

• Event Driven Programming is paradigm, in which there is a main-loop, which does event-detection and event-handling.

• Reactor: The reactor design pattern is a concurrent programming pattern, for handling service requests delivered concurrently to a service handler by one or more inputs.

• The service handler then demultiplexes the incoming requests and dispatches them synchronously to associated request handlers.

The event loop almost always operates asynchronously with the message originator. The event loop forms the central constuct flow of the program, is the highest level of control within the program. It is often termed as the main-loop or the main-event loop.

The event loop is the specific implementation techniques of system which does message passing.

Under Unix, everything is a file-paradigm naturally leads to a file based event-loop. select and poll system calls monitor a set of file-descriptors for events.

One of few things in Unix that do not confirm to file descriptors are asynchronous events (signals); signals are received in signal handlers, small, limited piece of code that run while rest of the task is suspended.

Twisted project supports TCP, UDP, SSL/TLS and IP Multicast, Unix Domain Sockets, a large number of protocols such as HTTP, XMPP, NNTP, IMAP, SSH, IRC, FTP.

Senthil Kumaran <senthil@uthcode.com>

SocketServer

• Handling synchronous network requests.

• Helper classes for Mixins.

  +------------+
  | BaseServer |
  +------------+
        |
        v
  +-----------+        +------------------+
  | TCPServer |------->| UnixStreamServer |
  +-----------+        +------------------+
        |
        v
  +-----------+        +--------------------+
  | UDPServer |------->| UnixDatagramServer |
  +-----------+        +--------------------+

• BaseHTTPServer

• SimpleHTTPServer

• CGIHTTPServer

python -m SimpleHTTPServer 8000

import xmlrpclib
from SimpleXMLRPCServer import SimpleXMLRPCServer

def is_even(n):
    return n%2 == 0

server = SimpleXMLRPCServer(("localhost", 8000))
print "Listening on port 8000..."
server.register_function(is_even, "is_even")
server.serve_forever()

• XML-RPC client code; it handles all the details of translating between conformable Python objects and XML on the wire.

import xmlrpclib
proxy = xmlrpclib.ServerProxy("http://localhost:8000/")
print "3 is even: %s" % str(proxy.is_even(3))
print "100 is even: %s" % str(proxy.is_even(100))
