Drupal
&

Design System

Shibin Das

www.drupal.org/u/d34dman

BE-FE Conflicts

About

Disconnected

Separated

Disassociated

We establish boundaries with clear responsibilities.

It also created the WALL.

THEM

YOU

THEM

YOU

Design System

Carbon Design System

Material Design System

Style Guide

Component Library

Carbon Design Systems Component library

Single source of truth
Implementation / Technology specific

Guidelines & Principles

Code

It is always evolving

Component Library Setup

Node (for yarn install and stuff)
PHP (for composer install and stuff)
Miyagi / Patternlab / Storybook

NOTE: "Miyagi" may be used in examples, but in reality it doesn't matter which Design System is used.

Frontend Developer

Must be Familiar with

Miyagi / Patternlab / Storybook
Twig
Node

Bonus

Composer

Patternlab.io Website

docs.miyagi.dev Website

Drupal Setup

Drupal 8/9/10
Custom Theme

Drupal Developer

Must be Familiar with

Entities
Fields
Template Files
Template Preprocessing
Field Formatters
View Modes
Render array

Drupal

Why

Component Library

Why

About

Patterns

&

Quality Control

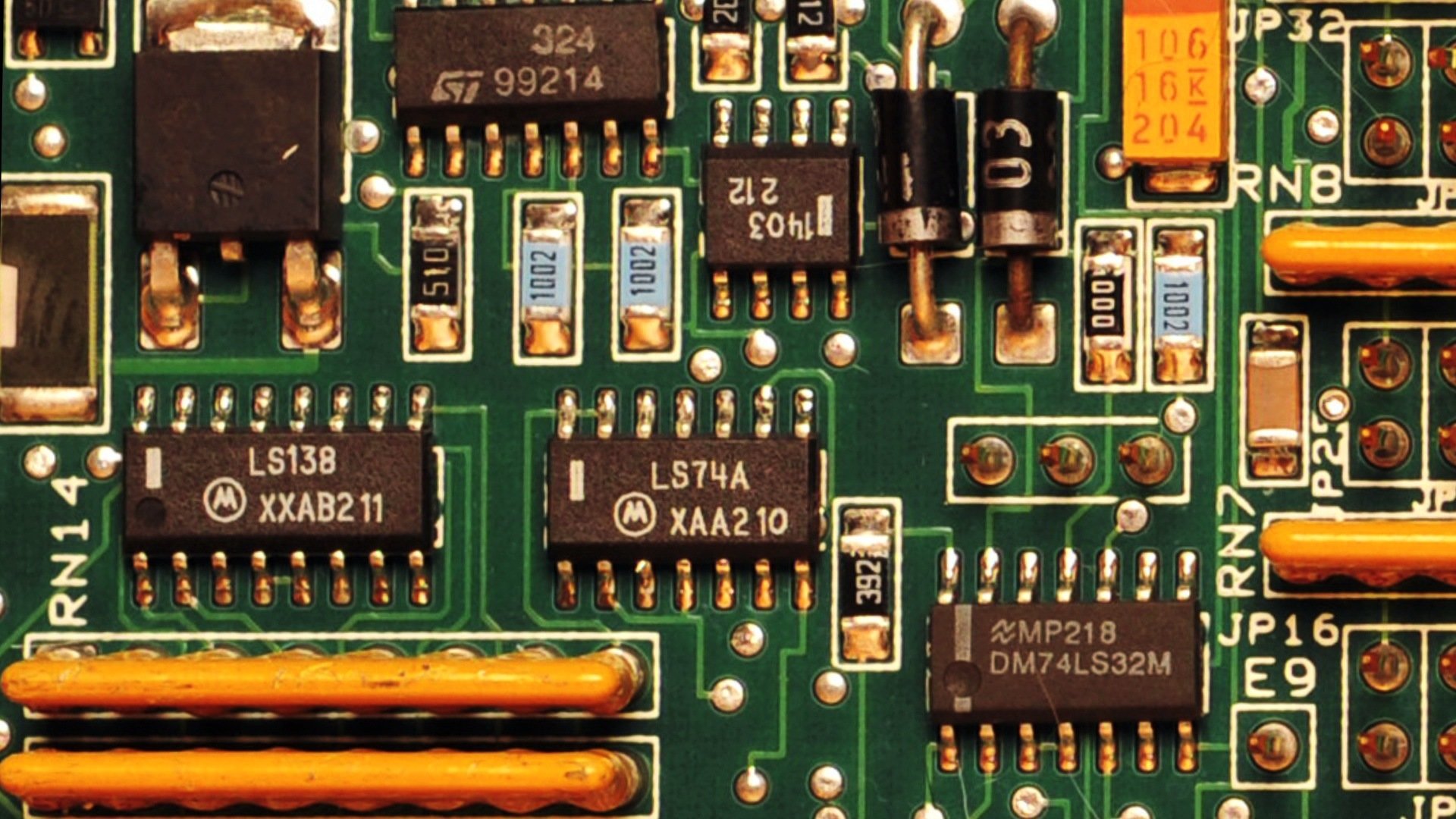

Printed Circuit Board

Could you spot an odd one out?

Text

Orienting the components in a similar manner help prevent assembly error

Or at least makes spotting errors much easier.

Text

Following a convention helps in

quality control

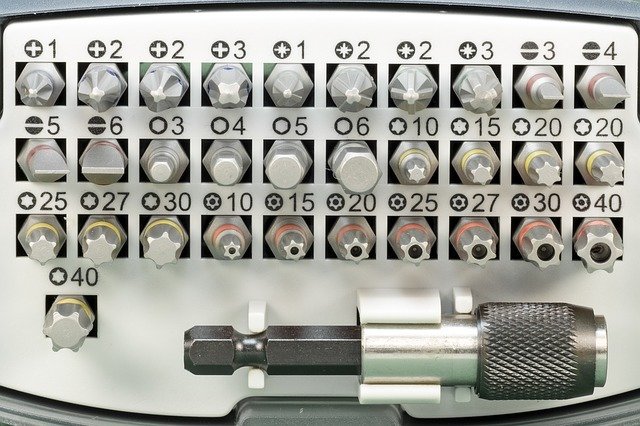

Having a wide collection of screwdrivers doesn't justify the use of wide types of screwdrivers

Key Takeaways

Have some convention in your project

Before we Proceed

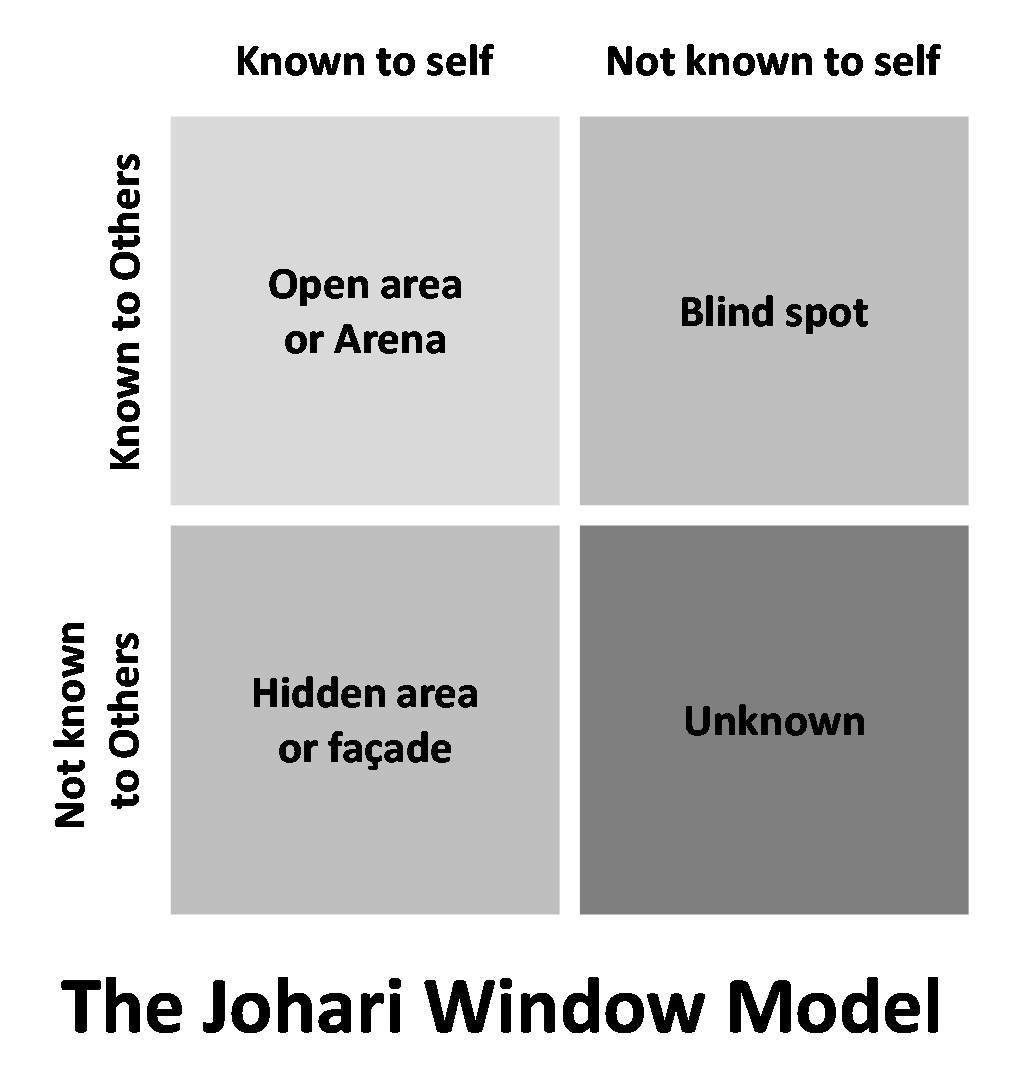

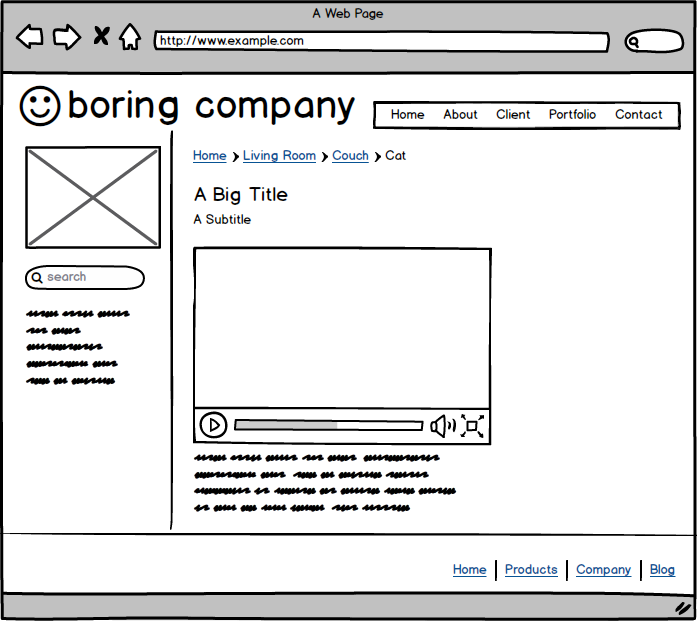

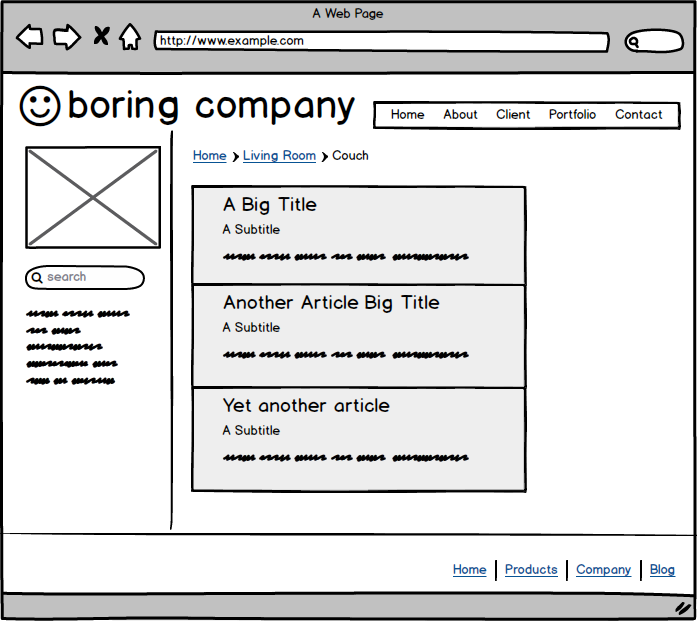

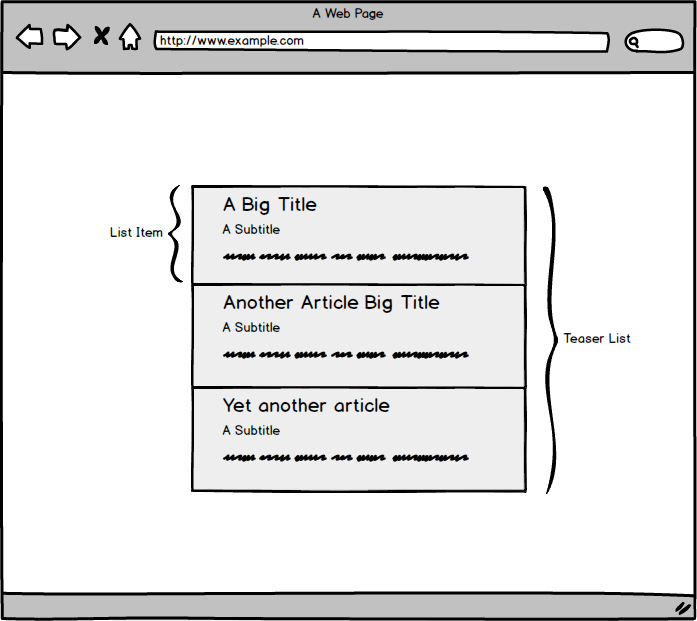

Mockups

Using Balsamiq Mockups 3

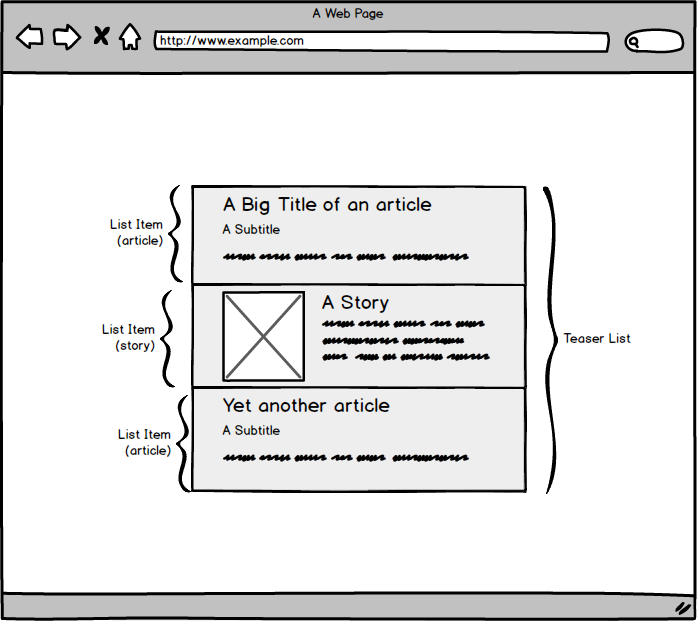

@template/teaser-list/teaser-list.twig

<div class="TeaserList">
  {% for item in items %}
    <div class="TeaserList-item">
      {{ item|raw }}
    </div>
  {% endfor %}
</div>

Patternlab files

Twig templates

GREEN

Drupal Template files

teaser-list.html.twig

{% include "@template/teaser-list/teaser-list.twig" with teaser_list_data %}

Twig Templates

BLUE

Preprocess Function (Drupal)

bc_utils.module

<?php

/**
 * Implements hook_block_view().
 */
function bc_utils_block_view($delta) {
  $block = [];
  switch ($delta) {
    case 'teaser_list':

      // Retrieve list of article nodes using Views or Entity Field Query.
      $article_nodes = _bc_utils_get_article_teaser_list_nodes($max_items = 3);
      $items = [];
      foreach ($article_nodes as $article_node) {
        $items[] = node_view($article_node, 'teaser');
      }

      // Prepare block render array.
      $block['subject'] = t('Teaser List');
      $block['content'] = [
        '#theme' => 'teaser_list',
        '#teaser_list_data' => [
          'items' => $items,
        ],
      ];
  }
  return $block;
}

PHP Code

ORANGE

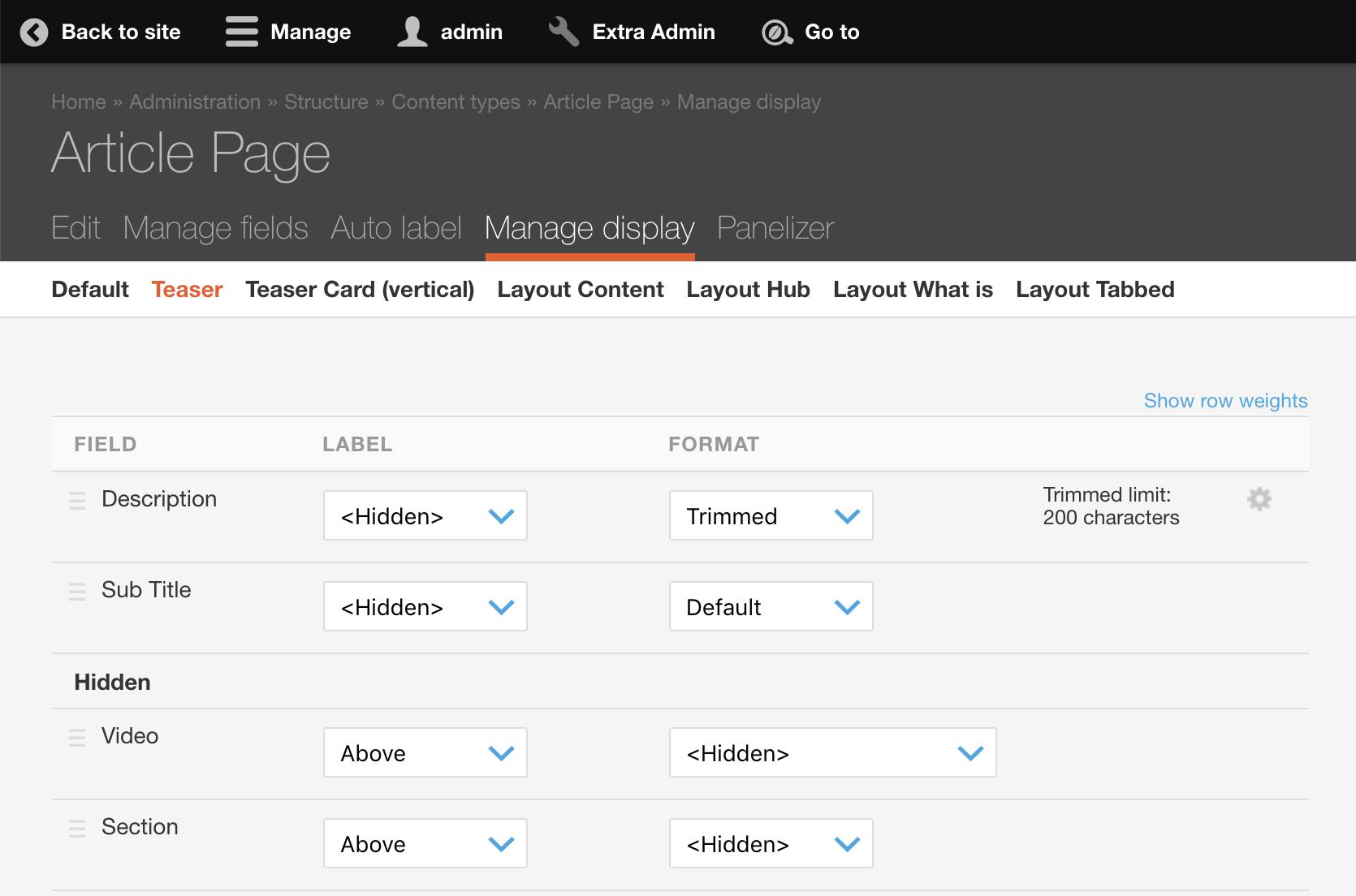

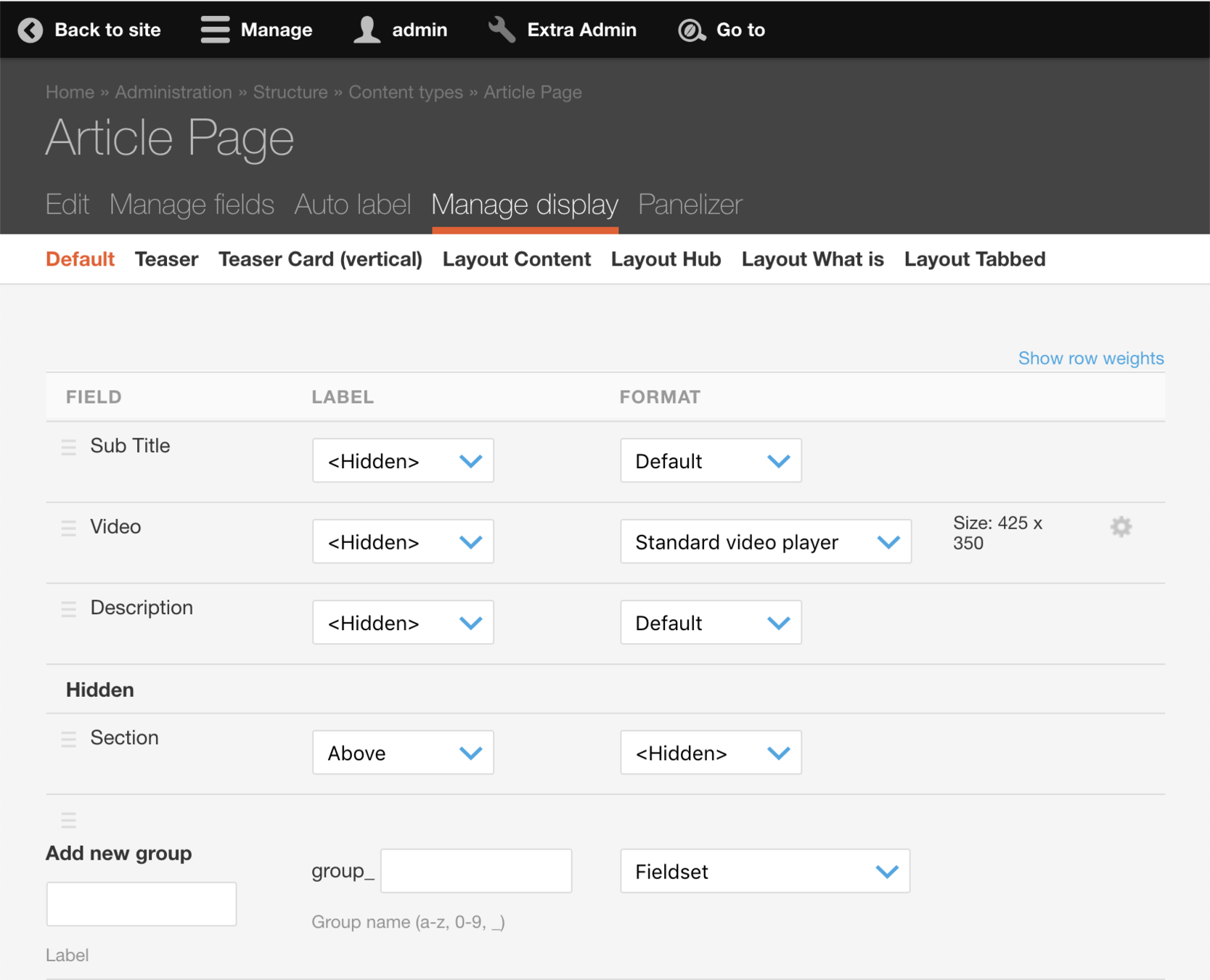

Drupal UI Configurations

Click Click Click

An entity type is a base class
A bundle is an extended class
A field is a class member, property, variable or field instance (depending on your naming preference)
An entity is an object or instance of a base or extended class

Entity Type

Base Class

Node
User
Comments
Taxonomy Term
Vocabulary
Files

Bundle

Extended Class

Node (Content Types)
- Article
- Page
User
- User
Taxonomy Term
- Tags
- Pathology

Field

Property

Node
- Article
  - Title
  - Description
  - Image
- Page
  - Title
  - Related Article
  - Tag
  - Copy

Entity

Object

Node : About : My Dog is black
Node : Blog : My Cat has issues
Node : Blog : Two beds and a coffee machine
Tag : Animal : Feline
Tag : Animal : Canidae

Basics

Integrating

Lets say you have some designs that needs to be integrated into Drupal

Frontend Developers (FE) starts working in Patternlab

Get your components reviewed in Patternlab with demo data

Use Drupal Templates to link Patternlab components with Drupal

Pass variables from Drupal to Patternlab through theme_preprocess functions

Identify the design component (in Miyagi) you want to integrate
Identify the Drupal theme "template" you have to integrate

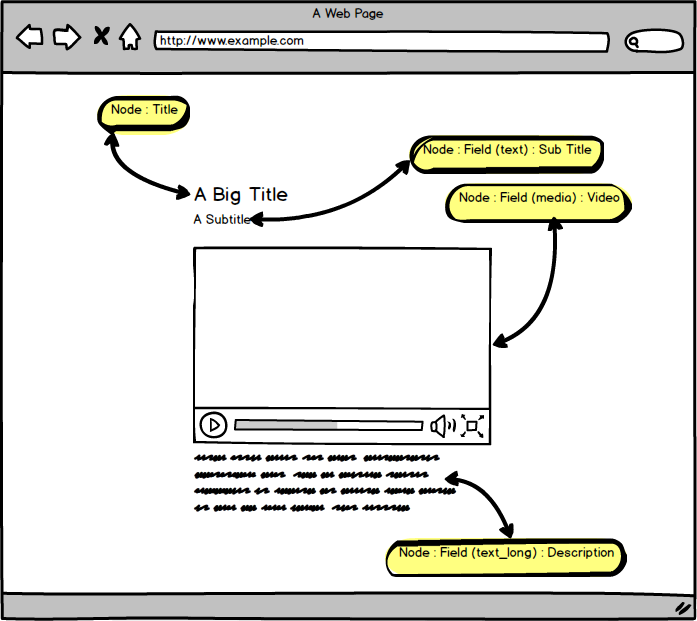

Map the variable from Drupal to design component
1. Do this mapping either in the drupal theme template
2. Do the mapping in drupal theme preprocess function

Pros

Design System folder and file architecture is independent of Drupal Templates
- This avoids polluting Drupal "templates" with design system components
Design System development, maintenance and testing can be done without depending on Drupal
Variable names used in design system doesn't have Drupal lingo like "field_", "nid", "tid", etc.
Design system doesn't need to include logic for how the data is "fetched"

Cons

Data-structure that Design System uses may not be natural for Drupal Template system 😡😡😡
Components may not be compatible with Drupal Entity Templates 😡😡😡😡
Difficult for Drupal Developers to understand design system and its guidelines 😡😡
Extra step involved in connect Drupal Template with Design system 😡

Key Takeaways

Frontend Developers don't need Drupal setup to work.
Use Drupal Templates as liaison between Patternlab and Drupal

Data Types

Integrating

Entity and fields

Everything Else

Page

Integrating

Header

Footer

Sidebar

Content

Breadcrumb

<!DOCTYPE html>
<html lang="{{ language.language }}" dir="{{ language.dir }}">
<head>
  {{ head }}
  <title>{{ head_title }}</title>
  {{ styles }}
</head>
<body class="{{ classes }}" {{ attributes }}>

  <div class="u-hiddenVisually" id="skip-link">
    <a href="#main-content" class="element-invisible element-focusable">
        {{ 'Skip to main content'|t }}
    </a>
  </div>

  {{ page_top }}
  {{ page }}
  {{ page_bottom }}
  {{ scripts }}

</body>
</html>

html.html.twig


{% include '@template-components/header/header.twig' %}

{% include '@template-components/messages/messages.twig' with messages %}

  {{ page.content_pre }}
  {{ page.content }}
  {{ page.content_post }}

{% include '@template-components/footer/footer.twig' %}

page.html.twig

{% extends "@templates/default/default.twig" %}

{% block messages %}
  {% include '@template-components/messages/messages.twig' with messages %}
{% endblock %}

{% block content %}
  {{ page.content_pre }}
  {{ page.content }}
  {{ page.content_post }}
{% endblock content %}

page.html.twig

{% set main_content %}
  {{ page.content_pre }}
  {{ page.content }}
  {{ page.content_post }}
{% endset %}
{% include "@templates/default/default.twig" with
  {
    content: main_content,
    messages: messages
  } only
%}

page.html.twig

Key Takeaways

Use "include" to use Design System components

Entity

Integrating

<div class="Article">
  <div class="Article-header">
    <h1 class="Article-title">
      {{ title }}
    </h1>
    <div class="Article-subTitle">
      {{ sub_title }}
    </div>
  </div>
  <div class="Article-content">
    <div class="Article-video">
      {{ video }}
    </div>
    <div class="Article-description">
      {{ description }}
    </div>
  </div>
</div>

@template/article/article.twig

<div class="Article">
  <div class="Article-header">
    <h1 class="Article-title">
      {{ title|raw }}
    </h1>
    <div class="Article-subTitle">
      {{ sub_title|raw }}
    </div>
  </div>
  <div class="Article-content">
    <div class="Article-video">
      {{ video|raw }}
    </div>
    <div class="Article-description">
      {{ description|raw }}
    </div>
  </div>
</div>

node--article.tpl.twig

{% include "@template/article/article.twig" with component_data only %}

@template/article/article.twig

<div class="Article">
  <div class="Article-header">
    <h1 class="Article-title">
      {{ title|raw }}
    </h1>
    <div class="Article-subTitle">
      {{ sub_title|raw }}
    </div>
  </div>
  <div class="Article-content">
    <div class="Article-video">
      {{ video|raw }}
    </div>
    <div class="Article-description">
      {{ description|raw }}
    </div>
  </div>
</div>

@template/article/article.twig

<div class="Article">
  <div class="Article-header">
    <h1 class="Article-title">
      {{ title|raw }}
    </h1>
    <div class="Article-subTitle">
      {{ sub_title|raw }}
    </div>
  </div>
  <div class="Article-content">
    <div class="Article-video">
      {{ video|raw }}
    </div>
    <div class="Article-description">
      {{ description|raw }}
    </div>
  </div>
</div>

node--article.tpl.twig

{% include "@template/article/article.twig" with component_data only %}

bc_utils.module

<?php

/**
 * Preprocess Article Node.
 */
function bc_utils_preprocess_node_article(&$vars) {
  $vars['component_data'] = [
    'title' => $vars['node']->title,
    'sub_title' => $vars['content']['field_article_sub_title'],
    'video' => $vars['content']['field_article_video'],
    'description' => $vars['content']['field_article_description'],
  ];
}

@template/article/article.twig

<div class="Article">
  <div class="Article-header">
    <h1 class="Article-title">
      {{ title|raw }}
    </h1>
    <div class="Article-subTitle">
      {{ sub_title|raw }}
    </div>
  </div>
  <div class="Article-content">
    <div class="Article-video">
      {{ video|raw }}
    </div>
    <div class="Article-description">
      {{ description|raw }}
    </div>
  </div>
</div>

bc_utils.module

<?php

/**
 * Preprocess Article Node.
 */
function bc_utils_preprocess_node_article(&$vars) {
  $vars['component_data'] = [
    'title' => $vars['node']->title,
    'sub_title' => $vars['content']['field_article_sub_title'],
    'video' => $vars['content']['field_article_video'],
    'description' => $vars['content']['field_article_description'],
  ];
}

@template/article/article.twig

<div class="Article">
  <div class="Article-header">
    <h1 class="Article-title">
      {{ title|raw }}
    </h1>
    <div class="Article-subTitle">
      {{ sub_title|raw }}
    </div>
  </div>
  <div class="Article-content">
    <div class="Article-video">
      {{ video|raw }}
    </div>
    <div class="Article-description">
      {{ description|raw }}
    </div>
  </div>
</div>

node--article.tpl.twig

{% include "@template/article/article.twig" with component_data only %}

bc_utils.module

<?php

/**
 * Preprocess Article Node.
 */
function bc_utils_preprocess_node_article(&$vars) {
  $vars['component_data'] = [
    'title' => $vars['node']->title,
    'sub_title' => $vars['content']['field_article_sub_title'],
    'video' => $vars['content']['field_article_video'],
    'description' => $vars['content']['field_article_description'],
  ];
}

@template/article/article.twig

<div class="Article">
  <div class="Article-header">
    <h1 class="Article-page-title">
      {{ title | raw }}
    </h1>
    <div class="Article-page-subtitle">
      {{ sub_title | raw }}
    </div>
  </div>
  <div class="Article-content">
    <div class="Article-content-video">
      {{ video | raw }}
    </div>
    <div class="Article-content-description">
      {{ description | raw }}
    </div>
  </div>
</div>

node--article.tpl.twig

{% include "@template/article/article.twig" with patternlab_data %}

bc_utils.module

<?php

/**
 * Preprocess Article Node.
 */
function sscild_frontend_preprocess_node_article(&$vars) {
  $vars['patternlab_data'] = [
    'title' => $vars['node']->title,
    'sub_title' => $vars['content']['field_article_sub_title'],
    'video' => $vars['content']['field_article_video'],
    'description' => $vars['content']['field_article_description'],
  ];
}

@template/article/article.twig

<div class="Article">
  <div class="Article-header">
    <h1 class="Article-title">
      {{ title|raw }}
    </h1>
    <div class="Article-subTitle">
      {{ sub_title|raw }}
    </div>
  </div>
  <div class="Article-content">
    <div class="Article-video">
      {{ video|raw }}
    </div>
    <div class="Article-description">
      {{ description|raw }}
    </div>
  </div>
</div>

node--article.tpl.twig

{% include "@template/article/article.twig" with component_data %}

bc_utils.module

<?php

/**
 * Preprocess Article Node.
 */
function bc_utils_preprocess_node_article(&$vars) {
  $vars['component_data'] = [
    'title' => $vars['node']->title,
    'sub_title' => $vars['content']['field_article_sub_title'],
    'video' => $vars['content']['field_article_video'],
    'description' => $vars['content']['field_article_description'],
  ];
}

Advantage of this strategy

Can be used for all entities
- Node
- User
- Block
- Paragraphs
Respects Language
Respects Access
Uses Field Formatters
Locale Aware

Dis-Advantage of this strategy

Extra wrappers around string thanks to render array and field formatters.
Can't be used for non entity
- Form and Form elements
- Views (unless entity view mode is used to print items)
Can't be used for custom theme functions
- Breadcrumb
- Menu
Can't make things super complicated for complex hierarchy

Key Takeaways

Use "view modes"
Use "field formatters"

List

Integrating

@template/teaser-list/teaser-list.twig

<div class="TeaserList">
  {% for item in items %}
    <div class="TeaserListt-item">
      <div class="TeaserList-item-Article-teaser">
        <h3>{{ item.title | raw }}</h3>
        <h4>{{ item.sub_title | raw}}</h4>
        <div class="TeaserList-item-Article-teaser-description">
          {{ item.description | raw }}
        </div>
      </div>
    </div>
  {% endfor %}
</div>

@template/teaser-list/teaser-list.twig

<div class="TeaserList">
  {% for item in items %}
    <div class="TeaserList-item">
      {{ item | raw }}
    </div>
  {% endfor %}
</div>

@template/article-teaser/article-teaser.twig

<div class="Article-teaser">
  <h3>{{ title | raw }}</h3>
  <h4>{{ sub_title | raw}}</h4>
  <div class="Article-teaser-description">
    {{ description | raw }}
  </div>
</div>

block--teaser-list.html.twig

{% include "@template/teaser-list/teaser-list.twig" with teaser_list only %}

node--article--teaser.html.twig

{% include "@template/article-teaser/article-teaser.twig" with component_data only %}

@template/teaser-list/teaser-list.twig

<div class="TeaserList">
  {% for item in items %}
    <div class="TeaserList-item">
      {{ item | raw }}
    </div>
  {% endfor %}
</div>

@template/article-teaser/article-teaser.twig

<div class="ArticleTeaser">
  <h3>{{ title | raw }}</h3>
  <h4>{{ sub_title | raw}}</h4>
  <div class="ArticleTeaser-description">
    {{ description | raw }}
  </div>
</div>

node--article--teaser.html.twig

{% include "@template/article-teaser/article-teaser.twig" with component_data only %}

@template/article-teaser/article-teaser.twig

<div class="ArticleTeaser">
  <h3>{{ title | raw }}</h3>
  <h4>{{ sub_title | raw}}</h4>
  <div class="ArticleTeaser-description">
    {{ description | raw }}
  </div>
</div>

teaser-list.tpl.twig

{% include "@template/teaser-list/teaser-list.twig" with teaser_list_data only %}

@template/teaser-list/teaser-list.twig

<div class="TeaserList">
  {% for item in items %}
    <div class="TeaserList-item">
      {{ item | raw }}
    </div>
  {% endfor %}
</div>

bc_utils.module

<?php

/**
 * Implements hook_block_view().
 */
function bc_utils_block_view($delta) {
  $block = [];
  switch ($delta) {
    case 'teaser_list':

      // Retrieve list of article nodes using Views or Entity Field Query.
      $article_nodes = _bc_utils_get_article_teaser_list_nodes($max_items = 3);
      $items = [];
      foreach ($article_nodes as $article_node) {
        $items[] = node_view($article_nodes, 'teaser');
      }

      // Prepare block render array.
      $block['subject'] = t('Teaser List');
      $block['content'] = [
        '#theme' => 'teaser_list',
        '#teaser_list_data' => [
          'items' => $items,
        ],
      ];
  }
  return $block;
}

teaser-list.tpl.twig

{% include "@template/teaser-list/teaser-list.twig" with teaser_list_data %}

@template/teaser-list/teaser-list.twig

<div class="Teaser-list">
  {% for item in items %}
    <div class="Teaser-list-item">
      {{ item | raw }}
    </div>
  {% endfor %}
</div>

bc_utils.module

<?php

/**
 * Implements hook_block_view().
 */
function bc_utils_block_view($delta) {
  $block = [];
  switch ($delta) {
    case 'teaser_list':

      // Retrieve list of article nodes using Views or Entity Field Query.
      $article_nodes = _bc_utils_get_article_teaser_list_nodes($max_items = 3);
      $items = [];
      foreach ($article_nodes as $article_node) {
        $items[] = node_view($article_nodes, 'teaser');
      }

      // Prepare block render array.
      $block['subject'] = t('Teaser List');
      $block['content'] = [
        '#theme' => 'teaser_list',
        '#teaser_list_data' => [
          'items' => $items,
        ],
      ];
  }
  return $block;
}

teaser-list.tpl.twig

{% include "@template/teaser-list/teaser-list.twig" with teaser_list_data %}

@template/teaser-list/teaser-list.twig

<div class="TeaserList">
  {% for item in items %}
    <div class="TeaserList-item">
      {{ item | raw }}
    </div>
  {% endfor %}
</div>

bc_utils.module

<?php

/**
 * Implements hook_block_view().
 */
function bc_utils_block_view($delta) {
  $block = [];
  switch ($delta) {
    case 'teaser_list':

      // Retrieve list of article nodes using Views or Entity Field Query.
      $article_nodes = _bc_utils_get_article_teaser_list_nodes($max_items = 3);
      $items = [];
      foreach ($article_nodes as $article_node) {
        $items[] = node_view($article_nodes, 'teaser');
      }

      // Prepare block render array.
      $block['subject'] = t('Teaser List');
      $block['content'] = [
        '#theme' => 'teaser_list',
        '#teaser_list_data' => [
          'items' => $items,
        ],
      ];
  }
  return $block;
}

Advantage of this Strategy

Making List component agnostic of its embedded items opens up a lot of possibility.

It aligns witch how Drupal templates works to start with.

As a bonus, we can now use the same teaser-list component to show list of teasers of different content types. These content types can have different fields and teaser template.

Advantage of this Strategy

The same logic can be applied for rendering fields which embed content on entities through

Entity Reference
Node Reference
Taxonomy Reference
Media items (Image, Responsive image, Video, ..)
Paragraphs

Key Takeaways

Make Parent component agnostic of embedded components.

Integrating

Fields

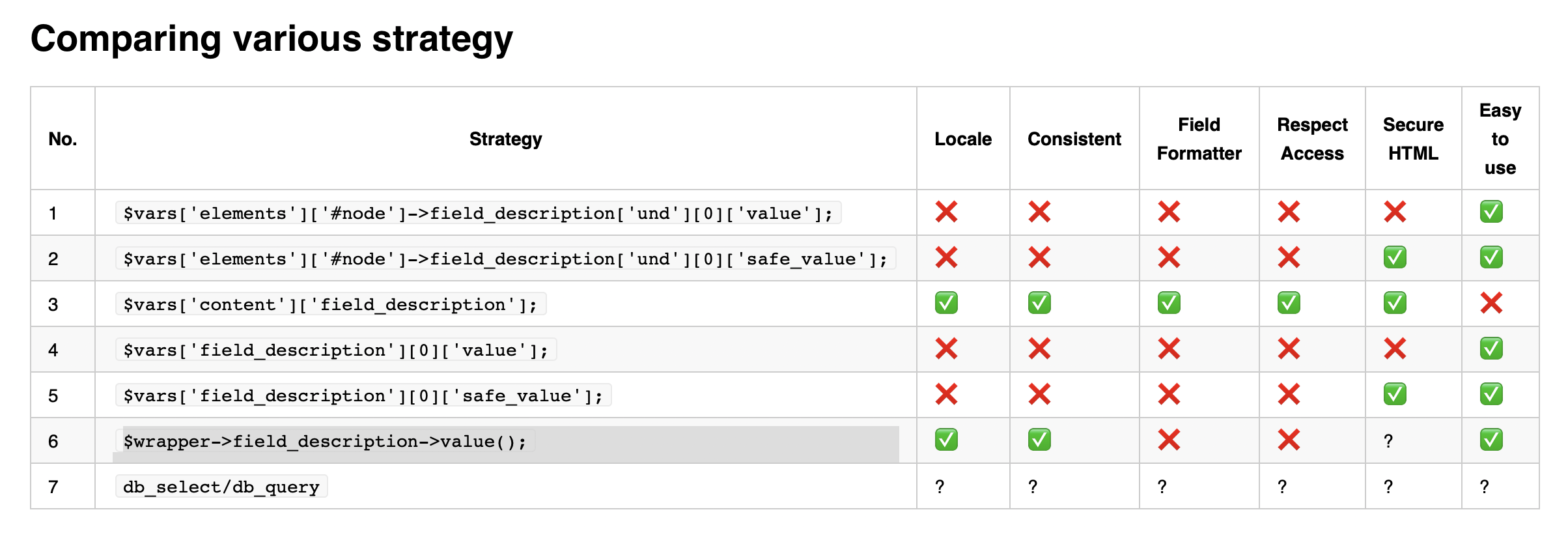

Mapping a text field in preprocess().

/**
 * Implements hook_preprocess_node().
 */
function my_module_preprocess_node(&$vars) {
    // A simple text field can be found in following places in variable $vars.

    // Inside the entity object.
    // CASE 1:
    $description = $vars['elements']['#node']->field_description['und'][0]['value'];
    // CASE 2:
    $description = $vars['elements']['#node']->field_description['und'][0]['safe_value'];

    // The following is a render array.
    // Present if the particular viewmode is configured to show the field.
    // CASE 3:
    $description = $vars['content']['field_description'];
}

Mapping a text field in preprocess().

/**
 * Implements hook_preprocess_node().
 */
function my_module_preprocess_node(&$vars) {
    // A simple text field can be found in following places in variable $vars.

    // Inside the $vars as fields, present when there is a value stored in database.
    // CASE 4:
    $description = $vars['field_description'][0]['value'];
    // CASE 5:
    $description = $vars['field_description'][0]['safe_value'];

}

Mapping a text field in preprocess().

/**
 * Implements hook_preprocess_node().
 */
function my_module_preprocess_node(&$vars) {
    // A simple text field can be found in following places in variable $vars.

    // You can use entity_metadata_wrapper to retrieve the property.
    try {
      $node = $vars['elements']['#node'];
      $wrapper = entity_metadata_wrapper('node', $node);
      // CASE 6:
      $description = $wrapper->field_description->value();
      // Which also allows you to fetch referenced entity and their properties too.
      foreach ($wrapper->field_taxonomy_terms->getIterator() as $delta => $term_wrapper) {
        $label = $term_wrapper->name->value();
      }
    }
    catch (EntityMetadataWrapperException $exc) {
      $trace = '<pre>' . $exc->getTraceAsString() . '</pre>';
      watchdog(
        ‘debug’,
        $trace,
        NULL,
        WATCHDOG_ERROR
      );
    }

}

Mapping a text field in preprocess().

/**
 * Implements hook_preprocess_node().
 */
function my_module_preprocess_node(&$vars) {
    // A simple text field can be found in following places in variable $vars.

    // ---------------------- //
    // Or you might even do a db_query/db_select.
    // CASE 7:
}

Single Valued Fields

bc_utils.module

    $vars['sub_title'] = $vars['content']['field_article_sub_title'];

Pass the render array of the field found under $vars['content']

@template/article/article.twig

      {{ sub_title | raw }}

In patternlab component print the variable using "raw"

Field Item 1

Field Wrapper

Field Item 1

Field Wrapper

Field Item 2

Field Item 3

Field Item 1

Field Wrapper

Field Item 2

Field Wrapper

Field Item 2

Field Wrapper

Multi Valued Fields

bc_utils.module

  $vars['references'] = array();
  if (!empty($vars['content']['field_references'])) {
    foreach (element_children($vars['content']['field_references']) as $delta) {
      $vars['references'][] = $vars['content']['field_references'][$delta];
    }
  }

Pass the render array of the field found under $vars['content']

after a the following adjustment

@template/article/article.twig

  <div class="ArticleReferences-list">
    {% for reference in references %}
      <div class="ArticleReference-list-item">
        {{ reference | raw }}
      </div>
    {% endfor %}
  </div>

This will allow access to multivalued field as an array in patternlab component

Following fields can use the strategy

Text (Simple/Rich/Number/Textarea)
Options (Select/List)
References (Entity Reference, Media, Paragraph, etc..)

Info

Render Arrays

"Render Array" - What is it?

It is an "array"
It has info about how it should be printed on page
It can be nested
It can contain a lot of meta data regarding caching, access check, placeholder replacement, etc.

"Render Array" - Example

$foo = [
  '#type' => 'markup',
  '#markup' => 'I am just a string',
];

{{ foo }}

i am just a string

Render array (php)

Twig Template

HTML Output

$foo = [
  '#type' => 'markup',
  '#markup' => 'I am just a string',
  '#access' => FALSE,
];

{{ foo }}

$foo = [
  '#type' => 'markup',
  '#markup' => 'I am just a string',
  '#prefix' => '<div class="foo">',
  '#suffix' => '</div>'
];

{{ foo }}

<div class="foo">i am just a string</div>

"Render Array" - Example

$foo = t('Hello @name!', ['@name' => 'World']);

{{ foo }}

Hello World!

Render array (php)

Twig Template

HTML Output

Drupal's "t" function generates a render array.

"Render Array" - Typecasting to string

{{ foo|raw }}

Info

Attribute

Integrating

Link / CTA

and other cases

Break the Convention

bc_utils.module

$vars['cta'] = array(
  'label' =>  $vars['fpp_rel_story_cta'][0]['title'],
  'url' => url($vars['fpp_rel_story_cta'][0]['url']),
);

BY NOT Passing the render array of the field found under $vars['content']

@organisms/ste/ste.twig

<div class="Block SimpleTextLink">
  {% include "@atoms/button/button.twig" with {
    url: cta.url,
    label: cta.label,
    target: "_blank"
  } %}
</div>

In patternlab component you can access the variable using custom property

Break the Convention

bc_utils.module

$vars['hasBorder'] = $entity->field_has_border->getValue();

BY NOT Passing the render array of the field found under $vars['content']

@organisms/ste/ste.twig

<div class="Block SimpleTextLink {{ hasBorder ? 'SimpleTextLink--hasBorder' : '' }}">
 ...
</div>

When you check the variable in twig template,

most likely you can't use a render array

Questions?

Thank You

Drupal & Design Systems

By shibin das

Drupal & Design Systems

Working with Drupal and Design System

shibin das

Drupal Swashbuckler

Drupal &

Design System

BE-FE Conflicts

Disconnected

Separated

Disassociated

Design System

Style Guide

Component Library

Guidelines & Principles

Code

It is always evolving

Component Library Setup

Frontend Developer

Drupal Setup

Drupal Developer

Drupal

Component Library

About

Patterns

&

Quality Control

Key Takeaways

Before we Proceed

Entity Type

Base Class

Bundle

Extended Class

Field

Property

Entity

Object

Basics

Pros

Cons

Key Takeaways

Data Types

Entity and fields

Everything Else

Page

Key Takeaways

Entity

Advantage of this strategy

Dis-Advantage of this strategy

Key Takeaways

List

Advantage of this Strategy

Advantage of this Strategy

Key Takeaways

Fields

Mapping a text field in preprocess().

Mapping a text field in preprocess().

Mapping a text field in preprocess().

Mapping a text field in preprocess().

Single Valued Fields

Multi Valued Fields

Render Arrays

"Render Array" - What is it?

"Render Array" - Example

"Render Array" - Example

"Render Array" - Typecasting to string

Attribute

Link / CTA

Break the Convention

Break the Convention

Break the Convention

Questions?

Thank You

Drupal & Design Systems

More from shibin das

Drupal
&
