SVG: A Primer

scalable

vector

graphics

What is SVG?


logo.svg

Why SVG?

Why SVG?

<svg viewBox="0 0 100 100">
  <image xlink:href="https://mdn.mozillademos.org/files/6457/mdn_logo_only_color.png" height="100" width="100"/>
</svg>

Why SVG?

SVG

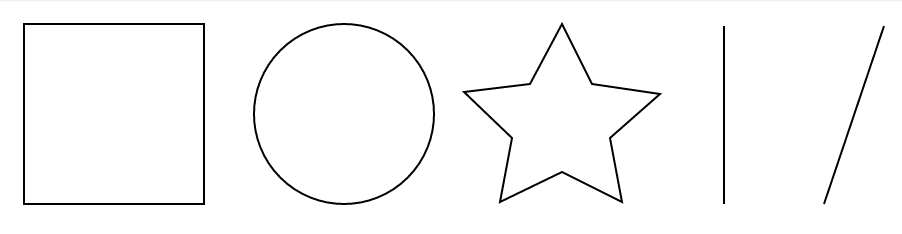

<svg x="0px" y="0px" width="450px" height="100px" viewBox="0 0 450 100">
 <rect x="10" y="5" fill="white" stroke="black" width="90" height="90"/>
 <circle fill="white" stroke="black" cx="170" cy="50" r="45"/>
 <polygon fill="white" stroke="black" points="279,5 294,35 328,40 303,62
  309,94 279,79 248,94 254,62 230,39 263,35"/>
 <line fill="none" stroke="black" x1="410" y1="95" x2="440" y2="6"/>
 <line fill="none" stroke="black" x1="360" y1="6" x2="360" y2="95"/>
</svg>
<svg>

<!-->
  Create awesome shapes here!
<-->
</svg>

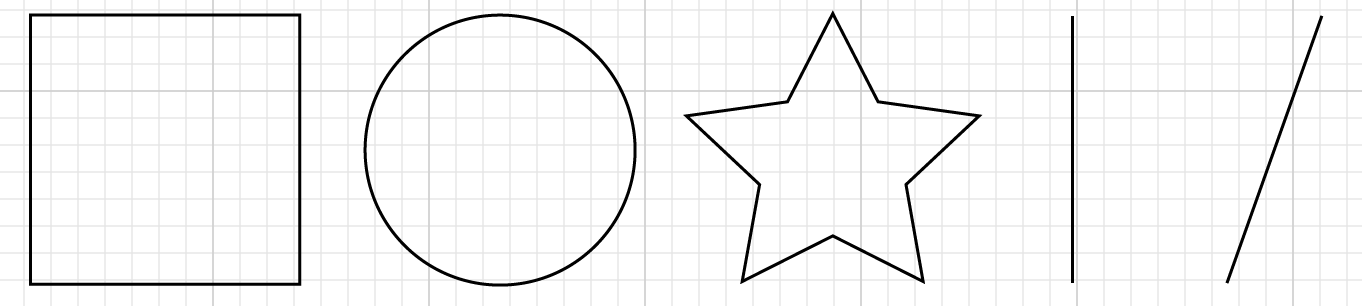

Images courtesy of SVG Animations, 1st Edition by Sarah Drasner

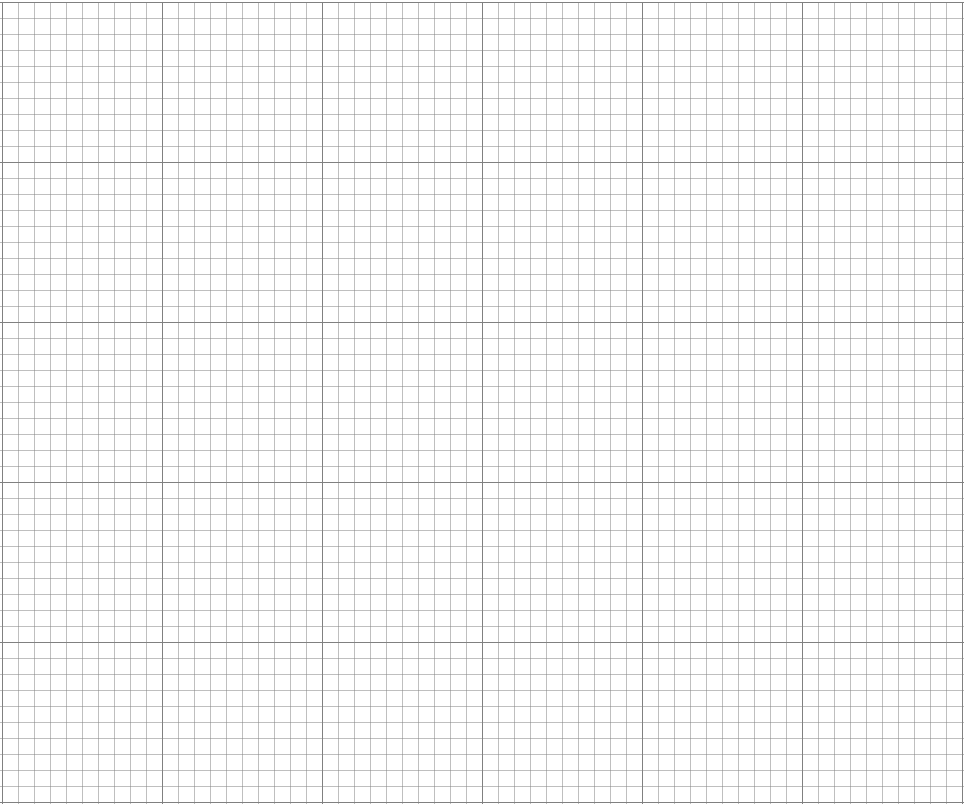

SVG: Viewbox

<svg x="0px" y="0px" width="450px" height="100px" viewBox="0 0 450 100">

</svg>
viewBox="0 0 450 100"

x

y

width

height

SVG: Viewbox

0

SVG: Viewbox

<svg x="0px" y="0px" width="225px" height="50px" viewBox="0 0 450 100">
  <!-- Shapes in here -->
</svg>
<svg x="0px" y="0px" width="450px" height="100px" viewBox="0 0 450 100">
 <!-- Shapes in here -->
</svg>

height/2

width/2

same viewBox

SVG: Viewbox

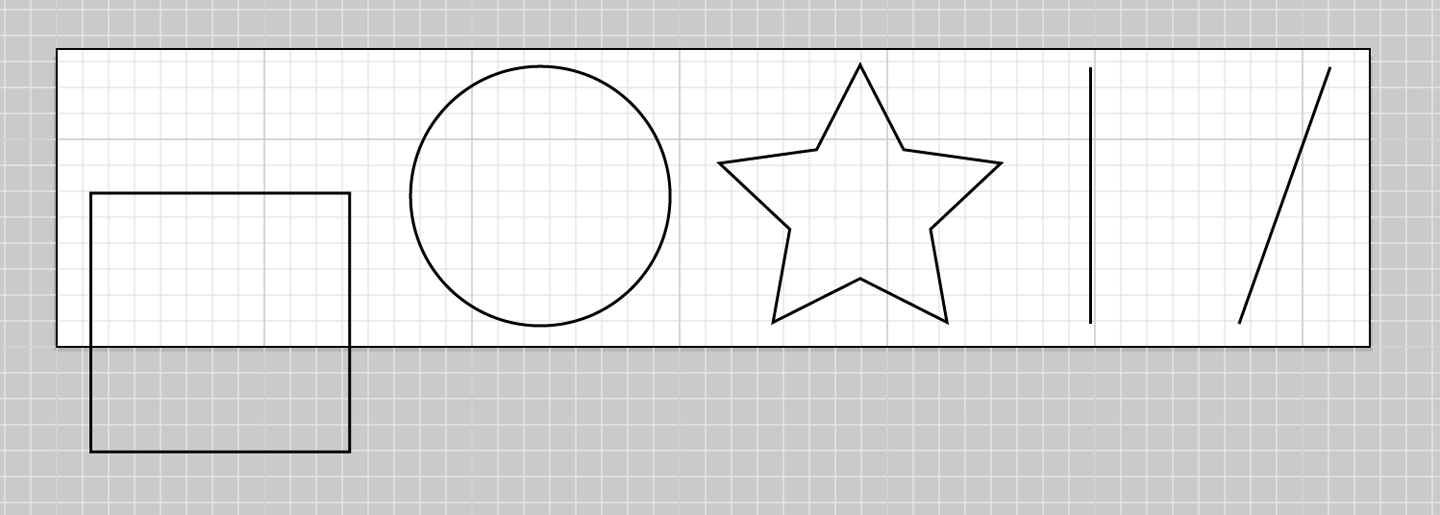

Images courtesy of SVG Animations, 1st Edition by Sarah Drasner

SVG: Viewbox

Images courtesy of SVG Animations, 1st Edition by Sarah Drasner

<svg x="0px" y="0px" width="450px" height="100px" viewBox="0 0 450 100">
  <rect x="10" y="6" fill="white" stroke="black" width="90" height="90"/>
  <!-- other shapes in here -->
</svg>
<svg x="0px" y="0px" width="450px" height="100px" viewBox="0 0 450 100">
  <rect x="10" y="5" fill="white" stroke="black" width="90" height="90"/>
  <!-- other shapes in here -->
</svg>

y ++

same viewBox

SVG: Viewbox

Images courtesy of SVG Animations, 1st Edition by Sarah Drasner

SVG: Viewbox

viewBox="5 0 90 100"

SVG: Viewbox

viewBox="-20 -20 90 100"

Let's Draw! -> Rect


<svg>
  <rect x="30" y="10" fill="green" stroke="black" width="30" height="30"/>
</svg>

Let's Draw! -> Rect


<svg>
  <rect x="30" y="10" fill="green" stroke="black" width="30" height="30"/>
</svg>

x:

y:

width:

height:

fill:

stroke:

start x coord

start y coord

width

height

#fill color

#stroke color

Let's Draw! -> Rect #2


<svg>
  <rect x="30" y="10" rx="5" ry="5" fill="green" stroke="black" width="30" height="30"/>
</svg>

Let's Draw! -> Rect #2


<svg>
  <rect x="30" y="10" rx="5" ry="5" fill="green" stroke="black" width="30" height="30"/>
</svg>

x:

y:

rx:

ry:

width:

height:

fill:

stroke:

start x coord

start y coord

rounded corner

rounded corner

width

height

#fill color

#stroke color

Let's Draw! -> Circle


<svg>
  <circle fill="green" stroke="black" cx="50" cy="30" r="35"/>
</svg>

Let's Draw! -> Circle


<svg>
  <circle fill="green" stroke="black" cx="50" cy="30" r="35"/>
</svg>

cx:

cy:

r:

fill:

stroke:

midpoint x coord

midpoint y coord radius

#fill color

#stroke color

Let's Draw! -> Ellipse


<svg>
  <ellipse fill="green" stroke="black" cx="50" cy=30" rx="50" ry="25"/>
</svg>

Let's Draw! -> Ellipse


<svg>
  <ellipse fill="green" stroke="black" cx="50" cy=30" rx="50" ry="25"/>
</svg>

cx:

cy:

rx:

ry:

fill:

stroke:

midpoint x coord

midpoint y coord width

height

#fill color

#stroke color

Let's Draw! -> Lines


<svg>
  <line stroke-width="3" stroke="green" x1="50" y1="10" x2="50" y2="40"/>
</svg>

<svg>
  <line stroke-width="3" stroke="green" x1="50" y1="10" x2="50" y2="40"/>
</svg>

x1:

x2:

y1:

y2

stroke-width:

stroke:

start x coord

end x coord

start x coord

end x coord

width of the line

#stroke color

Let's Draw! -> Lines

Let's Draw! -> Polygon


<svg>
  <polygon fill="green" stroke="black" points="60,10 75,20 40,70 50,70 45,20"/>
</svg>

Let's Draw! -> Polygon


<svg>
  <polygon fill="green" stroke="black" points="60,10 75,20 40,70 50,70 45,20"/>
</svg>

points:

fill:

stroke:

coord of all points

#fill color

#stroke color

Let's Draw! -> Polyline


<svg>
  <polyline fill="none" stroke="green" points="20,10 40,50 50,20 120,10"/>
</svg>

Let's Draw! -> Polyline


<svg>
  <polyline fill="none" stroke="green" points="20,10 40,50 50,20 120,10"/>
</svg>

points:

fill:

stroke:

coord of all points

#fill color

#stroke color

Let's Draw! -> Path


<svg>
  <path d="M 30 40 L 50 10" stroke="green" stroke-width="3"/>
</svg>

Let's Draw! -> Path


<svg>
  <path d="M 30 40 L 50 10" stroke="green" stroke-width="3"/>
</svg>

M 30 40

MoveTo  30, 40

L 50 10

LineTo  50, 10

Paths: MoveTo

M 30 30

MoveTo  30, 30

Paths: moveTo

m 30 30

moveTo  30, 30

Paths: LineTo

L 30 40

LineTo  30, 40

M 30 30

MoveTo  60, 10

Paths: lineTo

l 30 40

lineTo  30, 40

M 30 30

MoveTo  60, 10

Paths: MovemoveLineline

<svg>
<path d="M 20 10 L 30 30 m 0 -30 l 20 10 m 0 30 L 90 10" stroke="green" stroke-width="3"/>
</svg>

Paths: Horizontal

<svg>
<path d="M 20 10 H40" stroke="green" stroke-width="3"/>
</svg>

Paths: horizontal

<svg>
<path d="M 20 10 h40" stroke="green" stroke-width="3"/>
</svg>

Paths: Vertical

<svg>
<path d="M 20 40 V30" stroke="green" stroke-width="3"/>
</svg>

Paths: vertical

<svg>
<path d="M 20 40 v30" stroke="green" stroke-width="3"/>
</svg>
<svg>
  <path d="M10 10 h 90 v 20 h -90 v -20"/>
</svg>

Drawing shapes with `path`

<svg>
  <path d="M10 10 H 90 v 20 H 10 v -20"/>
</svg>

Closing a path

<svg>
  <path d="M10 10 H 90 v 20 H 10 z"/>
</svg>

<svg>
  <path d="M10 10 H 90 v 20 H 10 L 10 10"/>
</svg>
