Log data visualization
eungoo.jung
http://silvernine.me
https://www.elastic.co/downloads
압축풀기
tar zxvf elasticsearch-2.3.4.tar.gz
엘라스틱서치 실행 ( -d > background mode )
bin/elasticsearch -d

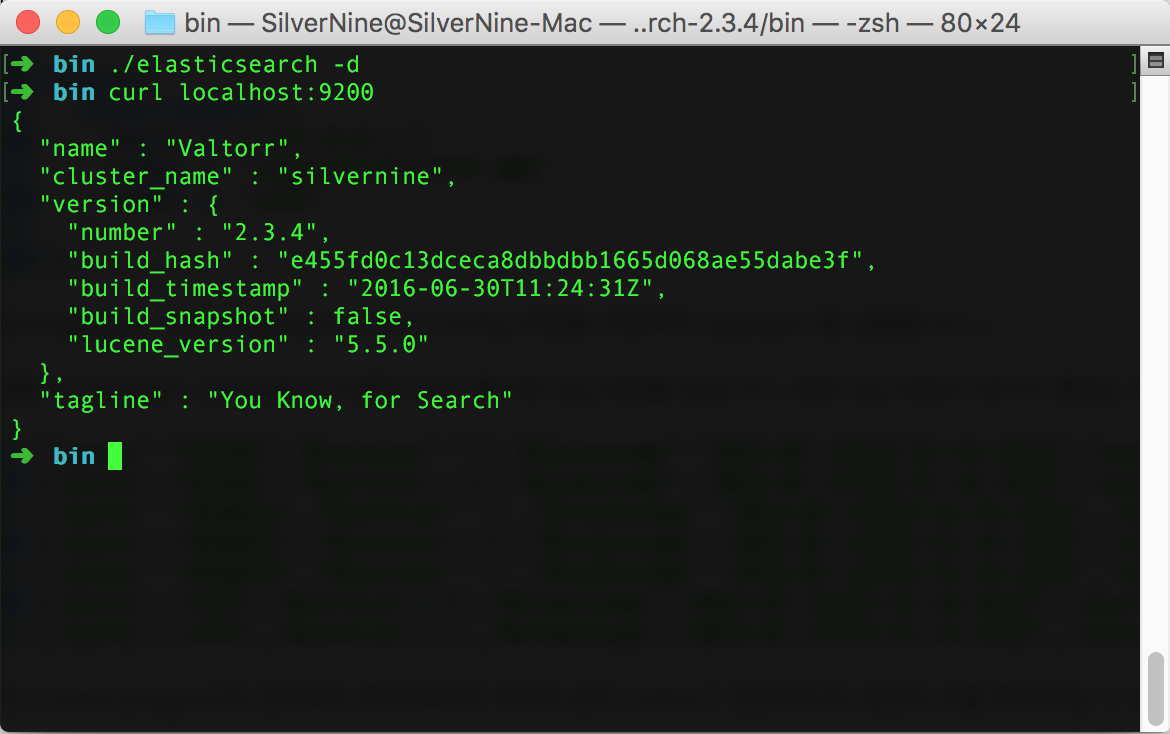

실행 확인
curl localhost:9200
Head plugin 설치
bin/plugin install mobz/elasticsearch-head
http://localhost:9200/_plugin/head
tar zxvf logstash-all-plugins-2.3.4.tar.gz
logstash.conf 작성 >>>
로그스태쉬 실행
bin/logstash -f bin/logstash.conf
로그파일 설정한 input 폴더에 삽입
http://silvernine.me/document/query.20160729.log

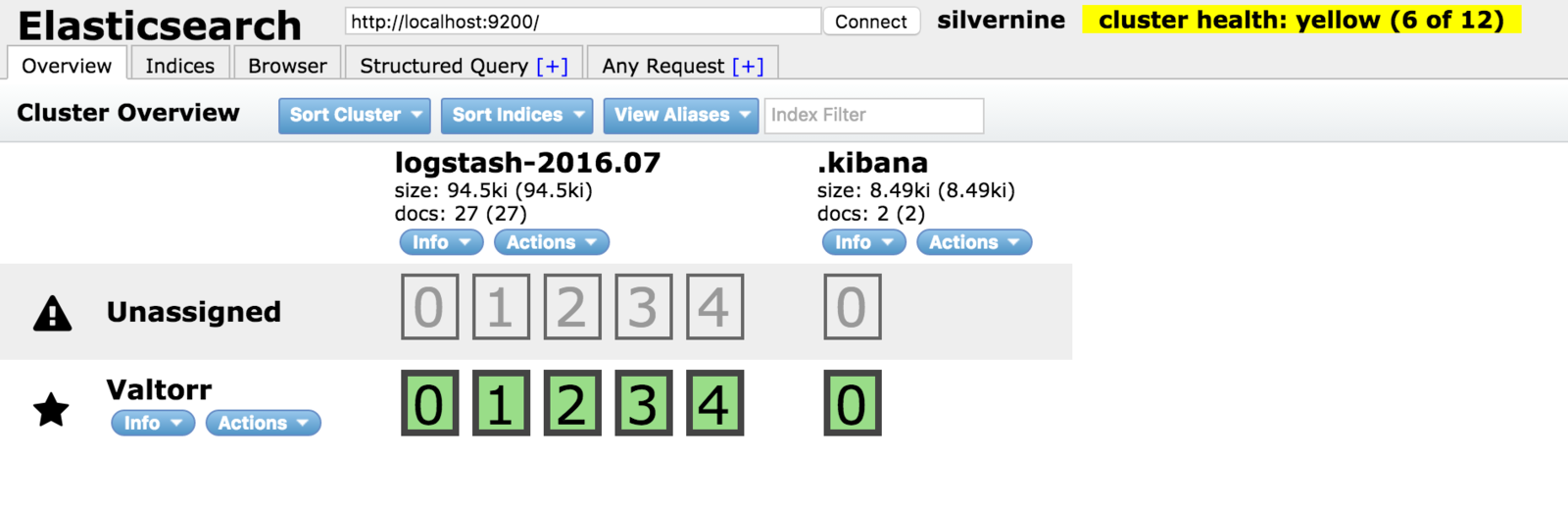

Head plugin 에서 index 생성 확인
http://localhost:9200/_plugin/head/
input { file { codec => json path => "/Users/SilverNine/Documents/elastic/data/*.log" } } filter{ } output{ elasticsearch { hosts => ["127.0.0.1"] index => "logstash-%{+YYYY.MM}" codec => "json" } }
tar zxvf kibana-4.5.3-darwin-x64.tar.gz
config/kibana.yml 수정
server.port 5601
server.host 127.0.0.1
Kibana 실행
bin/kibana
http://localhost:5601

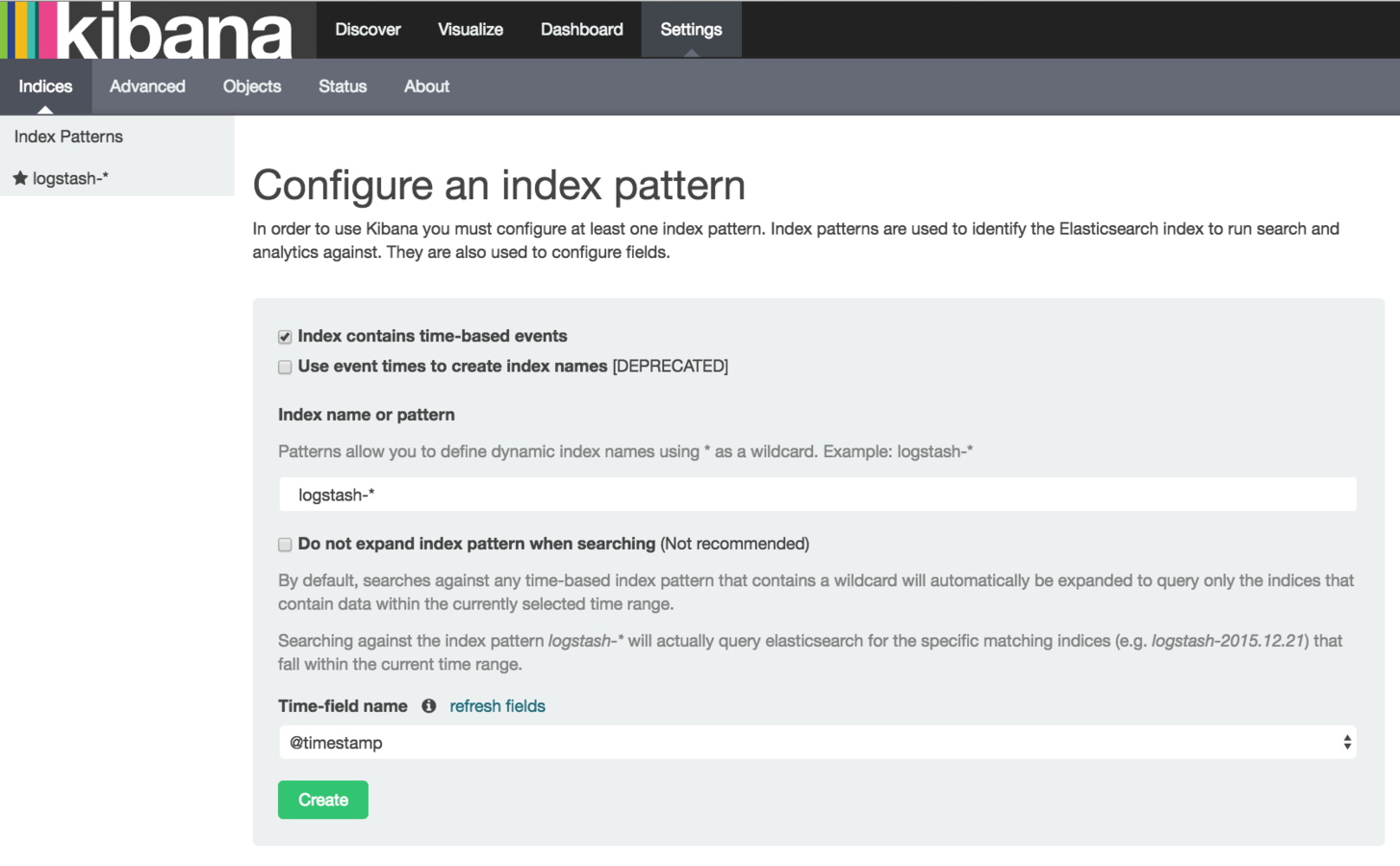

index name or pattern
logstash-*
By SilverNine
elasticsearch + logstash + kibana
