Migration progressive

Retour d'expérience - Veolys

Problématiques

  • Comment migrer une application existante vers Symfony3 dans les meilleures conditions
  • Comment faire cohabiter 2 applicatifs différents sur un même projet pendant un laps de temps plus ou moins long
  • Comment exploiter des fonctionnalités ou modules de l'ancien système avec le nouveau sans pénaliser l’applicatif
  • Comment développer des cycles courts et un niveau d'efficacité optimum tout en conservant un code de qualité

D'une migration progressive

cf: https://sensiolabs.com/fr/solutions-packagees/migration-progressive.html

Veolys

Un outils de gestion d'ensemble immobilier



L'existant

La nouvelle application

La (petite) liste de features

Statistiques

1er commit git- Gilles 2007
(une précédente version éxistait)

Legacy: 200 000 lignes de codes

Symfony3: 65 000 lignes de codes

500 routes hors webservice/api

Migration de la stack

PHP 5.3

Apache 2.2

Mysql 5.5

Memcache

PHP 7

Apache 2.4

Percona Server - Mysql 5.7

Redis

Mentions honorables

symfony 1.0 (beta) avec vendor commité

Mot de passe en clair parce que c'est plus facile à lire/modifier pour le client

Un webservice en SOAP, avec un seul point d'entré qui accepte un fichier XML sans règles de validation

clement.bertillon - Francoisgueguen - Jules Pietri - Jérémy DERUSSE - Jérémy Derussé - Loïc Chardonnet - Mathieu MARCHOIS - Michel ROCA D'HUYTEZA - Olga ROTACH - PaskR - Quentin GUILLEMINEAU - Romain GAUTIER - Salah MEHARGA - Sylvain Jaune - alexandre.salome - fabien - fred - fx.deguillebon - geoffrey.bachelet - gilles - gregoire.hubert - gregoire.pineau - illusionOfParadise - inal.djafar - itkg-nanne - jeremy.derusse - julien.levasseur - loic.chardonnet - mRoca - mathieu.cavanne - maxime.douailin - pierre.cahard - romain.dorgueil - romain.gautier - roupen.torossian - sensio - simon.franquet - sofany.ong - thibaut.prim - vincent.dravert - xavier.briand - yohann.giarelli

git shortlog --summary

Workflow

Analyse

Audit d'architecture

Etude de migration
progressive

Problématiques

- Modèle

- Tests

- Cohabitation

- Sécurité

Cohabitation

Maintenir une application PHP tiers au sein d'une application Symfony

Legacy

<?php

// web/index.php

require_once __DIR__.'/../Symfony2/app/bootstrap.php.cache';
require_once __DIR__.'/../Symfony2/app/StaticKernel.php';
$staticKernel = StaticKernel::getInstance();

$request = Request::createFromGlobals();
$matcher = $staticKernel->getUrlMatcher($request);

try {
    $attributes = $matcher->match($request->getPathInfo());
} catch (ResourceNotFoundException $e) {
    chdir(__DIR__.'/../symfony1/web');
    require_once __DIR__.'/../symfony1/web/index.php';

    return;
} catch (MethodNotAllowedException $e) {
}

$kernel = $staticKernel->getKernel();
$kernel->loadClassCache();
$response = $kernel->handle($request);
$response->send();
$kernel->terminate($request, $response);

V1 : Passer par le front controller

Symfony2

Symfony2

symfony1

Inconvénients

  • Si on tombe sur une route Symfony2, on doit appeler le routing à deux reprises
  • Les erreurs client/serveur peuvent être gérés par le legacy
  • On ajoute pleins de règles spécifiques dans un script PHP qui ne resemble plus à rien

Solution

C'est la nouvelle application qui prend la main et qui va wrapper le legacy

Veolys-reboot

Symfony3

TheodoEvolutionLegacyWrapperBundle

Supporte: symfony1.4 / symfony1.5 / CodeIgniter
et custom kernel

Comment ça marche ?

Symfony3 cherche un controller
qui match la request

HTTP Request

Si aucune route Sf3, on passe la main au legacy pour faire le même travail

/**
 * @param GetResponseEvent $event
 *
 * @return GetResponseEvent
 */
public function onKernelRequest(GetResponseEvent $event)
{
    try {
        $this->routerListener->onKernelRequest($event);
    } catch (NotFoundHttpException $e) {
        // Log ...

        $response = $this->legacyKernel->handle($event->getRequest(),
            $event->getRequestType(), true);

        if ($response->getStatusCode() !== 404) {
            $event->setResponse($response);

            return $event;
        }
    }
}

Router Listener

Custom kernel

class Symfony10Kernel extends LegacyKernel
{
    /** @var ContainerInterface */
    private $container;

    public function handle(Request $request, $type = self::MASTER_REQUEST, $catch = true)
    {
        $context = $this->setUpContext($request);

        ob_start();
        // Dispatch request
        try {
            $context->getController()->dispatch();
        } catch (\sfStopException $e) {
        } catch (\Exception $e) {
            throw $e;
        } finally {
            $context->shutdown();
        }
        $stdout = ob_get_contents();
        ob_end_clean();

        return $this->convertResponse($context->getResponse(), $stdout);
    }

    // ...
}
// \sfContext
# app/config/config.yml

theodo_evolution_legacy_wrapper:
    root_dir: %kernel.root_dir%/../legacy
    kernel:
        id: legacy.kernel.symfony10
        options:
            application: frontend
            environment: '%kernel.environment%'
            debug:       '%kernel.debug%'

Configuration

Authentification cross application

Lecture de session: TheodoEvolutionSessionBundle



Authentification:
PreAuthenticatedListener custom

Authentification géré par l'application legacy

TheodoEvolutionSessionBundle

Supporte: symfony1.x / CodeIgniter

class BagConfiguration implements BagManagerConfigurationInterface
{
    private $namespaces = array(
        BagManagerConfigurationInterface::LAST_REQUEST_NAMESPACE => 'symfony/user/sfUser/lastRequest',
        BagManagerConfigurationInterface::AUTH_NAMESPACE         => 'symfony/user/sfUser/authenticated',
        BagManagerConfigurationInterface::CREDENTIAL_NAMESPACE   => 'symfony/user/sfUser/credentials',
        BagManagerConfigurationInterface::ATTRIBUTE_NAMESPACE    => 'symfony/user/sfUser/attributes',
        BagManagerConfigurationInterface::CULTURE_NAMESPACE      => 'symfony/user/sfUser/culture',
    );

    /**
     * {@inheritdoc}
     */
    public function getNamespaces()
    {
        return $this->namespaces;
    }

    /**
     * {@inheritdoc}
     */
    public function getNamespace($key)
    {
        return $this->namespaces[$key];
    }
}

PreAuthenticatedListener

namespace Veolys\LegacyBundle\Security\Firewall;

/**
 * Retrieves the user ID from the symfony1 session.
 */
class Symfony1SessionListener extends AbstractPreAuthenticatedListener
{
    /**
     * Gets the user and credentials from the Request.
     */
    protected function getPreAuthenticatedData(Request $request)
    {
        if (!$this->veolysSession->isAuthenticated()) {
            // For call the entryPoint and redirect the user to /
            throw new BadCredentialsException();
        }

        return [(string) $this->veolysSession->getUserId(), null];
    }
}

Security
=
Authentication
+
???

Authorization

mysql> select id, name from veolys_permission;

+-----+-------------------------------------------------+
| id  | name                                            |
+-----+-------------------------------------------------+
|   1 | Building/Edit                                   |
|   3 | HotlineRequest/View                             |
|   5 | HotlineRequest/ViewAll                          |
|   6 | HotlineRequest/Post                             |
|   7 | HotlineRequest/PostForAll                       |
|   8 | HotlineRequest/DetailsChangeDescription         |
|   9 | HotlineRequest/DetailsDecideConclusion          |
|  16 | HotlineRequest/IsDispatcher                     |

# ...

| 158 | HotlineRequest/DelayAlert                       |
| 159 | HotlineRequest/Indicators                       |
| 160 | HotlineRequest/Lots                             |
+-----+-------------------------------------------------+
149 rows in set (0.00 sec)

Permissions utilisateurs

namespace Veolys\LegacyBundle\Security\Authentication\Provider;

/**
 * Retrieves the user and his rights from the database
 */
class Symfony1SessionProvider implements AuthenticationProviderInterface
{
    public function authenticate(TokenInterface $token)
    {
        $username = $token->getUsername();
        $user = $this->userProvider
            ->loadUserByUsername($username) // l'Id qui vient du PreAuthenticatedListener
        ;

        if (!$user) {
            throw new AuthenticationException('The symfony1 session authentication failed.');
        }

        $roles = $this->em
            ->getRepository('VeolysApplicationBundle:VeolysUser')
            ->getRoles($user)
        ;
        $user->setRoles($roles);

        $authenticatedToken = new PreAuthenticatedToken($user, null, 'veolys', $roles);

        return $authenticatedToken;
    }
}

AuthenticationProvider

    public function getRoles($user)
    {
        $permissions = $this->getUserPermissions();

        $roles = array_map(
            function ($permission) {
                preg_match_all('#((?:^|[A-Z])[a-z]+)/?#', $permission['name'], $matches);
                $name = strtoupper(implode('_', $matches[1]));

                return 'ROLE_'.$name;
            },
            $permissions
        );

        if ($user->isSuperAdmin()) {
            $roles[] = 'ROLE_SUPER_ADMIN';
        }

        $roles[] = 'ROLE_USER';

        return $roles;
    }
HotlineRequest/Post => ROLE_HOTLINE_REQUEST_POST
/**
 * @Route("/edit", name="i_love_veolys")
 *
 * @Security("has_role('ROLE_HOTLINE_REQUEST_POST')")
 */
public function editAction(Request $request): Response
{
}

Cas d'étude
Première migration

Première étape

Reverse engineering du legacy (symfony1)

Legacy - Type de notification

Legacy - Permissions utilisateurs

Deux options

  • On migre tout maintenant
Estimation: il faudra {{ random(20) + 20 }} jours
+ 3 jours de récup
  • On migre pas, enfin on migrera plus tard...

Solution

Pas de migration, on va appeler le legacy

// src/LegacyBundle/Kernel/Symfony10Kernel.php

class Symfony10Kernel extends LegacyKernel
{
    public function handle(Request $request)
    {
    }

    public function notify($object)
    {
    }

    // ...
}

Comment ?

Deuxième étape

Identifier le code legacy que l'on souhaite appeler

  // legacy/plugins/appVeolysHotlineModule/lib/model/HotlineRequest.php

  public function notifyChange()
  {
    // ...

    $broadcastList = $this->getOrCreateUserBroadcastList();
    $broadcastList->notify($this)
  }

// src/LegacyBundle/Kernel/Symfony10Kernel.php

class Symfony10Kernel extends LegacyKernel
{
    /**
     * Call the notify method from the legacy UserBroadCastList model.
     */
    public function notify($objectSF3)
    {
        // Map the doctrine entity to the propel model
        $legacyObject = $this->transformToLegacy($objectSF3);

        // Call the symfony1 method to get a UserBroadcastList
        $userBroadCastList = $legacyObject->getOrCreateUserBroadcastList();

        // Call the legacy method notify
        try {
            $broadCastList->notify($legacyObject);
        } catch (\Exception $e) {
        }
    }

    // ...
}

Prototype

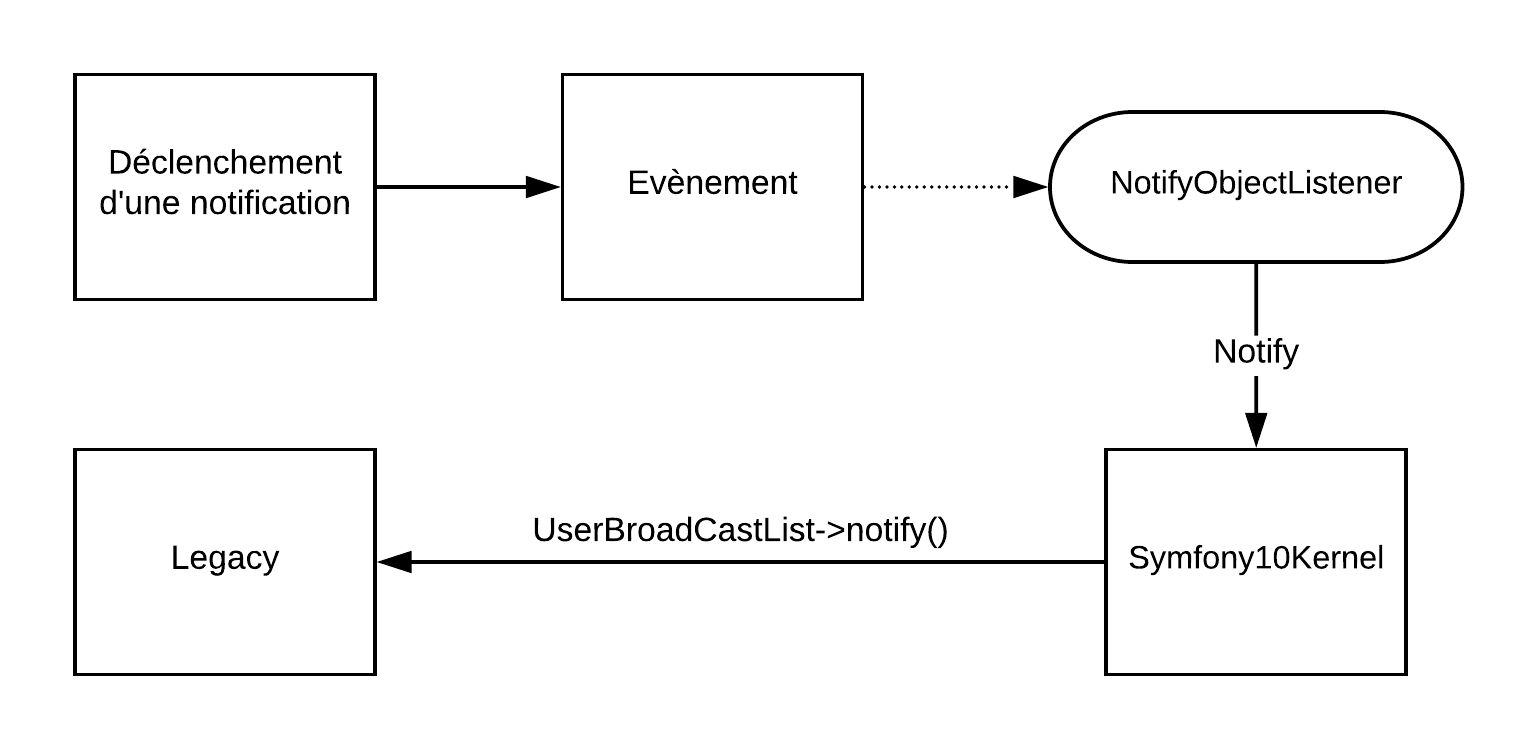

Workflow

namespace AppBundle\Event;

class NotifyObjectEvent extends Event
{
    const NAME = 'veolys.notify_object';

    protected $object;

    public function __construct(NotifiableObjectInterface $object)
    {
        $this->object = $object;
    }

    public function getObject()
    {
        return $this->object;
    }
}

Evènement

class NotifyObjectListener implements EventSubscriberInterface
{
    /** @var LoggerInterface */
    protected $logger;

    /** @var Symfony10Kernel */
    protected $kernel;

    /** @var Request */
    protected $request;

    public function notify(NotifyObjectEvent $event)
    {
        $object = $event->getObject();
        if (!$this->supports($object)) {
            return;
        }

        $this->kernel->notify($this->request, $object);

        $this->logger->notice('Legacy notification', [
            'object' => get_class($object),
        ]);
    }

    public function supports($object): bool
    {
        return $object instanceof NotifiableObjectInterface;
    }
}

EventListener

// src/LegacyBundle/Kernel/Symfony10Kernel.php

class Symfony10Kernel extends LegacyKernel
{
    /**
     * Call the notify method from the legacy UserBroadCastList model.
     */
    public function notify(Request $request, NotifiableObjectInterface $object)
    {
        // Map the doctrine entity to the propel model
        $legacyObject = $this->transformToLegacy($object);

        // Call the symfony1 method to get a UserBroadcastList
        $userBroadCastList = $legacyObject->getOrCreateUserBroadcastList();

        // Call the legacy method notify
        try {
            $broadCastList->notify($legacyObject);
        } catch (\Exception $e) {
        }
    }

    // ...
}

Prototype (rappel)

/** @var NotifiableObjectInterface $object */
$id = $object->getId();

$legacyRepositoryName = sprintf('%sPeer', (new \ReflectionClass($object))->getShortName());
if (!class_exists($legacyRepositoryName)) {
    throw new \Exception(sprintf('Invalid legacy repository peer : %s', $legacyRepositoryName));
}

$legacyObject = $legacyRepositoryName::retrieveByPK($id);
if (empty($legacyObject)) {
    throw new \Exception(sprintf('Can\'t found the object with id: %s and legacy repository peer: %s',
        $id, $legacyRepositoryName));
}

if (!$legacyObject instanceof \Notifiable) {
    throw new \Exception(sprintf('The object % should implement Notifiable interface from legacy',
        get_class($legacyObject)));
}

// Call the method with Reflection Api because the method getOrCreateUserBroadcastList can be private...
$method = new \ReflectionMethod(get_class($legacyObject), 'getOrCreateUserBroadcastList');
$method->setAccessible(true);

/** @var \UserBroadcastList $broadCastList */
$broadCastList = $method->invoke($legacyObject);
public function notify(Request $request, NotifiableObjectInterface $object)

Passer de Doctrine à Propel

Migration progressive

By skigun

Made with Slides.com

Migration progressive

  • 304

More from skigun
