Grunt 要干啥？

Gruntfile.js => 配置

module.exports = function(grunt) {

  grunt.initConfig({
    jshint: {
      files: ['Gruntfile.js', 'src/**/*.js', 'test/**/*.js'],
      options: {
        globals: {
          jQuery: true
        }
      }
    },
    watch: {
      files: ['<%= jshint.files %>'],
      tasks: ['jshint']
    }
  });

  grunt.loadNpmTasks('grunt-contrib-jshint');
  grunt.loadNpmTasks('grunt-contrib-watch');

  grunt.registerTask('default', ['jshint']);

};

packages.json => 依赖

{
  "name": "fe-version",
  "version": "1.0.0",
  "description": "version number of static files.",
  "main": "lib/version.js",
  "scripts": {
    "test": "jest"
  },
  "keywords": [
    "version"
  ],
  "author": "solome",
  "license": "MIT",
  "devDependencies": {
    "jest-cli": "^0.4.0"
  },
  "dependencies": {
    "grunt": "^0.4.5",
    "grunt-contrib-watch": "^0.6.1"
  }
}

Task => 具体的处理逻辑

module.exports = function(grunt) {

    var version = require('../lib/version');

    grunt.registerMultiTask('fe-version', '给静态文件添加版本号', function() {
        var task = this;
        var options = task.options();

        var files = task.files;

        files.forEach(function(file){
            file.src.forEach(function(f) {
                var v = version(f);
                console.log(f, '=>', version(f));
                grunt.file.copy(f, f + '.' + v);
            });
        });
    });
}

Grunt Plugins

http://gruntjs.com/plugins

JavaScript Plugins

• grunt-jscs                      => Check code style
• grunt-contrib-jshint   => Check code errors
• grunt-contrib-concat => Concat multiple files
• grunt-contrib-uglify   => Minify the JS files

CSS Plugins

• grunt-contrib-compass => Sass t CSS using Compass
• grunt-contrib-csslint     => Check code errors
• grunt-scsslint                  => Check scss code errors
• grunt-contrib-cssmin    => Minify the CSS files

Other Plugins

• grunt-contrib-imagemin
• grunt-contrib-clean
• grunt-contrib-watch
• grunt-contrib-handlebars
• grunt-contrib-coffee
• ... ...

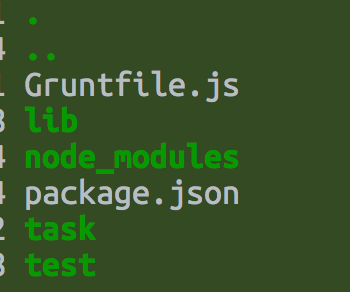

fe-version

.
|____Gruntfile.js
|____lib
| |____version.js
|____package.json
|____task
| |____fe-version.js
|____test
| |____test.js

核心逻辑：lib/version.js

'use strict';

var crypto = require('crypto');
var fs = require('fs');

/**
 * 计算文件的md5加密值
 */
function md5(fp) {
    var md5 = crypto.createHash('md5');

    md5.update(fs.readFileSync(fp));
    return md5.digest('hex').substring(0, 8);
}

/**
 * 获取文件的版本号
 */
function version(file) {
    if (fs.existsSync(file)) {
        return md5(file);
    }

    return false;
}

module.exports = version;

npm依赖包：packages.json

{
  "name": "fe-version",
  "version": "1.0.0",
  "description": "version number of static files.",
  "main": "lib/version.js",
  "scripts": {
    "test": "jest"
  },
  "keywords": [
    "version"
  ],
  "author": "solome",
  "license": "MIT",
  "devDependencies": {
    "jest-cli": "^0.4.0"
  },
  "dependencies": {
    "grunt": "^0.4.5",
    "grunt-contrib-watch": "^0.6.1"
  }
}

Task模块：task/fe-version.js

'use strict';


module.exports = function(grunt) {

    var version = require('../lib/version');

    grunt.registerMultiTask('fe-version', '给静态文件添加版本号', function() {
        var task = this;
        var options = task.options();

        var files = task.files;

        files.forEach(function(file){
            file.src.forEach(function(f) {
                var v = version(f);
                console.log(f, '=>', version(f));
                grunt.file.copy(f, f + '.' + v);
            });
        });
    });
}

配置：Gruntfile.js

module.exports = function(grunt) {
    'use strict';

    var appPath = '/Users/ivanlyons/app/raspberrypi/';

    grunt.loadTasks('./task');

    // 配置
    grunt.initConfig({
        appPath: appPath,
        'fe-version': {
            src: ['<%= appPath %>/**/*.js','<%= appPath %>/**/*.css'],
            options: {
                flag: 'v'
            }
        },
        watch: {
            files: ['<%= appPath %>/**/*.js'],
            tasks: ['fe-version']
        }
    });

    grunt.loadNpmTasks('grunt-contrib-watch');
    grunt.file.setBase(appPath);
    grunt.registerTask('default', ['fe-version']);
};

$ npm install

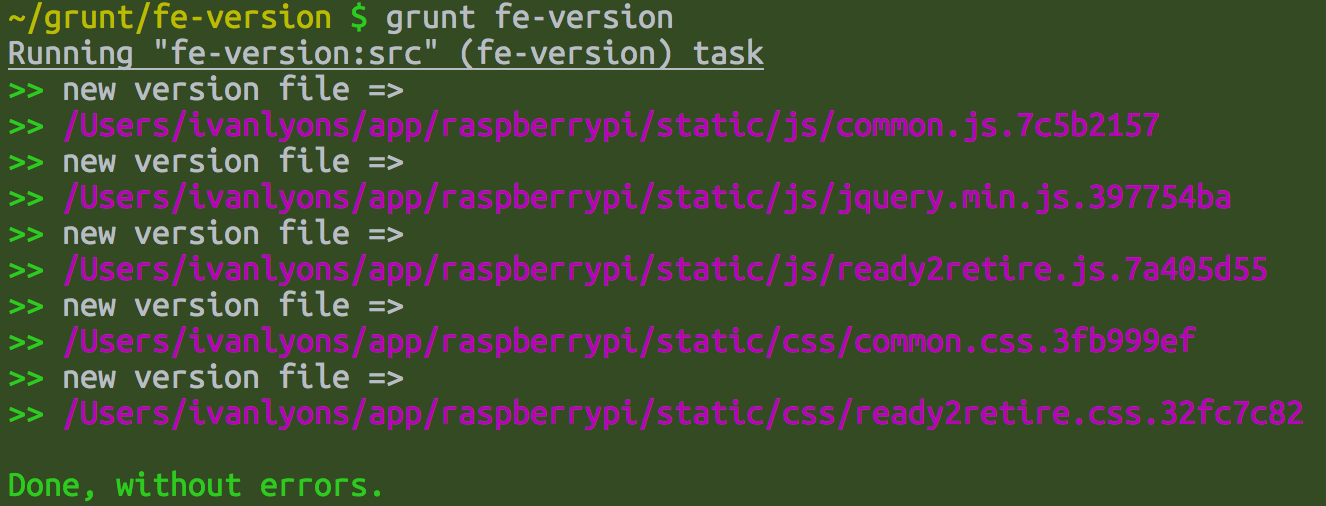

$ grunt fe-version

编译工具：编译LightnCandy模板文件.hbs => .php

$ grunt candyCompile:file:{filePath}

$ grunt candyCompile:file:partials

// 快速配置一个component
grunt.loadNpmTasks('mtfe-grunt-component');
// JavaScript 模块依赖文件生成
grunt.loadNpmTasks('@mtfe/grunt-buildmeta');
// 将svg矢量图标编译成使用
grunt.loadNpmTasks('mtfe_fe.iconfont');

编译工具

审查工具：保障源码质量

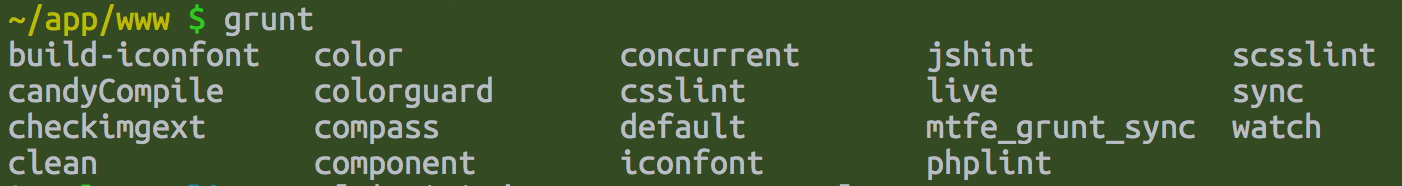

主站www仓库所有的Grunt Task

主要对静态文件的处理

grunt.registerTask('pre',
    ['clean:build', 'version:img', 'mt_cssimg', 'mtfe-grunt-buildmeta']
);

grunt.registerTask('build',
    ['version:js', 'mt_uglify', 'checkimgext', 'mt_imagemin',
     'version:css', 'mt_cssmin', 'rsync:build', 'after']
);

grunt.registerTask('default', ['build']);

• 'clean:build' 清理目录
• 'version:img' 给图片资源生成版本号
• 'mt_cssimg' 给CSS文件中的图片url增加版本号
• 'mtfe-grunt-buildmeta' 生成JavaScript文件依赖

grunt.registerTask('pre',[
    'clean:build',
    'version:img',
    'mt_cssimg',
    'mtfe-grunt-buildmeta'
]);

预处理

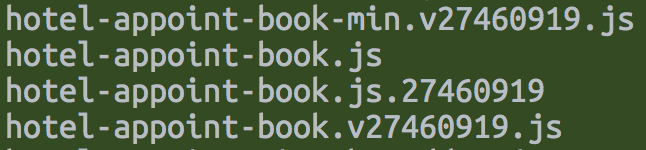

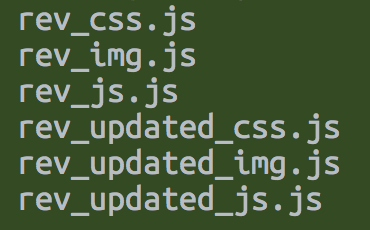

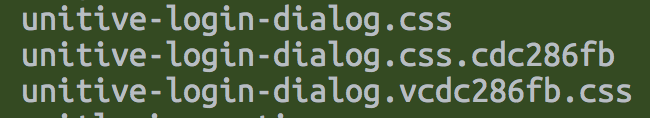

Task=> version

基于md5算法计算文件的版本号

• version:css
• version:js
• version:img

Task => css_img

• 给CSS文件中的图片url增加版本号

.slider-sprite{
    background-image:url(si/slider.png);
    background-repeat:no-repeat
}

.slider-sprite{
    background-image:url(si/slider.v32cb9c24.png);
    background-repeat:no-repeat
 }

• 检查CSS文件中的图片url是否存在

=> 即判断si/slider.png文件是否存在

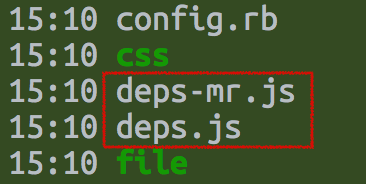

Task => mtfe-grunt-buildmeta

• mt_uglify          => 压缩JavaScript文件
• checkimgext   => 检查图片资源后缀名的合法性
• mt_imagemin => 压缩图片
• mt_cssmin       => 压缩css文件
• rsync                 => 拷贝构建涉及的静态文件到缓存目录

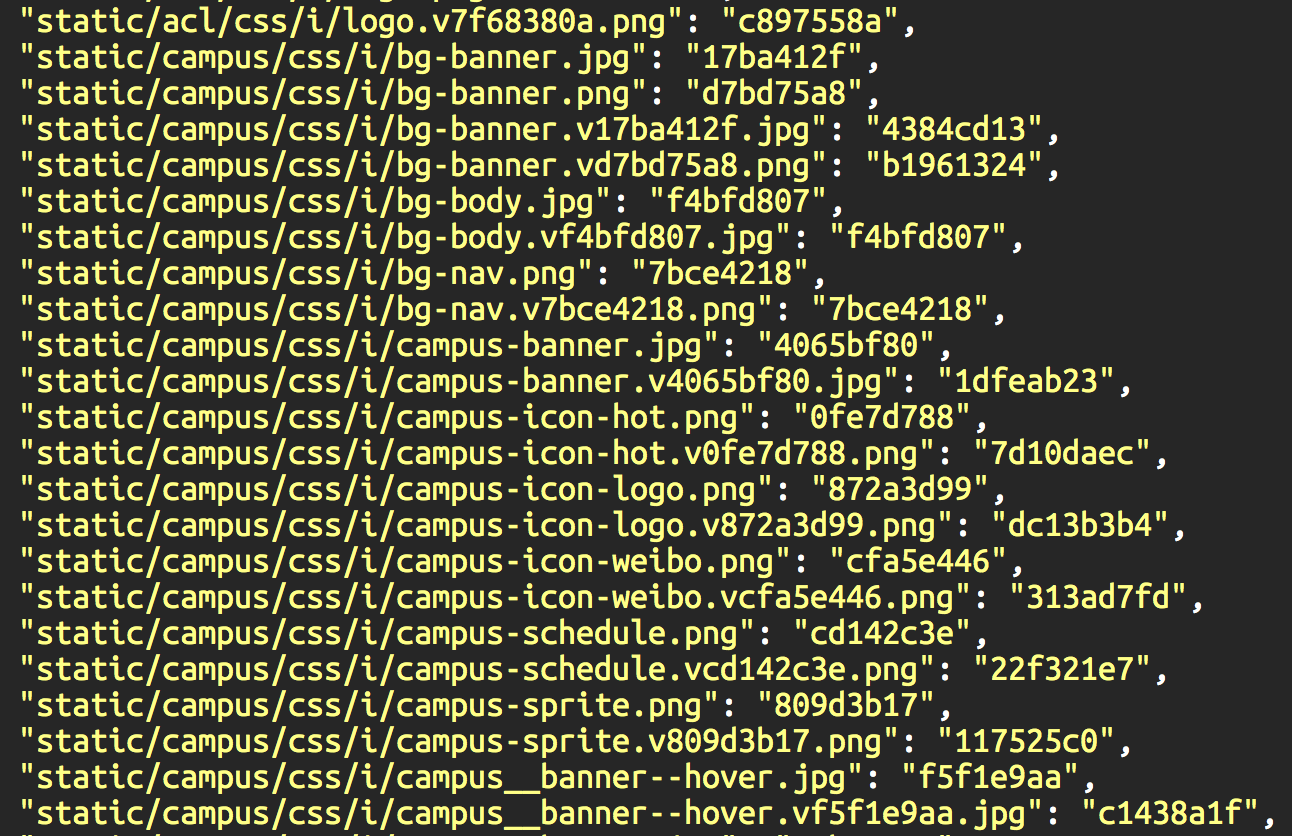

• after                  => 生成version.json，供FileHelper使用

grunt.registerTask('build',[
    'version:js', 'mt_uglify',
    'checkimgext', 'mt_imagemin',
    'version:css', 'mt_cssmin',
    'rsync:build', 'after'
]);

构建：压缩 & 版本号文件生成

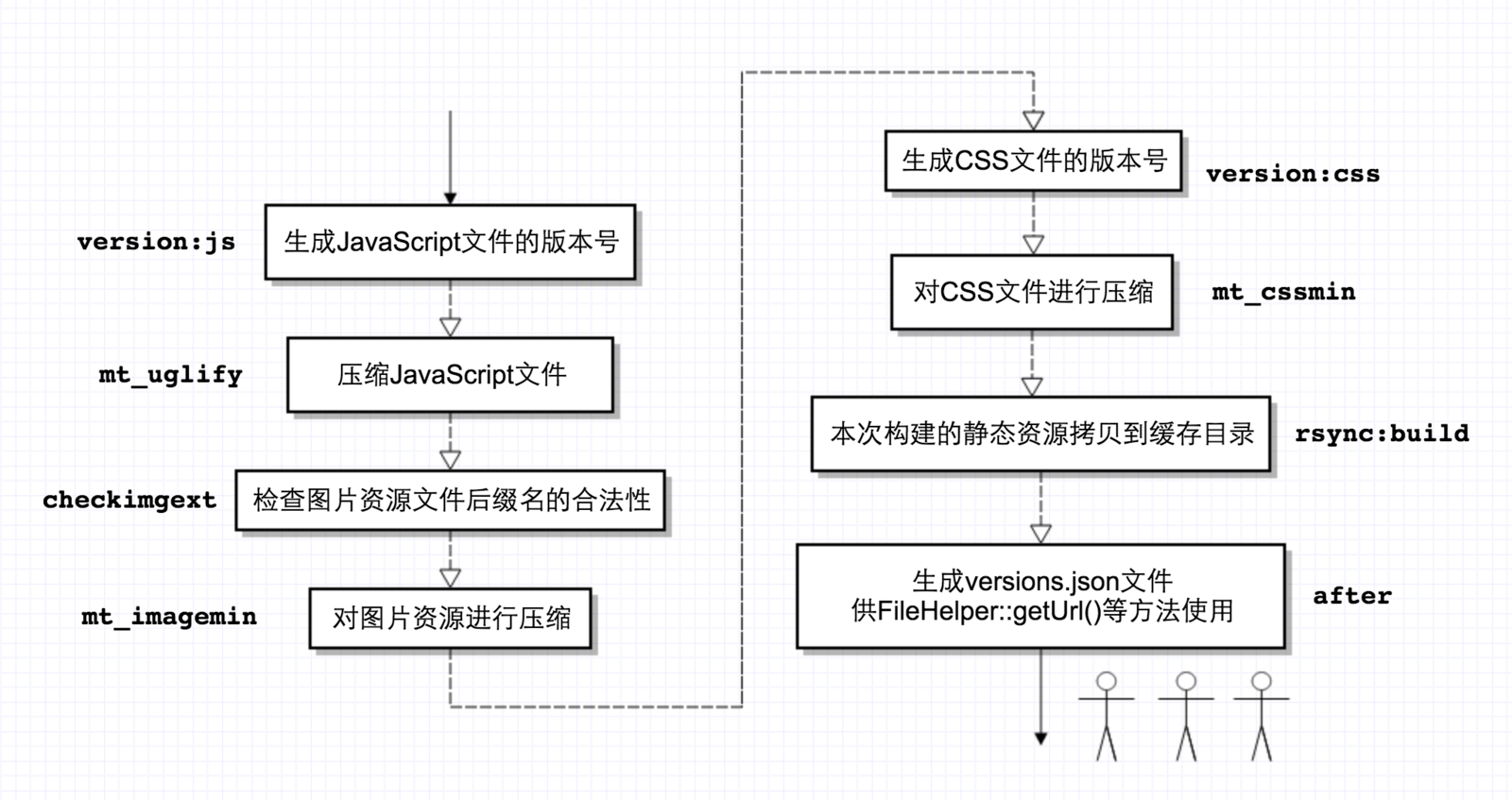

构建流程

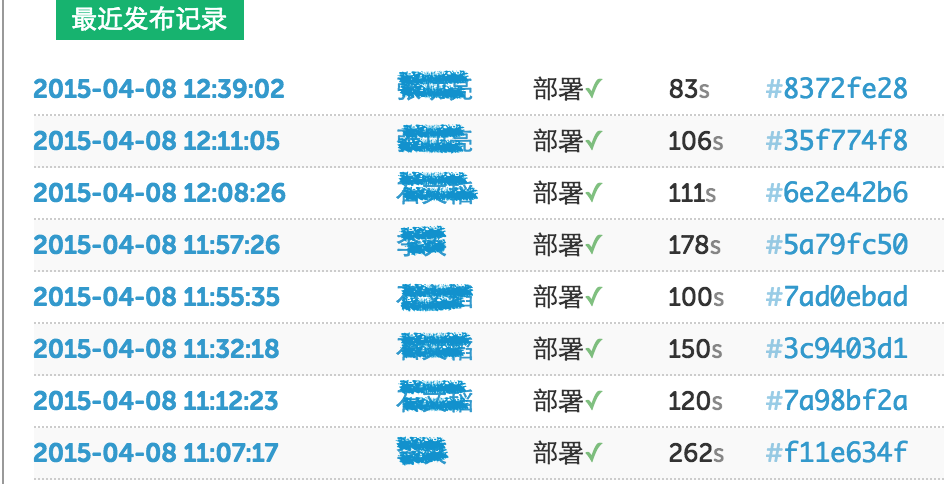

本地模拟上线
