Hands on with GDAL/OGR
- .5hr: Setup & Installation
- 2hr: Instruction & Group Exercises
This workshop is adapted and updated from http://slides.sarasafavi.com/gdal/#/
which is cc-by-nc 4.0| © Sasha Hart & Sara Safavi, 2017
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
What you'll do today
- Lots of typing-what-you-see
- Probably a bit of Googling
- Forget at least 50% by tonight (that's ok!)
- Leave here 100% more familiar with GDAL/OGR
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
What is GDAL/OGR?
Geospatial Data Abstraction Library for translating & processing raster & vector geospatial data.
- Free & open source
- Used by your favorite desktop GIS
- Has a command line interface
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
What kinds of data?
GDAL's superpower is that it can read or write pretty much any spatial file you throw at it.
As of April 2016, GDAL can translate 142 raster formats, and 84 vector formats!
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
A note about the name:
"GDAL/OGR" refers to the combined project with both raster & vector tools
- GDAL: raster
- OGR: vector
Today, most refer to the combined project as "GDAL"
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Windows
Recommended route:
OSGEO4W Installer
http://trac.osgeo.org/osgeo4w
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Linux
- Ubuntu: GDAL 1.11 in Default (Universe)
- Debian: GDAL 1.10 in Stable (Jessie)
- Fedora/CentOS/RHEL: EPEL 7 has GDAL 1.11
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Mac
Recommended route:
https://medium.com/@vascofernandes_13322/how-to-install-gdal-on-macos-6a76fb5e24a4
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
GDAL for Python in CONDA
Recommended route: https://opensourceoptions.com/how-to-install-gdal-with-anaconda/
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Getting Started
GDAL/OGR tools are accessed on the command line
(i.e., in the terminal or shell)
Note for Windows Users:
Use “OSGeo4W Shell”
These Slides are at: https://slides.com/staceymaples/handsonwithgdal

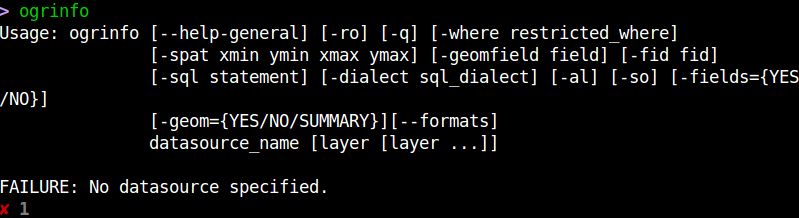

Verify installation by typing ogrinfo & hitting enter.
If all went well, you should see:
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Check point
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Exploring Data
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Demo Data
https://drive.google.com/file/d/18c1L3nt3FTcvd2YLm5HwXzfiulAgs0en/view?usp=sharing
Download & unzip
Move data to a "sandbox" directory
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Check out the data visually
Use your favorite GIS desktop application to view data
These Slides are at: https://slides.com/staceymaples/handsonwithgdal

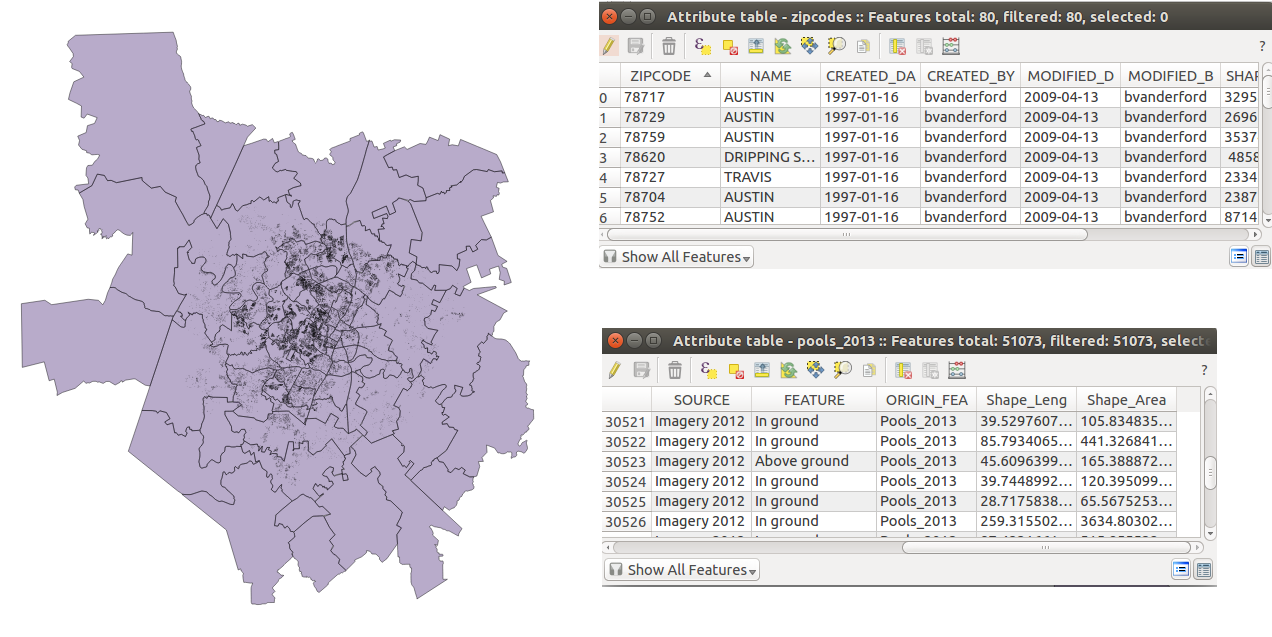

Demo vector data: Austin-area zipcodes & pools
These Slides are at: https://slides.com/staceymaples/handsonwithgdal

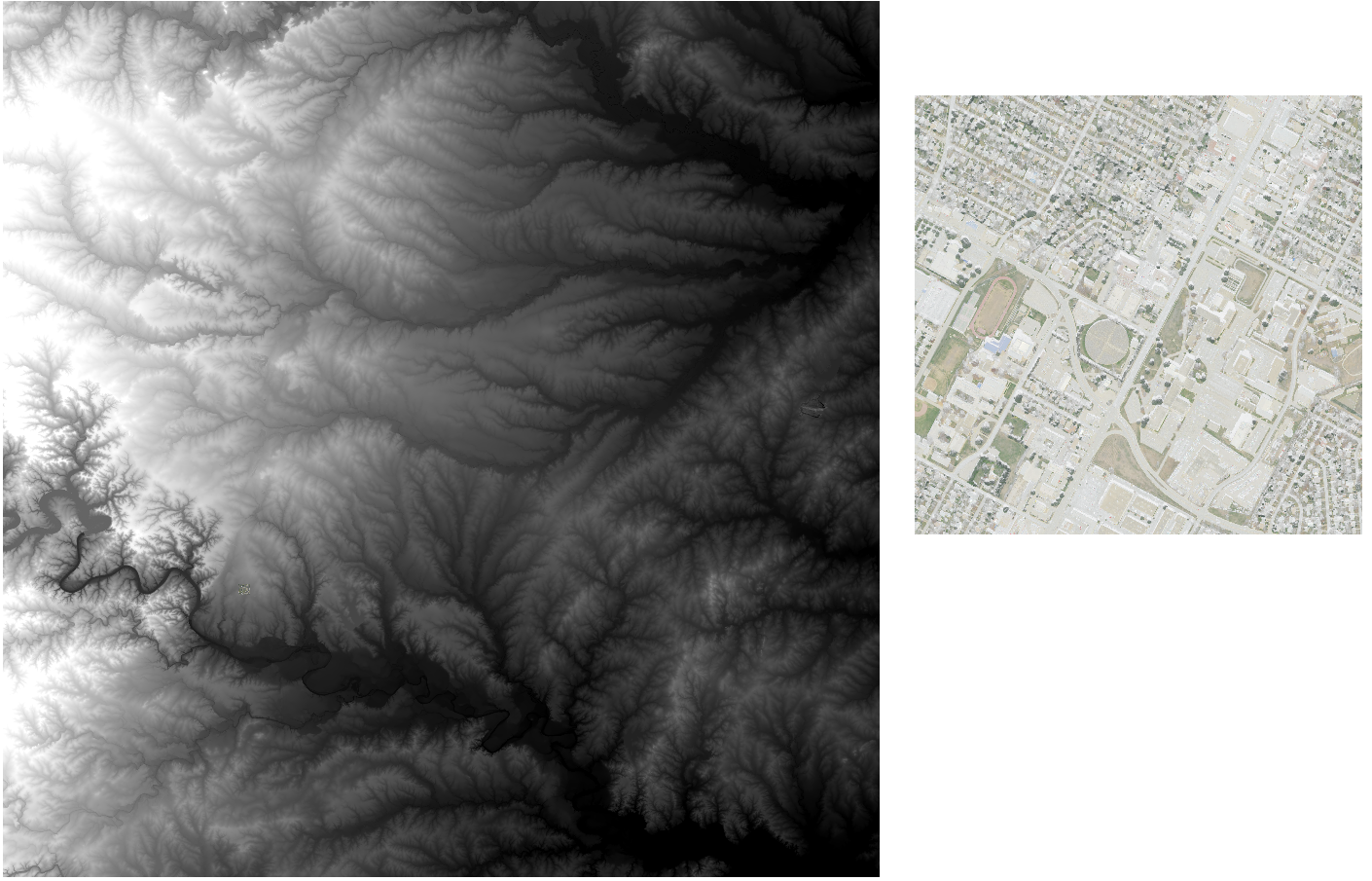

Demo raster data: Austin-area DEM & (clipped) DOQQ
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Explore data via the command line
Open your terminal and navigate to your working directory
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
OGR for vector data
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
From your working directory, try this:
ogrinfo pools/pools.shp
INFO: Open of `pools/pools.shp'
using driver `ESRI Shapefile' successful.
1: pools (3D Polygon)
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Now try this:
ogrinfo -so zipcodes/zipcodes.shp zipcodes
INFO: Open of `zipcodes/zipcodes.shp'
using driver `ESRI Shapefile' successful.
Layer name: zipcodes
Geometry: Polygon
Feature Count: 80
Extent: (-98.589809, 29.669673) - (-97.184067, 31.037805)
Layer SRS WKT:
GEOGCS["GCS_WGS_1984",
DATUM["WGS_1984",
SPHEROID["WGS_84",6378137,298.257223563]],
PRIMEM["Greenwich",0],
UNIT["Degree",0.017453292519943295]]
ZIPCODE: String (12.0)
NAME: String (30.0)
CREATED_DA: Date (10.0)
CREATED_BY: String (50.0)
MODIFIED_D: Date (10.0)
MODIFIED_B: String (50.0)
SHAPE_AREA: Real (19.11)
SHAPE_LEN: Real (19.11)
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
GDAL for raster data
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Try this:
gdalinfo dem10m/dem10m.dem
Driver: USGSDEM/USGS Optional ASCII DEM (and CDED)
Files: dem10m/dem10m.dem
dem10m/dem10m.dem.aux.xml
Size is 3600, 3600
Coordinate System is:
GEOGCS["NAD83",
DATUM["North_American_Datum_1983",
SPHEROID["GRS 1980",6378137,298.257222101,
AUTHORITY["EPSG","7019"]],
TOWGS84[0,0,0,0,0,0,0],
AUTHORITY["EPSG","6269"]],
PRIMEM["Greenwich",0,
AUTHORITY["EPSG","8901"]],
UNIT["degree",0.0174532925199433,
AUTHORITY["EPSG","9108"]],
AUTHORITY["EPSG","4269"]]
Origin = (-97.999999407110110,31.000000503864648)
Pixel Size = (0.000277777777778,-0.000277777777778)
Metadata:
AREA_OR_POINT=Point
Corner Coordinates:
Upper Left ( -97.9999994, 31.0000005) ( 98d 0' 0.00"W, 31d 0' 0.00"N)
Lower Left ( -97.9999994, 30.0000005) ( 98d 0' 0.00"W, 30d 0' 0.00"N)
Upper Right ( -96.9999994, 31.0000005) ( 97d 0' 0.00"W, 31d 0' 0.00"N)
Lower Right ( -96.9999994, 30.0000005) ( 97d 0' 0.00"W, 30d 0' 0.00"N)
Center ( -97.4999994, 30.5000005) ( 97d30' 0.00"W, 30d30' 0.00"N)
Band 1 Block=3600x3600 Type=Float32, ColorInterp=Undefined
Min=79.900 Max=398.900
Minimum=79.900, Maximum=398.900, Mean=193.121, StdDev=63.589
NoData Value=-32767
Unit Type: m
Metadata:
STATISTICS_MAXIMUM=398.89999389648
STATISTICS_MEAN=193.12105660542
STATISTICS_MINIMUM=79.900001525879
STATISTICS_STDDEV=63.588582941289
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Converting Data
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Exporting original data into new formats
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Vector I/O Formats
ogr2ogr --formats
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Raster I/O Formats
gdal_translate --formats
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
shapefile → geojson
let's make a webmap-friendly version
of our zipcodes shapefile:
ogr2ogr -f geojson zipcodes.geojson zipcodes/zipcodes.shp
NOTE: This will generate Warnings - that's ok!
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Now try:
ogrinfo zipcodes.geojson
and:
ogrinfo -so zipcodes.geojson zipcodes
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
GeoTIFF → georeferenced PNG
gdal_translate -of png doqq.tif converted_doqq.png
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Now try:
gdalinfo converted_doqq.png
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Reprojecting Data
These Slides are at: https://slides.com/staceymaples/handsonwithgdal

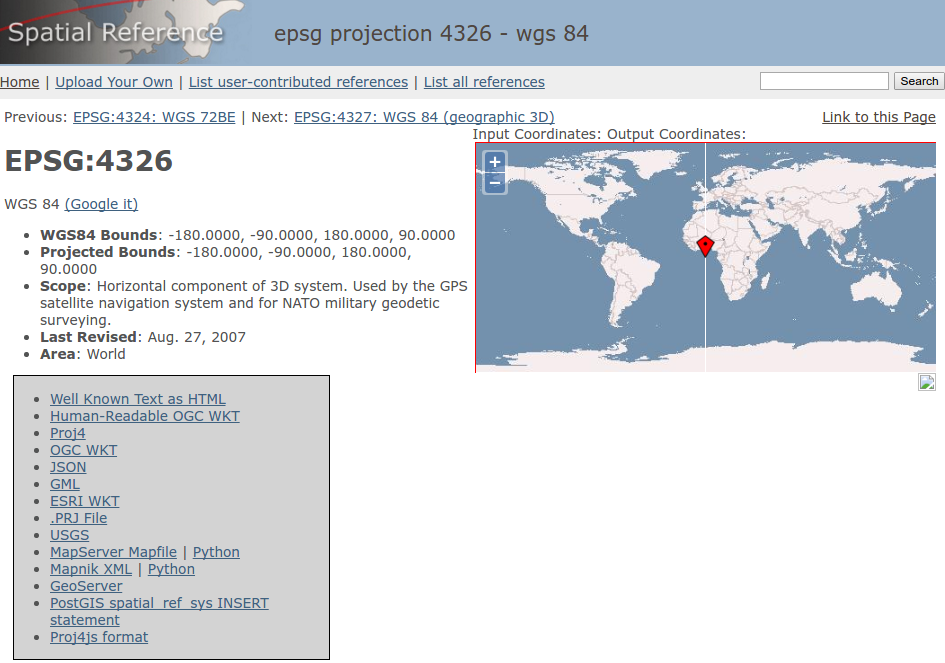

Side note: EPSG Codes
spatialreference.org (great resource!)
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Let's make everything WGS84!
ogr2ogr -t_srs EPSG:4326 reprojected_pools.shp pools/pools.shp
gdalwarp -t_srs EPSG:4326 doqq.tif reprojected_doqq.tif
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Questions so far?
- ogrinfo
- gdalinfo
- ogr2ogr
- gdal_translate
- gdalwarp
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Querying Data
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Asking questions about your data layers
OGR allows you to use a dialect of SQL ("OGR SQL") to query layers
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Q: "How many swimming pools are in Austin?"
ogrinfo pools/pools.shp -sql "SELECT COUNT(*) FROM pools"
A: 51,073
INFO: Open of `pools/pools.shp' using driver `ESRI Shapefile' successful. Layer name: pools Geometry: None Feature Count: 1 Layer SRS WKT: (unknown) COUNT_*: Integer (0.0) OGRFeature(pools):0 COUNT_* (Integer) = 51073
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Q: "What is the first pool feature?"
ogrinfo -q pools/pools.shp -sql "SELECT * FROM pools WHERE fid = 1"
Layer name: pools OGRFeature(pools):1 POOLS_2013 (Integer) = 2 CREATED_BY (String) = AeroMetric CREATED_DA (Date) = 2013/10/01 MODIFIED_B (String) = (null) MODIFIED_D (Date) = (null) SOURCE (String) = LiDAR 2012 FEATURE (String) = Above ground ORIGIN_FEA (String) = Pools_2013 Shape_Leng (Real) = 44.08991859810 Shape_Area (Real) = 154.55091064300 POLYGON ((3164378.2166 9997997.05799999833 0,3164378.178199999034 9997996.324100002646446 0,3164378.063000001013279 9997995.598399996757507 0,3164377.873099997639656 9997994.888400003314018 0,3164377.6096 9997994.202399998903275 0,3164377.275899998844 9997993.547899998724461 0,3164376.875699996948242 9997992.931400001049042 0,3164376.413400001823902 9997992.3605 0,3164375.893700003623962 9997991.840800002217293 0,3164375.322499997913837 9997991.378300003707409 0,3164374.706399999559 9997990.978 0,3164374.0515 9997990.6446999982 0,3164373.365500003099442 9997990.3812 0,3164372.655900001525879 9997990.19089999795 0,3164371.930200003087521 9997990.076099999249 0,3164371.196199998259544 9997990.037399999797 0,3164370.462300002574921 9997990.076099999249 0,3164369.736599996685982 9997990.19089999795 0,3164369.0269 9997990.3812 0,3164368.340599998831749 9997990.644299998879433 0,3164367.686099998652935 9997990.978 0,3164367.0696 9997991.378300003707409 0,3164366.4987 9997991.840800002217293 0,3164365.979000002145767 9997992.360200002789497 0,3164365.516800001263618 9997992.931400001049042 0,3164365.1162 9997993.547499999404 0,3164364.782899998128414 9997994.202399998903275 0,3164364.5194 9997994.888400003314018 0,3164364.329099997878075 9997995.59809999913 0,3164364.214299999177 9997996.324100002646446 0,3164364.175899997353554 9997997.0577 0,3164364.214299999177 9997997.791599996387959 0,3164364.329099997878075 9997998.517300002276897 0,3164364.5194 9997999.227300003170967 0,3164364.782899998128414 9997999.9133 0,3164365.1162 9998000.567900002002716 0,3164365.516500003635883 9998001.184299997985363 0,3164365.979000002145767 9998001.755199998617172 0,3164366.498400002717972 9998002.274899996817112 0,3164367.0696 9998002.737499997019768 0,3164367.686099998652935 9998003.137699998915195 0,3164368.340599998831749 9998003.471100002527237 0,3164369.026600003242493 9998003.734499998390675 0,3164369.736599996685982 9998003.924800001084805 0,3164370.462300002574921 9998004.039599999785 0,3164371.196199998259544 9998004.0784 0,3164371.929799996316433 9998004.039599999785 0,3164372.655900001525879 9998003.924800001084805 0,3164373.365500003099442 9998003.734499998390675 0,3164374.0515 9998003.4714 0,3164374.706399999559 9998003.137699998915195 0,3164375.322499997913837 9998002.737499997019768 0,3164375.893700003623962 9998002.274899996817112 0,3164376.413099996745586 9998001.755500003695488 0,3164376.875699996948242 9998001.184299997985363 0,3164377.275899998844 9998000.567900002002716 0,3164377.6096 9997999.9133 0,3164377.872699998319149 9997999.227300003170967 0,3164378.063000001013279 9997998.517700001597404 0,3164378.178199999034 9997997.791599996387959 0,3164378.2166 9997997.05799999833 0))
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Q: "How many above ground pools in Austin?"
ogrinfo -q pools/pools.shp -sql "SELECT COUNT(*) FROM pools WHERE FEATURE = 'Above ground'"
A: 21,550
Layer name: pools OGRFeature(pools):0 COUNT_* (Integer) = 21550
Saving query results to a new file
Similar to how you might save a "query view" in other GIS software, you can use OGR to create a new file based on a SQL query
These Slides are at: https://slides.com/staceymaples/handsonwithgdal

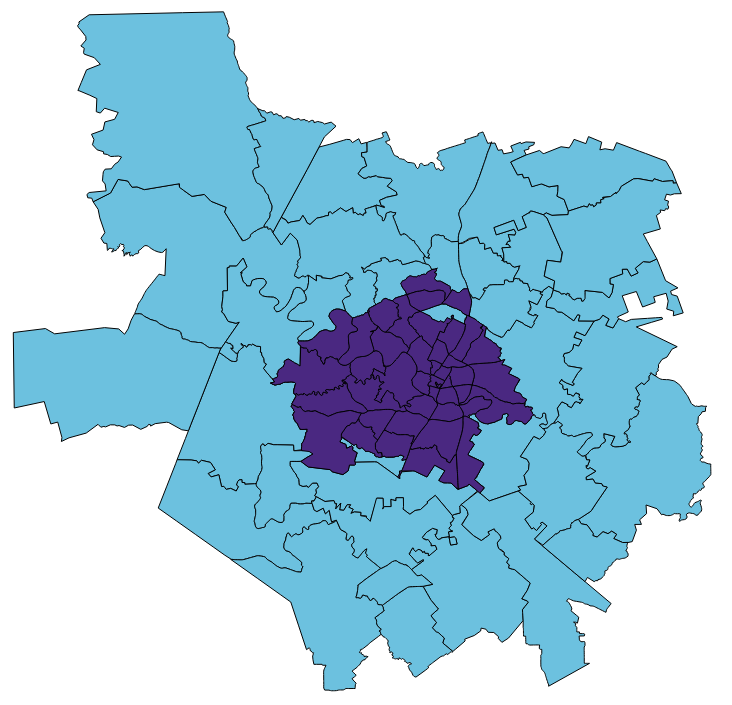

"Create a shapefile containing only the zipcode boundaries in Austin city limits"
ogr2ogr austin_zips.shp zipcodes/zipcodes.shp -sql "SELECT * FROM zipcodes WHERE name = 'Austin'"
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
"Create a shapefile containing small zipcodes"
ogr2ogr under_10mil.shp zipcodes/zipcodes.shp -sql "SELECT * FROM zipcodes WHERE SHAPE_AREA <10000000"
These Slides are at: https://slides.com/staceymaples/handsonwithgdal

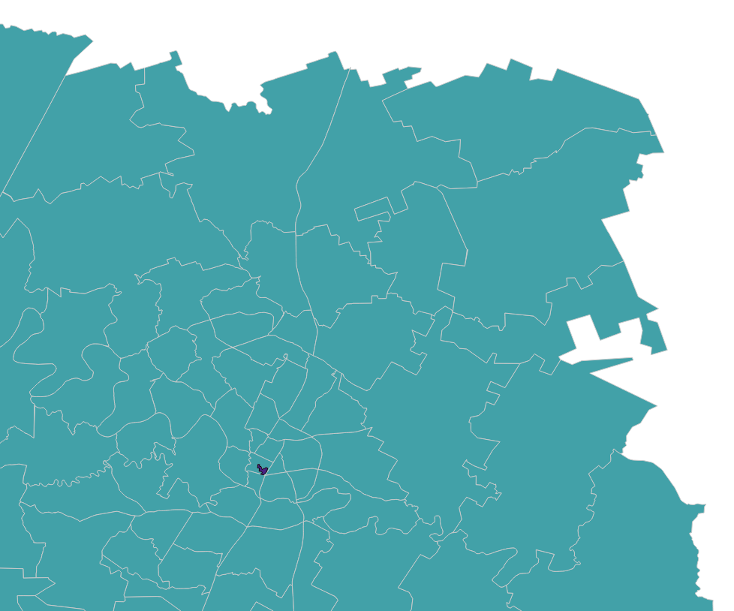

under_10mil.shp (tiny, purple shape)
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
"Create a geoJSON with only zipcode 78756's boundary"
ogr2ogr -f geojson 78756.geojson zipcodes/zipcodes.shp -sql "SELECT * FROM zipcodes WHERE ZIPCODE = '78756'"
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Break
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Clipping to create new data
You can clip a target data layer to a given clipping layer to create a new layer
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
"Create a new layer with only the pools in zipcode 78756"
ogr2ogr -clipsrc 78756.geojson 78756_pools.shp reprojected_pools.shp
These Slides are at: https://slides.com/staceymaples/handsonwithgdal

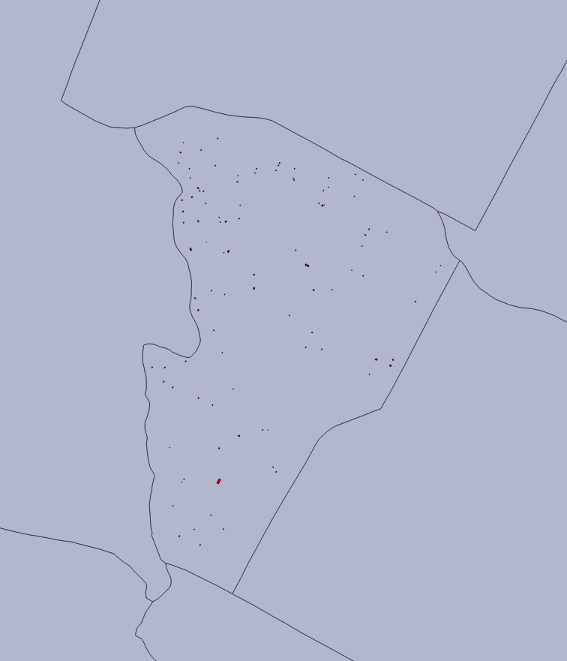

78756_pools.shp (shown over zipcodes)
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
"Show only the imagery in zipcode 78756"
gdalwarp -cutline 78756.geojson doqq.tif 78756_doqq.tif
These Slides are at: https://slides.com/staceymaples/handsonwithgdal

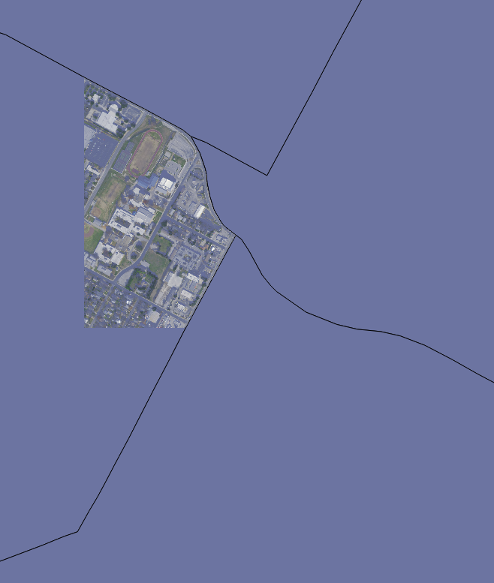

78756_doqq.tif (shown over zipcodes)
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
"Clip a DEM to a bounding box"
gdal_translate -srcwin 0 0 1000 1000 -of USGSDEM dem10m/dem10m.dem clipped_dem.dem
These Slides are at: https://slides.com/staceymaples/handsonwithgdal

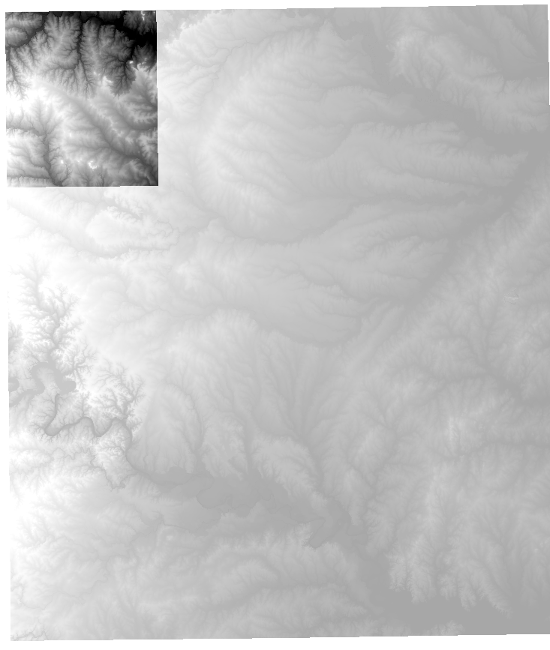

clipped_dem.dem (shown with original DEM)
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Fun with DEMs
Now that our DEM is clipped to a more managable size, let's see what it can do
These Slides are at: https://slides.com/staceymaples/handsonwithgdal

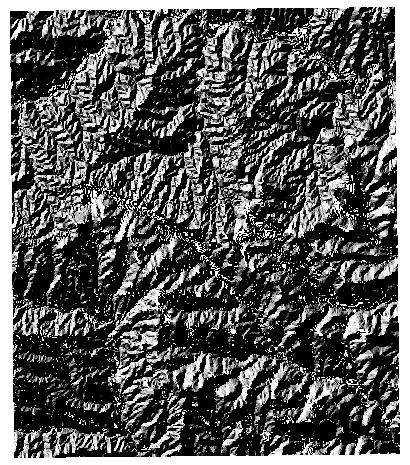

"Generate a hillshade from our DEM"
gdaldem hillshade -of png clipped_dem.dem hillshade.png
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
These Slides are at: https://slides.com/staceymaples/handsonwithgdal

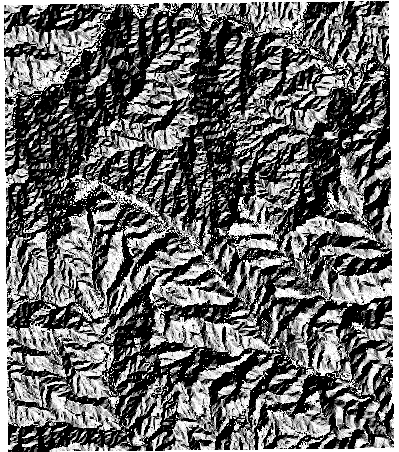

"Make a hillshade Using a z-factor"
gdaldem hillshade -of png -az 135 clipped_dem.dem hillshade135.png
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
"Make a color relief"
gdaldem color-relief clipped_dem.dem colorramp.txt colorrelief.tif
Format of colorramp.txt:
(value) (R) (G) (B)
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
colorrelief.tif
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
"Create contour lines from a DEM"
gdal_contour -a elev -i 20 clipped_dem.dem contours.shp
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
contours.shp
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Questions?
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Thank you!!!
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Things to Try on Your Own
Googling is good! Or check the useful links on next slide.
- Reproject a dataset using a PROJ4 string or a .prj file
- Create an index on the zipcodes shapefile
- Merge two datasets together
- Resize a raster
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
These Slides are at: https://slides.com/staceymaples/handsonwithgdal
Hands on with GDAL/OGR .5hr: Setup & Installation 2hr: Instruction & Group Exercises This workshop is adapted and updated from http://slides.sarasafavi.com/gdal/#/ which is cc-by-nc 4.0 | © Sasha Hart & Sara Safavi, 2017 These Slides are at: https://slides.com/staceymaples/handsonwithgdal
GDAL 101: The Geospatial Data Abstraction Library for beginners.
By Stace Maples
GDAL 101: The Geospatial Data Abstraction Library for beginners.
Based entirely upon Sara Safavi's fantastic GDAL Hands-on Workshop, the single best introduction to GDAL, available. See the original, here: http://slides.sarasafavi.com/gdal/#/ I've taken Sara's workshop, added access to speaker notes and updated a few things for the newest versions of GDAL. Otherwise, I'm presenting her work.
- 747
