LEVEL UP!
A better gaming experience with Play Games Services
Your speaker: +StefanHoth / @stefanhoth
Player 1 joined
Play Games Services
Inventory
#io13
#io14
C++
All (important) platforms
What's inside?
Achievements!
Leaderboards!
Quests!
Cloud Save!
Multiplayer!
Gifts!
Anti Piracy!
There's an app for that
Level 1
Press play to join
on Android
- Android development environment ready (SDK, IDE, ...)
- A device with Android 2.3+
- Current Google Play Services installed on the device
- Activated Google Play Developer account (US$25)
Step 0
Android SDK Manager
> Extras
> install "Google Repository" &
"Android Support Repository"
Step 1: Set up for gradle
dependencies {
compile 'com.google.android.gms:play-services-games:8.1.0'
//optional for multiplayer matchmaking
compile 'com.google.android.gms:play-services-plus:8.1.0'
//optional for "Nearby Players" matchmaking
compile 'com.google.android.gms:play-services-nearby:8.1.0'
}
Add to build.gradle
Sync!
Step 2: Configure Proguard
<3 Thanks, Google!
https://play.google.com/apps/publish/
Step 3: Google Play Developer Console
Step 4: Add a game
Step 5: Link game
Step 6: Generate OAuth2 client ID
Setup complete!
Level 2
Rewarding players for their engagement
Achievements

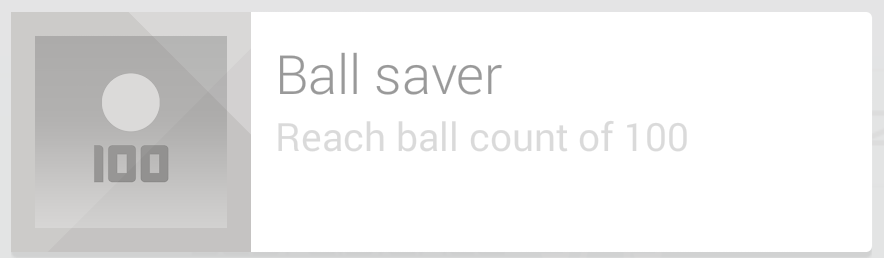

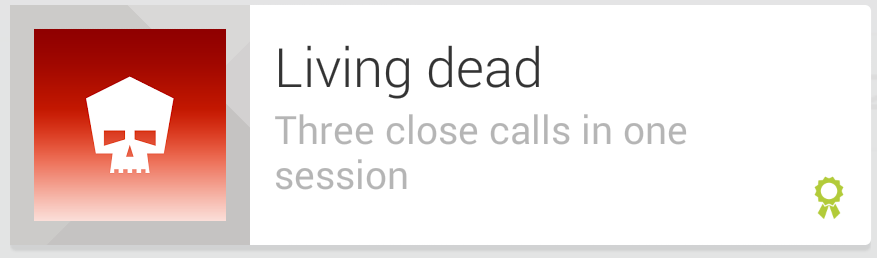

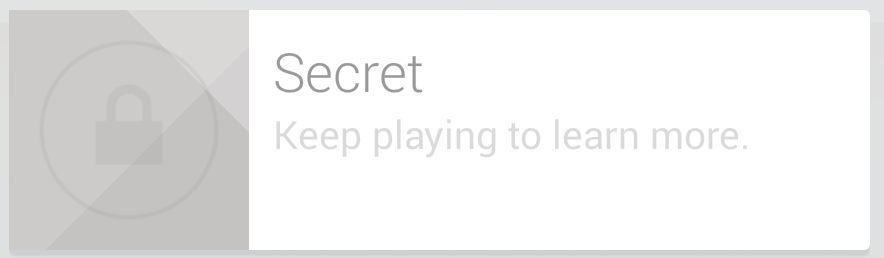

States
Incremental achievements
Create an achievement
Check the ids
Code!
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest>
<application>
// Activities, Services etc go here
<meta-data
android:name="com.google.android.gms.version"
android:value="@integer/google_play_services_version" />
<meta-data
android:name="com.google.android.gms.games.APP_ID"
android:value="@string/app_id" />
</application>
</manifest>AndroidManifest.xml
Get a client instance
gamesApiClient = new GoogleApiClient.Builder(activity)
.addApi(Games.API)
.addScope(Games.SCOPE_GAMES)
.addConnectionCallbacks(this)
.addOnConnectionFailedListener(this)
.build();Unlock normal achievement
Games.Achievements.unlock(gamesApiClient, "CgkInsXxu-kVEAIQAQ");
// wait, use string resources! Increment achievement
Games.Achievements.increment(gamesApiClient,
"CgkInsXxu-kVEAIQBA", 1);Display achievements
startActivityForResult(
Games.Achievements.getAchievementsIntent(gamesApiClient),
REQUEST_CODE_ACHIEVEMENTS);Display achievements
Level 3
See your global rank or challenge friends
Leaderboards
Create a leaderboard
Code!
Submit a score
Games.Leaderboards.submitScore(
gamesApiClient,
"CgkInsXxu-kVEAIQBw",
1337);Display leaderboard
startActivityForResult(
Games.Leaderboards.getLeaderboardIntent(
gamesApiClient, "CgkInsXxu-kVEAIQBw"
),
REQUEST_CODE_LEADERBOARD);Display leaderboard
Level 4
Track player success and (re)engange users
Events & Quests

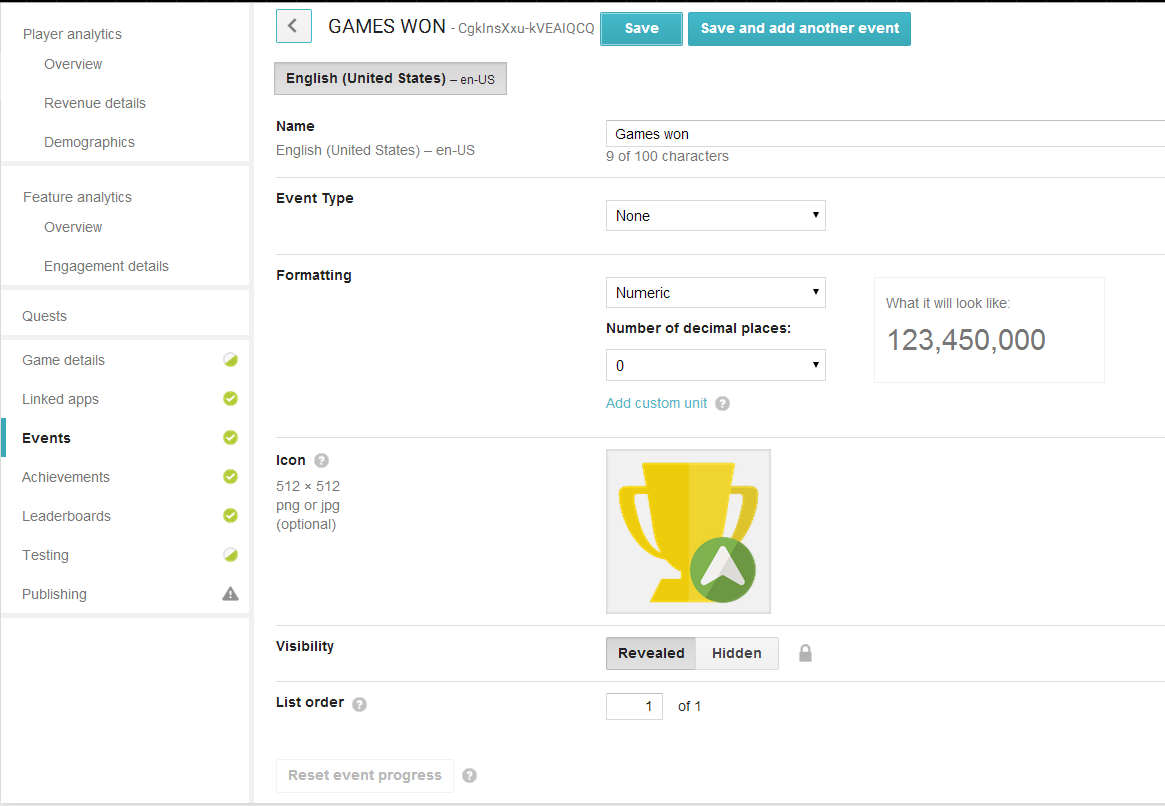

Create an event

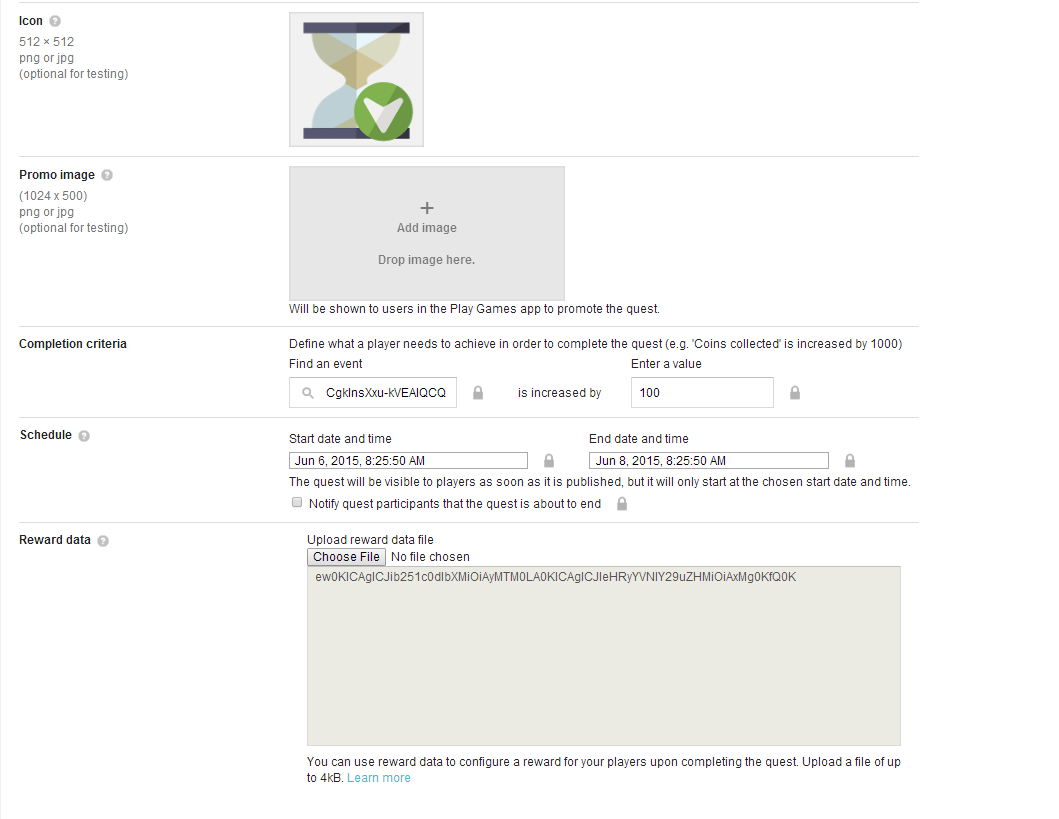

Create a quest
Reward data
{
"bonusGems": 2134,
"extraSeconds": 12
}Code!
Submit an event update
Games.Events.increment(gamesApiClient, "CgkInsXxu-kVEAIQCQ", 1);Display available Quests
startActivityForResult(
Games.Quests.getQuestsIntent(
gamesApiClient, Quests.SELECT_ALL_QUESTS
),
REQUEST_QUESTS);Level 5
Enable your players to continue
the game on another device
Cloud Save
Google Drive Appfolder
Built-in offline support

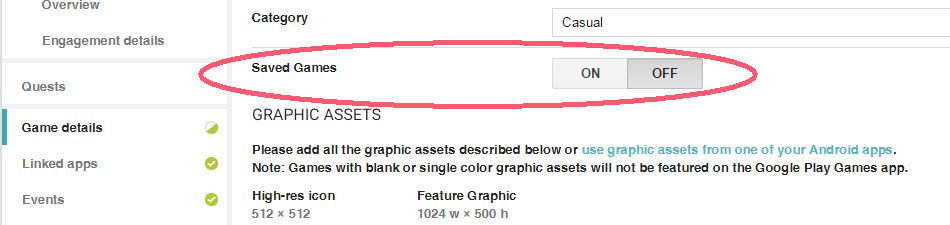

Activate Save Games
Save game parts
Unstructured
Structured
{
"id": 123,
"name": "Level 2-3",
"description": "66% already solved",
"last_modified": 1445401740, // timestamp
"played time": 31337, // in ms
"cover_image": 1010101001// bitmap
}Code!
Set the API
// Google API Client with access to Plus, Games, and Drive
gamesApiClient = new GoogleApiClient.Builder(this)
.addConnectionCallbacks(this)
.addOnConnectionFailedListener(this)
.addApi(Games.API).addScope(Games.SCOPE_GAMES)
.addApi(Plus.API).addScope(Plus.SCOPE_PLUS_LOGIN)
.addApi(Drive.API).addScope(Drive.SCOPE_APPFOLDER)
.build();
Display the saved games
private static final int RC_SAVED_GAMES = 9009;
private void showSavedGamesUI(boolean allowAdd, boolean allowDelete) {
int maxNumberOfSavedGamesToShow = 5;
Intent savedGamesIntent =
Games.Snapshots.getSelectSnapshotIntent(gamesApiClient,
"See My Saves", allowAdd, allowDelete, maxNumberOfSavedGamesToShow);
startActivityForResult(savedGamesIntent, RC_SAVED_GAMES);
}Save game parts
private PendingResult<Snapshots.CommitSnapshotResult> writeSnapshot(Snapshot snapshot,
byte[] data, Bitmap coverImage, String desc) {
}Save game parts
private PendingResult<Snapshots.CommitSnapshotResult> writeSnapshot(Snapshot snapshot,
byte[] data, Bitmap coverImage, String desc) {
// Set the data payload for the snapshot
snapshot.getSnapshotContents().writeBytes(data);
}Save game parts
private PendingResult<Snapshots.CommitSnapshotResult> writeSnapshot(Snapshot snapshot,
byte[] data, Bitmap coverImage, String desc) {
// Set the data payload for the snapshot
snapshot.getSnapshotContents().writeBytes(data);
// Create the change operation
SnapshotMetadataChange metadataChange = new SnapshotMetadataChange.Builder()
.setCoverImage(coverImage)
.setDescription(desc)
.build();
}Save game parts
private PendingResult<Snapshots.CommitSnapshotResult> writeSnapshot(
Snapshot snapshot, byte[] data, Bitmap coverImage, String desc) {
// Set the data payload for the snapshot
snapshot.getSnapshotContents().writeBytes(data);
// Create the change operation
SnapshotMetadataChange metadataChange = new SnapshotMetadataChange.Builder()
.setCoverImage(coverImage)
.setDescription(desc)
.build();
// Commit the operation
return Games.Snapshots.commitAndClose(gamesApiClient, snapshot, metadataChange);

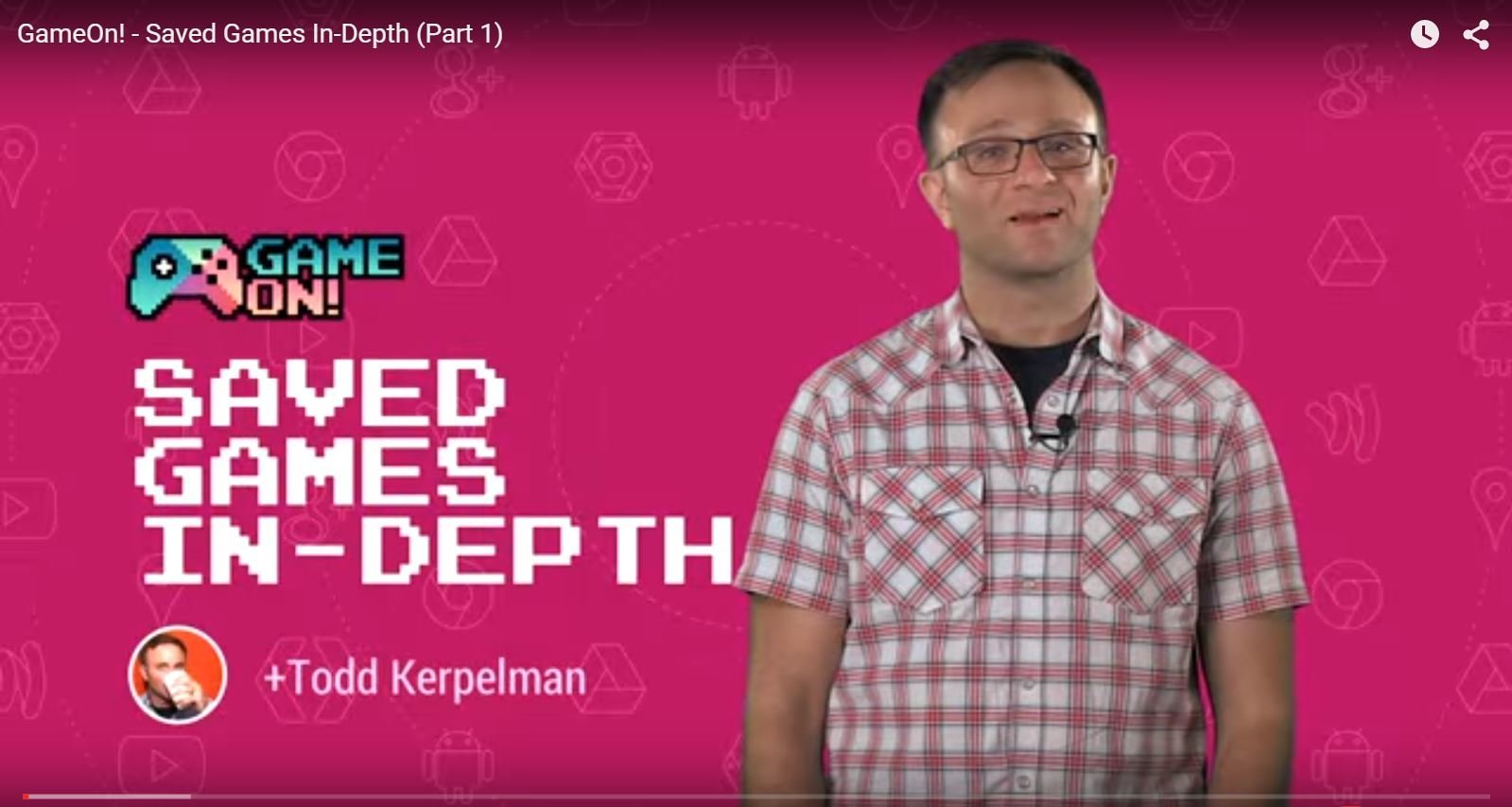

}Game On DevByte
Shortcuts
Attention: Publish twice!
All ids in one go
All ids in one go
Magic?
Boss level
Publishing API
Create & Update
achievements + leaderboards
Management APIs
- Reset scores, achievements, quests etc.
- only for testers and unpublished games
- after release: hide cheaters from leaderboards
/playgameservices/management-tools
Player Analytics
Secret bonus level
Google Tag Manager
GAME OVER
Questions

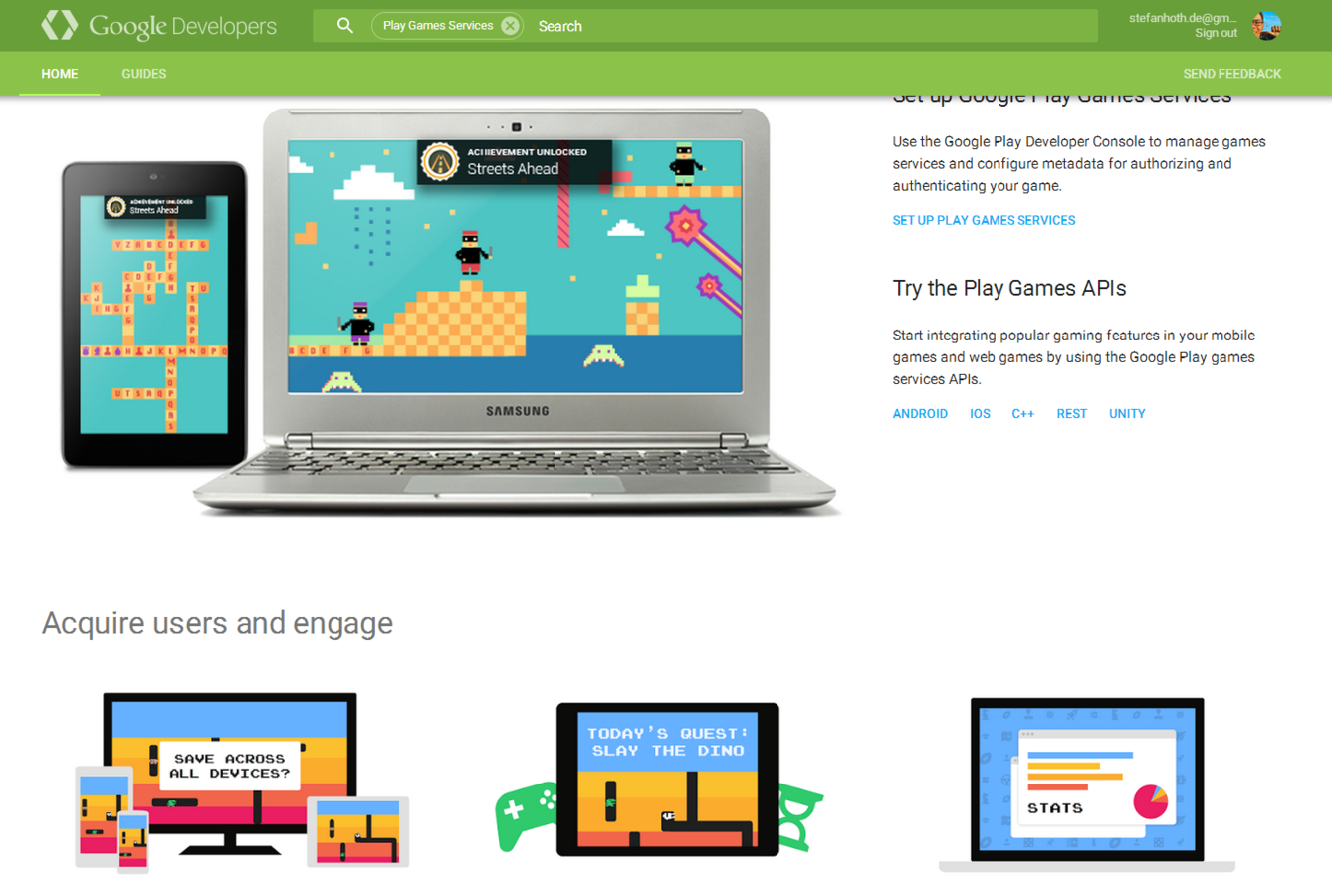

Play Games Services Docs
https://developers.google.com/games/services/
//TODO: Ropasc Lisc on GitHub
https://github.com/stefanhoth/ropasclisp
Thank You!
Stefan Hoth
stefan@novoda.com
@stefanhoth
+StefanHoth
stefanhoth
