Physical Computing

To prepare

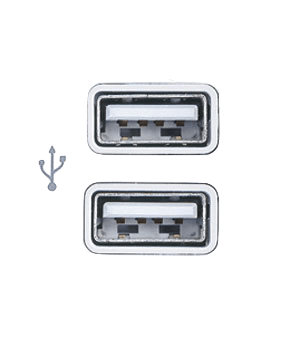

Computer with USB-A port on OR dongle with USB-A port

Download and install Arduino IDE

To do

Please upload all workshop outcomes to the shared G oogle Drive

Arduino

Computation in Design 2

2024

Physical Computing

9

10

Bag

Wires

Arduino Board

Grove Shield

USB Cable

Button

Light sensor

Rotary Angle Sensor (Potentiometer)

Vibration Motor

LED Light

D5

D3

A0

A1

Session 1

B-DC 123

D4

1

2

3

4

5

6

7

8

What is physical computing?

23 - 24

Computation in Design 2

2024

Physical Computing

Session 1

B-DC 123

Outline

23 - 24

Physical Computing

Introduction to Sensors & Actuators

Computation in Design 2

2024

Physical Computing

What is physical computing?

How do we use sensors & actuators to accept input & release output to and from the physical world, how does interface with the digital

How to use the Arduino & Grove Shield & various sensors & actuators

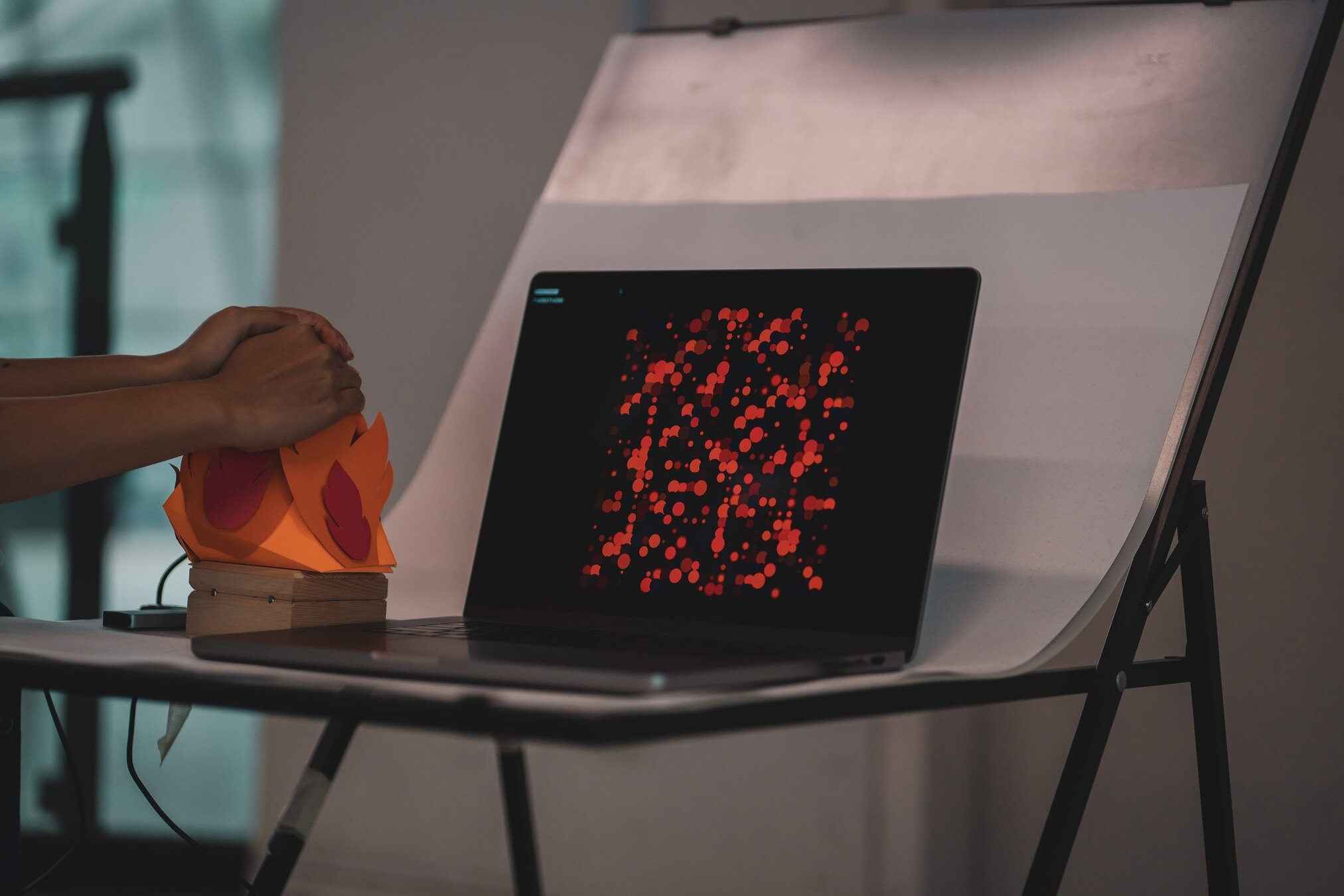

Build an interactive artwork showcasing interaction of physical and digital.

Capture your whole process with photos and videos

Share with the class your interactive thing

Demo

Activity - Bring Me To Life

Documentation

Session 1

Session 2

Presentation

B-DC 123

Physical Computing

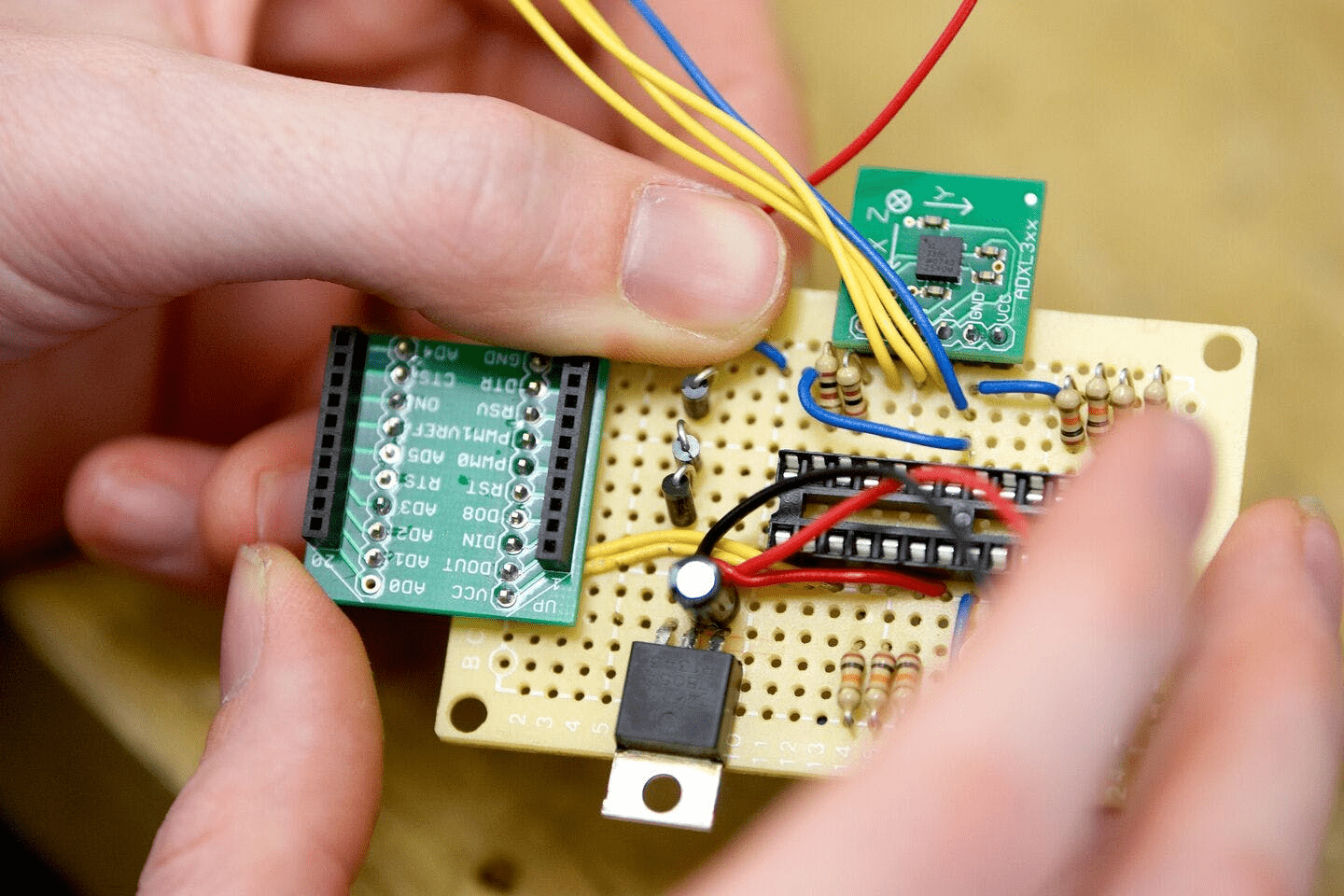

Physical computing refers to the design and implementation of interactive systems that bridge the digital and physical worlds. It involves using hardware and software to create systems that can sense and respond to the physical environment.

Key components of physical computing include:

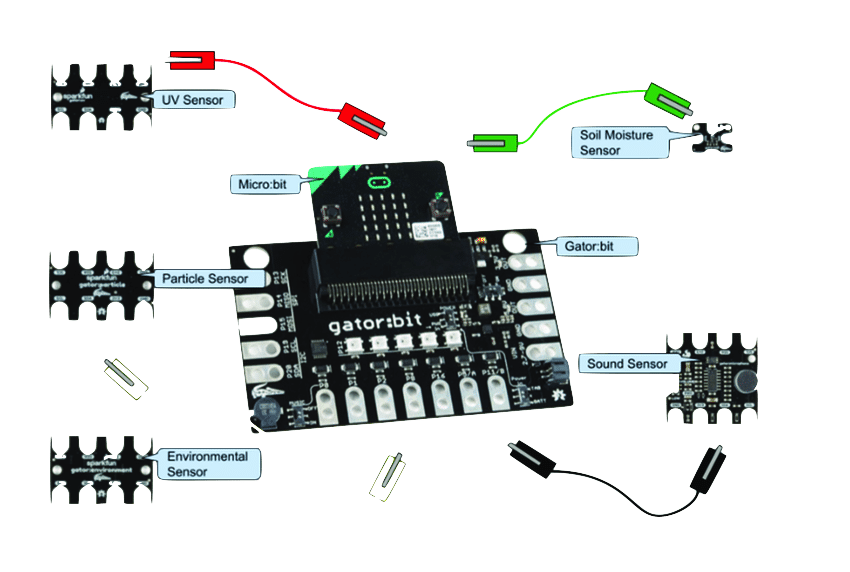

Sensors: Devices that can detect physical inputs from the environment, such as light, temperature, motion, or sound.
Actuators: Components that can take digital information and convert it into physical actions, such as motors, LEDs, or speakers.
Microcontrollers: Small, programmable computers that serve as the brain of a physical computing system. They read input from sensors, process data, and control actuators.
Programming: Writing code to define the behavior of the system, including how it responds to input from sensors and how it controls actuators.

Computation in Design 2

2024

Physical Computing

Session 1

B-DC 123

B-DC 123

Computation in Design 2

2024

Physical Computing

Actuators

Sensors

Microcontrollers

World

Programming

Session 1

Arduino

B-DC 123

Computation in Design 2

2024

Physical Computing

Actuators

Sensors

Microcontrollers

World

Programming

Session 1

p5.js

Arduino x p5.js

B-DC 123

Computation in Design 2

2024

Physical Computing

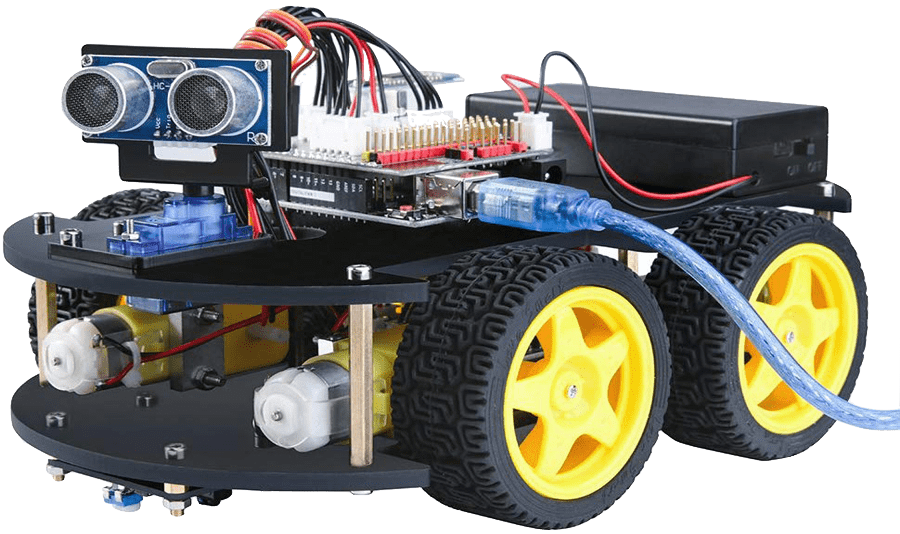

Arduino with Ultrasonic Sensor & Servo, connected through a breadboard

Actuators

Sensors

Microcontrollers

World

Programming

Session 1

Why?

This physical computing exercise aims to experiment with simple input and output mechanisms that utilise electronics.

We extend traditional design products into the digital sphere and explore how design can be applied to physical applications that a user can interact with to create physical and tangible experiences.

Through prepared materials and electronic components, students will design a simple physical interaction that demonstrates how a physical input triggers a digital output and vice versa.

Computation in Design 2

2024

Physical Computing

Session 1

B-DC 123

What's possible?

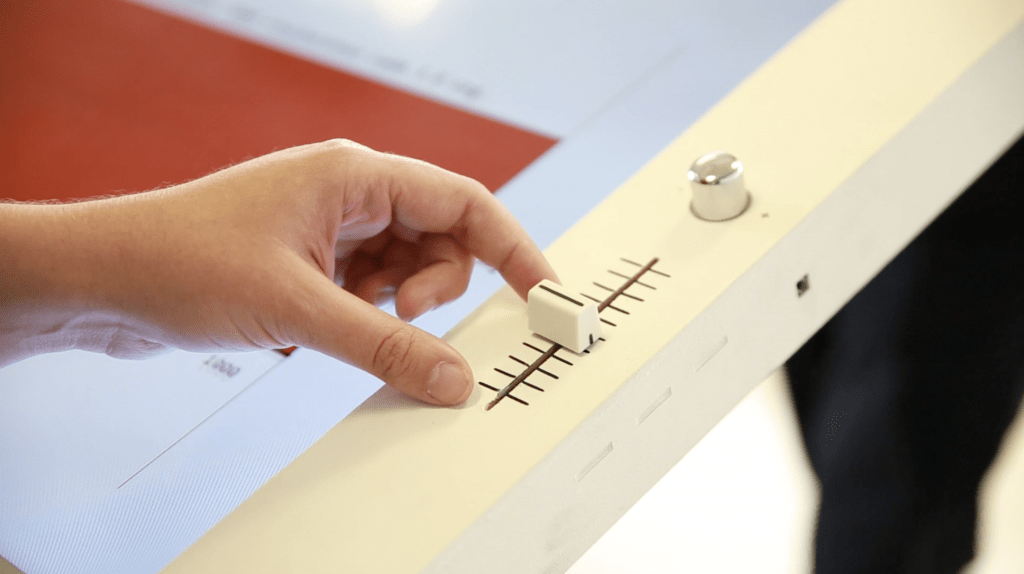

TAMI - an intuitive approach to the learning of trigonometry

Walk Walk Dance - an interactive pathway of lines that trigger different musical patterns, transforming the act of walking into a collaborative performance

LiquidMidi - An experimental modular textile interface for sonic interactions, exploring aesthetics and morphology on contemporary interaction design.

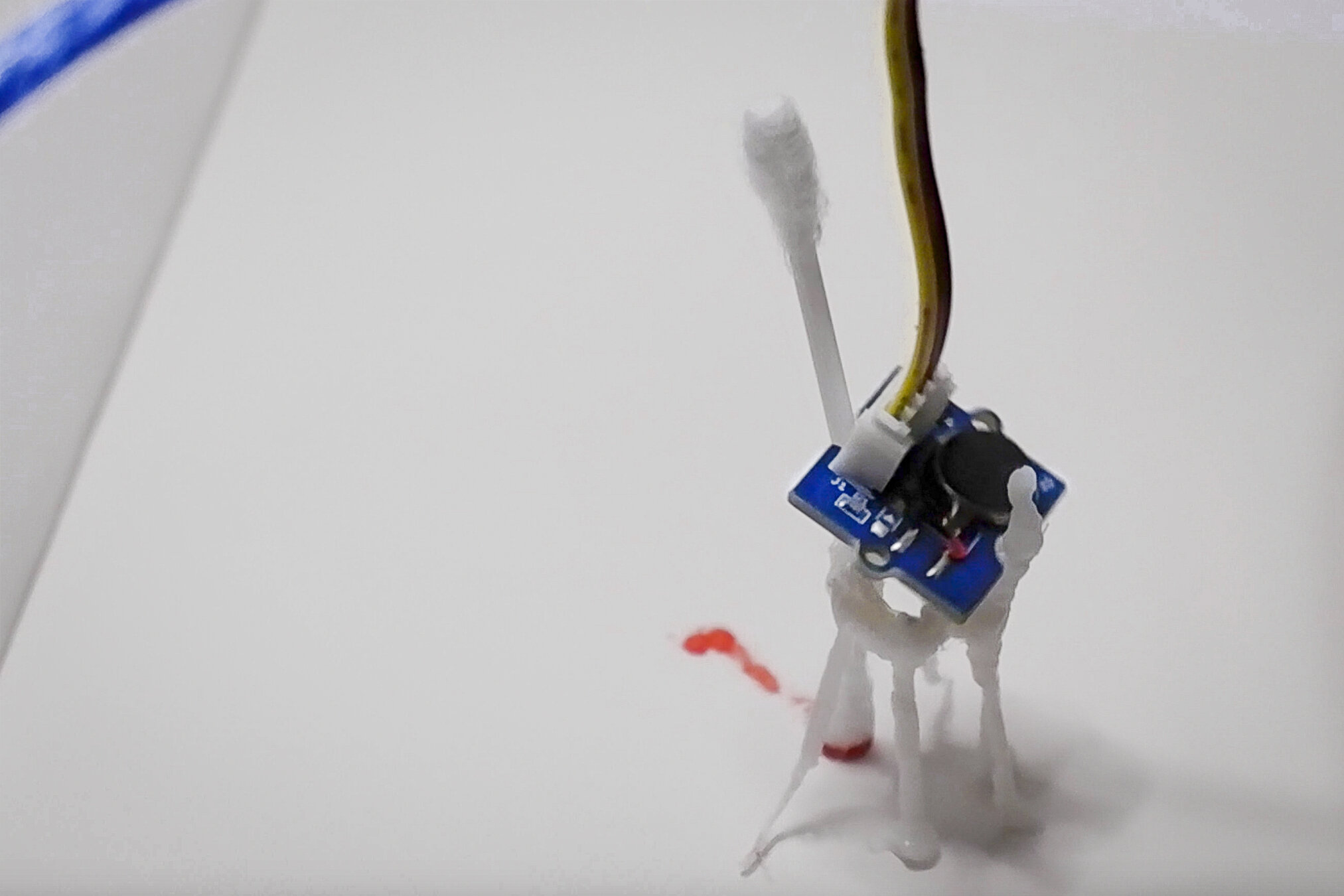

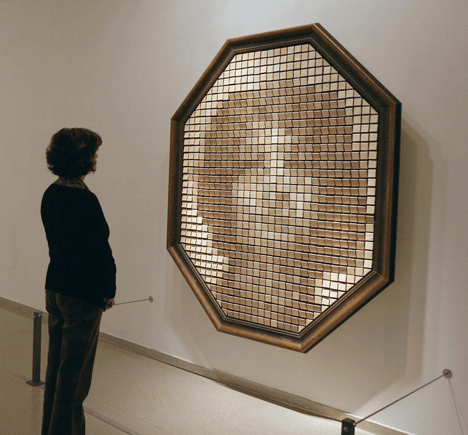

Mechanical Mirrors - use sensors and motors to rearrange objects into a mirror-image of whoever stands in front of them

Computation in Design 2

2024

Physical Computing

Session 1

B-DC 123

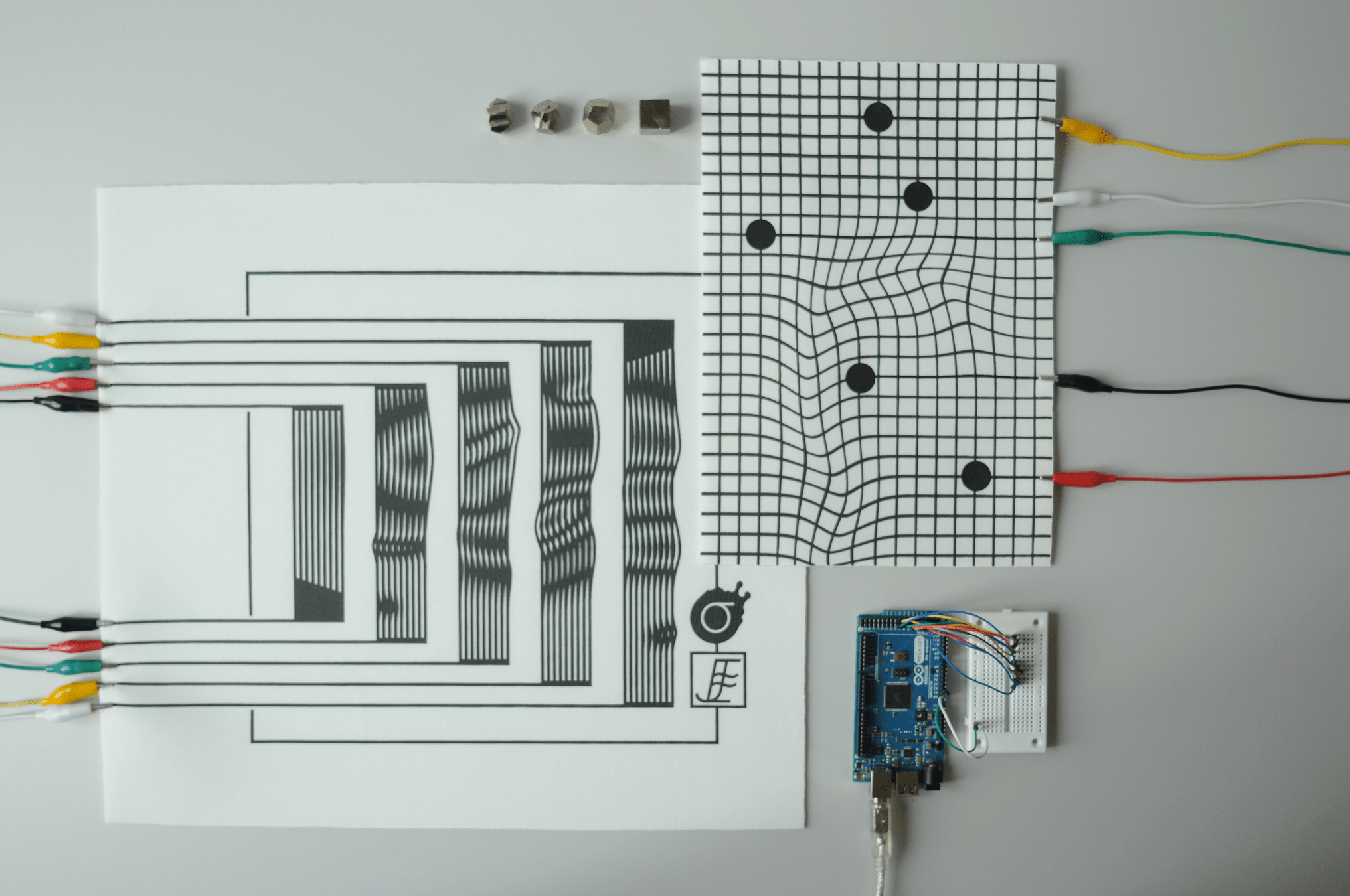

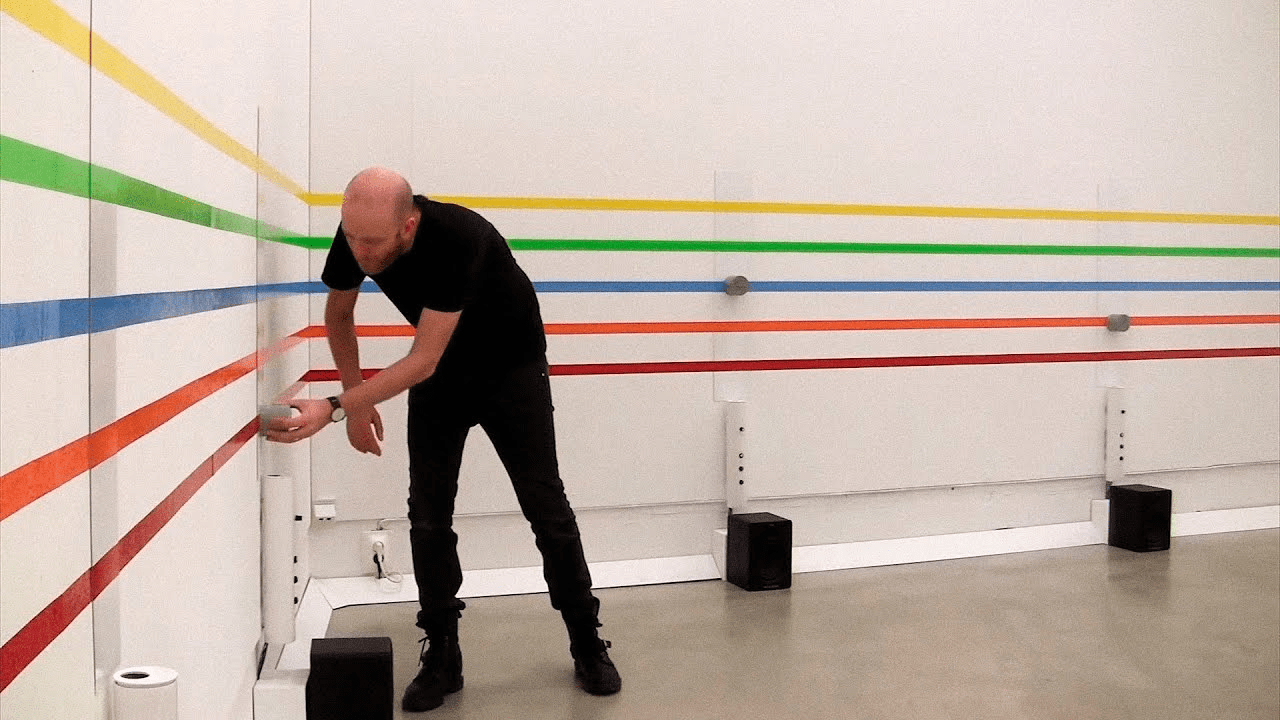

Lines - Lines attached to the wall, on the floor and hanging from the ceiling in combination with sensors and electronics are forming three novel music instruments

Computation in Design 2

2024

Physical Computing

Session 1

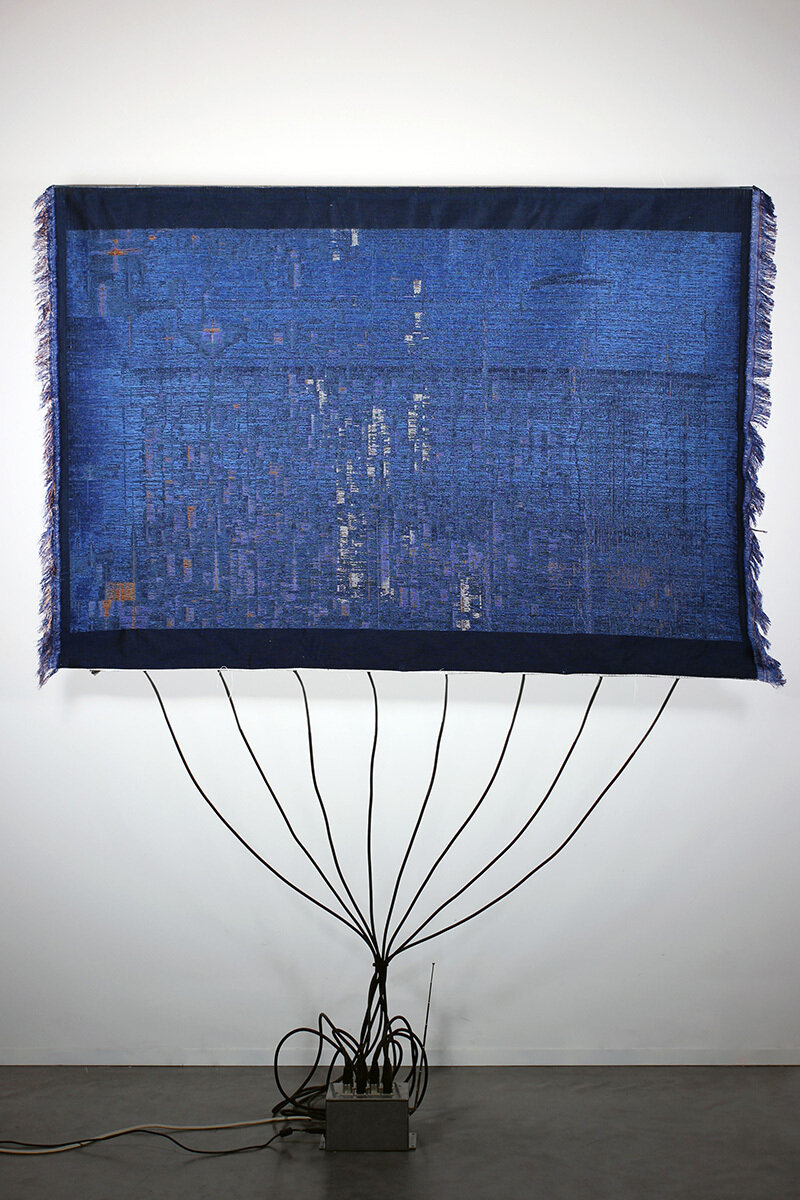

Wifi Tapestry - dynamic wall hanging that visualises the wireless activity of a space. The tapestry visualises the ever changing "landscape" of radio frequencies around us.

B-DC 123

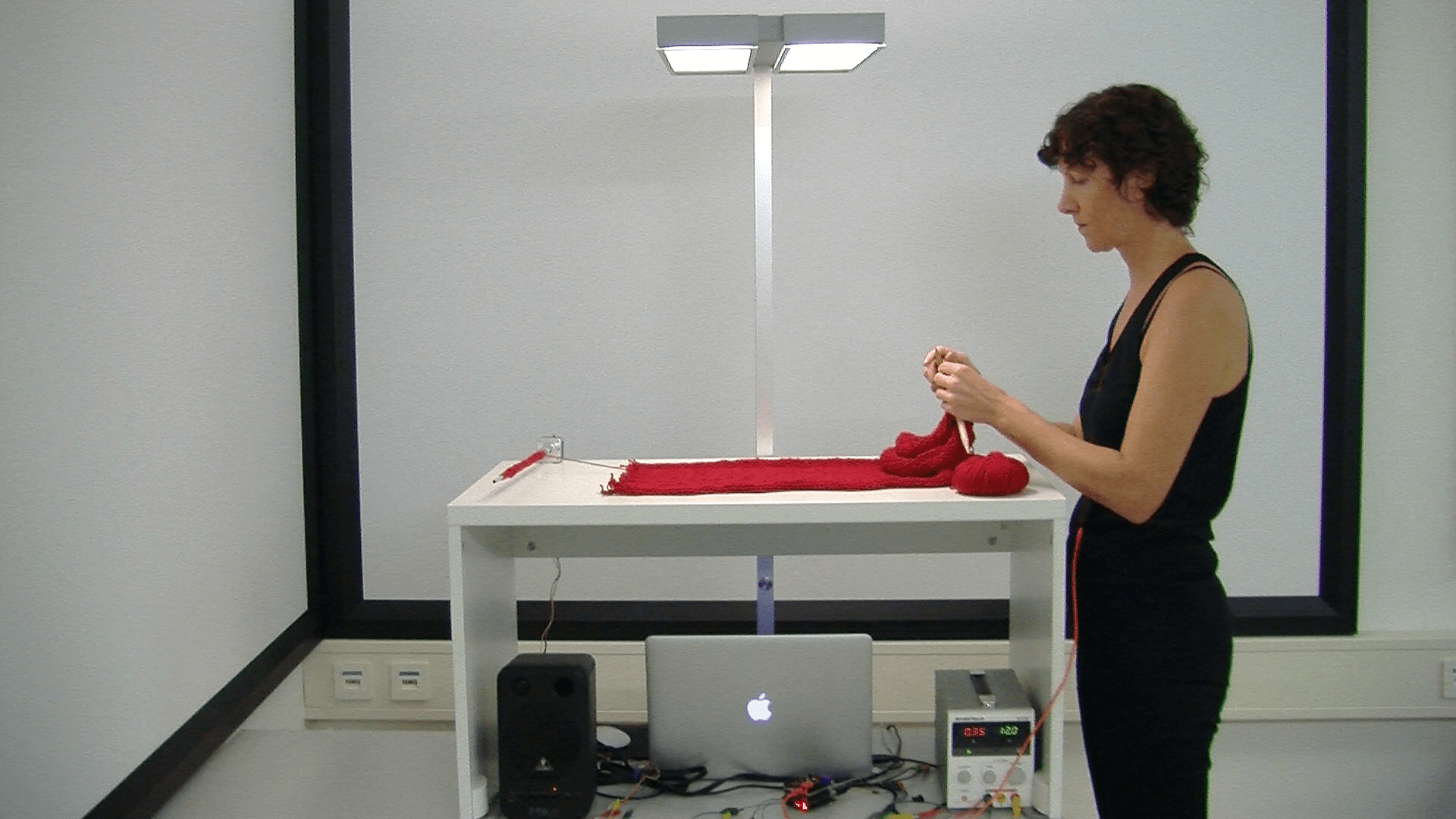

Material Expressions No2 - Electromyography (EMG) electrodes attached to the chest of the knitter trigger sounds in a MIDI synthesizer with each beat of the performer's heart. The heartbeat simultaneously actuates a motor to unravel the scarf being continuously knit during the performance.

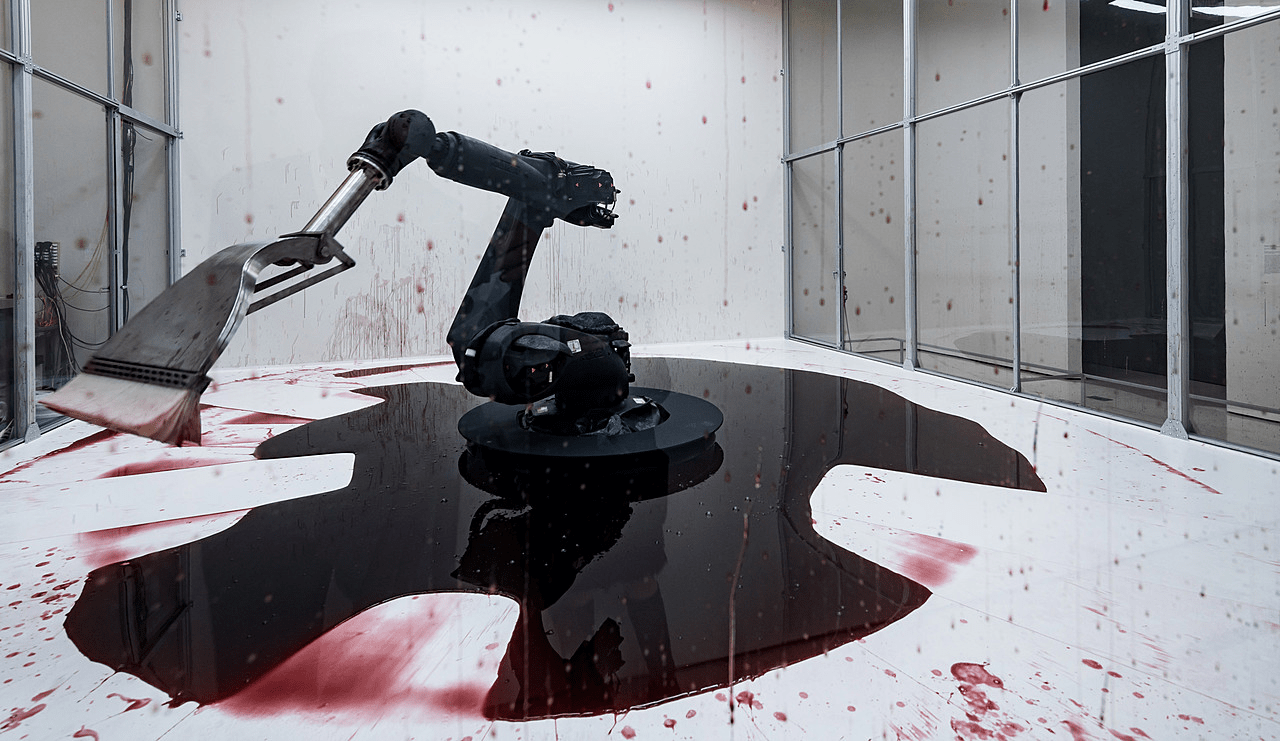

Can't Help Myself - Placed behind clear acrylic walls, their robot has one specific duty, to contain a viscous, deep-red liquid within a predetermined area. When the sensors detect that the fluid has strayed too far, the arm frenetically shovels it back into place, leaving smudges on the ground and splashes on the surrounding walls.

Reflect on the references,

Which did you like, which did you prefer less?
How have these examples broadened your perspective on what physical computing is?
What ideas sprouted out from what you have seen?

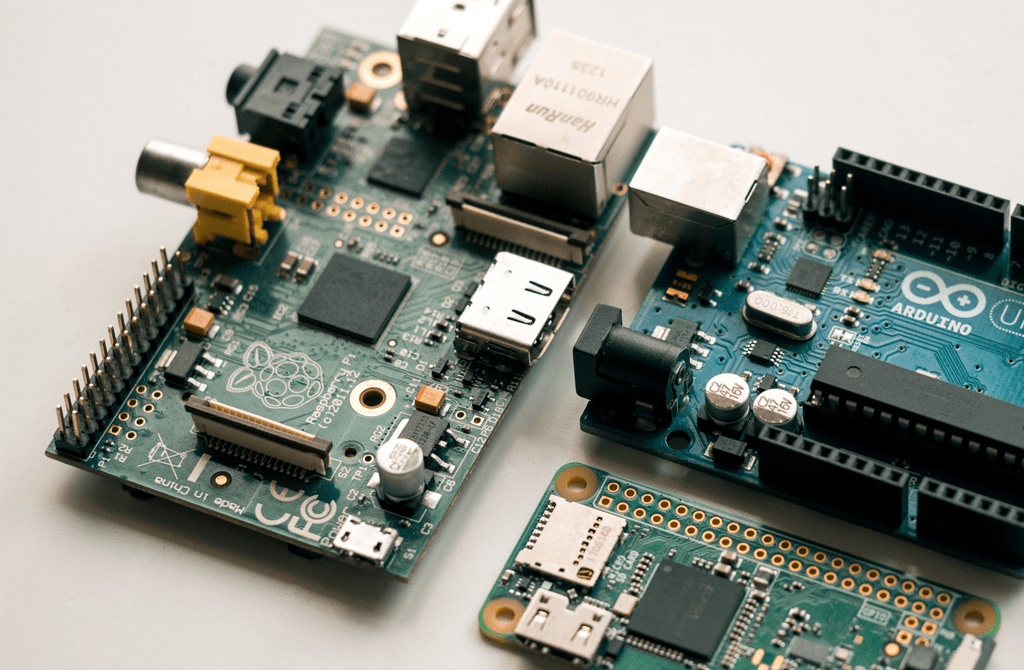

What is... an Arduino?

Arduino is an open-source electronics platform that consists of both hardware and software components. It provides a simple and accessible way for individuals, including hobbyists, artists, and students, to create interactive electronic projects. The Arduino platform includes an easy-to-use integrated development environment (IDE) for programming, as well as a variety of microcontroller boards.

Computation in Design 2

2024

Physical Computing

Session 1

B-DC 123

Demo

Arduino Demonstration

B-DC 123

Computation in Design 2

2024

Physical Computing

15

Download Arduino IDE

Demo Sketch

Arduino

Computation in Design 2

2024

Physical Computing

In this exercise you together with your group will be given a small electronics prototyping kit which includes an Arduino board and a Grove Shield (What is an Arduino, what is a Grove Shield? More in the next slide(s)).

With this kit you are able to try out simple input and outputs like LED lights, buttons or knobs. Why should you know about this as a designer?

Session 1

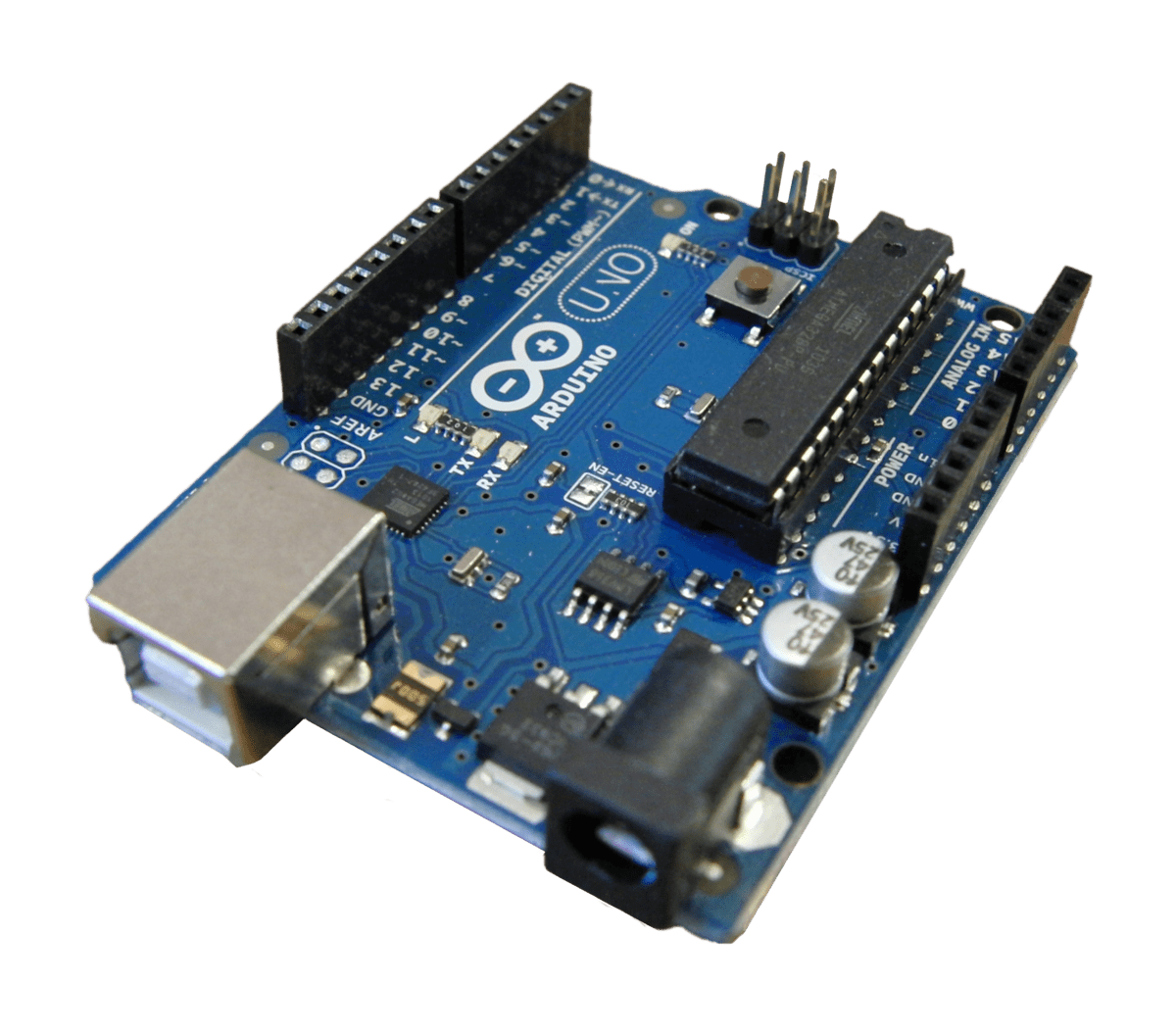

Arduino Uno

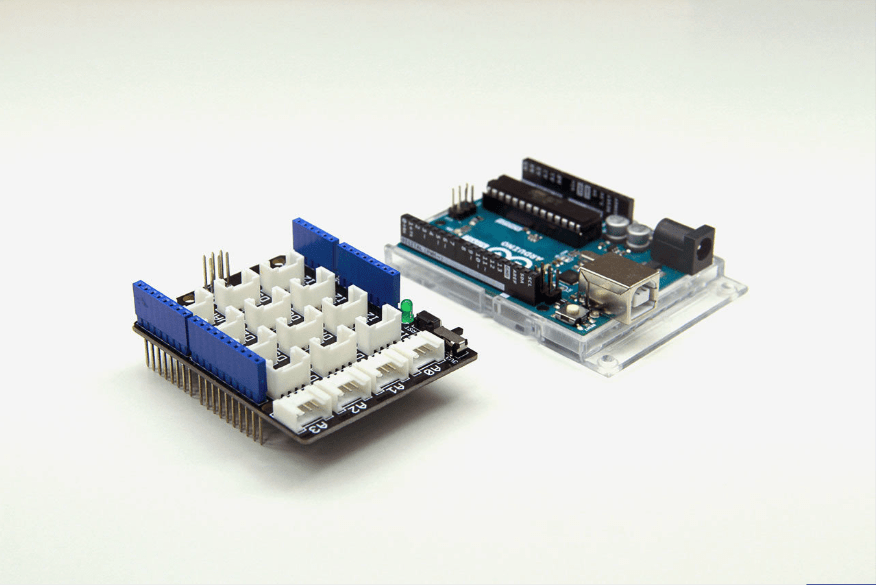

Arduino Uno + Grove Shield

B-DC 123

Arduino

Computation in Design 2

2024

Physical Computing

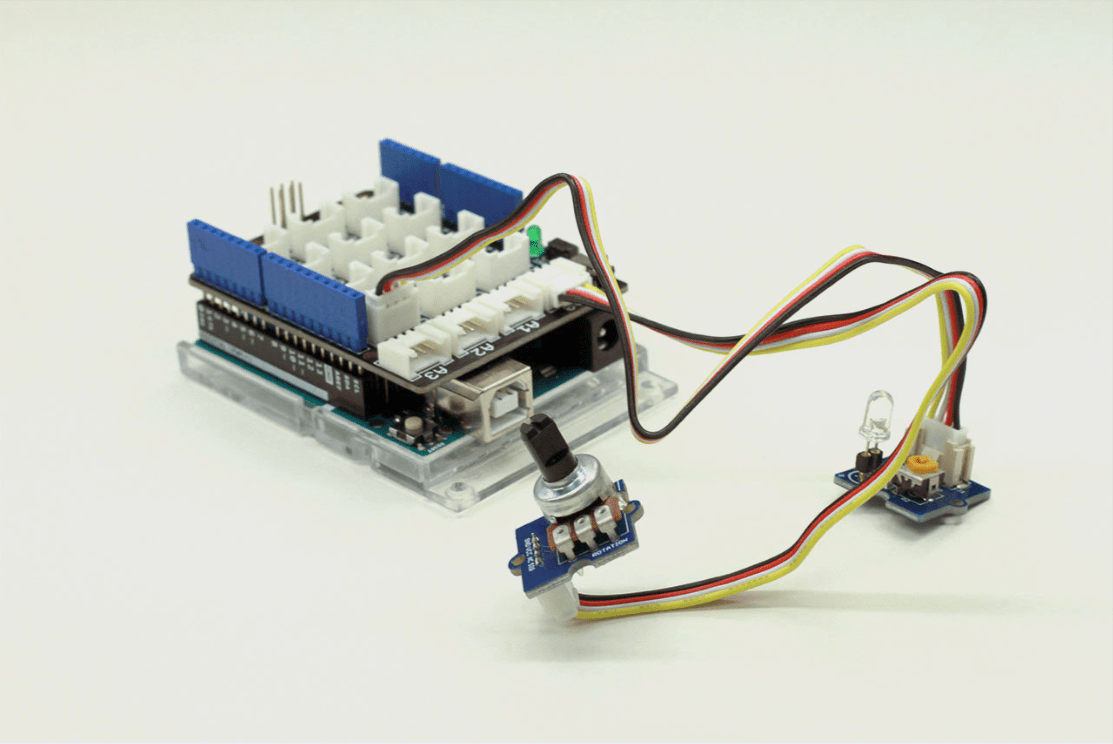

Arduino Uno board with Grove Shield

Arduino Uno board with Grove Shield and two electrical components (potentiometer as input, LED as output)

As a designer you may work on projects that go beyond the traditional scope of print, app or web design and you may be tasked to venture out into building interactive interfaces.

Interaction design, Exhibition design, Experience design, Interactive products, Experimental design or Research.

B-DC 123

Session 1

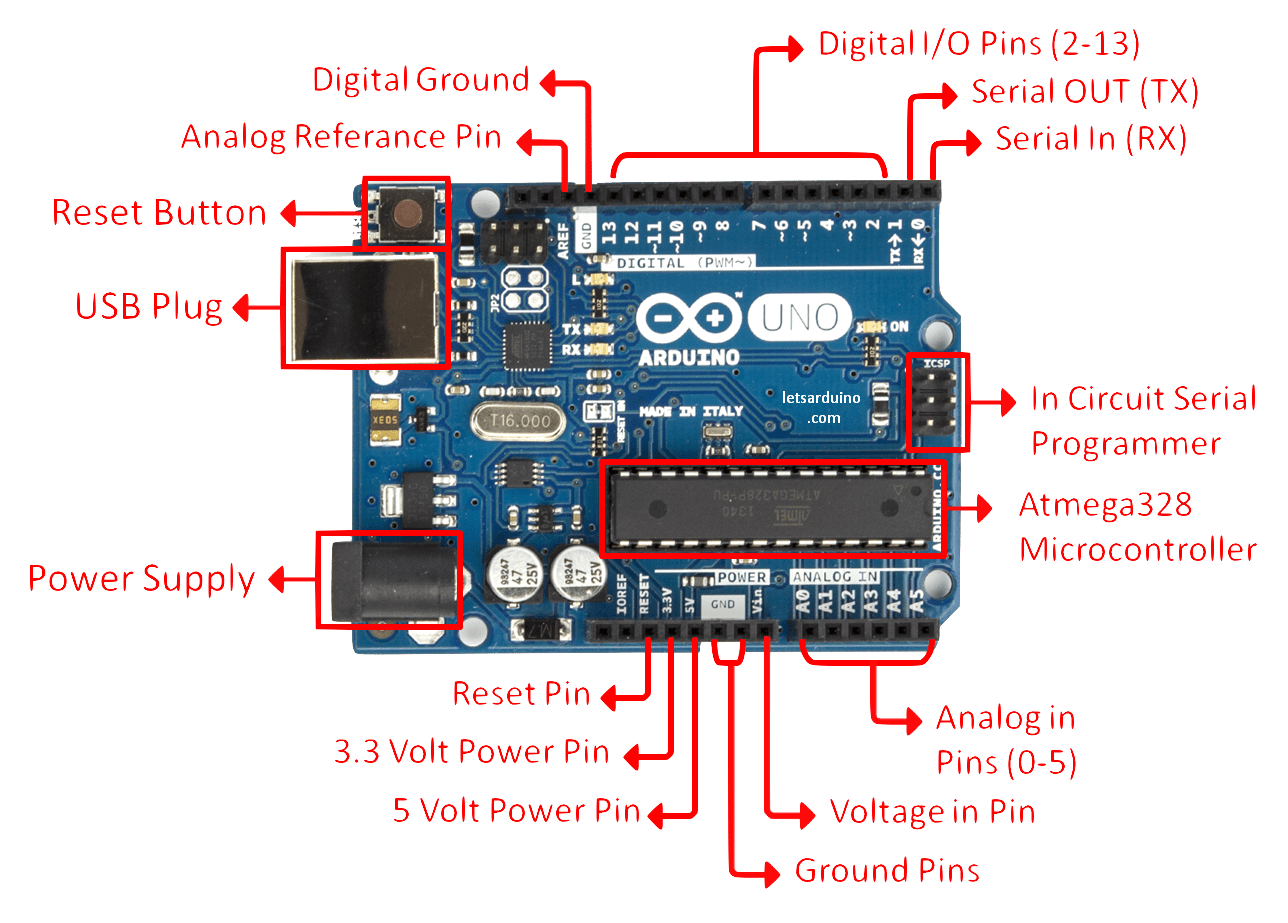

Overview of Arduino Uno Components

Computation in Design 2

2024

Physical Computing

Session 1

B-DC 123

Arduino IDE

Computation in Design 2

2024

Physical Computing

Session 1

1. A Toolbar with buttons for common functions and a series of menus. The toolbar buttons allow you to verify and upload programs, create, open, and save sketches, and open the serial monitor.

2. The message area, gives feedback while saving and exporting and also displays errors.

3. The text editor for writing your code.

4. The text console displays text output by the Arduino Software (IDE), including complete error messages and other information.

Download Arduino IDE

ℹ️ Arduino IDE Guide

B-DC 123

Computation in Design 2

2024

Physical Computing

Session 1

Code is all the same...

function setup() {
  createCanvas(400, 400);
  // where you set up the p5 document
}

function draw() {
  background(220);
  // where you carry out actions repeatedly
}

void setup() {
  // put your setup code here, to run once:

}

void loop() {
  // put your main code here, to run repeatedly:

}

p5.js Starter Code

Arduino Starter Code

B-DC 123

Computation in Design 2

2024

Physical Computing

Session 1

Basic Arduino Functions

Arduino Reference

-

-

-

-

Configures the specified pin to behave either as an input or output.

Reads the value from a specified digital pin, either HIGH or LOW.

Write a HIGH or a LOW value to a digital pin.

Reads the value from the specified analog pin. Arduino boards contain a multichannel, 10-bit analog to digital converter. This means that it will map input voltages between 0 and the operating voltage(5V or 3.3V) into integer values between 0 and 1023.

Writes an analog value (PWM wave) to a pin.

Pauses the program for the amount of time (in milliseconds) specified as parameter.

-

-

B-DC 123

Arduino

Computation in Design 2

2024

Physical Computing

9

10

Bag

Wires

Arduino Board

Grove Shield

USB Cable

Button

Light sensor

Rotary Angle Sensor (Potentiometer)

Vibration Motor

LED Light

D5

D3

A0

A1

Session 1

B-DC 123

D4

1

2

3

4

5

6

7

8

Follow Along!

How to download and setup Arduino software

How to connect Arduino and Grove Shield

Open your first Arduino sketch

Upload Arduino sketch to Arduino board

Make changes to example Arduino sketches

Make changes to example p5.js code

B-DC 123

Computation in Design 2

2024

Physical Computing

60

p5

A

A

A

A

p5

IN

OUT

Computation in Design 2

2024

Physical Computing

Arduino to Arduino

Arduino to p5

p5 to Arduino

Data flow

A

p5

Session 1

B-DC 123

Button

/*
Arduino Intro Example 1 (Activity 1.1)
This is an Arduino sketch to turn on an LED when a Button is pressed, all connected to the Arduino
*/

#define LED_PIN 3
#define BTN_PIN 4

void setup() {
  // put your setup code here, to run once:
  Serial.begin(9600);
  pinMode(LED_PIN, OUTPUT);
  pinMode(BTN_PIN, INPUT);
}

void loop() {
  // put your main code here, to run repeatedly:
  if (digitalRead(BTN_PIN) == HIGH) {
        digitalWrite(LED_PIN, HIGH);
        /* Uncomment the code below, to make the LED blink every 0.2s
        delay(200);
        digitalWrite(LED_PIN,LOW);
        delay(200);
        */
  }
  else {
    digitalWrite(LED_PIN, LOW);
  }
}

/*
Instructions:
1) connect LED to D3.
2) connect BUTTON to D4.
3) connect arduino to laptop via USB cable

4) upload sketch using the  -> button on the top left of the arduino IDE window.
5) wait for uploading to be done.
6) Press button
*/

B-DC 123

Computation in Design 2

2024

Physical Computing

Input

Output

LED

A

A

Activity 1.1

Session 1

Digital In, Digital Out

Physical

Physical

Light Sensor

/*
Arduino Intro Example 2 (Activity 1.2)
This is an Arduino sketch to affect the Vibration motor using the Light Sensor (LDR), all connected to the Arduino
*/

#define BUZZER_PIN 5
#define LIGHT_SENSOR A0

void setup() {
  // put your setup code here, to run once:
  Serial.begin(9600);
  pinMode(BUZZER_PIN, OUTPUT);
  pinMode(LIGHT_SENSOR, INPUT);
}

void loop() {
  // put your main code here, to run repeatedly:

  //values from light sensor is mapped into a different range (0-255) and used for buzzer
  int data = analogRead(LIGHT_SENSOR);
  //Serial.println(data);
  int mappedVal = map(data, 0, 1000, 0, 255);
  Serial.println(mappedVal);


  analogWrite(BUZZER_PIN, mappedVal);
  delay(50);
  analogWrite(BUZZER_PIN,0);
  delay(50);
}

/*
Instructions
1) connect buzzer to D5.
2) connect light sensor to A0.
3) connect arduino to laptop via USB cable
4) upload sketch using the  -> button on the top left of the arduino IDE window.
5) wait for uploading to be done.
6) Play with light
*/

B-DC 123

Computation in Design 2

2024

Physical Computing

Input

Output

Vibration Motor

A

A

Activity 1.2

Session 1

Analog In, Digital Out

Physical

Physical

B-DC 123

Computation in Design 2

2024

Physical Computing

/*
Physical-To-Digital (P2D) (Activity 1.3)
This is an arduino sketch to connect arduino to p5.js via serial.
The corresponding p5.js sketch can be found at "https://editor.p5js.org/nawzaysfinah/sketches/ZPk_TdocX"
*/

#define POTENTIOMETER_PIN A1

void setup() {
  // put your setup code here, to run once:
  Serial.begin(9600);
}

void loop() {
  // put your main code here, to run repeatedly:
  int data = analogRead(POTENTIOMETER_PIN);
  int mappedVal = map(data, 0, 1023, 0, 255);
  Serial.println(mappedVal);
  delay(100);
}

/*
1) connect potentiometer to A1.
2) connect arduino to laptop via USB cable
3) upload sketch using the  -> button on the top left of the arduino IDE window.
4) close serial monitor, if its open.
5) wait for uploading to be done and proceed to p5.js and open PhysicalComputing_P2D
*/

Potentiometer

Input

Output

p5.Js sketch

A

p5

Activity 1.3

Session 1

Laptop Display

Analog In, Digital Out

Physical

Digital

B-DC 123

Computation in Design 2

2024

Physical Computing

/*
DIGITAL-to-PHYSICAL (Activity 1.4)
This is an arduino sketch to use data from serial to move the arduino.
To be used with p5.js sketch (https://editor.p5js.org/nawzaysfinah/sketches/s97bq5bZe )

*/

#define BUZZER_PIN 5
#define LED_PIN 3

void setup() {
  Serial.begin(9600);
  pinMode(BUZZER_PIN , OUTPUT);
  pinMode(LED_PIN , OUTPUT);
}

void loop() {
  if (Serial.available() > 0) {
    String input = Serial.readStringUntil('\n');
    //if there is data coming through
    if (input.length() > 0) {

      //check what is coming through
      if(input == "1"){
        digitalWrite(BUZZER_PIN, HIGH);
        digitalWrite(LED_PIN, HIGH);
      }
      else{
        digitalWrite(BUZZER_PIN, LOW);
        digitalWrite(LED_PIN, LOW);
      }
    }
  }
}


/*
Instructions
1) connect Buzzer to D5.
2) connect arduino to laptop via USB cable
3) Stop any previous p5.js running
3) upload sketch using the  -> button on the top left of the arduino IDE window.
4) close serial monitor, if its open.
5) wait for uploading to be done and proceed to p5.js to open PhysicalComputing_D2P
6) Interact with the sketch and observe the arduino
*/

Mouse

Input

Output

p5.Js sketch

p5

A

Activity 1.4

Session 1

Buzzer

Digital In, Digital Out

Digital

Physical

Document ✍🏽

Document all work from Session 1

Save p5.js sketches & Arduino code

Collect screenshots of outcomes

Take photos/videos of your experiments

Write your reflection about learning physical computing

B-DC 123

Computation in Design 2

2024

Physical Computing

10

Session 1

Conceptualise ✍🏽

Sketch concept for final activity on paper

Groups to be reasonable and confident to implement Arduino

Groups to be aware of time and time management

Sketch input and output flow of data through sensors, actuators, Arduino & p5.js

B-DC 123

Computation in Design 2

2024

Physical Computing

15

Session 1

Review ✍🏽

Review concepts & prepare to build input, design the output

How to create an interactive object?

What inputs required?

How will the output be designed?

B-DC 123

Computation in Design 2

2024

Physical Computing

30

Session 2

Activity 2: Bring me to life

Work in your group

Build a simple input-output circuit based on the code samples provided

Ideate & formulate a simple, intuitive and effective idea

Build an object around the input component

Build an object around the output component

Test & demonstrate your creation, how did others respond to your interactive object.

Document process, object, feedback and outcome.

B-DC 123

Computation in Design 2

2024

Physical Computing

Revisit references 👀

Process

Note

Your project must be either

A

L

A

L

OR

Session 2

80

Homework 😱

B-DC 123

Computation in Design 2

2024

Physical Computing

Session 1 - 2

Complete the Play exercise

Document your outcomes as required

See section Deliverables

Pass complete Arduino Kit to Syaz next Wednesday Morning, 31st jan before 9:30am at D501

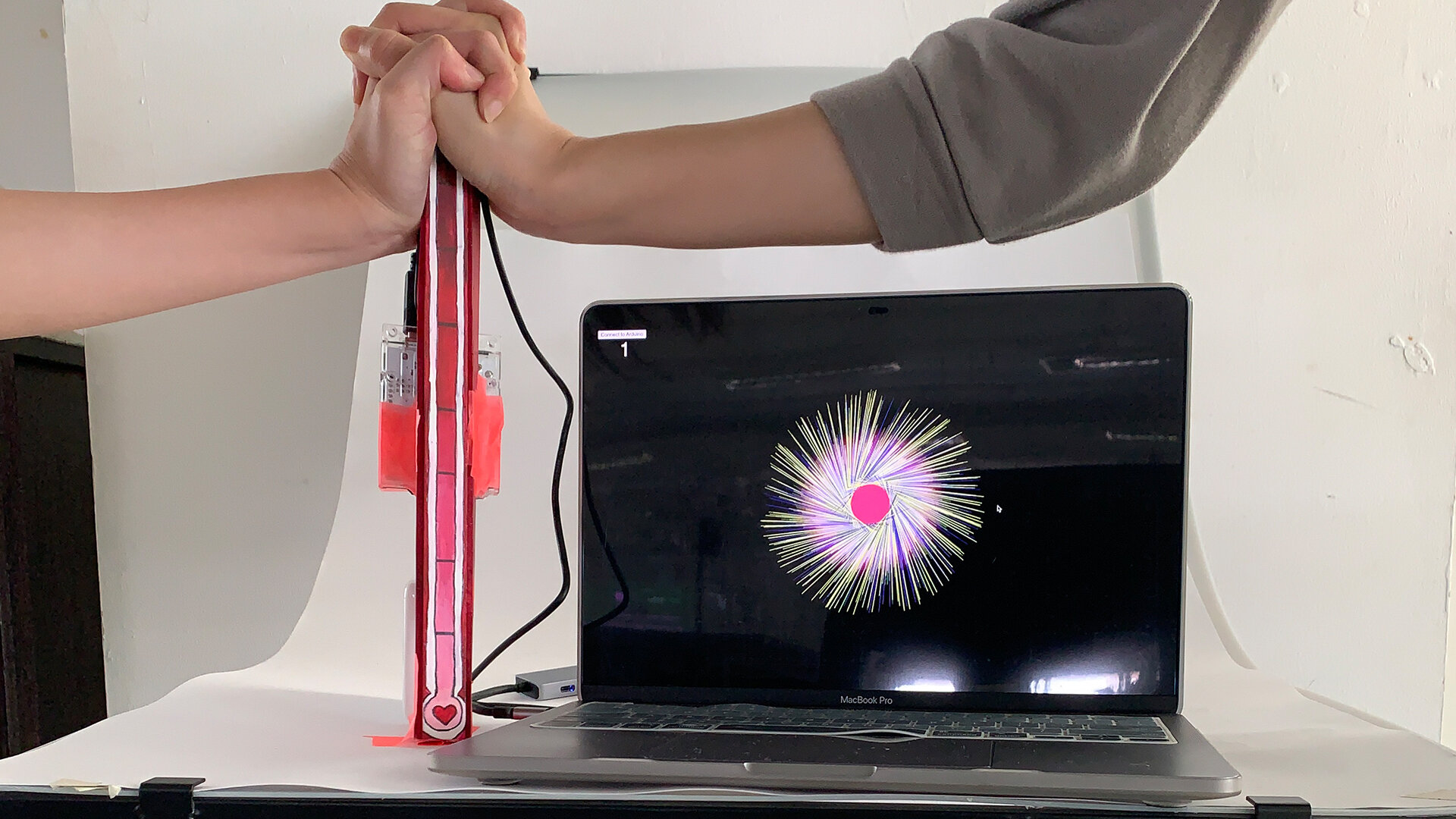

Past Student Works

Chon Hui Chin & Wong Mindy

Drawing with Numbers

Jun Yun So

B-DC 123

Computation in Design 2

2024

Physical Computing

Aaron & Aparupa

Arduino

Computation in Design 2

2024

Physical Computing

Other Arduino Resources

NYU ITP Physical Computing

Serial communication with p5.js

Session 1

B-DC 123

Complete your deliverables before your next workshop

.zip file of Arduino & p5.js code

images of process & outcomes

process video

outcome video

write up

1

5 - 7

1

1

1

x

x

x

x

x

Computation in Design 2

2024

Physical Computing

Deliverables

Objects stored in a safe place, required in week 12 for Open Studios

Documentation of object, process and outcome in your CPJs

Images minimum size 1920 x 1080 pixels, format .jpg

Video size 1080p, format .mp4

Important Retain a very good image quality for both, images & video

Objects stored in a safe place, required in week 12 for Open Studios

Documentation of object, process and outcome

B-DC 123

CID-Play_Physical Computing

By Syazwan Hanif B Md Hanif

CID-Play_Physical Computing

These are slides for CiD Semester 2, 2024

510

Syazwan Hanif B Md Hanif
