Potential Improvements for the IRIS Algorithm in C-Space
Peter Werner, Thomas Cohn, Rebecca Jiang
March 15, 2024
IRIS-NP
p
IRIS-NP
p
IRIS-NP
p
SNOPT
Â
IRIS-NP
p
IRIS-NP
p
p
IRIS-NP
p
The Current GCS Workflow
Make Regions with IRIS-NP
Motion Planning with GCS
Motion Planning with FPP
GCS-A*
Nonconvex Variants of GCS
GCS as a Policy
GCS + MCTS
Make Regions with C-IRIS
Clique Seeding
Everything Built on IRIS-NP
Shortcomings of IRIS-NP
- Slow Runtime
 - Poor Scaling with World Complexity
 - Not Actually Collision-Free
Initializing SNOPT is hard, and many programs must be run to imply collision-free
Need to run programs for every collision pair, so potentially quadratic runtime in number of geometries
Mostly in corners of regions. Due to pathologies and simply scale issues
Key Idea: Collision Checking a Single Configuration is Fast!
Algorithm 1: GreedyIRIS
Intuition: It's hard for SNOPT to push an infeasible initialization to infeasibility
Â
Key idea: Only start SNOPT at points known to be in collision by drawing samples
Â
Algorithm 1 -- GreedyIRIS
p
Algorithm 1 -- GreedyIRIS
p
Algorithm 1 -- GreedyIRIS
p
Algorithm 1 -- GreedyIRIS
p
Algorithm 1 -- GreedyIRIS
p
Algorithm 1 -- GreedyIRIS
p
Algorithm 1: GreedyIRIS
Some notes...
Â
- Need an okay starting polytope
- Run an iteration of IRIS-NP with very weak settings
- Batch structure -- repeatedly draw batches of samples until all are collision-free
- Run a SNOPT program for each collision pair in a particle (may not be the best option)
Algorithm 2 -- FastIRIS
- Goals:
- Make Iris scale with compute
- Exploit parallelism
- Approach:
- Use simple heuristic to solve closest point program
Algorithm 2 -- FastIRIS
p
sample
Algorithm 2 -- FastIRIS
p
find collisions
Algorithm 2 -- FastIRIS
p
parallel bisection search
Algorithm 2 -- FastIRIS
p
rank samples by distance under the metric
1.
2.
3.
4.
5.
7.
6.
Algorithm 2 -- FastIRIS
p
1.
2.
3.
 place faces in order
4.
Algorithm 2 -- FastIRIS
p
resample and repeat
Algorithm 2 -- FastIRIS
p
repeat until no collisions found
Algorithm 2 -- SensitivityÂ
p
Quality of candidates matters
Algorithm 2 -- SensitivityÂ
p
 smaller regions, more faces
Algorithm 3 -- RayIRIS
Raycasting to find collisions
p

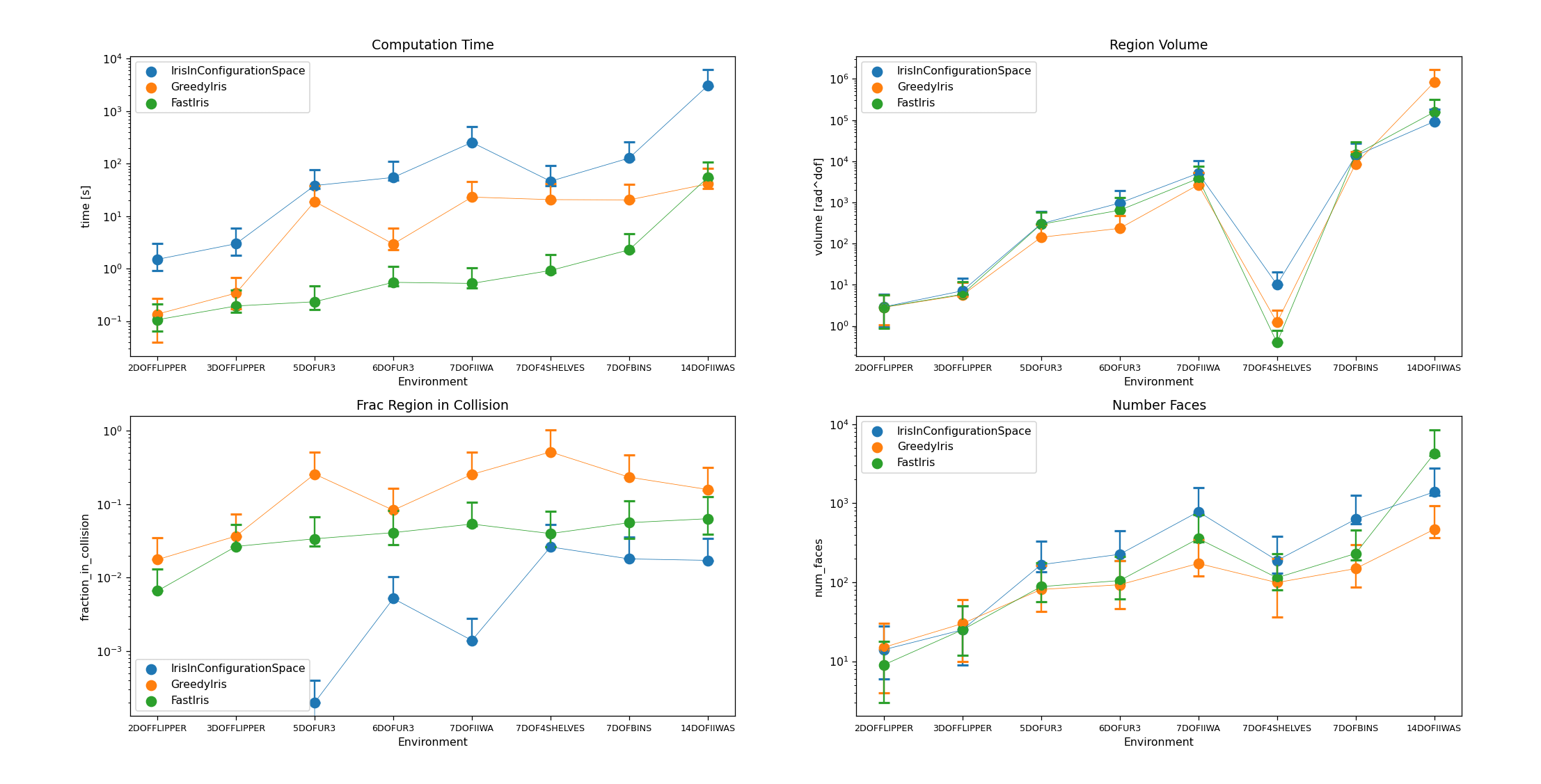

Preliminary Results

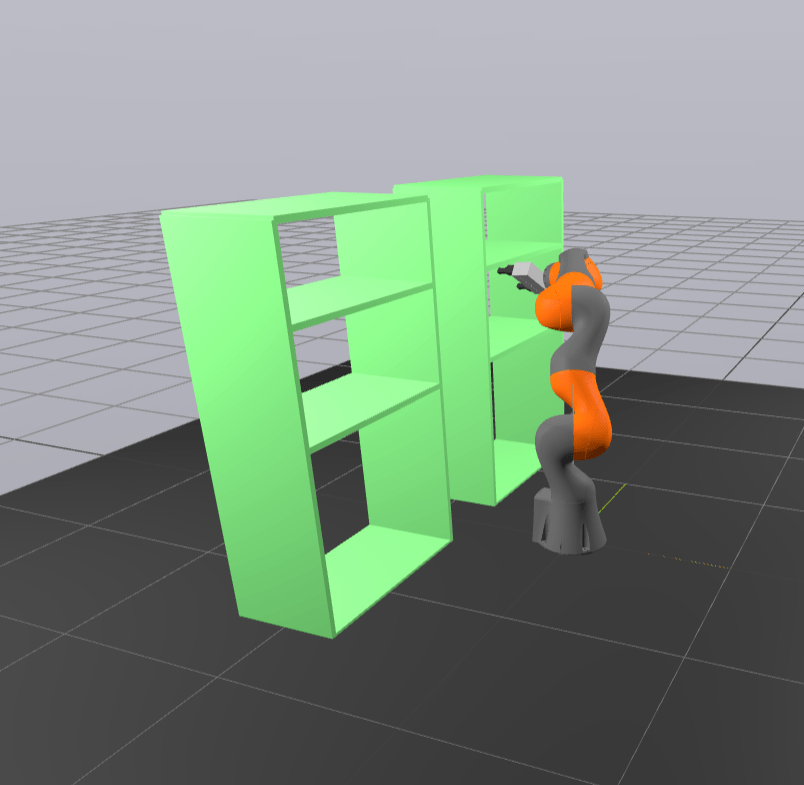

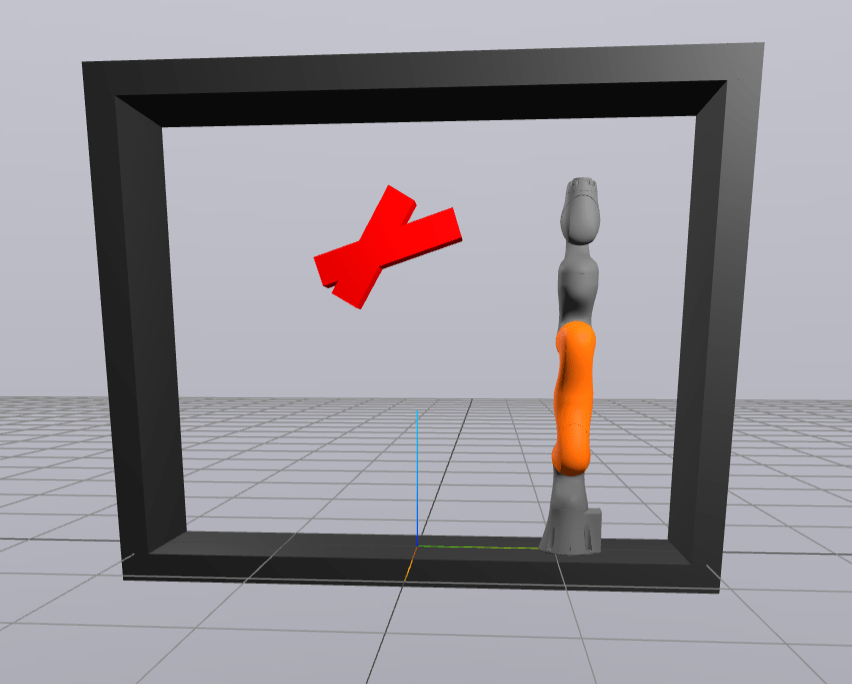

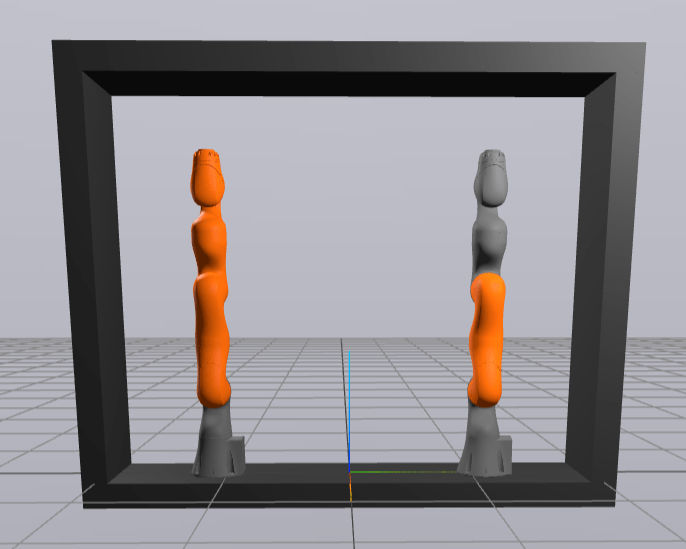

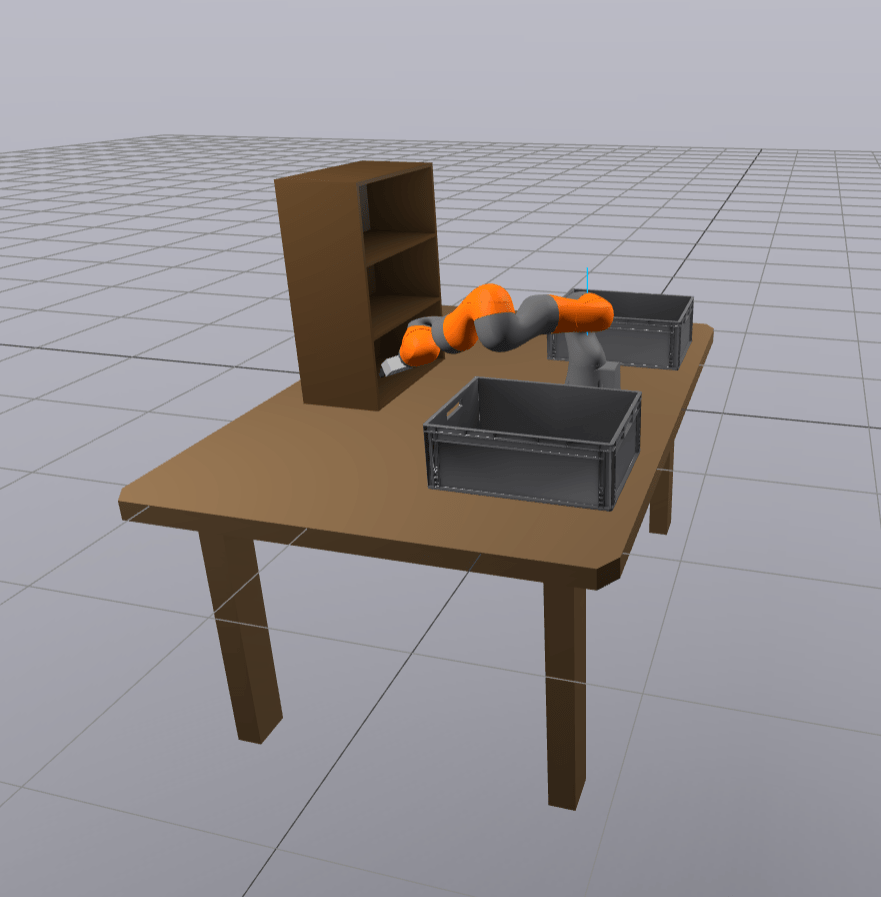

Iris benchmarks
2
3
5
6
7
7
7
14
DoF Increasing
DoF Increasing
Preliminary Results
Preliminary Results
Algorithm Settings IrisInConfigurationSpace
Preliminary Results

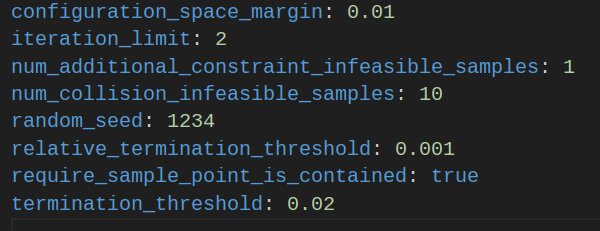

Algorithm Settings GreedyIris
Preliminary Results

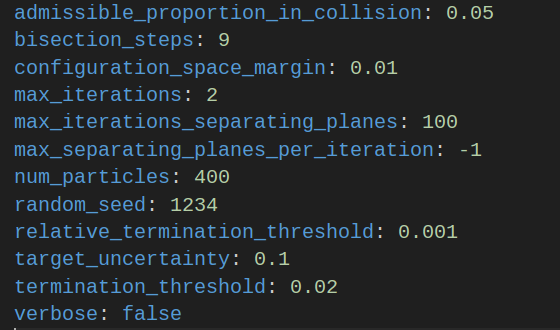

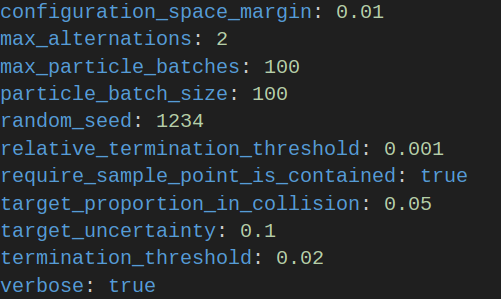

Algorithm Settings FastIris
Preliminary Results
HARD TO CALIBRATE
A Spectrum of Algorithms
Faster
Smaller Volume More Faces
Slower
Larger Volume
Fewer Faces
FastIRIS
RayIRIS ?
IRIS-NP
GreedyIRIS
C-IRIS
Some Other Ideas
- Use signed distance to optimize instead of pairwise collision programs. (Hongkai has worked on this.)
- Use samples along SNOPT path as new initial guesses.
- Use machine learning?
- Global optimization. (The IRIS hyperplanes feel a lot like the cuts used in branch-and-cut.)
