Let's talk NativeScript

This changes everything!

By

So you want to build a Mobile App?

Your zen is lost quickly ..

Too many platforms

Confused Developer = Sad Panda!

Too many pitfalls with Native or Hybrid Apps

So why NativeScript? {N}

Truly Native Apps with JavaScript

Wait .. What?

Native iOS / Andoid / Windows Phone* Apps

You're Welcome!

Built with JavaScript + CSS + XML

{

}

Single Code Base

*Coming Soon

Tell me more ..

This is mind blowing ..

Yeah, it's careful orchestration.

Let's unpack the Magic!

How is this working?

{N} is built from ground up

No DOM

No Cross-Compilation

No Plugins Required

{N} is straight-up JS | Running as Native App

Under the hood

{N} works over an abstraction - a very smart one

Runs JavaScript in a Virtual Machine

JavaScriptCore VM on iOS

JavaScriptCore* VM on Windows Phone

V8 VM on Android

*Tentative

You write JavaScript

{N} utilizes a bridge

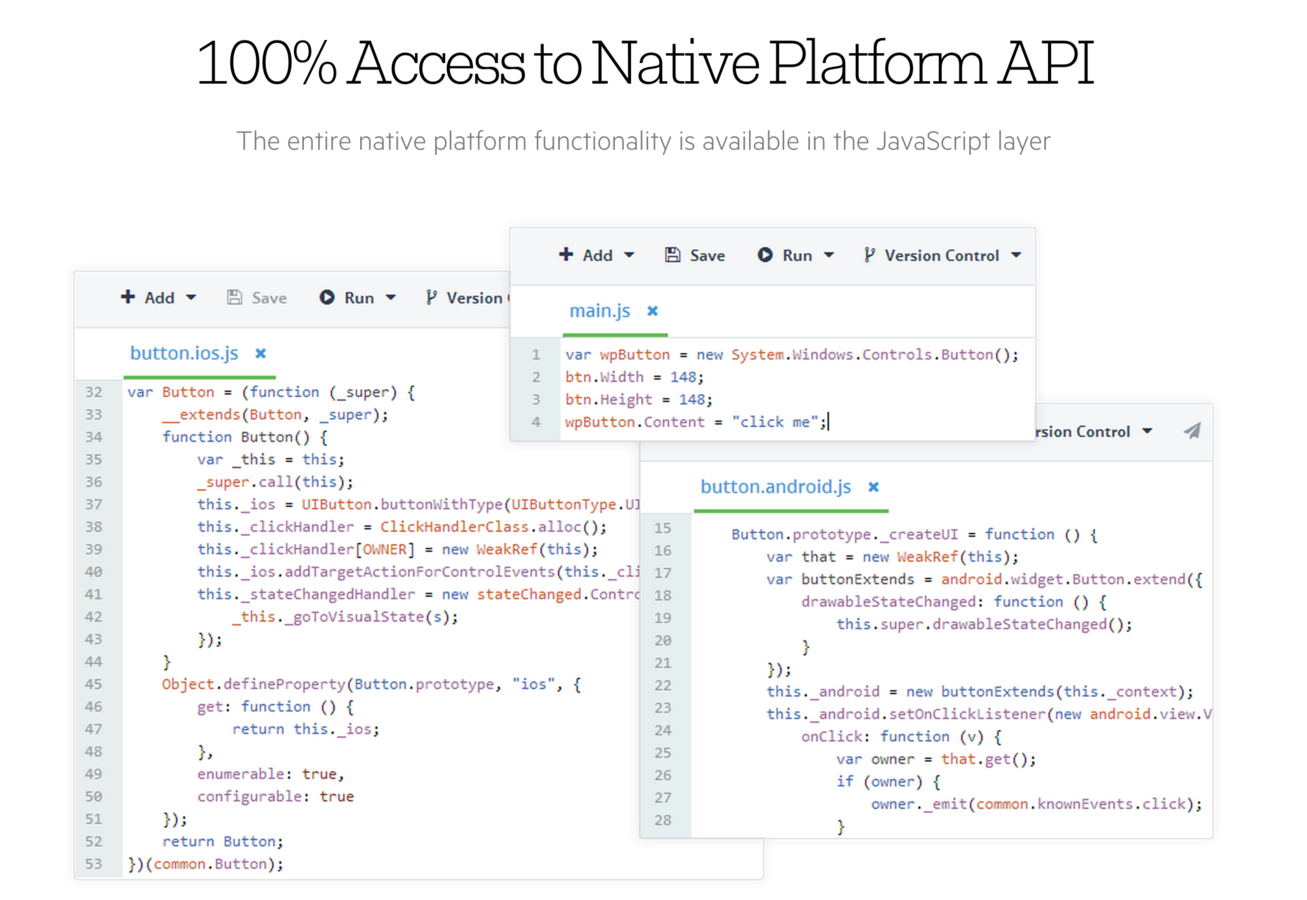

Has full access to Native APIs

Uses Reflection to look up Native APIs

Metadata pre-generated

List of APIs for each Platform

Injected into App package @ Build time

- That's all of iOS + Android APIs!

Plug & Play?

{N} is very flexible

Allows reuse of skills & assets

Use native libraries for each platform

Shared UI styles through CSS

Use JS libraries without DOM dependency

Business Logic in JS?

Turns out, that's a bit of a lie ...

You get full TypeScript Support. Boom!

True object-oriented programming

TS Definition Files to offer Metadata

Use Classes, Interfaces & Access Modifiers

Full Intellisense support in many editors

Think I'm sold .. where to start?

{N} gives you flexibility

You get 2 ways to start and choice of IDEs!

We LOVE Open Source

Choice #1: {N} is OSS on GitHub

Start @ https://www.nativescript.org/

Check out | Use it | Fork it

https://github.com/NativeScript/NativeScript

Yep, it's completely FREE .. there is no catch!

How do I start?

{N} Command Line Interface makes it easy


 npm install -g nativescript

Grab the NativeScript CLI:


 tns create MyApp
 tns platform add android

Create Project & Add Platforms:


 tns run android
 tns run android --emulator

Run Project on Device or Emulator:

Choice of IDE?

{N} aims to give you flexibility

Sublime Text | With complete Workflow

VS Code | Best for TypeScript

Most other JS/CSS text editors

Use Telerik Platform

Choice #2: {N} is best with Telerik AppBuilder

- Start @ http://platform.telerik.com!

Complete end-to-end Mobile developer Platform!

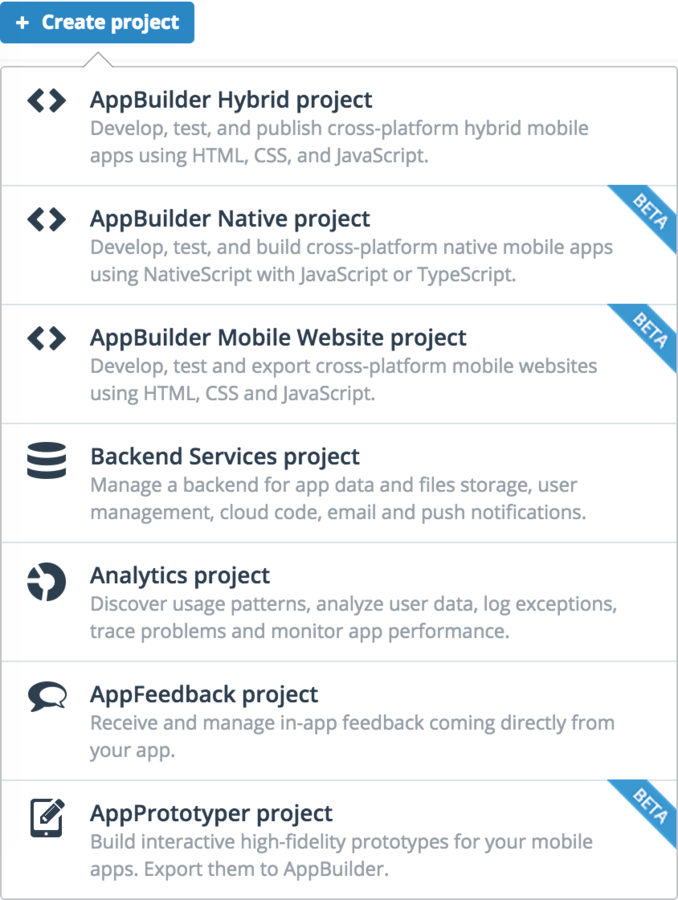

What's in Telerik Platform?

AppPrototyper
AppBuilder
Backend Services
Mobile Testing
AppManager
AppFeedback
Analytics
Modulus

Everything you need to build a Mobile app

All the pieces nicely wrapped up in one Platform!

You'll love AppBuilder with {N}

{N} in AppBuilder

Think of it as a friend with benefits

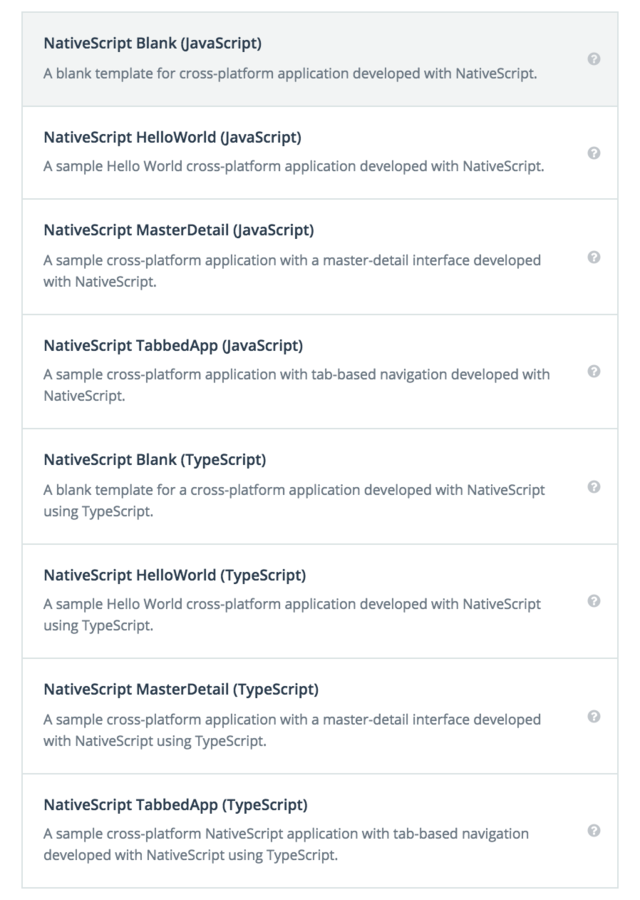

You gain Project Templates, Cloud Builds,

Debugging & much more ..

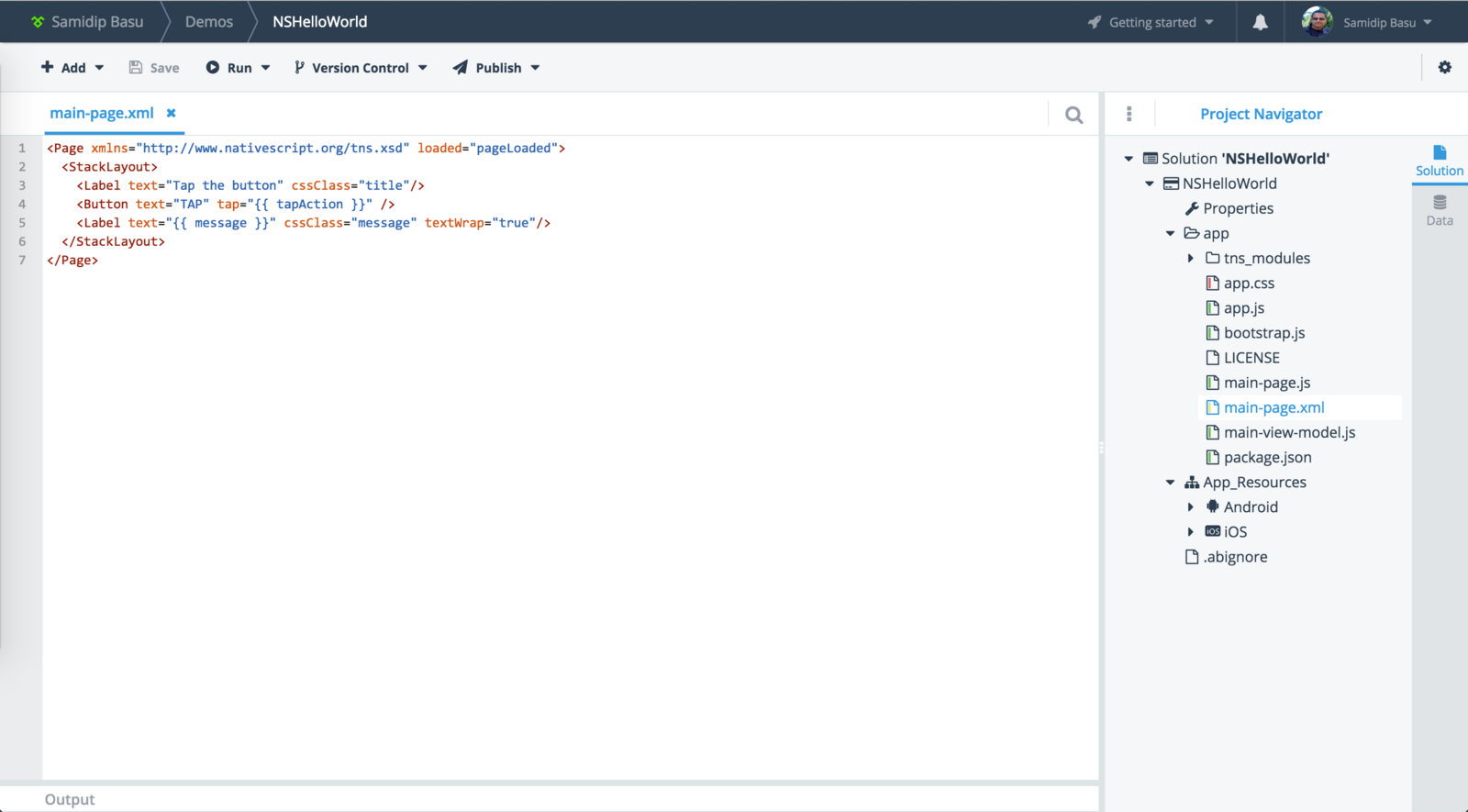

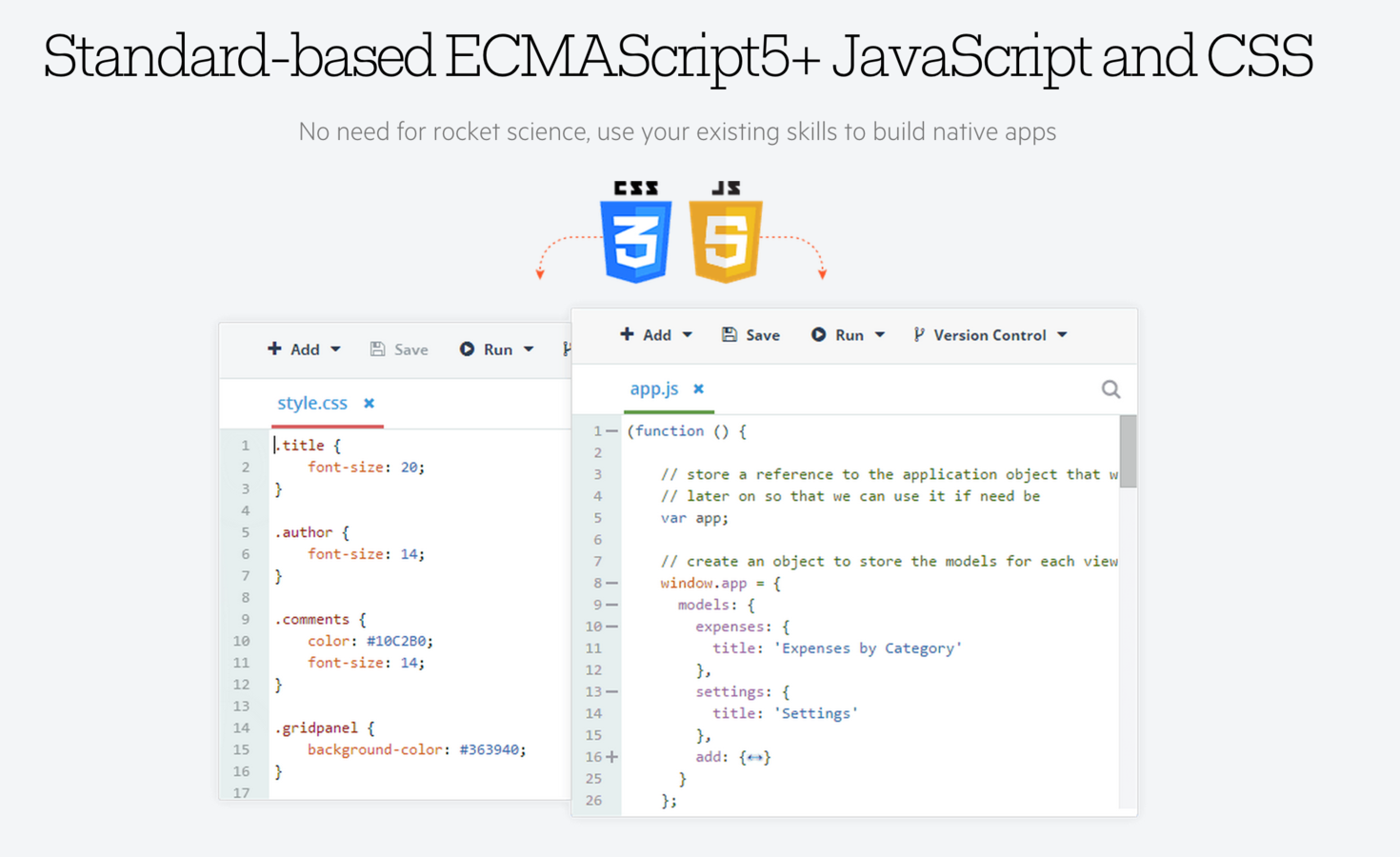

{N} Dev in a Browser

AppBuilder In-Browser Client is rather powerful

Yes, a X-Plat Native app .. developed in browser!

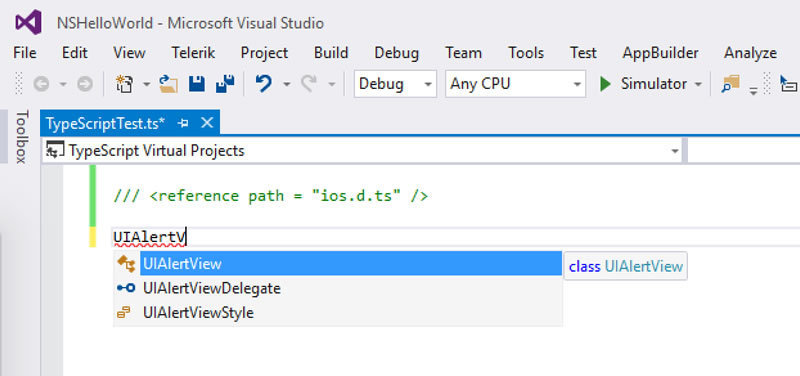

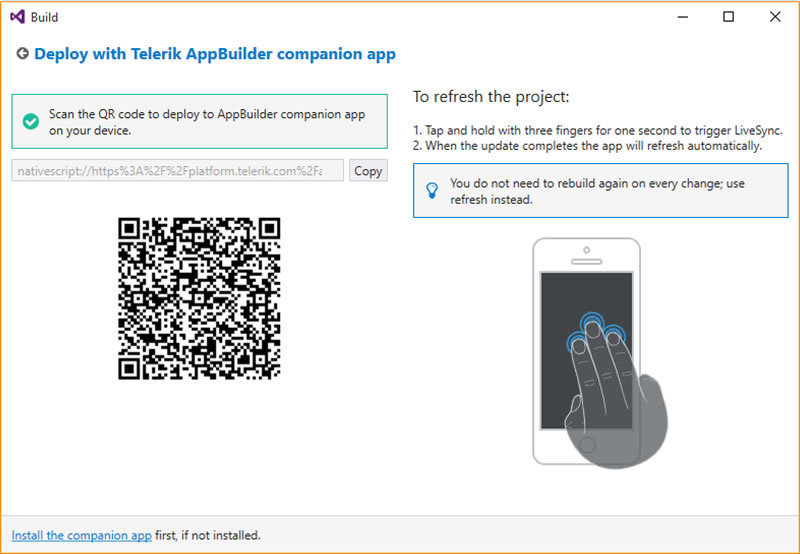

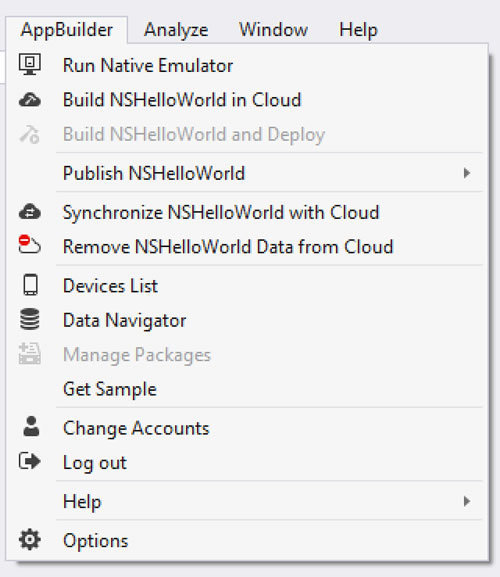

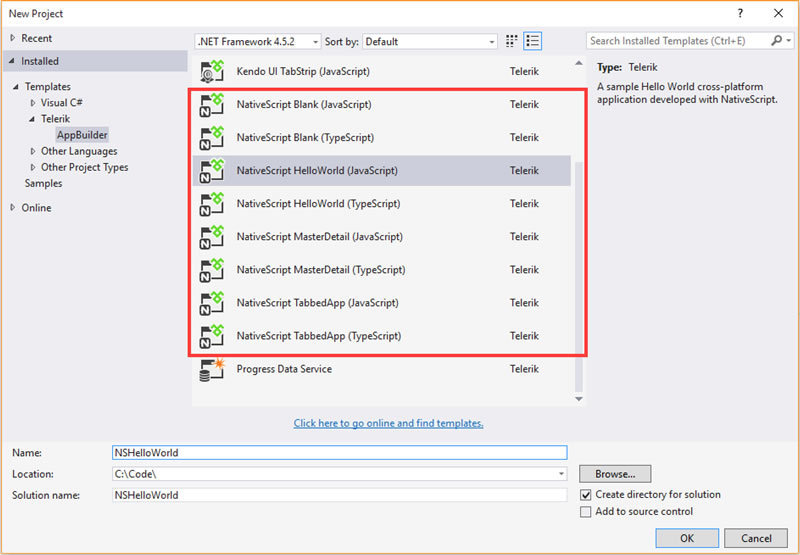

{N} Dev in a Visual Studio

All the VS Bells & Whistles .. included

Telerik AppBuilder IDEs

{N} truly shines in Developer flexibility

Any Platform to suit your Mobile dev needs!

What about UI Composition?

Yes XML - it's Shared & X-Platform!

Think of it as lowest common denominator

Show me some UI

{N} uses XAML-like XML

You build a Visual Tree


<Image source="{thumbnailImageSource}" width="72" height="72"/>
<Label text="{itemTitle}" textWrap="true" cssClass="title" />
<Button text="{authoredBy}“ width="150“ cssClass="author"/>

Just like XAML/HTML

You get UI elements & Container controls

These become Native UI .. little Magical!

Is the UI smart?

{N} supports Rich DataBinding

<Image source="{thumbnailImageSource}"
       width="72"
       height="72"
       verticalAlignment="top"/>

<Label text="{{ num_comments ? num_comments + ' comments' : '' }" />

XAML-like Data Binding

Off course .. it's 2-Way

Data Binding powered by Polymer Expressions!

Renders Adaptively for each platform

How do I style the UI?

{N} uses the ubiquitous CSS .. hallelujah


 <Page loaded="load">
    <Label text="{{ message }}" />
 </Page>

 .Label {
      color: red;
      font-size: 20;
      margin: 20;
 }

Yep - CSS to style Mobile App elements!

We know you're a CSS ninja .. now use it.

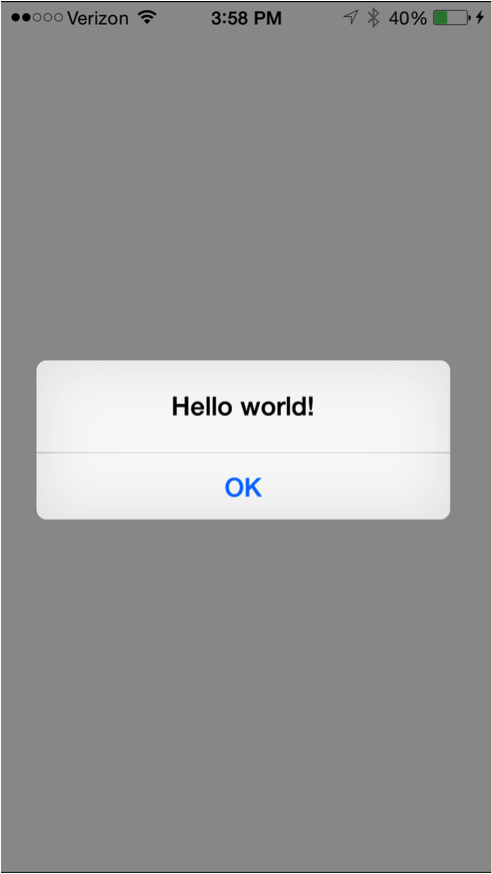

Can I invoke Native UI?

{N} supports Native UI element instatiation


 var alert = new UIAlertView();
 alert.message = "Hello World";
 alert.addButtonWithTitle("OK");
 alert.show();

Native UI

Invoked through JS!

What makes up a {N} Project?

You're asking all the right questions ..

Combination of UI, Logic, Styling & Modules!

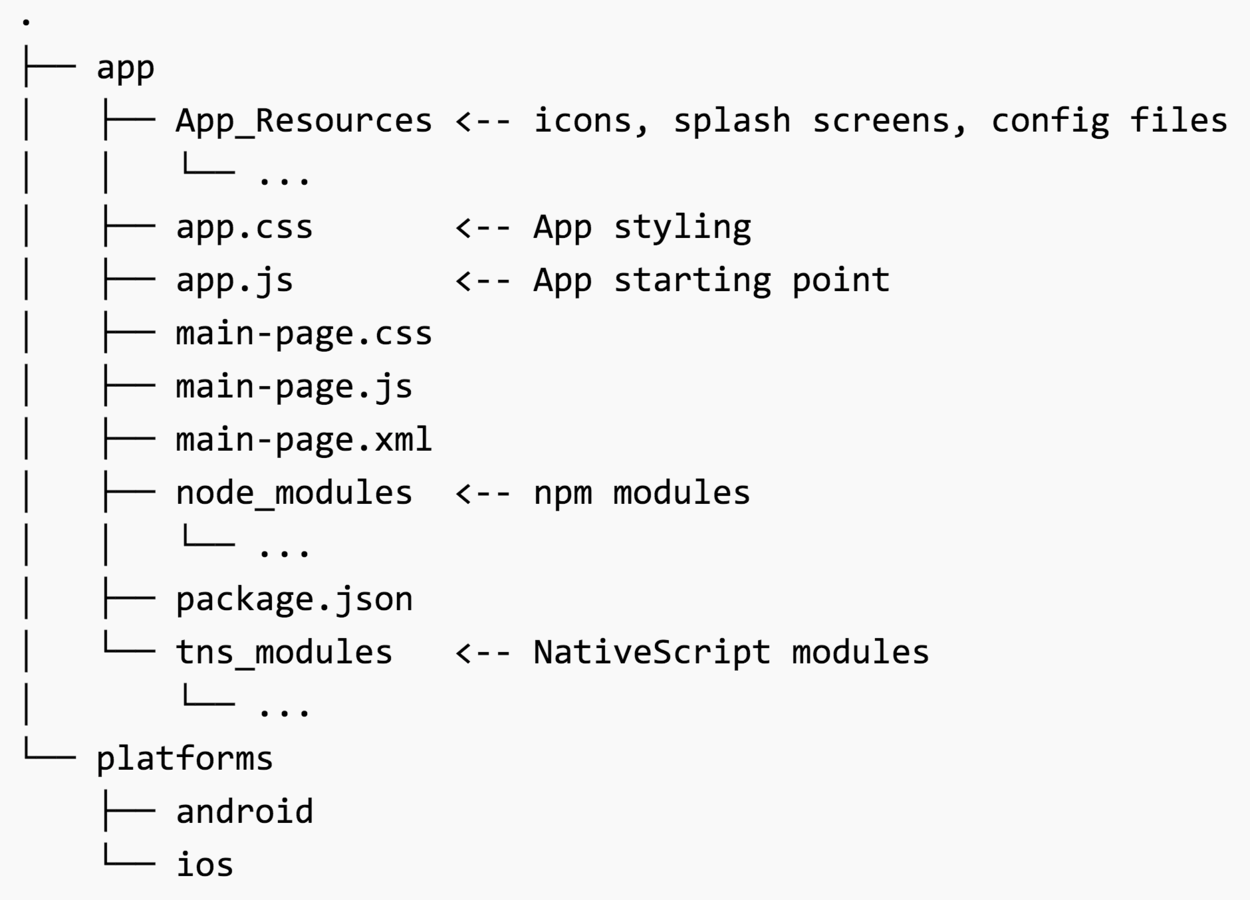

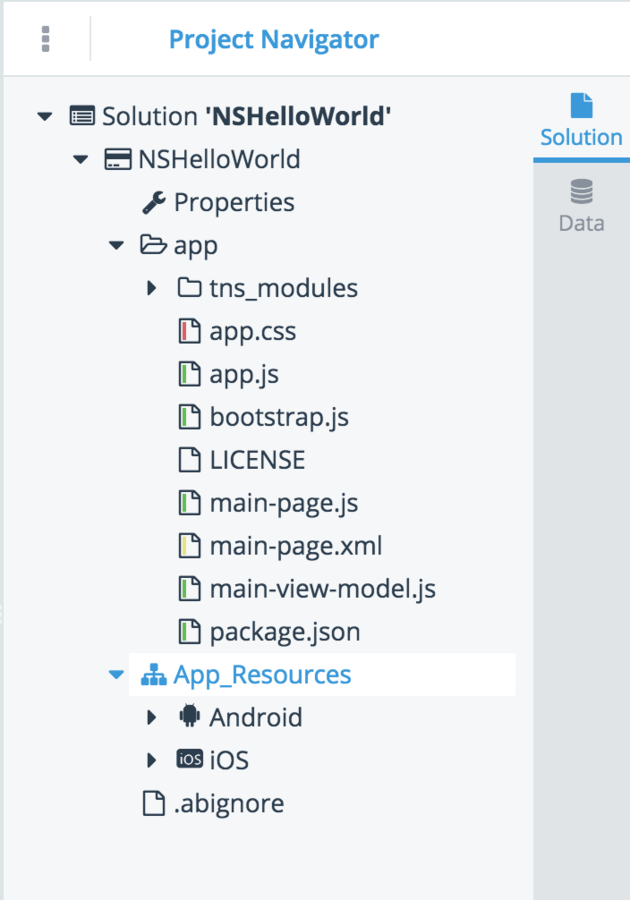

A Typical {N} Project

All your components in one place

They say a picture is worth a 1000 words ..

What's a Module?

{N} bridge that takes functionality X-Platform

- Just like a Node module

- Dozens available | You can write custom modules

Show a Module in action

{N} allows you to bring in what's needed

- This is a generic HTTP Module

- Works the same way in each Platform


 var http = require("http");
 http.getJSON("https://api.myservice.com")
     .then(function(result){
           // result is a JSON object
           // do stuff
          });

Module to Native

{N} does the mapping .. so you don't have to


 var fileSystem = require("file-system");
 new fileSystem.File(somePath);


 new java.io.File(somePath);


 NSFileManager.defaultManager();
 fileManager.createFileAtPathContentsAttributes(somePath);

Translates this as ..

You had me at Native with JS!

Yeah, we're just as excited.

There is a lot we covered though ..

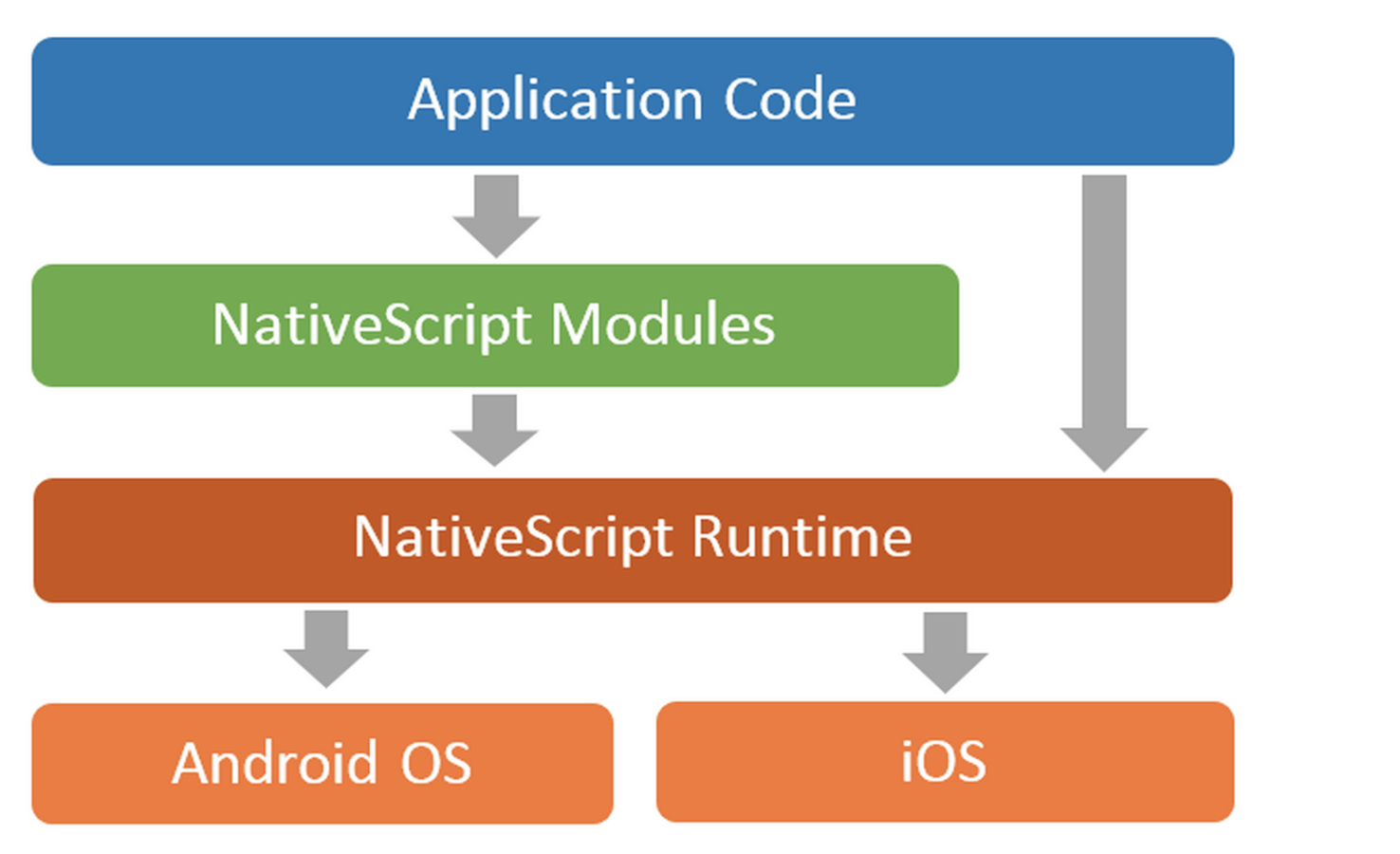

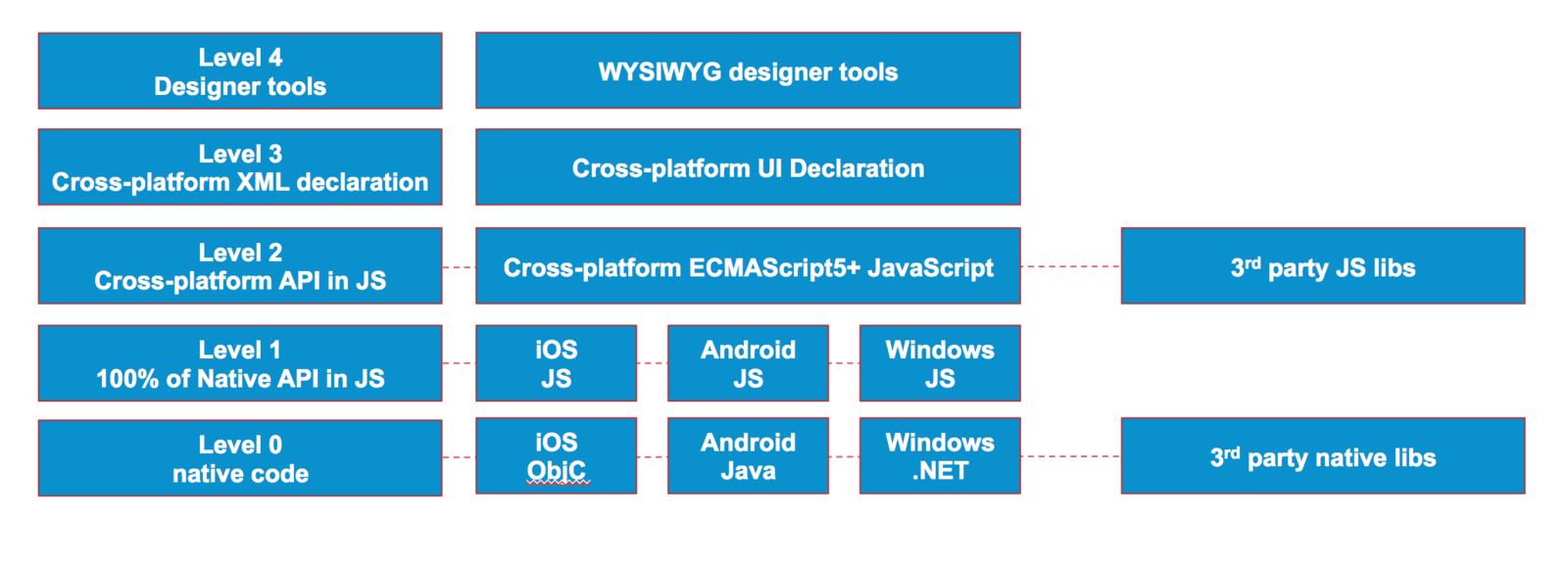

Gimme a 10K Feet View

Here you go .. the layers of {N} magic!

{N} also sports integrated support with Angular 2!

Reuse your Web & TypeScript skills ..

Why {N} again?

You're a Mobile Ninja

{N} is here to help!

Feel the Native Zen

Tooling that elevates X-Plat Mobile

{N} with Telerik Platform

Solid Docs | Forums

Getting Started

App Showcase

Contribute Back
