Ethereum Smart Contracts in EVM-assembly

Structure

  1. Expectations
  2. Stack-based languages
  3. EVM op-codes
  4. Tooling
  5. Branching
  6. Interaction with other contracts
  7. Deployment
  8. Functions
  9. Advanced features
  1. Expectations
  2. Stack-based languages
  3. EVM op-codes
  4. Tooling
  5. Branching
  6. Interaction with other contracts
  7. Deployment
  8. Functions
  9. Advanced features
  • Read & Write EVM-assembly code
  • Debug the bytecode
  • Know the tooling

Why would you do that?

  • Safety
  • Gas-cost
  • Fun!
pragma solidity ^0.4.22;

contract HelloWorld {

    function() public {
        log0(bytes32("Hello world!"));
    }

}
solc ./HelloWorld.sol --bin-runtime

HelloWorld.sol

6080604052348015600f
57600080fd5b50604051
80807f48656c6c6f2077
6f726c64210000000000
00000000000000000000
0000000000815250600c
01905060405180910390
a00000a165627a7a7230
5820860d44530a302ca6
28b1e865093d54f53da6
be5e6650b84b5440b574
6222d7b60029
  1. Expectations
  2. Stack-based languages
  3. EVM op-codes
  4. Tooling
  5. Branching
  6. Interaction with other contracts
  7. Deployment
  8. Functions
  9. Advanced features

10      50      +

ARG   ARG   OP

10      50      +

10

50

60

Operators pop arguments from the stack

Operators can push things onto the stack

  1. Expectations
  2. Stack-based languages
  3. EVM op-codes
  4. Tooling
  5. Branching
  6. Interaction with other contracts
  7. Deployment
  8. Functions
  9. Advanced features

Arithmetic

0x01: ADD
0x02: MUL
0x03: SUB
0x04: DIV
0x05: SDIV
0x06: MOD
0x07: SMOD
0x08: ADDMOD
0x09: MULMOD
0x0a: EXP
0x0b: SIGNEXTEND

Comparison

0x10: LT
0x11: GT
0x12: SLT
0x13: SGT
0x14: EQ
0x15: ISZERO
0x16: AND
0x17: OR
0x18: XOR
0x19: NOT
0x1a: BYTE

Environment

0x30: ADDRESS
0x31: BALANCE
0x32: ORIGIN
0x33: CALLER
0x34: CALLVALUE
0x35: CALLDATALOAD
0x36: CALLDATASIZE
0x37: CALLDATACOPY
0x38: CODESIZE
0x39: CODECOPY
0x3a: GASPRICE
0x3b: EXTCODESIZE
0x3c: EXTCODECOPY

SHA3

0x20: SHA3

Block

0x40: BLOCKHASH
0x41: COINBASE
0x42: TIMESTAMP
0x43: NUMBER
0x44: DIFFICULTY
0x45: GASLIMIT

Data

0x50: POP
0x51: MLOAD
0x52: MSTORE
0x53: MSTORE8
0x54: SLOAD
0x55: SSTORE
0x56: JUMP
0x57: JUMPI
0x58: PC
0x59: MSIZE
0x5a: GAS
0x5b: JUMPDEST

Push

0x60: PUSH1

...

0x7f:  PUSH32

Duplicate

0x80: DUP1

...

0x8f:  DUP16

System

0xf0: CREATE
0xf1: CALL
0xf2: CALLCODE
0xf3: RETURN
0xf4: DELEGATECALL
0xff: SELFDESTRUCT

Swap

0x90: SWAP1

...

0x9f: SWAP16

Log

0xa0: LOG0

0xa1: LOG1

0xa2: LOG2

0xa3: LOG3

0xa4: LOG4

Precompiled contracts

  • Contract addresses
  • 0x01 to 0x08
  • Invoke with CALL

Memory

  • Only exists for execution
  • MLOAD
  • MSTORE

Storage

  • Persists between calls
  • SLOAD
  • SSTORE
  • CALLCODE

Let's write some code!

But how?

  1. Expectations
  2. Stack-based languages
  3. EVM op-codes
  4. Tooling
  5. Branching
  6. Interaction with other contracts
  7. Deployment
  8. Functions
  9. Advanced features

Please prepare/install:

  • Editor of your choice
  • github.com/coblox
    • Clone ethereum_workshop_31_07_2018
    • Run `source setup.sh`

solc

Workflow

  • Write op codes in hex
  • Run with `evm-run XXXXXX`
  • See what happens

Exercise

Compute the number of seconds in a non-leap year

(365 days)

603C
603C
02
6018
02
61016D
02

Formula:

  • Calculate seconds in a day
  • Multiply it by 365
    • 365 doesn't fit in a bit
    • Use 2 byte push

Advanced workflow

  • Write EVM-assembly (not OP-codes)
  • Use `asm-compile` to compile to OP-codes
  • Run with `evm-run`
  • Shortcut: `asm-run`

EVM-assembly

  • High-level assembly language
  • Supports reverse and regular polish notation
  • Implicit PUSH operator
  • Labeled jumps (we will get to that later)
  • Decimal numbers
{
    0x05 // You can use hex
    15   // But also dec
    add  // Call op-codes by name

    // Need to have an empty
    // stack at the end
    pop
}

Shell functions

  • `asm-compile`
  • `evm-run`
  • `asm-run`

Do the exercise again, this time in EVM-assembly

{
    // Compute seconds in a day
    60
    60
    mul
    24
    mul

    // Push 365 to the stack
    365
    mul

    // Need balanced stack at the end
    pop
}

Prefix notation

{
    mul(60, 60)
}

Break!

  1. Expectations
  2. Stack-based languages
  3. EVM op-codes
  4. Tooling
  5. Branching
  6. Interaction with other contracts
  7. Deployment
  8. Functions
  9. Advanced features

Conditionals in assembly?

JNZ

Jump If Not Zero

JUMP

  • Pops destination address off the stack
  • Continues execution at destination

JUMPDEST

  • Neither JUMP nor JUMPI can jump to arbitrary addresses
  • Destination address has to be a JUMPDEST instruction

JUMPI

  • Pops destination address and conditional off the stack
  • If condition != 0, continues execution at destination address

Demo

Write a Math.max function that returns the higher number

Needed functionality

  • Read input (CALLDATACOPY)
  • Memory access (MLOAD)
  • Comparison (GT)
  • Jumps (JUMPI)
  • Return data (RETURN)

Live coding!

6020 6000 6000 37
6020 6020 6020 37
6000 51
6020 51
11
601d
57
6020 6000 f3
5b
6020 6020 f3

Labeled jumps!

{
    jump(label) // Use function-syntax

// This is how you define a label
label:
    selfdestruct(0x0)
}

Exercise

Build Math.max using

EVM-assembly

{
    calldatacopy(0, 0, 32)
    calldatacopy(32, 32, 32)
    mload(0)
    mload(32)
    gt
    greater_than
    jumpi
    return(0, 32)

greater_than:
    return(32, 32)
}

Break!

  1. Expectations
  2. Stack-based languages
  3. EVM op-codes
  4. Tooling
  5. Branching
  6. Interaction with other contracts
  7. Deployment
  8. Functions
  9. Advanced features

CALL

Arguments:

  • Gas
  • Contract-Address
  • Wei
  • Input-Buffer-Address
  • Input-Buffer-Length
  • Output-Buffer-Address
  • Output-Buffer-Length

Identical to CALL but does not allow state modifications

STATICCALL

DELEGATECALL

  • Introduced as bugfix in regards to "owner" problems
  • Value of "msg.sender" in a chain of contract calls

CALLCODE

  • Same arguments as CALL
  • Called contract has access to the calling contract's storage

Personal opinion

  • CALL and STATICCALL are useful
  • Don't allow other contracts to modify YOUR storage
  • Pass data through Input-Buffer and receive data through Output-Buffer
  • Always check the return value
    • Successful execution pushes 1 onto the stack
    • Error during execution pushes 0 onto the stack

Precompiled contracts

Hash data with SHA256

call(
    0x48,
    0x000000000000000000000000000000000000002,
    0x00,
    0x00,
    0x20,
    0x21,
    0x20
)

Break!

  1. Expectations
  2. Stack-based languages
  3. EVM op-codes
  4. Tooling
  5. Branching
  6. Interaction with other contracts
  7. Deployment
  8. Functions
  9. Advanced features

How does Ethereum deploy contracts?

Transaction (simplified)

Property Type Description
From Address Sender
To Address Receiver
Data Hex Code to execute
Gas Wei Execution cost
Value Wei Value to transfer

Deployment transaction

Property Type Value
From Address Your account
To Address 0x0
Data Hex Deploy code
Gas Wei Depends on code
Value Wei Depends

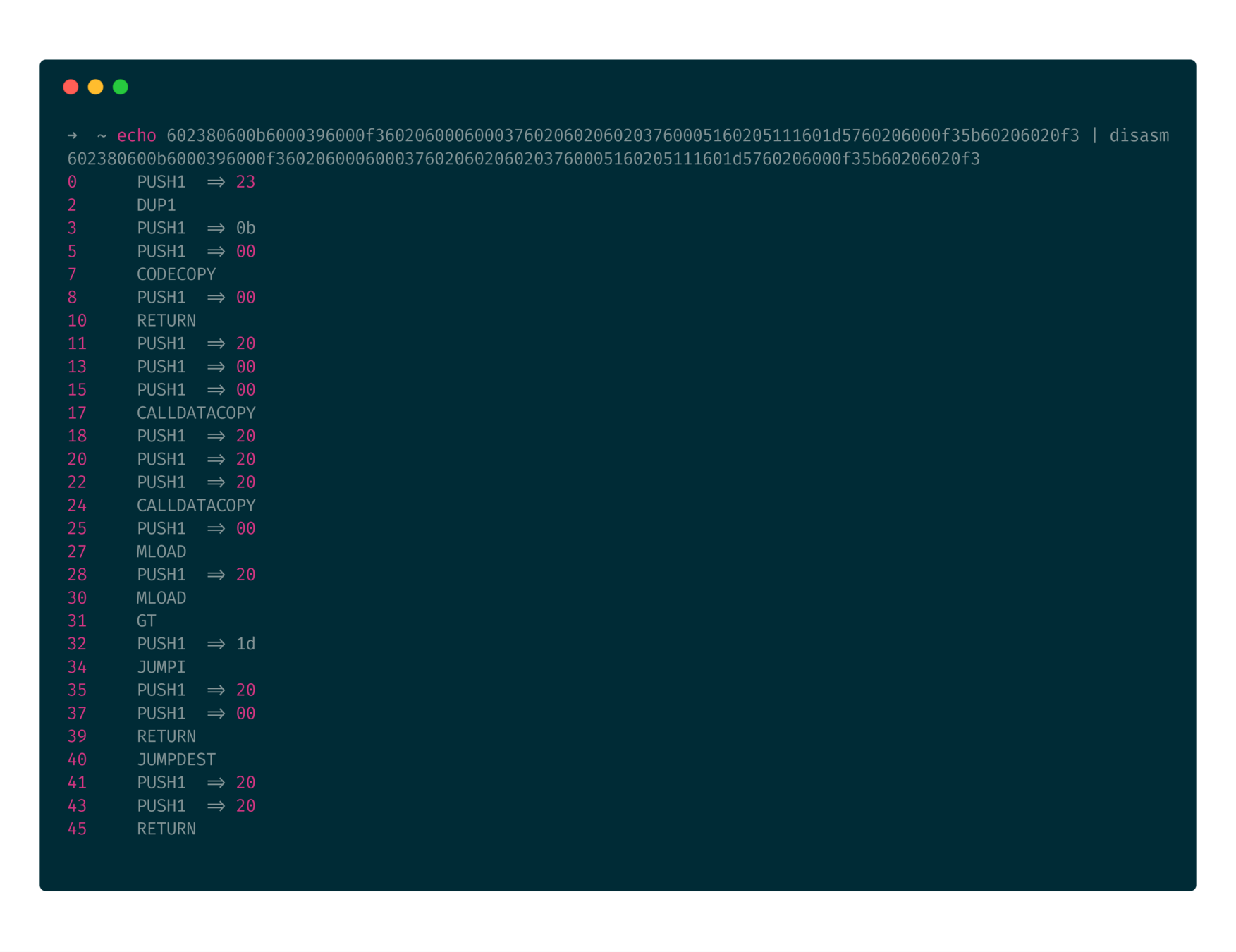

Deploy code

  • Receiver MUST be 0x0
  • Contract code is the RETURN VALUE
  • "Deploy header" needed

Deploy header

  • RETURN reads from memory
  • Copy code to memory -> CODECOPY

dec(0x23): 35

dec(0x0b): 11

Contract code

Code size: 35

35

35

11

00

00

CODECOPY(00, 11, 35)

CODECOPY(MEM, FROM, TO)

RETURN(00, 35)

RETURN(FROM, TO)

  1. Expectations
  2. Stack-based languages
  3. EVM op-codes
  4. Tooling
  5. Branching
  6. Interaction with other contracts
  7. Deployment
  8. Functions
  9. Advanced features

ABI

Application Binary Interface

Design

  • Uniquely identify functions
  • Hash of function signature (name + argument types)
  • first 4 higher-endian bytes of hash

Contract
execution

  • first 4 bytes of DATA are the function identifier
  • contract pseudo code:
    • PUSH first fn id to stack
    • compare with argument
    • conditional jump
0xcdcd77c0
0000000000000000
0000000000000000
0000000000000000
0000000000000045
0000000000000000
0000000000000000
0000000000000000
0000000000000001

EVM-assembly and functions

  • Hard to write by hand
  • Error-prone

Single function contracts

  • Contracts have a single function
    • No ABI
    • No function identifier
    • Just the code that is executed
  • Can be disposable: SELFDESTRUCT at the end
  1. Expectations
  2. Stack-based languages
  3. EVM op-codes
  4. Tooling
  5. Branching
  6. Interaction with other contracts
  7. Deployment
  8. Functions
  9. Advanced features

Advanced assembly features

  • Variables & If
  • Loops
  • Functions

Variables & If

{
    let mem_start_first := 0
    let mem_start_second := 32

    calldatacopy(0, mem_start_first, 32)
    calldatacopy(32, mem_start_second, 32)

    let first := mload(mem_start_first)
    let second := mload(mem_start_second)

    if gt(first, second) {
        return(mem_start_first, 32)
    }

    return(mem_start_second, 32)
}
00     PUSH1  => 00
02     PUSH1  => 20
04     PUSH1  => 20
06     DUP3
07     PUSH1  => 00
09     CALLDATACOPY
10     PUSH1  => 20
12     DUP2
13     PUSH1  => 20
15     CALLDATACOPY
16     DUP2
17     MLOAD
18     DUP2
19     MLOAD
20     DUP1
21     DUP3
22     GT
23     ISZERO
24     PUSH1  => 1f
26     JUMPI
27     PUSH1  => 20
29     DUP5
30     RETURN
31     JUMPDEST
32     PUSH1  => 20
34     DUP4
35     RETURN
36     POP
37     POP
38     POP
39     POP
  • non-intuitive result
  • unnecessary op-codes
    • ISZERO
    • POP
00: PUSH1 0x20
02: PUSH1 0x00
04: PUSH1 0x00
06: CALLDATACOPY
07: PUSH1 0x20
09: PUSH1 0x20
11: PUSH1 0x20
13: CALLDATACOPY
14: PUSH1 0x00
16: MLOAD
17: PUSH1 0x20
19: MLOAD
20: GT
21: PUSH1 0x1d
23: JUMPI
24: PUSH1 0x20
26: PUSH1 0x00
28: RETURN
29: JUMPDEST
30: PUSH1 0x20
32: PUSH1 0x20
34: RETURN

Loops

{
    for { let i := 0 }
        lt(i, 2)
        { i := add(i, 1) } {
        mstore(0, i)
        log0(0, 32)
    }
}
00     PUSH1  => 00
02     JUMPDEST
03     PUSH1  => 02
05     DUP2
06     LT
07     ISZERO
08     PUSH1  => 1e
10     JUMPI
11     DUP1
12     PUSH1  => 00
14     MSTORE
15     PUSH1  => 20
17     PUSH1  => 00
19     LOG0
20     JUMPDEST
21     PUSH1  => 01
23     DUP2
24     ADD
25     SWAP1
26     POP
27     PUSH1  => 02
29     JUMP
30     JUMPDEST
31     POP
  • too complex to write manually
  • really needed?

Functions

{
    function even(value) -> result {
        let remainer := mod(value, 2)
        result := iszero(remainer)
    }
}
00     PUSH1  => 13
02     JUMP
03     JUMPDEST
04     PUSH1  => 00
06     PUSH1  => 02
08     DUP3
09     MOD
10     DUP1
11     ISZERO
12     SWAP2
13     POP
14     POP
15     SWAP2
16     SWAP1
17     POP
18     JUMP
19     JUMPDEST
  • might as-well JUMP to functionality
  • really needed?

Break!

  1. Expectations
  2. Stack-based languages
  3. EVM op-codes
  4. Tooling
  5. Branching
  6. Interaction with other contracts
  7. Deployment
  8. Functions
  9. Advanced features
pragma solidity ^0.4.22;

contract HelloWorld {

    function() public {
        log0(bytes32("Hello world!"));
    }

}

Remember this?

Let's redo it in

EVM-assembly

Solidity

EVM-assembly

6080604052348015600f
57600080fd5b50604051
80807f48656c6c6f2077
6f726c64210000000000
00000000000000000000
0000000000815250600c
01905060405180910390
a00000a165627a7a7230
5820860d44530a302ca6
28b1e865093d54f53da6
be5e6650b84b5440b574
6222d7b60029
7f48656c6c6f20776f72
6c642100000000000000
00000000000000000000
00000060005260206000
a0

Solidity

EVM-assembly

  • 116 bytes
  • 32 bytes data
  • 84 bytes program
  • 41 bytes
  • 32 bytes data
  • 9 bytes program

Summary

  • Single function contracts
  • Keep your EVM-assembly simple
    • No variables
    • No loops
    • No defined functions
  • Always check the compiler output

Thank you!

We are hiring!

  • Kick-ass developer?
  • Interested in research?
  • Want to shape the future?
  • Not scared by bytes?

Contact us:

  • philipp@tenx.tech
  • thomas@tenx.tech

https://tenx.tech

https://coblox.tech

Ethereum Smart Contracts in EVM-assembly

By Thomas Eizinger

Made with Slides.com

Ethereum Smart Contracts in EVM-assembly

Presentation for the workshop on EVM-assembly.

  • 2,141

More from Thomas Eizinger
