DEVEL
Under the hood
What is Devel?
import { DevelApi } from '../devel-api';
import { axios } from '../utils/axios';
const apiPath = 'http://prod.apisearch.service.chidc2.consul:8080/APISearch/getAllEndpoints';
const develApi = new DevelApi();
export async function crawl() {
const { data } = await axios.get(apiPath);
await develApi.bulkAdd(
data.map((obj: any) => ({
docId: `${obj.service}.${obj.httpMethod}.${obj.path}`,
docName: `${obj.httpMethod} ${obj.path}`,
docDescription: obj.summary,
docServiceName: obj.service,
docSourceSystem: 'swagger',
docType: obj.service,
docUrl: obj.url,
docTags: ['swagger', obj.type],
}))
);
}Crawler Example
Finding the Related Docs

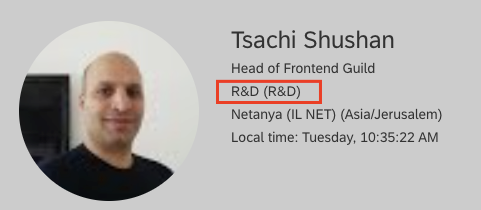

Team, Service, People
{
docId: 'dashboard_496',
docName: 'amplify.SelfServe.AmeliaReports',
docSourceSystem: 'grafana',
docUrl: 'https://grafana.outbrain.com/d/000000496/amplify-selfserve-ameliareports',
docType: 'dashboard',
docTags: ['dashboard', 'grafana'],
docUsers: ['sdahary', 'syogev']
}AmplifySelfServe
Team
AmeliaReports
Sarit Dahary
Sivan Yogev
Algorithm for finding a team
-
By owner
-
By service
-
By name
-
By Path
-
By Users
Q: Where are the teams?
A: Nowhere!
{

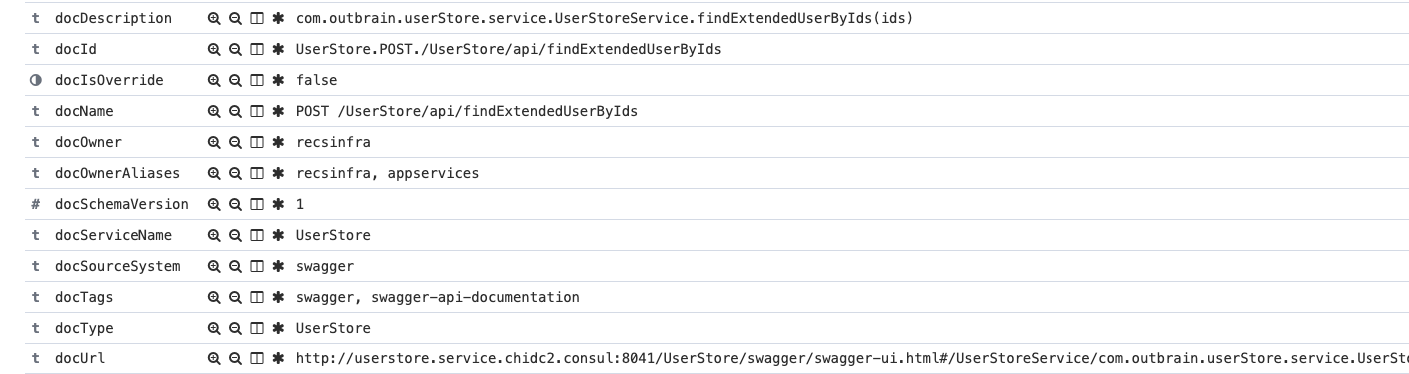

id: 'recsinfra',
name: 'RecsInfra',
aliases: ['recsinfra', 'appservices'],
parentId: 'rapid',
managerId: 'dfriedland'
}

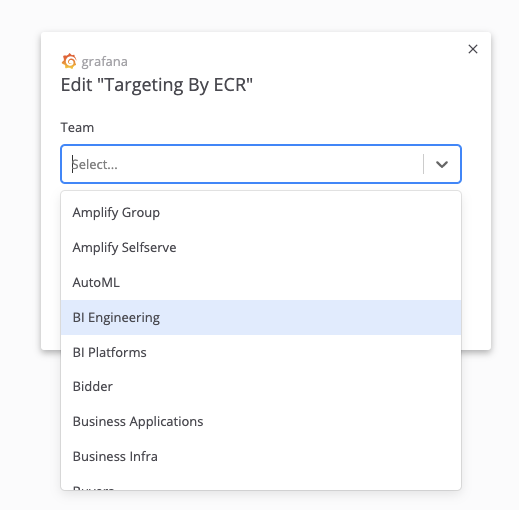

Setting the team Manually
{
docId: 'dashboard_2135',
docName: 'Targeting by ECR',
docSourceSystem: 'grafana',
docUrl: 'https://grafana.outbrain.com/d/000002135/targeting-by-ecr',
docPath: ''
}

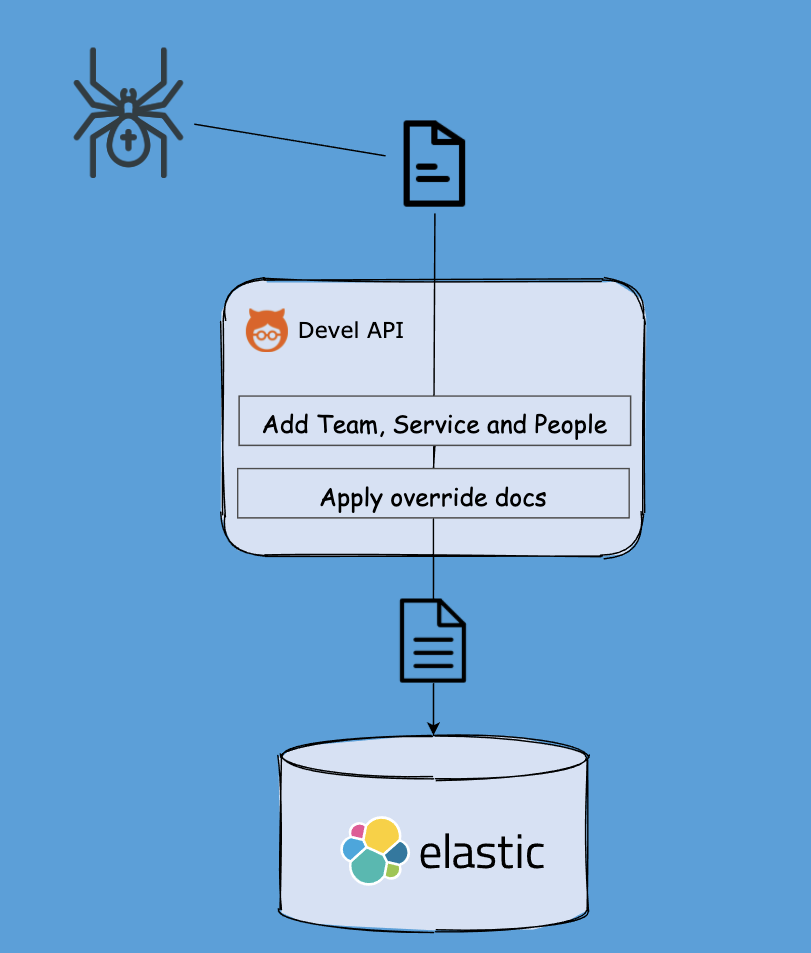

Handling Manual Changes
{
//override doc
docId: 'dashboard_2135',
docOwner: 'devx',
docIsOverride: true
} {
//original doc
docId: 'dashboard_2135',
docName: 'Targeting by ECR',
docSourceSystem: 'grafana',
docUrl: 'https://grafana.outbrain.com/d/000002135/targeting-by-ecr',
docPath: ''
} {
//merged doc
docId: 'dashboard_2135',
docName: 'Targeting by ECR',
docSourceSystem: 'grafana',
docUrl: 'https://grafana.outbrain.com/d/000002135/targeting-by-ecr',
docPath: ''
docOwner: 'devx'
}+
}
Adding
a Document
Search
-
Top 25 from each system
-
Fields Boost (e.g. Name > URL)
-
Systems Boost (e.g. Eco > Swagger)
-
Future: Clicks Boost, Online results from other systems

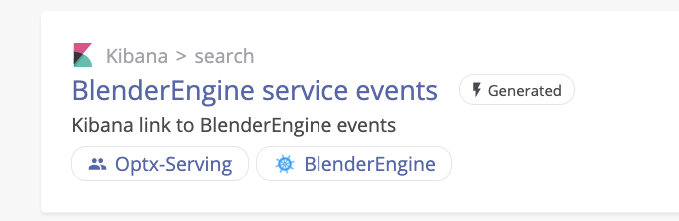

Finding Service Logs
-
Get the list of elastic clusters from Consul
-
Map Owner to Cluster
-
Create a link
devel.outbrain.com
Any
Questions?

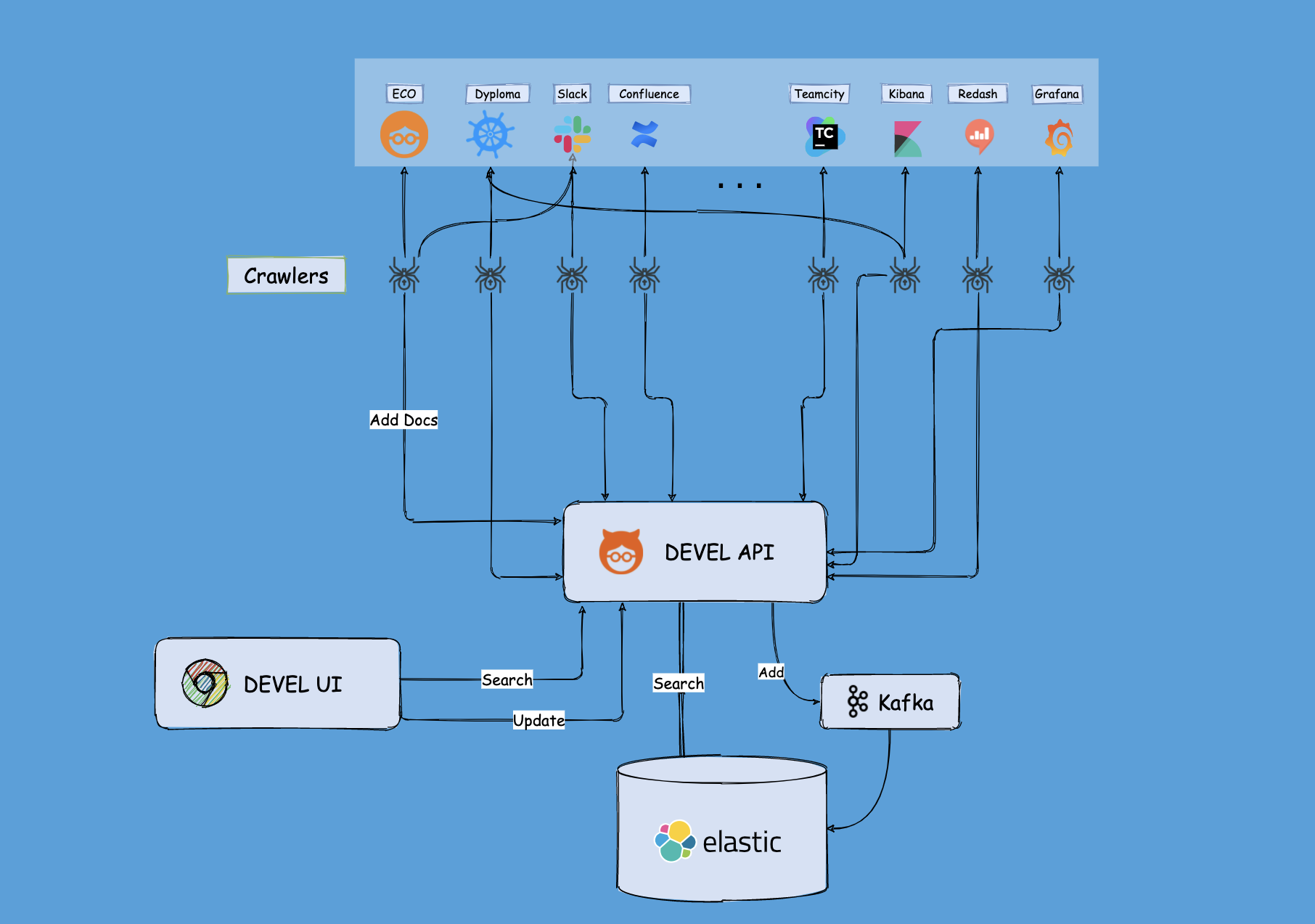

Devel project architecture
By Tsachi Shushan
