Building gRPC powered REST APIs in Go
Tsvetan Dimitrov
I'm hungryyyy....Dm
API
-
Architecture - MVC
-
Data exchange format - JSON
-
Transport protocol - HTTP 1.1
-
Some spices - MVC frameworks
Agenda
-
HTTP/JSON definition
-
Data Exchange
-
Protocol Buffers
-
-
Transport
-
gRPC and HTTP/2
-
-
Some spices
-
gRPC-gateway
-
-
Architecture
-
Onion vs Layered
-
go-kit web toolkit
-
-
Demo Application
HTTP/JSON
What do we mean?
-
A RESTful interface with JSON payloads
-
The standard for service communication
-
Easy to read and write
-
Native Javascript support
Disadvantages of JSON
-
Hard to write
-
no trailing commas
-
no comments
-
-
Inefficient on the wire
-
Expensive marshaling
-
Poorly typed
-
No single source of truth for the API (Swagger?)
Protocol Buffers
Definition
-

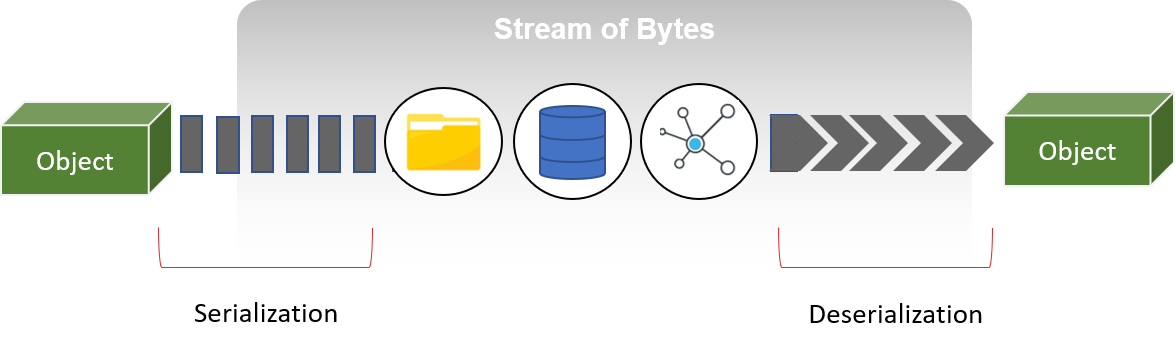

Serialization of structured data for use in communication protocols, data storage and more
-
Language agnostic (generators for different languages)
syntax = "proto3";
package example;
message Student {
string student_id = 1;
string first_name = 2;
string last_name = 3;
string address = 4;
bool is_joined = 5;
}
PB Language Version
Package of generated code
Field Tag
Field Type
Field Name
Message Type
Definition / 1
-

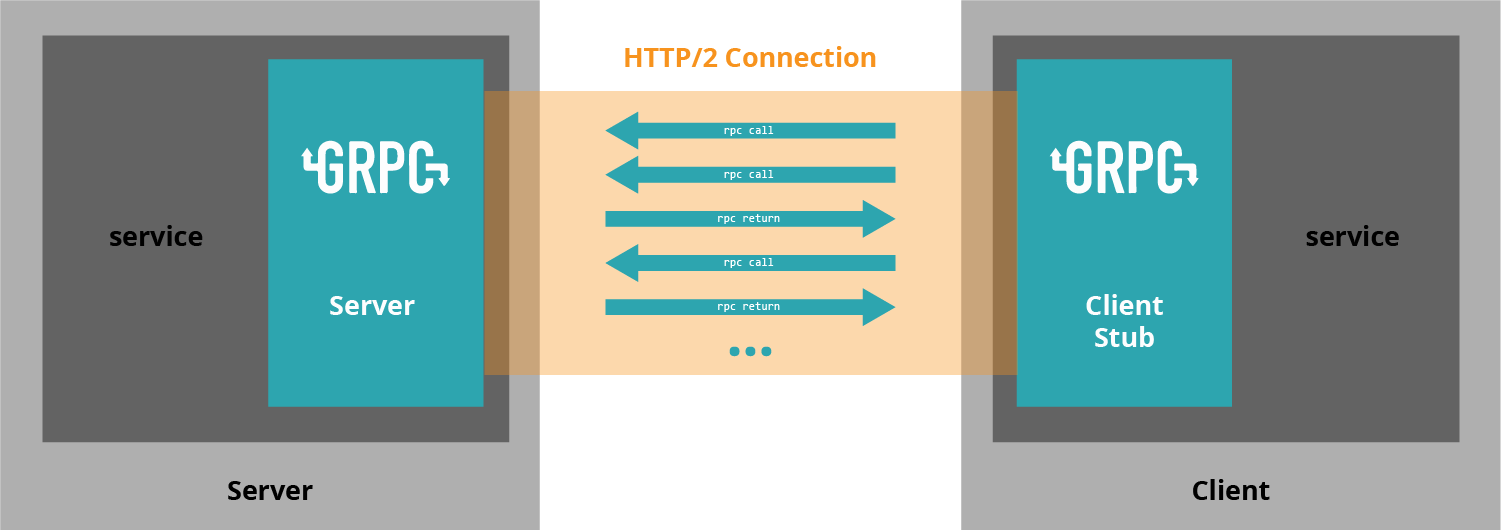

gRPC Remote Procedure Calls
-
RPC Framework
-
Open sourced version of Stubby RPC used at Google
RMI
CORBA
Definition / 2
-
Abstractions and best practices on how to design RPCs
-
Extension points to plug custom implementations and modifications
-
Supports 10+ programming languages
Features / 1
-
Serialization with Protocol Buffers
service SearchService {
rpc Search (SearchRequest) returns (SearchResponse);
}
-
HTTP / 2
Features / 2
-
Supports bi-directional streaming
service SearchService {
rpc Search (stream SearchRequest) returns (stream SearchResponse);
}
The problem with novel tech
-
Existing services/clients
-
Company unwillingness to invest in new tech
-
Public API expectation is HTTP/JSON
gRPC-gateway
Definition
-
Protoc plugin
-
Translates HTTP/JSON requests to gRPC and back
-
Simple annotation in .proto files
-
Provides Swagger/OpenAPI generator
-
Widely used within the gRPC community
service CustomerService {
rpc RegisterCustomer (RegisterCustomerRequest) returns (RegisterCustomerResponse) {
option (google.api.http) = {
post: "/customer"
body: "*"
};
option (grpc.gateway.protoc_gen_swagger.options.openapiv2_operation) = {
summary: "Register a new Customer"
description: "Register a new Customer"
tags: "customer"
};
}
rpc GetCustomerByID (GetCustomerByIDRequest) returns (GetCustomerByIDResponse) {
option (google.api.http) = {
get: "/customer/{customer_id}"
};
option (grpc.gateway.protoc_gen_swagger.options.openapiv2_operation) = {
summary: "Get an existing customer"
description: "Get an existing customer"
tags: "customer"
};
}
}
HTTP Request Metadata
Swagger Metadata
example.ProfileService.Update
user_id: "123"
email: "foo@example.com"
...
PUT /v1/user/123/profile
...
{"email": "foo@example.com", ...}
product_service.proto
generates proxy
generates stub
Reverse Proxy
Your gRPC service
API Client
grpc-gateway
protoc
gRPC
REST API (JSON over HTTP)
Onion vs Layered Architecture

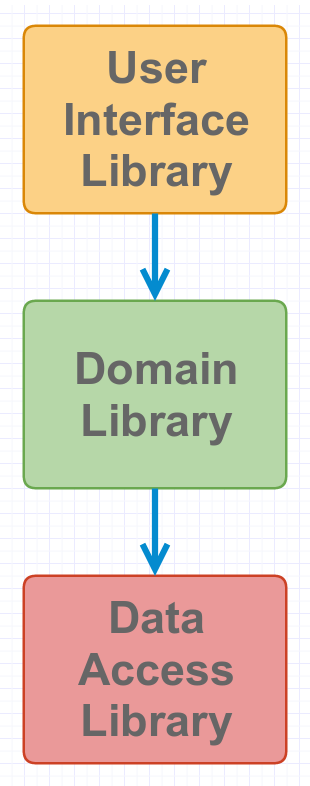

Layered Architecture

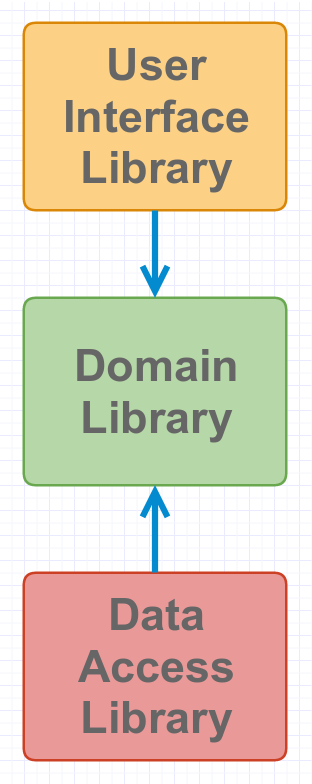

Dependency Inversion Principle
Abstractions should not depend upon details. Details should depend upon abstractions.
Onion Architecture
Go-kit
Overview
-
Microservices Toolkit
-
High Separation of Concerns
-
"Few opinions, lightly held"
-
Transports, Endpoints, Services
-
Extensible via Middleware
Features
-
Built-in HTTP and gRPC transports
-
Built-in Middlewares:
-
Auth
-
Logs
-
Metrics
-
Rate Limiting
-
Service Discovery
-
Distributed Tracing
-

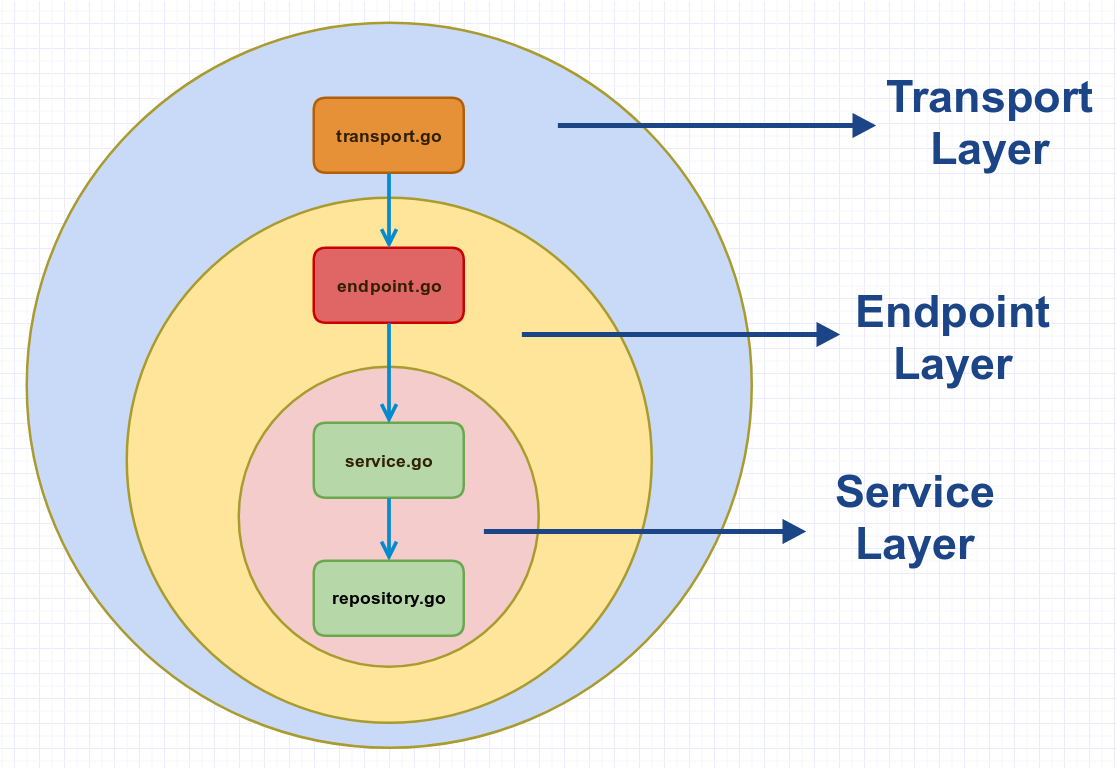

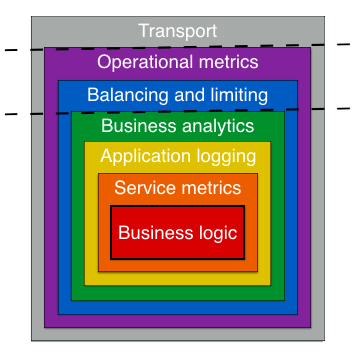

Go-kit Onion Architecture
Overview
-
Booking system
-
gRPC powered REST API
-
CRUD operations
-
Database: SQLITE
Entity Relationship Diagram
Talk is cheap, show me the code?!?!!
Summary
-
A new way to develop APIs
-
Used a transport agnostic architecture
-
Defined RPC communication
-
Introduced Protocol Buffers
-
Introduced gRPC
-
Implemented a hybrid approach between HTTP/JSON and gRPC
Questions?
