Protocols used in Constrained Environments

Vidhya Gholkar @vgholkar



CONSTRAINED ENVIRONMENT

http://tools.ietf.org/html/draft-ietf-lwig-terminology-06

Class  Rough translation
0 Can't run IP stack securely
1 Integrated Security but can't employ full stack using       HTTP over TLS
2 Small but benefit from efficient protocols that free resources for application or reduce op costs.
Arduino image http://creativecommons.org/licenses/by-sa/3.0/legalcode

Constrained Application Protocol

  • Binary Protocol
  • Request-response, RESTful
  • does not sit on TCP
  • Can proxy to and from HTTP
  • NOT HTTP Compression
  • draft-ietf-core-coap-18
  • draft-ietf-core-observe-11
  • RFC 6690

Features

  • URI support
  • Discovery
  • Observation
  • Security - DTLS

URI

coap+sms://+441234567/garden/peas/water
coap://building.uk:5633/~room/occ.xml

Request/Response

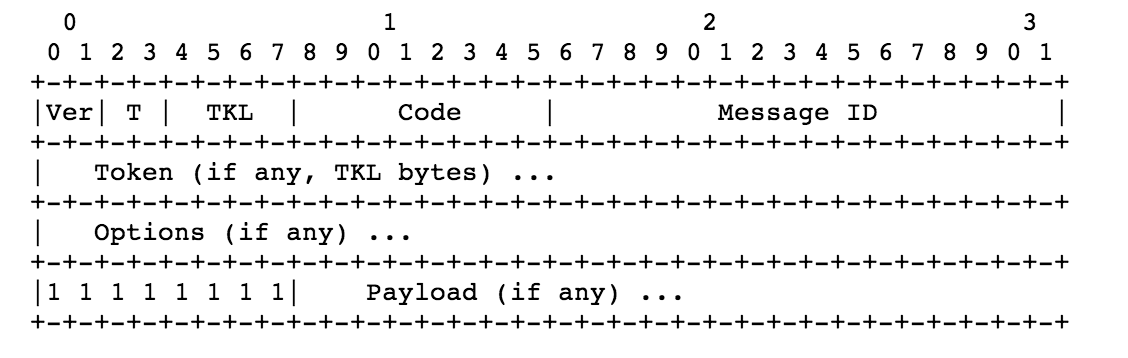

CoAP message

Ver Version
T Transaction Type
OC Option Count
Code Request Method
Message ID Identifier

CoAP Methods

Message Code
GET 0.01
POST 0.02
PUT 0.03
DELETE 0.04

Resource Discovery



  •  CoAP servers provide list of all known resources.



GET /.well-known/core





  •
 Can filter list - RFC 6690.
    •

    rt
ct
if
sz



    GET /.well-known/core?rt=radiation



    2.05 Content
</sensors/radiation>;rt="geiger";if="sensor"




    Observe

						draft-ietf-core-observe-11




     Security




    •  Datagram TLS
      •

    •  Records are independent so that if i'th record is lost i+1'th can still be decrypted.
      •

    •  Handshake messages queued.
      •

    •  Application is responsible for dealing with loss, reordering and so on.
      •

    Code to play with




    •  Cantcoap https://github.com/staropram/cantcoap
      •

    •  C COAP Erbium git://github.com/contiki-os/contiki.git
      •

    •  NodeJS https://github.com/morkai/h5.coap
      •

    •  Firefox plugin (!) https://addons.mozilla.org/en-US/firefox/addon/copper-270430/
      •

    •  libcoap http://sourceforge.net/projects/libcoap/
      •

    •  Arduino implementation https:// github.com/ dgiannakop/ Arduino-CoAP.
      •

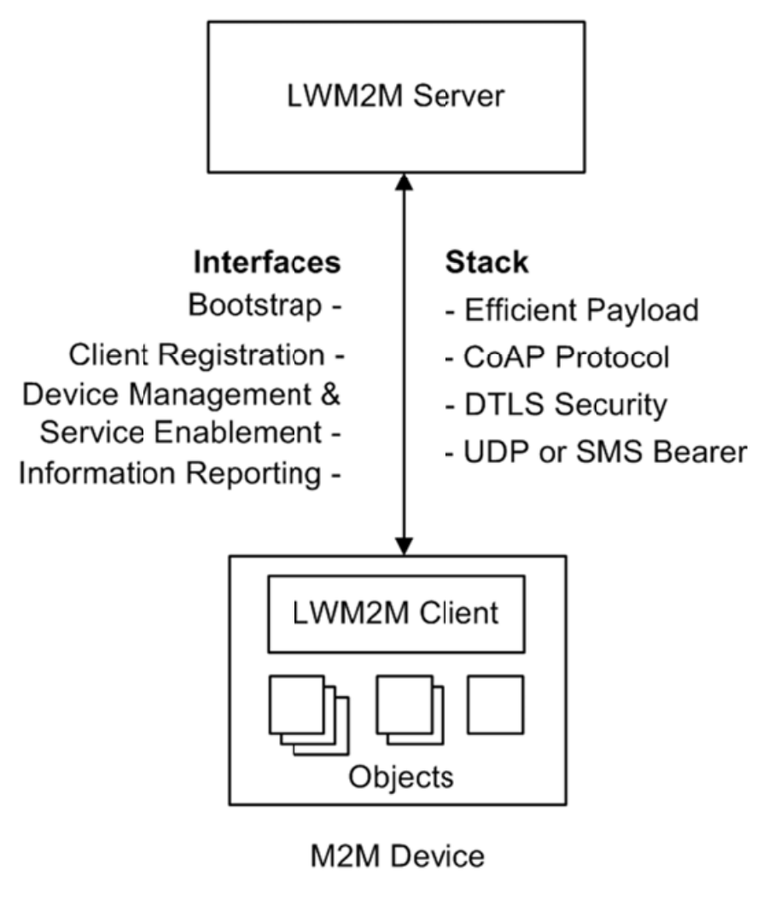

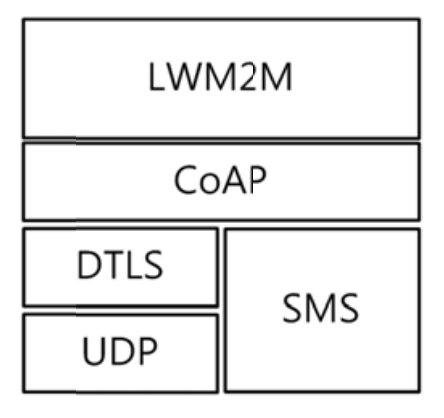

    Light Weight Device Management

							  						© 2013 Open Mobile Alliance Ltd. All Rights Reserved.
						technical.openmobilealliance.org/Technical/release_program/docs/LightweightM2M/V1_0-20131210-C/OMA-TS-LightweightM2M-V1_0-20131210-C.pdf


    MQ Telemetry Transport




    •  Light weight, Binary protocol.

      •

    •  Topic based Publish - Subscribe.
      •

    •  For "Q" cf. AMQP, STOMP etc.
      •

    •  Most recent message can be stored by broker and a Last Will can be set.
      •

    •  TCP with concomitant TLS/SSL Security.
      •

    •  3 levels of Quality of Service (QoS).
      •

    •  CONNECT, PUBLISH, SUBSCRIBE, UNSUBSCRIBE and DISCONNECT (others).
      •

    •  MQTT-S addresses TCP constraint to be standardised.
      •

    •  IBM driven, now at OASIS.
      •



    PubSub





    Topics and Wild cards


    Topic Publish:


    /Lille/nord/BldA/hallway/temperature
/Lille/sud/BldB/meetingroom/pressure



    Wildcard subscribe:


    /Lille/+/+/temperature
/Lille/sud/#


    Header and Payload



    Core MQTT messages














Message
								Code
								Description




CONNECT
								1
								Client request to connect to Server




PUBLISH
								3
								Publish message




SUBSCRIBE
								8
								Client Subscribe request




UNSUBSCRIBE
								10
								Client Unsubscribe




DISCONNECT
								14
								Client is Disconnecting

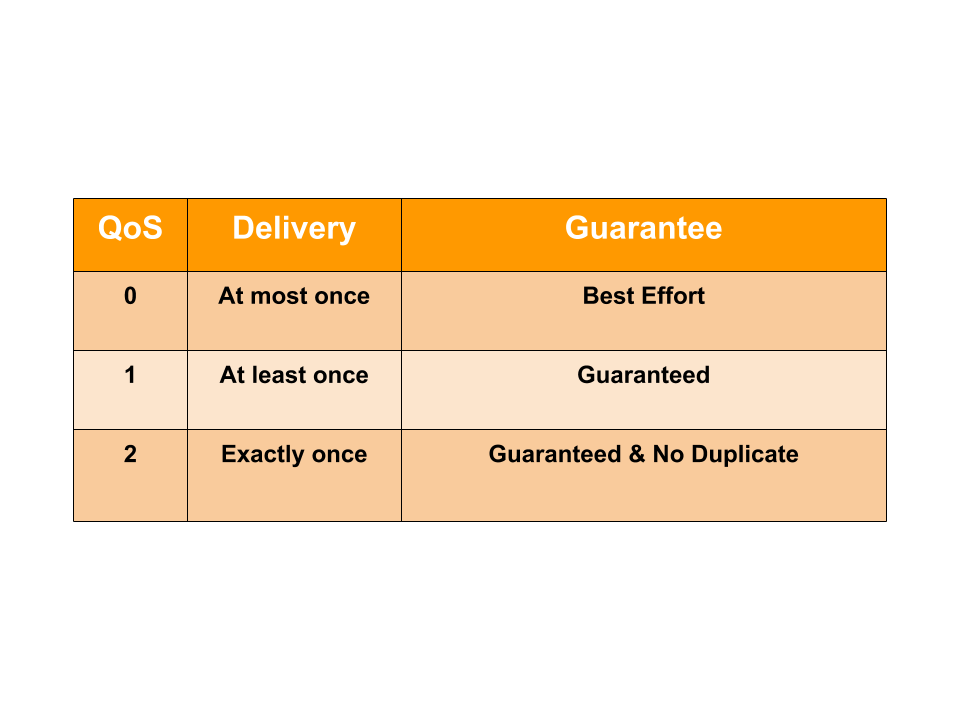

    Quality of Service








    for many constrained devices likely that only QoS 0 available.


    Interesting Flags














PUBLISH
Retain  so broker remembers the last published value.




CONNECT
 CleanSession - Forget sessions/subscriptions.



    Code to play with




    •  (C, JS, Python etc) http://git.eclipse.org/c/paho/
      •

    •  Lots of client libraries including .NET, Erlang and Lua! Some are device specific e.g. Netduino. See mqtt.org
      •

    •  Broker http://mosquitto.org/ http://mqtt.org/wiki/doku.php/public_brokers
      •

     Summary







    •  MQTT is binary PubSub based messaging protocol that requires  TCP/IP.
      •

    •  CoAP is a binary HTTP-like P2P protocol that can also emulate the PubSub pattern.
      •

    •  Both can be used today.
      •

    • Beware of Apples to Oranges comparisons.
      •

    •  Work with both protocols to see what is right for your application.
      •



    END
