• Architecture

• Observable
• Binding
• Debug
• Homework


Why ?

• Work separation (layout, programming)

• Easy to roll down to spaghetti code
• Lack of binding html <=> js (input value <=> js value)

• Computed field (totalSum, fullName)


 Architecture

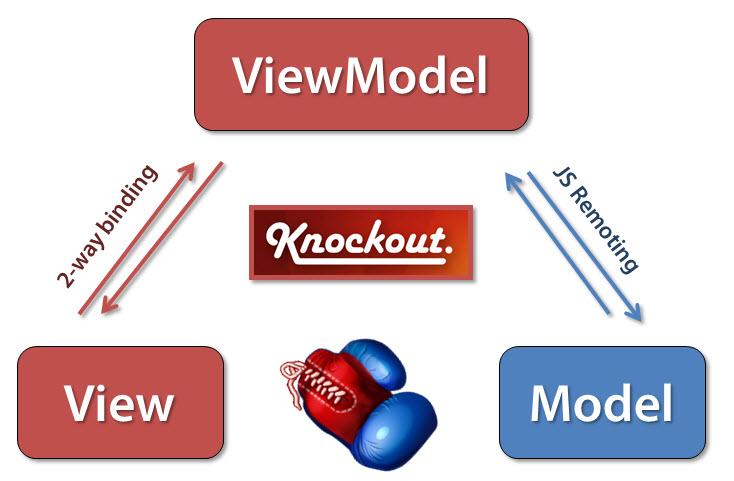

Model View ViewModel

• View (dev it 1st)


  Login: <input type="email" data-bind="value: email" /><br />
  Password: <input type="password" data-bind="value: password" /><br />
  <button data-bind="click: register">Register</button>

• ViewModel (is view reflection, dev it 2nd)


  function RegistrationViewModel() {
    var self = this;
    this.email = ko.observable("");
    this.password = ko.observable("");
    this.register = function() {
      var model = {Login: self.email(), Password: self.password()};
      $.ajax({url: "/Api/RegisterUser", type: "POST", data: model});
    };
  }

• Model (depend on ViewModel if possible, 3rd)


  public class RegistrationDto {
    public string Login {get; set;}
    public string Password {get; set;}
  }

  Development order: 1. View, 2. ViewModel, 3. Ask server dev to implement Model. UI dev is master, server dev is slave.

ServiceAgent

this.register = function() {
  var model = {Login: self.email(), Password: self.password()};
  $.ajax({url: "/Api/RegisterUser", type: "POST", data: model});
};

Oops, I need to test it

function RegistrationViewModel() {
  var self = this;
  this.serviceAgent = new ServiceAgent();
  this.email = ko.observable("");
  this.password = ko.observable("");
  this.register = function() {
    var model = {Login: self.email(), Password: self.password()};
    self.serviceAgent.registerUser(model);
  };
}

function ServiceAgent() {
  this.registerUser = function(model) {
    return $.ajax({url: "/Api/RegisterUser", type: "POST", data: model});
  };
}

ViewModel

• class - component

• field - data, state

• property - calculation

• method - action, behavior


Observable

• Create field


  var login = ko.observable("");


• Read value

  var val = login();


• Write value

  login("Admin");


• Listen for value change

  var subscription = login.subscribe(function(newValue) {
    /* ask server to check uniqueness */
  });


• Clean up

  subscription.dispose();





array

• Create array field


  var products = ko.observableArray([]);


• Read


  var arrayValue = products();
  var value = products()[0];


• Add value


  products.push(product);


• Remove value


  products.remove(product);


Computed

• Create read-only property


  var fullName = ko.computed(function() {
    return firstName() + " " + lastName();
  });

• Create writeable property

  var fullName = ko.computed({
    read: function () {
      return firstName() + " " + lastName();
    },
    write: function (value) {
      var lastSpacePos = value.lastIndexOf(" ");
      firstName(value.substring(0, lastSpacePos));
      lastName(value.substring(lastSpacePos + 1));
    }
  });


• Read, write,  listen, clean up is the same
• Demo


Binding

• Glue together HTML element and model

• Accessing DOM only inside binding


  ko.applyBindings(new RegistrationViewModel());

• Demo


Custom binding

• use UI external component (bootstrap, keyfilter, select2)
• access DOM from ViewModel (width, scrollTop)
• reuse UI logic (slideFromRight)
• add behavior (glueToBottom, executeOnEnter)

ko.bindingHandlers["slideFromRight"] = {
    init: function(element, valueAccessor) {
      // will be called when the binding is first applied to an element
    },
    update: function(element, valueAccessor) {
      // will be called when the binding is first applied to an element,
      // and again whenever the associated observable changes value.
    }
};
