Kotlin Coroutines in Practice:

writing asynchronous RabbitMQ client

Vyacheslav Artemyev

Agenda

  • RabbitMQ briefly introduction
  • Asynchronous programming
  • Reactive vs Coroutines
  • Coroutines base concepts
  • Publisher implementation
  • Subscriber implementation
  • Conclusion

The problem

String message = "Hello World!";
channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
System.out.println(" [x] Sent '" + message + "'");

Publish a message *

* You must not lose messages

Transactions

ch.txSelect();
for (int i = 0; i < MSGCOUNT; ++i) {
        ch.basicPublish("",
                        QUEUENAME,
                        PERSISTENTBASIC,
                        "Hello".getBytes());
        ch.txCommit();
}
  • Transactions are needlessly heavy: every commit requires a fsync(), which takes a lot of time to complete

  • Transactions are blocking: the publisher has to wait for the broker to process each message

Problems:

Enter Confirms

volatile SortedSet<Long> unconfirmedSet =
    Collections.synchronizedSortedSet(new TreeSet());


ch.setConfirmListener(new ConfirmListener() {
    public void handleAck(long seqNo, boolean multiple) {
        if (multiple) {
            unconfirmedSet.headSet(seqNo+1).clear();
        } else {
            unconfirmedSet.remove(seqNo);
        }
    }
    public void handleNack(long seqNo, boolean multiple) {
        // handle the lost messages somehow
    }
});

ch.confirmSelect();

for (long i = 0; i < MSGCOUNT; ++i) {
     unconfirmedSet.add(ch.getNextPublishSeqNo());
     ch.basicPublish("",
                     QUEUENAME,
                     PERSISTENT_BASIC,
                     "Hello".getBytes());
}

Asynchronously

Asynchronous programming

Asynchrony, in computer programming, refers to the occurrence of events independent of the main program flow and ways to deal with such events. These may be "outside" events such as the arrival of signals, or actions instigated by a program that take place concurrently with program execution, without the program blocking to wait for results.

https://en.wikipedia.org/wiki/Asynchrony_(computer_programming)

Use cases

You do not want threads:

  • You have a lot of mutable states
  • Mobile/Desktop UI apps, etc

You cannot afford threads:

  • They are expensive to keep and to switch
  • High-load server-side, micro-tasks, etc

You cannot do threads:

  • Your code is a single thread only
  • JS/web target, μC, etc

Callbacks

Continuation-passing style (CPS) is a style of programming in which control is passed explicitly in the form of a continuation. This is contrasted with a direct style, which is the usual style of programming.



ch.setConfirmListener(new ConfirmListener() {
    public void handleAck(long seqNo, boolean multiple) {
        // handle the acked messages somehow
    }
    public void handleNack(long seqNo, boolean multiple) {
        // handle the nacked messages somehow
    }
});

Reactive programming

In computing, reactive programming is a declarative programming paradigm concerned with data streams and the propagation of change.

Flux<OutboundMessageResult> confirmations =
    sender.sendWithPublishConfirms(Flux.range(1, count)
        .map(i -> new OutboundMessage("", queue, ("Message_" + i).getBytes())));

sender.declareQueue(QueueSpecification.queue(queue))
    .thenMany(confirmations)
        .doOnError(e -> LOGGER.error("Send failed", e))
        .subscribe(r -> {
            if (r.isAck()) {
                // do something
            }
        });
}

Coroutines

Coroutines are computer-program components that generalize subroutines for non-preemptive multitasking, by allowing multiple entry points for suspending and resuming execution at certain locations.

try {
    channel.declareQueue(QueueSpecification(QUEUE_NAME))
    val message = new OutboundMessage("", queue, ("Message_" + i).getBytes()))
    val ack = publisher.publishWithConfirm(message)
    if (ack) {
        //Do something
    }
} catch (e: Exception) {
    LOGGER.error("Send failed", e)
}

Why Coroutines?

Reactive:

  • You need to change return type and this type should be propagated

Coroutines:

  • You don't need to change signature*
fun publishWithConfirm(message: OutboundMessage): Boolean

Function signatures

fun publishWithConfirm(message: OutboundMessage): Observable<Boolean>

* Just a bit

suspend

Why Coroutines?

Functions stay "the same"

Localize the changes to a single entry point

(instead of changing how you do thing everywhere)

ONE LESS THING TO LEARN

Why Coroutines?

Reactive:

  • Not easy to debug

Coroutines:

  • Easier to debug

Debugging

Why Coroutines?

for ((message) in list) {
    publishWithConfirm(message)
}

Direct loops

Why Coroutines?

try {
    publishWithConfirm(message)
} catch (e: Exception) {
    ...
}

Direct exception handing

Why Coroutines?

Direct higher-order functions

(1..times).map {
     async {
        publisher.publishWithConfirm(createMessage("Hello #$it"))
    }
}.awaitAll()

//forEach, let, apply, repeat, filter, map, use etc

Why Coroutines?

Easy to manage

withContext(Dispatchers.IO) {
    publisher.publishWithConfirm(createMessage("Hello #$it"))
}

Reactive:

Coroutines

...
.subscribeOn(Schedulers.single())
.observeOn(Schedulers.elastic())
...

Coroutine basics

Suspending function

A suspending function — a function that is marked with suspend modifier. It may suspend execution of the code without blocking the current thread of execution by invoking other suspending functions.

suspend fun publishWithConfirm(message: OutboundMessage): Boolean {
    // some logic is here
}

fun publishWithConfirm(message: OutboundMessage, callback: Continuation<Boolean>): Any? {
    // some logic is here
}

Continuation

Being passed

Continuation

Coroutines (like futures!) use callbacks at their low level, but allow asynchronous programming in direct style.

interface Continuation<in T> {
    val context: CoroutineContext
    fun resumeWith(result: Result<T>)
}

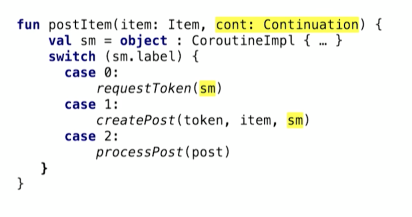

Under the hood

Coroutines: State machine object

Data for each state

Index of current state

Let's try it

/**
 * Asynchronously send a method over this channel.
 * ...
 */
CompletableFuture<Command> asyncCompletableRpc(Method method) throws IOException;

/**
 * Awaits for completion of the completion stage without blocking a thread.
 *
 * This suspending function is cancellable.
 */
public suspend fun <T> CompletionStage<T>.await(): T {
    // fast path when CompletableFuture is already done (does not suspend)
    ...
    // slow path -- suspend
    return //The magic is here
}

Creating a queue

suspend fun Channel.declareQueue(queueSpecification: QueueSpecification): AMQP.Queue.DeclareOk {
    val queueDeclaration = AMQP.Queue.Declare.Builder()
        .queue(queueSpecification.name)
        .durable(queueSpecification.durable)
        .exclusive(queueSpecification.exclusive)
        .autoDelete(queueSpecification.autoDelete)
        .arguments(queueSpecification.arguments)
        .build()

    return this.asyncCompletableRpc(queueDeclaration).await().method as AMQP.Queue.DeclareOk
}

Let's try it!

@Test
fun `declare queue test`() {
    val queueName = "declare_queue_test"
    factory.newConnection().use { connection ->
        connection.createChannel().use { channel ->
            channel.declareQueue(QueueSpecification(queueName))
            assertTrue { getQueues().find { it.name == queueName } != null }
        }
    }
}

Doesn't compile: suspend function should be called only from a coroutine or another suspend function

Coroutine builders

Synchronous code

Suspendable code

Coroutine builders

public fun CoroutineScope.launch(
    context: CoroutineContext = EmptyCoroutineContext,
    start: CoroutineStart = CoroutineStart.DEFAULT,
    block: suspend CoroutineScope.() -> Unit
): Job {
    ...
}

Launch

public fun <T> CoroutineScope.async(
    context: CoroutineContext = EmptyCoroutineContext,
    start: CoroutineStart = CoroutineStart.DEFAULT,
    block: suspend CoroutineScope.() -> T
): Deferred<T> {
    ...
}

Async

Runnable??

Callable??

Inside Coroutine

public interface CoroutineScope {
    public val coroutineContext: CoroutineContext
}

CoroutineScope

interface CoroutineContext {
    abstract operator fun <E : Element> get(key: Key<E>): E?
    abstract fun minusKey(key: Key<*>): CoroutineContext
    open operator fun plus(context: CoroutineContext): CoroutineContext
    ...
}

CoroutineContext

interface Element : CoroutineContext

interface Key<E : Element>

Custom properties in context

TODO: add example of passing custom property to context

GlobalScope

public object GlobalScope : CoroutineScope {
    override val coroutineContext: CoroutineContext
        get() = EmptyCoroutineContext
}

Returns immediately, coroutine works in a background thread pool

Combine it!

@Test
fun `bind queue test`() {
    factory.newConnection().use { connection ->
        connection.createChannel().use { channel ->
            runBlocking {

                channel.declareExchange(ExchangeSpecification("test_exchange")) //#1

                channel.declareQueue(QueueSpecification("test_queue")) //#2

                channel.bindQueue(BindQueueSpecification("test_queue", "test_exchange")) //#3

            }
        }
    }
}

Concurrency in Coroutines

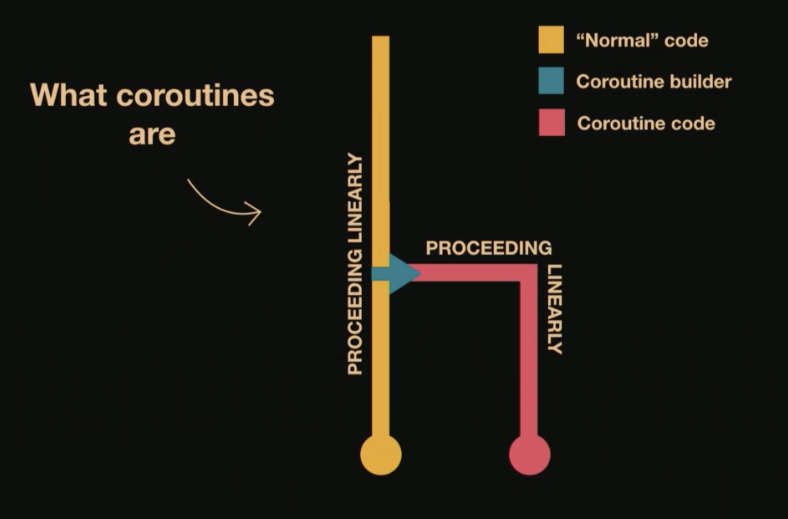

Concurrency in Coroutines

TODO:

redraw the picture

Expectations

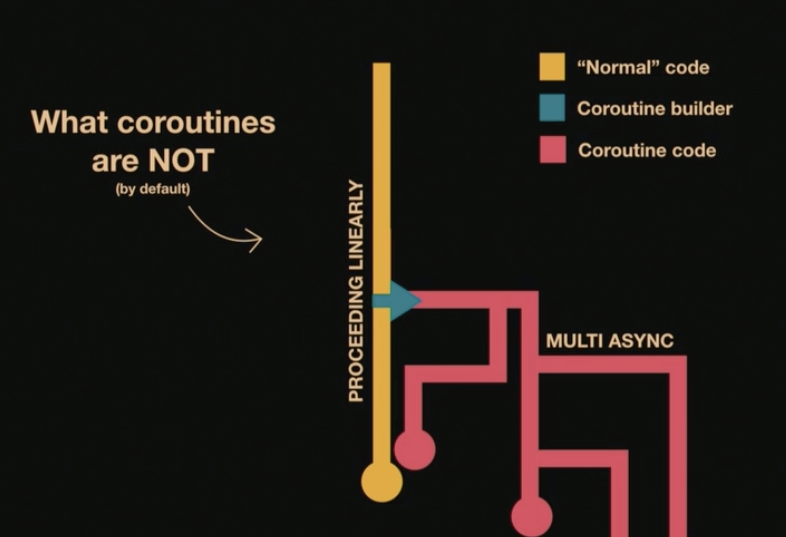

Concurrency in Coroutines

Reality

TODO:

redraw the picture

Improve it!

@Test
fun `bind queue test`() = runBlocking {
    factory.newConnection().use { connection ->
        connection.createChannel().use { channel ->

            val exchange = async { channel.declareExchange(ExchangeSpecification("test_exchange")) } //#1

            val queue = async { channel.declareQueue(QueueSpecification("test_queue")) } //#2

            awaitAll(exchange, queue) //#3

            channel.bindQueue(BindQueueSpecification("test_queue", "test_exchange")) //#4
        }
    }
}

Structured concurrency

...

coroutineScope {

    val exchange = async { channel.declareExchange(ExchangeSpecification("test_exchange")) }

    val queue = async { channel.declareQueue(QueueSpecification("queue_test")) }

    awaitAll(exchange, queue)

    channel.bindQueue(BindQueueSpecification("queue_test", "test_exchange"))
}

...

Improve it again!

suspend fun Channel.declareQueue(queueSpecification: QueueSpecification): AMQP.Queue.DeclareOk {
    val channel = this
    val queueDeclaration = AMQP.Queue.Declare.Builder()
        .queue(queueSpecification.name)
        .durable(queueSpecification.durable)
        .exclusive(queueSpecification.exclusive)
        .autoDelete(queueSpecification.autoDelete)
        .arguments(queueSpecification.arguments)
        .build()

    return withContext(resourceManagementDispatcher) {
        channel.asyncCompletableRpc(queueDeclaration).await().method as AMQP.Queue.DeclareOk
    }
}

val resourceManagementDispatcher = newSingleThreadContext("ResourceManagementDispatcher")

Dispatcher

GlobalScope.launch(context = /** default **/ Dispatchers.Default) {}
  • Dispatchers.Default - CPU bound work
  • Dispatchers.IO - intensive IO blocking operations
  • Dispatchers.Unconfined - Risky business
  • Private thread pools can be created with newSingleThreadContext and newFixedThreadPoolContext.
  • An arbitrary Executor can be converted to a dispatcher with asCoroutineDispatcher extension function.

Coroutine dispatchers direct traffic

(to threads)

Dispatcher

SubscribeOn

Initial Context

ObserveOn

withContext

CompletableFuture

val exchangeDeclaration = CompletableFuture.supplyAsync {
    channel.exchangeDeclare("exchange", "direct")
}

val queueDeclaration = CompletableFuture.supplyAsync {
    channel.queueDeclare("queue", false, false, false, emptyMap())
}

val allOf = CompletableFuture.allOf(exchangeDeclaration, queueDeclaration)
allOf.get()

channel.queueBind("queue", "exchange", "")

Reactor Rabbit under the hood

declare = new AMQImpl.Queue.Declare.Builder()
    .queue(specification.getName())
    .durable(specification.isDurable())
    .exclusive(specification.isExclusive())
    .autoDelete(specification.isAutoDelete())
    .arguments(specification.getArguments())
    .build();

return channelMono.map(channel -> {
try {
    return channel.asyncCompletableRpc(declare);
} catch (IOException e) {
    throw new RabbitFluxException("Error during RPC call", e);
}
}).flatMap(future -> Mono.fromCompletionStage(future))
.flatMap(command -> Mono.just((AMQP.Queue.DeclareOk) command.getMethod()))
.publishOn(resourceManagementScheduler);

val exchangeDeclaration =
        Supplier { sender.declareExchange(ExchangeSpecification.exchange()) }
val queueDeclaration =
        Supplier { sender.declareQueue(QueueSpecification.queue()) }

Flux.just(exchangeDeclaration, queueDeclaration)
    .flatMap { task ->
        Mono.just(task)
            .subscribeOn(Schedulers.elastic())
            .map { supplier -> supplier.get() }
    }
    .then(sender.bind(BindingSpecification.binding()))
    .doOnError { e -> LOGGER.error("Boom", e) }
    .subscribe { r -> LOGGER.info("Done") }

Java Rx

...

coroutineScope {

    val exchange = async { channel.declareExchange(ExchangeSpecification()) }

    val queue = async { channel.declareQueue(QueueSpecification()) }

    awaitAll(exchange, queue)

    channel.bindQueue(BindQueueSpecification())
}

...

Coroutines

Back to Publisher

Publisher

class ConfirmPublisher internal constructor(private val channel: Channel) {
    private val continuations = ConcurrentHashMap<Long, Continuation<Boolean>>()

    init {
        channel.addConfirmListener(AckListener(continuations))
    }

    suspend fun publishWithConfirm(message: OutboundMessage): Boolean {
        val messageSequenceNumber = channel.nextPublishSeqNo
        logger.debug { "The message Sequence Number: $messageSequenceNumber" }

        return suspendCancellableCoroutine { continuation ->
            continuations[messageSequenceNumber] = continuation
            message.run { channel.basicPublish(exchange, routingKey, properties, body) }
        }
    }
}

Listener

class AckListener(
        private val continuations: ConcurrentHashMap<Long, Continuation<Boolean>>
) : ConfirmListener {

    ...

    private fun handle(deliveryTag: Long, multiple: Boolean, ack: Boolean) {
        val lowerBound = lowerBoundOfMultiple.get()
        if (multiple) {
            for (tag in lowerBound..deliveryTag) {
                continuations.remove(tag)?.resume(ack)
            }
            lowerBoundOfMultiple.compareAndSet(lowerBound, deliveryTag)
        } else {
            continuations.remove(deliveryTag)?.resume(ack)
            if (deliveryTag == lowerBound + 1) {
                lowerBoundOfMultiple.compareAndSet(lowerBound, deliveryTag)
            }
        }
    }
}

Confirm channel

class ConfirmChannel internal constructor(private val channel: Channel) : Channel by channel {
    init {
        channel.confirmSelect()
    }

    fun publisher() = ConfirmPublisher(this)
}

fun Connection.createConfirmChannel(): ConfirmChannel = ConfirmChannel(this.createChannel())

Coroutine

val channel = connection.createConfirmChannel()

val publisher = channel.publisher()
channel.declareQueue(QueueSpecification(QUEUE_NAME))

val acks = (1..times).map {
    async {
        publisher.publishWithConfirm(createMessage("Hello #$it"))
        LOGGER.info("Message {} sent successfully",
                            String(r.getOutboundMessage().getBody()))
    }
}.awaitAll()

JavaRx

val confirmations = sender.sendWithPublishConfirms(Flux.range(1, count)
    .map({ i -> OutboundMessage("", queue, "Message_$i".toByteArray()) }))

sender.declareQueue(QueueSpecification.queue(queue))
    .thenMany(confirmations)
    .doOnError({ e -> LOGGER.error("Send failed", e) })
    .subscribe({ r ->
        if (r.isAck()) {
            LOGGER.info("Message {} sent successfully",
                            String(r.getOutboundMessage().getBody()))
        }
    })

Debug coroutine

[main @coroutine#2] DEBUG c.v.t.p.PublisherTest - Coroutine #1 started
[main @coroutine#3] DEBUG c.v.t.p.PublisherTest - Coroutine #2 started
[main @coroutine#4] DEBUG c.v.t.p.PublisherTest - Coroutine #3 started
[main @coroutine#5] DEBUG c.v.t.p.PublisherTest - Coroutine #4 started
[main @coroutine#6] DEBUG c.v.t.p.PublisherTest - Coroutine #5 started
[main @coroutine#2] DEBUG c.v.t.p.ConfirmPublisher - The message Sequence Number: 1
[rabbitmq-nio] DEBUG c.v.t.p.AckListener - deliveryTag = [1], multiple = [false], positive = [true]
[main @coroutine#2] INFO  c.v.t.p.ConfirmPublisher - Message Hello #1 has sent
[main @coroutine#3] DEBUG c.v.t.p.ConfirmPublisher - The message Sequence Number: 2
[main @coroutine#3] INFO  c.v.t.p.ConfirmPublisher - Message Hello #2 has sent
[main @coroutine#4] DEBUG c.v.t.p.ConfirmPublisher - The message Sequence Number: 3
[rabbitmq-nio] DEBUG c.v.t.p.AckListener - deliveryTag = [2], multiple = [false], positive = [true]

-Dkotlinx.coroutines.debug

CoroutineName("my_coroutine")

Results and comparison with Reactive-RabbitMQ

Consumer

Consumer

public interface Channel extends ShutdownNotifier, AutoCloseable {

    ...

    String basicConsume(
        String queue,
        boolean autoAck,
        DeliverCallback deliverCallback,
        CancelCallback cancelCallback
    );

    void basicAck(
        long deliveryTag,
        boolean multiple
    );
}

Consumer v1

class ConfirmConsumer
        internal constructor(private val AMQPChannel: Channel, AMQPQueue: String) {
    private val continuations = LinkedBlockingQueue<Continuation<Delivery>>()

    init {
        AMQPChannel.basicConsume(AMQPQueue, false,
                DeliverCallback { consumerTag, message -> continuations.take().resume(message) },
                CancelCallback { logger.info { "Cancelled" } }
        )
    }

    suspend fun consumeWithConfirm(
        handler: (Delivery) -> Unit) =
        coroutineScope {
            val delivery = suspendCancellableCoroutine<Delivery> { continuations.put(it) }
            handler(delivery)
            AMQPChannel.basicAck(delivery.envelope.deliveryTag, false)
        }
}

Channels

Deferred values provide a convenient way to transfer a single value between coroutines. Channels provide a way to transfer a stream of values

https://github.com/Kotlin/kotlinx.coroutines/blob/master/docs/channels.md

suspending

suspending

Channels

private val continuations = Channel<Delivery>()
private lateinit var consTag: String

init {
    consTag = AMQPChannel.basicConsume(AMQPQueue, false,
        { consumerTag, message ->
            if (consumerTag == consTag) {
                continuations.send(message)
            }
        },
        { consumerTag ->
            if (consumerTag == consTag) {
                logger.info { "Consumer $consumerTag has been cancelled" }
                continuations.cancel()
            }
        }
    )
}

suspend fun consumeWithConfirm(
    handler: (Delivery) -> Unit)
= coroutineScope {
    val delivery = continuations.receive()
    handler(delivery)
    AMQPChannel.basicAck(delivery.envelope.deliveryTag, false)
}

Compilation error

Consumer v2

init {
    consTag = AMQPChannel.basicConsume(AMQPQueue, false,
        { consumerTag, message ->
            if (consumerTag == consTag) {
                GlobalScope.launch { continuations.send(message) }
            }
        },
        { consumerTag ->
            if (consumerTag == consTag) {
                logger.info { "Consumer $consumerTag has been cancelled" }
                continuations.cancel()
            }
        }
    )
}

Consumer v3

init {
    consTag = AMQPChannel.basicConsume(AMQPQueue, false,
        { consumerTag, message ->
            if (consumerTag == consTag) {
                continuations.sendBlocking(message)
            }
        },
        { consumerTag ->
            if (consumerTag == consTag) {
                logger.info { "Consumer $consumerTag has been cancelled" }
                continuations.cancel()
            }
        }
    )
}

Coroutine

val handler = { m -> LOGGER.info("Received message {}", String(m.getBody())) }
channel.declareQueue(QueueSpecification())
val consumer = channel.consumer()
for (i in 1..3) consumer.consumeWithConfirm(handler)

JavaRx

val queueDeclaration = sender.declareQueue(QueueSpecification.queue(queue))
val messages = receiver.consumeAutoAck(queue)
queueDeclaration
    .thenMany(messages)
    .take(3)
    .subscribe({ m ->
        LOGGER.info("Received message {}", String(m.getBody()))
    })

subscribeOn ?

observeOn ?

Improve it!

    suspend fun consumeWithConfirm(
        handler: suspend (Delivery) -> Unit,
        handlerDispatcher: CoroutineDispatcher)
    = coroutineScope {
        val delivery = continuations.receive()
        withContext(handlerDispatcher) { handler(delivery) }
        AMQPChannel.basicAck(delivery.envelope.deliveryTag, false)
    }

Channel "quality of service"

public interface Channel ... {

    ...

    void basicQos(
        int prefetchCount,
        boolean global
    );
}

Improve it!

class ConfirmConsumer internal constructor(
                    private val AMQPChannel: Channel,
                    AMQPQueue: String,
                    prefetchSize: Int = 0) {

    private val continuations = Channel<Delivery>(prefetchSize)
    private lateinit var consTag: String


    ...
}

Test it!

@Test
fun `test one message publishing v2`() {
    factory.newConnection().use { connection ->
        connection.createChannel().use { channel ->
            runBlocking {

                channel.declareQueue(QueueSpecification(QUEUE_NAME))

                val consumer = channel.consumer(QUEUE_NAME, 3)

                consumer.consumeWithConfirm(
                            parallelism = 3,
                            handler = { handleDelivery(it) }
                )
            }
        }
    }
}

Results and comparison with Reactive-RabbitMQ

Conclusion

  • The code is more readable and maintainable
  • An ecosystem is big and is getting bigger
  • Easy to integrate to your codebase
  • "Free optimisation"
  • Upcoming integrations with Spring and so on

Questions?

Kotlin Coroutines in Practice: writing asynchronous RabbitMQ client

By Vyacheslav Artemyev

Made with Slides.com

Kotlin Coroutines in Practice: writing asynchronous RabbitMQ client

  • 121

More from Vyacheslav Artemyev
