Vladimir Iglovikov

Physics, PhD

Kaggle Master

Historical overview

December 2016 - March 2017

Kaggle: Dstl Satellite Imagery Feature Detection

Roman Solovyov, Artur Kuzin 2nd place ($30,000)

Vladimir Iglovikov, Sergey Mushinskiy 3rd place ($20,000)

• blog posts (rus, eng)
• meetup talks (rus, eng)
• paper (next week)

Organizers spent $465,000 and got state of the art solutions that they can not use.

Historical overview

March 2017

• Press release: Dstl’s Kaggle competition has been a great success
• DSTL pays BAE Systems to create their own Kaggle: https://www.datasciencechallenge.org and start two competitions (Computer Vision and Natural Language Processing)
• Problems are pretty good, but rules of the competitions are discriminatory (Everyone can participate, but only limited set of people can claim prize money)
• We got verbal and written promise from organizers that rules will be changed.

Problem Statement

• RGB satelite images
• 2000x2000
• 5cm / pixel
• 600 train
• 600 test
• 9 classes

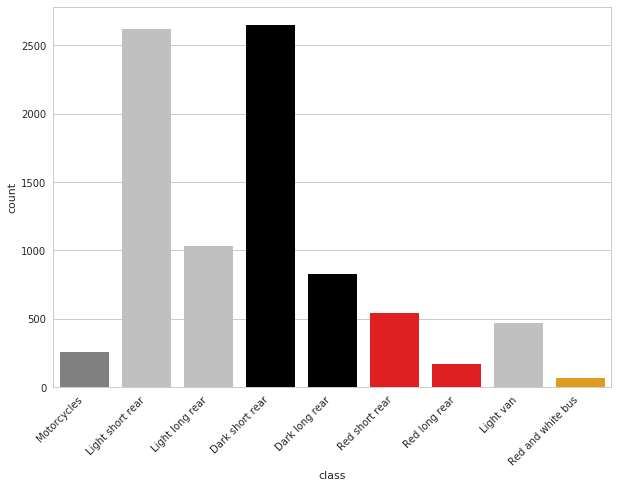

Problem Statement: class distribution

Figure by Vladislav Kassym

Problem Statement

• train: 600 images
• test: 600 images
• 2000x2000
• 5 cm / pixel

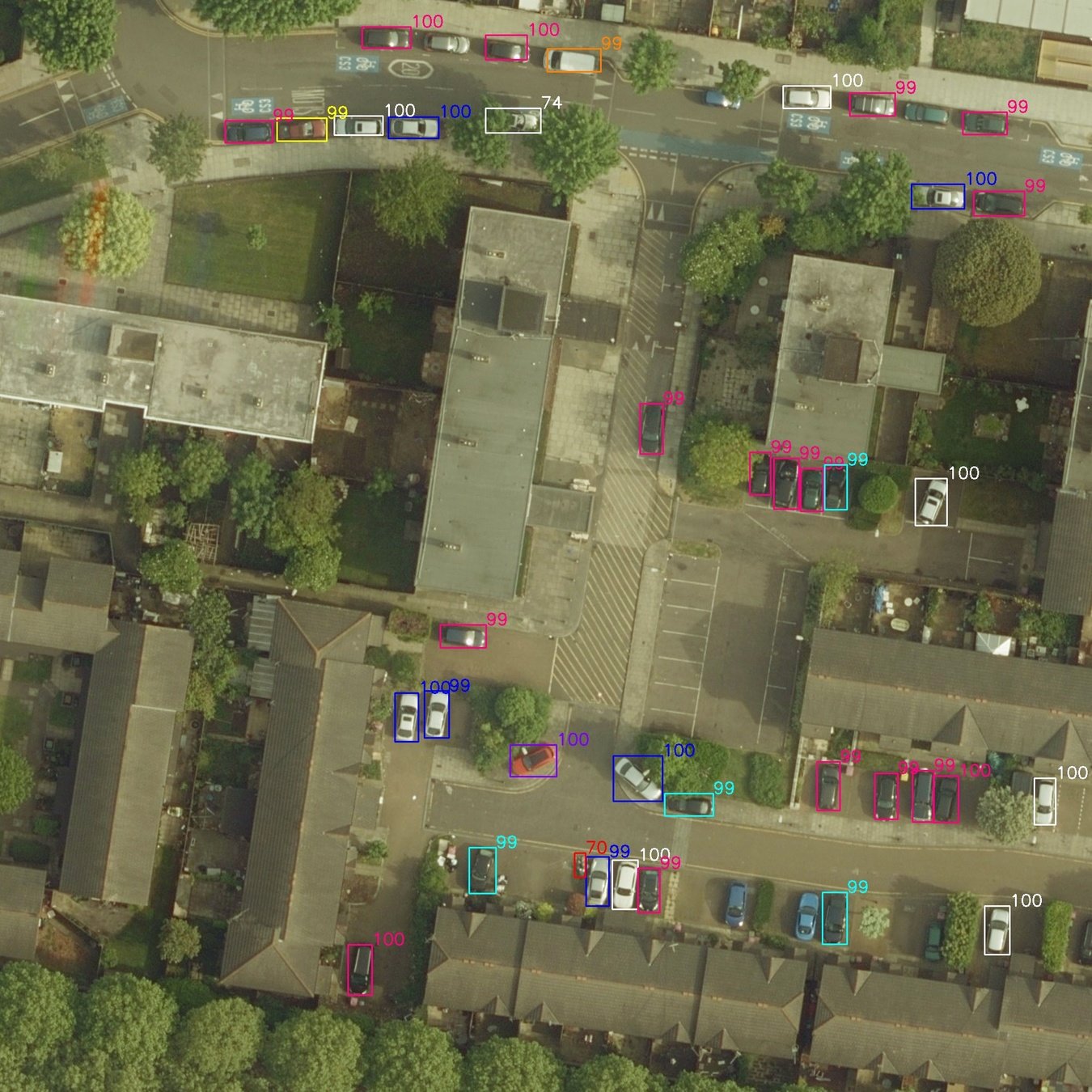

One quarter of one image

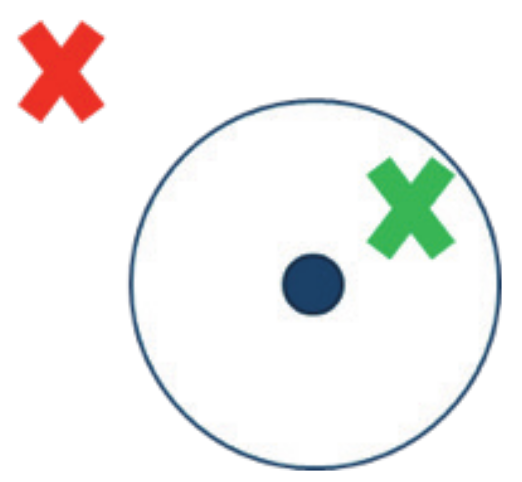

Evaluation Metric

Motivation

Why participate?

• Very clean balanced dataset.
• Knowledge in Image Detection.
• Good amount of data. (Not too much, not too little.)
• No data leaks.
• Codebase will be reused in:
  • Kaggle: Cervix
  • Kaggle: Seals
  • ImageNet 2017

Why not participate?

• No way to claim prize money.
• No community.
• Unknown platform. (Hard to sell results.)

Step 1: bounding boxes

Before

After

~ 10 hours

What network architecture to use?

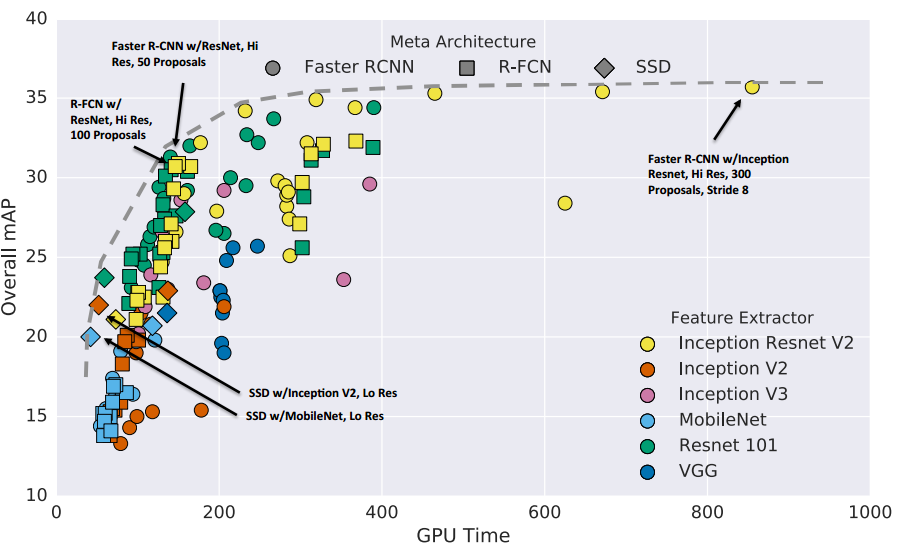

Speed/accuracy trade-offs for modern convolutional object detectors

What network architecture to use?

Faster RCNN

• Slow to train
• Slow to predict
• Accurate in general
• Accurate on small objects

SSD

• Fast to train
• Fast to predict
• Less accurate in general
• Pretty bad with small objects

=>

For this task winner: Faster RCNN

Faster RCNN

What framework to use?

Keras + TensorFlow

• Existing Faster RCNN implementation
• Familiar code base
• Good documentation
• Slow
• Pain to parallelize

MXNet

• Existing Faster RCNN implementation
• Unfamiliar code base
• OK documentation
• Fast
• Zero pain with  parallelization

=>
For this task winner: MXNET

Solution

Train

• Faster RCNN + VGG16 base
• random crops 1000x1000
• D4 group augmentation

8 samples/sec

Test

• overlapping tiles
• D4 group augmentation
• Non-Maximum Suppression

20 samples/sec

Code - example from MXNet repository

Sources of mistakes: close- packed objects

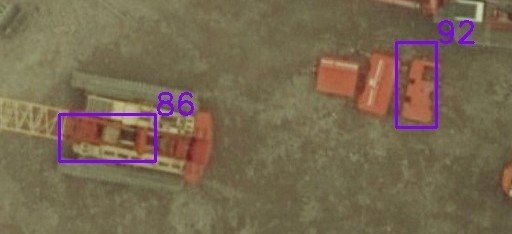

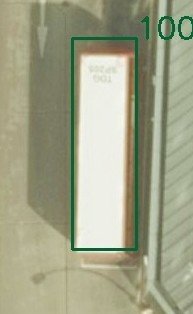

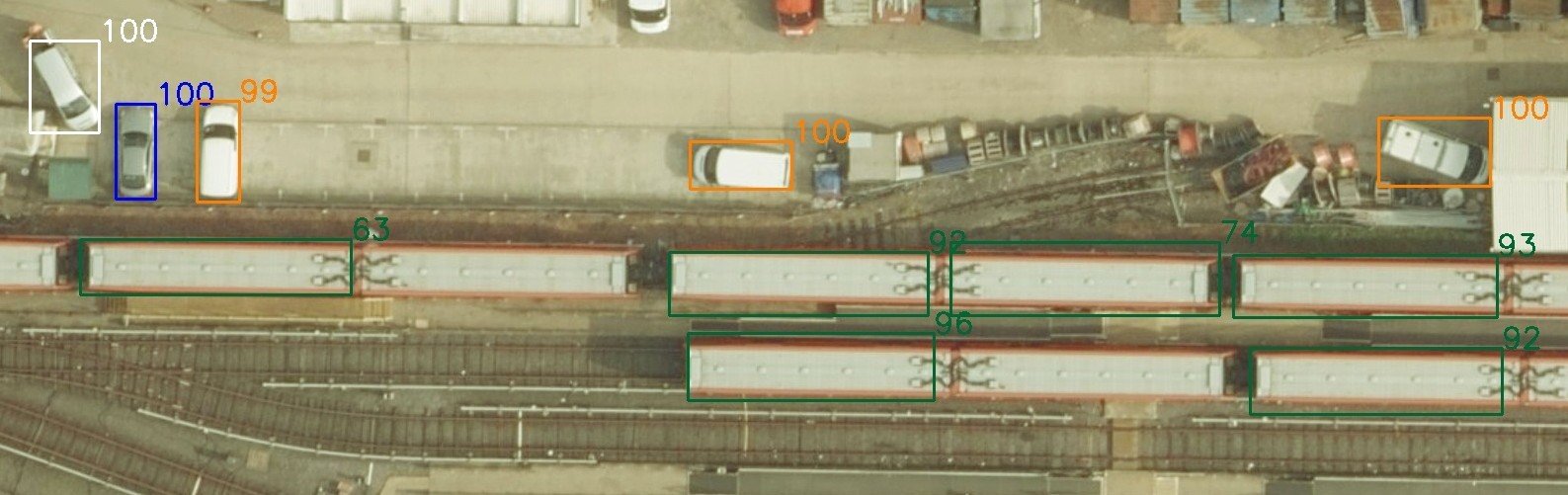

Sources of mistakes: trains like buses

Sources of mistakes: debris as cars

Main source of mistakes: misclassification

gray car in the shade <=> black car

gray car in the sun <=> white car

blue car in the shade <=> black car

white hatchback <=> white van

hatchback <=> sedan

=>

inconsistent labeling

low predictive power

Summary

• Centers of cars => bounding boxes (manually)
• Faster RCNN + VGG16, MXnet
• D4 group train and test time augmentation

Hardware

• Intel i7
• 32Gb RAM
• 2 x Titan X (Pascal)

Many thanks to:

• Sergey Mushinskiy
• Vladislav Kassym
• Sergey Belousov
