ruckus ap setting


outline

  1. DD - WRT
  2. Fat AP and Thin AP
  3. authentication
  4. Ruckus 2942  settings

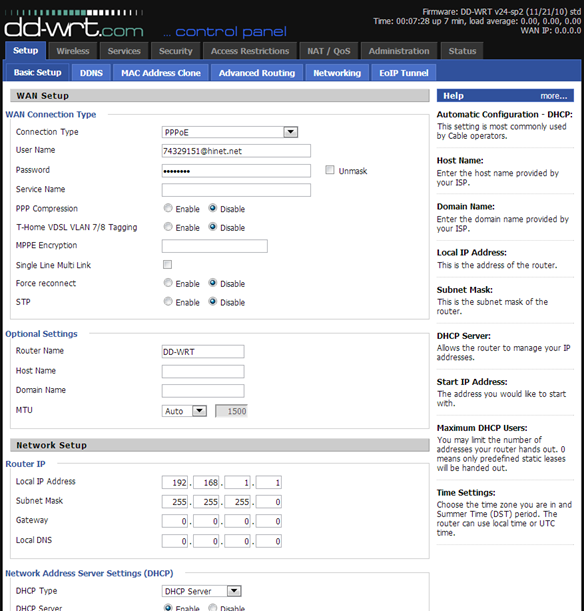

dd-wrt

  • linux-based firmware for wireless router
  • unleash many functions
    • Vlan tag
    • static route
    • static dhcp
    • transmission power
    • channel

setting


wireless channel

IEEE 802.11 : 14 channels in 2.4GHz

only channel 1, 6, 11 is non-overlapped

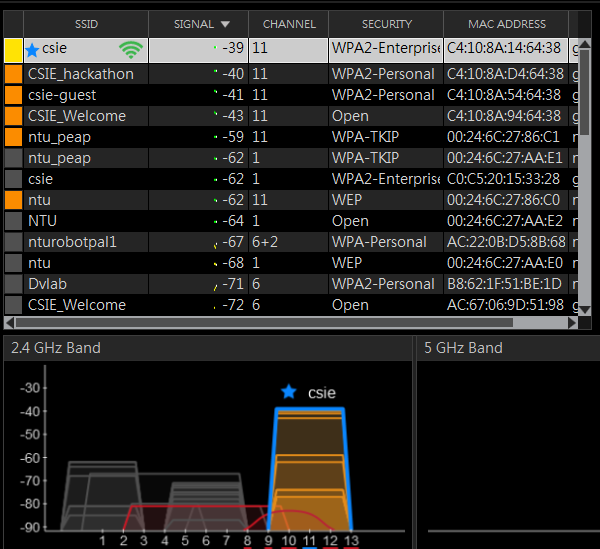

INssider scanner


fat ap

Do everything itself
  • WiFi
  • NAT
  • authentication
  • router

cheap but hard to debug if over 1 AP is deployed


Thin AP

only do traffic broadcasting
other things is done in the controller
  • encryption
  • SSID / authentication management
  • control ( AP settings

authentication

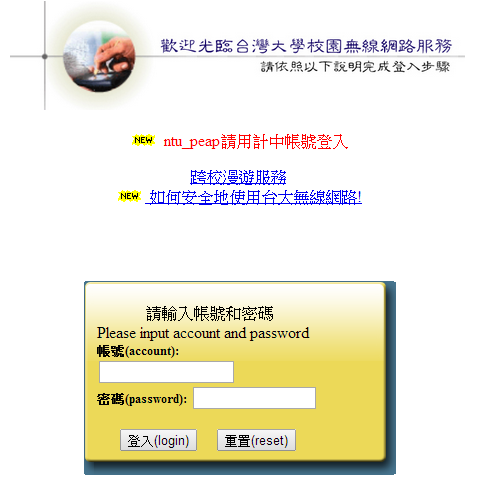

  • web authentication


AUTHENTICATION

  • WEP ( Wireless Encryption Protocol
    • easy to crack !!

AUTHENTICATION

  • WPA-PSK ( home
  • WPA-TKIP ( < 54Mbps
  • WPA2-AES

devices

  • 802.1x server
  • local
  • AAA server including:
    • ActiveDirectory
    • RADIUS
    • LDAP

Lab - ruckus ap setting

Target :
FAT AP - accomplish all settings and surf the Internet
(optional)
THIN AP - connect to ZoneDirector and drop specific MAC

fat ap settings

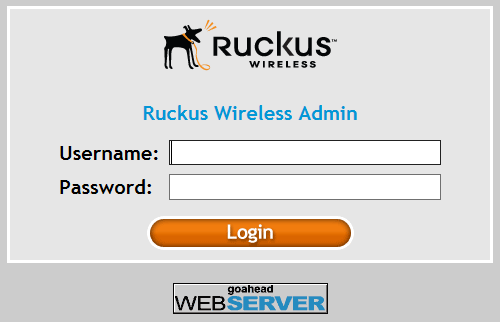

192.168.0.1 super / sp-admin

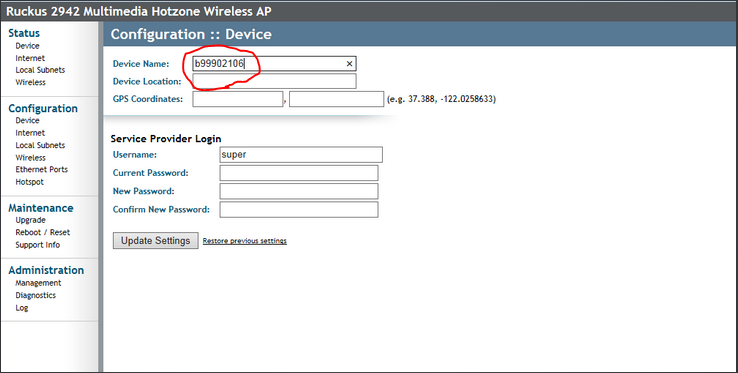

setting up device name

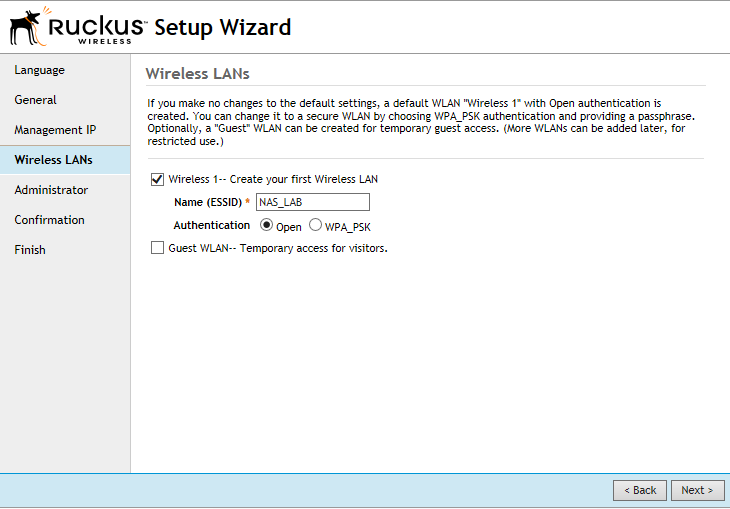

setting wireless network

<---學號

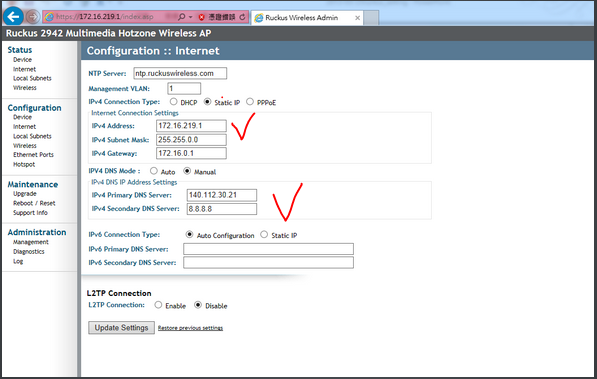

setting up wan port

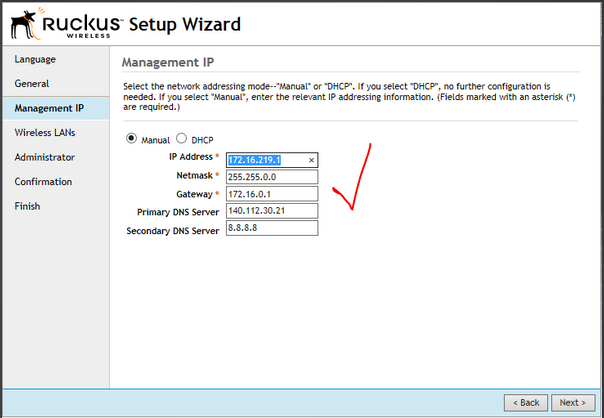

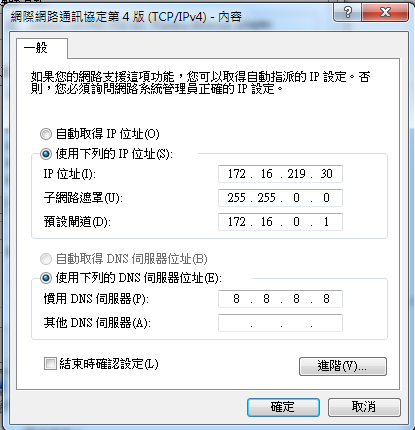

IP settings

172.16.219.x / 16

gateway: 172.16.0.1

test!!

connect the SSID you've built and surf the Internet!!
 or DHCP

thin AP - controller

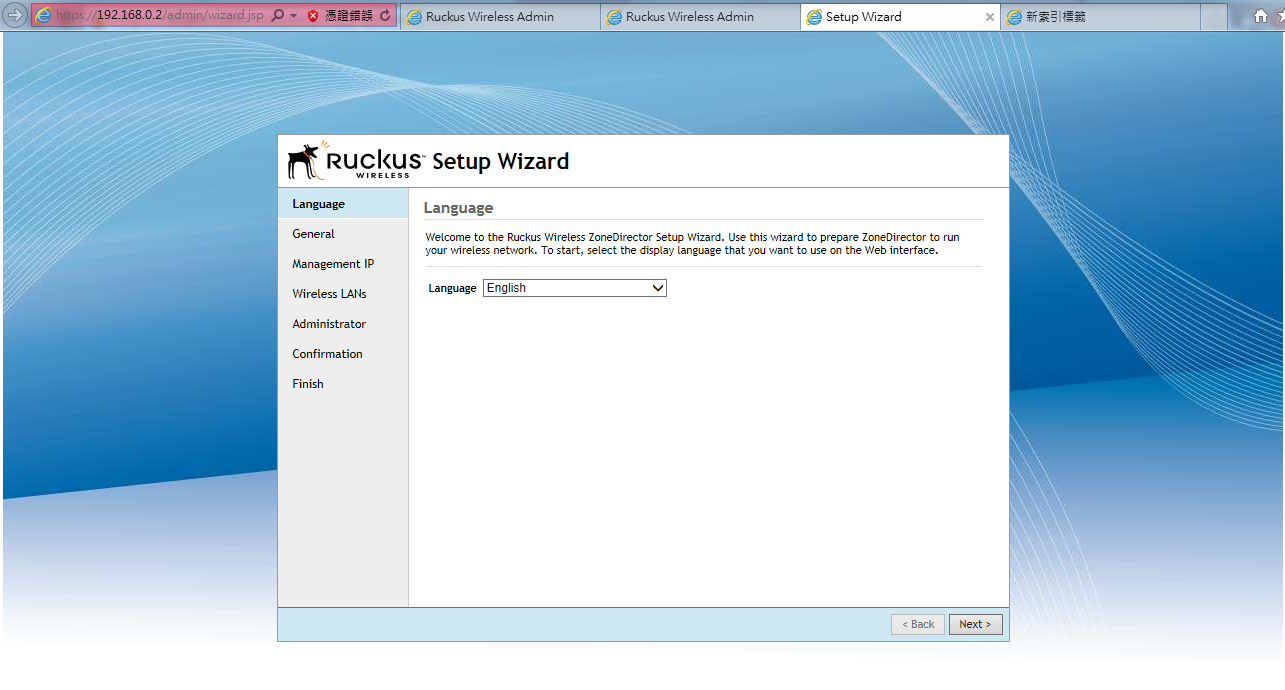

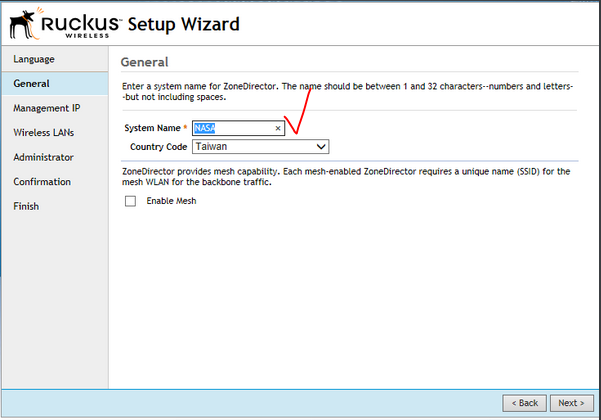

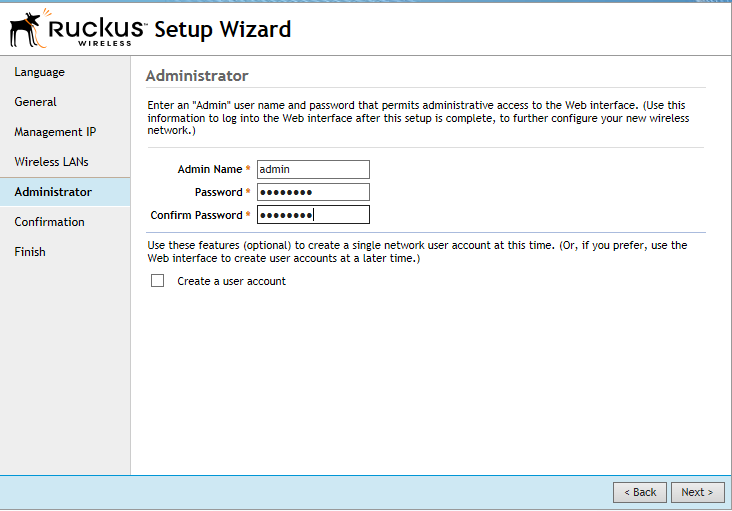

IP : 172.16.219.1 admin/ NASAPASS

controller


controller


controller


controller

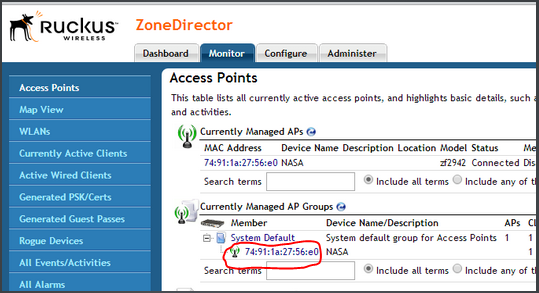

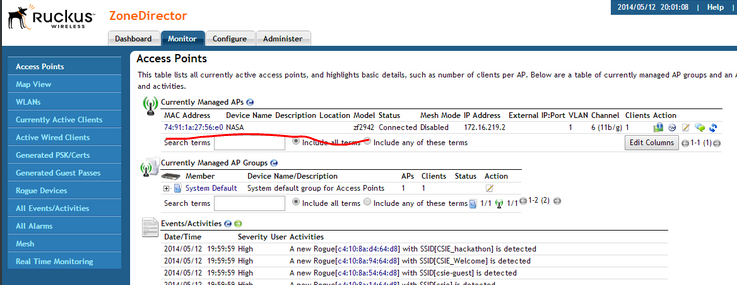

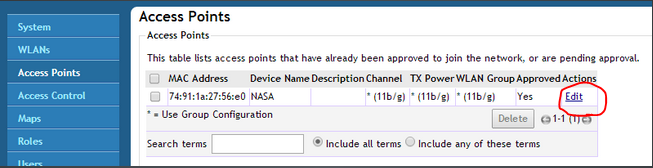

find your AP

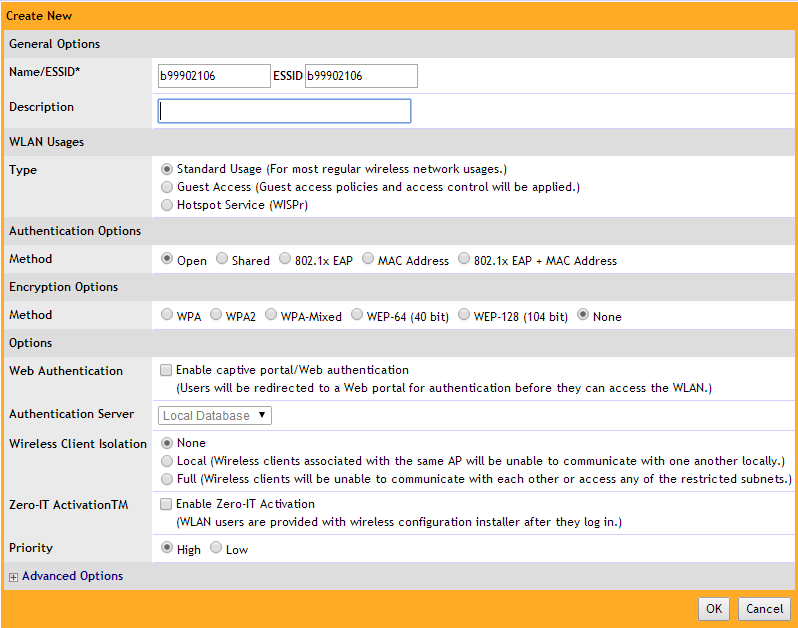

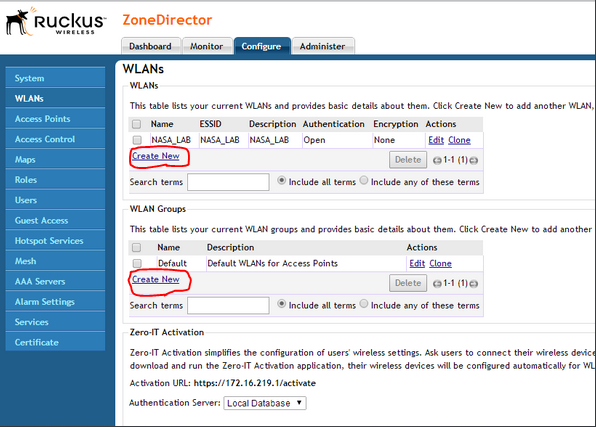

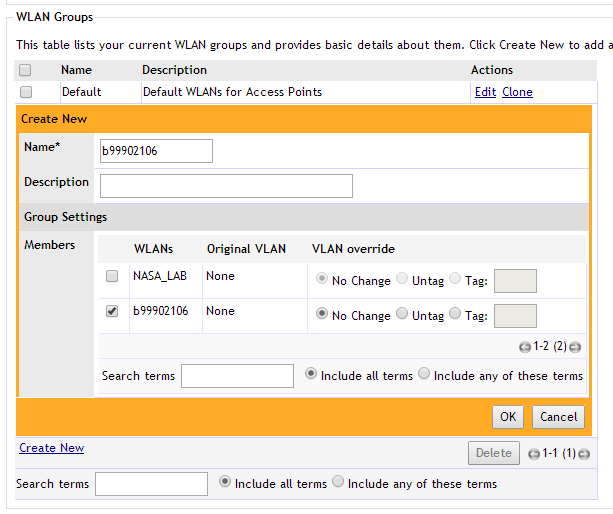

Add wlan / wlan group

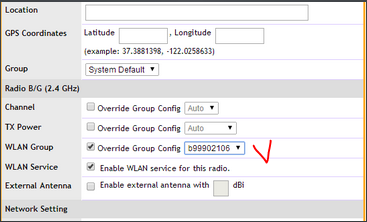

bind wlan group to ap



kick the user!!
