BleWrapper

Android Code

package tl.kmi.blemulticonn;

import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.List;
//import java.util.UUID;

import android.app.Activity;
import android.bluetooth.BluetoothAdapter;
import android.bluetooth.BluetoothDevice;
import android.bluetooth.BluetoothGatt;
import android.bluetooth.BluetoothGattCallback;
import android.bluetooth.BluetoothGattCharacteristic;
//import android.bluetooth.BluetoothGattDescriptor;
import android.bluetooth.BluetoothGattService;
import android.bluetooth.BluetoothManager;
import android.bluetooth.BluetoothProfile;
import android.content.Context;
import android.content.pm.PackageManager;
import android.os.Handler;
import android.util.Log;

public class BleWrapper {
	/* defines (in milliseconds) how often RSSI should be updated */
    private static final int RSSI_UPDATE_TIME_INTERVAL = 1500; // 1.5 seconds
    private static final String TAG = BleWrapper.class.getSimpleName();

    /* callback object through which we are returning results to the caller */
    private BleWrapperUiCallbacks mUiCallback = null;
    /* define NULL object for UI callbacks */
    private static final BleWrapperUiCallbacks NULL_CALLBACK = new BleWrapperUiCallbacks.Null();

    /* creates BleWrapper object, set its parent activity and callback object */
    public BleWrapper(Activity parent, BleWrapperUiCallbacks callback) {
    	this.mParent = parent;
    	mUiCallback = callback;
    	if(mUiCallback == null) mUiCallback = NULL_CALLBACK;
    }

    public BluetoothManager           getManager() { return mBluetoothManager; }
    public BluetoothAdapter           getAdapter() { return mBluetoothAdapter; }
    public BluetoothDevice            getDevice()  { return mBluetoothDevice; }
    public BluetoothGatt              getGatt()    { return mBluetoothGatt; }
    public BluetoothGattService       getCachedService() { return mBluetoothGattService; }
//    public List<BluetoothGattService> getCachedServices() { return mBluetoothGattServices; }
    public boolean                    isConnected() { return mConnected; }
    public boolean                    isWriteSuccess() { return writeSuccess; }

	/* run test and check if this device has BT and BLE hardware available */
	public boolean checkBleHardwareAvailable() {
		// First check general Bluetooth Hardware:
		// get BluetoothManager...
		final BluetoothManager manager = (BluetoothManager) mParent.getSystemService(Context.BLUETOOTH_SERVICE);
		if(manager == null) return false;
		// .. and then get adapter from manager
		final BluetoothAdapter adapter = manager.getAdapter();
		if(adapter == null) return false;

		// and then check if BT LE is also available
		boolean hasBle = mParent.getPackageManager().hasSystemFeature(PackageManager.FEATURE_BLUETOOTH_LE);
		return hasBle;
	}


	/* before any action check if BT is turned ON and enabled for us
	 * call this in onResume to be always sure that BT is ON when Your
	 * application is put into the foreground */
	public boolean isBtEnabled() {
		final BluetoothManager manager = (BluetoothManager) mParent.getSystemService(Context.BLUETOOTH_SERVICE);
		if(manager == null) return false;

		final BluetoothAdapter adapter = manager.getAdapter();
		if(adapter == null) return false;

		return adapter.isEnabled();
	}

	/* start scanning for BT LE devices around */
	public void startScanning() {
        mBluetoothAdapter.startLeScan(mDeviceFoundCallback);
	}

	/* stops current scanning */
	public void stopScanning() {
		mBluetoothAdapter.stopLeScan(mDeviceFoundCallback);
	}

    /* initialize BLE and get BT Manager & Adapter */
    public boolean initialize() {
        if (mBluetoothManager == null) {
            mBluetoothManager = (BluetoothManager) mParent.getSystemService(Context.BLUETOOTH_SERVICE);
            if (mBluetoothManager == null) {
                return false;
            }
        }

        if(mBluetoothAdapter == null) mBluetoothAdapter = mBluetoothManager.getAdapter();
        if (mBluetoothAdapter == null) {
            return false;
        }
        return true;
    }

    /* connect to the device with specified address */
    public boolean connect(final String deviceAddress) {
        if (mBluetoothAdapter == null || deviceAddress == null) return false;
        String mDeviceAddress = deviceAddress;

        // check if we need to connect from scratch or just reconnect to previous device
        if(mBluetoothGatt != null && mBluetoothGatt.getDevice().getAddress().equals(deviceAddress)) {
        	// just reconnect
        	return mBluetoothGatt.connect();
        }
        else {
        	// connect from scratch
            // get BluetoothDevice object for specified address
            mBluetoothDevice = mBluetoothAdapter.getRemoteDevice(mDeviceAddress);
            if (mBluetoothDevice == null) {
                // we got wrong address - that device is not available!
                return false;
            }
            // connect with remote device
        	mBluetoothGatt = mBluetoothDevice.connectGatt(mParent, false, mBleCallback);
        }
        return true;
    }

    /* disconnect the device. It is still possible to reconnect to it later with this Gatt client */
    public void disconnect() {
    	if(mBluetoothGatt != null) mBluetoothGatt.disconnect();
    	 mUiCallback.uiDeviceDisconnected(mBluetoothGatt, mBluetoothDevice);
    }

    /* close GATT client completely */
    public void close() {
    	if(mBluetoothGatt != null) mBluetoothGatt.close();
    	mBluetoothGatt = null;
    }

    /* request new RSSi value for the connection*/
    public void readPeriodicalyRssiValue(final boolean repeat) {
    	mTimerEnabled = repeat;
    	// check if we should stop checking RSSI value
    	if(mConnected == false || mBluetoothGatt == null || mTimerEnabled == false) {
    		mTimerEnabled = false;
    		return;
    	}

    	mTimerHandler.postDelayed(new Runnable() {
			@Override
			public void run() {
				if(mBluetoothGatt == null ||
				   mBluetoothAdapter == null ||
				   mConnected == false)
				{
					mTimerEnabled = false;
					return;
				}

				// request RSSI value
				mBluetoothGatt.readRemoteRssi();
				// add call it once more in the future
				readPeriodicalyRssiValue(mTimerEnabled);
			}
    	}, RSSI_UPDATE_TIME_INTERVAL);
    }

    /* starts monitoring RSSI value */
    public void startMonitoringRssiValue() {
    	readPeriodicalyRssiValue(true);
    }

    /* stops monitoring of RSSI value */
    public void stopMonitoringRssiValue() {
    	readPeriodicalyRssiValue(false);
    }

    /* request to discover all services available on the remote devices
     * results are delivered through callback object */
    public void startServicesDiscovery() {
    	if(mBluetoothGatt != null) mBluetoothGatt.discoverServices();
    }

    public void initCharacteristic(List<BluetoothGattService> gattServices) {
        Log.i(TAG, "Count is:" + gattServices.size());
        for (BluetoothGattService gattService : gattServices) {
            Log.i(TAG, gattService.getUuid().toString());
            Log.i(TAG, BleDefinedUUIDs.Service.UART_SERVICE.toString());

            if(gattService.getUuid().equals(BleDefinedUUIDs.Service.UART_SERVICE)) {
                List<BluetoothGattCharacteristic> gattCharacteristics = gattService.getCharacteristics();
                Log.i(TAG, "Count is:" + gattCharacteristics.size());

                for (BluetoothGattCharacteristic gattCharacteristic : gattCharacteristics) {

                    if(gattCharacteristic.getUuid().equals(BleDefinedUUIDs.Characteristic.UART_CHARACTERISTIC)) {
                        Log.i(TAG, gattCharacteristic.getUuid().toString());
                        Log.i(TAG, BleDefinedUUIDs.Characteristic.UART_CHARACTERISTIC.toString());
                        mBluetoothGattCharacteristic = gattCharacteristic;
                        setNotificationForCharacteristic(true);

                        return;
                    }
                }

                Log.i(TAG, "No UART_CHARACTERISTIC UUID");

                return;
            }
        }

        Log.i(TAG, "No UART_SERVICE UUID");
    }

    /* gets services and calls UI callback to handle them
     * before calling getServices() make sure service discovery is finished! */
    public void getSupportedServices() {
    	List<BluetoothGattService> mBluetoothGattServices;

        if(mBluetoothGatt != null) mBluetoothGattServices = mBluetoothGatt.getServices();
        else {
            Log.i(TAG, "mBluetoothGatt has not been initialized yet!");

            return;
        }

        initCharacteristic(mBluetoothGattServices);
        mUiCallback.uiAvailableServices(mBluetoothGatt, mBluetoothDevice, mBluetoothGattServices);
    }

    /* get all characteristic for particular service and pass them to the UI callback */
    public void getCharacteristicsForService(final BluetoothGattService service) {
    	if(service == null) return;
    	List<BluetoothGattCharacteristic> chars = null;

    	chars = service.getCharacteristics();
    	mUiCallback.uiCharacteristicForService(mBluetoothGatt, mBluetoothDevice, service, chars);
    	// keep reference to the last selected service
    	mBluetoothGattService = service;
    }

    /* request to fetch newest value stored on the remote device for particular characteristic */ // not used !!!!!!!!!!!!!!!!!!!
    public void requestCharacteristicValue() {
        if (mBluetoothAdapter == null || mBluetoothGatt == null) return;

        mBluetoothGatt.readCharacteristic(mBluetoothGattCharacteristic);
        // new value available will be notified in Callback Object
    }

    /* get characteristic's value (and parse it for some types of characteristics)
     * before calling this You should always update the value by calling requestCharacteristicValue() */
    public void getCharacteristicValue() {
        if (mBluetoothAdapter == null || mBluetoothGatt == null || mBluetoothGattCharacteristic == null) return;

        byte[] rawValue = mBluetoothGattCharacteristic.getValue();
        String strValue;
//        int intValue = 0;

        // lets read and do real parsing of some characteristic to get meaningful value from it
//        UUID uuid = ch.getUuid();

//        if(mBluetoothGattCharacteristic != null) { // heart rate
        	// follow https://developer.bluetooth.org/gatt/characteristics/Pages/CharacteristicViewer.aspx?u=org.bluetooth.characteristic.heart_rate_measurement.xml
        	// first check format used by the device - it is specified in bit 0 and tells us if we should ask for index 1 (and uint8) or index 2 (and uint16)
//        	int index = ((rawValue[0] & 0x01) == 1) ? 2 : 1;
        	// also we need to define format
//        	int format = (index == 1) ? BluetoothGattCharacteristic.FORMAT_UINT8 : BluetoothGattCharacteristic.FORMAT_UINT16;
        	// now we have everything, get the value
//        	intValue = ch.getIntValue(format, index);
        strValue = mBluetoothGattCharacteristic.getStringValue(0); // it is always in bpm units
//        }

//        else if (uuid.equals(BleDefinedUUIDs.Characteristic.UART_CHARACTERISTIC) || // manufacturer name string
//        		 uuid.equals(BleDefinedUUIDs.Characteristic.MODEL_NUMBER_STRING) || // model number string)
//        		 uuid.equals(BleDefinedUUIDs.Characteristic.FIRMWARE_REVISION_STRING)) // firmware revision string
//        {
//        	// follow https://developer.bluetooth.org/gatt/characteristics/Pages/CharacteristicViewer.aspx?u=org.bluetooth.characteristic.manufacturer_name_string.xml etc.
//        	// string value are usually simple utf8s string at index 0
//        	strValue = ch.getStringValue(0);
//        }
//        else if(uuid.equals(BleDefinedUUIDs.Characteristic.APPEARANCE)) { // appearance
//        	// follow: https://developer.bluetooth.org/gatt/characteristics/Pages/CharacteristicViewer.aspx?u=org.bluetooth.characteristic.gap.appearance.xml
//        	intValue  = ((int)rawValue[1]) << 8;
//        	intValue += rawValue[0];
//        	strValue = BleNamesResolver.resolveAppearance(intValue);
//        }
//        else if(uuid.equals(BleDefinedUUIDs.Characteristic.BODY_SENSOR_LOCATION)) { // body sensor location
//        	// follow: https://developer.bluetooth.org/gatt/characteristics/Pages/CharacteristicViewer.aspx?u=org.bluetooth.characteristic.body_sensor_location.xml
//        	intValue = rawValue[0];
//        	strValue = BleNamesResolver.resolveHeartRateSensorLocation(intValue);
//        }
//        else if(uuid.equals(BleDefinedUUIDs.Characteristic.BATTERY_LEVEL)) { // battery level
//        	// follow: https://developer.bluetooth.org/gatt/characteristics/Pages/CharacteristicViewer.aspx?u=org.bluetooth.characteristic.battery_level.xml
//        	intValue = rawValue[0];
//        	strValue = "" + intValue + "% battery level";
//        }
//        else {
//        	// not known type of characteristic, so we need to handle this in "general" way
//        	// get first four bytes and transform it to integer
//        	intValue = 0;
//        	if(rawValue.length > 0) intValue = (int)rawValue[0];
//        	if(rawValue.length > 1) intValue = intValue + ((int)rawValue[1] << 8);
//        	if(rawValue.length > 2) intValue = intValue + ((int)rawValue[2] << 8);
//        	if(rawValue.length > 3) intValue = intValue + ((int)rawValue[3] << 8);
//
//            if (rawValue.length > 0) {
//                final StringBuilder stringBuilder = new StringBuilder(rawValue.length);
//                for(byte byteChar : rawValue) {
//                    stringBuilder.append(String.format("%c", byteChar));
//                }
//                strValue = stringBuilder.toString();
//            }
//        }

        String timestamp = new SimpleDateFormat("yyyy.MM.dd HH:mm:ss.SSS").format(new Date());
        mUiCallback.uiNewValueForCharacteristic(mBluetoothGatt,
                                                mBluetoothDevice,
                                                mBluetoothGattService,
        		                                mBluetoothGattCharacteristic,
        		                                strValue,
        		                                /*intValue,*/
        		                                rawValue,
        		                                timestamp);
    }

    /* reads and return what what FORMAT is indicated by characteristic's properties
     * seems that value makes no sense in most cases */
//    public int getValueFormat(BluetoothGattCharacteristic ch) {
//    	int properties = ch.getProperties();
//
//    	if((BluetoothGattCharacteristic.FORMAT_FLOAT & properties) != 0) return BluetoothGattCharacteristic.FORMAT_FLOAT;
//    	if((BluetoothGattCharacteristic.FORMAT_SFLOAT & properties) != 0) return BluetoothGattCharacteristic.FORMAT_SFLOAT;
//    	if((BluetoothGattCharacteristic.FORMAT_SINT16 & properties) != 0) return BluetoothGattCharacteristic.FORMAT_SINT16;
//    	if((BluetoothGattCharacteristic.FORMAT_SINT32 & properties) != 0) return BluetoothGattCharacteristic.FORMAT_SINT32;
//    	if((BluetoothGattCharacteristic.FORMAT_SINT8 & properties) != 0) return BluetoothGattCharacteristic.FORMAT_SINT8;
//    	if((BluetoothGattCharacteristic.FORMAT_UINT16 & properties) != 0) return BluetoothGattCharacteristic.FORMAT_UINT16;
//    	if((BluetoothGattCharacteristic.FORMAT_UINT32 & properties) != 0) return BluetoothGattCharacteristic.FORMAT_UINT32;
//    	if((BluetoothGattCharacteristic.FORMAT_UINT8 & properties) != 0) return BluetoothGattCharacteristic.FORMAT_UINT8;
//
//    	return 0;
//    }

    /* set new value for particular characteristic */
    public void writeDataToCharacteristic(final byte[] dataToWrite) {
    	if (mBluetoothAdapter == null || mBluetoothGatt == null || mBluetoothGattCharacteristic == null) return;

    	// first set it locally....
    	mBluetoothGattCharacteristic.setValue(dataToWrite);
    	// ... and then "commit" changes to the peripheral
        writeSuccess = false;
    	mBluetoothGatt.writeCharacteristic(mBluetoothGattCharacteristic);
    }

    public void writeStringToCharacteristic(String str) {
        writeDataToCharacteristic(str.getBytes());
    }

    /* enables/disables notification for characteristic */
    public void setNotificationForCharacteristic(boolean enabled) {
        if (mBluetoothAdapter == null || mBluetoothGatt == null) return;

        boolean success = mBluetoothGatt.setCharacteristicNotification(mBluetoothGattCharacteristic, enabled);
        if(!success) {
        	Log.e("------", "Seting proper notification status for characteristic failed!");
        }

        // This is also sometimes required (e.g. for heart rate monitors) to enable notifications/indications
        // see: https://developer.bluetooth.org/gatt/descriptors/Pages/DescriptorViewer.aspx?u=org.bluetooth.descriptor.gatt.client_characteristic_configuration.xml
//        BluetoothGattDescriptor descriptor = mBluetoothGattCharacteristic.getDescriptor(UUID.fromString("00002902-0000-1000-8000-00805f9b34fb"));
//        if(descriptor != null) {
//        	byte[] val = enabled ? BluetoothGattDescriptor.ENABLE_NOTIFICATION_VALUE : BluetoothGattDescriptor.DISABLE_NOTIFICATION_VALUE;
//	        descriptor.setValue(val);
//	        mBluetoothGatt.writeDescriptor(descriptor);
//        }
    }

    /* defines callback for scanning results */
    private BluetoothAdapter.LeScanCallback mDeviceFoundCallback = new BluetoothAdapter.LeScanCallback() {
        @Override
        public void onLeScan(final BluetoothDevice device, final int rssi, final byte[] scanRecord) {
        	mUiCallback.uiDeviceFound(device, rssi, scanRecord);
        }
    };

    /* callbacks called for any action on particular Ble Device */
    private final BluetoothGattCallback mBleCallback = new BluetoothGattCallback() {
        @Override
        public void onConnectionStateChange(BluetoothGatt gatt, int status, int newState) {
            if (newState == BluetoothProfile.STATE_CONNECTED) {
            	mConnected = true;
            	mUiCallback.uiDeviceConnected(mBluetoothGatt, mBluetoothDevice);

            	// now we can start talking with the device, e.g.
            	mBluetoothGatt.readRemoteRssi();
            	// response will be delivered to callback object!

            	// in our case we would also like automatically to call for services discovery
            	startServicesDiscovery();

            	// and we also want to get RSSI value to be updated periodically
            	startMonitoringRssiValue();
            }
            else if (newState == BluetoothProfile.STATE_DISCONNECTED) {
            	mConnected = false;
            	mUiCallback.uiDeviceDisconnected(mBluetoothGatt, mBluetoothDevice);
            }
        }

        @Override
        public void onServicesDiscovered(BluetoothGatt gatt, int status) {
            if (status == BluetoothGatt.GATT_SUCCESS) {
            	// now, when services discovery is finished, we can call getServices() for Gatt
            	getSupportedServices();
            }
        }

        @Override
        public void onCharacteristicRead(BluetoothGatt gatt,
                                         BluetoothGattCharacteristic characteristic,
                                         int status)
        {
        	// we got response regarding our request to fetch characteristic value
            if (status == BluetoothGatt.GATT_SUCCESS) {
            	// and it success, so we can get the value
            	getCharacteristicValue();
            }
        }

        @Override
        public void onCharacteristicChanged(BluetoothGatt gatt,
                                            BluetoothGattCharacteristic characteristic)
        {
        	// characteristic's value was updated due to enabled notification, lets get this value
        	// the value itself will be reported to the UI inside getCharacteristicValue
        	getCharacteristicValue();
        	// also, notify UI that notification are enabled for particular characteristic
        	mUiCallback.uiGotNotification(mBluetoothGatt, mBluetoothDevice, mBluetoothGattService, characteristic);
        }

        @Override
        public void onCharacteristicWrite(BluetoothGatt gatt, BluetoothGattCharacteristic characteristic, int status) {
//        	String deviceName = gatt.getDevice().getName();
//        	String serviceName = BleNamesResolver.resolveServiceName(characteristic.getService().getUuid().toString().toLowerCase(Locale.getDefault()));
//        	String charName = BleNamesResolver.resolveCharacteristicName(characteristic.getUuid().toString().toLowerCase(Locale.getDefault()));
//        	String description = "Device: " + deviceName + " Service: " + serviceName + " Characteristic: " + charName;

        	// we got response regarding our request to write new value to the characteristic
        	// let see if it failed or not
        	if(status == BluetoothGatt.GATT_SUCCESS) {
                writeSuccess = true;
        		mUiCallback.uiSuccessfulWrite(mBluetoothGatt, mBluetoothDevice, mBluetoothGattService, characteristic);
        	}
        	else {
                writeSuccess = false;
        		mUiCallback.uiFailedWrite(mBluetoothGatt, mBluetoothDevice, mBluetoothGattService, characteristic);
        	}
        };

        @Override
        public void onReadRemoteRssi(BluetoothGatt gatt, int rssi, int status) {
        	if(status == BluetoothGatt.GATT_SUCCESS) {
        		// we got new value of RSSI of the connection, pass it to the UI
        		 mUiCallback.uiNewRssiAvailable(mBluetoothGatt, mBluetoothDevice, rssi);
        	}
        };
    };

	private Activity mParent = null;
	private boolean mConnected = false;
    private boolean writeSuccess = false;

    private BluetoothManager mBluetoothManager = null;
    private BluetoothAdapter mBluetoothAdapter = null;
    private BluetoothDevice  mBluetoothDevice = null;
    private BluetoothGatt    mBluetoothGatt = null;
    private BluetoothGattService mBluetoothGattService = null;
    private BluetoothGattCharacteristic mBluetoothGattCharacteristic = null;
//    private List<BluetoothGattService> mBluetoothGattServices = null;

    private Handler mTimerHandler = new Handler();
    private boolean mTimerEnabled = false;
}

BleWrapperUiCallbacks

Android Code

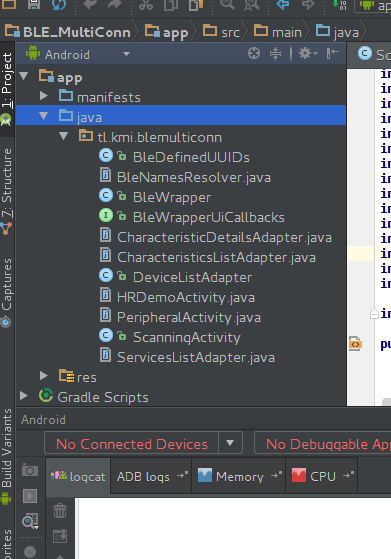

package tl.kmi.blemulticonn;

import java.util.List;

import android.bluetooth.BluetoothDevice;
import android.bluetooth.BluetoothGatt;
import android.bluetooth.BluetoothGattCharacteristic;
import android.bluetooth.BluetoothGattService;

public interface BleWrapperUiCallbacks {

	void uiDeviceFound(final BluetoothDevice device, int rssi, byte[] record);

	void uiDeviceConnected(final BluetoothGatt gatt,
		 				  final BluetoothDevice device);

	void uiDeviceDisconnected(final BluetoothGatt gatt,
	   						 final BluetoothDevice device);

	void uiAvailableServices(final BluetoothGatt gatt,
	  		        	    final BluetoothDevice device,
	  						final List<BluetoothGattService> services);

	void uiCharacteristicForService(final BluetoothGatt gatt,
     		 					   final BluetoothDevice device,
     							   final BluetoothGattService service,
     							   final List<BluetoothGattCharacteristic> chars);

	void uiCharacteristicsDetails(final BluetoothGatt gatt,
		  							 final BluetoothDevice device,
		  							 final BluetoothGattService service,
		  							 final BluetoothGattCharacteristic characteristic);

	void uiNewValueForCharacteristic(final BluetoothGatt gatt,
     								final BluetoothDevice device,
     								final BluetoothGattService service,
     								final BluetoothGattCharacteristic ch,
     								final String strValue,
//     								final int intValue,
     								final byte[] rawValue,
     								final String timestamp);

	void uiGotNotification(final BluetoothGatt gatt,
                           final BluetoothDevice device,
                           final BluetoothGattService service,
                           final BluetoothGattCharacteristic characteristic);

	void uiSuccessfulWrite(final BluetoothGatt gatt,
                           final BluetoothDevice device,
                           final BluetoothGattService service,
                           final BluetoothGattCharacteristic ch/*,
                           final String description*/);

	void uiFailedWrite(final BluetoothGatt gatt,
		                  final BluetoothDevice device,
		                  final BluetoothGattService service,
		                  final BluetoothGattCharacteristic ch/*,
		                  final String description*/);

	void uiNewRssiAvailable(final BluetoothGatt gatt, final BluetoothDevice device, final int rssi);

	/* define Null Adapter class for that interface */
	class Null implements BleWrapperUiCallbacks {
		@Override
		public void uiDeviceConnected(BluetoothGatt gatt, BluetoothDevice device) {}
		@Override
		public void uiDeviceDisconnected(BluetoothGatt gatt, BluetoothDevice device) {}
		@Override
		public void uiAvailableServices(BluetoothGatt gatt, BluetoothDevice device,
				List<BluetoothGattService> services) {}
		@Override
		public void uiCharacteristicForService(BluetoothGatt gatt,
				BluetoothDevice device, BluetoothGattService service,
				List<BluetoothGattCharacteristic> chars) {}
		@Override
		public void uiCharacteristicsDetails(BluetoothGatt gatt,
				BluetoothDevice device, BluetoothGattService service,
				BluetoothGattCharacteristic characteristic) {}
		@Override
		public void uiNewValueForCharacteristic(BluetoothGatt gatt,
				BluetoothDevice device, BluetoothGattService service,
				BluetoothGattCharacteristic ch, String strValue, /*int intValue,*/
				byte[] rawValue, String timestamp) {}
		@Override
		public void uiGotNotification(BluetoothGatt gatt, BluetoothDevice device,
				BluetoothGattService service,
				BluetoothGattCharacteristic characteristic) {}
		@Override
		public void uiSuccessfulWrite(BluetoothGatt gatt, BluetoothDevice device,
				BluetoothGattService service, BluetoothGattCharacteristic ch/*,
				String description*/) {}
		@Override
		public void uiFailedWrite(BluetoothGatt gatt, BluetoothDevice device,
				BluetoothGattService service, BluetoothGattCharacteristic ch/*,
				String description*/) {}
		@Override
		public void uiNewRssiAvailable(BluetoothGatt gatt, BluetoothDevice device,
				int rssi) {}
		@Override
		public void uiDeviceFound(BluetoothDevice device, int rssi, byte[] record) {}
	}
}

BleDefinedUUIDs

Android Code

package tl.kmi.blemulticonn;

import java.util.UUID;

public class BleDefinedUUIDs {

	public static class Service {
		final static public UUID UART_SERVICE = UUID.fromString("0000ffe0-0000-1000-8000-00805f9b34fb");
	};

	public static class Characteristic {
		final static public UUID UART_CHARACTERISTIC = UUID.fromString("0000ffe1-0000-1000-8000-00805f9b34fb");
//		final static public UUID MANUFACTURER_STRING      = UUID.fromString("00002a29-0000-1000-8000-00805f9b34fb");
//		final static public UUID MODEL_NUMBER_STRING      = UUID.fromString("00002a24-0000-1000-8000-00805f9b34fb");
//		final static public UUID FIRMWARE_REVISION_STRING = UUID.fromString("00002a26-0000-1000-8000-00805f9b34fb");
//		final static public UUID APPEARANCE               = UUID.fromString("00002a01-0000-1000-8000-00805f9b34fb");
//		final static public UUID BODY_SENSOR_LOCATION     = UUID.fromString("00002a38-0000-1000-8000-00805f9b34fb");
//		final static public UUID BATTERY_LEVEL            = UUID.fromString("00002a19-0000-1000-8000-00805f9b34fb");
	}

//	public static class Descriptor {
//		final static public UUID CHAR_CLIENT_CONFIG       = UUID.fromString("00002902-0000-1000-8000-00805f9b34fb");
//	}

}
