CAN bus Progress report
by
N. Srikote (Kohpai, An Intern)
outline

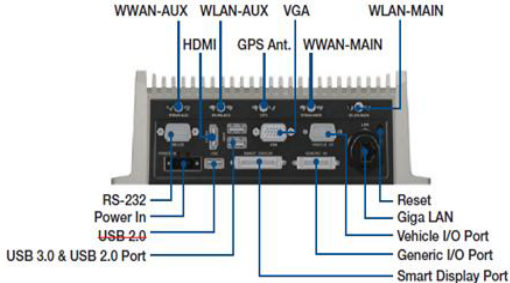

Vehicle I/O
Current Work
Problems
vehicle i/o
CAN 1
CAN 2
J1708
Can supported protocol
Raw CAN
J1939
OBD-II
j1708 supported protocol
J1578
Current work
**Using only Raw CAN**
Understandable parameters
Current speed of the automobile
Individual Tire Speed
ICE (Internal Combustion Engine) RPM
Brake sensor
Acceleration Pedal Position
Selected Gear Display
Door open indicator
Problems
Cannot read data via OBD-II protocol
Using only Raw CAN protocol
Need some reversed engineering
And lots of (someone's) researches
