Introducing and securing service meshes

with Istio and Kiali

@xeviknal

@kialiProject

Xavier Canal

@xeviknal

@kialiProject

Agenda

  • Why are we here?

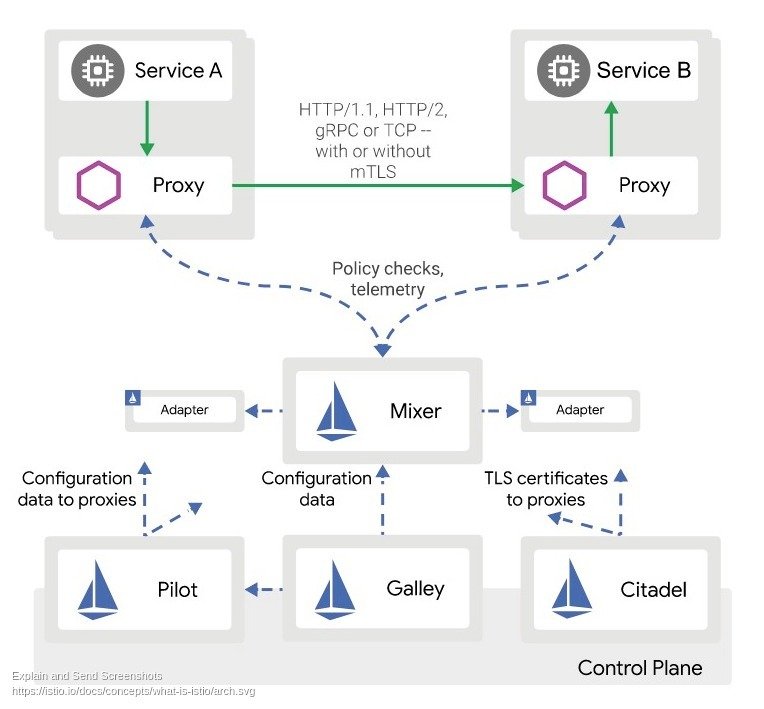

  • Istio architecture

  • Istio concepts

  • Routing Features

  • Security features

  • Q&A

@xeviknal

@kialiProject

Monolith to Microservices

@xeviknal

@kialiProject

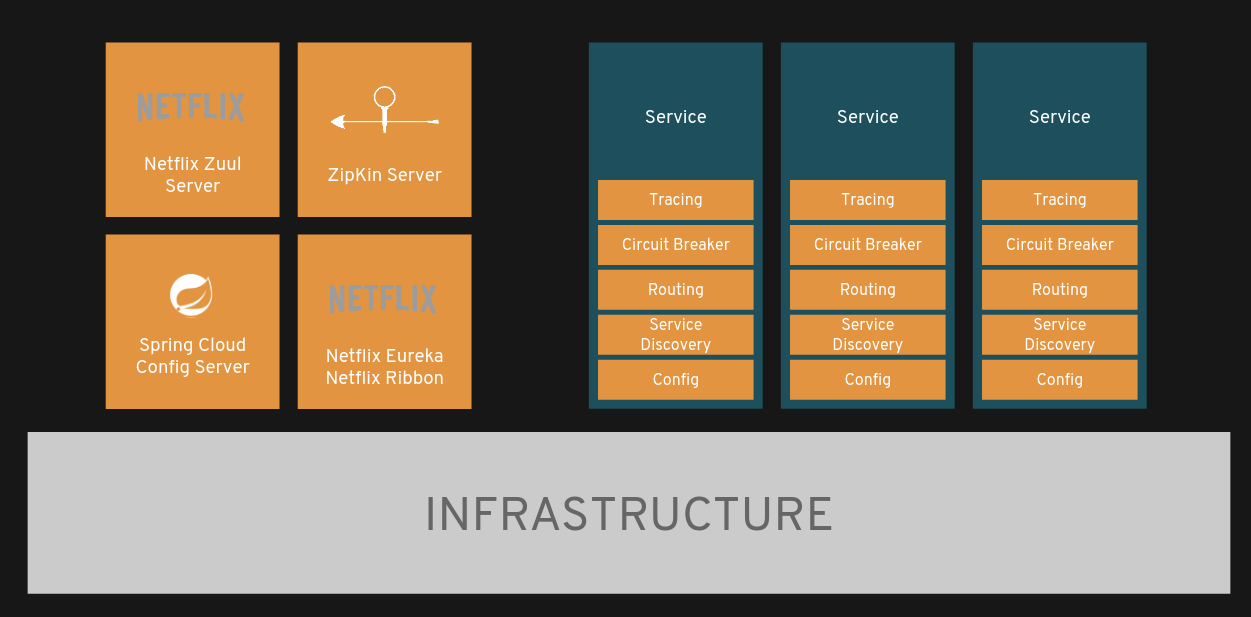

Microservices

@xeviknal

@kialiProject

Service Mesh

TO THE RESCUE

@xeviknal

@kialiProject

SERVICE MESH?

@xeviknal

@kialiProject

 service mesh provides a transparent and language-independent way to flexibly and easily automate application network functions

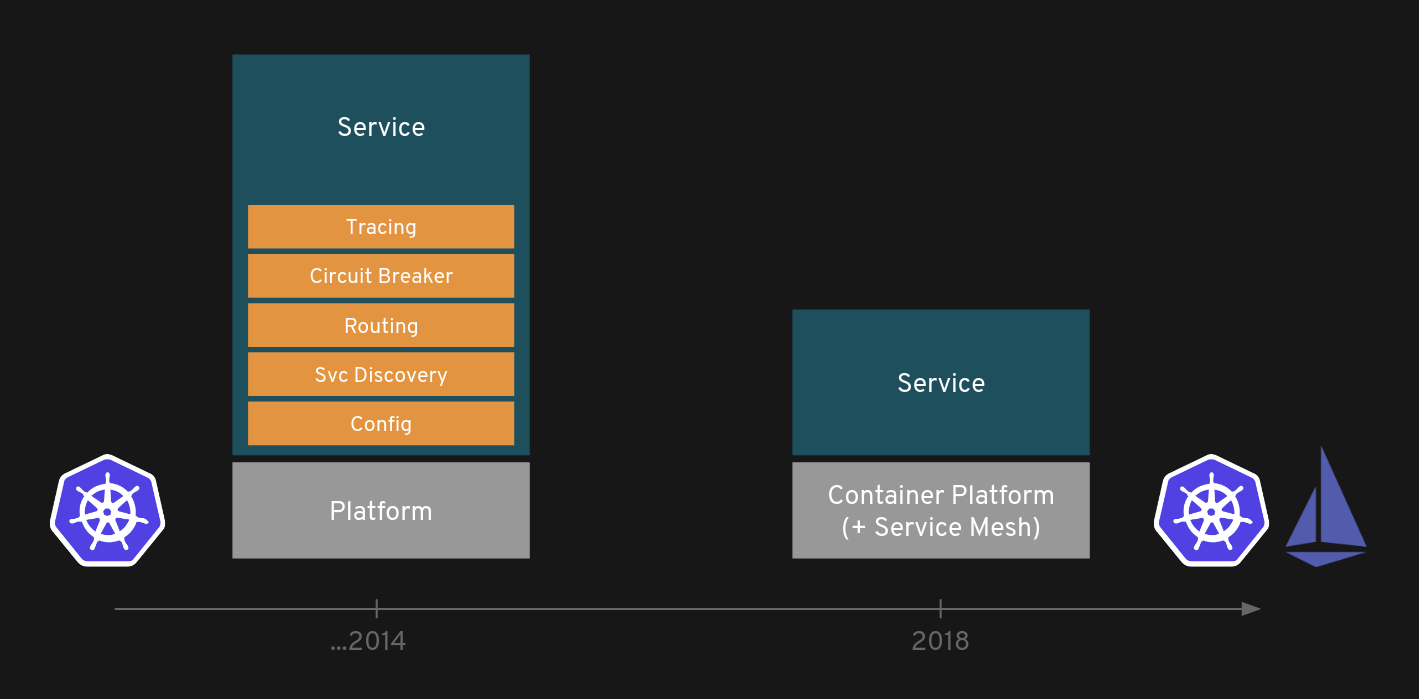

Microservices to Service Mesh

@xeviknal

@kialiProject

HOW?

@xeviknal

@kialiProject

Istio features

  • Load Balancing (HTTP, TCP, gRPC...)
  • Traffic control (routing roules, retries, timeouts, fault injection,  mirroring)
  • Secure service-to-service communication
  • Access controls (authorization)
  • Metrics and traces for traffic

@xeviknal

@kialiProject

Istio objects

  • Gateway
  • Virtual Service
  • Destination Rule
  • Service Entry
  • etc.

@xeviknal

@kialiProject

Gateway

apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: mesh-arena-gateway
spec:
    selector:
        istio: ingressgateway
  servers:
    - port:
          number: 80
          name: http
          protocol: HTTP
      hosts:
      - "*"

Expose Service Mesh to external traffic

VirtualService

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
    name: ball-vs
spec:
    hosts:
    - ball
    http:
    - route:
        - destination:
            host: ball
            subset: ball-v1

Routing rules to apply when a host is addressed (match, rewrite, weight)

DestinationRule

apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
    name: ball-dr
spec:
    host: ball
    subsets:
    - name: ball-v1
        labels:
            version: v1
    - name: ball-v2
        labels:
            version: v2

Policies defined for a service after routing has been defined (load balancing, circuit breaking)

Mesh Arena Demo

@jotak / github.com/jotak/demo-mesh-arena

@xeviknal

@kialiProject

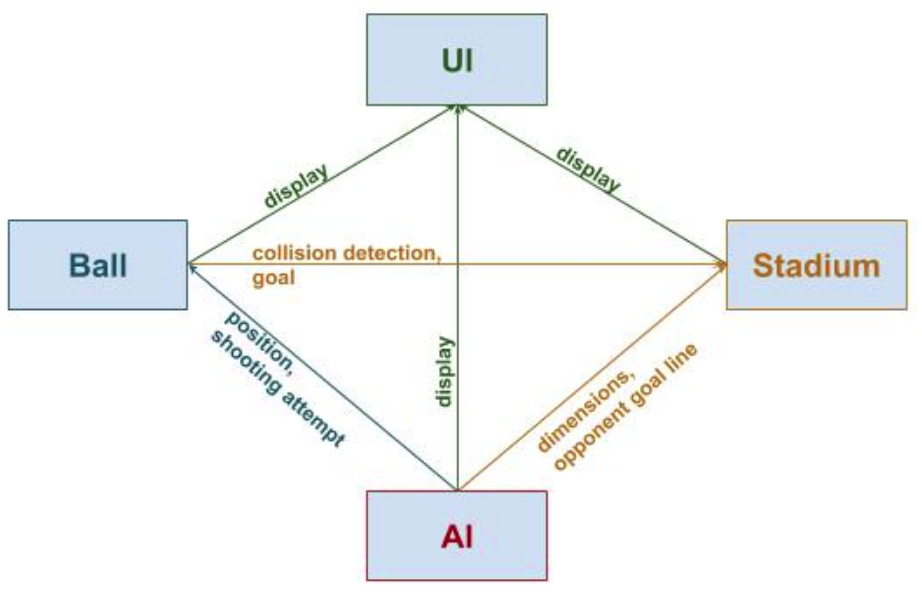

Football simulation, only AI players

Each item, one microservice

Let's build the match...

STEP by STEP

@xeviknal

@kialiProject

NEW SECURITY CONCERNS

NEW PARADIGM

@xeviknal

@kialiProject

Target discovery

@xeviknal

@kialiProject

Lots of services to protect

Services are dynamic

Multiple workloads per service

Few components to protect

Pieces are very well-known

Almost static architecture

Impersonation

@xeviknal

@kialiProject

One point per service

Higher network usage

Few points to impersonate

Data protection

@xeviknal

@kialiProject

Each service receives and sends data

Higher network usage

Few components to protect

Access Control

@xeviknal

@kialiProject

Each service has at least one endpoint

Consumers need to be identified

Multiple workloads to protect

Few public points

Consumers are unknown

Audit

@xeviknal

@kialiProject

Each service may have unauthorized access

Few access points to log

ISTIO

PROTECTING

THE SERVICE MESH

@xeviknal

@kialiProject

WITH

SECURITY BY DEFAULT

No changes needed for application code and infrastructure

@xeviknal

@kialiProject

DEFENSE IN DEPTH

Integrate with existing security systems to provide multiple layers of defense

@xeviknal

@kialiProject

ZERO-TRUST NETWORK

Build security solutions on untrusted networks

@xeviknal

@kialiProject

Auto-discovery

  • Discover all the pieces you have to protect
  • Almost real time discovery
  • Detect unexpected connections between services

@xeviknal

@kialiProject

SERVICE MESH

Demo

Strong Identity

  • Provide identity to each workload
  • Necessary for:
    • mTLS
    • RBAC
    • Secure naming

@xeviknal

@kialiProject

SPIFFE

  • Secure Production Identity Framework For Everyone
  • Creates a universal naming convention
  • How to encode that name in a X.509 file (SVID)
  • How a client validates a X.509 certificate to authenticate the SPIFFE identity

@xeviknal

@kialiProject

Strong Identity - how?

cat chain-example.pem | openssl x509 -noout -text

@xeviknal

@kialiProject

Mutual TLS Authentication

@xeviknal

@kialiProject

Are you who you say you are?

Mutual TLS Authentication

  • Ensure both ends of communications are legit
  • Encrypt service-to-service communications
  • Envoy and Pilot involved (secure naming)

@xeviknal

@kialiProject

Demo

Enabling mTLS

apiVersion: "networking.istio.io/v1alpha3"
kind: "DestinationRule"
metadata:
  name: "ball-enable-mtls"
spec:
  host: ball
  trafficPolicy:
    tls:
      mode: ISTIO_MUTUAL

Authentication methods accepted on workload(s)

apiVersion: "authentication.istio.io/v1alpha1"
kind: "Policy"
metadata:
  name: "default"
spec:
  peers:
  - mtls:
      mode: PERMISSIVE

Rules applied on client-side after routing

@xeviknal

@kialiProject

Policy

DestinationRule

@xeviknal

@kialiProject

Can ServiceA perform Action on ServiceB?

RBAC system

RBAC system

  • Fine-grained access policy
  • Consistent and homogeneous across the mesh
  • Talks about services and versions
    instead of pods, deployments
  • Strong identities needed

@xeviknal

@kialiProject

Demo

ServiceRole

apiVersion: "rbac.istio.io/v1alpha1"
kind: ServiceRole
metadata:
  name: details-reviews-viewer
  namespace: bookinfo
spec:
  rules:
  - services:
      - "details.bookinfo.svc.cluster.local"
      - "reviews.bookinfo.svc.cluster.local"
    methods: ["GET"]
    constraints:
      - key: "destination.labels[version]"
        values: ["v1"]

List of permissions:

  • Object: Service
  • Action: method + Path

@xeviknal

@kialiProject

ServiceRole

Binding

apiVersion: "rbac.istio.io/v1alpha1"
kind: ServiceRoleBinding
metadata:
 name: bind-details-reviews
 namespace: bookinfo
spec:
 subjects:
 - user: "cluster.local/ns/bookinfo/sa/bookinfo-productpage"
 roleRef:
   kind: ServiceRole
   name: "details-reviews-viewer"

List of subjects attached to a role:

  • Authenticated SVC
  • Authenticated end-user

@xeviknal

@kialiProject

Auditing

  • Distributed traces
  • Logging

@xeviknal

@kialiProject

THE SERVICE MESH

Demo
