Web Assembly (WASM)

Portable binary instruction format
Runs on web browsers (not only)

Faster than JS on compute intensive tasks
Many programming languages compile to WASM

(module
  (func (result i32)
    (i32.const 42)
  )
  (export "getUniversalNumber" (func 0))
)

00 61 73 6d 01 00 00 00  01 05 01 60 00 01 7f 03  |.asm.......`....|
02 01 00 07 16 01 12 67  65 74 55 6e 69 76 65 72  |.......getUniver|
73 61 6c 4e 75 6d 62 65  72 00 00 0a 06 01 04 00  |salNumber.......|
41 2a 0b 00 0a 04 6e 61  6d 65 02 03 01 00 00     |A*....name.....|

wat format (human readable)

wasm file

https://github.com/WebAssembly/wabt

Browser

Compiler

WASM runtime

JS engine

Based on: https://wasmlabs.dev/articles/docker-without-containers/

binary

WASM in browsers

Source code

Operating system

Compiler

WASM runtime

Based on: https://wasmlabs.dev/articles/docker-without-containers/

Source code

binary

WASM + WASI on the OS

WASI, WASI-NN, Proxy-Wasm

FileSystem

Network

...

https://twitter.com/solomonstre/status/1111004913222324225

WASM on the browser

A lot of languages compile to WASM
JS interop (DOM)

Need to do something related to WASM

.NET on the browser

.NET: OSS cross-platform framework
C# language

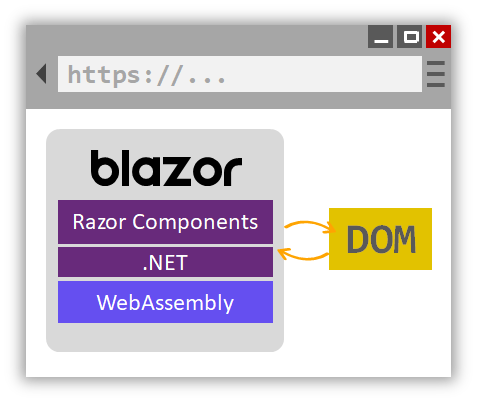

In 2020 .Net 5 introduced Blazor WASM
- Component based
- .NET runs on the browser

@page "/counter"

<h1>Counter</h1>
<p>Current count: @currentCount</p>
<button @onclick="IncrementCount">Click me</button>

@code {
    private int currentCount = 0;
    private void IncrementCount() { currentCount++; }
}

A Razor component

Let's port a .NET game !

Game porting

Make a game run in platforms other than its original ones
By rewriting / adapting the source code for the new platform(s)
Not porting: virtual machine or emulator

MVG's video is a great source of inspiration

Released in 1993 for DOS
One the most successful First Person Shooters
Has two parts:
- engine: Game logic + I/O
- WAD file: all assets and maps

🌟 Doom is portable by design 🌟

http://mrglitchsreviews.blogspot.com/2012/09/doom-console-ports.html

Ported to a LOT of platforms

https://www.link-cable.com/top-10-weird-doom-ports/

Source: https://www.yahoo.com/news/1995-bill-gates-gave-crazy-180900044.html

ManagedDoom

.NET Port of LinuxDoom (official source code)
ManagedDoom V1 Uses SFML (graphics + audio + input)
- V2 uses silk.net (released 27 Dec 2022)
My work is a fork of ManagedDoom V1

id-Software/DOOM

sinshu/managed-doom

yostane/MangedDoom-Blazor

Porting strategy

Compile the app: replace SFML code with "TODO: implement"
Implement TODOs little by little, priority to frame rendering
Optimize and clean later strategy
Read Doom-Wiki and SFML documentation only when necessary
- Used to understand frame format

2 weeks

as a side-project

creator.nightcafe.studio

Game loop in C#

while (waitForNextFrame()){
  const input = getPlayerInput();
  const { frame, audio }
  	      = UpdateGameState(input, WAD);
  render(frame);
  play(audio);
}

Game loop in JS

function gameLoop(){
  if (canAdvanceFrame()){
    const input = getPlayerInput();
    const { frame, audio }
  	      = UpdateGameState(input, WAD);
    render(frame);
    play(audio);
  }
  requestAnimationFrame(gameLoop);
}
requestAnimationFrame(gameLoop);

ManagedDoom V1 architecture

For loop (game loop)

pressed keys (keyup)

release keys (keydown)

['Z', 'Q']

['space']

Frame buffer

Audio buffer

SFML Audio

SFML Video

1 iteration of the Doom Engine

Updates the game state

wad

DOOM.wad

Blazor

~70% OK

Blazor

Blazor Doom architecture

pressed keys (keyup)

release keys (keydown)

['Z', 'Q']

['space']

wad

DOOM.wad

requestAnimationFrame

DotNet.invokeMethod

Audio buffer

Frame buffer

Canvas

Audio Context

IJSRuntime.Invoke

IJSRuntime.InvokeUnmarshalled

1 iteration of the Doom Engine

Updates the game state

<canvas id="canvas" width="320" height="200"
  style="width:100%; height:auto; image-rendering: pixelated;">
</canvas>
@code {
  // Entry point of the game
  private async Task StartGame()
  {
    // steup the game object
    app = new ManagedDoom.DoomApplication();
    // Calls JS method that manages "requestAnimationFrame" pacing
    jsProcessRuntime.InvokeVoid("gameLoop");
  }

  // Runs a frame of the game engine.
  // Called after each "requestAnimationFrame"
  [JSInvokable("UpdateGameState")]
  public static void UpdateGameState(uint[] downKeys, uint[] upKeys)
  {
    app.Run(downKeys, upKeys);
  }
}

Entry point: The main component

Frame pacing with JS

window.gameLoop = function (timestamp) {
  // Check the pacing
  if (timestamp - lastFrameTimestamp >= frameTime) {
    lastFrameTimestamp = timestamp;
    // Invoke the game engine to iterate once (advance a frame)
    DotNet.invokeMethod('BlazorDoom', 'UpdateGameState',
                        downKeys, upKeys);
  }
  // This replaces the for loop in a traditional game
  // Request the browser to notify us when we do the next iteration
  window.requestAnimationFrame(window.gameLoop);
}

// The code that I showed earlier
[JSInvokable("UpdateGameState")]
public static void UpdateGameState(uint[] downKeys, uint[] upKeys)
{
  app.Run(downKeys, upKeys);
}

Game engine execution with C#

Audio playback

0.5	1	0.75	0	-0.75	-1	-0.5	0

https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts

AudioContext

Sample

1 / Sampling frequency

+ Sampling frequency

🔊

playSound(samples, sampleRate) {
  const audioBuffer = this.context.createBuffer(
    1, length, this.context.sampleRate
  );
  var channelData = audioBuffer.getChannelData(0);
  // JS receives a weird "samples" array
  for (let i = 0; i < length; i += 2) {
    // Scale the value to between -1 and 1
    channelData[i] = samples[i] / 0xffff;
  }
  // Play the audio
  var source = this.context.createBufferSource();
  source.buffer = audioBuffer;
  source.connect(this.context.destination);
  source.start();
}

Audio playback

// Somewhere in the Doom Engine's audio module
DoomApplication.WebAssemblyJSRuntime.Invoke<object>(
	"playSound", new object[] { samples, sampleRate, 0, Position }
);

0	1	2	3	1	1	2	3

0	1	2	3

From 1D frame to a 2D frame

2	2	0	1

Frame data

Color palette

Canvas

Doom uses color indexing
Image built from top to bottom and from left to right

C# Byte Array to JS in .NET < 7

0	1	2	3	1	1	2	3

2	2	0	1

Frame data

0123

1123

2201

4 bytes in C# -> 1 number in JS
n elements in C# -> (n / 4) elements in JS
Bit shifting required in JS !

IJSRuntime.InvokeUnmarshalled

window.renderWithColorsAndScreenDataUnmarshalled = (screenData, colors) => {
  // JS receives an array with 4 bytes per item
  for (var i = 0; i < (width * height) / 4; i += 1) {
    // Gets the array sent from C#
    const screenDataItem = BINDING.mono_array_get(screenData, i);
    for (let mask = 0; mask <= 24; mask += 8) {
      let dataIndex = y * (width * 4) + x;
      setSinglePixel(imageData, dataIndex, colors,
                     (screenDataItem >> mask) & 0xff);
      // Build the image from top to bottom, left to right
      if (y >= height - 1) { y = 0; x += 4; } else { y += 1; }
    }
  }
  context.putImageData(imageData, 0, 0);
};
function setSinglePixel(imageData, dataIndex, colors, colorIndex) {
  const color = BINDING.mono_array_get(colors, colorIndex);
  imageData.data[dataIndex] = color & 0xff;
  imageData.data[dataIndex + 1] = (color >> 8) & 0xff;
  imageData.data[dataIndex + 2] = (color >> 16) & 0xff;
  imageData.data[dataIndex + 3] = 255;
}

Rendering a Frame buffer

// Somwhere in the Doom Engine's graphics module
var args = new object[] { screen.Data, colors, 320, 200 };
// Send the frame buffer to JS
DoomApplication.WebAssemblyJSRuntime.InvokeUnmarshalled<byte[], uint[], int>
	("renderWithColorsAndScreenDataUnmarshalled", screen.Data, colors);

Tips and lessons learned

Calling Blazor from JS is very fast
- But has problems with certain data types in .NET < 7
- Undocumented APIs removed in .Net 7 in favor of JS Interop
This slooooows the app:
- Extensive logging
- Array.Copy of Big arrays (in .Net 5)

Blazor

JS

window.requestAnimationFrame to pace frames on the web
Browsers require interaction with the page to play audio

JS Interop in .net >= 7

Less intricate way to run .Net from JS (no components)

<html>
  <head>
    <script type="module" src="./main.js"></script>
    <!-- Load the .net runtime,
 		which will load our c# code as dll ! -->
    <script type="module" src="./dotnet.js"></script>
    <link rel="prefetch" href="./dotnet.wasm"/>
   </head>
  <body>
  	<canvas id="canvas" width="320" height="200"
            style="image-rendering: pixelated" />
  </body>
</html>

JS Interop in .net >= 7

public partial class MainJS // this name is required
{
  public static void Main()
  {
    app = new ManagedDoom.DoomApplication();
  }

  [JSExport] // Can be imported from JS
  public static void UpdateGameState(int[] keys)
  {
     managedDoom.UpdateGameState(keys);
  }
}

import { dotnet } from "./dotnet.js";
const { getAssemblyExports, getConfig } = await dotnet.create();
const exports = await getAssemblyExports(getConfig().mainAssemblyName);
await dotnet.run();

function gameLoop(timestamp) {
    if (canAdvanceFrame) {
        exports.BlazorDoom.MainJS.UpdateGameState(keys);
    }
    requestAnimationFrame(gameLoop);
}

Frame Rendering with JS Interop

export function drawOnCanvas(screenData, colors) {
  for (let i = 0; i < screenData.length; i += 1) {
    const dataIndex = (y * width + x) * 4;
    setSinglePixel(imageData, dataIndex, colors, screenData[i]);
    if (y >= height - 1) {
      y = 0;
      x += 1;
    } else {
      y += 1;
    }
  }
}

Frame Rendering with JS Interop

namespace BlazorDoom
{
    [SupportedOSPlatform("browser")]
    public partial class Renderer
    {
        [JSImport("drawOnCanvas", "blazorDoom/renderer.js")]
        internal static partial string renderOnJS(byte[] screenData,
                                                   int[] colors);
    }
}

export function drawOnCanvas(screenData, colors) {
  //
}

public class DoomRenderer
{
  // Called by updateGameState
  private void Display(uint[] colors)
  {
    var args = new object[] { screen.Data, colors, 320, 200 };
    BlazorDoom.Renderer.renderOnJS(screen.Data, (int[])((object)colors));
  }
}

Another port possibility

id-Software/DOOM

sinshu/managed-doom

V1

V2

Silk.net

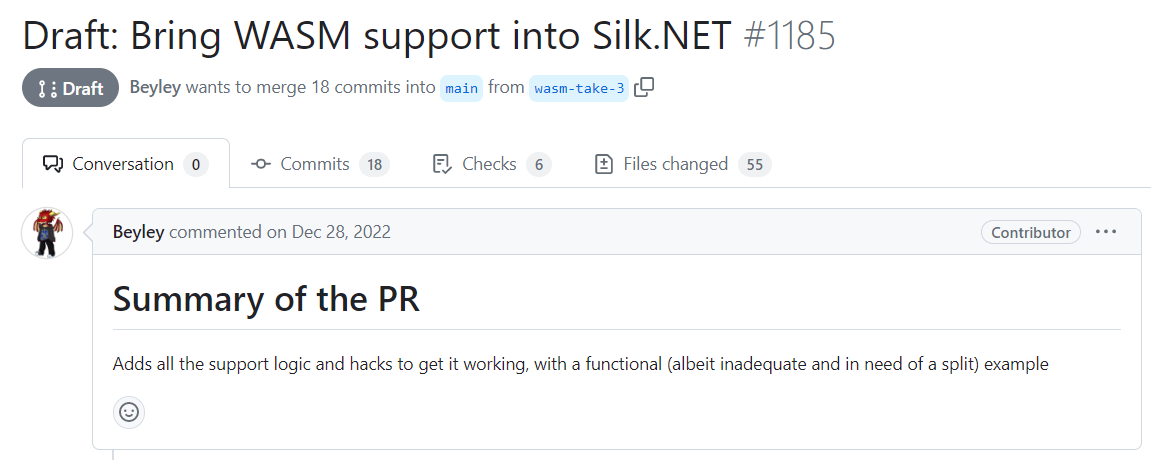

Blazor Web Assembly Support: dotnet/Silk.NET/issues/705

Next steps

Short term:
- Continue migration to .NET 7 JSInterop
- Maybe add Music support
Middle term:
- Update to ManagedDoom V2
- Experiment with Silk.Net is adds WASM support
Long term / wish:
- Make this port an official part of ManagedDoom

#TechAtWorldline

jobs.worldline.com

Links

https://mspoweruser.com/this-doom-digital-camera-source-port-is-amazing-and-bizarre/
https://www.link-cable.com/top-10-weird-doom-ports/
pixabay.com

Web Assembly (WASM)

https://github.com/WebAssembly/wabt

WASM in browsers

WASM + WASI on the OS

WASM on the browser

Need to do something related to WASM

.NET on the browser

A Razor component

Let's port a .NET game !

Game porting

🌟 Doom is portable by design 🌟

ManagedDoom

Porting strategy

2 weeks

as a side-project

Game loop in C#

Game loop in JS

ManagedDoom V1 architecture

Blazor Doom architecture

🔊

Doom uses color indexing

Image built from top to bottom and from left to right

4 bytes in C# -> 1 number in JS

n elements in C# -> (n / 4) elements in JS

Bit shifting required in JS !

Tips and lessons learned

Blazor

JS

JS Interop in .net >= 7

JS Interop in .net >= 7

Frame Rendering with JS Interop

Frame Rendering with JS Interop

Another port possibility

Silk.net

Next steps

Links

CommitConf 2023: Managed Doom Blazor

CommitConf 2023: Managed Doom Blazor

yostane

Web Assembly (WASM)

https://github.com/WebAssembly/wabt

WASM in browsers

WASM + WASI on the OS

WASM on the browser

Need to do something related to WASM

.NET on the browser

A Razor component

Let's port a .NET game !

Game porting

🌟 Doom is portable by design 🌟

ManagedDoom

Porting strategy

2 weeks

as a side-project

Game loop in C#

Game loop in JS

ManagedDoom V1 architecture

Blazor Doom architecture

🔊

Doom uses color indexing

Image built from top to bottom and from left to right

4 bytes in C# -> 1 number in JS

n elements in C# -> (n / 4) elements in JS

Bit shifting required in JS !

Tips and lessons learned

Blazor

JS

JS Interop in .net >= 7

JS Interop in .net >= 7

Frame Rendering with JS Interop

Frame Rendering with JS Interop

Another port possibility

Silk.net

Next steps

Links

CommitConf 2023: Managed Doom Blazor

More from yostane
