1.6 The Perceptron Model

Your first model with weights

Recap: MP Neuron

What did we see in the previous chapter?

(c) One Fourth Labs

Screen size (>5 in) 1 0 1 1 1 0 1 0 1 0
Battery (>2000mAh) 0 0 0 1 0 1 1 1 1 0
Like 1 0 1 0 1 1 0 1 0 0
\hat{y}
y^\hat{y}
x_1
x1x_1
x_2
x2x_2
b
bb
\hat{y}=\sum_{i=1}^n x_i \gt b
y^=∑i=1nxi>b\hat{y}=\sum_{i=1}^n x_i \gt b

Boolean inputs

Boolean output

Linear

Fixed Slope

Few possible intercepts (b's)

The Road Ahead

What's going to change now ?

(c) One Fourth Labs

Show the six jars and convey the following by animation

-- Boolean inputs gets replaced by real inputs

-- Only one parameter b by "weights for every input" (below model jar)

-- Brute force by "our first learning algorithm"

-- Add Perceptron loss function with a saddie (not smiley)

Linear

Only one parameter, b

Real inputs

Boolean output

Brute force

The Road Ahead

What's going to change now ?

(c) One Fourth Labs

\( \{0, 1\} \)

Boolean

loss = \sum_i (y_i-\hat{y_i})^2
loss=∑i(yi−yi^)2loss = \sum_i (y_i-\hat{y_i})^2
Accuracy=\frac{\text{Number of correct predictions}}{\text{Total number of predictions}}
Accuracy=Number of correct predictionsTotal number of predictionsAccuracy=\frac{\text{Number of correct predictions}}{\text{Total number of predictions}}

Loss

Model

Data

Task

Evaluation

Learning

Linear

Only one parameter, b

Real inputs

Boolean output

Brute force

Boolean inputs

loss = \sum_i max(0,1-y_i*\hat{y_i})
loss=∑imax(0,1−yi∗yi^)loss = \sum_i max(0,1-y_i*\hat{y_i})

Our 1st learning algorithm

Weights for every input

Data and Task

What kind of data and tasks can Perceptron process ?

(c) One Fourth Labs

Same data matrix from before with binary inputs and outputs

Animation:

- Now replace some boolean inputs by real inputs (for example, >5in will get replaced by actual screen size, >24 hours will get replaced by actual battery life and so on

- Now, highlight some columns which may seem more important than others (I will just speak through it to say that some features are more important than others

Real inputs

Data and Task

What kind of data and tasks can Perceptron process ?

(c) One Fourth Labs

Real inputs

Launch (within 6 months) 0 1 1 0 0 1 0 1 1
Weight (g) 151 180 160 205 162 182 138 185 170
Screen size (inches) 5.8 6.18 5.84 6.2 5.9 6.26 4.7 6.41 5.5
dual sim 1 1 0 0 0 1 0 1 0
Internal memory (>= 64 GB, 4GB RAM) 1 1 1 1 1 1 1 1 1
NFC 0 1 1 0 1 0 1 1 1
Radio 1 0 0 1 1 1 0 0 0
Battery(mAh) 3060 3500 3060 5000 3000 4000 1960 3700 3260
Price (INR) 15k 32k 25k 18k 14k 12k 35k 42k 44k
Like (y) 1 0 1 0 1 1 0 1 0
Launch (within 6 months) 0 1 1 0 0 1 0 1 1
Weight (<160g) 1 0 1 0 0 0 1 0 0
Screen size (<5.9 in) 1 0 1 0 1 0 1 0 1
dual sim 1 1 0 0 0 1 0 1 0
Internal memory (>= 64 GB, 4GB RAM) 1 1 1 1 1 1 1 1 1
NFC 0 1 1 0 1 0 1 1 1
Radio 1 0 0 1 1 1 0 0 0
Battery(>3500mAh) 0 0 0 1 0 1 0 1 0
Price > 20k 0 1 1 0 0 0 1 1 1
Like (y) 1 0 1 0 1 1 0 1 0

Data Preparation

Can the data be used as it is ?

(c) One Fourth Labs

Same data matrix from before with binary inputs and outputs

Animation:

- Highlight two columns which have very different ranges (say price and battery life)

- These columns are not comparable



- Now show one of the columns on the RHS

- Highlight the max and min values of this column

- Now show the standardized version of this column



- Repeat this for another column



- FInally replace this matrix by a standardized matrix



(Its ok if you need to do all of this over multiple slides)









Column1

Show one of the columns here

Standardized column

Now show the standardized value of the column here.



Show the computtaions

(x-min)/ (max - min)



(c) One Fourth Labs

Launch (within 6 months) 0 1 1 0 0 1 0 1 1
Weight (g) 151 180 160 205 162 182 138 185 170
Screen size (inches) 5.8 6.18 5.84 6.2 5.9 6.26 4.7 6.41 5.5
dual sim 1 1 0 0 0 1 0 1 0
Internal memory (>= 64 GB, 4GB RAM) 1 1 1 1 1 1 1 1 1
NFC 0 1 1 0 1 0 1 1 1
Radio 1 0 0 1 1 1 0 0 0
Battery(mAh) 3060 3500 3060 5000 3000 4000 1960 3700 3260
Price (INR) 15k 32k 25k 18k 14k 12k 35k 42k 44k
Like (y) 1 0 1 0 1 1 0 1 0
screen size
5.8
6.18
5.84
6.2
5.9
6.26
4.7
6.41
5.5
screen size
0.64
0.87
0.67
0.88
0.7
0.91
0
1
0.47

min

max

Standardization formula

x' = \frac{x-min}{max-min}
x′=x−minmax−minx&#x27; = \frac{x-min}{max-min}
Launch (within 6 months) 0 1 1 0 0 1 0 1 1
Weight (g) 151 180 160 205 162 182 138 185 170
Screen size 0.64 0.87 0.67 0.88 0.7 0.91 0 1 0.47
dual sim 1 1 0 0 0 1 0 1 0
Internal memory (>= 64 GB, 4GB RAM) 1 1 1 1 1 1 1 1 1
NFC 0 1 1 0 1 0 1 1 1
Radio 1 0 0 1 1 1 0 0 0
Battery(mAh) 3060 3500 3060 5000 3000 4000 1960 3700 3260
Price (INR) 15k 32k 25k 18k 14k 12k 35k 42k 44k
Like (y) 1 0 1 0 1 1 0 1 0
battery
3060
3500
3060
5000
3000
4000
1960
3700
3260
battery
0.36
0.51
0.36
1
0.34
0.67
0
0.57
0.43

min

max

Data Preparation

Can the data be used as it is ?

Launch (within 6 months) 0 1 1 0 0 1 0 1 1
Weight (g) 151 180 160 205 162 182 138 185 170
Screen size 0.64 0.87 0.67 0.88 0.7 0.91 0 1 0.47
dual sim 1 1 0 0 0 1 0 1 0
Internal memory (>= 64 GB, 4GB RAM) 1 1 1 1 1 1 1 1 1
NFC 0 1 1 0 1 0 1 1 1
Radio 1 0 0 1 1 1 0 0 0
Battery 0.36 0.51 0.36 1 0.34 0.67 0 0.57 0.43
Price (INR) 15k 32k 25k 18k 14k 12k 35k 42k 44k
Like (y) 1 0 1 0 1 1 0 1 0

Data Preparation

Can the data be used as it is ?

(c) One Fourth Labs

Launch (within 6 months) 0 1 1 0 0 1 0 1 1
Weight 0.19 0.63 0.33 1 0.36 0.66 0 0.70 0.48
Screen size 0.64 0.87 0.67 0.88 0.7 0.91 0 1 0.47
dual sim 1 1 0 0 0 1 0 1 0
Internal memory (>= 64 GB, 4GB RAM) 1 1 1 1 1 1 1 1 1
NFC 0 1 1 0 1 0 1 1 1
Radio 1 0 0 1 1 1 0 0 0
Battery 0.36 0.51 0.36 1 0.34 0.67 0 0.57 0.43
Price 0.09 0.63 0.41 0.19 0.06 0 0.72 0.94 1
Like (y) 1 0 1 0 1 1 0 1 0
Launch (within 6 months) 0 1 1 0 0 1 0 1 1
Weight (g) 151 180 160 205 162 182 138 185 170
Screen size (inches) 0.64 0.87 0.67 0.88 0.7 0.91 0 1 0.47
dual sim 1 1 0 0 0 1 0 1 0
Internal memory (>= 64 GB, 4GB RAM) 1 1 1 1 1 1 1 1 1
NFC 0 1 1 0 1 0 1 1 1
Radio 1 0 0 1 1 1 0 0 0
Battery(mAh) 0.36 0.51 0.36 1 0.34 0.67 0 0.57 0.43
Price (INR) 15k 32k 25k 18k 14k 12k 35k 42k 44k
Like (y) 1 0 1 0 1 1 0 1 0
weight
0.19
0.63
0.33
1
0.36
0.66
0
0.70
0.48
battery
0.36
0.51
0.36
1
0.34
0.67
0
0.57
0.43
price
0.09
0.63
0.41
0.19
0.06
0
0.72
0.94
1
Launch (within 6 months) 0 1 1 0 0 1 0 1 1
Weight (g) 151 180 160 205 162 182 138 185 170
Screen size (inches) 0.64 0.87 0.67 0.88 0.7 0.91 0 1 0.47
dual sim 1 1 0 0 0 1 0 1 0
Internal memory (>= 64 GB, 4GB RAM) 1 1 1 1 1 1 1 1 1
NFC 0 1 1 0 1 0 1 1 1
Radio 1 0 0 1 1 1 0 0 0
Battery(mAh) 0.36 0.51 0.36 1 0.34 0.67 0 0.57 0.43
Price (INR) 15k 32k 25k 18k 14k 12k 35k 42k 44k
Like (y) 1 0 1 0 1 1 0 1 0

The Model

What is the mathematical model ?

(c) One Fourth Labs

Show the standardised data matrix

Show the model here

The Model

What is the mathematical model ?

(c) One Fourth Labs

Launch (within 6 months) 0 1 1 0 0 1 0 1 1
Weight 0.19 0.63 0.33 1 0.36 0.66 0 0.70 0.48
Screen size 0.64 0.87 0.67 0.88 0.7 0.91 0 1 0.47
dual sim 1 1 0 0 0 1 0 1 0
Internal memory (>= 64 GB, 4GB RAM) 1 1 1 1 1 1 1 1 1
NFC 0 1 1 0 1 0 1 1 1
Radio 1 0 0 1 1 1 0 0 0
Battery 0.36 0.51 0.36 1 0.34 0.67 0 0.57 0.43
Price 0.09 0.63 0.41 0.19 0.06 0 0.72 0.94 1
Like (y) 1 0 1 0 1 1 0 1 0

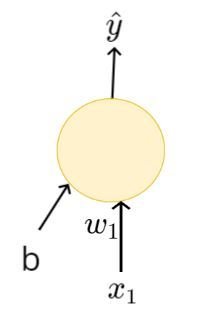

\(x_1\)

b

\(x_n\)

\(\hat{y}\)

\(x_2\)

\(w_1\)

\(w_2\)

\(w_n\)

y=\sum_{i=1}^n w_i x_i \geq b
y=∑i=1nwixi≥by=\sum_{i=1}^n w_i x_i \geq b

The Model

How is this different from the Perceptron Model ?

(c) One Fourth Labs

1) Show the equations side by side of MP and perceptron and see what is changing



Real inputs

Linear

Weights for each input

Adjustable threshold

Boolean inputs

Linear

Inputs are not weighted

Adjustable threshold

The Model

How is this different from the Perceptron Model ?

(c) One Fourth Labs

Real inputs

Linear

Weights for each input

Adjustable threshold

Boolean inputs

Linear

Inputs are not weighted

Adjustable threshold

\hat{y}=\sum_{i=1}^n x_i \geq b
y^=∑i=1nxi≥b\hat{y}=\sum_{i=1}^n x_i \geq b
\hat{y}=\sum_{i=1}^n w_i x_i \geq b
y^=∑i=1nwixi≥b\hat{y}=\sum_{i=1}^n w_i x_i \geq b

The Model

What do weights allow us to do ?

(c) One Fourth Labs

Hard part: the examples mentioned below need to be constructed carefully



- Show two examples where all features are same but one has high price (no_buy) and the other has low price (buy)

- 9 terms in the sum will be same

- now if there is a negative weight attached with the price then one will cross the threshold and the other will not

- weights can be inhibitory (negative) or excitatory (positive)

Show standardised data from before. Focus on price and output and show that there is an inverse relation between them.



The Model

What do weights allow us to do ?

(c) One Fourth Labs

Launch (within 6 months) 0 1 1 0 0 1 0 1 1
Weight (g) 151 180 160 205 162 182 138 185 170
Screen size (inches) 5.8 6.18 5.84 6.2 5.9 6.26 4.7 6.41 5.5
dual sim 1 1 0 0 0 1 0 1 0
Internal memory (>= 64 GB, 4GB RAM) 1 1 1 1 1 1 1 1 1
NFC 0 1 1 0 1 0 1 1 1
Radio 1 0 0 1 1 1 0 0 0
Battery(mAh) 3060 3500 3060 5000 3000 4000 1960 3700 3260
Price (INR) 15k 32k 25k 18k 14k 12k 35k 42k 44k
Like (y) 1 0 1 0 1 1 0 1 0

\(x_1\)

b

\(x_n\)

\(\hat{y}\)

\(x_2\)

\(w_1\)

\(w_2\)

\(w_n\)

\hat{y}=\sum_{i=1}^n w_i x_i \geq b
y^=∑i=1nwixi≥b\hat{y}=\sum_{i=1}^n w_i x_i \geq b

\(w_{price} \rightarrow -ve\)

Like  \(\alpha  \frac{1}{price}\)

Some Math fundae

Can we write the perceptron model slightly more compactly?

(c) One Fourth Labs



  • Show the array of x_i’s

  • Show the array of w_i’s

  • We can think of these as vectors w and x

  • And we can say that x \in R^5 and w \in R^5

  • What is the dot product between w and x

  • Show the formula

  • Just say, that this is by definition and nothing great about it

  • Now show the final compact dot product form of the formula

Some Math fundae

Can we write the perceptron model slightly more compactly?

(c) One Fourth Labs

x : [0, 0.19, 0.64, 1, 1, 0]

w: [0.3, 0.4, -0.3, 0.1, 0.5]

 \(\vec{x} \in R^5\)

 \(\vec{w} \in R^5\)

\( \vec{x} \)

\( \vec{w} \)

\(\vec{x}.\vec{w}\) = ?

\(\vec{x}.\vec{w} = x_1.w_1 + x_2.w_2 + ... x_n.w_n\)

w.k.t     \hat{y}=\sum_{i=1}^n w_i x_i \geq b
w.k.t  y^=∑i=1nwixi≥bw.k.t     \hat{y}=\sum_{i=1}^n w_i x_i \geq b
= \sum_{i=1}^n x_i.w_i
=∑i=1nxi.wi= \sum_{i=1}^n x_i.w_i
\hat{y}= 1 \text{ (if } \vec{x}.\vec{w} \geq b)
y^=1 (if x⃗.w⃗≥b)\hat{y}= 1 \text{ (if } \vec{x}.\vec{w} \geq b)
\hat{y}= 0 \text{ (otherwise)}
y^=0 (otherwise)\hat{y}= 0 \text{ (otherwise)}

\(x_1\)

b

\(x_n\)

\(\hat{y}\)

\(x_2\)

\(w_1\)

\(w_2\)

\(w_n\)

\hat{y}=\sum_{i=1}^n w_i x_i \geq b
y^=∑i=1nwixi≥b\hat{y}=\sum_{i=1}^n w_i x_i \geq b

The Model

What is the geometric interpretation of the model ?

(c) One Fourth Labs

  • On LHS again recap the two variable plot for perceptron
  • show how the green and red half planes change as b=0,1,2
  • Read the remaining slides also before making this slide so that you can have a meaningful example throughout
  • On RHS show the same plot and show that now in the case of perceptron, for a given value of b we can also rotate the line by changing the slope w. and get multiple partitions of green and red half planes
  • Also show that b itself is smooth now and not restricted to values 0,1, and 2

More freedom

The Model

What is the geometric interpretation of the model ?

(c) One Fourth Labs

  • On LHS again recap the two variable plot for perceptron
  • show how the green and red half planes change as b=0,1,2
  • Read the remaining slides also before making this slide so that you can have a meaningful example throughout
  • On RHS show the same plot and show that now in the case of perceptron, for a given value of b we can also rotate the line by changing the slope w. and get multiple partitions of green and red half planes
  • Also show that b itself is smooth now and not restricted to values 0,1, and 2

More freedom

The Model

Why is more freedom important ?

(c) One Fourth Labs

  • Plot some data with two variables x1 and x2 such that the positive and negative points cannot be separated by MP model but can be separated by the perceptron model

More freedom

The Model

Is this all the freedom that we need ?

(c) One Fourth Labs

  • On LHS show a perceptron type data plot where it is impossible to drawn any line to separate the positive points from the negative points.
  • For example, in the case of phone think of two features such that it is fine if either of them is present but not if both are present
  • Show that we will need a complex decision surface to divide the green and red points. Take a surface such that you can write an equation for it so that we can show that instead of line we now need this complex function

We want even more freedom

  • on RHS show a data plot where there are some outliers within positive and negative clusters
  • Now show a complex surface such that we can separate the positive and negative points completely
  • Now show even more complex outliers and show you need even more complex surfaces (somewhat similar to Andrej Karpathy's plot which we have used to explain adversarial examples in the lecture on Visualize CNNs)

The Model

What if we have more than 2 dimensions ?

(c) One Fourth Labs

  • Now show a 3d plot and show how in 3d also perceptron still divides the input space into two halves - red and blue
  • I would like to have an animation which shows that as we change w_1, w_2 and b how the plane changes
  • now on RHS show one more plot here have you have some data which cannot be separated by a plane and no matter how you adjust w_1, w_2 and b you cannot separate these points
  • Again, this can be done by apparently creating a video from python itself. You can ask Harish (check with Ananya) to do this



Inference

How do you put this model to use ?

(c) One Fourth Labs

1. Show small training matrix here

2. Show humans with rules in his head

3. Show show one test instance here

4. Show human's output here

5 - now replace human with perceptron model and



6 - now replace human's output with model equations and compute the output

Loss Function

What is the loss function that you use for this model ?

(c) One Fourth Labs

Weight Screen size Like
0.19 0.64 1
0.63 0.87 1
0.33 0.67 0
1 0.88 0
Weight Screen size Like Loss
0.19 0.64 1 1 0
0.63 0.87 1 0 1
0.33 0.67 0 1 1
1 0.88 0 0 0
\hat{y}
y^\hat{y}
(y)
(y)(y)
L=0,\text{ if } y=\hat{y}
L=0, if y=y^L=0,\text{ if } y=\hat{y}
=1,otherwise
=1,otherwise=1,otherwise
L = \textbf{1}_{(y-\hat{y})}
L=1(y−y^)L = \textbf{1}_{(y-\hat{y})}

Q. What is the purpose of the loss function ?

A. To tell the model that some correction needs to be done!

Q. How ?

A. We will see soon

Loss Function

How is this different from the squared error loss function ?

(c) One Fourth Labs

Squared error loss is equivalent to perceptron loss when the outputs are boolean.

Weight Screen size Like
0.19 0.64 1 1
0.63 0.87 1 0
0.33 0.67 0 1
1 0.88 0 0
(y)
(y)(y)
\hat{y}
y^\hat{y}
Perceptron Loss Squared Error Loss

0

0

0

0

1

1

1

1

Perceptron loss =

Squared Error loss =

\textbf{1}_{(y-\hat{y})}
1(y−y^)\textbf{1}_{(y-\hat{y})}
(y-\hat{y})^2
(y−y^)2(y-\hat{y})^2

Loss Function

Can we plot the loss function ?

(c) One Fourth Labs

Price

 		 Like
0.2 1
0.4 1
0.6 0
0.7 0
0.45 1
(y)
(y)(y)
Price Like     (w=0.5,b=0.3) Loss
0.2 1 1 0
0.4 1 1 0
0.6 0 1 1
0.7 0 0 0
0.45 1 1 0
\hat{y}
y^\hat{y}
Price Like   (w=0.8,b=0.1) Loss
0.2 1 0 1
0.4 1 0 1
0.6 0 0 0
0.7 0 0 0
0.45 1 0 1
Price Like   (w=1,b=0.5) Loss
0.2 1 1 0
0.4 1 1 0
0.6 0 0 0
0.7 0 0 0
0.45 1 1 0

Error = 1

Error = 3

Error = 0

Learning Algorithm



What is the typical recipe for learning parameters of a model ?

(c) One Fourth Labs

Initialise

1. Show training matrix with 2 inouts and one output



2. on LHS show the box containing w1, w2, b



3. Initialize



4. Iterate over data



5. Highlight first row in data



6. compute_loss

7. update

8 now highlight iterate over data

9. highlight second row, third row, ..., come back to first row

10. till satisfied

11. replace w1, w2 by w and show the box below



\(w_1, w_2, b \)

Iterate over data:

\( \mathscr{L}  = compute\_loss(x_i) \)

\( update(w_1, w_2, b, \mathscr{L}) \)

till satisfied

\(\mathbf{w} = [w_1, w_2] \)

Learning Algorithm



What does the perceptron learning algorithm look like ?

Show the algorithm here, use similar animations as in my lecture. I don't think you can use \algorithmic here

Instead of defining P and N, you can just rewrite the "if" condition as "if y_i = 1 and wx < 0"



w = w + x

b = b + 1

Show the model equation here



First in summation form and then in vector form



Show that the input x is also a vector





(c) One Fourth Labs

Learning Algorithm



Can we see this algorithm in action ?

(c) One Fourth Labs

Show the data here



Add a column for wx+b

and a column for y_hat

Show the algorithm here

Show a 3d plot here of how the values of w1,w2 and b change and the positive and negative half space changes as you go over each data point





Learning Algorithm



What is the geometric interpretation of this ?

(c) One Fourth Labs

- Show model equations again

- Now show the plot and the animations suggested in the black box on the RHS





Now show a plot containing only w and b



show what happens when we do b = b + 1. (The line shifts towards the point)



show what happens when we do w = w + x

(the line rotates towards the point)



Repeat the same for a negative point and show that the opposite happens



Learning Algorithm



What is the geometric interpretation of this (in higher dimensions) ?

(c) One Fourth Labs

- Show model equations again

- Now drop b from the equation

- wx = 0 is a plane which separates the input space into two halves (show plane in the plot)

- Every point x on this plane satisfies the equation wx = 0 (show a plane and points on this plane as vectors)

- w is perpendicular to this plane (show w vector perpendicular to all the points and hence the plane )

- Now show a point in the positive half space as a vector

- Show angle \alpha between this vector and the w vector

- below this box \alpha < 90 --> cos \alpha <0 --> wx < 0



- repeat the above for a negative point



Plot here

Learning Algorithm



How does adding/subtracting x to/from w help ?

(c) One Fourth Labs

Highlight a negative point which was misclassified (you will have to show that it lies on the other side of the plane)



cos(\aplha) = wx < 0



w_new = w - x

cos(\apha_new) = ...now the derivation from my lecture slides





now show that the plane indeed rotates so that the point moves closer to the negative half space (there is a continuation on the next slide)



Plot here

Learning Algorithm



How does adding/subtracting 1 from b help ?

(c) One Fourth Labs

b = b - 1



the plane will move down now so that the point will go to the other side

Plot here

Learning Algorithm



Will this algorithm always work ?

(c) One Fourth Labs

Show a plot of linearly separable data (similar to that in my lecture slides)



Now draw a line which separates the points

Show a plot of linearly separable data (similar to that in my lecture slides)



Now draw a line which separates the points

Only if the data is linearly separable

Learning Algorithm



Can we prove that it will always work for linearly separable data ?

(c) One Fourth Labs

Show a plot of linearly separable data (similar to that in my lecture slides)



Now draw a line which separates the points

Put the statement of the proof here

Learning Algorithm



What does "till satisfied" mean ?

(c) One Fourth Labs

Initialise

\(w_1, w_2, b \)

Iterate over data:

\( \mathscr{L}  = compute\_loss(x_i) \)

\( update(w_1, w_2, b, \mathscr{L}) \)

till satisfied

\( total\_loss  = 0 \)

\( total\_loss  += \mathscr{L} \)

till total loss becomes 0

till total loss becomes < \( \epsilon \)

till number of iterations exceeds k (say 100)

Evaluation



How do you check the performance of the perceptron model?

(c) One Fourth Labs

Same slide as that in MP neuron

Take-aways

So will you use MP neuron?

(c) One Fourth Labs

Show the 6 jars at the top (again can be small)



\( \{0, 1\} \)

\( \in \mathbb{R} \)

Boolean

show the line plot with the issue of non-linearly separable data

show squared error loss

show perceptronlearning algorithm

show accuracy formula

An Eye on the Capstone project

How is perceptron related to the capstone project ?

(c) One Fourth Labs

Show the 6 jars at the top (again can be small)



\( \{0, 1\} \)

\( \in \mathbb{R} \)



Show that the signboard image can be represented as real numbers

Boolean



text/no-text

Show a plot with all text images on one side and non-text on another

show squared error loss

show perceptronlearning algorithm

show accuracy formula

and show a small matrix below with some ticks and crossed and show how accuracy will be calculated

The simplest model for binary classification

An Eye on the Capstone project

How is perceptron related to the capstone project ?

(c) One Fourth Labs

Show the 6 jars at the top (again can be small)



\( \{0, 1\} \)

\( \in \mathbb{R} \)



Show that the signboard image can be represented as real numbers

Boolean



text/no-text

Show a plot with all text images on one side and non-text on another

show squared error loss

show perceptronlearning algorithm

show accuracy formula

and show a small matrix below with some ticks and crossed and show how accuracy will be calculated

The simplest model for binary classification

\( \{0, 1\} \)

Boolean

loss = \sum_i (y_i-\hat{y_i})^2
loss=∑i(yi−yi^)2loss = \sum_i (y_i-\hat{y_i})^2
Accuracy=\frac{\text{Number of correct predictions}}{\text{Total number of predictions}}
Accuracy=Number of correct predictionsTotal number of predictionsAccuracy=\frac{\text{Number of correct predictions}}{\text{Total number of predictions}}

Loss

Model

Data

Task

Evaluation

Learning

Linear

Only one parameter, b

Real inputs

Boolean output

Brute force

Boolean inputs

loss = \sum_i max(0,1-y_i*\hat{y_i})
loss=∑imax(0,1−yi∗yi^)loss = \sum_i max(0,1-y_i*\hat{y_i})

Our 1st learning algorithm

Weights for every input

Assignments



How do you view the learning process ?

(c) One Fourth Labs

Assignment: Give some data including negative values and ask them to standardize it

Aakriti's FINAL copy of 1.6 Perceptron

By aakritibudhraja

Made with Slides.com

Aakriti's FINAL copy of 1.6 Perceptron

  • 506

More from aakritibudhraja
