SCARY

FLEXBOX

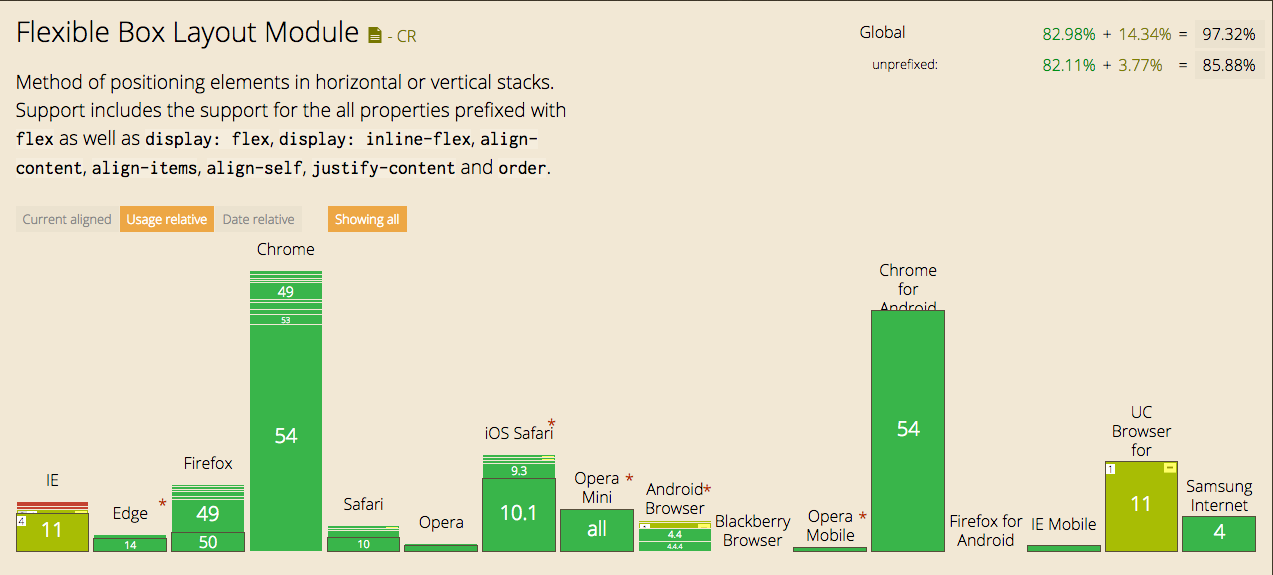

Chrome ~21 Supported it in 2012

.flex-ussage {
  display: box;      /* First draft */
  display: flexbox;  /* Transition draft */
  display: flex;     /* Final draft */
}

FLEX CONTAINER

FLEX ITEM

.flex-container {
  display: flex;
}
.flex-item {
  flex: 1;
}

PUT THESE TOGETHER

FLEX CONTAINER

FLEX ITEM

.flex-container {
  flex-direction: row;
  flex-wrap: nowrap;
  justify-content: flex-start;
  align-items: flex-start;
  align-content: flex-start;
}
.flex-item {
  order: 1;
  flex-grow: 1;
  flex-shrink: 1;
  flex-basis: 1;
  align-self: 1;
}

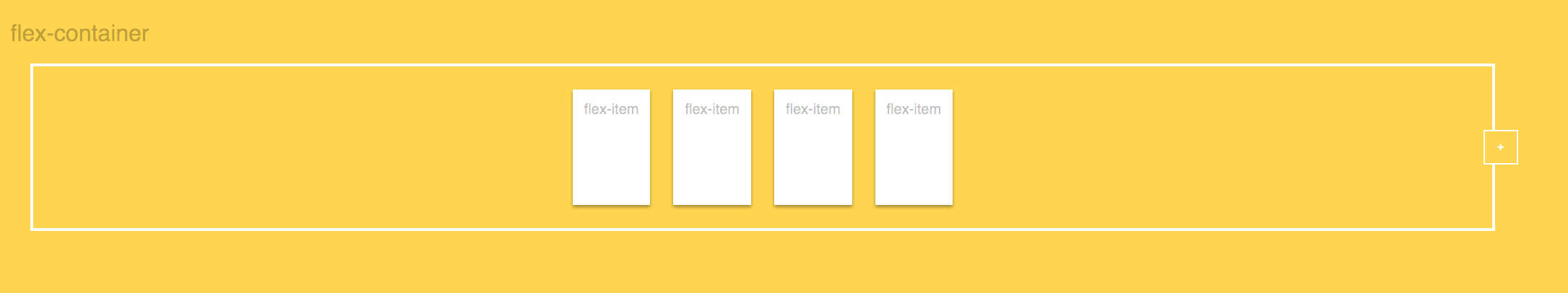

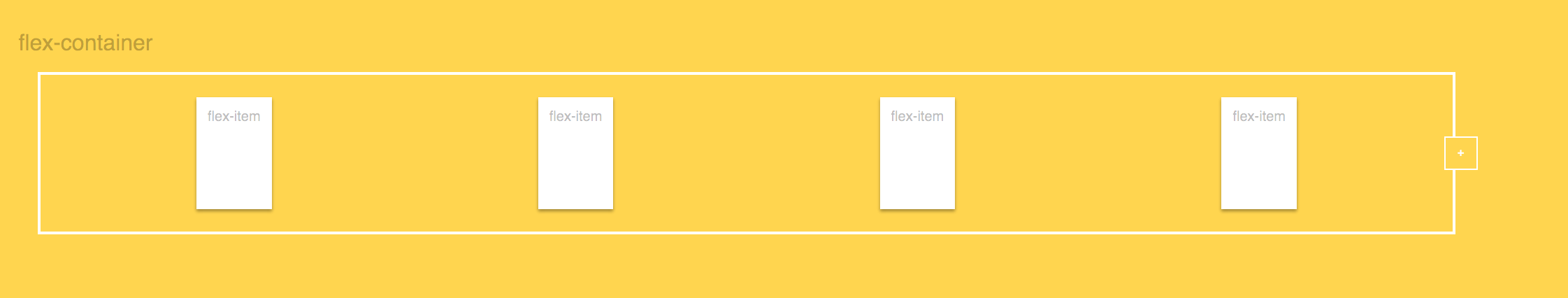

CONTAINER: justify-content

space-around

center

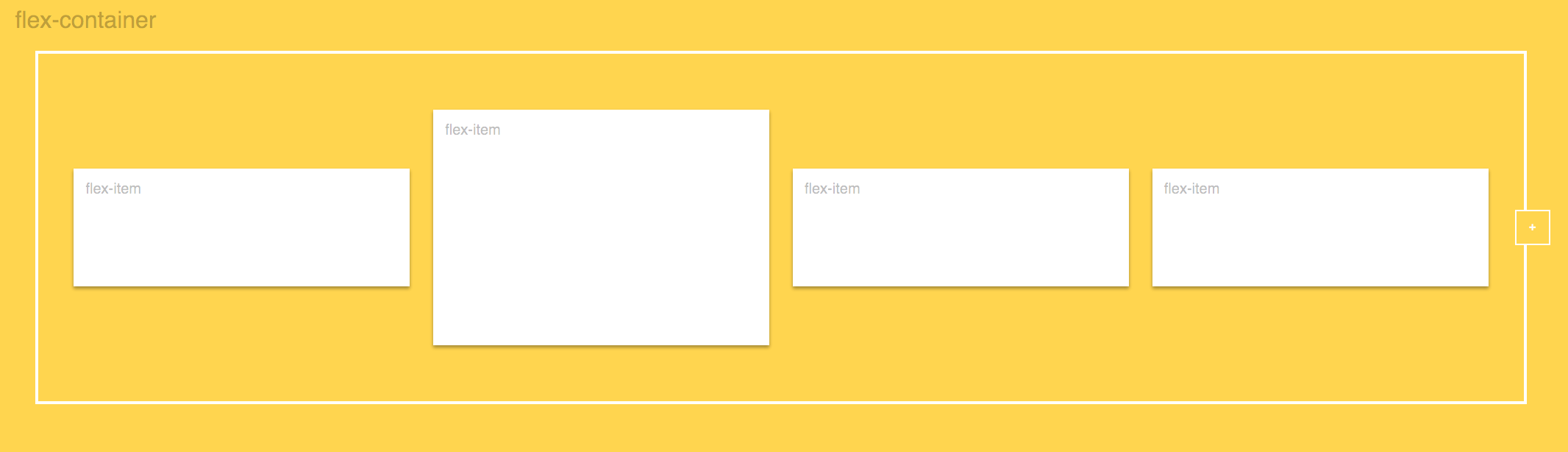

CONTAINER: align-items

center

flex-start

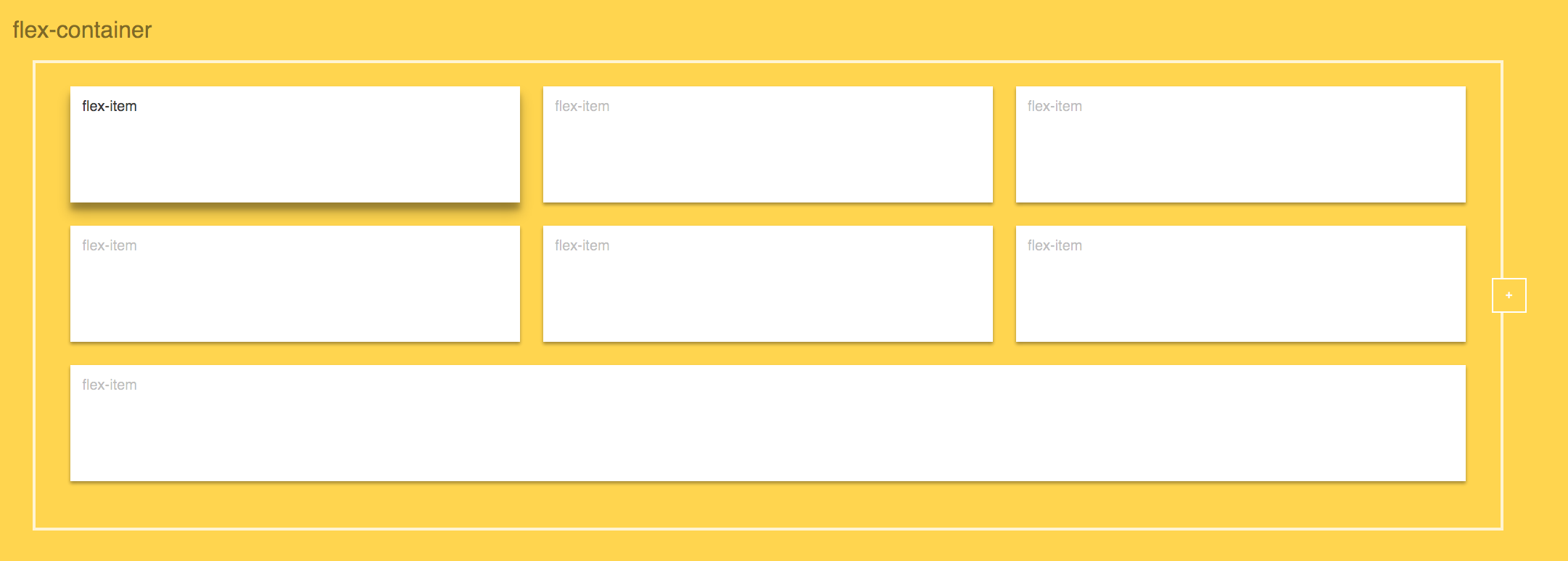

CONTAINER: flex-wrap

wrap

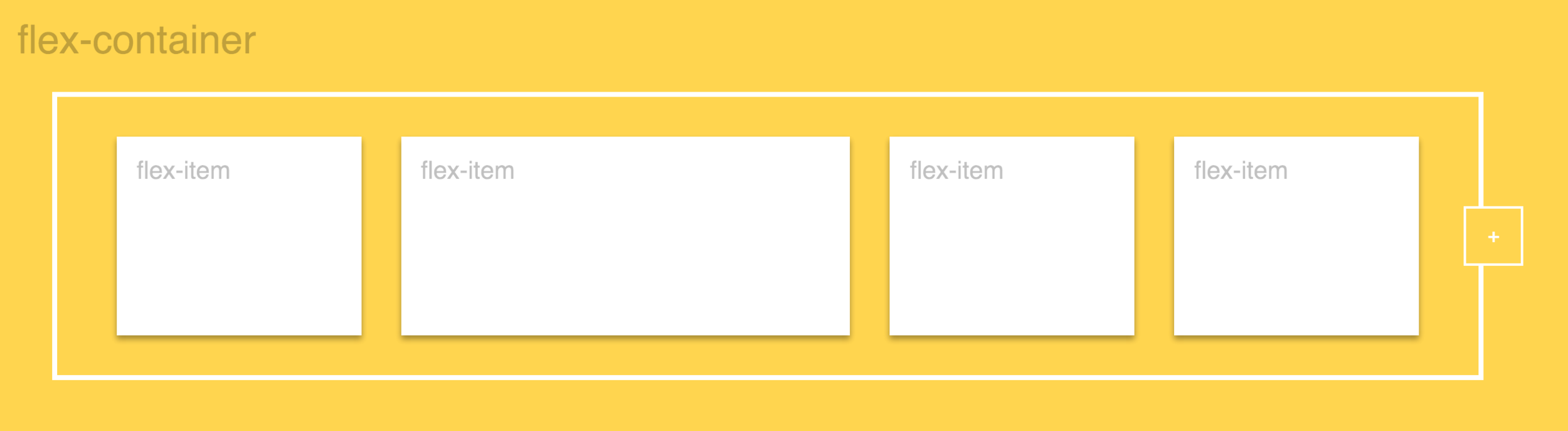

ITEM: flex-grow

Grow and Shrink

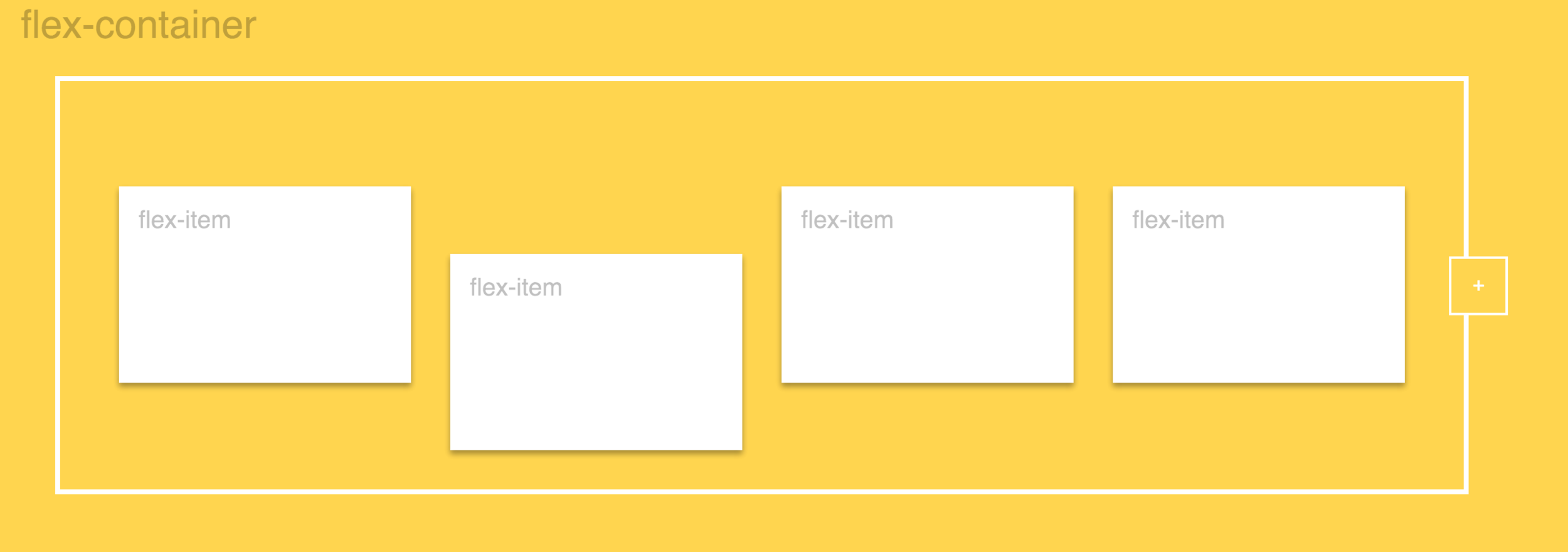

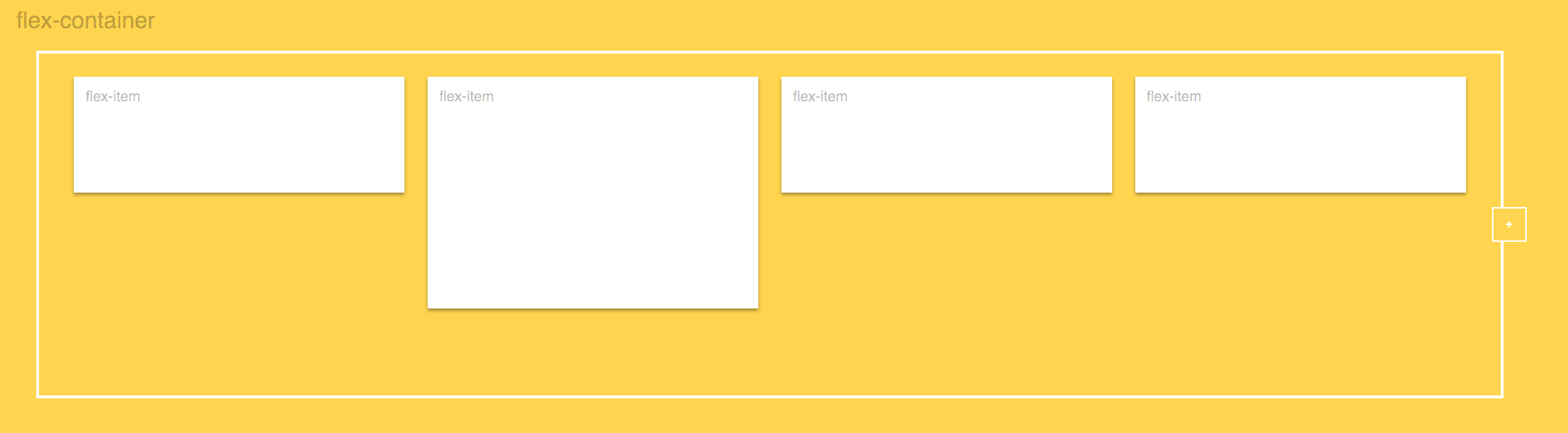

ITEM: align-self

Flex Item #2: flex-end

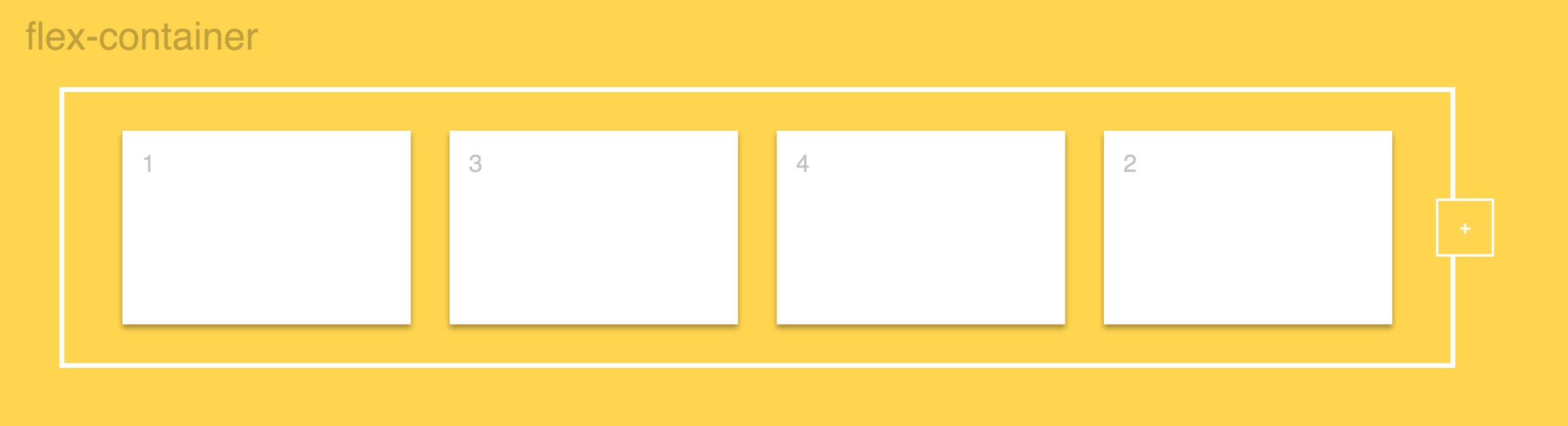

ITEM: order

Flex Item #2: order: 2



css-tricks.com/a-guide-to-flexbox/

-

Chris Coyier







flexbox.io

-

WesBos





HOW TO FLEX

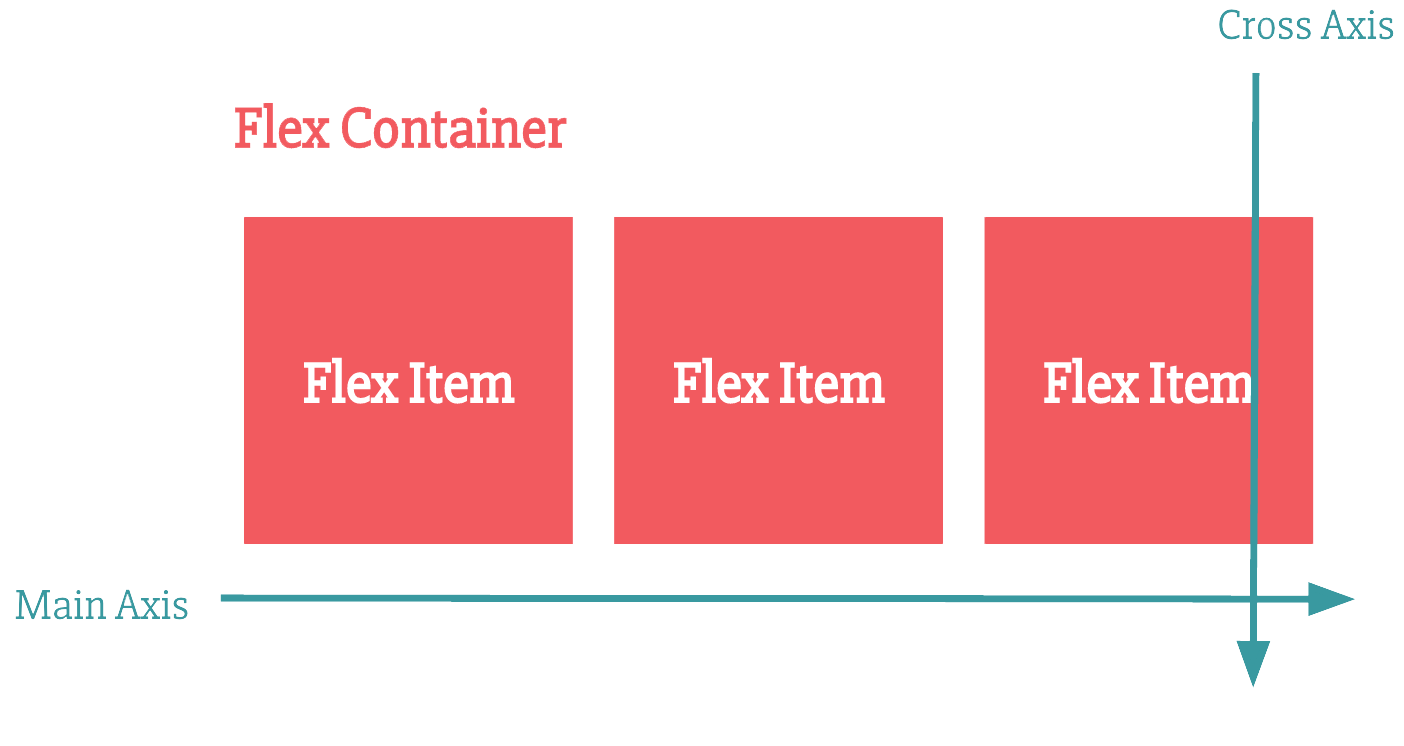

GRASPING THE AXIS CONCEPT

GRASPING THE AXIS CONCEPT

.flex-container {
  flex-direction: column;
}

FLEX ITEMS

.flex-item {
  flex: 1 1 auto;
}
.flex-item {
  flex-grow: 1;
  flex-shrink: 1;
  flex-basis: 1;
}

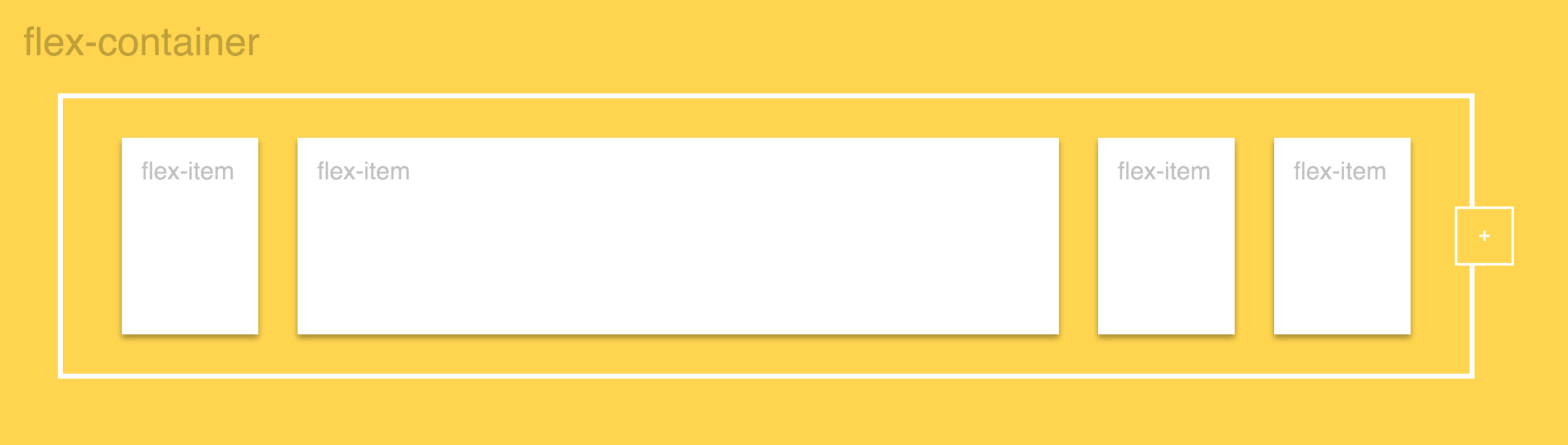

FLEX ITEMS

FLEX ITEM #2: flex: 2

FLEX ITEMS

FLEX ITEM #2: flex-basis: 50%

FLEX ITEMS

/* 0 0 auto */
flex: none;

/* One value, unitless number: flex-grow */
flex: 2;

/* One value, width/height: flex-basis */
flex: 10em;
flex: 30px;
flex: auto;
flex: content;

FLEX ITEMS

/* Two values: flex-grow | flex-basis */
flex: 1 30px;

/* Two values: flex-grow | flex-shrink */
flex: 2 2;

/* Three values: flex-grow | flex-shrink | flex-basis */
flex: 2 2 10%;

FLEX ITEMS

It is recommended that you use this shorthand property rather than set the individual properties. The short hand sets the other values intelligently.



- Chris Coyier

https://github.com/philipwalton/flexbugs#4-flex-shorthand-declarations-with-unitless-flex-basis-values-are-ignored

IE SUPPORT

 Internet Explorer 10-11 ignores unitless flex-basis

.flex-item {
  flex-basis: auto;  /* Sad IE */
  flex-basis: 100%;  /* Happy IE */
  flex-basis: 40px;  /* Happy IE */
}

ONE NEAT TRICK FOR A COOL FLEXBOX HACK

http://joren.co/flex-grow-9999-hack/

ONE NEAT TRICK FOR A COOL FLEXBOX HACK

http://joren.co/flex-grow-9999-hack/

ONE NEAT TRICK FOR A COOL FLEXBOX HACK

http://joren.co/flex-grow-9999-hack/

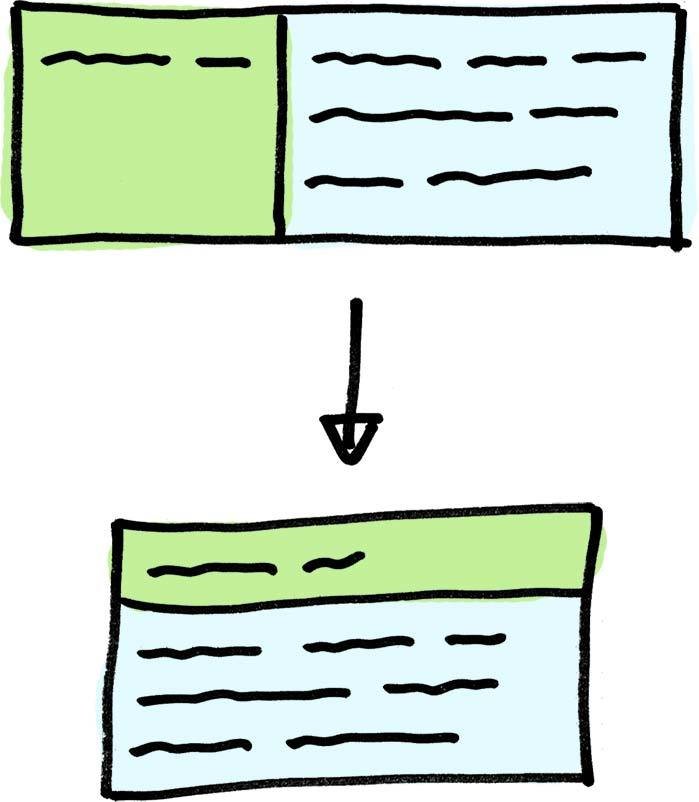

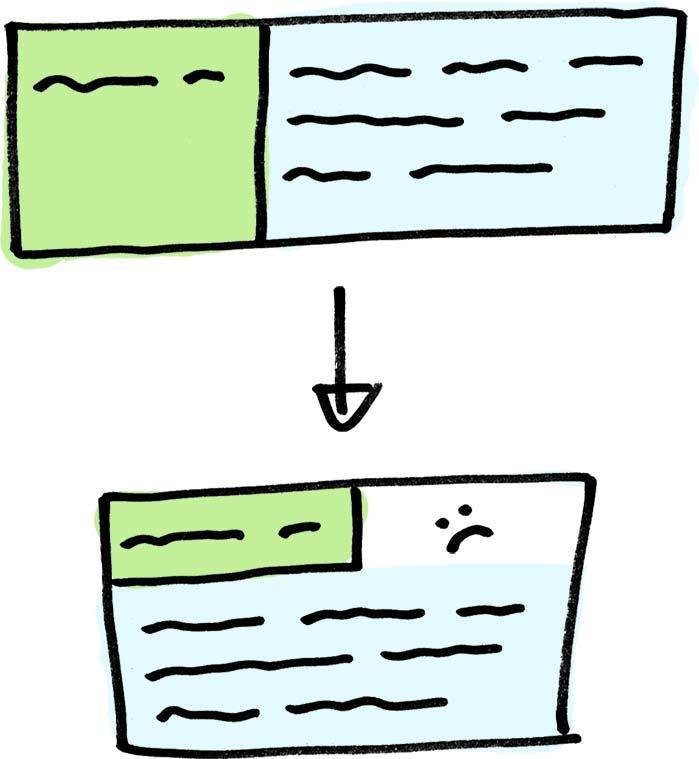

We could use a breakpoint but....



1. The width of item A is unknown. For instance, it contains words that are longer in another language.



2. We don’t know the width of the components parent element. For instance, if it is used in a sidebar and in some other places.



ONE NEAT TRICK FOR A COOL FLEXBOX HACK

http://joren.co/flex-grow-9999-hack/

.container {
    display: flex;
    flex-direction: row;
    flex-wrap: wrap;
}

.item-a {
    flex-grow: 1;
}

.item-b {
    flex-grow: 9999;
    flex-basis: 20em;
}

SCARY

FLEXBOX

NOT SO
