GrC 339
Web Design + Production
Week 6 • Optimization
This Week
- Tutorial Review #4
- Navigation Code due Sunday
- Outputting to next generation image formats
- Page optimization techniques
- Measuring page speed
- Lab: Coding navigation and image alternates
Navigation Code
-
Use of semantic tags (1 mark)
- Header, nav, and list tags incorporated.
- Tags are applied logically and correctly structured.
-
Appropriate use of CSS to select classes
and tags (2 marks)- Additional classes are not applied when they are not needed.
- Code is DRY (Don't Repeat Yourself).
- Selectors and properties are appropriately crafted.
- Classes are used for scoping according to the DOM.
Navigation Code
- Breakpoints are implemented based on common mobile and/or table sizes (1 mark)
- One or more breakpoints properly applied.
- Menu adapts as expected to mobile and desktop views.
- Submission (1 mark)
- CodePen or similar platform used to provide a single link.
- Inline comments are used to explain code and actual links (no placeholders and real file names are used).
Full Bleed CSS Grid
Full Bleed CSS Grid
.wrapper {
display: grid;
grid-template-columns:
1fr
min(65ch, 100%)
1fr;
}
.wrapper > * {
grid-column: 2;
}
.full-bleed {
width: 100%;
grid-column: 1 / 4;
}Exercise
- GIF
- PNG-8
- PNG-24
- JPEG
- SVG
- WebP
- AVIF
- JPEG XL
- BGP
- FLIF
- Scalability: is it a vector format?
- Color support: number of colors available (256, 16.7 million, etc.)
- Alpha channel support
- Transparency support
- Lossless support
- Expected compression savings
- Compression algorithm
- Browser support: caniuse.com
- Export support from Photoshop/Illustrator/Sketch
- Online conversion tools
- Corporate support (endorsements, funding, etc.)
- Mobile features: can we use it for burst, HDR, and live photos?
Common Formats
- GIF, PNG-8, PNG-24, JPEG
Upcoming Formats
- SVG
- WebP
- AVIF
- JPEG XL
- BGP, FLIF?
SVG
- XML structure, plain text
- Ideal for simple vectors
- Logos and basic objects
- Complex vectors = large file sizes
- Flat images with scalability
- SVGZ employs ZIP compression
- Widely supported
WebP
- Google created, slow adoption
- 20%+ compression benefit over PNG + JPEG
- Lossless support
- Alpha channel support
- Majority support as of mid-2020
- Questionable quality at high compression levels
- SEO score?
avif
- Based on AV1 video format
- Better compression than WebP generally
- Lossless support
- Alpha channel support
- HDR support
- Poor support (Chrome & Firefox* only)
- Best visual quality, especially text overlays
- Some concern with processing
- Endorsed by Netflix & Cloudflare
- Lots of mobile features (burst, live photos, etc)
JPEG XL
- ISO standard (18181)
- HDR support
- High compression
- Lossless support
- Alpha channel
- Open-source & royalty-free
FLIF & BGP
- FLIF: Free Lossless Image Format
- Smallest lossless format according to FLIF benchmarks
- 17-74% compression savings
- Poly-fill to support for now
- BGP: Better Portable Graphics
- HDR support and alternate color-spaces
- Best for JPEG-style graphics
- Best for systems with access to dedicated graphics cards
- Poly-fill to support for now
Creating a Pipeline
Several challenges associated with using formats:
- Browser support
- Processing expectations
- Exporting to multiple formats
- Extra coding and testing
- Increased deployment time
Creating a Pipeline
Automation can make it seamless:
- Poly-fills can improve browser support.
- Some formats have low impacts on processing.
- Watched folders and scripting for batch conversion.
- Once you've tested one approach, things speed up.
- CDNs can reduce conversion and deployment.
# Encode JPEG to AVIF with default settings
avif -e cat.jpg -o kitty.avif
# Encode PNG with slowest speed
avif -e dog.png -o doggy.avif --best -q 15
# Lossless encoding
avif -e pig.png -o piggy.avif --losslessCLI Samples
Using go-avif
<picture>
<source srcset="img/photo-mobile.avif" type="image/avif" media="(max-width:650px)">
<source srcset="img/photo-mobile.webp" type="image/webp" media="(max-width:650px)">
<source srcset="photo-mobile.jpg" media="(max-width:650px)">
<source srcset="img/photo-desktop.avif" type="image/webp" media="(min-width:651px)">
<source srcset="img/photo-desktop.webp" type="image/webp" media="(min-width:651px)">
<img src="img/photo.jpg" alt="Description of Photo">
</picture>Web Optimization
So far
- Using a CDN
- Resizing images
- Compressing images
What other techniques are you aware of?
Optimization opportunities exist at every stage of a request
Image: Mozilla MDN
1. HTTP Request
Use HTTP/2 or SPDY
Image: Yoast
2. Web Server Software
- Controlling how responses are handled
- Switching to Nginx, Lighttpd, JAMstack
- Caching server-side
- Client-side caching
- Clustering / Load-balancing
- Brotli or GZip compression
3. Database
- Optimizing storage (flatten database)
- Reducing calls for data
- Batching requests
- Routinely export to JSON
- Choosing an appropriate storage system
GraphQL vs MariaDB vs MongoDB - Caching at DB level
4 + 5. Web App
- Optimizing code (less loops!)
- Unites/Joins using the database
- Convert dynamic assets to static
- Use asynchronous calls
(avoid reloading the entire page) - Defer processing to client
6-7. Client-Side
- Implement caching
- Reduce CSS painting
- Minimize HTTP requests
- Minify + Uglify
- Package files together
- Required assets first, load JS later
- Not all files are needed for each page
- Progressive loading
For your Projects
- Reduce CSS painting
- Minimize HTTP requests
- Minify: cssminifier.com
- Reduce the number of frameworks
- Package CSS + Package JS
- Use a CDN for packages (jQuery, Font Awesome)
- Defer JS (async)
Measurement

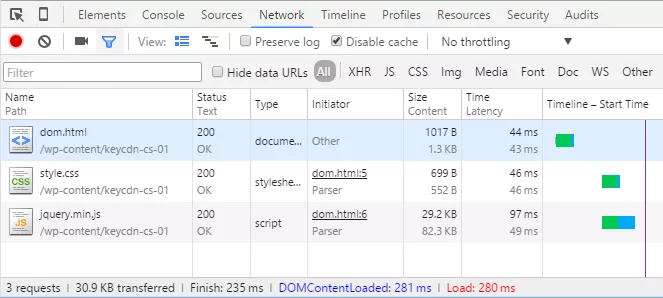

Web Inspector

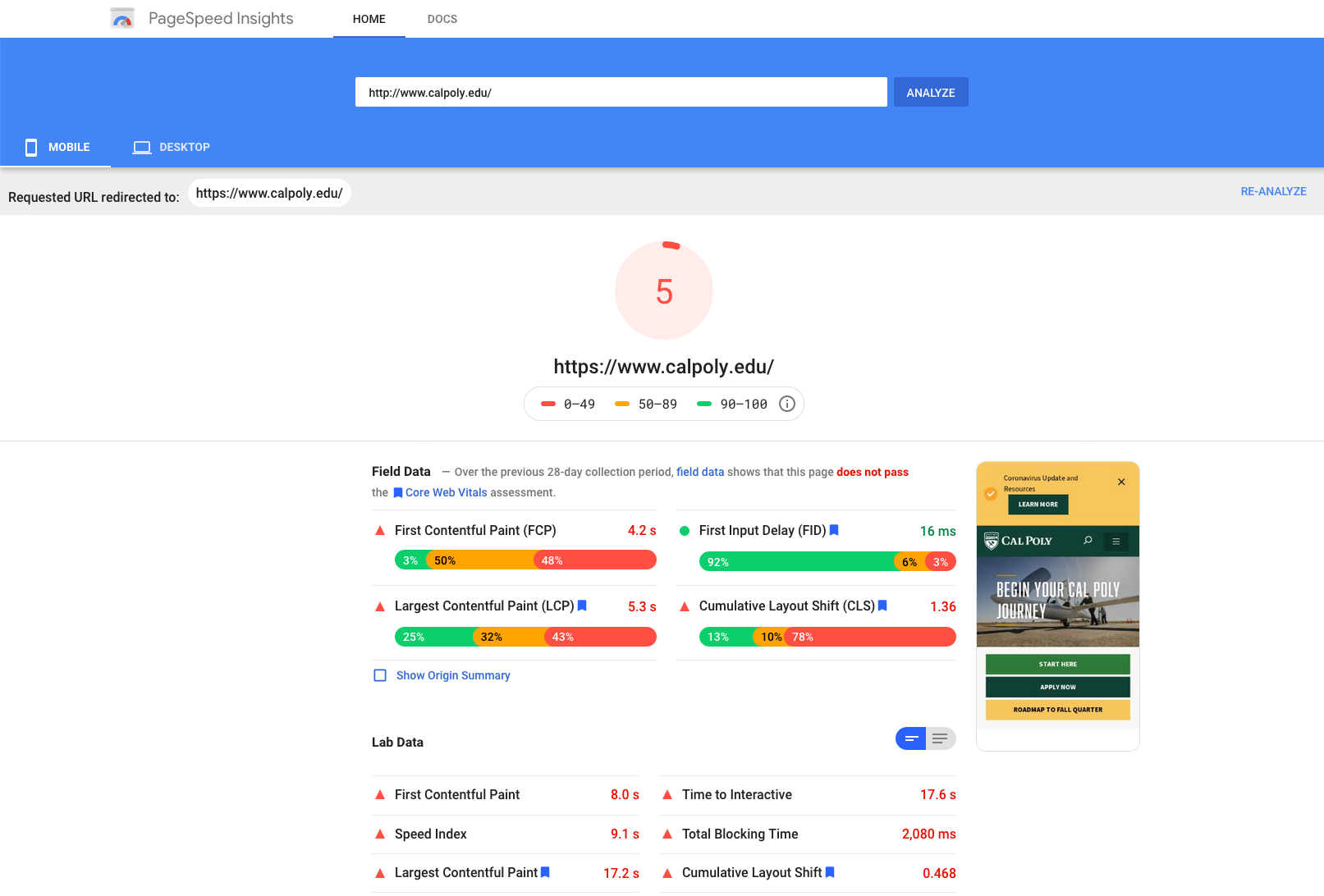

Google Page Speed

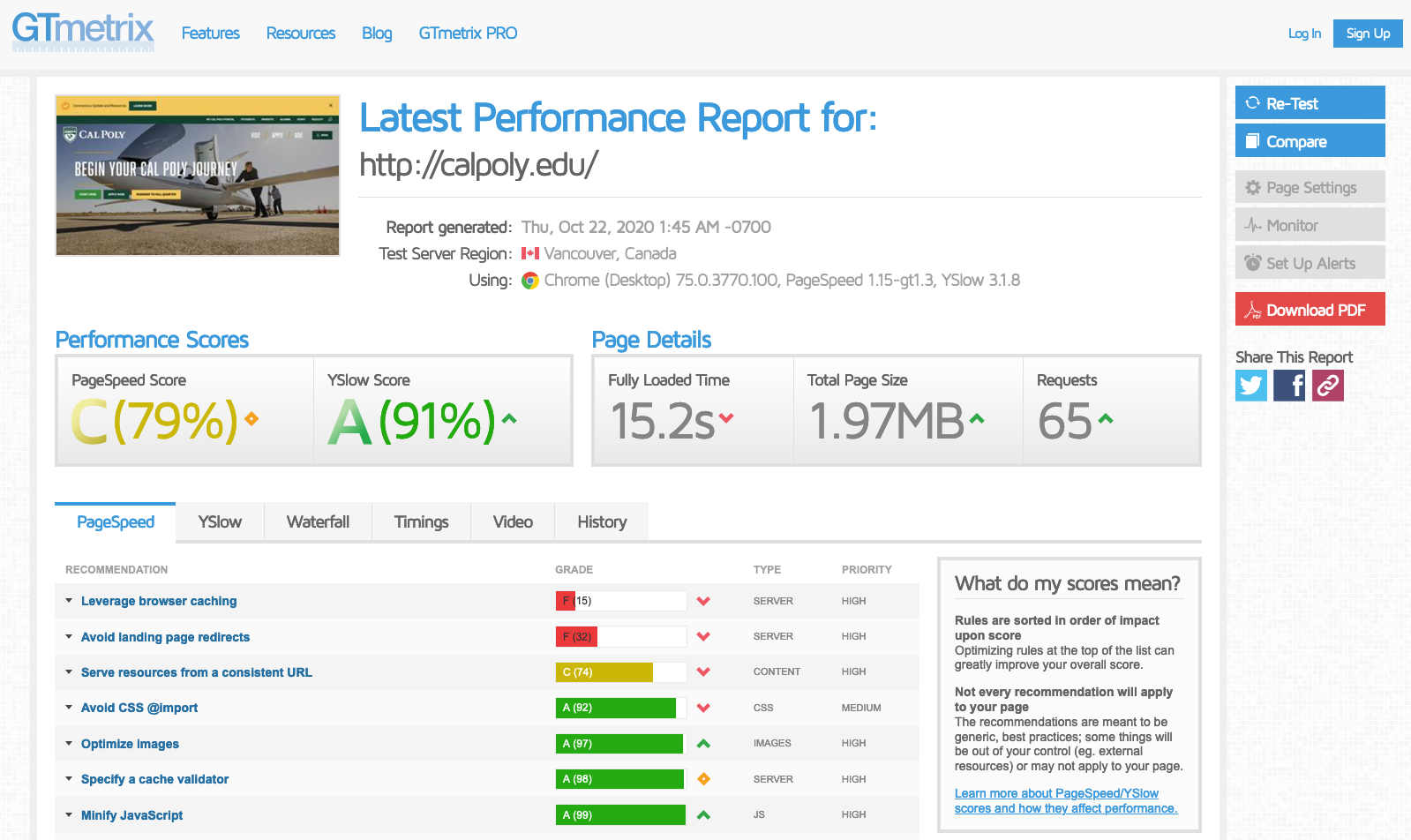

GTMetrix
