Measuring

Performance

About me

Alexandre Moureaux

Tech Lead  @

@almouro

github.com/almouro

Check out our open-source (github.com/bamlab) and our blog (blog.bam.tech)

60FPS: the Grail of Perf

  • FAST enough for good perceived smoothness

  • Like a movie, it's
    animated pictures

What

about
React Native

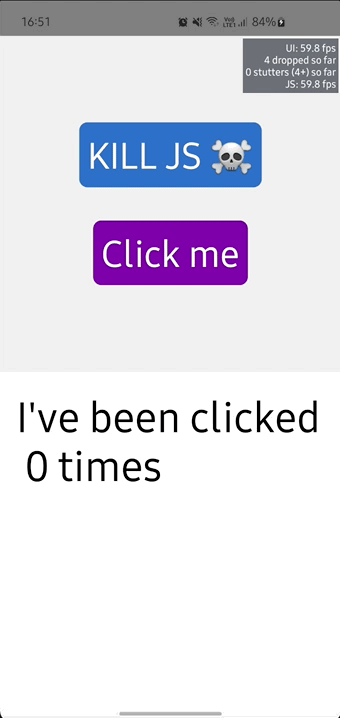

JS thread is important 🔥

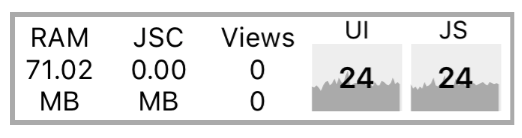

RN Perf Monitor

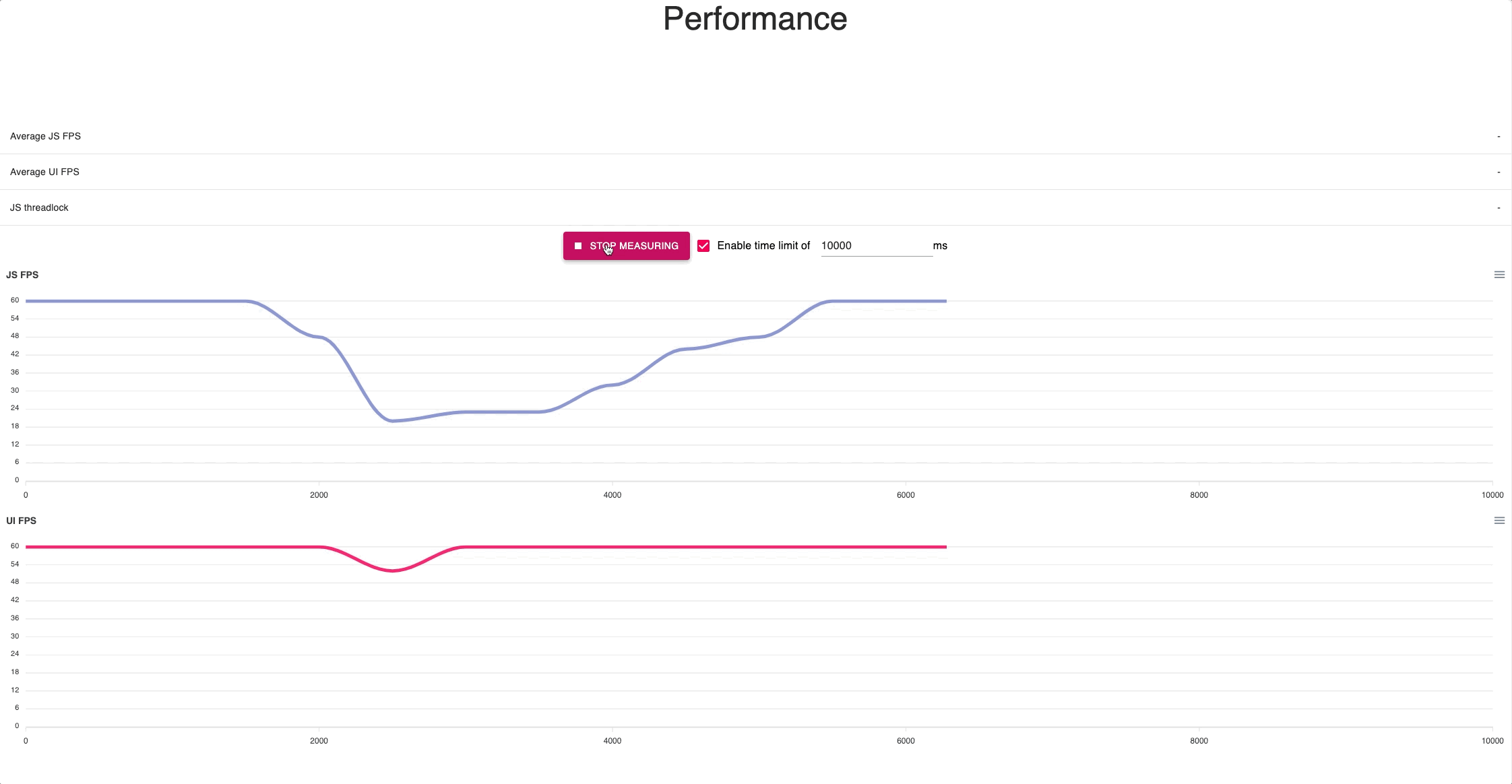

Introducing react-native-flipper-performance-monitor 🥳

4 Tips on
Performance
Measures

TIP 1

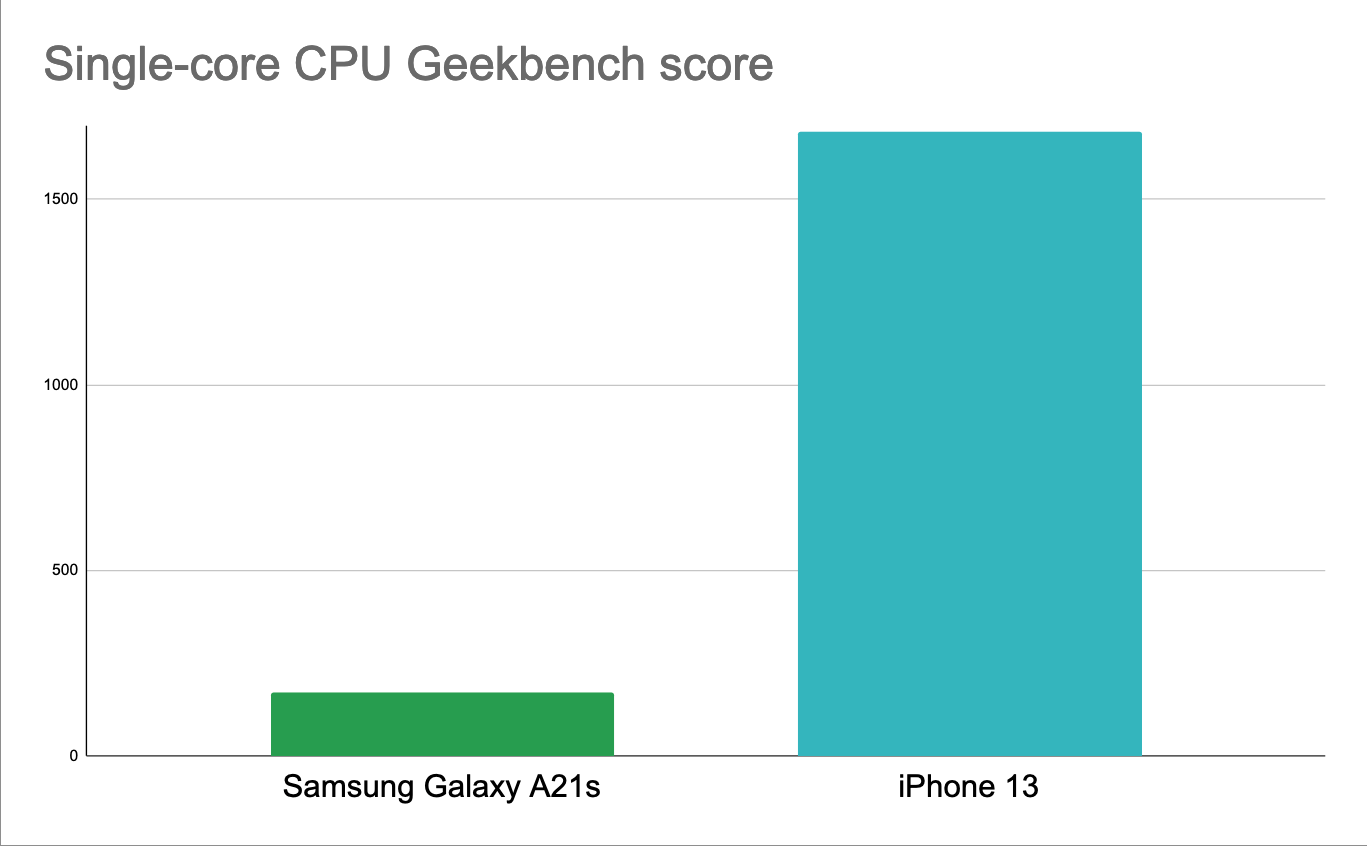

Test on a lower-end device

TIP 2
Make your measures deterministic

Make your measures deterministic

  • Average your measures over several iterations.

  • Keep the same conditions for every measure

  • Automate the behavior you want to test.

PRO TIP: adb is awesome ❤️

TIP 3
Disable JS Dev mode

TIP 4
Use the best analysis tools

The best performance analysis tools

  • JS Thread

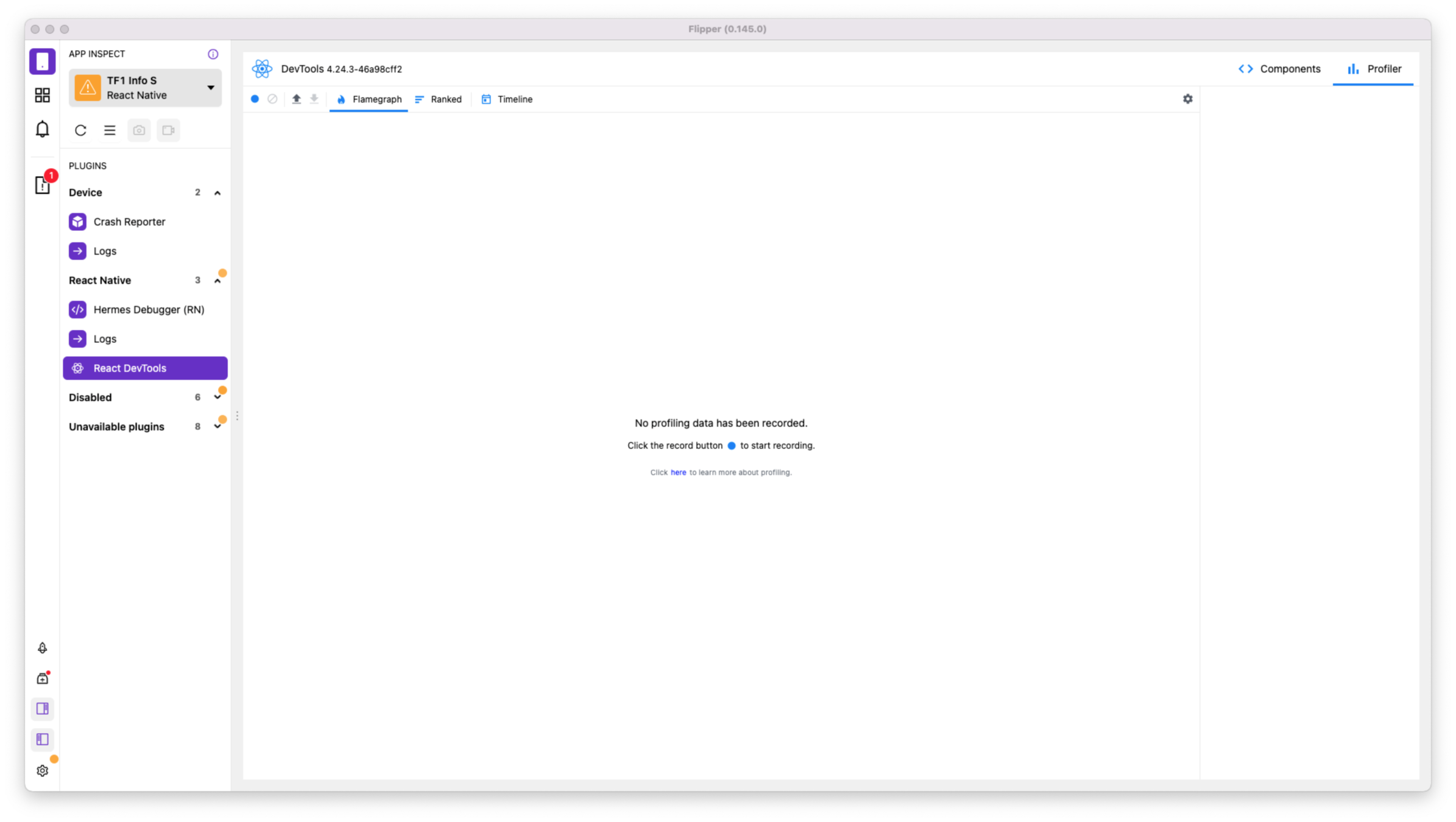

    • React DevTools
    • JS Flamegraph

  • UI Thread -> native tools
    • Android: System trace profiler
    • iOS: XCode instruments

A concrete example

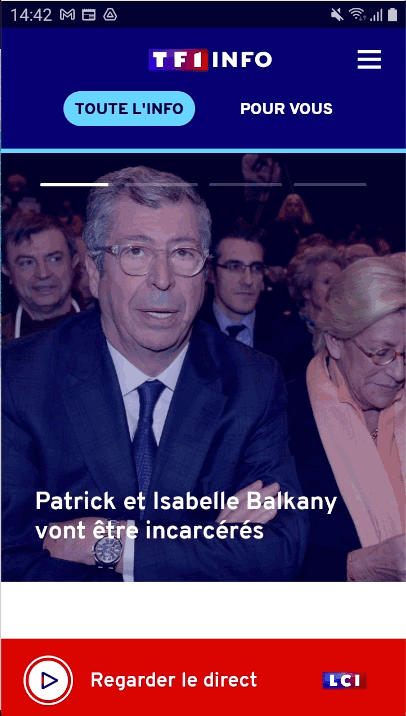

TF1 Info

Our goal: 🤩

  • Low-end device
  • JS FPS > 0
  • UI FPS = 60

Following the 4 essential tips:

  • Use a Samsung J3 2017
  • Setup measures for 10s
  • Reload with JS dev mode disabled
  • Wait for feed to be loaded
  • Hit "Start measuring"

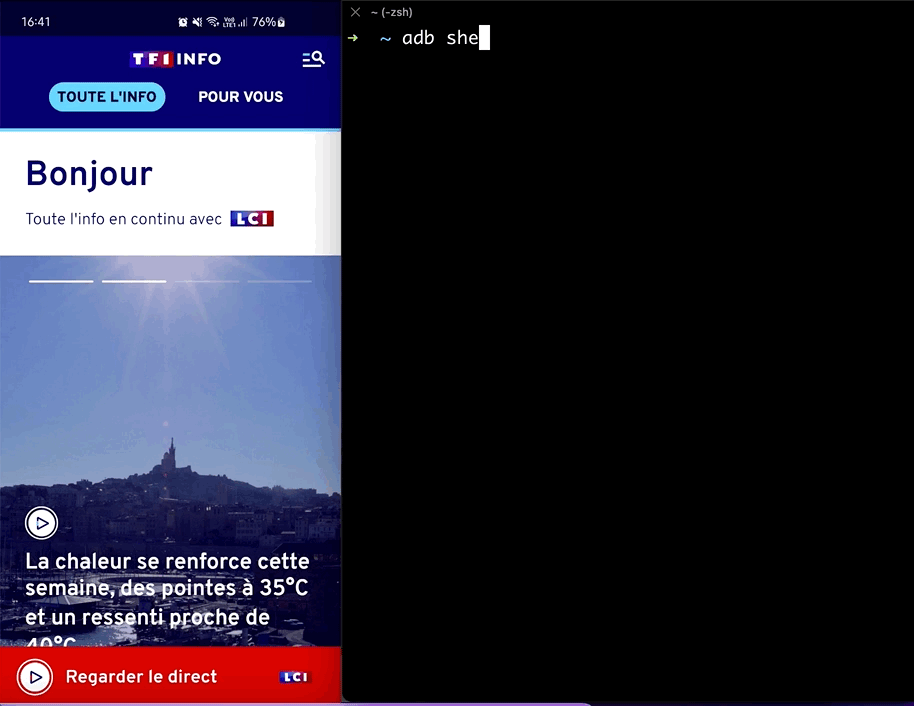

  • adb shell input swipe 500 1000 500 0 50
  • Wait until the end of 10s
  • Reproduce experience 5 times

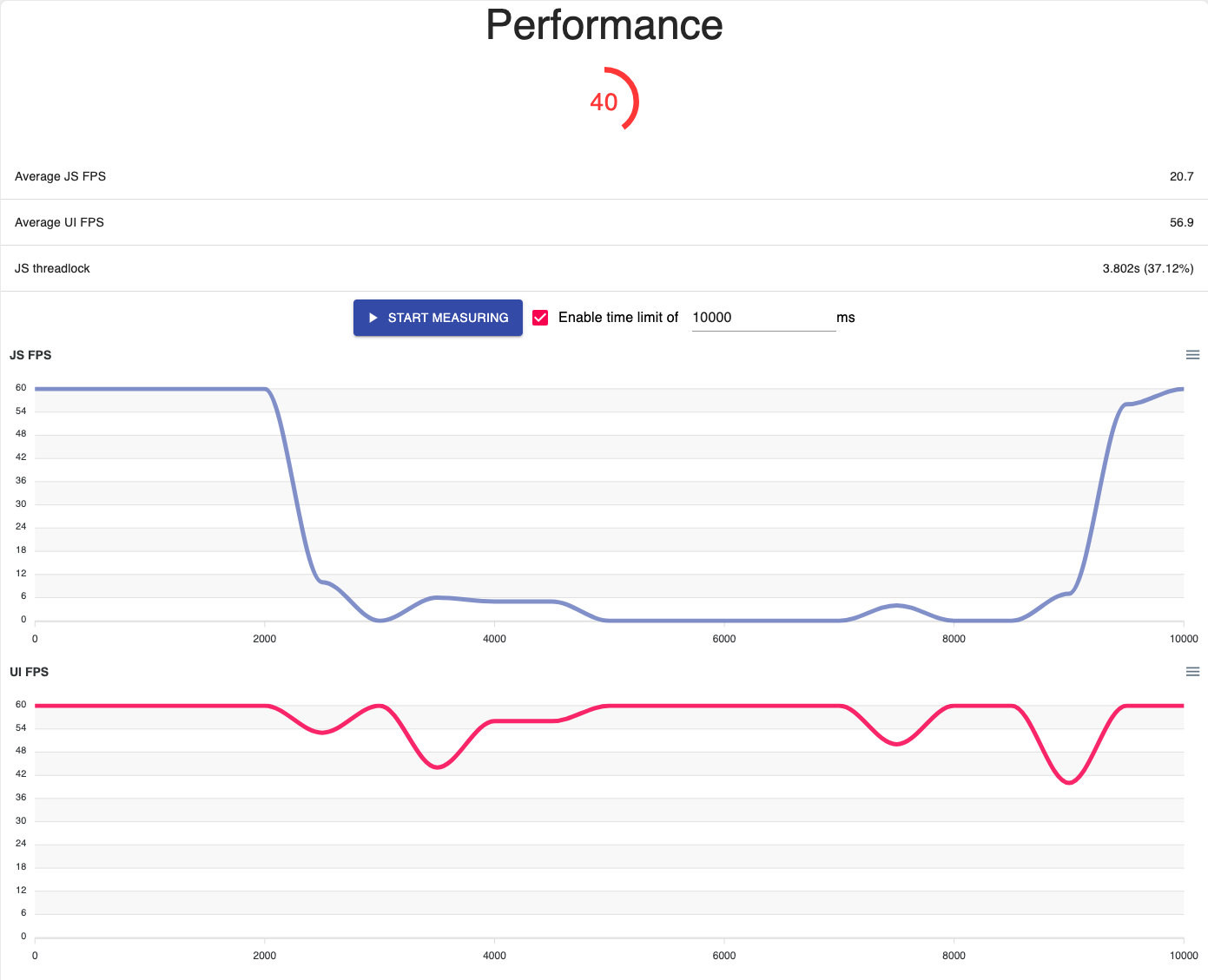

  • Score average: 40/100 ❌

  • JS threadlock: 3.5-4s 😱

  • UI thread: ~60 ✅

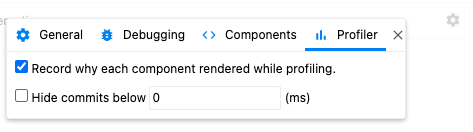

A neat option to activate

Browsing commits

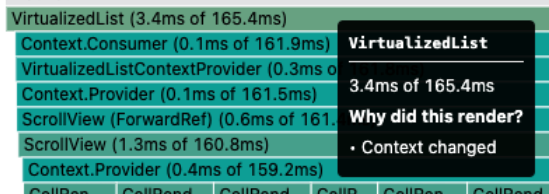

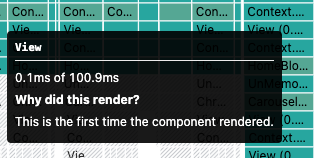

Initial Render

RE-Render

vs

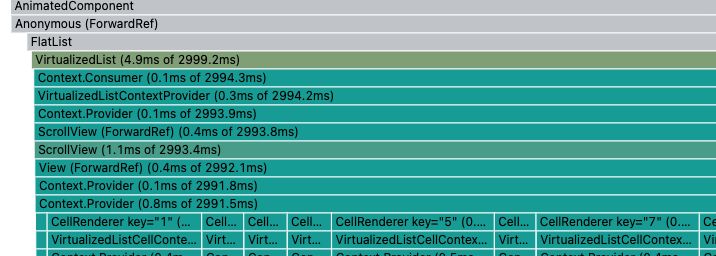

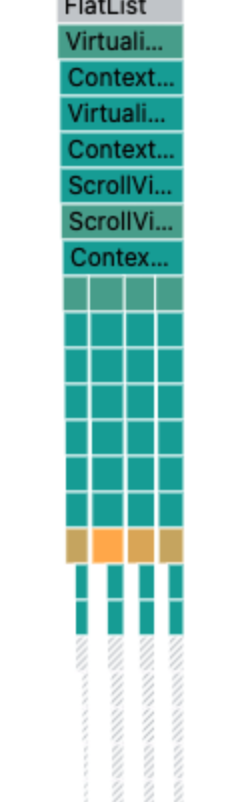

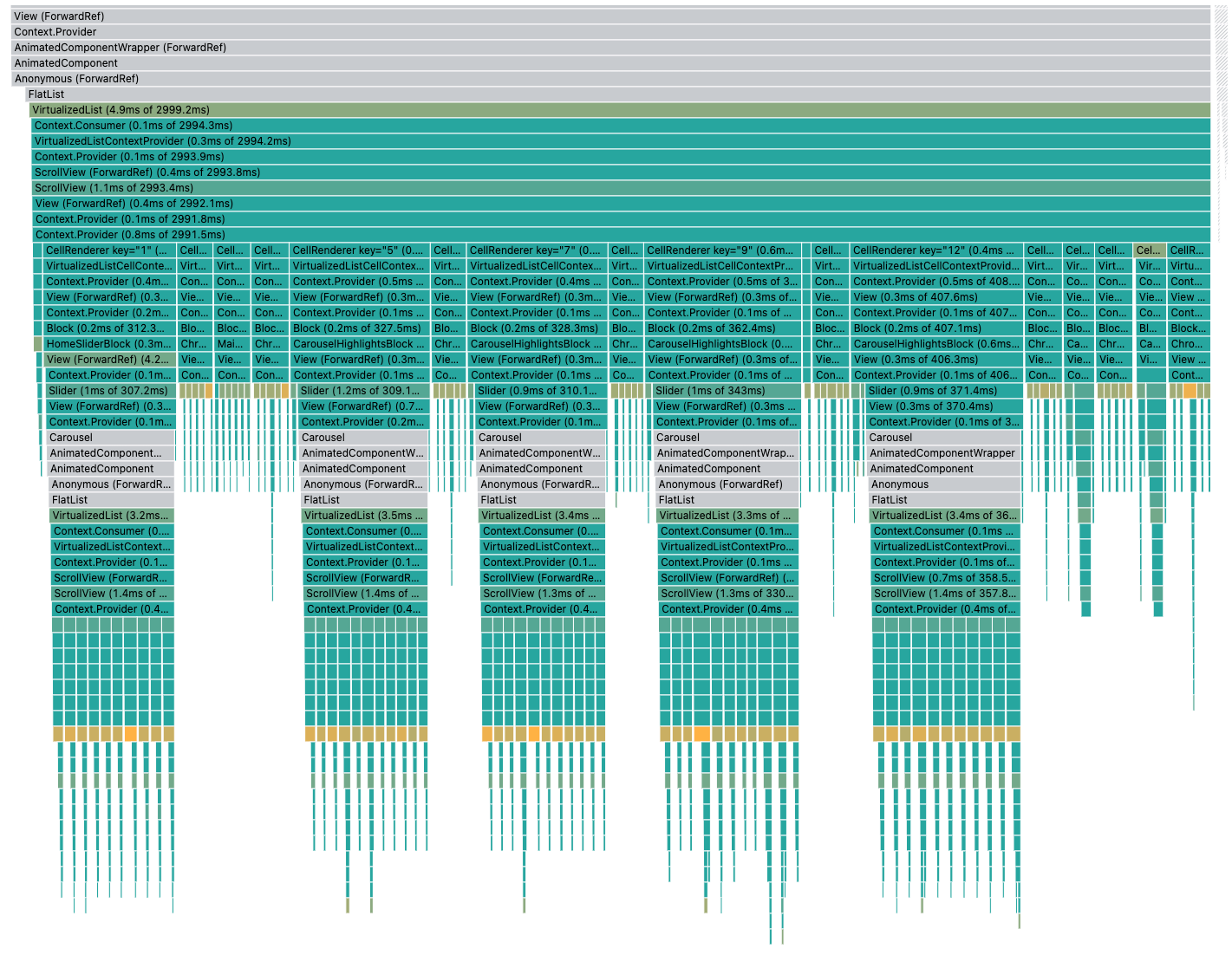

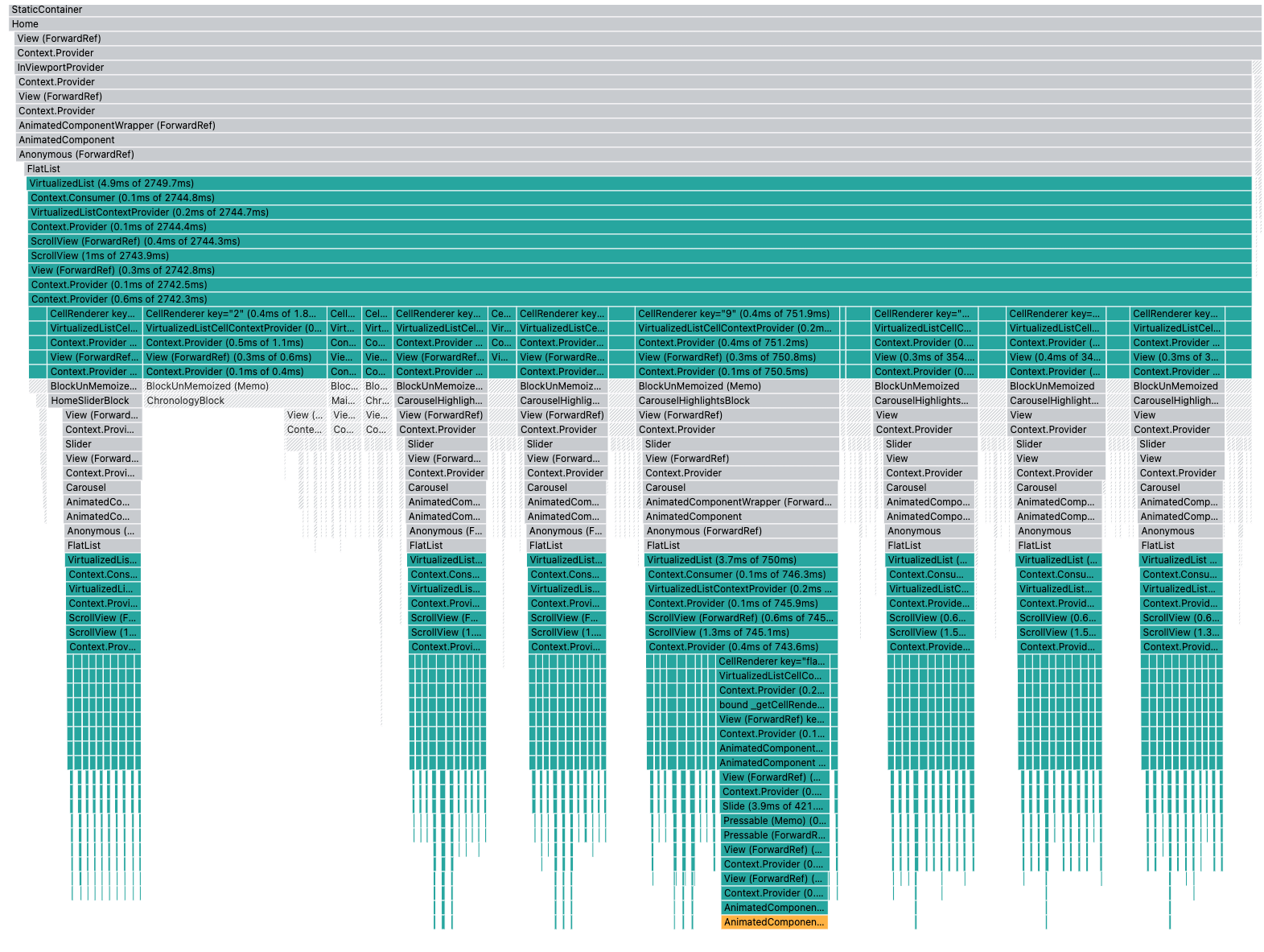

All our list children are RE-rendering

😱

ITERATION 1
Everyone should know this!

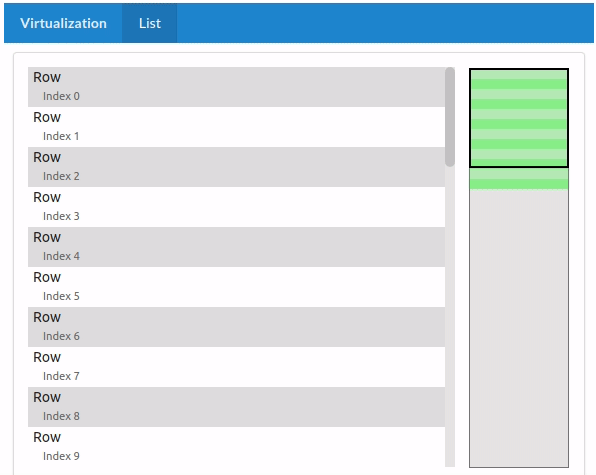

NB:

default windowSize

is 21 viewports

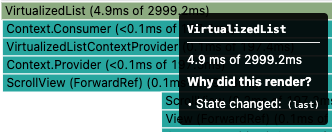

type State = {
  first: number,
  last: number,
};

renderItem is called on scroll by design

MEMO your list items

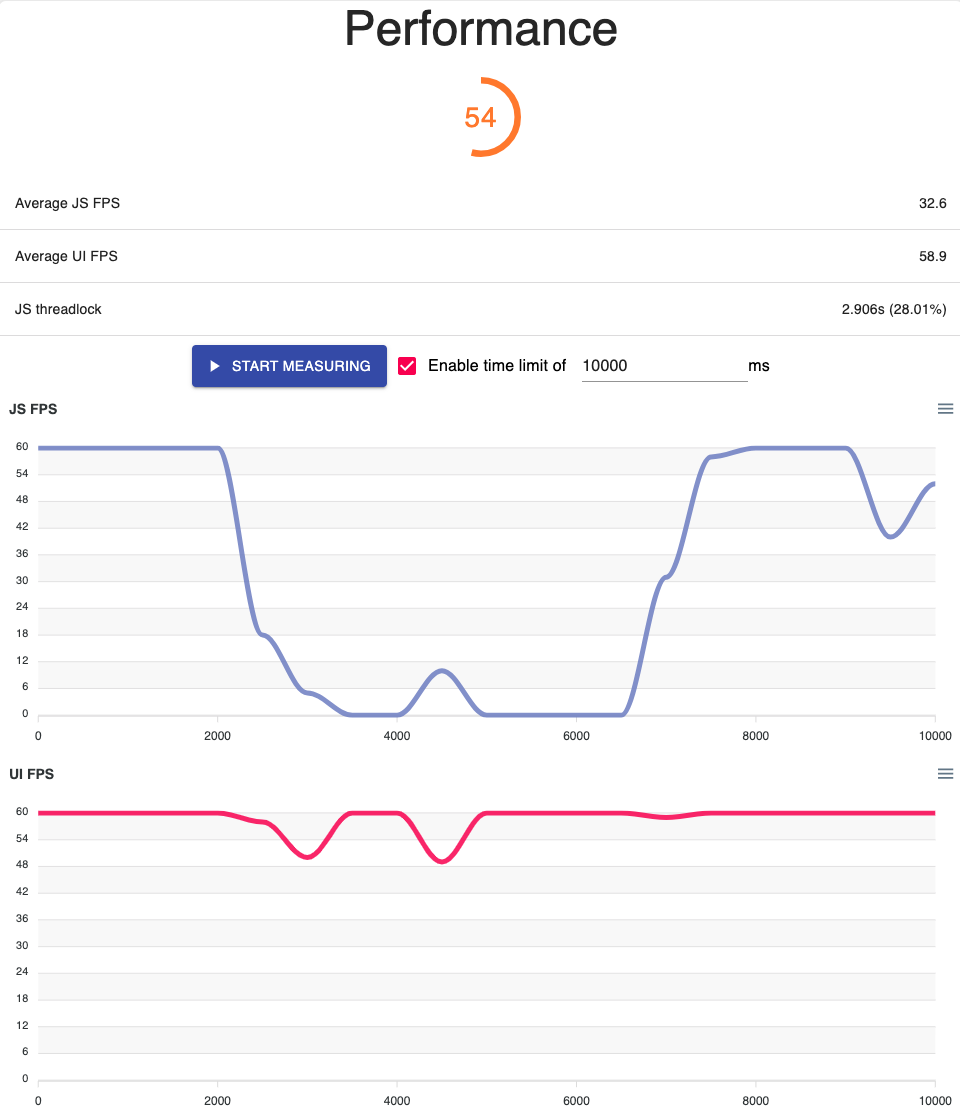

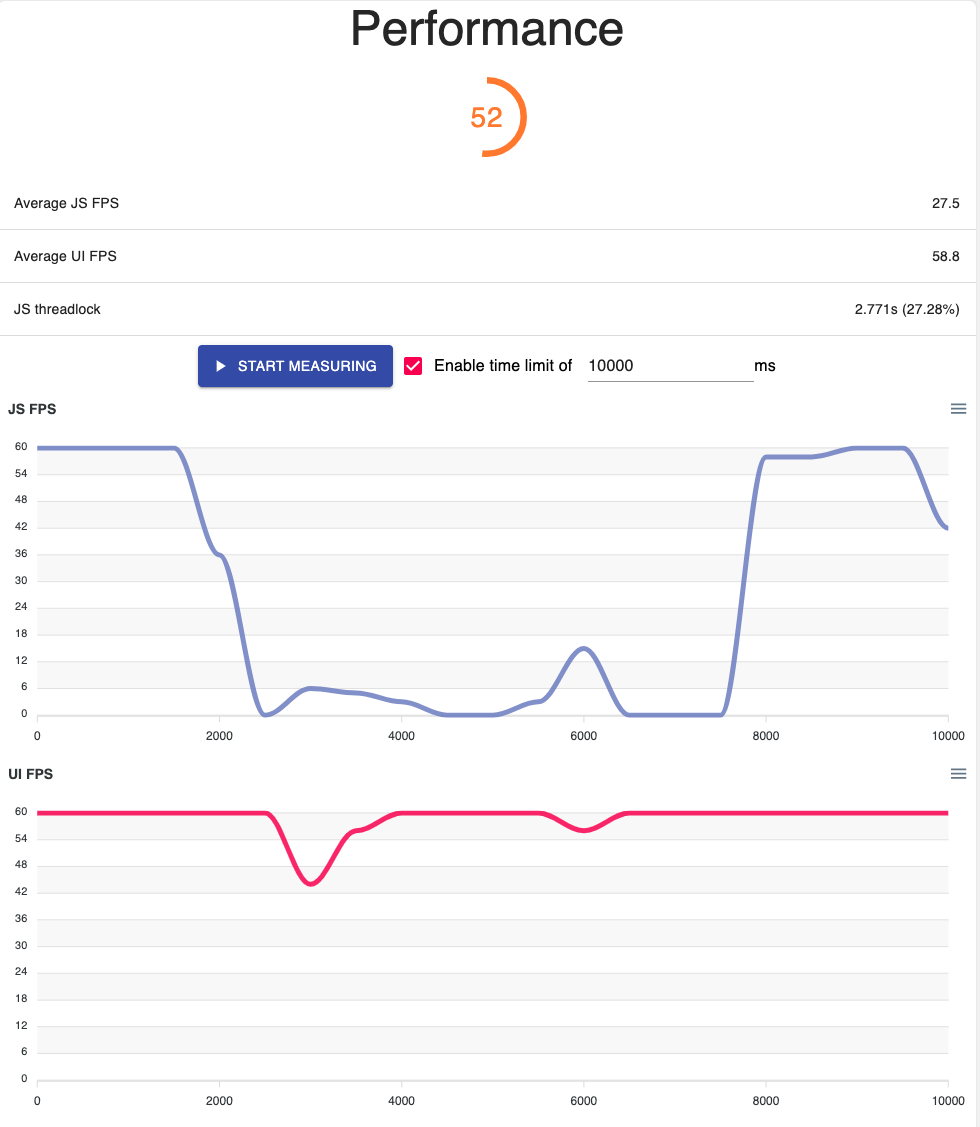

  • Score average:
    40 -> 52     📈

  • JS threadlock: 3.7 -> 2.8s 📉

  • UI thread: ~60 ✅

ITERATION 2
The joy of nested lists 😅

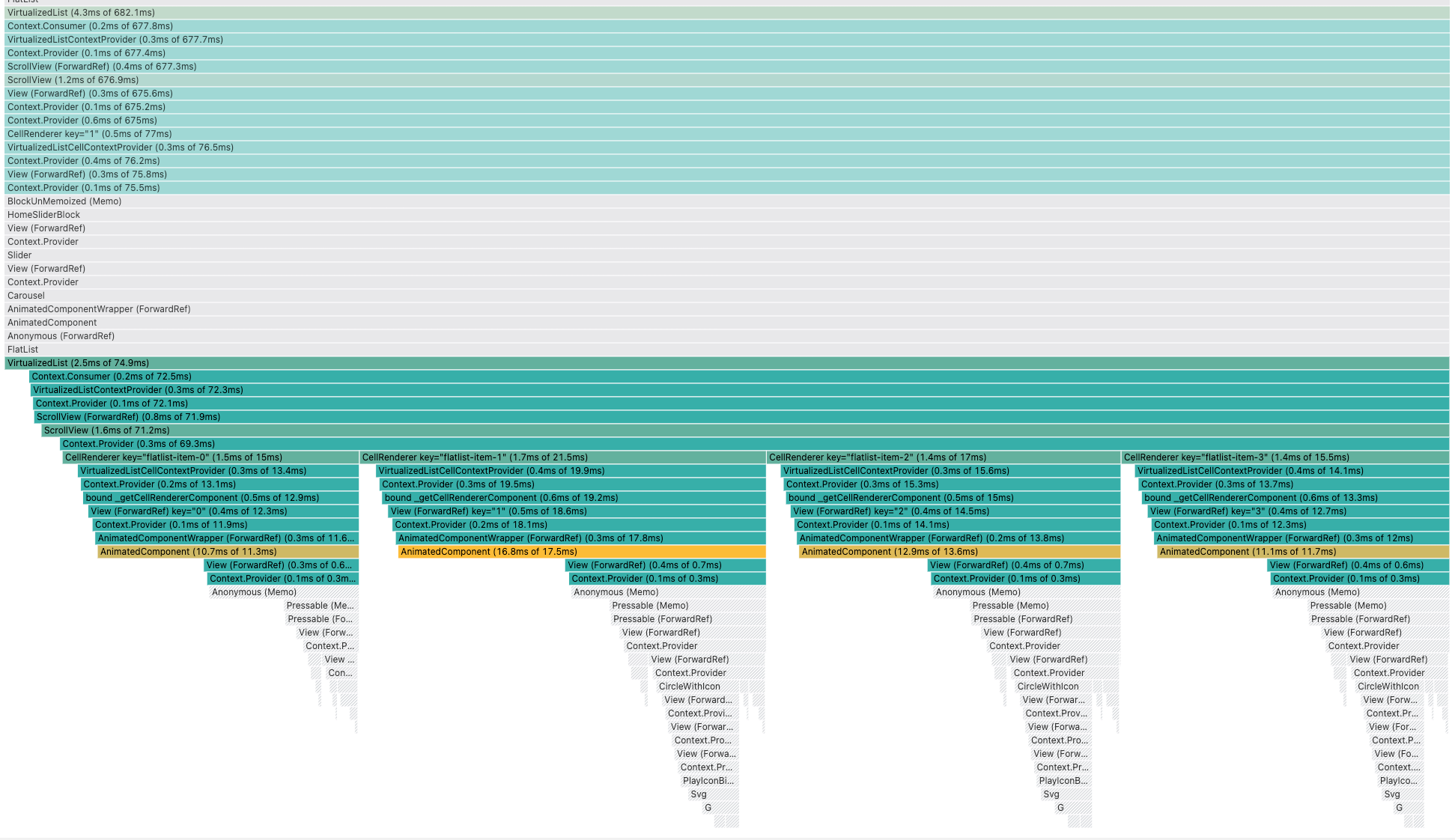

Nested horizontal list renderItem is also called

When we scroll the parent vertical list

  • Score average: same 😕

  • JS threadlock: same 😕

  • UI thread: same 😕

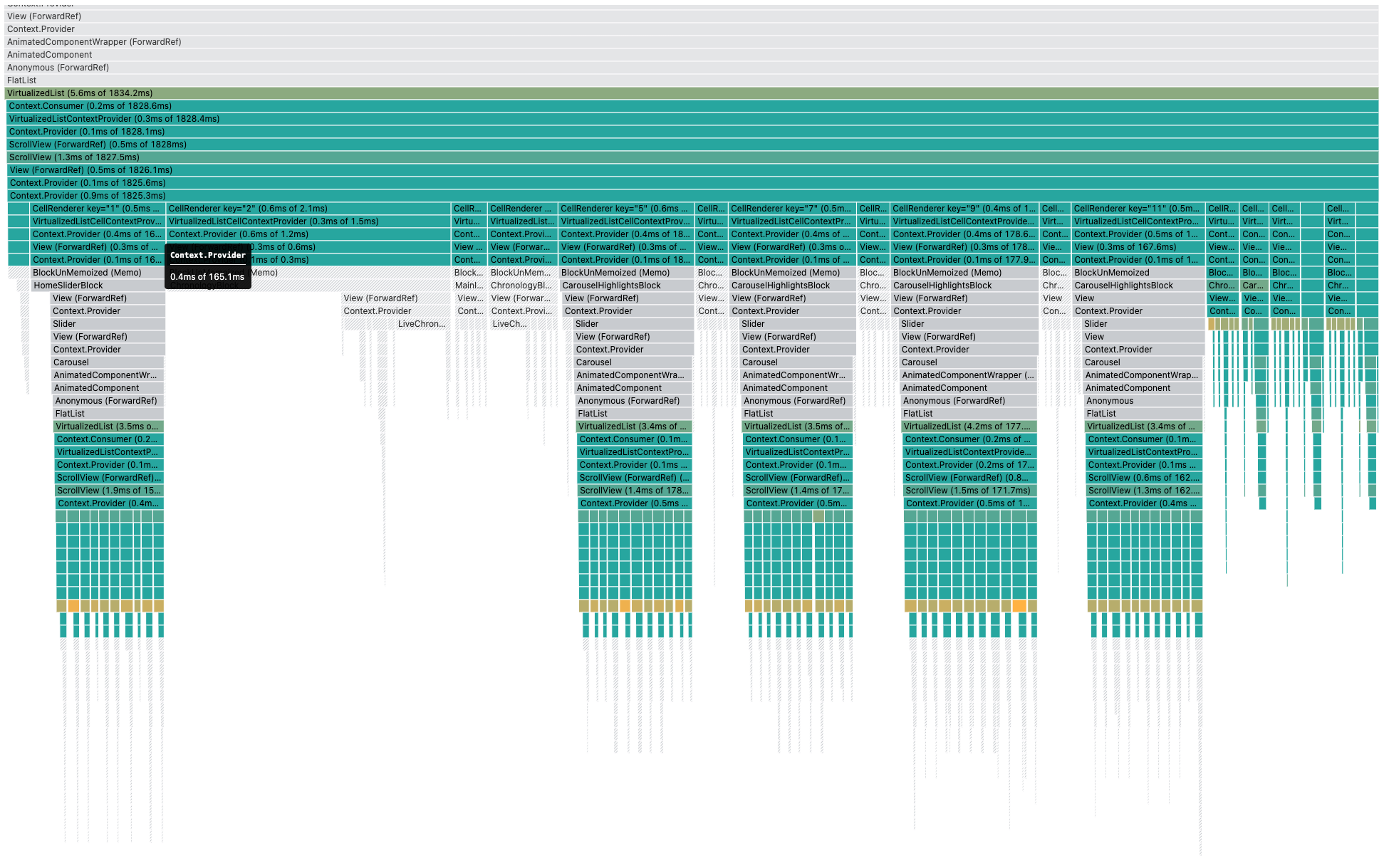

ITERATION 3

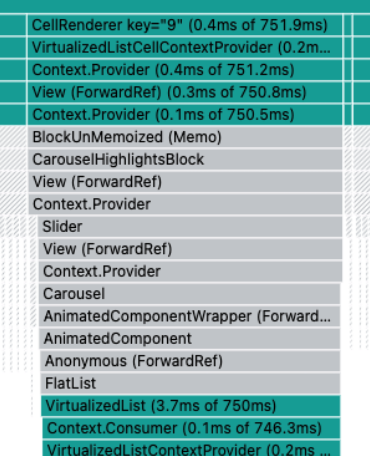

Reducing carousel
re-render

loop prop adds 3 slides on each side

3 + 4 + 3 = 10 🤓

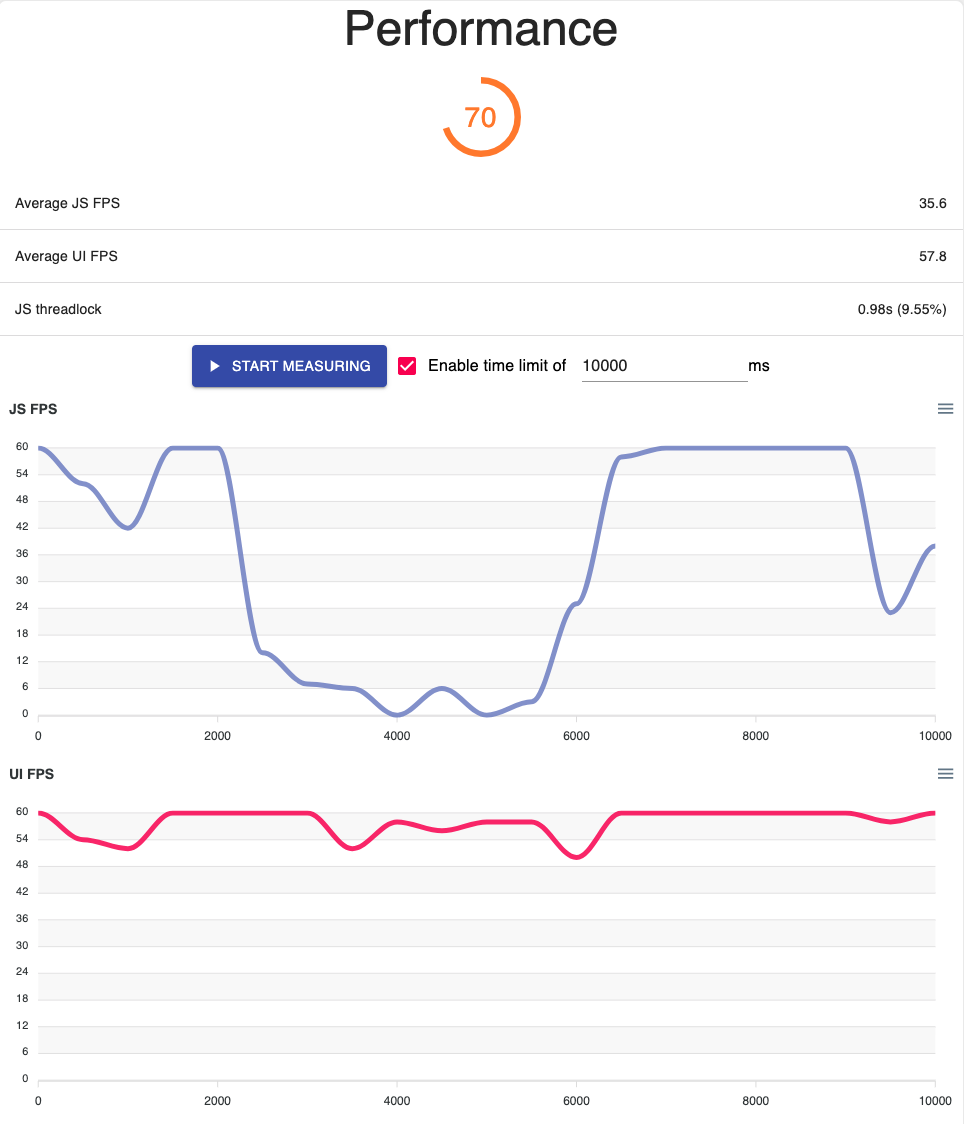

  • Score average: 70/100 📈

  • JS threadlock: 1s 📉

  • UI thread: ~60 ✅

🥳

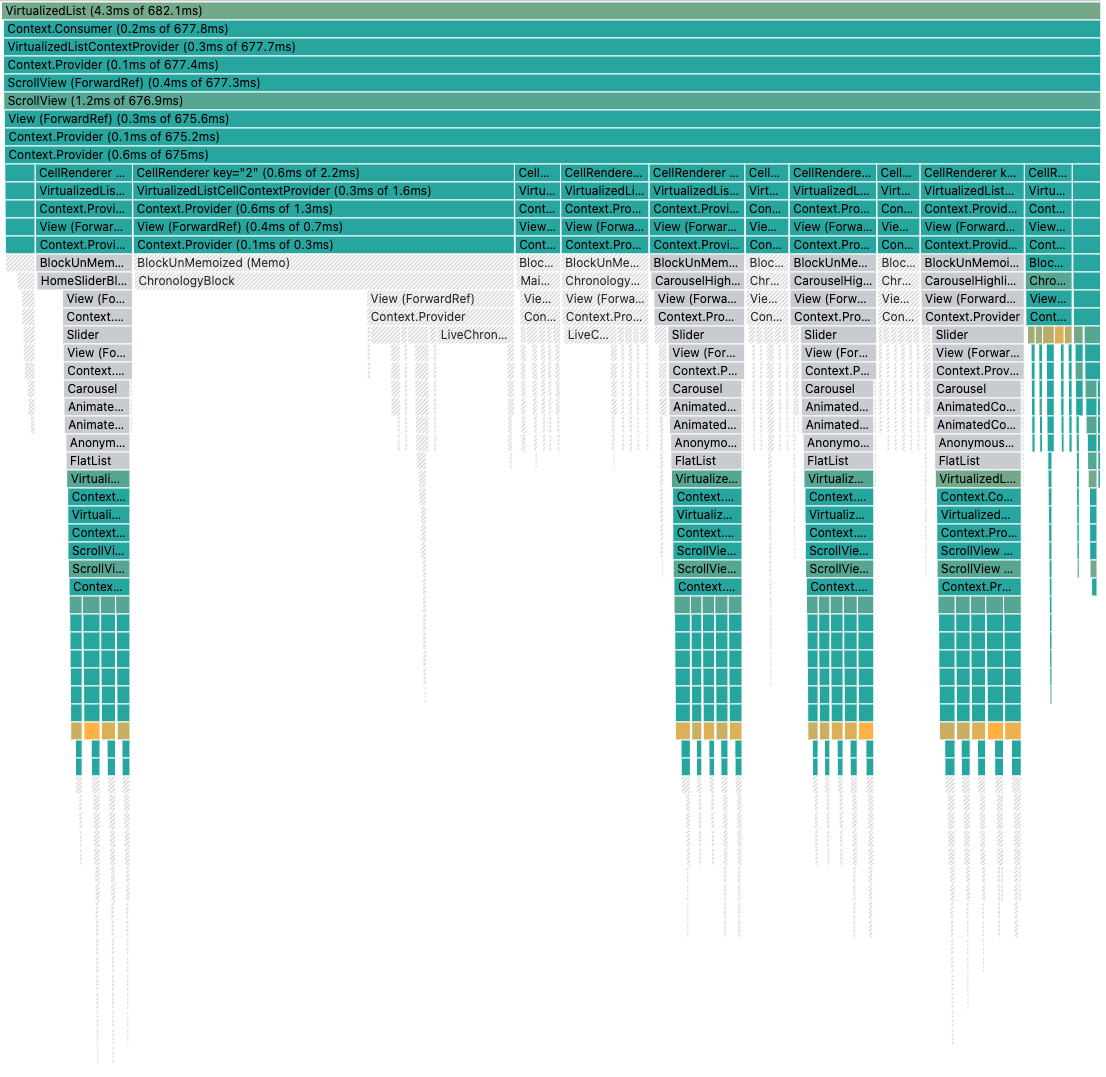

ITERATION 4
A non-intuitive fix? 🤔

Text

FlatList code

Memoized Slide

react-native-
snap-carousel

Nesting virtualized lists is TRICKY

YES

Can we avoid it? 🤔

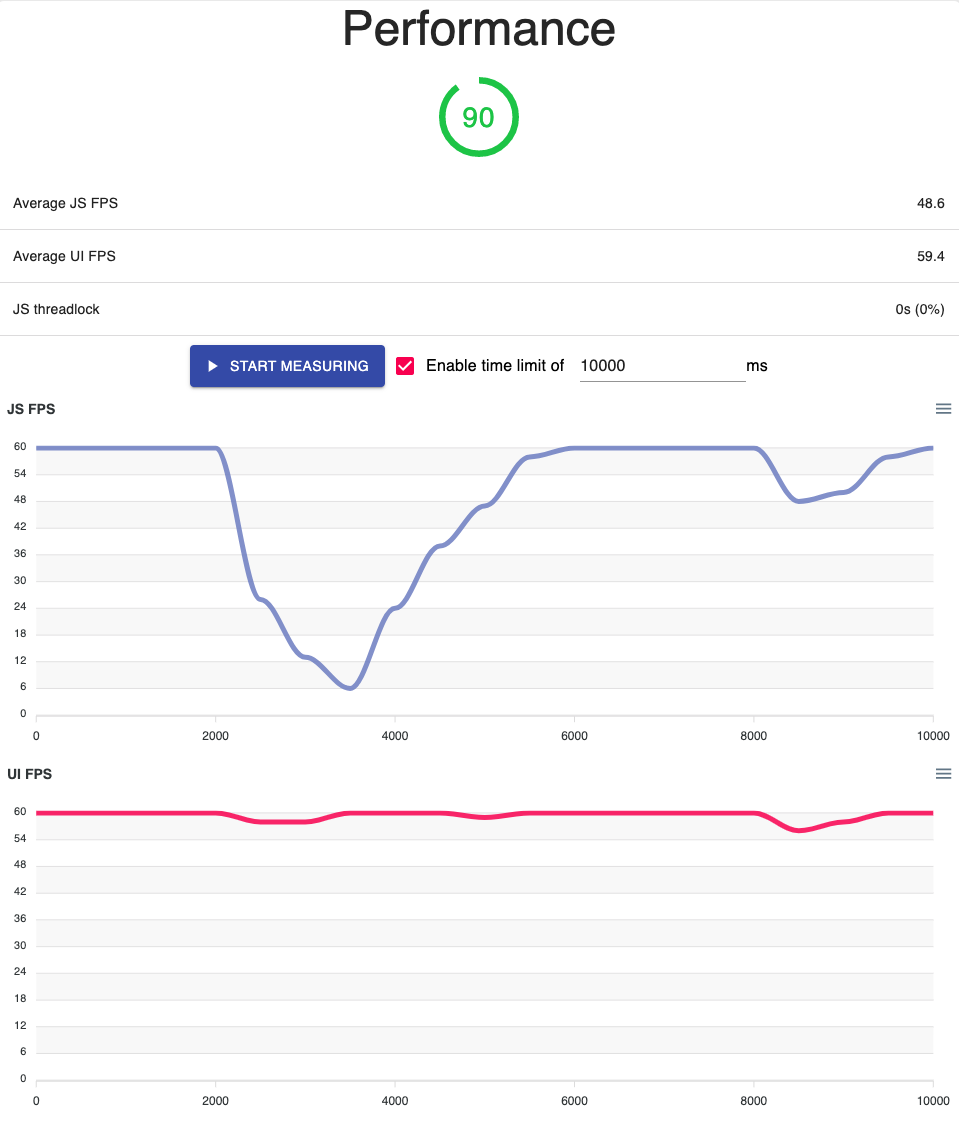

  • Score average: 90/100 🥳

  • JS threadlock: NONE ✅

  • UI thread: ~60 ✅

Measure your apps performance

Measure your apps performance

  • Take a low end Android device

  • Find areas with 0 JS FPS / < 60 UI FPS

  • Analyze and fix them

  • Check your score improvement 🥳

What's next?

  • Automate measures

  • Add new metrics (TTI, ...)

  • Measure production apps

  • Hopefully Lighthouse for mobile apps 🤞

Thank you!

:

)

@almouro

almouro

Plugin: react-native-flipper-performance-monitor
